G'day all.


I'm looking for information, details and profile drawings of the Brazilian Tectran 6×6 armoured all-terrain 10-ton trucks. I've read, but can't confirm that the Tectran 6×6 truck is based on a Mercedes-Benz 2028 truck chassis.
I'm only able to find the Tectran 6x6 truck design associated with the ASTROS II (Artillery Saturation Rocket System) system. I find the notion of this truck design from the 1980's being armoured interesting, as this type of light armoured protection seems to be a revisited trend in the 2000's.

I noticed in my research that there's a resupply variant of the TECTRAN truck coined the AV-RDM. I'm wondering if the company that manufacture the Tectran 6×6 offer a stand alone armoured transport/logistics truck derivative of the Tectran 6×6?


Regards
Pioneer


Attachments

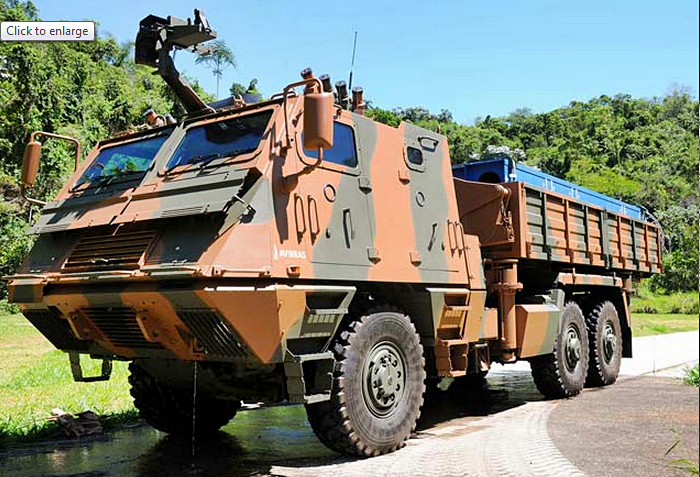

  • TECTRAN AV-RDM transloaders (2).png
    TECTRAN AV-RDM transloaders (2).png
    622.2 KB · Views: 14

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,488
... I've read, but can't confirm that the Tectran 6×6 truck is based on a Mercedes-Benz 2028 truck chassis...

Although Avibrás - the makers of Tectran trucks - have in the past used Mercedes (especially Unimog), Renault, and Iveco components, the Astros II has no connection with the Mercedes-Benz 2028. Instead the Astros II is based on a Tatra T 515-7 6x6 chassis. (BTW, the Tectran name now seems to have been dropped in favour of Avibrás Astros.)

The Tatra T 515 Titan series is more often seen as an 8x8 (eg: T-515-7M0RC1.371 8x8.1R) and seemingly always powered by a Cummins ISM. So, the first bit of weirdness is the Astros II's 408 bhp diesel (presumably a Paccar MX300 6-cyl. diesel as per Tatra's Phoenix COTS T 158 6x6).

The next oddity may be the result of sloppy journalism. Lexicar Brasil present a photo of a "Chassi Tatra T-515/7 6x6." The exact same image appears in Tatra brochures to illustrate the more powerful T 815-790R39 29 300 6x6.1R. So, the puzzle is: If the Astros II is on a T 515 chassis, why did Avibrás choose to go with a less powerful engine?


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,108
Reaction score
647
Thank you for your time and effort Apophenia!!
One would think my research some what easier now that you've kindly identified "Avibrás - the makers of Tectran trucks"

It's funny that you mention the use of the Tatra T 515-7 6x6 chassis, as being the basis of the Tectran, because I was just wondering how much more mobile the Astros II system would be on the renowned Tatra 815 8x8 series.

Regards
Pioneer


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,488
... I was just wondering how much more mobile the Astros II system would be on the renowned Tatra 815 8x8 series...

The Avibrás Astros III launcher (AST-L) and resupply (AST-R) vehicles are 8x8s. But, instead of using the T 815-790R99 38 300 8x8.1R chassis, Avibrás Aeroespacial shifted to the Mercedes-Benz Arocs. I can only assume that this reflects potential export customer preferences?

BTW, each Astros III battery also has a range of support vehicles based on Avibrás' 4x4 AV-VBL.
