Douglas DC-8 Skybus

agricola64

ACCESS: Confidential
Joined
Jul 11, 2006
Messages
85
Reaction score
2
hesham said:
Hi,

The Original DC-8 design from;
http://rides.webshots.com/photo/1512961648048918155wQlQmW

is it just me or do i see a lot of mixmaster (xb-42) genes in there .. ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

DC-8 from 1945.
http://www.flightglobal.com/pdfarchive/view/1945/1945%20-%202179.html


Attachments

  • DC-8.JPG
    45.8 KB · Views: 1,176

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
870

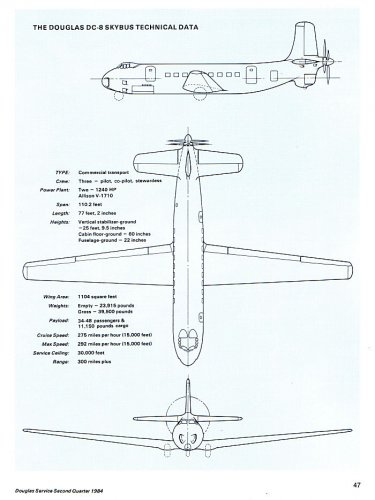

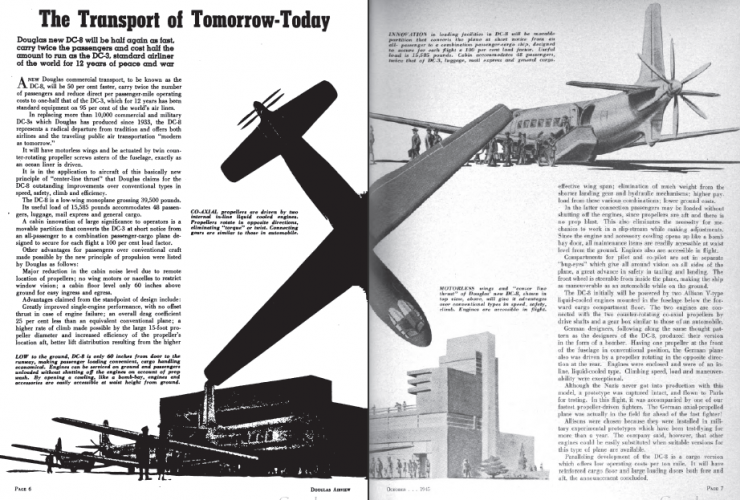

Impressive article on *first* Douglas DC-8 Skybus from Douglas Service, Second quarter 1984, at Jeff Cox website
http://www.dc-8jet.com/0-dc8-skybus.htm


Attachments

  • skybus6.jpg
    104 KB · Views: 1,207

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Woah, and Jeff Cox has a couple of interesting models of well known projects... see the DC-9 Models collection.


fredgell

ACCESS: Confidential
Joined
Jun 10, 2007
Messages
75
Reaction score
1

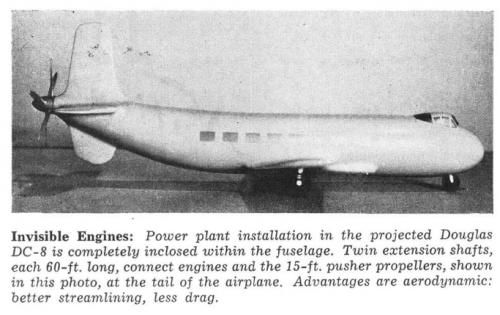

And a picture of a model at

http://blog.modernmechanix.com/2009/02/11/tail-props-3-wheel-car/

(couldn't see this link posted anywhere else...)

regards

Fred


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
Artist's impressions of Douglas DC-8 Skybus in 1946.

Aside from the re-engined DC-7D shown previously, Douglas proposed this interesting idea for its DC-8 back in 1946. The unusual aircraft was powered by two engines arranged in tandem turning contra-rotating pusher propellers. The DC-8 airliner enthusiasts have come to love is, of course, a vastly different design. Source: Waddington, Terry Douglas DC-8 (Miami, FL: World Transport Press), 1996, p. 8.
http://rides.webshots.com/photo/1512961648048918155wQlQmW


Attachments

  • DC-8Skybus.jpg
    97 KB · Views: 960

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,820
Reaction score
266
Wow, thanks for this thread. I don't know how I missed it the first time. I've been looking for pics of this and the cockpit of the XB-42 for years. I actually found some pics of the XB-42 interior in a back issue of AAHS. Thanks for such an awesome find, even it is belated on my part.

J

joncarrfarrelly

Guest

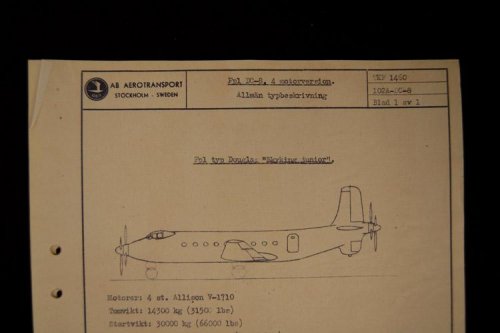

Just received this link to an AB Aerotransport document for sale in Sweden showing a four-engined DC-8 "Skyking Junior",
contra-props at front and rear.

http://www.tradera.com/Douglas-DC-8-Skyking-Junior-typbeskrivning-ABA-1946--auktion_1814_109244672#pic

Jon


Attachments

  • DC-8_SKYKINGJR_01.jpg
    29.6 KB · Views: 996

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
:eek: :eek: :eek: :eek:

Quite a find, this! Makes me wonder though... why would Douglas call this the Skyking Junior unless there was a plain Skyking aircraft somewhere in the picture? Was the Skybus supposed to become the Skyking in production form?


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
joncarrfarrelly said:
Just received this link to an AB Aerotransport document for sale in Sweden showing a four-engined DC-8 "Skyking Junior",
contra-props at front and rear.

http://www.tradera.com/Douglas-DC-8-Skyking-Junior-typbeskrivning-ABA-1946--auktion_1814_109244672#pic

Jon

Yes, 4 Allison Y-1710, 603 km/h as speed , range of 5800 km .

i don't know how many passengers was projected to carry ! ???

So there are a "little difference " with Douglas Dc-8 of 1957

http://it.wikipedia.org/wiki/Douglas_DC-8 ;D
I have seen that original proposal of DC-8 Skybus was two Allison V-1710
http://www.dc-8jet.com/0-dc8-skybus.htm


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Greetings All -

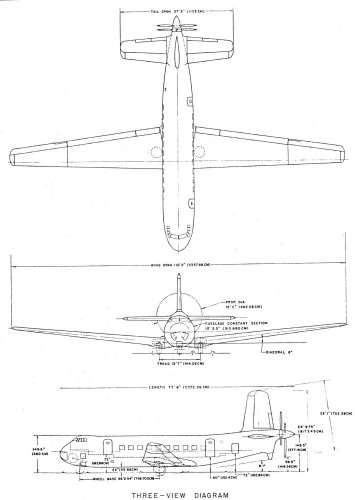

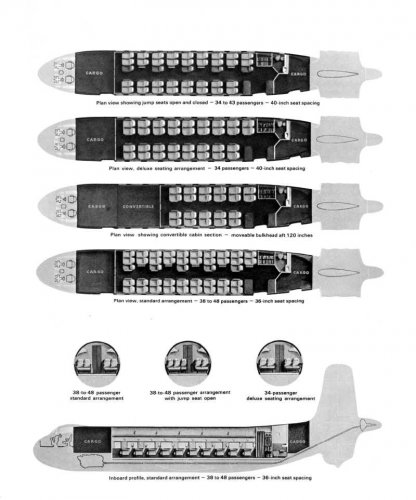

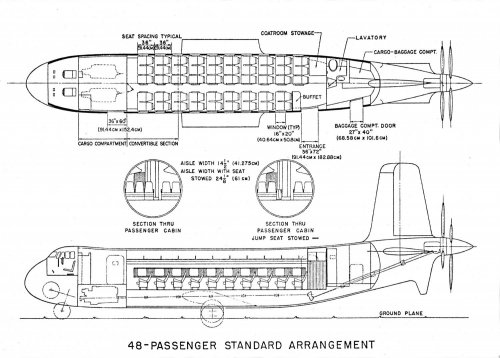

A nice find in the Gerald Balzer Collection, a couple of drawings of the Skybus.

Enjoy the Day! Mark


Attachments

  • xDouglas DC-8 Skybus 3V.jpg
    xDouglas DC-8 Skybus 3V.jpg
    113.7 KB · Views: 168
  • xDougtlas DC-8 Skybus 48 Passenger Std Arrangement.jpg
    xDougtlas DC-8 Skybus 48 Passenger Std Arrangement.jpg
    196.1 KB · Views: 185

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
647
Reaction score
263

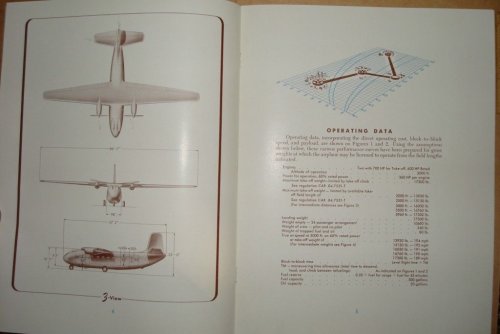

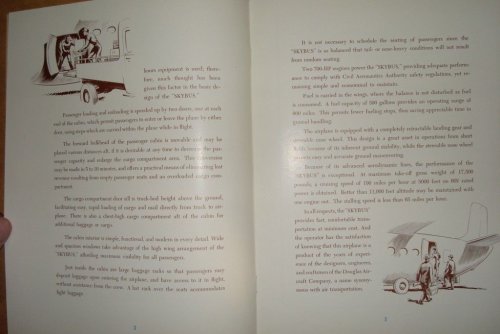

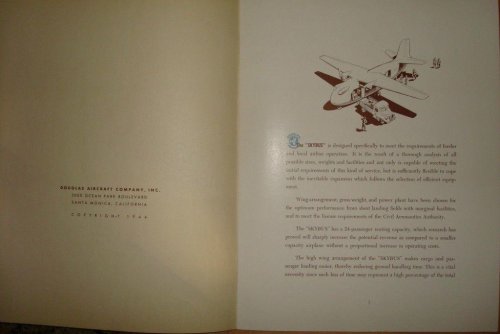

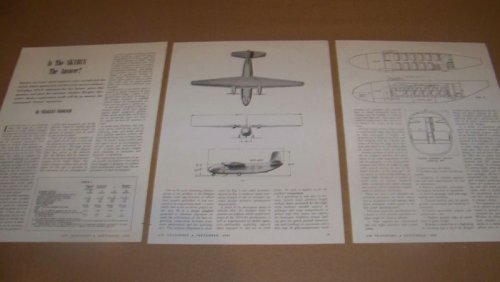

Earlier skybus configuration, dated 1944. This is one of many auctions jmnjohn is currently holding.


Attachments

  • $(KGrHqIOKpMFGUejiKcvBRrW01epr!~~60_57.jpg
    67.5 KB · Views: 138
  • $T2eC16dHJG8E9nyfpnP-BRrW0utz)w~~60_57.jpg
    93.3 KB · Views: 77
  • $T2eC16FHJGIFFoZMuyFrBRrW0qroqg~~60_57.jpg
    61.2 KB · Views: 100
  • $(KGrHqJHJFMFGNg9VPm4BRrW0n0yZg~~60_57.JPG
    73.7 KB · Views: 98

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Splendid! Thanks for sharing.


This particular design was an answer to the ATA-A1 and ATA-B1 Aircraft Specifications, prepared by the ATA Committee on Aircraft Requirements and issued by the Air Transport Association of America, Inc., Washington, D. C. These specs were said to have been "drawn from past airline operating experience, in an effort to furnish the air traveler with improved service at lower cost."


Source: http://www.ebooksread.com/authors-eng/charles-froesch/airport-planning-hci/page-3-airport-planning-hci.shtml


Attachments

  • 'Skybus'.jpg
    77.1 KB · Views: 90

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,360
Reaction score
3,391

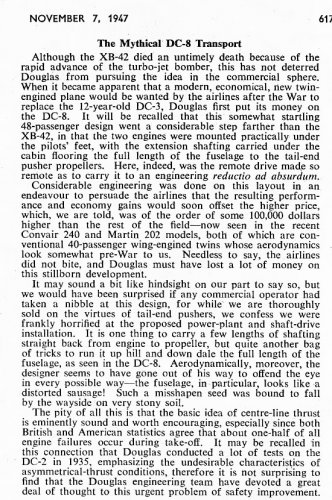

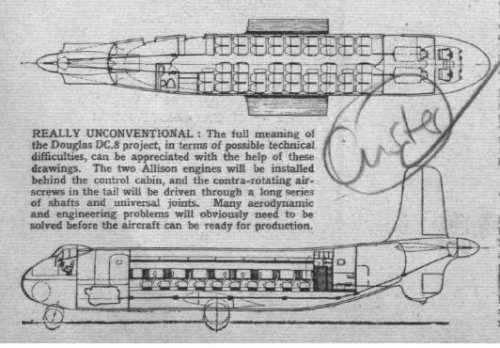

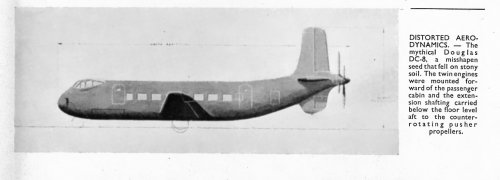

Another airliner study from a 1947 issue of Aeroplane to go on the forum, if you do not already have it.


A Mythical DC-8.


Tony Buttler


Again, scans edited by me.


Attachments

  • Aeroplane Nov 7, 1947. DC-8 Pusher (1) ed.jpg
    Aeroplane Nov 7, 1947. DC-8 Pusher (1) ed.jpg
    62.4 KB · Views: 625
  • Aeroplane Nov 7, 1947. DC-8 Pusher (2) ed.jpg
    Aeroplane Nov 7, 1947. DC-8 Pusher (2) ed.jpg
    219.4 KB · Views: 610

visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
110
Reaction score
25
Hi all,
the Douglas Model 1004 was a project for a passenger aircraft derived from the XB-42 Mixmaster. Same powerplant and drivetrain (2 Allison V-1710 driving 2 contraprops mounted in the tail) and cabin for about 45 passengers.


Attachments

  • D-1004.jpg
    38.7 KB · Views: 530

visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
110
Reaction score
25
I realized now that the topic is already on the forum as "DC-8 Skybus".
Sorry, can't find the way to delete my post... :(


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,463
Reaction score
194
No problem, topics merged


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479

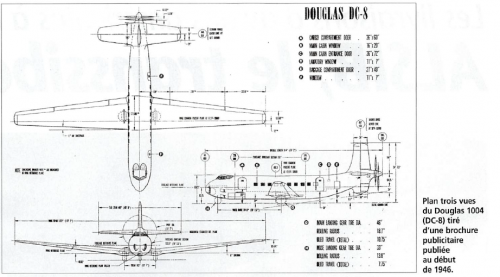

From Le Fana 454.


Attachments

  • 1.png
    455.5 KB · Views: 295
  • 2.png
    371.4 KB · Views: 310

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479

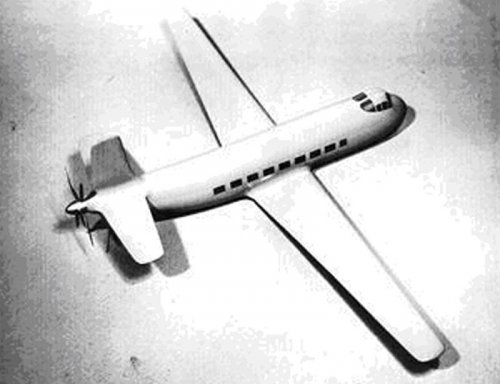

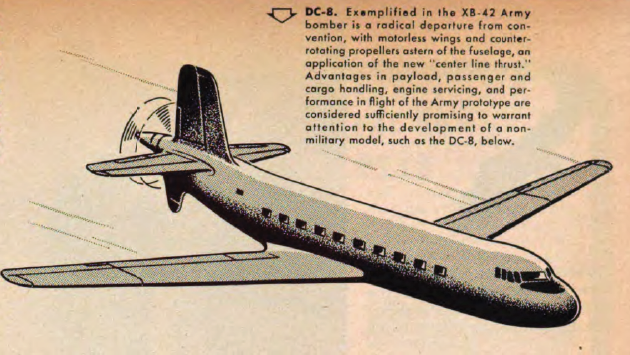

A clearer view to its Model;

http://archive.aviationweek.com/search?exactphrase=true&QueryTerm=+project+airplane&start=200&rows=20&DocType=Image&Sort=&SortOrder=&startdate=1916-08-01&enddate=2018-09-03&LastViewIssueKey=&LastViewPage=


Attachments

  • 1.png
    286 KB · Views: 72

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479

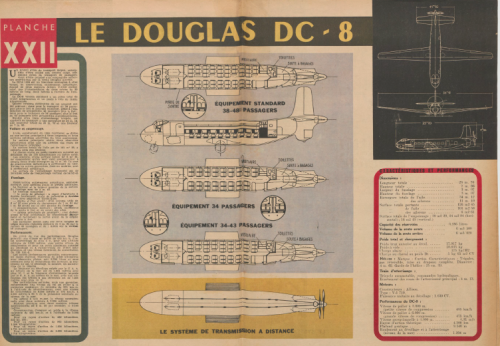

From Decollage 8/1946.


Attachments

  • 1.png
    806.2 KB · Views: 54
  • 2.png
    772.9 KB · Views: 76
