DC-10 Projects and Variants

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
169

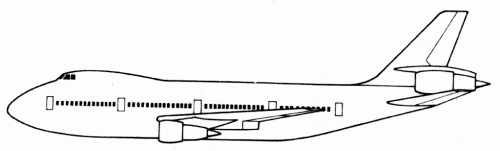

According to Vaclav Němeček in his book “Civilní letadla 2” the drawing gives an impression of a DC-10 variant, but he didn’t mention a D-… number. Is anyone able to supplement the designation?


Attachments

  • Douglas DC-10 -Variante.GIF
    Douglas DC-10 -Variante.GIF
    42.2 KB · Views: 1,310

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
890
Reaction score
73
boxkite said:
According to Vaclav Němeček in his book “Civilní letadla 2” the drawing gives an impression of a DC-10 variant, but he didn’t mention a D-… number. Is anyone able to supplement the designation?

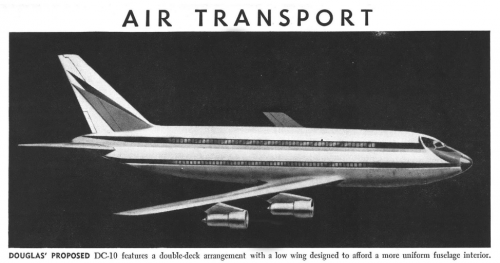

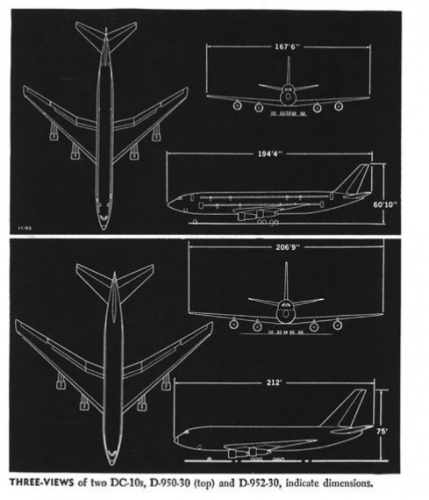

Douglas did plan on a twin jet with a short 747 style upper deck before the later tri-jet DC-10.

The original concept looked very much like this one, although the rear engine placement looks a bit "imaginative."


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
TinWing said:
The original concept looked very much like this one, although the rear engine placement looks a bit "imaginative."

No, that's an actual McD design. A number of the early DC-10 trijet concepts had the aft engine "bisected" by the vertical fin.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,198
Nevertheless the position of the third engine looks really weird ! I could
understand, if the fin would be on the center line in front of the engine,
but here it looks exacltly, as the engine is offset to the left, because it
covers the upper part of the tail, too. Judging from this profile, I would have
thought it to be a 4 engined aircraft, not a 3 engined . ???


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
91
Dear Boxkite,

It is the DC-10-3 variant in the D-967 family.
A four engined variant DC-10-4 was to become the D-968.

Sources : Airlife's Airliners :4 Mc Donnell- Douglas DC-10 - Günter Endress 1998
: Great Airliners Vol.6 Mc Donnell -Douglas DC-10 - Terry Waddington 2000


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
169
Gentlemen,

Thank you very much for your help :).


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
Jemiba said:
Nevertheless the position of the third engine looks really weird ! I could
understand, if the fin would be on the center line in front of the engine,
but here it looks exacltly, as the engine is offset to the left...

Nope. Three-engined. I suspect they discovered with wind tunnel testing that any sideslip angle, as happens often enough on landing in a crosswind, would have played hell with inlet performance. The purpose in having the fin right smack in the middle of the engine was so that the vertical stabilizer would be strong and light, with the main spar not having to route around the engine. But performance would have been dodgy at times.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,198

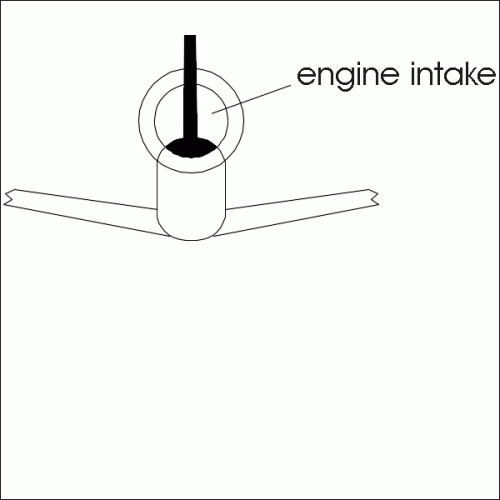

Yeah, it's a 3-engined aircraft, I believe that. But I can't understand, why
the engine was partially buried in the tail, reducing the intake area quite
considerably and not just put atop of the tail, as in the later DC-10.


Attachments

  • section.GIF
    9.9 KB · Views: 1,120

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
Jemiba said:
But I can't understand, why
the engine was partially buried in the tail, reducing the intake area quite
considerably and not just put atop of the tail, as in the later DC-10.

The engine on the DC-10 isn't "atop" the tail, but at the very base of the tail. This means that the structural supports for the vertical stabilizer have to bend *around* the engine and the inlet. This makes them substantially heavier than if they were straight. So McD traded off extra weight for better overall engine performance.

Also keep in mind, in the early days the performance differences were an unknown. As it currently is, the tail engineon the DC-10 has a very long inlet; long inlets lead to a lot of losses through drag. A short inlet, but with a vertical fin in the way, would perform much better under several situations than a long inlet. In short, the early design would ahve weighed less and had better engineperformance in *some* flight conditions, worse engine performance under others.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
169

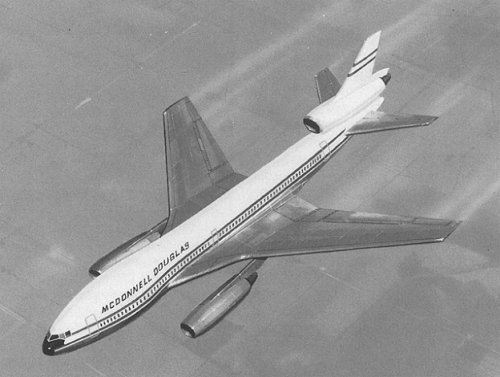

To stay at the topic here is another DC-10 derivative.

"A more extreme proposal for a DC-10 derivative with an area ruled fuselage, long-chord engine nacelles and a new wing. This was one of many ideas formulated to answer the threat posed by the Boeing 747SP which was eating away at the top end of the DC-10 market."

SOURCE: "McDonnell Douglas MD-11" (Modern Civil Aircraft: 12) by Marriott (pg 17)

As usual, I'm looking for a design number ...


Attachments

  • MDD (DC-10-Weiterentwicklung).jpg
    MDD (DC-10-Weiterentwicklung).jpg
    198.7 KB · Views: 1,390

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,083
Reaction score
387
An interesting image recently surfaced on airliners.net, a Continental Airlines DC-10-10 with winglets! No, not a MD-11 :D

http://www.airliners.net/photo/Continental-Airlines/McDonnell-Douglas-DC-10-10/1742430/L/

It was however connected to the MD-11 in that it was a test vehicle for that programme:

http://md-eleven.net/MD11-History-Developement


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

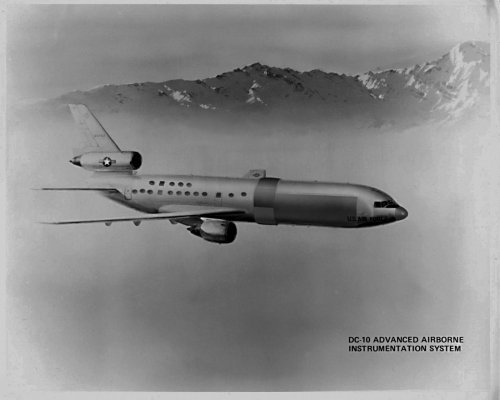

McDonnell Douglas DC-10 Advanced Airborne Instrumentation System (AAIS).


Attachments

  • MDC DC-10 AAIS.jpg
    MDC DC-10 AAIS.jpg
    142.1 KB · Views: 849

Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
952
Reaction score
385
A copy of that photo is on eBay with this description:

Douglas US Air Force DC-10 Advanced Airborne Instrumentation System. This configuration was created and marketed to the Japanese as a down range tracking aircraft in the late 1970's.

...
Official Original Douglas Aircraft Company Photo


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
171

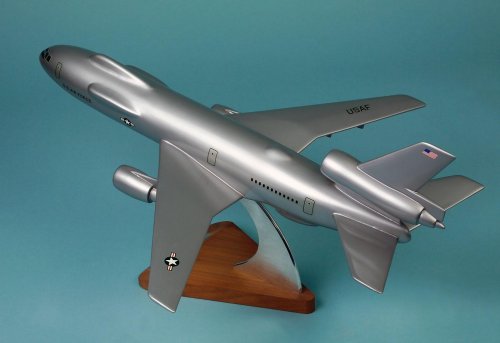

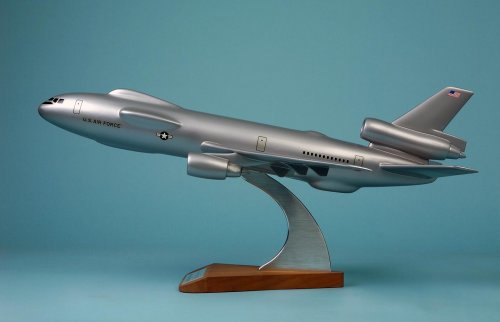

Factory proposal model of the McDonnell Douglas EC-10, the most popular of several ELINT platform proposals based on the DC-10 Series 10 airframe. There is a factory artist's rendering of this particular design in Terry Waddington's excellent book about the DC-10.

The MDC EC-10 was never built, although the concept of a large electronic warfare and intel platform was later revived as the even larger MDC EC-17, also never built.


Attachments

  • MDC EC-10 03sml.jpg
    MDC EC-10 03sml.jpg
    76 KB · Views: 971
  • MDC EC-10 02sml.jpg
    MDC EC-10 02sml.jpg
    68.6 KB · Views: 1,019

Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
15
New to me that MDC proposed tanker conversions to the RAF in 1982:

McDonnell Douglas is offering to convert three DC-10-30CFs from World Airways and one DC-10-30F from Korean Air Lines.

The company points out that the KC-10 has proved the concept of the DC-10 as a tanker, and that the RAF would then enjoy some degree of equipment commonality with the US Air Force.

http://www.flightglobal.com/pdfarchive/view/1982/1982%20-%202699.html


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
Hi all

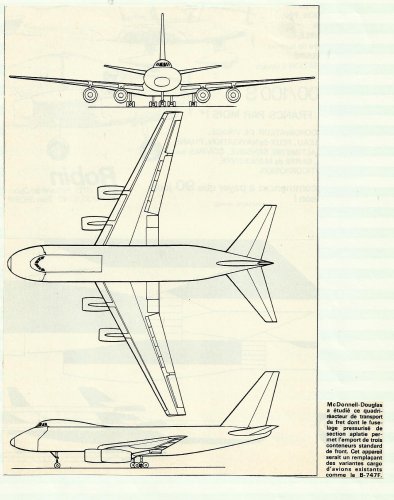

From an old "aviation magazine"
no more detail !
what is this one ?


Attachments

  • test.jpg
    226 KB · Views: 714

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,605
Reaction score
4,562
My dear Toura,

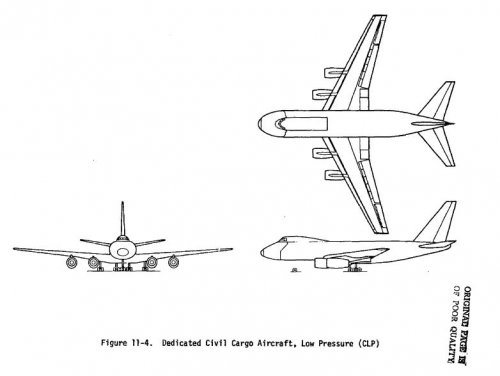

it was called MD CLP as I know,but if it was related to DC-10 or not,I can't tell.


Attachments

  • CLP.JPG
    34.8 KB · Views: 660

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
Thank you Hasan, I know its name
Wait and see.......................


Spook

ACCESS: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
12
circle-5 said:
Factory proposal model of the McDonnell Douglas EC-10, the most popular of several ELINT platform proposals based on the DC-10 Series 10 airframe.

Would you be kind enough to give more information regarding the time-frame of this proposal? and was it for any specific requirements or just a simple proposal from Boeing?! Thanks!


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
690
Hi All -

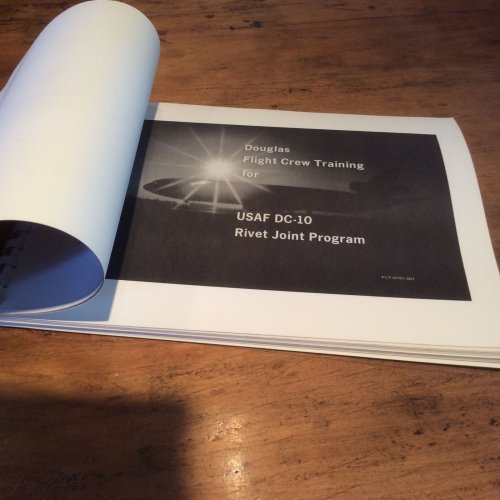

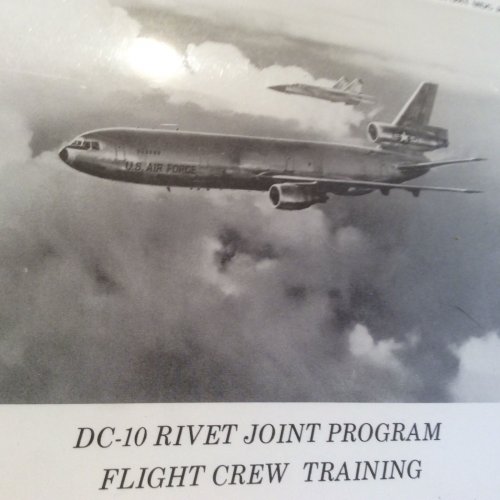

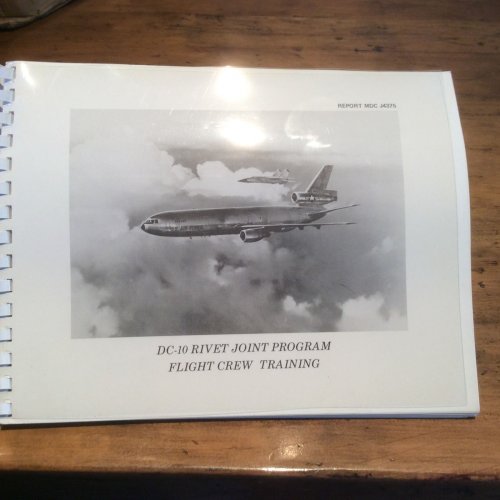

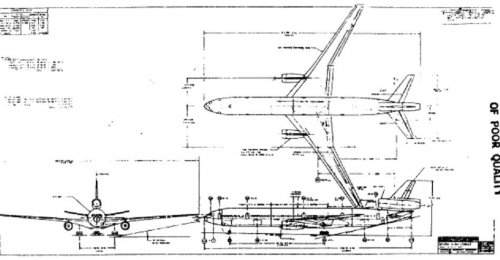

Interesting item on EPay - a manual for a proposed DC-10 Rivet Joint Program:

http://www.ebay.com/itm/VINTAGE-DOUGLAS-MANUAL-DC-10-RIVET-JOINT-PROGRAM-FLIGHT-CREW-TRAINING-MANUAL-/161689917824?hash=item25a5785980

Enjoy the Day! Mark


Attachments

  • DC-10 Rivet Joint Manual - 3.JPG
    DC-10 Rivet Joint Manual - 3.JPG
    229.8 KB · Views: 151
  • DC-10 Rivet Joint Manual - 2.JPG
    DC-10 Rivet Joint Manual - 2.JPG
    214 KB · Views: 154
  • DC-10 Rivet Joint Manual - 1.JPG
    DC-10 Rivet Joint Manual - 1.JPG
    187.3 KB · Views: 392

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
690
Good Day All -

A recent donation to our Museum included a number of manufacturer's proposal brochures to United Air Lines, thankfully saved from the dumpster by the donor when he was at the UAL Library doing some research.

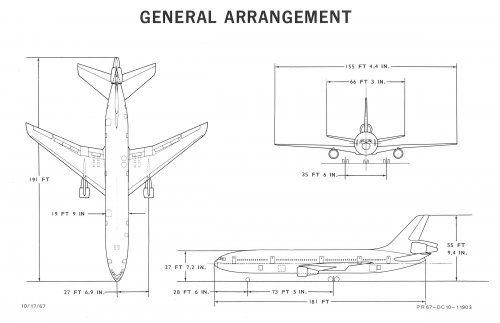

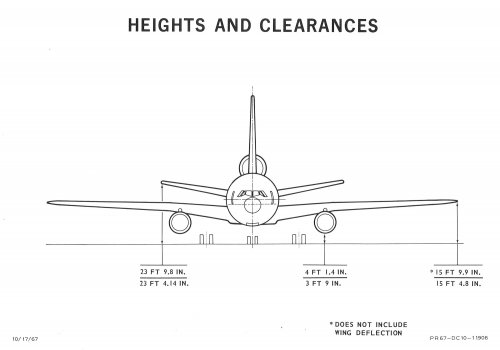

This Douglas DC-10B Airport Compatibility brochure, dated October 18, 1967, had the following drawings that are worth sharing in this thread.

Enjoy the Day! Mark


Attachments

  • DC-10B DAC-33993 Oct-18-67 - Heights & Clearances Front View.jpg
    DC-10B DAC-33993 Oct-18-67 - Heights & Clearances Front View.jpg
    134.1 KB · Views: 107

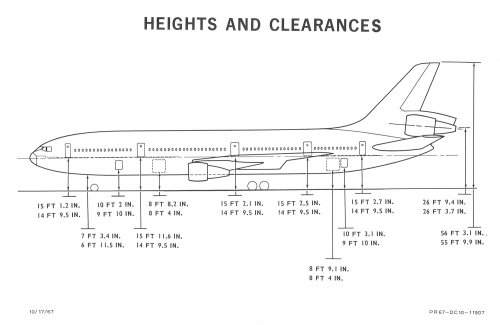

  • DC-10B DAC-33993 Oct-18-67 - Heights & Clearances Side View.jpg
    DC-10B DAC-33993 Oct-18-67 - Heights & Clearances Side View.jpg
    165 KB · Views: 102

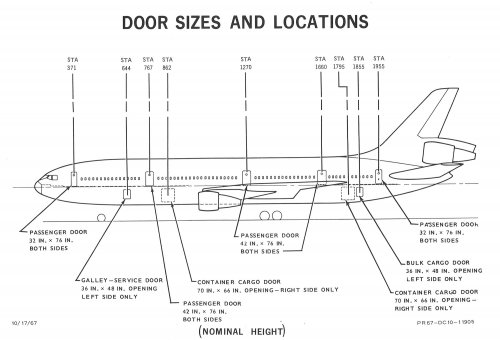

  • DC-10B DAC-33993 Oct-18-67 - Door Sizes and Locations.jpg
    DC-10B DAC-33993 Oct-18-67 - Door Sizes and Locations.jpg
    218.8 KB · Views: 125
  • DC-10B DAC-33993 Oct-18-67 - General Arrangement.jpg
    DC-10B DAC-33993 Oct-18-67 - General Arrangement.jpg
    215 KB · Views: 158

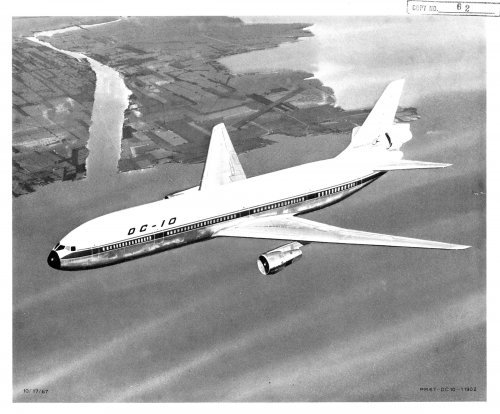

  • DC-10B DAC-33993 Oct-18-67 - Artwork 300dpi.jpg
    DC-10B DAC-33993 Oct-18-67 - Artwork 300dpi.jpg
    769.8 KB · Views: 159

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
690
Good Day All -

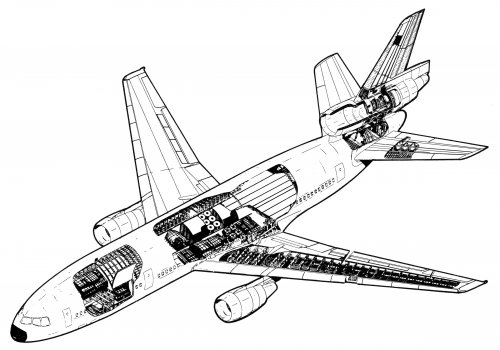

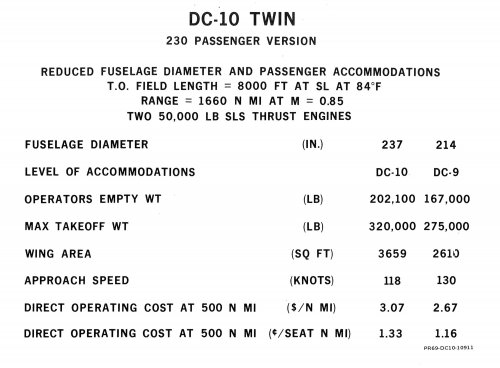

A DC-10 Presentation to United Air Lines Brochure dated February 19, 1969 had the following drawings and data in the presentation. Interesting to see the C-2, C-4 and C-6 included in the presentation which implies some relation to the DC-10.

Enjoy the Day! Mark


Attachments

  • DC-10 Freighter Cutaway 300dpi.jpg
    DC-10 Freighter Cutaway 300dpi.jpg
    432.2 KB · Views: 155

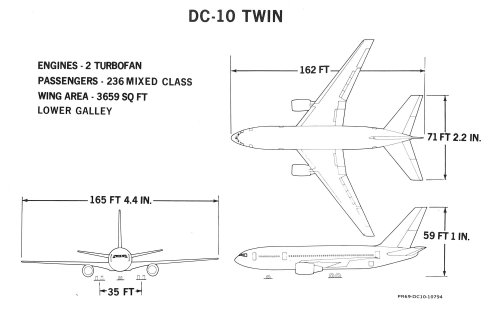

  • DC-10 Twin 3-View.jpg
    DC-10 Twin 3-View.jpg
    161.7 KB · Views: 129
  • DC-10 Twin 230 Passenger Version Information.jpg
    DC-10 Twin 230 Passenger Version Information.jpg
    234.4 KB · Views: 116

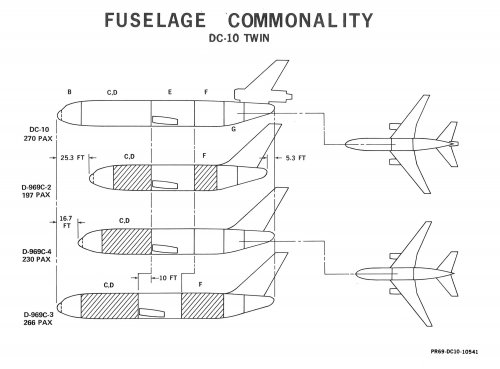

  • DC-10 Twin Fuselage Commonality.jpg
    DC-10 Twin Fuselage Commonality.jpg
    206.3 KB · Views: 111

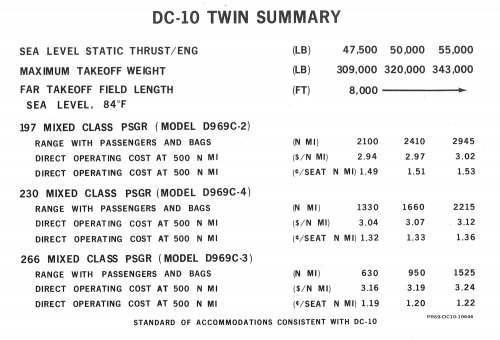

  • DC-10 Twin Summary.jpg
    DC-10 Twin Summary.jpg
    276.5 KB · Views: 96

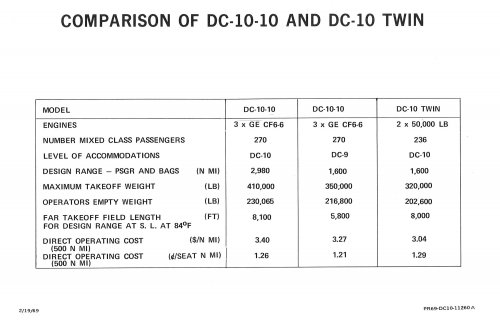

  • DC-10-10 and DC-10 Twin Comparison.jpg
    DC-10-10 and DC-10 Twin Comparison.jpg
    199.5 KB · Views: 140

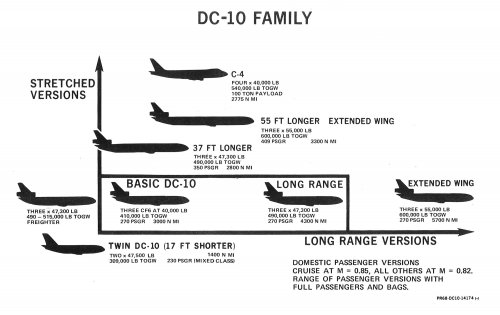

  • DC-10 Family.jpg
    DC-10 Family.jpg
    222.2 KB · Views: 167

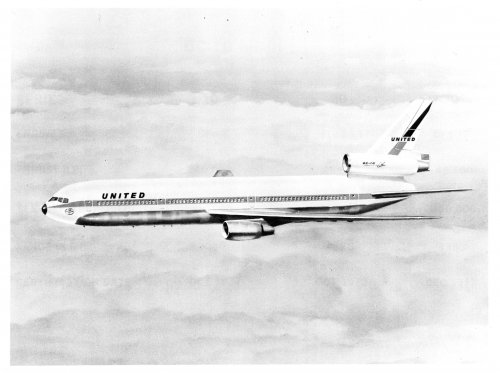

  • DC-10 Artwork.jpg
    DC-10 Artwork.jpg
    704.7 KB · Views: 122

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
690

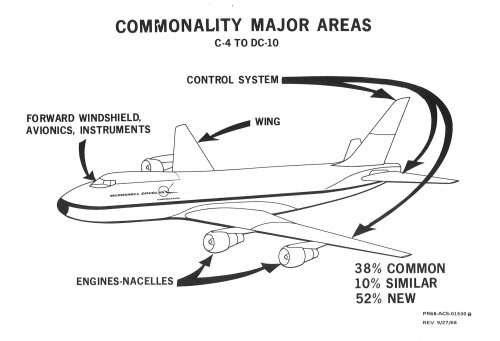

And the C-2, C-4 and C-6 design proposals....

Enjoy the Day! Mark


Attachments

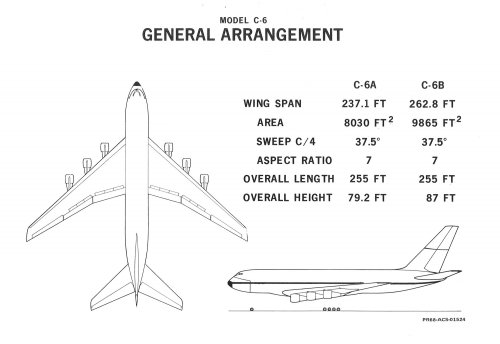

  • Model C-6 General Arrangement.jpg
    Model C-6 General Arrangement.jpg
    177.9 KB · Views: 167
  • C-4 to DC-10 Commonality Major Areas.jpg
    C-4 to DC-10 Commonality Major Areas.jpg
    195.8 KB · Views: 125

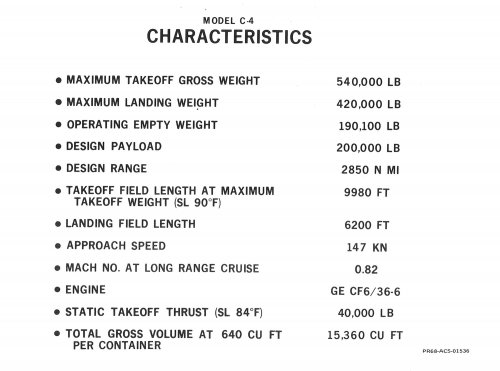

  • Model C-4 Characteristics.jpg
    Model C-4 Characteristics.jpg
    214.5 KB · Views: 125

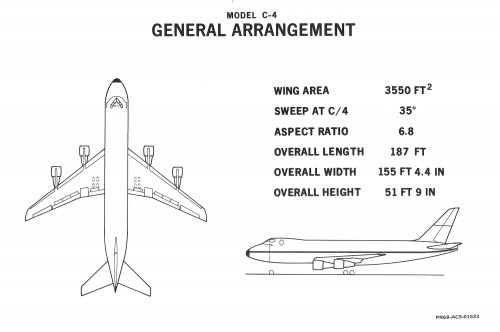

  • Model C-4 General Arrangement.jpg
    Model C-4 General Arrangement.jpg
    163 KB · Views: 149

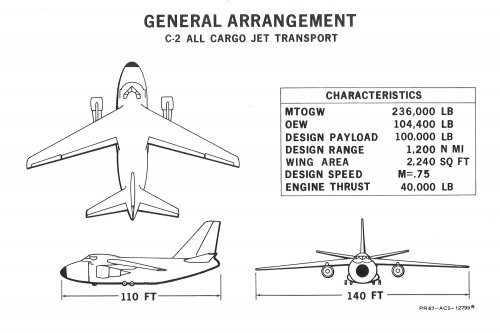

  • Model C-2 General Arrangement.jpg
    Model C-2 General Arrangement.jpg
    202.7 KB · Views: 143

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
690
Here you go.... Mark


Attachments

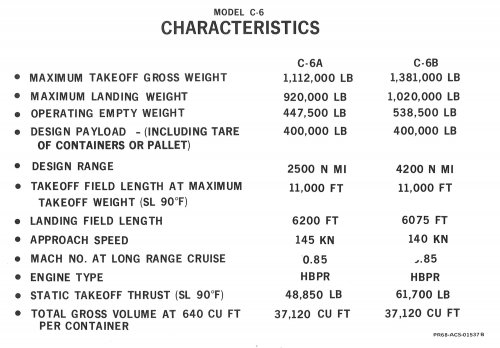

  • Model C-6 Characteristics.jpg
    Model C-6 Characteristics.jpg
    258.5 KB · Views: 662

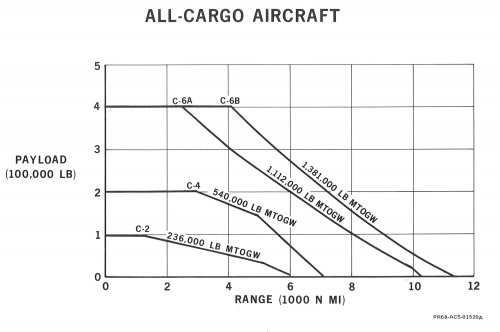

  • Models C-2 C-4 C-6 Payload-Range Chart .jpg
    Models C-2 C-4 C-6 Payload-Range Chart .jpg
    178.3 KB · Views: 641

RavenOne

ACCESS: Secret
Joined
Jun 18, 2008
Messages
396
Reaction score
555
Air Force One by Robert F Dorr, just came in the mail to me :) and he talks about how the DC-10 airframe was considered as replacement airframe for the VC-137 back in the late 70s,

cheers



SAustin16

Bravo to All Brave Test Pilots
Joined
Jan 13, 2008
Messages
132
Reaction score
7

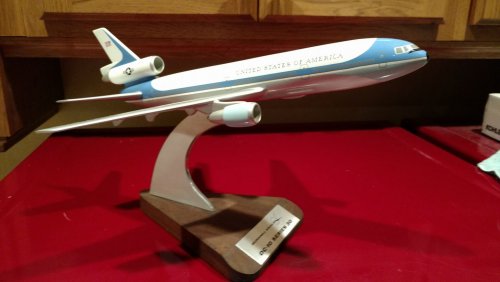

The beautiful 1/32 scale DC-10 Air Force One cut-away display model was on display just down the aisle from my office at McD/Boeing Long Beach in 1999. It was still in excellent shape at that time. I always enjoyed studying it when I got the chance. The DC-10's limited internal dimensions and capacity made it easy to see why the 747 was chosen for Air Force One. I hope it's still in one piece somewhere at Boeing.


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
151
Posted to YouTube by Periscope Films, "The Ten Takes Flight" (circa ~1970), a McDonnell Douglas film about the first flight of the DC-10 and its development and design.
Periscope Films - THE DC-10 TAKES FLIGHT MCDONNELL DOUGLAS CORPORATION PROMOTIONAL FILM 85114


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
749
Website
deeptowild.blogspot.com
Model of McDonnell Douglas DC-10 Series 30 modified for presidential transport found on Facebook.


Attachments

  • McDonnell Douglas Air Force One.jpg
    McDonnell Douglas Air Force One.jpg
    95.1 KB · Views: 183

pegasus

I really should change my personal text
Joined
Mar 23, 2019
Messages
303
Reaction score
169
one of my favorite 1970s aircraft, me and my brother used to go to the airport in Mexico City to see it

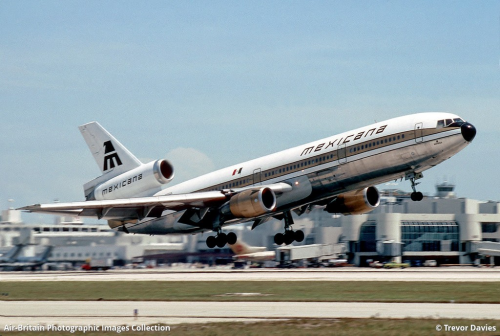

615846

To be honest I like it as it turned to be, the L-1011 also was and is one of my favorites but it is nice to see all its potential configurations


FXXII

I really should change my personal text
Joined
Sep 3, 2018
Messages
46
Reaction score
16
With respect to the 3 engined version, with the nr 2 engine bisected by the vertical tail, I wonder if Douglas took into account the effect of a lateral gust. The vertical tailplane would in that case act as screen for the leeside of the intake, allowing much less air into the engine on the lee-side. That would result in a loss of power, or even an engine stall. The existing configuration with somwhat more drag would then be prefeable, I would think.


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,096
Reaction score
1,417
Website
galgot.com
one of my favorite 1970s aircraft, me and my brother used to go to the airport in Mexico City to see it

View attachment 615846

To be honest I like it as it turned to be, the L-1011 also was and is one of my favorites but it is nice to see all its potential configurations

I flew lots times on the UTA ones when was a kid.
Even managed to get one big agency model back then . Alas lost now...
Beautiful plane.


GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
728
Reaction score
80
My very first commercial airplane flight was on an AA DC-10, JFK to LAX. This was in the brief, wondrous period when coach was eight across.


pegasus

I really should change my personal text
Joined
Mar 23, 2019
Messages
303
Reaction score
169
one of my favorite 1970s aircraft, me and my brother used to go to the airport in Mexico City to see it

View attachment 615846

To be honest I like it as it turned to be, the L-1011 also was and is one of my favorites but it is nice to see all its potential configurations

I flew lots times on the UTA ones when was a kid.
Even managed to get one big agency model back then . Alas lost now...
Beautiful plane.
I only flew once on it from Mexico city to Tijuana, when I went to visit my family that lives in the USA, it was a nice experience too, it was around 1986, in the 1980s the DC-10 was the most advanced and the biggest jet we had in Mexico, both Mexicana and Aeromexico operated it

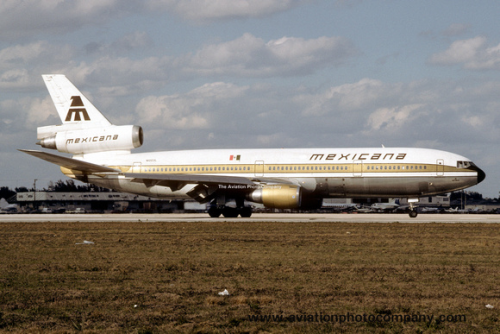

615870

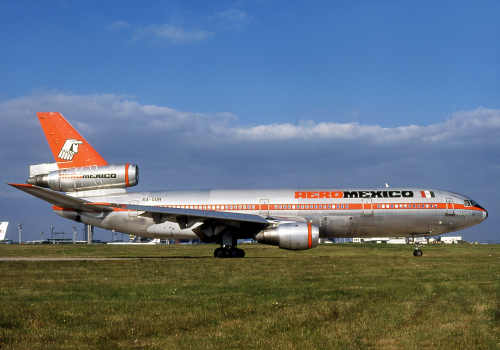

I flew if I am not wrong the DC-10 operated by Mexicana, it was pretty impressive since we flew over Mexico's northwestern part, but I have to confess i liked the Tristar and like more the L-1011 Tristar, but in Mexico they tended to prefer aircraft made by Mcdonnell Douglas in that time 615877

Last edited:

Similar threads

Top
