Hi All!
Competition---TX

This competition to write 8 firms and 15 proposals. Only know of a company Cessna and others not.

1) Cessna Model 318---XT-37
2) ?
3) ?
4) ?
5) ?
6) ?
7) ?
8) ?

That you can add ?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
I don't remember the model number, but Beech flew a prototype of a "Jet Mentor" in this time period.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,039
Reaction score
560
I don't remember the model number, but Beech flew a prototype of a "Jet Mentor" in this time period

Beech Model 73, from Putnam's 'Beech Aircraft', pp. 111-112.

It says there that the Model 73 was designed to a NAVY rquirement that eventually produced the Temco TT-1.

cheers,
Robin.


Attachments

  • be73-1c.jpg
    138.3 KB · Views: 320

aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
628
Reaction score
413

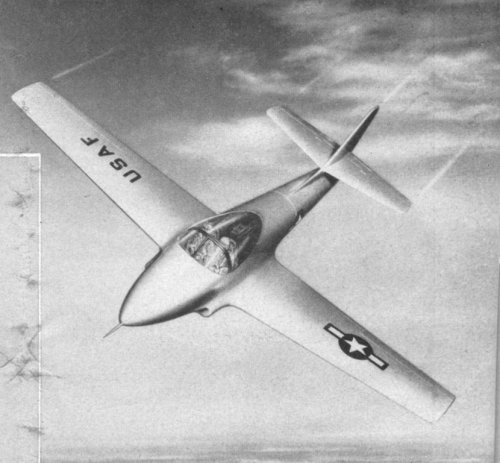

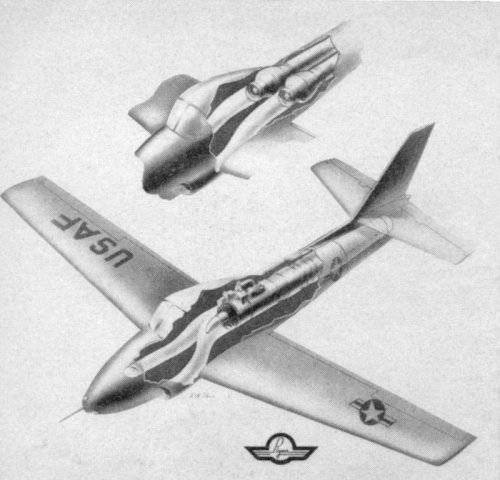

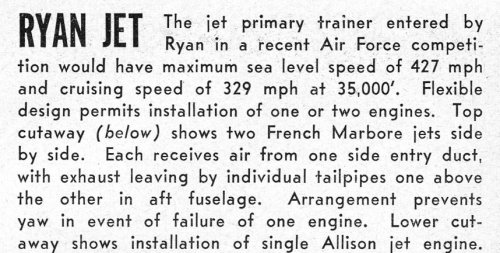

Ryan TX competitor, model number unknown. From "Flying" magazine, August 1953, "Have You Seen?" feature .


Attachments

  • Ryan TX text.jpg
    Ryan TX text.jpg
    136.7 KB · Views: 259
  • Ryan TX 2.jpg
    Ryan TX 2.jpg
    157.3 KB · Views: 276
  • Ryan TX 1.jpg
    Ryan TX 1.jpg
    148.7 KB · Views: 265

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

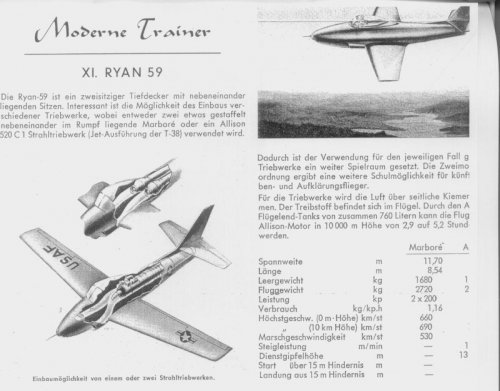

According to the "Der Flieger" magazine 1953, it was the Ryan (Model) 59 :


Attachments

  • Ryan-59.jpg
    73.4 KB · Views: 280

aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
628
Reaction score
413
Excellent! And the mystery Allison jet engine is identified as a turbojet version of the turboshaft T-38! This is the first I've heard of that.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,441
Reaction score
7,089
It seems likely to be the Allison 520-C-1 mentioned here:

http://www.flightglobal.com/pdfarchive/view/1954/1954%20-%200992.html
http://www.flightglobal.com/pdfarchive/view/1954/1954%20-%200995.html

520-C-1. This projected turbojet version of the T38 has a design thrust of 1,870 lb with an sfc of 0.927 lb/hr/lb. Production awaits a Navy trainer or target application.


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
16
Hi All!

1) Cessna Model 318(T-37)
2) Ryan Model R-59
3) North American Model ESO-????
4) North American Model ESO-????
5) Temco Model 30
6) ?
7) ?
8) ?
9) ?


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,693
Reaction score
819
Greetings All -

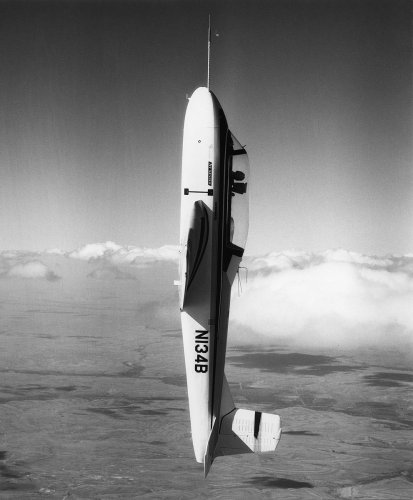

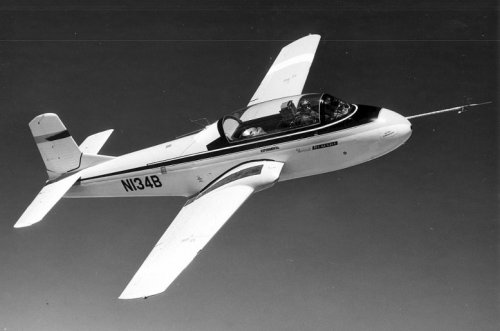

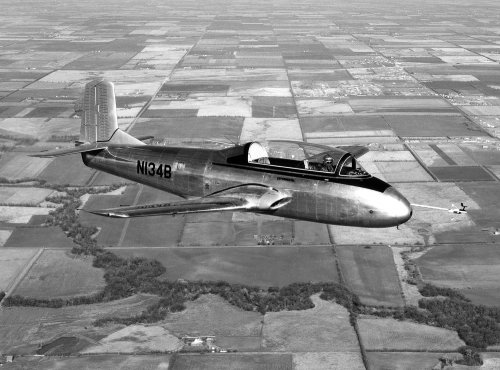

A couple of additional shots of the Beech Model 73 to add to the thread.

Enjoy the Day! Mark


Attachments

  • xBeech Model 73 Jet Mentor N134B unpainted.jpg
    xBeech Model 73 Jet Mentor N134B unpainted.jpg
    316.5 KB · Views: 46
  • xBeech Model 73 Jet Mentor N134B painted.jpg
    xBeech Model 73 Jet Mentor N134B painted.jpg
    143.6 KB · Views: 47
