Contenders for the MX-948 Competition (leading to the XB-55)

devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
I know, that to thirteen firms have dispatched request for competition.
1) Boeing Model 474--------------XB-55
2) Convair Model ?
3) Martin Model 247 or Model 247-1
4) ? Model ?
5) ? Model ?
6) ? Model ?
7) ? Model ?
8) ? Model ?
9) ? Model ?
10) ? Model ?
11) ? Model ?
12) ? Model ?
13) ? Model ?

What can you add?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
Devi,

What is the source about " thirdteen firms... " in a competition
for the XB-55 ?

Thanks.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
Hi lark.

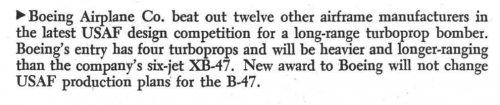

I read in magazine Aviation Week,1948.
I shall look exact date.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
Hi lark.

Source: Aviation Week,1948, Vol.49, N.3 (Unfortunately page I do not know)

If you will find, write who participated at competition.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
Hi Devi,

may be Convair model-1,and anther thing, Boeing also participate by model-484.

source: B-58 Hustler book.


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
Hi hesham.

Convair Model 1-------aka Convair Model 109/XB-46.
Boeing Model 484----other bomber competition.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
155

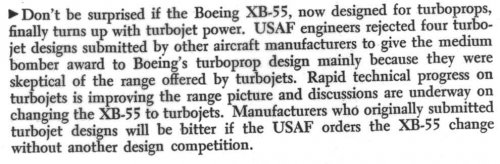

Devi, not much from Aviation Week on July 19, 1948, as you can see. But, an interesting snippet of information in a later news, from November 15, 1948: for of the original competitors were jet-powered...


Attachments

  • XB-55_1.jpg
    20.1 KB · Views: 867
  • XB-55_2.jpg
    34.4 KB · Views: 837

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
18
Hi Devi!

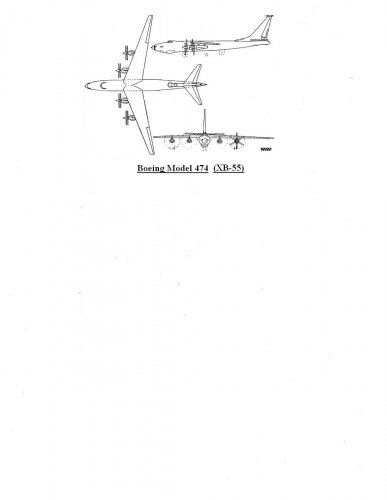

I just thought that I'd post this information, should anyone wish to use it as a reference in researching XB-55 information.

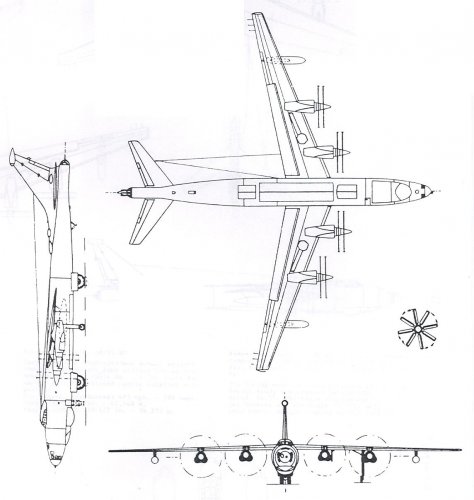

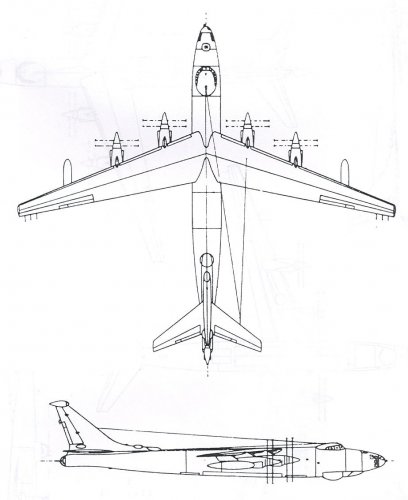

It's a three-view line drawing of the Boeing Model 474 (XB-55), and its from Boeing Aircraft Since 1916, by Peter M. Bowers.

Chuck


Attachments

  • Boeing_B.55.JPG
    43.7 KB · Views: 1,219

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,421
Website
www.amazon.com
From "Airplane Five Views" by Bernhard Klein ,B.C.F.K. Publications 1974 (via Chuck Davis)
and "Finescale Modeler January 1998


Attachments

  • Escanear0003.jpg
    75.5 KB · Views: 998
  • Escanear.jpg
    106.2 KB · Views: 992
  • Escanear0006.jpg
    67.6 KB · Views: 295
  • Escanear0005.jpg
    89 KB · Views: 457

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

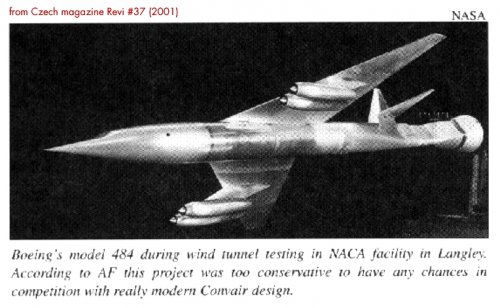

Boeing's Model 484 was proposed in the B-58 competition:


Attachments

  • Model 484.jpg
    Model 484.jpg
    202.6 KB · Views: 257

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
155
Model 484 was an early design. The final B-58sque Boeing submission (B-59) carried the Model 701 designation. One of the few projects included in the new "Convair Deltas" book by Specialty Press are precisely some iterations of that.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

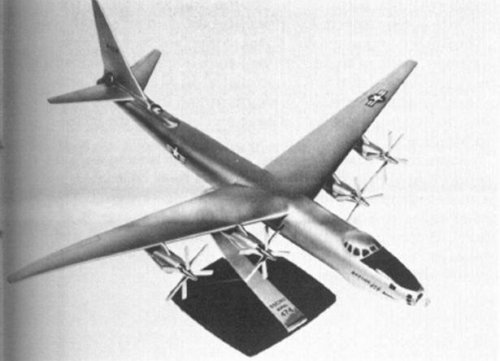

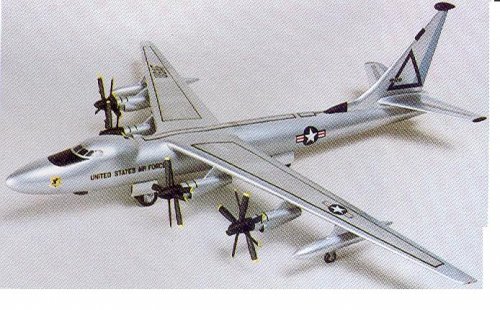

Model of Boeing Model 474.

Source: Source: Boyne, Walter. Boeing B-52 - A Documentary History Jane's Publishing Company Limited 1981 p. 49.


Attachments

  • BoeingModel474.JPG
    29.5 KB · Views: 221

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
Artist's concept of Boeing Model 479.

The Model 474 matured into the Model 479, powered by six J-40 engines. This became the competition winning XB-55, the intended successor of the B-47. With the simultaneous development of the B-52, the XB-55 was shelved.

Source: Source: Boyne, Walter. Boeing B-52 - A Documentary History Jane's Publishing Company Limited 1981 p. 49.


Attachments

  • Model479.JPG
    41.9 KB · Views: 165

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

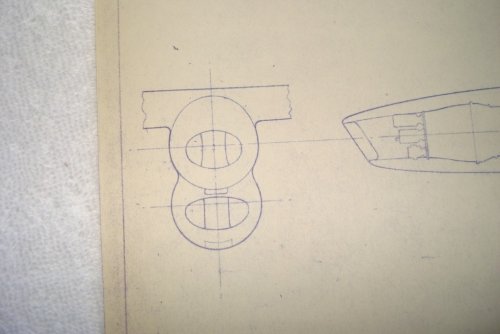

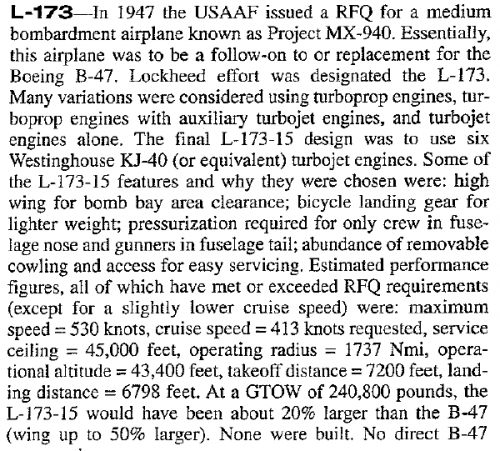

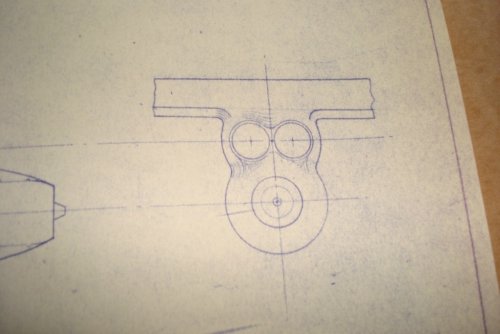

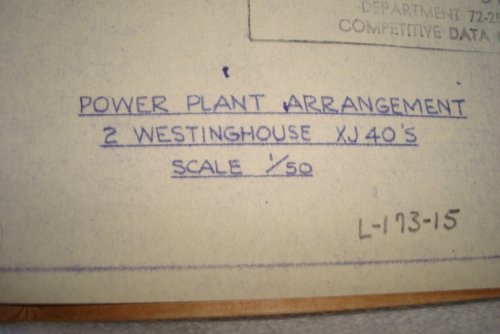

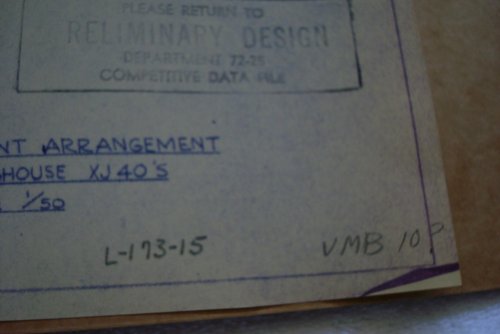

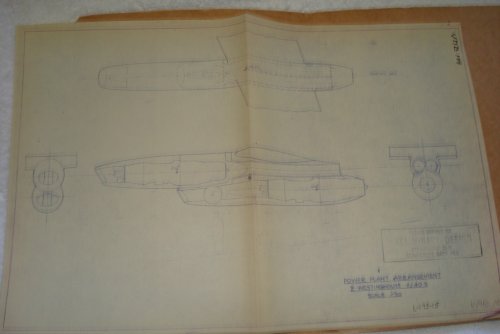

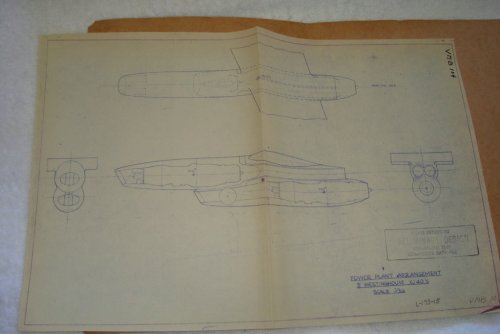

This one has "L-173-15" written at the bottom of each page... Could it be related to the Lockheed L-173 proposal (MX-948 submission) which lost out to Boeing's XB-55?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,875
Reaction score
4,814
Yes. Thats why I titled the post " engine arrangement on Lockheed L-173-15" ???


Attachments

  • $T2eC16ZHJIYE9qUcOuT9BP73(9boZw~~60_57.JPG
    101.8 KB · Views: 48
  • $T2eC16VHJHIE9nyseFk5BP73(3k5sw~~60_57.JPG
    99.8 KB · Views: 32
  • $T2eC16VHJGQE9noM,KgNBP73(yl9Vg~~60_57.JPG
    100.3 KB · Views: 30
  • $T2eC16dHJIYE9qUcO36ZBP73(hP8hw~~60_57.JPG
    96.4 KB · Views: 116
  • $T2eC16dHJHQE9nzEzq0sBP73(kQoc!~~60_57.JPG
    81.5 KB · Views: 115
  • $(KGrHqFHJEIE+WebEYHvBP73(p6Wsw~~60_57.JPG
    109.8 KB · Views: 115
  • $(KGrHqFHJBME+OfkbgI9BP73(szGhg~~60_57.JPG
    80.8 KB · Views: 126
  • $(KGrHgoOKh8EjlLmpM26BP73(1FLf!~~60_57.JPG
    77.7 KB · Views: 131

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
PaulMM said:
Yes. Thats why I titled the post " engine arrangement on Lockheed L-173-15" ???

Oops. I had not even looked at the complete title! I figured this one from the plans!!! :-[


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

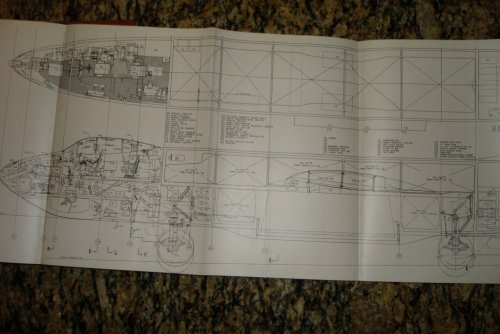

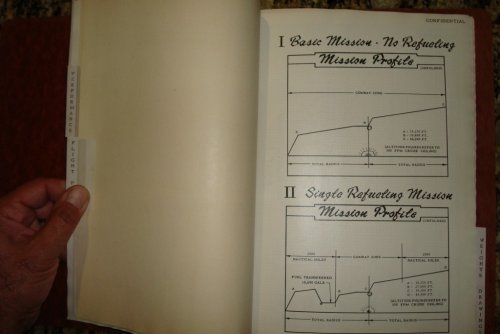

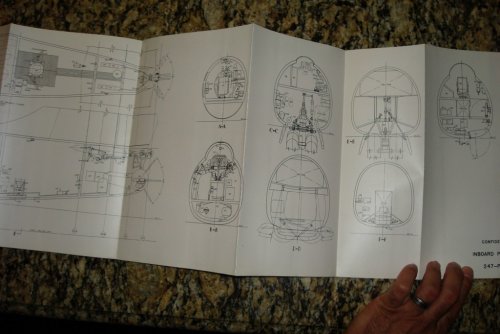

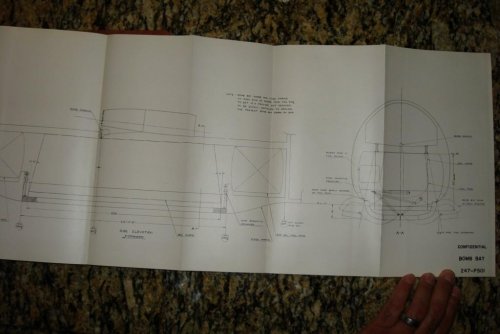

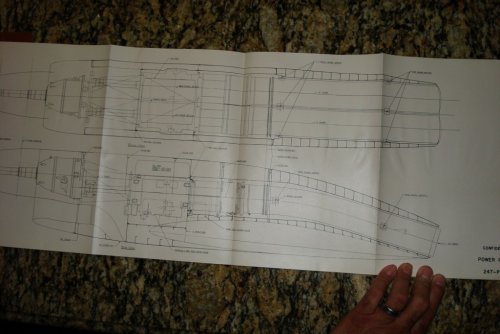

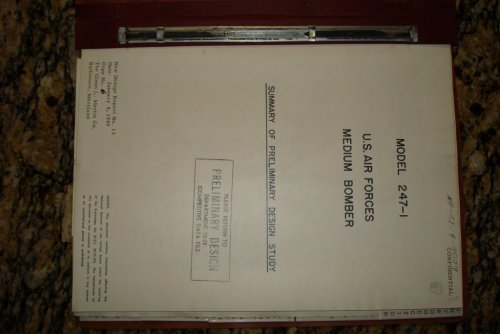

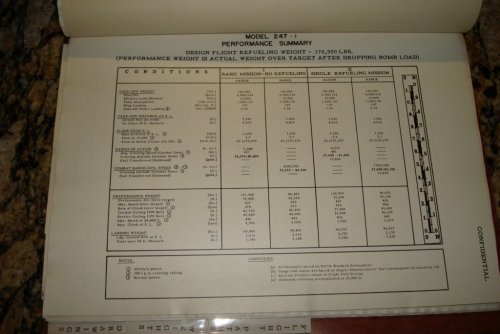

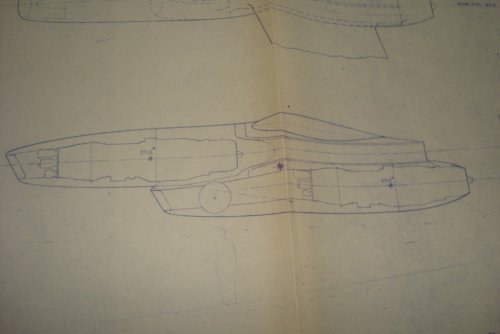

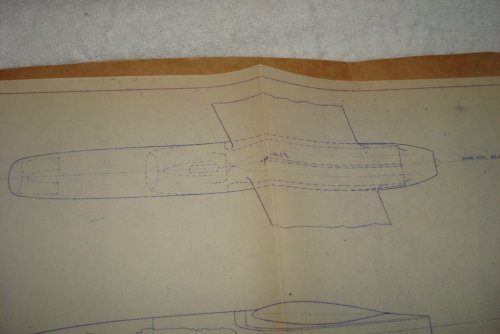

A very interesting derivative of the XB-48 prototype was studied by Martin under the designation "Model 247-1."

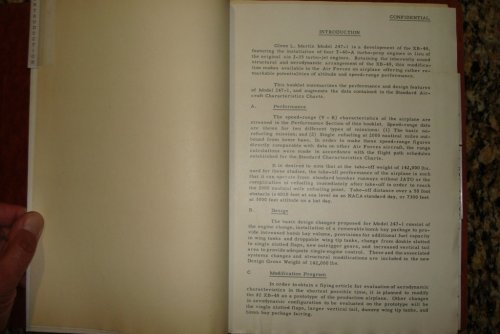

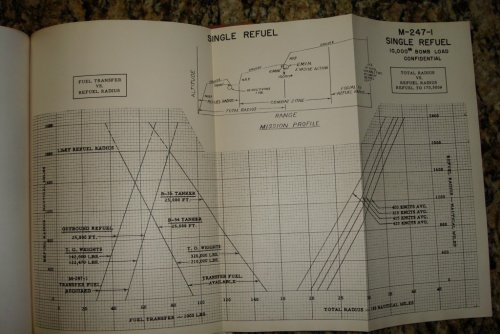

This is the USAF design report about it:

http://www.ebay.com/itm/U-S-AIR-FORCES-MODEL-247-1-MEDIUM-BOMBER-DATED-1949-/290775848142?pt=LH_DefaultDomain_0&hash=item43b39754ce


Attachments

  • 06.JPG
    101.6 KB · Views: 45
  • 05.JPG
    135.3 KB · Views: 66
  • 04.JPG
    126.2 KB · Views: 95
  • 03.JPG
    121.8 KB · Views: 135
  • 02.JPG
    104.6 KB · Views: 130
  • 01.JPG
    112.9 KB · Views: 68

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
More pics:


Attachments

  • 12.JPG
    140.1 KB · Views: 62
  • 11.JPG
    60.4 KB · Views: 203
  • 10.JPG
    140.9 KB · Views: 225
  • 09.JPG
    154.6 KB · Views: 237
  • 08.JPG
    121 KB · Views: 227
  • 07.JPG
    180.7 KB · Views: 233

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
179

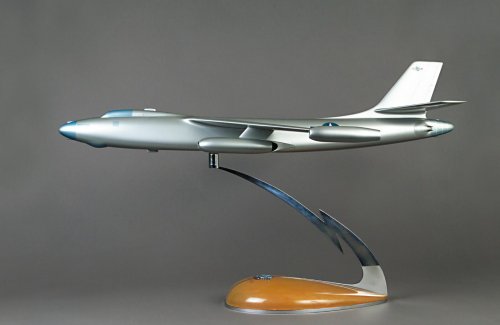

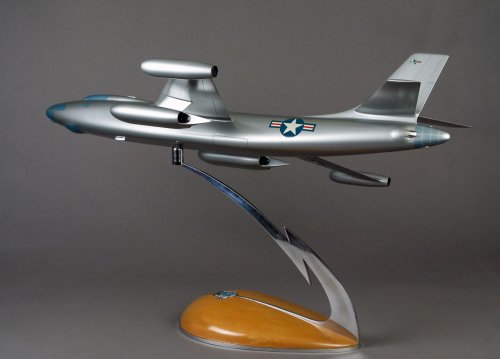

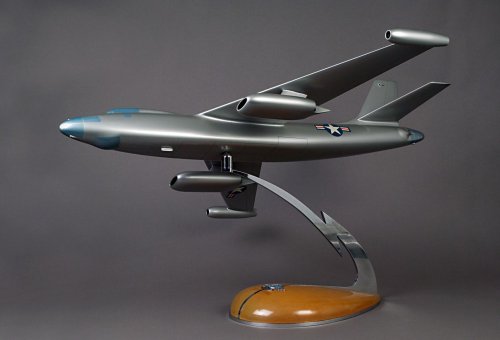

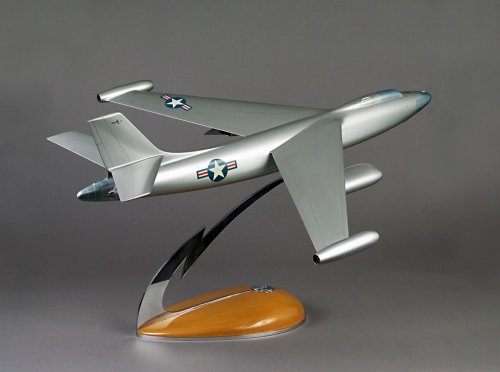

Factory proposal display model of the Douglas Model 1126 medium bomber. This aircraft was the Douglas entry for Project MX-948 "General Research on Bomber Aircraft" in 1948.

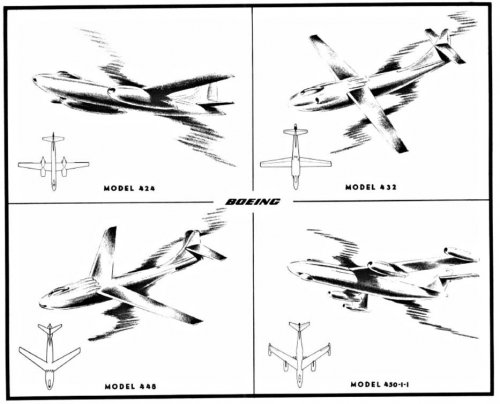

Note overall configuration similarities to Boeing's model 450-1-1 (bottom right) which was a precursor to the XB-47.

Upper and lower retractable, remotely-operated twin-gun turrets are located just aft of the flight deck.


Attachments

  • Boeing 450-1-1 Rendering.jpg
    Boeing 450-1-1 Rendering.jpg
    40 KB · Views: 130
  • Boeing XB47 Concepts.jpg
    Boeing XB47 Concepts.jpg
    69 KB · Views: 996
  • Douglas 1126 01 sml.jpg
    Douglas 1126 01 sml.jpg
    78.5 KB · Views: 1,054

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
179
More...


Attachments

  • Douglas 1126 02 sml.jpg
    Douglas 1126 02 sml.jpg
    83.7 KB · Views: 935

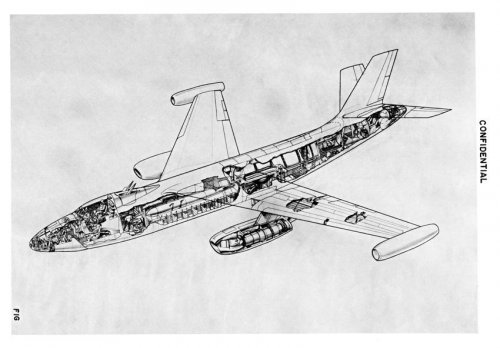

  • Douglas 1126 Cutaway View.jpg
    Douglas 1126 Cutaway View.jpg
    63.1 KB · Views: 921

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
Great find Circle-5,


thank you,and there is also a flying boat variant from it.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
In his 2e book about American Secret Projects , Mr Buttler
just said that a flying boat variant was - considered..


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,966
Reaction score
376
Nice find Circle 5!It's a nice design. Can anyone please enlighten me as to what the winning design (if any) came out of Project MX-948 ?? RegardsPioneer


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
179
Pioneer said:
Nice find Circle 5!It's a nice design. Can anyone please enlighten me as to what the winning design (if any) came out of Project MX-948 ?? Regards Pioneer

I believe it was the Boeing Model 479 (derived from the turboprop 474) -- USAF designation XB-55. This competition was intended to produce a successor to the Boeing B-47, but was cancelled in favor of what became the B-52.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,966
Reaction score
376
Thank's for the verification Circle 5! RegardsPioneer


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
179
A couple more photos of the proposal model and a scan of the factory 3-view drawing, courtesy of Jared Zichek. Note changed position of horizontal stabilizer.

Oval air intakes must have been in vogue at the time, as on the Convair XB-46.


Attachments

  • Douglas 1126 04 sml.jpg
    Douglas 1126 04 sml.jpg
    64 KB · Views: 298
  • Douglas 1126 03 sml.jpg
    Douglas 1126 03 sml.jpg
    78.4 KB · Views: 144
  • Douglas 1126 3-View Dwg.jpg
    Douglas 1126 3-View Dwg.jpg
    63.2 KB · Views: 207

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Beautiful model, great photos. Thanks for sharing!

Enjoy the Day! Mark


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
11
The competition involved 13 companies:
1) Boeing Model 474
2) Convair Model ?
3) Curtiss-Wright Model P-541
4) Douglas (Santa Monica Division) Model 1126
5) Fairchild Model 11? or 12?
6) Lockheed Model L-173
7) Martin Model 243
8) North American RD-1461
9) Northrop Model 31
10) Republic Model AP-42
11) ?
12) ?
13) ?
My opinion is that the competition can participate following companies or organizations:
Hughes
Central Aircraft Corp.(Burnelli)
Grumman Design 85 (Classified Bomber Study)---?
or ...
Will be interesting to your feedback.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
Hi Nugo,


I suspect in Hughes,and may be Burnelli envolved,and there's nothing about Convair
in the book; Convair Advanced Designs.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
nugo said:
The competition involved 13 companies:
1) Boeing Model 474
2) Convair Model ?
3) Curtiss-Wright Model P-541
4) Douglas (Santa Monica Division) Model 1126
5) Fairchild Model 11? or 12?
6) Lockheed Model L-173
7) Martin Model 243
8) North American RD-1461
9) Northrop Model 31
10) Republic Model AP-42
11) ?
12) ?
13) ?
My opinion is that the competition can participate following companies or organizations:
Hughes
Central Aircraft Corp.(Burnelli)
Grumman Design 85 (Classified Bomber Study)---?
or ...
Will be interesting to your feedback.

nugo, I have nothing against people making hypotheses or toting new designations from out of the blue. But when you assert something like "the competition involved 13 companies" you need to back it up. Do you have a document saying this? Then share it. Also, it seems a little strange that the Martin Model 243 and the Curtiss P-541, which never appeared before on this forum (or anywhere else to my knowledge) until yesterday, both coincidentally appear in your list today! You did exactly the same three days ago when I introduced the Martin Model 244 trainer, and suddenly you had a list that contained it!
So if it's hypotheses, please say it clearly and we can build up from there. If not, give your sources. And if you already had all that information before, why wait until now to share it?


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
11
Hi Stargazer2006!
I compared the data between these projects:
XB-55 (Data from Air Force Museum Fact Sheet)
General characteristics
Crew: 10
Length: 118 ft 11 in (36.25 m)
Wingspan: 135 ft 0 in (41.15 m)
Height: 33 ft 8 in (10.26 m)
Gross weight: 153,000 lb (69,400 kg)
Max takeoff weight: 168,000 lb (76,204 kg)
Powerplant: 4 × Allison T40A-2 coupled turboprop engines, 5,600 hp (4,200 kW) each

Performance
Maximum speed: 426 kn (490 mph; 789 km/h)
Cruise speed: 391 kn (450 mph; 724 km/h)
Range: 4,350 nmi (5,006 mi; 8,056 km)
Service ceiling: 42,000 ft (13,000 m)

Armament
Guns: 10× 20 mm (.79 in) cannons
Bombs: 24,000 lb (10,900 kg) bombs
Model 243: (as can be seen)
Crew:10
Gross weight was 158,000 lb (With one 25,000 lb. bomb and 7240 gals)
four Allison XT-40 engine
...G.L.M. Specification No.459 dated January 15,1948.
These data are similar...
Is it enough?
It is enough.
СW P-541---as has already been said about the document, medium bomber proposal to the MX-948 tender.
"the competition involved 13 companies"---Some info here http://www.secretprojects.co.uk/forum/index.php/topic,571.msg6675.html#msg6675 (from Aviation Week on July 19, 1948 and from Aviation Week on November 15, 1948).
Topic: XB-55 Competition A.K.A. MX-948 competition...


And Hi hesham!
Convair MX-948--source from American Secret Projects: Bombers, Attack and Anti-Submarine Aircraft 1945 to 1974: page 17
Four P&W PT-2C or -2D, with straight wings airplane(shows a picture).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,797
Reaction score
4,962
Oh yes Nugo,


I will have a look for it.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
179
Another MX-948 topic covers the Douglas 1126 proposal.


[Admin - joined topics]


Attachments

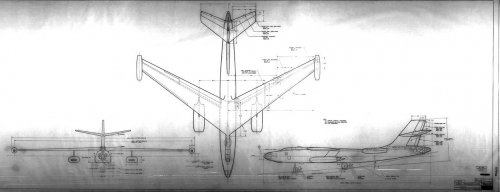

  • Douglas 1126 05sml.jpg
    Douglas 1126 05sml.jpg
    81.9 KB · Views: 594
Top
