Competition of the LOH - YHO-4, YHO-5 and YHO-6

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
In October 1960, the Army submitted a request for proposals (RFP) for the Light Observation Helicopter (LOH). By January 1961, 12 manufacturers had responded with 19 designs;

1) Boeing/Vertol Model V-13? or V-14? ...(or Boeing Model B-8??)
2) Bell Model D-250---YHO-4 and ...
3) Cessna Model CH-4
4) Gyrodyne Model ? ...
5) Hiller Model H-1100---YHO-5 and ...
6) Hughes Model H-369---YHO-6 and ...
7) Kaiser Model ? ...
8) Kaman Model ? ...
9) Lockheed Model CL-5?? or CL-6?? or GL-? ...
10) McDonnell Model M-158
11) Republic Model ? ...
12) Sikorsky Model ? ...

Who will be able to add information please add.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,626
Reaction score
508
Hi Nugo -

This might be the McDonnell M-158 entry - not sure yet but it seems to fit:

http://www.secretprojects.co.uk/forum/index.php/topic,6869.0.html

HTH! Mark


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
Hi Skybolt!

What are the projects offered by Lockheed?
If you know if you can please show.


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
Hi All!

The Boeing/Vertol Model V-1?? proposal of the LOH competition:
American Patents: D193,075


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
11
Hi All!

Lockheed Model CL-532---LOH proposal (my opinion)
What can we say about this?

Some source of LOH competition:
AW&ST,1961,V.74, Nunber 22, 29 May, p.27
(my dear Jemiba, you can show PDF(or ?) of this page)


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,626
Reaction score
508
Greetings All -

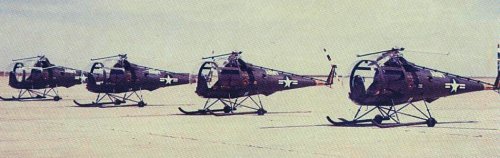

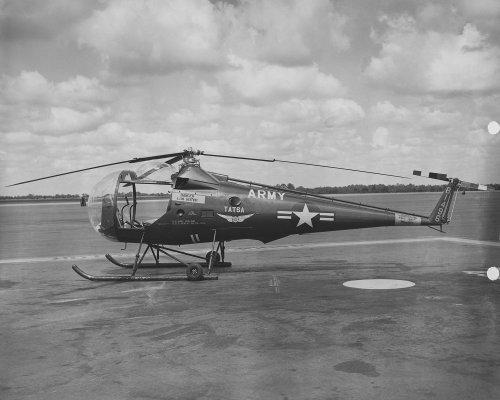

Brantly offered their design for the competition but in the end, the Army deemed it too small and returned the 5 helicopters to the manufacturer.

Enjoy the Day! Mark


Attachments

  • xBrantly YHO-3BR 58-1496 TATSA.jpg
    xBrantly YHO-3BR 58-1496 TATSA.jpg
    398.7 KB · Views: 873

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
Were the original designations supposed to be HO instead of OH?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,665
Reaction score
3,457
Mark Nankivil said:
Hi Nugo -

This might be the McDonnell M-158 entry - not sure yet but it seems to fit:

http://www.secretprojects.co.uk/forum/index.php/topic,6869.0.html

HTH! Mark

You meant;

http://www.secretprojects.co.uk/forum/index.php/topic,2948.0/highlight,mcdonnell+158.html


Attachments

  • MD-158 LOH.JPG
    MD-158 LOH.JPG
    43.7 KB · Views: 774

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,626
Reaction score
508
Greetings All -

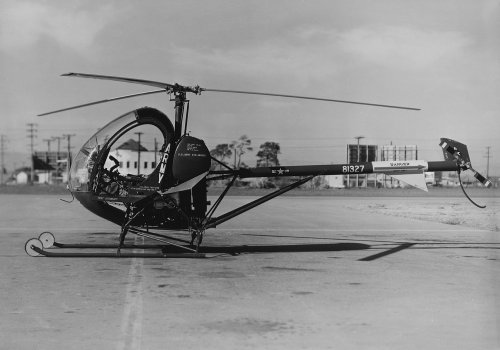

A little more digging around and it appears that the YOH-3 and the YOH-2 were the initial submittals to replace the OH-13 and OH-23. When the Army deemed them too small and insufficient for the job, the LOH competition was initiated. Here's a photo of the other entry in the initial competition, later to be used as a trainer called the TH-55 Osage.

Enjoy the Day! Mark


Attachments

  • xYHO-2HU 58-1327.jpg
    xYHO-2HU 58-1327.jpg
    316.9 KB · Views: 748

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
Mark Nankivil said:
Greetings All -

A little more digging around and it appears that the YOH-3 and the YOH-2 were the initial submittals to replace the OH-13 and OH-23.

Exactly. Associating the OH-3 to the LOH program didn't sound quite right to me, but I wanted to search the matter further before writing anything stupid... ;D
The only accepted LOH contenders were the YHO-4, YHO-5 and YHO-6, which became the YOH-4, YOH-5 and YOH-6 in the new tri-service system.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
Cessna's LOH contender was the CH-4.

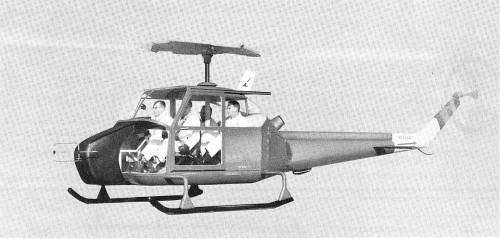

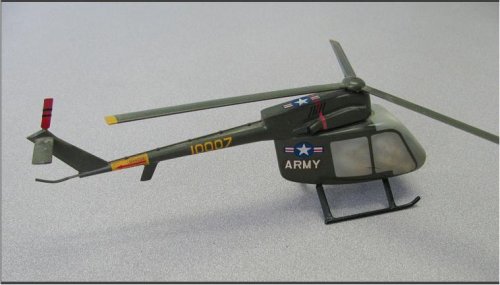

[font=arial, impact,helvetica]The CH-4 LOH proposal was submitted in full to the Army in January, 1961 to kick off the year. An award announcement was expected by May, 1961. Companies submitting proposals were Bell, Hiller, Boeing, Cessna, Gyrodyne, Kaiser, Kaman, McDonnell, Republic, Hughes, Lockheed and Sikorsky; a dozen contenders for two spots. The CH-4 mock-up is pictured below; the turbine engine compartment is located behind the rear seats.[/font]


Attachments

  • ch4.jpg
    9.5 KB · Views: 613
  • chy4flight.jpg
    19.3 KB · Views: 604

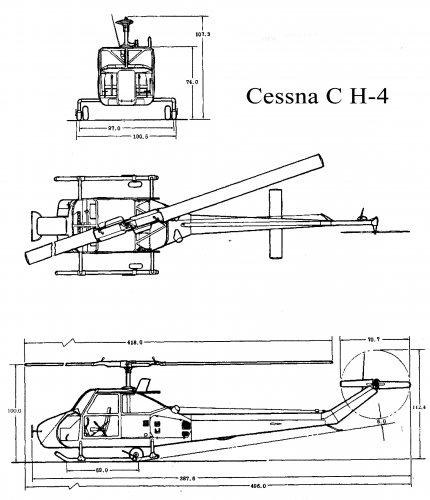

  • cessnach43view.jpg
    666.3 KB · Views: 150

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450
All LOH contenders (20 proposals by 12 companies):
  • Bell D-250
  • Bell D-251 (T-72)
  • Boeing-Vertol 131
  • Cessna CH-4
  • Gyrodyne 66
  • Kaiser KD-161
  • Hiller 1099 (T-72)
  • Hiller 1099 (T-74)
  • Hiller 1100
  • Hiller 1101 (T-72)
  • Hiller 1101 (T-74)
  • Hughes 369
  • Kaman K-130
  • Kaman 130A
  • Lockheed CL-418
  • McDonnell 158A
  • Republic RH-60 (T-72)
  • Republic RH-60 (T-74)
  • Sikorsky (Primary)
  • Sikorsky (Alternate)
NOTE: Bold type indicates the four proposals retained after the first selection.
Source:


Attachments

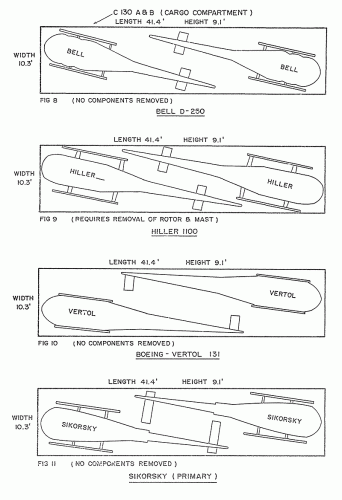

  • LOH cargo compartment.gif
    LOH cargo compartment.gif
    96.4 KB · Views: 93

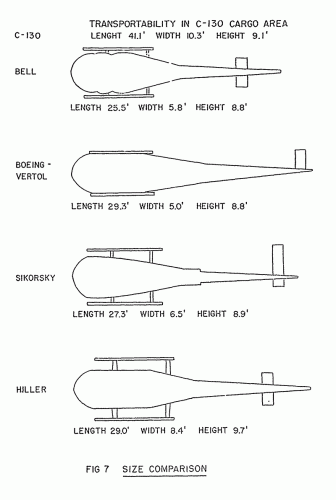

  • LOH size comparison.gif
    LOH size comparison.gif
    59 KB · Views: 86

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
G'day gents

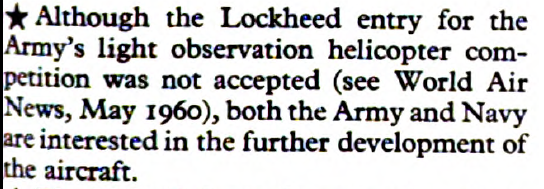

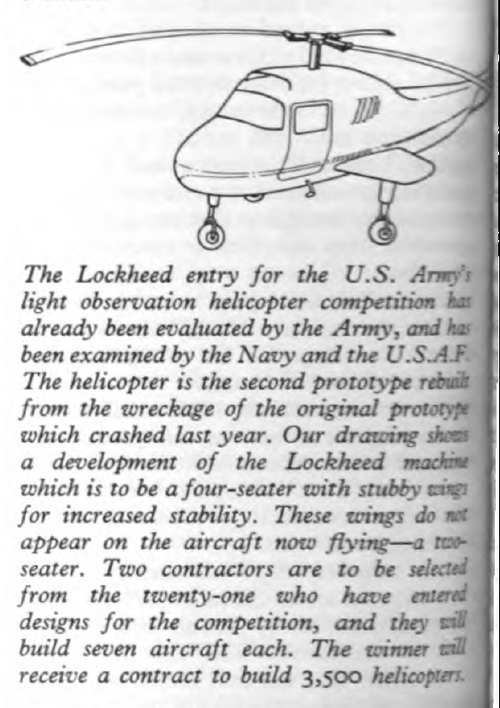

Just recently I watched a documentary titled Project Cancelled - The Cheyenne (aka the Lockheed AH-56 Cheyenne). In it it states that Lockheed submitted the Lockheed XH-51 helicopter design to the U.S Army's LOH competition! But it was turned down by the U.S Army due to its advanced technological nature (aka ridged rotor system and speed!)

Regards
Pioneer


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450

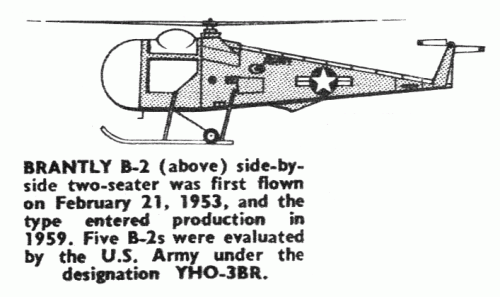

A profile view of the Brantly B-2 as evaluated by the U.S. Army (from RAF Flying Review in 1960):


Attachments

  • Brantly B-2.gif
    Brantly B-2.gif
    77.8 KB · Views: 220

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450

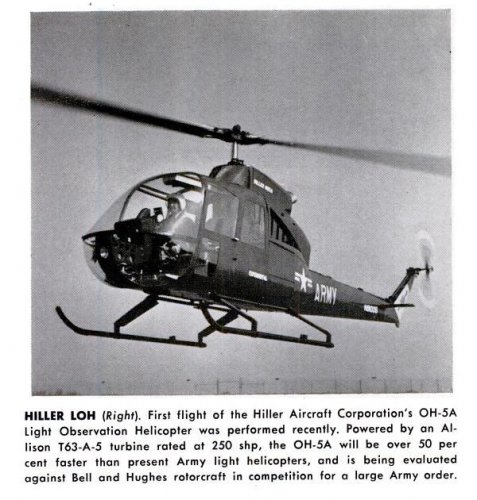

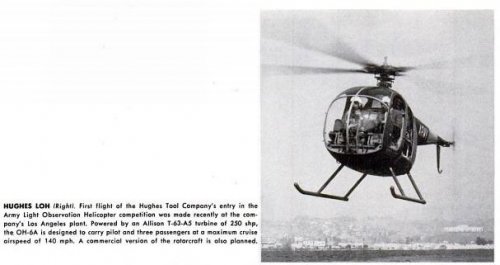

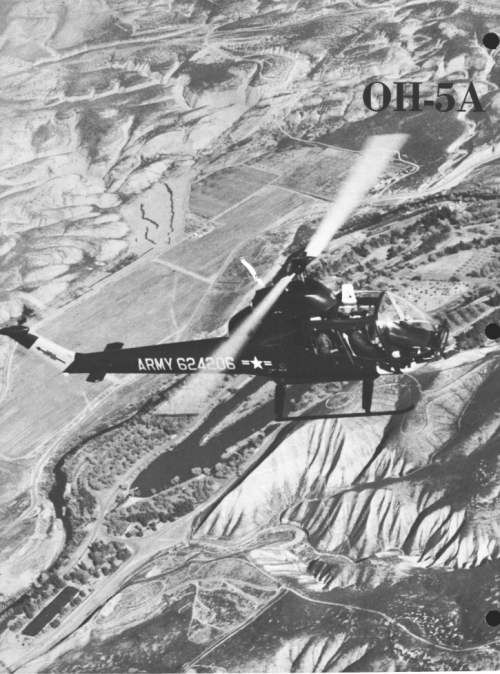

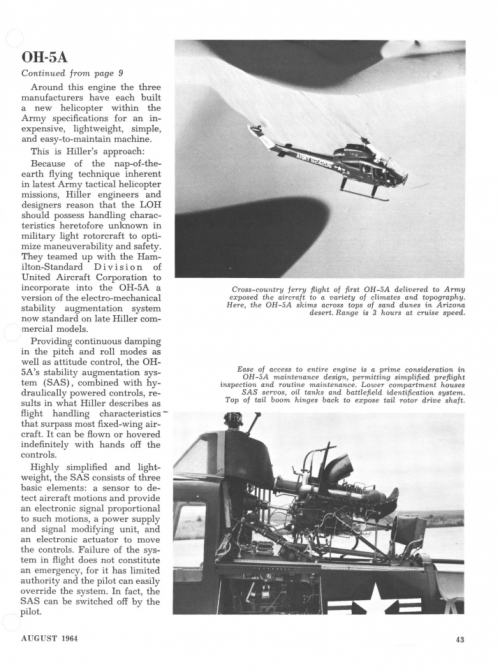

The Fairchild Hiller YOH-5A's and Hughes YOH-6A's first flights from Flying:


Attachments

  • OH-5A first flight.jpg
    OH-5A first flight.jpg
    253.6 KB · Views: 210
  • OH-6A first flight.jpg
    OH-6A first flight.jpg
    30.9 KB · Views: 188

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
314
Reaction score
501

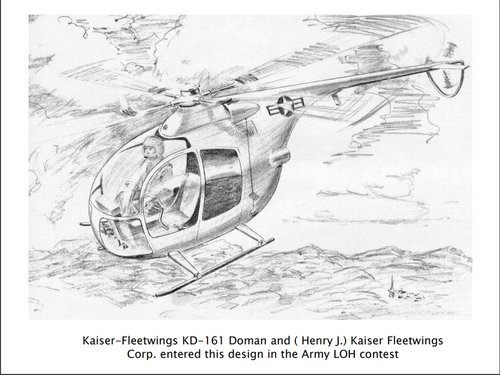

Here's an artists impression of the unsuccessful Kaiser KD-161, which also was listed as having some influence from Doman (probably his rotor technology used in the D-10).
LOH design.jpg


500 Fan

ACCESS: Confidential
Joined
Jul 16, 2010
Messages
90
Reaction score
15
Is it possible that the two Republic proposals listed above might have been based on the Alouette II? Republic were marketing the Alouette II at the time, as far as I can tell.

500 Fan.


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,384
Reaction score
529
Is it possible that the two Republic proposals listed above might have been based on the Alouette II? Republic were marketing the Alouette II at the time, as far as I can tell.

500 Fan.
That makes a lot of sense. It was one of the few light turbine of the period. Of course because it was European it did not get to th second round. I do not know if it met the requirements, which of course may have had something to it.


P-STICKNEY

ACCESS: Restricted
Joined
Sep 28, 2008
Messages
14
Reaction score
6
Were the original designations supposed to be HO instead of OH?
Yes. The U.S. Army had prescribed its own designation system just prior to the 1962 MacNamara Great Redesignation. It was basically similar to the 1962 designation system, but had the Type (H for Helicopter, A for Airplane) first, and the Mission Designator (U foe Utility, O foe Obsevation, C for Cargo, etc) second. Thus, for example, the Bell H-40 became the HU-1A, (And thus Huey), and tha Caribou started out as the AC-1.
