Chinese Stealth bomber program - XAC H-X (H-20)

Blitzo

ACCESS: Secret
Joined
Jun 9, 2011
Messages
393
Reaction score
62
PaulMM (Overscan) said:
My opinion - H-20 will fly first and enter service long before PAK DA.

More fun to guess would be whether H-20 or B-21 will make their maiden flight first... And bonus fun if both end up looking very similar to each other.


FighterJock

ACCESS: Top Secret
Joined
Oct 29, 2007
Messages
1,850
Reaction score
649
Blitzo said:
PaulMM (Overscan) said:
My opinion - H-20 will fly first and enter service long before PAK DA.

More fun to guess would be whether H-20 or B-21 will make their maiden flight first... And bonus fun if both end up looking very similar to each other.

I would not be surprised if the H-20 did end up being like the B-21 Raider, there is not a lot that you can do to for a stealth bomber in terms of design using current technology.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404
I guess just like AVIC was trolling NG with their Super Bowl 'Hangar' ad with curtailed aircraft that turned out to be not B-21 configuration selected, H-20 will not be cranked delta as well.
Would be interesting to check my understanding of Chinese psychology.


kcran567

ACCESS: Top Secret
Joined
Aug 15, 2009
Messages
667
Reaction score
21
Any chance it will not look like a flying wing or cranked kite...

and maybe look more like this...


Attachments

  • h-20 plane.png
    h-20 plane.png
    142.7 KB · Views: 575
  • Gala stealth bomber (1).png
    Gala stealth bomber (1).png
    276.5 KB · Views: 594

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404
It definitely will not look like this


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,190
Reaction score
743
kcran567 said:
Any chance it will not look like a flying wing or cranked kite...

and maybe look more like this...
From where comes the fifth plane in the red circle before the four J-20 ? Is it a fake or an old project or an artist view ?


Blitzo

ACCESS: Secret
Joined
Jun 9, 2011
Messages
393
Reaction score
62
Deltafan said:
kcran567 said:
Any chance it will not look like a flying wing or cranked kite...

and maybe look more like this...
From where comes the fifth plane in the red circle before the four J-20 ? Is it a fake or an old project or an artist view ?

just a fan made CGI or doctored photo


antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
763
Reaction score
119
Hi,

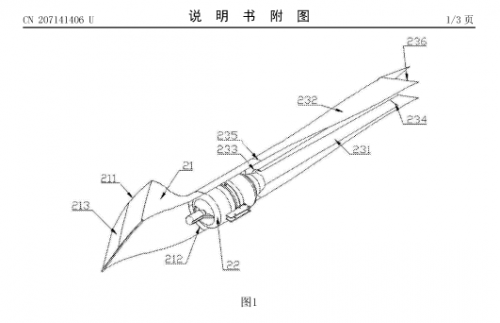

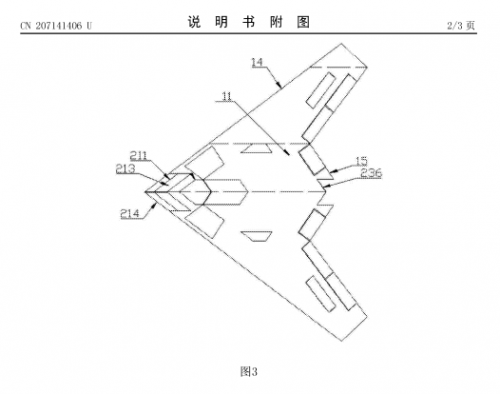

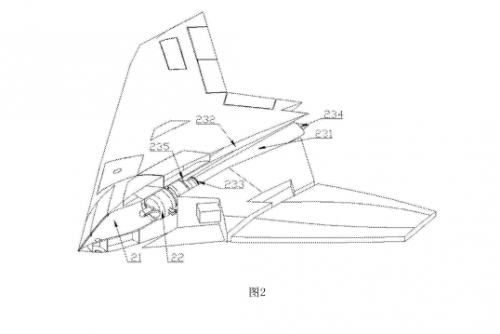

I'm not quite sure this is related to this thread but it may fit in. Found a Chinese stealth UAV patent issued in March of 2018.

Patent number: CN207141406.
Title: Stealthy unmanned aerial vehicle driving system of all-wing aircraft overall arrangement
Applicant(s): XIAN UAVTOP AVIATION TECH CO LTD +
Inventor: 不公告发明人
Abstract:
The utility model relates to an unmanned air vehicle technique field, the utility model discloses an overcoming the not enough of current unmanned aerial vehicle driving system stealth effect difference, and providing a stealthy unmanned aerial vehicle driving system of all-wing aircraft overall arrangement, it includes intake duct, turbine jet engine and the jet pipe of following aircraft nose to tail and connecting gradually, the inlet set of above -mentioned intake duct is square at quick-witted back, its cross-section, the lower limb and the coincidence of unmanned aerial vehicle leading edge of above -mentioned air inlet, above -mentioned inlet set has the radar shielding net of being made by conducting material, and above -mentioned radar shielding netlist face and stealthy unmanned aerial vehicle surface keep camber continuous to lead to with stealthy unmanned aerial vehicle surface conductance.

A.


Attachments

  • chinese-stealth-aircraft-uav-patent-CN207141406-Fig_02.png
    55.2 KB · Views: 475
  • chinese-stealth-aircraft-uav-patent-CN207141406-Fig_03.png
    48.1 KB · Views: 443
  • chinese-stealth-aircraft-uav-patent-CN207141406-Fig_01.png
    45.9 KB · Views: 428

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,190
Reaction score
743
Blitzo said:
Deltafan said:
kcran567 said:
Any chance it will not look like a flying wing or cranked kite...

and maybe look more like this...
From where comes the fifth plane in the red circle before the four J-20 ? Is it a fake or an old project or an artist view ?

just a fan made CGI or doctored photo
OK, thanks for the answer.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404
antigravite said:
Hi,

I'm not quite sure this is related to this thread but it may fit in. Found a Chinese stealth UAV patent issued in March of 2018.

Patent number: CN207141406.
Title: Stealthy unmanned aerial vehicle driving system of all-wing aircraft overall arrangement
Applicant(s): XIAN UAVTOP AVIATION TECH CO LTD +
Inventor: 不公告发明人
Abstract:
The utility model relates to an unmanned air vehicle technique field, the utility model discloses an overcoming the not enough of current unmanned aerial vehicle driving system stealth effect difference, and providing a stealthy unmanned aerial vehicle driving system of all-wing aircraft overall arrangement, it includes intake duct, turbine jet engine and the jet pipe of following aircraft nose to tail and connecting gradually, the inlet set of above -mentioned intake duct is square at quick-witted back, its cross-section, the lower limb and the coincidence of unmanned aerial vehicle leading edge of above -mentioned air inlet, above -mentioned inlet set has the radar shielding net of being made by conducting material, and above -mentioned radar shielding netlist face and stealthy unmanned aerial vehicle surface keep camber continuous to lead to with stealthy unmanned aerial vehicle surface conductance.

A.

Apparently not related to H-20, nonetheless interesting
https://youtu.be/uzVK7j0eCCk


lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
587
Reaction score
30
Website
defense-and-freedom.blogspot.de
There's a photo, apparently meant to depict H-20:
https://www.scmp.com/news/china/military/article/2179198/after-heavy-investment-chinas-next-generation-weapons-and

I try to attach.

edit: attachment works. I want to clarify that I have no clue whether it's fake.


Attachments

  • Screenshot_2018-12-31 China’s next generation of weapons and military equipment nears readiness.png
    Screenshot_2018-12-31 China’s next generation of weapons and military equipment nears readiness.png
    566 KB · Views: 1,270

Dragon029

ACCESS: Top Secret
Joined
Mar 17, 2009
Messages
831
Reaction score
257

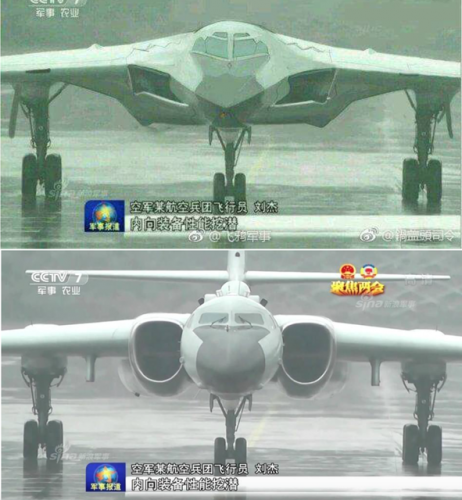

It's a photoshop of a H-6.


Attachments

  • ____%202017-09-15%20__2.54.25[1].png
    543.7 KB · Views: 1,180

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404
Another vivid example of SCMP news level.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,156
Reaction score
4,891
To be fair, they weren't trying to pass off the image as the H-20; the image was being used just for illustrative purposes, and appears to have originally created by state television (in this case CCTV 7) from some older footage to give an idea to it's audience of what the H-20 could look like.


totoro

ACCESS: Secret
Joined
Jan 11, 2011
Messages
409
Reaction score
148
Aviationweek article is behind a paywall. Anyway, as it cites the DIA report, I read through that. What it does mention is a prospective long-range stealth bomber and a prospective next generation fighter-bomber. Which may or may not be stealthy, though in this day and age it seems prudent to assume it's going to be stealthy.

Since JH-7 was also labeled by DIA as a fighter-bomber, that mystery plane might be better labeled as a tactical strike plane. Serving a role like F-15E for USAF or Su-34 for RuAF.

But all that being said, the DIA report doesn't really seem all that credible. It's basically a rehash of known facts and rumors. Appears cobbled up from various public sources, perhaps by some low level "analysts".

While there have been rumors of a tactical bomber for PLAAF, there haven't been any indications coming from official sources. Unlike with the big strategic bomber that we know is indeed coming.

All that doesn't mean PLAAF won't indeed replace their JH7 planes with such a new bomber. We simply don't know. PLANAF may have recently gotten some J-16 planes. IF they substitute their own JH7 with them, it may be a precedent for PLAAF to follow as well.


datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
126
Reaction score
32
totoro said:
Aviationweek article is behind a paywall. Anyway, as it cites the DIA report, I read through that. What it does mention is a prospective long-range stealth bomber and a prospective next generation fighter-bomber. Which may or may not be stealthy, though in this day and age it seems prudent to assume it's going to be stealthy.

Since JH-7 was also labeled by DIA as a fighter-bomber, that mystery plane might be better labeled as a tactical strike plane. Serving a role like F-15E for USAF or Su-34 for RuAF.

But all that being said, the DIA report doesn't really seem all that credible. It's basically a rehash of known facts and rumors. Appears cobbled up from various public sources, perhaps by some low level "analysts".

While there have been rumors of a tactical bomber for PLAAF, there haven't been any indications coming from official sources. Unlike with the big strategic bomber that we know is indeed coming.

All that doesn't mean PLAAF won't indeed replace their JH7 planes with such a new bomber. We simply don't know. PLANAF may have recently gotten some J-16 planes. IF they substitute their own JH7 with them, it may be a precedent for PLAAF to follow as well.

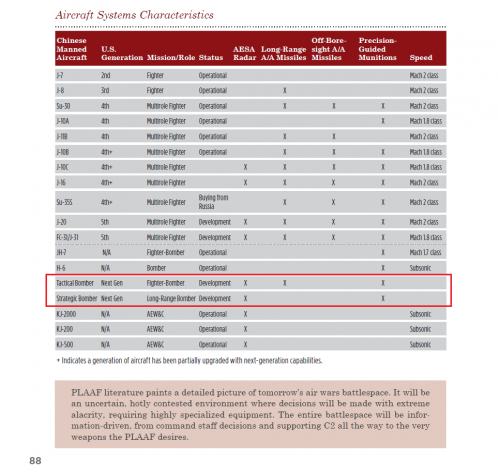

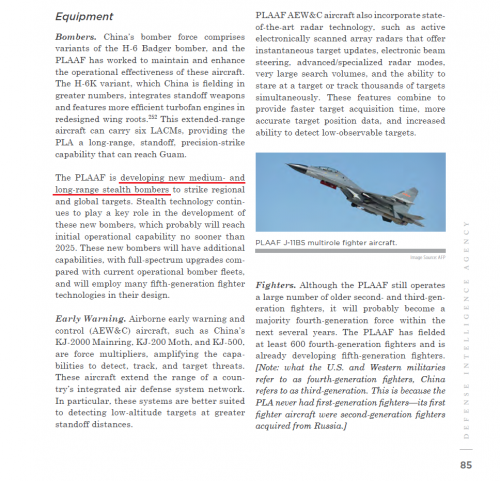

The DIA assumes both will be stealthy bombers. Perhaps that new 'medium bomber' could be a variant of the J-20?

http://www.dia.mil/Portals/27/Documents/News/Military%20Power%20Publications/China_Military_Power_FINAL_5MB_20190103.pdf?fbclid=IwAR1I4ErB0VCYQUiMmrpg82NGWUJRuFwAki4dtyUwS6GAIuFuTg_FFNRy4Dw


Attachments

  • bomber.png
    262.9 KB · Views: 758
  • bomber2.png
    124.8 KB · Views: 726

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,922
Reaction score
944
datafuser said:

Yes, but overall I must admit; I'm a disappointed. My biggest concern is that this report does not mention any source and given how these reports usually were put together in recent years I expect that simply open source reports and rumours were summarised.

This surely relates only for this regional bomber, for which NO official reports are available and I'm highly sceptical that they have better - or even official - reports than we now from several forums or well-known public reports. Also, there have been already published ones since years: I noted it in the Jamestown-report I think two years ago, Rick Joe did a most impressive summary for The Diplomat and there are more to quote:

https://thediplomat.com/2018/05/chinas-future-stealth-bomber-fleet/

I know some will argue, that intelligence sources are usually not revealed and this is an intelligence based report. But let me admit that given some very easily avoidable mistakes in this report (like the expected An-225) but also in older ones, where systems are mentioned, which never existed, were long retired and so on I sometimes have my doubts on these "intelligence sources".

Deino


aonestudio

I really should change my personal text
Joined
Mar 11, 2018
Messages
355
Reaction score
664

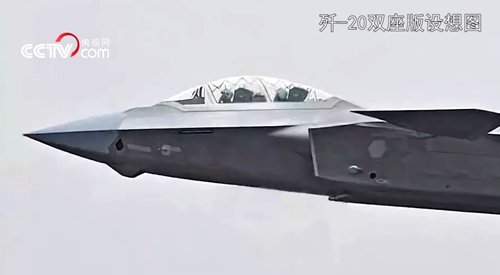

Variant of the J-20 like this.

China's most advanced stealth fighter jet J-20 could be developed into a bomber, electric warfare (EW) aircraft and a carrier-based variant, Chinese military experts said on Wednesday as latest reports suggested a two-seat version of the warplane is under development.

The current J-20 is a basic version, and it is by design highly customizable, Song Zhongping, a military expert and TV commentator, told the Global Times on Wednesday.

Outfitting the warplane with a second seat allows it to play multiple roles in addition to winning air superiority, Song said, noting that the two-seat version can be further developed into a tactical bomber or EW aircraft.

http://www.globaltimes.cn/content/1135957.shtml


Attachments

  • 76605eb0-7690-4d0e-8a94-ee09df7aaaa8.jpeg
    14.6 KB · Views: 645

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,214
Reaction score
199
His name may sound like a runaway pinball machine but he has a good point.


lastdingo

Blogger http://defense-and-freedom.blogspot.de/
Joined
Oct 18, 2008
Messages
587
Reaction score
30
Website
defense-and-freedom.blogspot.de
The landing gear doesn't allow for much of an AOA during landing. I doubt that the J-20 could be modified into a carrier aircraft without major redesign. It's also awfully large (though Vigilante was huge as well).


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,922
Reaction score
944
J-20 and carrier speculations??? You are in the wrong thread!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404

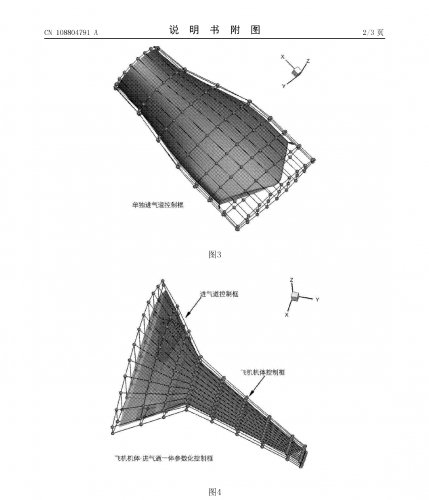

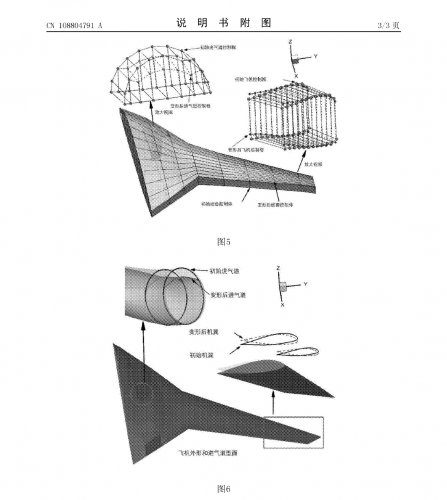

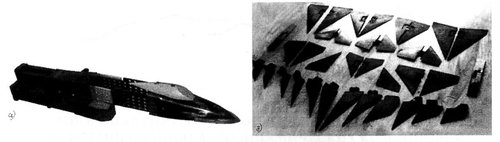

An interesting NWPU patent...


Attachments

  • CN108804791A.pdf
    808.2 KB · Views: 27
  • CN108804791A-2.jpg
    323.8 KB · Views: 247
  • CN108804791A-1.jpg
    288.1 KB · Views: 206

zebra159357

I really should change my personal text
Joined
Nov 30, 2018
Messages
33
Reaction score
30
Does anyone have an idea when is the 70th anniversary of the PLAAF taking place ? There were rumors about a year ago about a possible rollout of the H-20.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
3,845
Reaction score
2,953
Regarding the object, optionnaly manned scaled down prototype (swappable front section)??!

Edit:
Added interrogative points and exclamation to emphasize the conjoncturel content.

Last edited:

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,069
Reaction score
969
An awful lot has been written about this topic but conjecture reigns supreme, facts are in very short supply as is logical in such a tightly controlled nation.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,922
Reaction score
944
Does anyone have an idea when is the 70th anniversary of the PLAAF taking place ? There were rumors about a year ago about a possible rollout of the H-20.


The true anniversary will be on November 11th, but the celebrations were just the last days from October 18th to 21st with a dedicated air show.
Regarding these rumours, they were simply stupid reports hyped up by stupid reporters and eagerly reposted by not much cleverer other sites. In fact anyone with tbe slightest understanding of the PLAAF knew from the beginning that these were nothing but fake.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,922
Reaction score
944

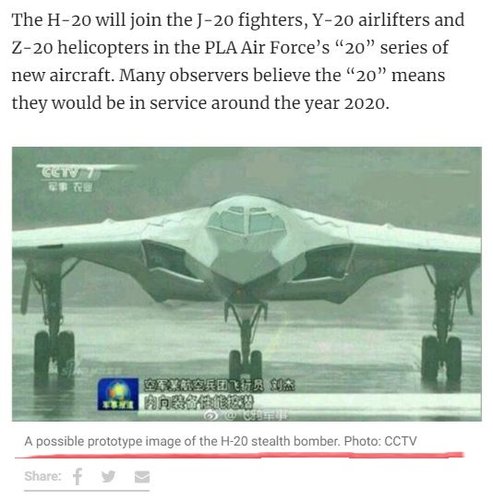

To be fair, they weren't trying to pass off the image as the H-20; the image was being used just for illustrative purposes, and appears to have originally created by state television (in this case CCTV 7) from some older footage to give an idea to it's audience of what the H-20 could look like.


They were ... Come on, and why then did they say this and not that it clearly is NOT a well known FAKE?

"A possible prototype image of the H-20 stealth bomber. Photo: CCTV"

Thanks plain wrong a lie... nothing more, nothing less.


FAKE H-20.JPG


FighterJock

ACCESS: Top Secret
Joined
Oct 29, 2007
Messages
1,850
Reaction score
649
I am getting rather tiered of that image. Let’s all wait until the actual H-20 design is ready to be revealed, rather than getting exited about somebody’s photoshopped image.


kaiserd

I really should change my personal text
Senior Member
Joined
Oct 25, 2013
Messages
1,113
Reaction score
487
IIRC, a TsAGI model used to analyse the YF-22's aerodynamics.View attachment 620757
No
Thanks. Can you update me?


My recollection is that the Russian Secret Projects Fighter book and other sources from that time had this (or something similar) as a potential Yak design.
It’s definitely not a YF-22 or F-22; apart from very general configuration (twin engined, twin tails) the detail of the design is almost completely different.


In_A_Dream

ACCESS: Secret
Joined
Jun 3, 2019
Messages
272
Reaction score
130
You have to keep in mind the Chinese have pillaged US defense contractors and we still do have black aircraft out there that fulfill certain roles (some that may no longer be in operation as well). It wouldn't surprise me if we saw one or two airframes emerge out of China that mirror some of those aircraft (maybe not as far as capability, but in terms of the air frame). After all, they did get their hands deep into Sandia & Los Alamos (and this was decades ago) to assist their nuclear program. Would love to be a fly on the wall out near the Gobi Desert.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404
IIRC, a TsAGI model used to analyse the YF-22's aerodynamics.View attachment 620757
No
Thanks. Can you update me?


My recollection is that the Russian Secret Projects Fighter book and other sources from that time had this (or something similar) as a potential Yak design.
It’s definitely not a YF-22 or F-22; apart from very general configuration (twin engined, twin tails) the detail of the design is almost completely different.

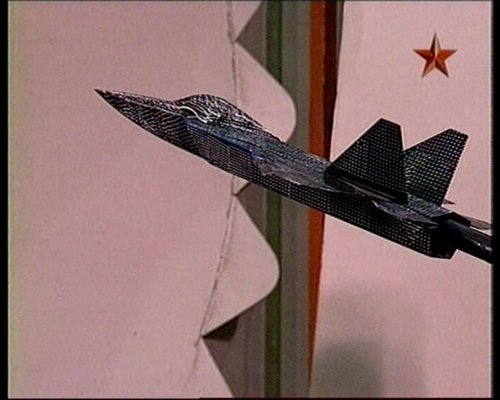

That was multi-parameter TsAGI in-house test model dubbed Lamprey (Minoga) from early 90s. Allowed testing zillion configurations from canard delta to pure canard and classic four-poster. Was not directly affiliated with any design bureaus studies.

And now we can stop with off-topic,


Attachments

  • Minoga.jpg
    121.4 KB · Views: 178

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,404
via Bltizo at sinodefenceforum.com

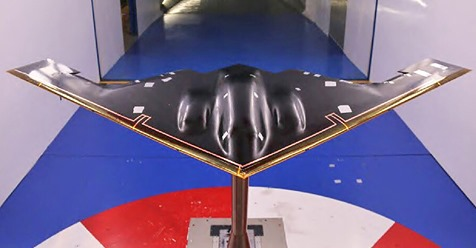

Chinese Stealth Fighter Wind Tunnel Model Emerges And It Looks Very Familiar!


Attachments

  • IMG_20191028_103536.jpg
    94.9 KB · Views: 181
Top
