Hi,

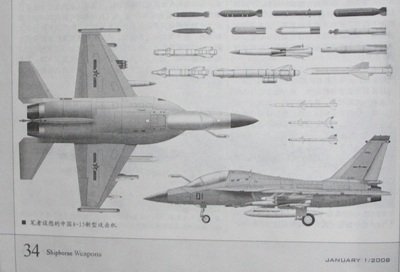

here is a drawing to Hongdu L-15 single seat light attack version appeared in the January 2008 issue
of the Chinese magazine Shipborne Weapons.



Attachments

  • L-15 attack.jpg
    L-15 attack.jpg
    33.7 KB · Views: 426
Last edited:

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,951
Reaction score
1,074
Seen from the top it shows some striking resemblance with the Northrop F-5E....


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,262

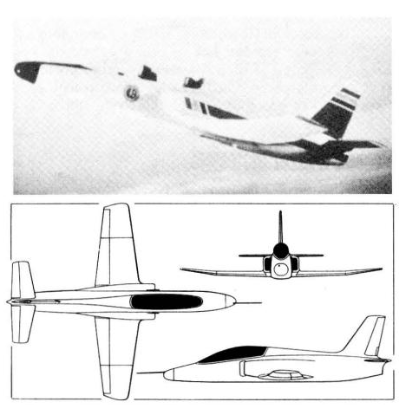

From Krila 5/1987,

here is early drawing to L-8 or JL-8.


Attachments

  • 1.png
    98.8 KB · Views: 233

iPhone6Minus

ACCESS: Restricted
Joined
Oct 29, 2019
Messages
13
Reaction score
35
Hi! This is Y-6, a domestic built version of Il-14 with 1m longer fuselage by 320 Factory (aka Hongdu). It cancelled in June, 1967.
20191207013912134

Last edited:

Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
918
Reaction score
1,205
Why was it cancelled? Do you have more information about this type?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,262
Very nice IPhone6Minus,

and there was also L-11,it was a variant of JL-8 powered by the WS-11 turbofan (Ivchenko AI-25 TLK
produced under license in China). Approximately 100 aircraft delivered to PLAAF.


iPhone6Minus

ACCESS: Restricted
Joined
Oct 29, 2019
Messages
13
Reaction score
35
Hi iPhone6Minus,

thx for sharing this nice project. Do you have more technical informations?
crew: 5
capacity: 32 passenger
length: 23.3m
height: 7.8m
wingspan: 31.7m
wing area: 100m^3
empty weight: 12,500kg
maximum takeoff weight: 18,000kg
maximum landing weight: 17,500kg
maximum load: 2,500kg
powerplant: 2×HS-8A, 1900hp each
propellers: 4 blade propeller with 3.8m diameter
maximum speed: 416km/h (2400m)
cruise speed: 268km/h
service ceiling: 7500m
range: 2,090km (7h 40min)
takeoff distance: 470m
landing distance: 430m
ref: Encyclopaedia of Chinese Aircraft (Vol.3) by Aviation Industry Press


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,262

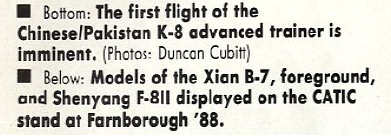

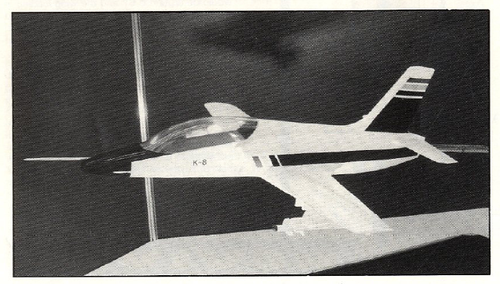

From Air Force 1990/5.


Attachments

  • 4.png
    437.5 KB · Views: 116
  • 6.png
    88.8 KB · Views: 123

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,262
From Air Force 2001/10.


Attachments

  • 1.png
    242.5 KB · Views: 119

RavenOne

ACCESS: Secret
Joined
Jun 18, 2008
Messages
470
Reaction score
818

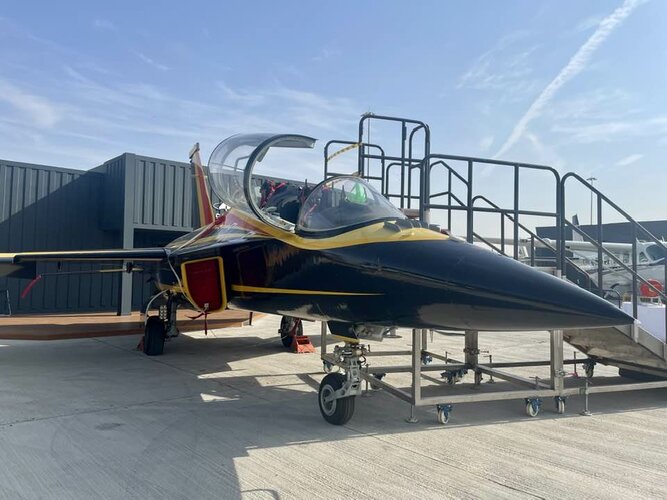

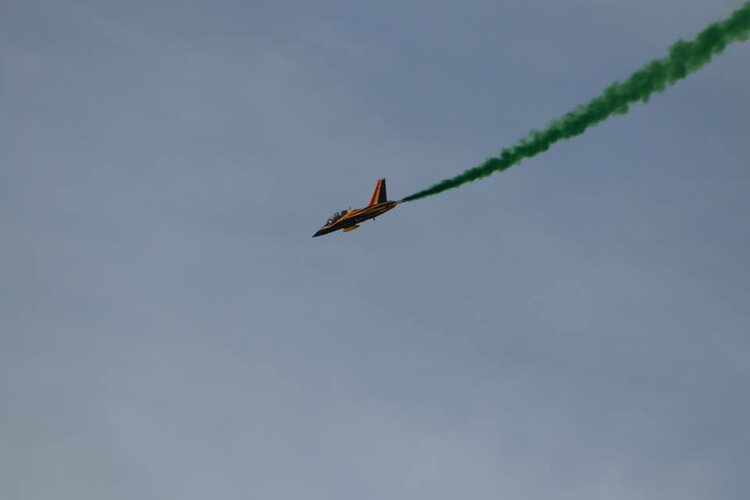

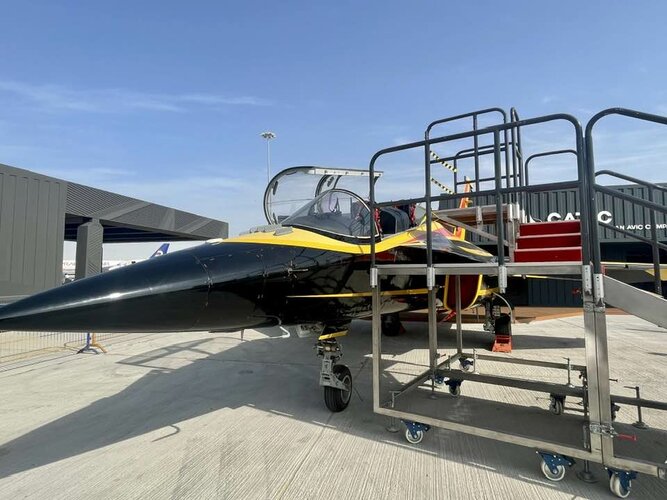

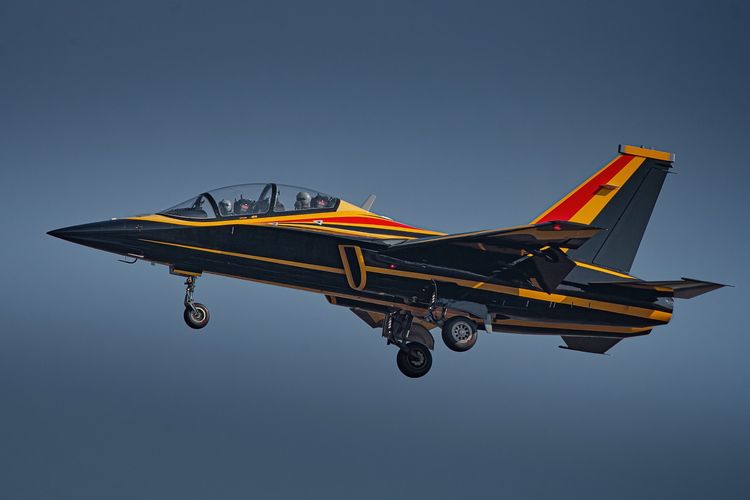

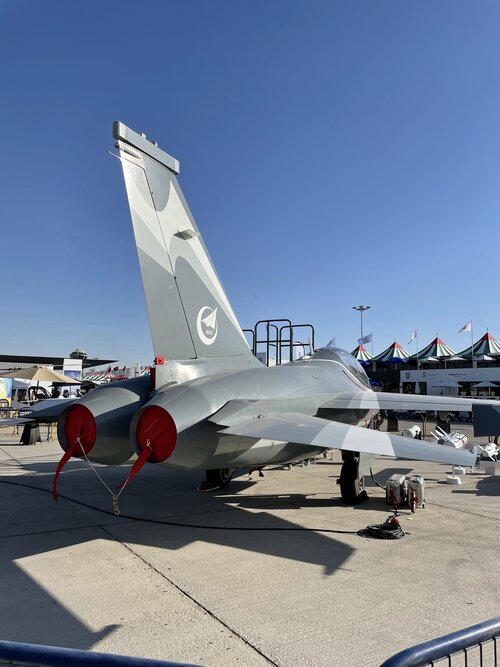

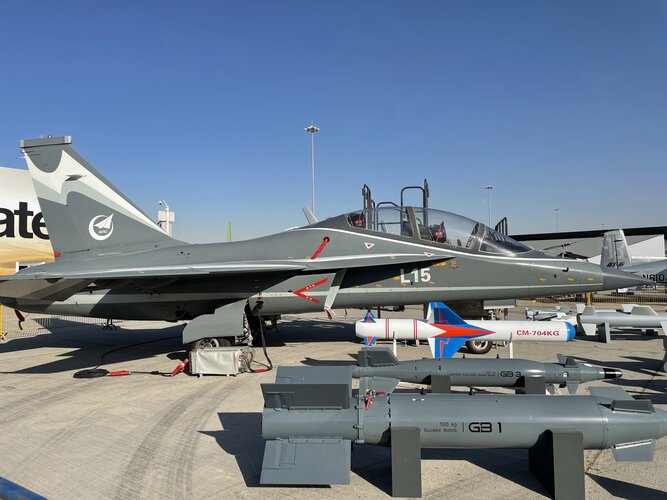

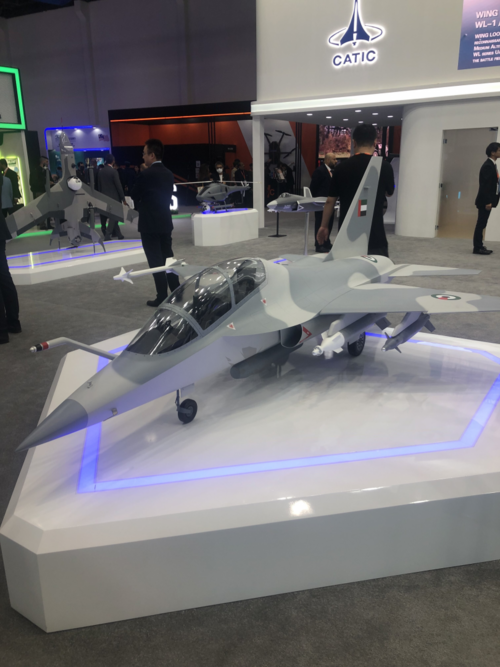

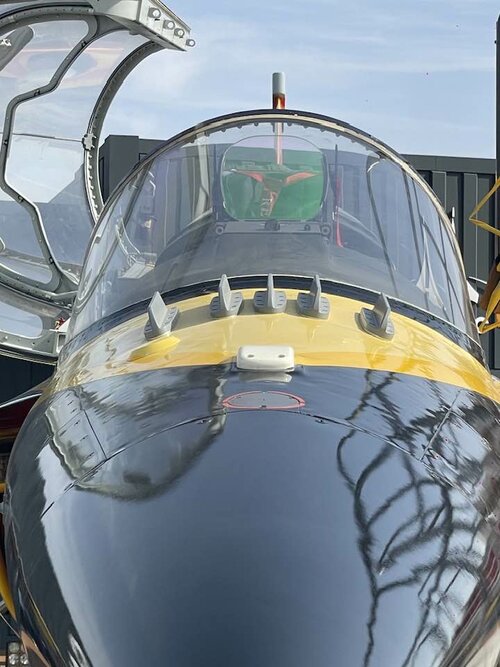

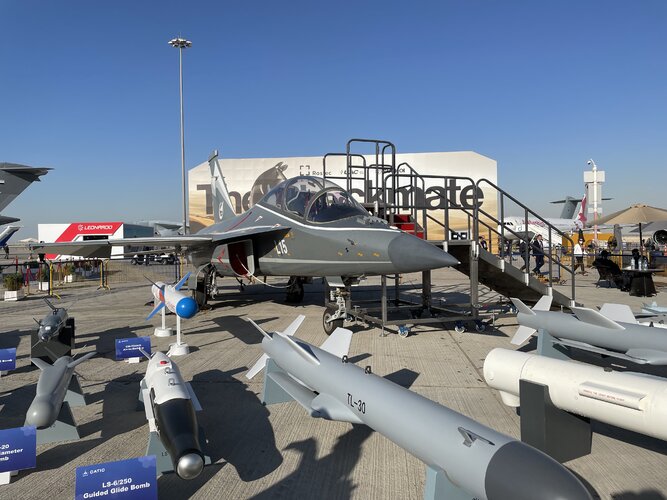

I saw it on static at Dubai Air Show the other weekend so here are my photos,

cheers


Attachments

  • 5FA27C0B-BA3E-4B9A-A127-CE028FA32D73.jpeg
    684.3 KB · Views: 36
  • 39EECD57-D309-4A48-A733-C45128F1F8AD.jpeg
    648.7 KB · Views: 36
  • C174811B-06E7-4F43-B324-3F31AD8F3077.jpeg
    2.9 MB · Views: 35
  • 214CB7B0-B5A7-4098-99F2-55DA32866A91.jpeg
    1.7 MB · Views: 35
