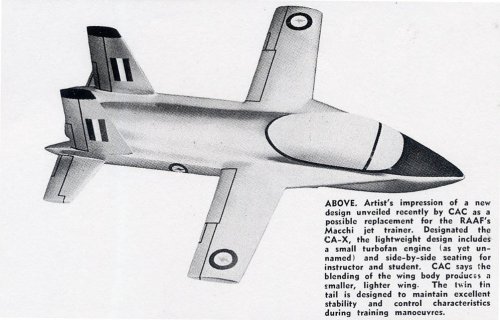

About 10 years ago Air Enthusiast published an article on CAC projects. One was, if memory serves, the XP 65 Warrior, a stainless steel supersonic fighter bomber. AE reproduced a small scale picture but very little information. Does anyone have further information or pictures on Commonwealth supersonic projects?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
114
Hi,

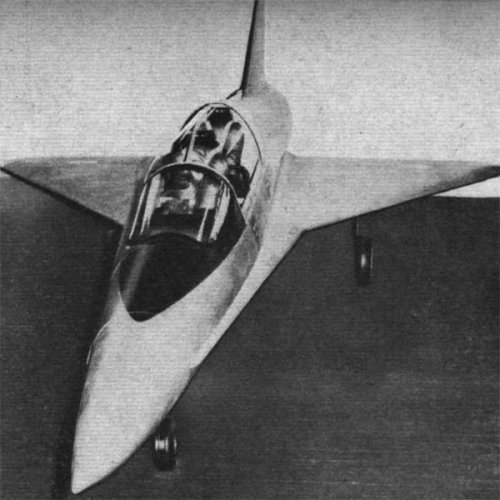

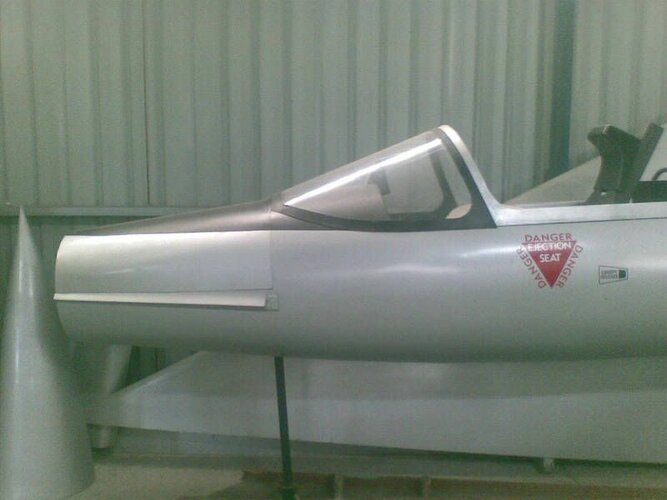

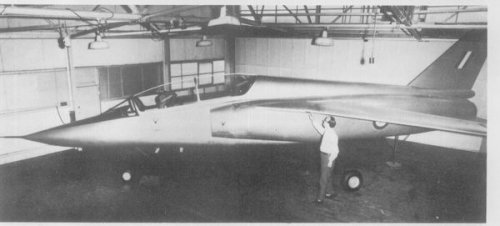

I don't know the project XP-65,but I have a picture of CAC-31
mock-up from my dear Jon.


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,353
Reaction score
15
I only have the AE article, no more info available :'(


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com

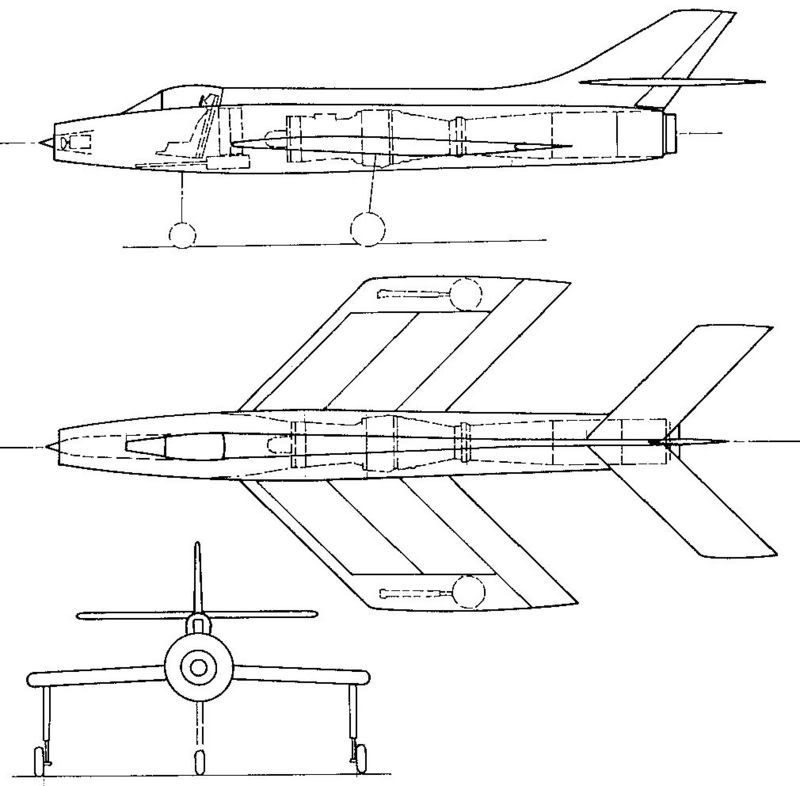

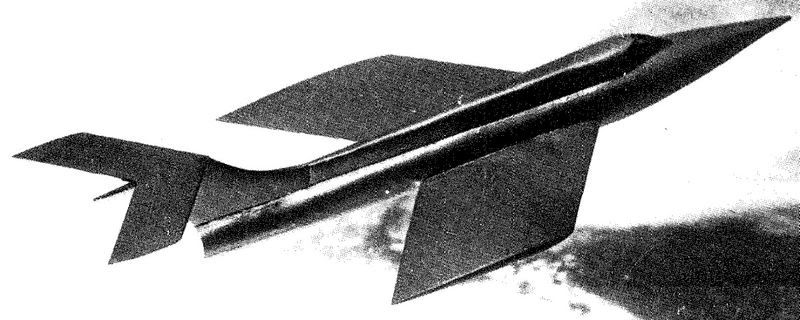

I have the articles you were referring to. The XP-65 was to be powered by a RA24R Avon series engine. Span was 7.3m, length was 14.3m.

Here are some pics from them. First the XP-65:

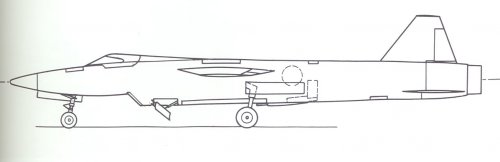

And the related XP-68 - this was also to be built of stainless steel. It was to be powered by a RR Avon RA19R. It also had provision for a search radar. Armament was 2 30mm cannon + 1 missile on each wingtip + another semi-recessed under the fuselage. It was to be Mach 2 capable and was largely seen as a competitor to the F-104



Regards,

Greg


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,957
Reaction score
14
Hi GTX,

probably the XP-65 and -68 weren't "absolute stealth" designs ? ;)
But I know those technical problems, just today I could make my
scanner work again :

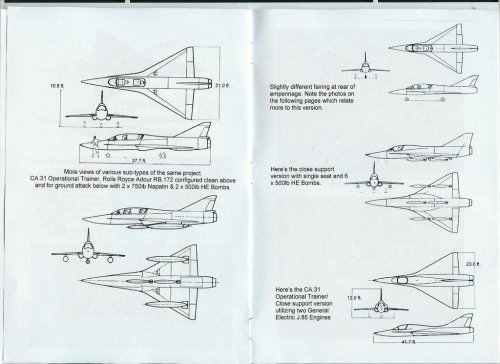

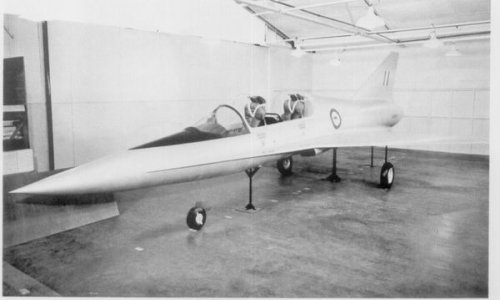

Here the mentioned pictures of the AA-107 and another view of the
Ca-31 mock-up :


Attachments

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,739
Reaction score
2
Hi all,

any information´s for the projects CA.21; CA.23 and CA.24 ?

Servus Maveric


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
114
Hi Maveric,

For the CA.23 see in designation system, http://www.secretprojects.co.uk/forum/index.php/topic,1213.0.html
and for CA.21 it was a furhter 250 Mustangs,but was cancelled.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com

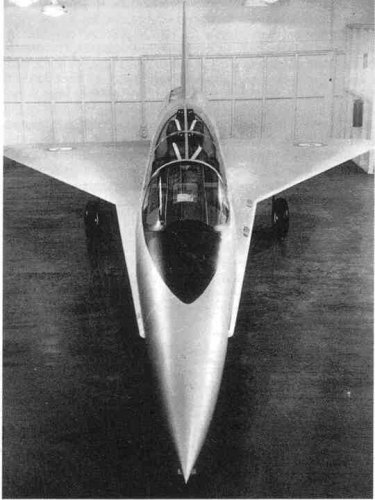

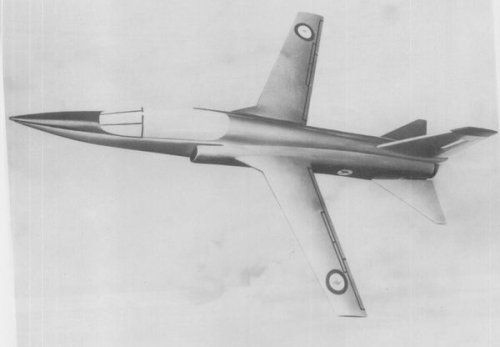

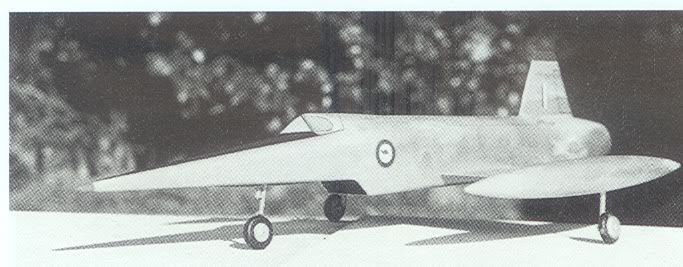

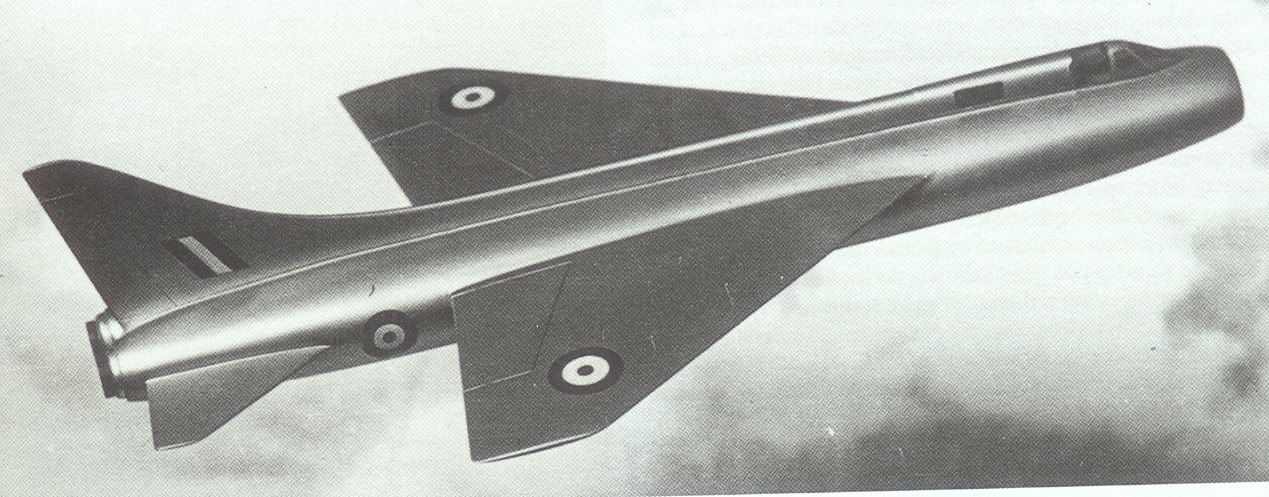

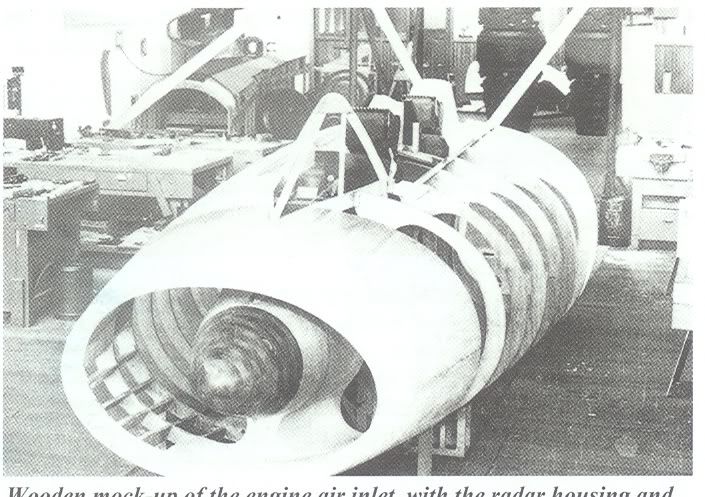

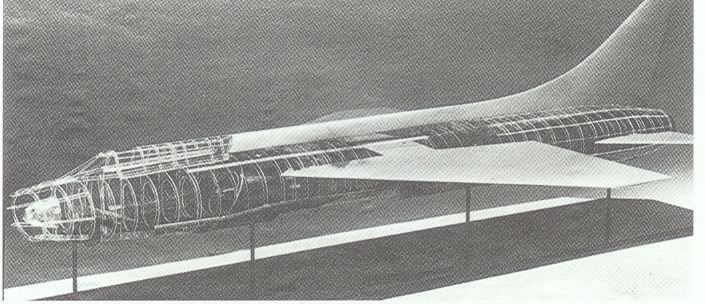

Some more Pics of the CA.23 (including mock-up pics):






Regards,

Greg


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com
Other interceptor proposals from CAC included:

The XP-46 - this was to be powered by an afterburning Avon RA-7R and was hoped to achieve 750 kts at 45000 ft. it was to be armed with two 30mmm cannon:


This was followed by a Rocket (probably using similar motors to the Bell X-1) powered interceptor, the XP-47. It was to be armed with six 3inch Oerlikon or Mighty Mouse type rockets:


Finally, there was the XP-62. This was to be a four-engined light(?) interceptor poweed by for RR RB93 Soar jets with a thrust to weight ratio of 6.77:1. Given the life of this engine at Mach 1+, it was expected that an engine change would be required after every 4 to 5 missions! It was also planned to be armed with rockets:


Regards,

Greg


Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
0
The designation CA-24 was reserved for a proposed licence version of the Hawker P-1080.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,957
Reaction score
14
Sorry GTX, I just had to follow my own signature ...
Some browsers ( e.g. Firefox) are blocking hotlinked attachements without warning ! ::)
Ok, now I can see your photos.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,177
Reaction score
9
I'm fond the XP-65 / 68 , CA-23 and CA-31 designs. I've made a model of the XP-68 some months ago...
Is there any model of the CA-23 on the market ?


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,177
Reaction score
9
Maybe this sounds stupid but...

this variant of the CA.31 seems quite different from Uncle lee's resin model of the CA.31.
http://www.fortunecity.com/meltingpot/portland/971/Reviews/raaf/ca-31.htm

The AE article tells that there was various iterations of the CA-31 (single seat for cas, 1 RB-172 or two J-85).

What variant did the mockup represented? the two J-85 or the single RB-172 variant ?


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com
Archibald,

What happenned with that pic - its a BGV International ship concept???

BTW, There was a pic of a superb model of the CA.23 that someone did last year (I think it was on Modelling Maddness and was from a Melbourne show) - I believe it may have been a scratch build though.

Regards,

Greg


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
507
Reaction score
10
GTX said:
Some more Pics of the CA.23 (including mock-up pics):

(...)

Regards,

Greg
Do you know the CA-23's dimensions and other specs? I presume the engines were to be the Avons. Am I right?

Best regards,
Piotr


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,177
Reaction score
9
Australian project from the 60's, delta wing, RB-172 engine (another aircraft powered by this prolific family of engines ;))
Mach 1.5, the aim was to train RAAF pilots to the Mirage IIIO. In the end the role was filled by both Aermacchi MB-326 and twin-seat Mirage III.
I have the air Enthusiast article on Australian designs, but I'm deseperately seeking a 3-view of this project (and more pics of the mockup, I know it has been preserved).

Thanks in advance...


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,110
Reaction score
64
http://www.flightglobal.com/PDFArchive/View/1967/1967%20-%201366.html
http://www.flightglobal.com/PDFArchive/View/1967/1967%20-%200463.html

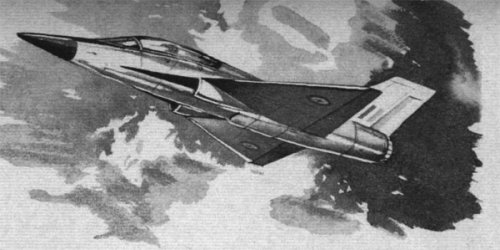

PROGRESS WITH THE CA-31

ADVANCED-TRAINER PROJECTS make news these days and reflect the importance of offering sufficient performance to simulate as many as possible of the characteristics of the type of aircraft which the pupil pilot will eventually fly. Last week we described the Dornier Do P375 universal trainer; this week we illustrate a mock-up of the Commonwealth Aircraft Corporation Pty CA-31 operational trainer, proposals for which were submitted to the Australian Government last winter.

Forward planning by the Commonwealth Department of Air—as shown by its acquisition of the Mirage IIIO and, soon, the F-111C- indicated the need for a supersonic two-seater as a logical follow-on to the Macchi MB.326H which will be used for the primary training programme (the first Australian-built MB.326s will fly next year). While, therefore, the Department of Air was evaluating a number of aircraft already built and projected, the CAF drew up a specification for the CA-31. This trainer is probably unique in having a delta wing, most existing delta trainers having been developed from existing operational aircraft. The design is clearly aimed at providing delta-wing training for the Mirage, notwithstanding the existence of the conversion trainer - the Mirage IIID - already in service with the RAAF.

The CA-31 has been engineered to produce an effective, versatile, supersonic jet trainer which can be operated effectively in a number of roles. The design emphasises low weight, simplicity and excellent handling, together with minimum maintenance and logistic support requirements. With a 21ft-span double delta wing (similar to that of the Draken) go a swept fin and rudder. Full-span elevons provide control in pitch and roll. Overall length is 37ft. The estimated approach speed is 120kt, while the landing and take-off runs are 2,050ft and 1,200ft respectively.

While the gross weight in the training configuration would be 8,500lb, no decision has apparently been made about the selection of the powerplant; but CAF thinking is now turned towards a single turbofan providing 4,600lb of static thrust or 6,900lb with afterburner. This engine could well be the Rolls-Royce/Turbomeca Adour which has been selected for the Anglo-French Jaguar trainer/strike fighter, but the Bristol-Siddeley Snecma M45 series of engines offers an attractive alternative. The speeds at high level and "on the deck" are understood to be Mach 1.5 and Mach 1 respectively.

The aircraft is, according to CAF, readily adaptable to light ground-attack duties and guns, rockets, bombs and missiles may be carried for advanced training or operational use.


Attachments

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com
Thanks for that - there is also a fairly close approximation of the CA-31 by Peter Hobbins on the whatifmodelers site:




Regards,

Greg


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,875
Reaction score
3
Obviously one got real value for money in those days...


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com
I don't know about the P223 designation, but this is the CAC CA-23 - see more (including mock-up pics) here:

http://www.secretprojects.co.uk/forum/index.php/topic,1479.0

Regards,

Greg


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,415
Reaction score
10
GTX said:
I don't know about the P223 designation, but this is the CAC CA-23 - see more (including mock-up pics) here:

http://www.secretprojects.co.uk/forum/index.php/topic,1479.0

Regards,

Greg

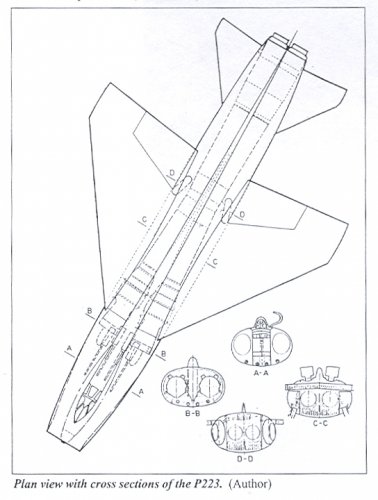

My source , AIR ENTHUSIAST Nº 63 ,uses the P223 denomination , as you may see at the lower section of the drawing I seen yesterday.
When using the "Search" option on the CAC P223 dit not get anything.It happens sometimes...


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com
Has anyone got a decent line drawing that also includes a side view of the CA-23?

Regards,

Greg


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,615
Reaction score
1
Hello gents

Does anyone have or know of any 3-view drawing or side profile drawing of the CA-31 design???

Regards
Pioneer


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
507
Reaction score
10

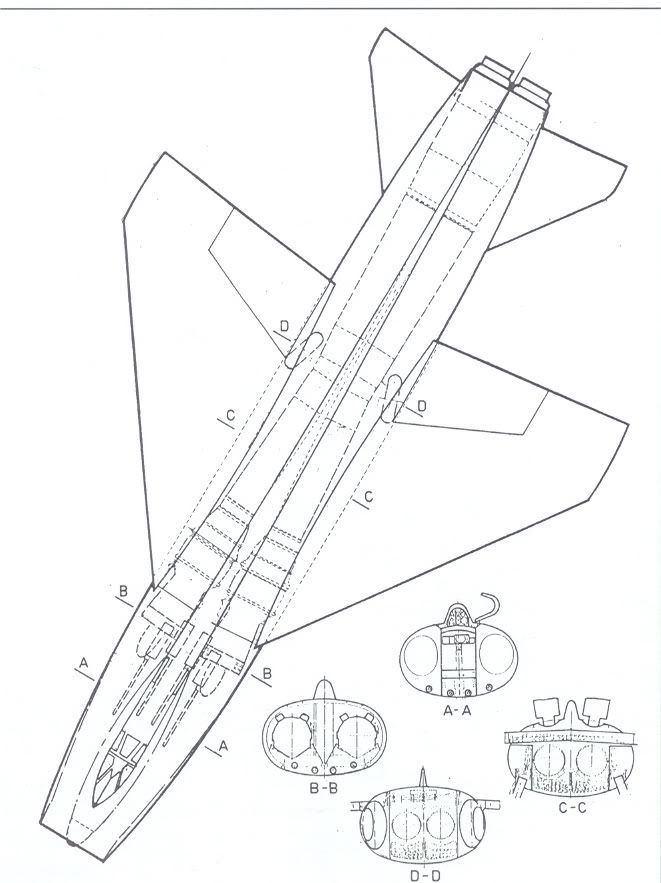

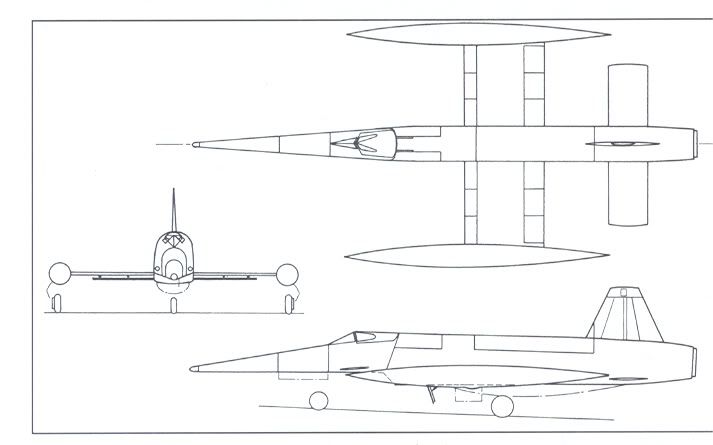

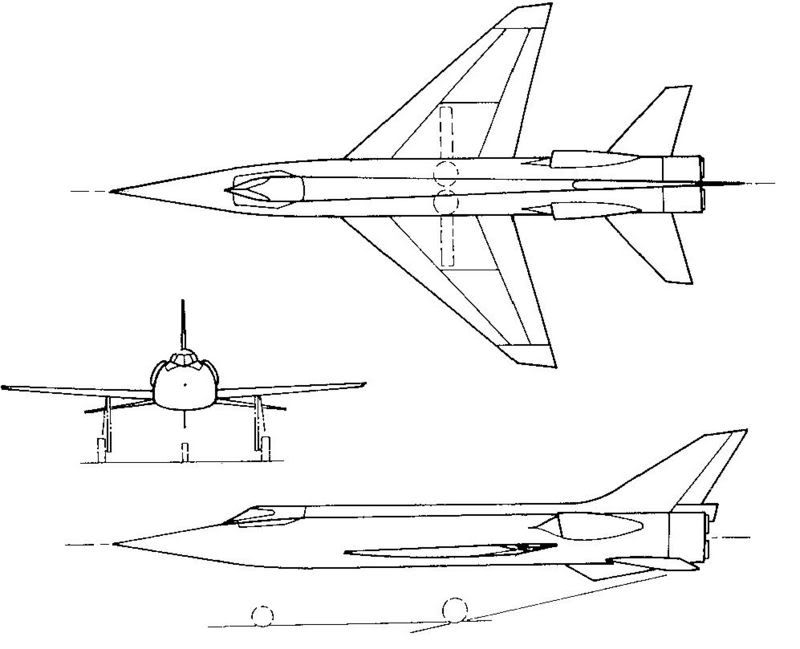

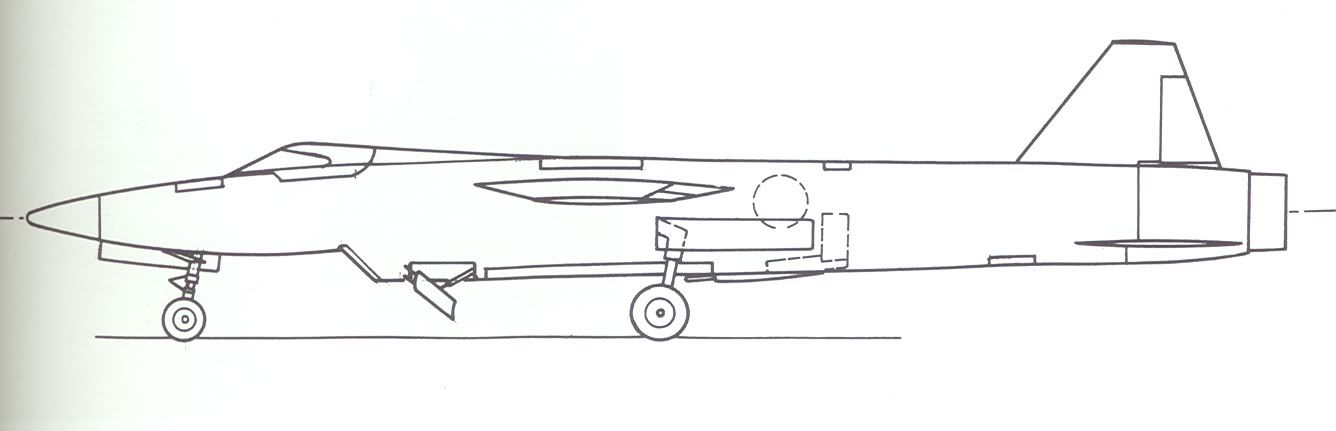

I'm not sure if you look for something I've attached below. But there are the CA-31's three-view drawings of a kind.

Best regards,
Piotr


Attachments

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,615
Reaction score
1
Thanks Petrus very much!
These are great!
I hope that I may be able to find larger copies, as I am going to attempt to get some 'What If' profiles done of these in both a combat and trainer variant (Hint Hint GTX ;) ;D

If I have any luck (and takers) I will be sure to forward them on for your efforts

Regards
Pioneer


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com

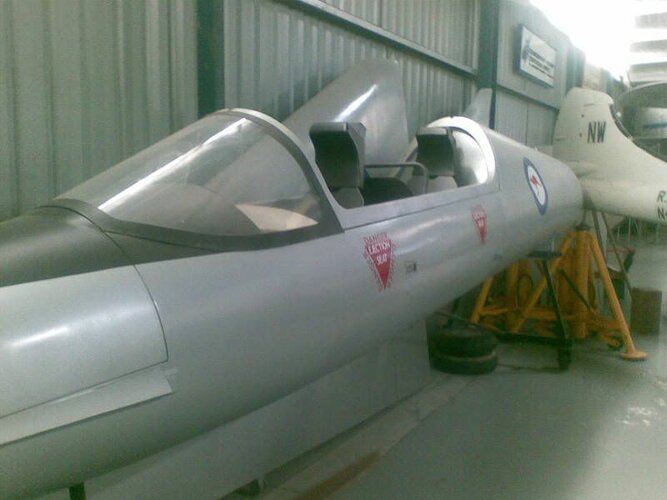

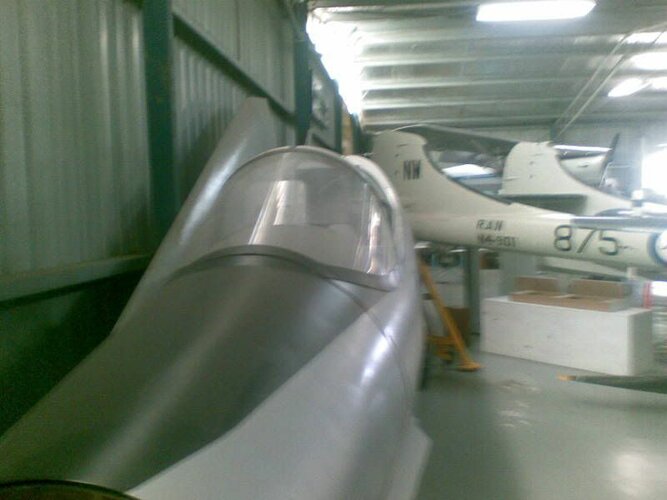

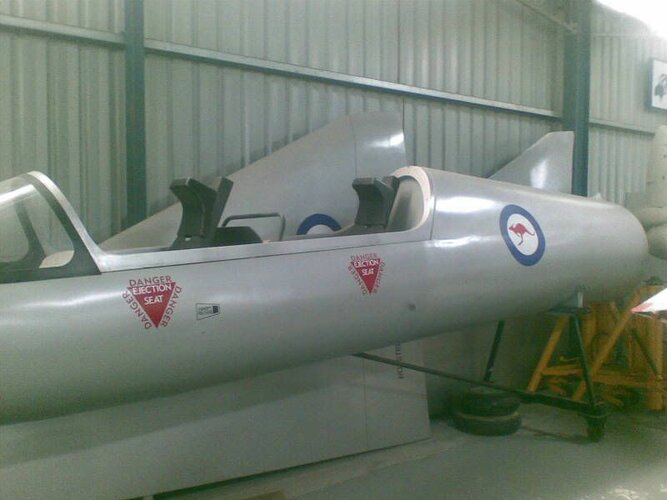

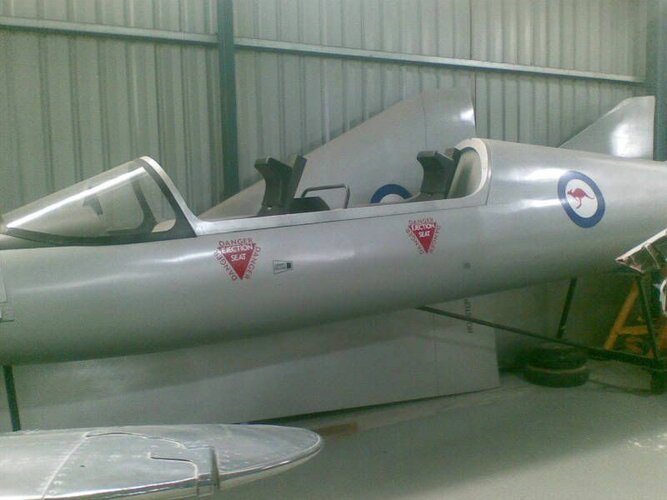

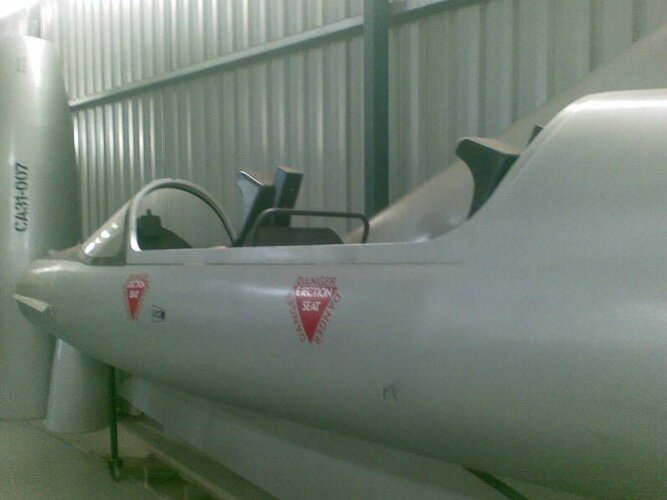

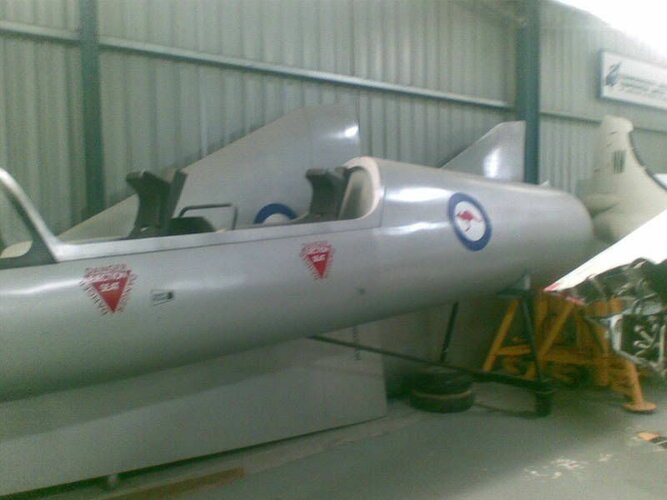

There is a full size Ca-31 mockup in the back of the Australian National Aviation Museum, at Moorabbin Airport near Melbourne, Australia.

The mock-up is disassembled and against one wall (easily missed). Pics were taken with my phone a couple of years ago:











Regards,

Greg


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com
Petrus said:
I'm not sure if you look for something I've attached below. But there are the CA-31's three-view drawings of a kind.

Best regards,
Piotr
Piotr,

What is the source of these please?

Regards,

Greg


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
507
Reaction score
10
GTX said:
Piotr,

What is the source of these please?

Regards,

Greg
Well, some time ago I downloaded it from another forum, I can't recall now which one.

Piotr


Thorvic

CLEARANCE: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
597
Reaction score
1
GTX said:
Petrus said:
I'm not sure if you look for something I've attached below. But there are the CA-31's three-view drawings of a kind.

Best regards,
Piotr
Piotr,

What is the source of these please?

Regards,

Greg
From the instructions from the Uncle Les 1/72 CAC CA-31 resin kit Greg ;D


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,615
Reaction score
5
Website
beyondthesprues.com
I should have guessed - thanks. Will ask Les about a copy next time I'm talking to him - might try to get a high res version.

Regards,

Greg


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
373
Reaction score
1
Website
www.aviationart.aero
Would anyone have the CA-23 drawings of which snippets are shown halfway down this page?
http://jet-flight.net/ca23.html

I've been trying to find contact details for the author of that article, Denis O'Brien, but without luck.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,198
Reaction score
13
Website
www.aerospaceprojectsreview.com
Skyraider3D said:
I've been trying to find contact details for the author of that article, Denis O'Brien, but without luck.
The magic of creepy Ye Olde Internet Tubes gives the guys name, PO box, phone number and email address:
http://www.melbourneit.com.au/cc/whois/search

I won't post his (or anyones) contact info out here in the world in front of the IRS and everybody, but enter "jet-flight.net" into the whois search at that website and it'll hook you right up.


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
373
Reaction score
1
Website
www.aviationart.aero
Thanks! I actually did try a WHOIS for that domain, but clearly not on the right website as my search didn't get further than the contact details of the site's webhost.
