Vought V-533, V-538, V-539, V-541 'Eaglet' NGT designs

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651
Greetings All -

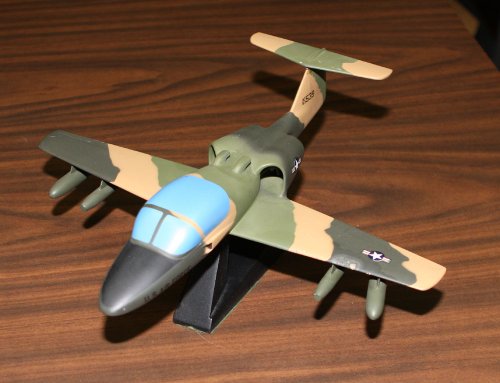

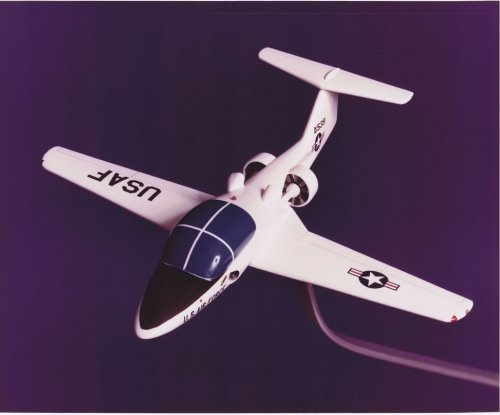

I photographed this model of the Vought/VFW submission for the T-37 replacement [Vought V-538 - Added by Admin] while visiting/volunteering with the Vought Retiree's Club, keepers of the Vought historical archives. Anyone have info on other submissions?

Enjoy the Day! Mark


Attachments

  • xIMG_0016.jpg
    66.2 KB · Views: 2,929
  • xIMG_0017.jpg
    54 KB · Views: 2,050

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120
It was a development of the RFB Fantrainer, called "Fantrainer 400" and
proposed in 1979. As the short article from FlugRevue 10/1979 shows,
another version with side-by-side seating was considered, too.


Attachments

  • RFB-fantrainer.jpg
    22.8 KB · Views: 2,087

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
157
Mark Nankivil said:
Greetings All -

I photographed this model of the Vought/VFW submission for the T-37 replacement while visiting/volunteering with the Vought Retiree's Club, keepers of the Vought historical archives. Anyone have info on other submissions?

Enjoy the Day! Mark

Can anyone confirm the designation Vought V-539 for this display model?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,126
By the way,

the first aircraft for Vought/VFW called V.538 and the second
called V.541.
http://www.flightglobal.com/PDFArchive/View/1980/1980%20-%201302.html?search=vought%20ngt%201980


Attachments

  • V-538.jpg
    37.3 KB · Views: 1,480
  • V-541.jpg
    58.9 KB · Views: 1,120

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
41
hesham said:
By the way,the first aircraft for Vought/VFW called V.538 and the second
called V.541.

In " Luftfahrt International " 1/81, H.J Meier wrote about the LTV/VFW/RFB entry to NGT contest :

- the one fan entry is the V-538
- the two fan entry is an early V-539 design

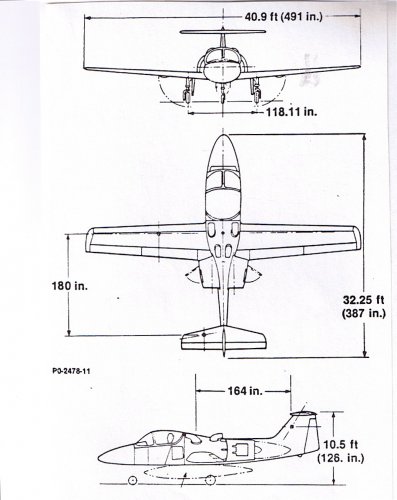

- the definitive proposal is the V-539 design shown in the 3-views
(2xPT6-34 ,weight 2320 kg ,wing area 17.45m2)


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
41
Something goes wrong with my pics : here they are !


Attachments

  • LTV:VFW:RFB.jpg
    436 KB · Views: 206
  • V-539.jpg
    392.5 KB · Views: 299

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
41
And the text :

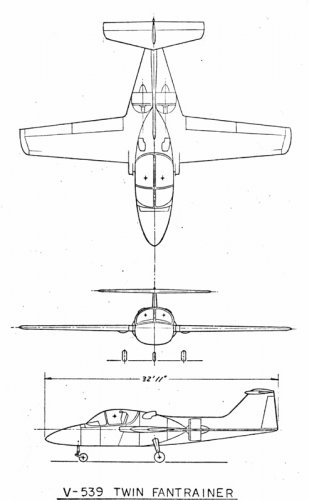

In " Luftfahrt International " 1/81, H.J Meier wrote about the LTV/VFW/RFB entry to NGT contest :

- the one fan entry is the V-538
- the two fan entry is an early V-539 design
- the definitive proposal is the V-539 design shown in the 3-views
(2xPT6-34 ,weight 2320 kg ,wing area 17.45m2)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,662
Reaction score
4,273
Vought Eaglet NGT.

Source:
Roy Braybrook, Military Training Aircraft of Today (Foulis 1987)


Attachments

  • Vought-Eaglet-NGT.jpg
    95.6 KB · Views: 170

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651
Greetings All -

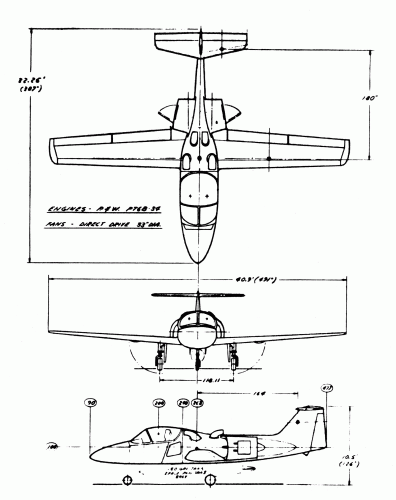

Here's a few drawings from the Vought Archives of the V-539.

Enjoy the Day! Mark


Attachments

  • Vought V-539 - 1.gif
    Vought V-539 - 1.gif
    29.5 KB · Views: 226
  • Vought V-539 - 2.gif
    Vought V-539 - 2.gif
    36 KB · Views: 231
  • Vought V-539 - 3.gif
    Vought V-539 - 3.gif
    264.5 KB · Views: 187
  • Vought V-539 - 4.gif
    Vought V-539 - 4.gif
    259.2 KB · Views: 413
  • Vought V-539 - 5.gif
    Vought V-539 - 5.gif
    190.3 KB · Views: 262

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651

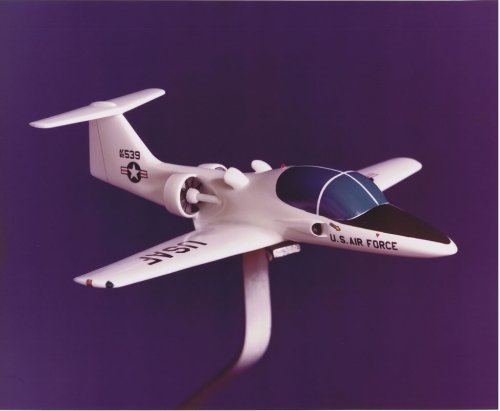

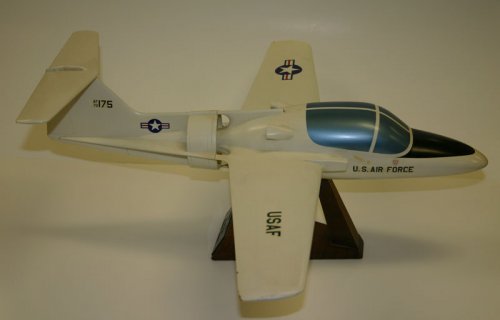

...and a few pics which my friend Fred Harl took of V-539 models in the Vought Archives collection.

Enjoy the Day! Mark


Attachments

  • xMG_8611.jpg
    160.6 KB · Views: 174
  • xMG_8597.jpg
    140.7 KB · Views: 177

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
369

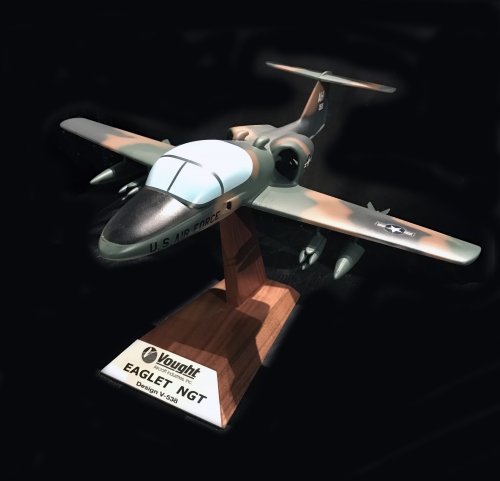

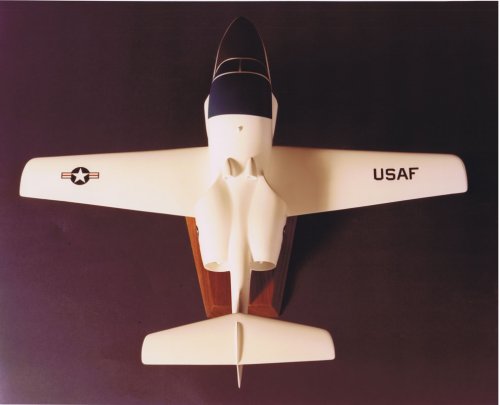

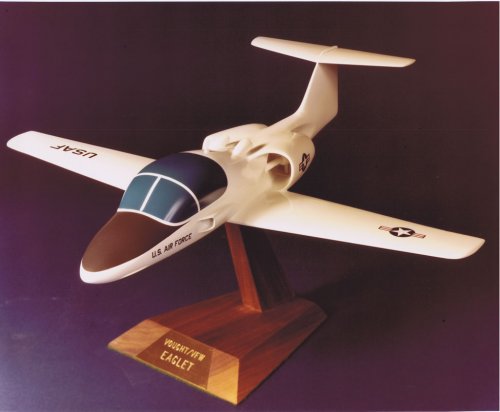

Vought's Eaglet with small fan ducts

Vought Heritage Collection


Attachments

  • xVought-VFW-Eaglet-Model-small-ducts-Vought-Heritage-Collection-Right-Quarter.jpg
    50.7 KB · Views: 111
  • xVought-VFW-Eaglet-Model-small-ducts-Vought-Heritage-Collection-Top.jpg
    53.8 KB · Views: 105

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
369

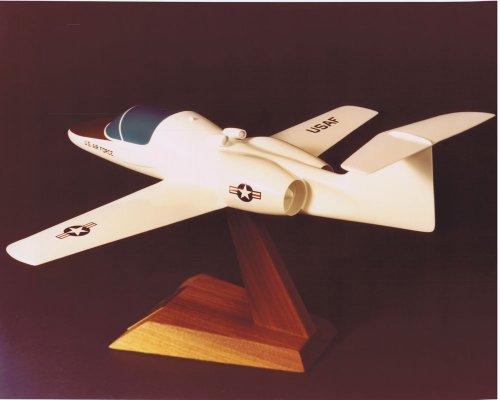

And large fan ducts

Vought Heritage Collection


Attachments

  • xVought-VFW-Eaglet-Model-Vought-Heritage-Collection-Left-Quarter.jpg
    68.8 KB · Views: 124
  • xVought-VFW-Eaglet-Model-Vought-Heritage-Collection-Left-Rear.jpg
    55.8 KB · Views: 126
  • xVought-VFW-Eaglet-Model-Vought-Heritage-Collection-Rear.jpg
    55.6 KB · Views: 102

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540

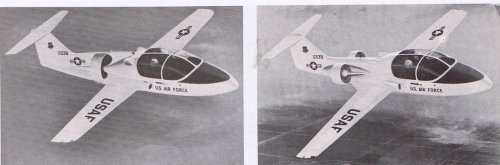

Splendid. I'm still trying to find the difference between the V-538 and V-541 proposals. They are supposed to be pretty similar, but all the pics I've seen so far seem to show either the V-538 or the V-539 proposal. The only pic labeled "V-541" is most probably mislabelled as the picture seems to depict a V-538.

Could anyone here shed some light on this question? Thanks.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
673
Website
deeptowild.blogspot.com
Vought/VFW NGT (Next Generation Trainer) concept artwork lithograph found on eBay.

[link no longer active]


Attachments

  • $(KGrHqNHJE4E+VBsQh7cBP2UM7V,UQ~~60_57.JPG
    421.6 KB · Views: 1,329

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651
Thanks Triton - I put a bid in on it along with some of the other Vought prints they have offered. Stay tuned...

Enjoy the Day! Mark


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
369

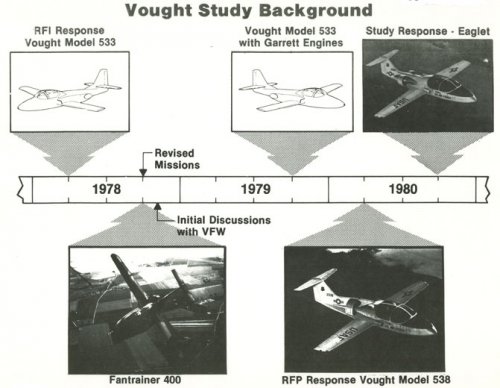

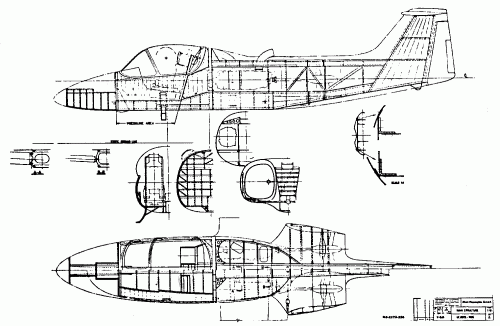

Here are some slides from a 25AUG80 presentation "Vought's USAF Next Generation Trainer Studies"
credit Vought Heritage

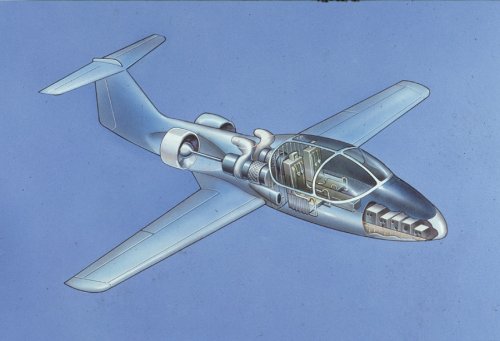

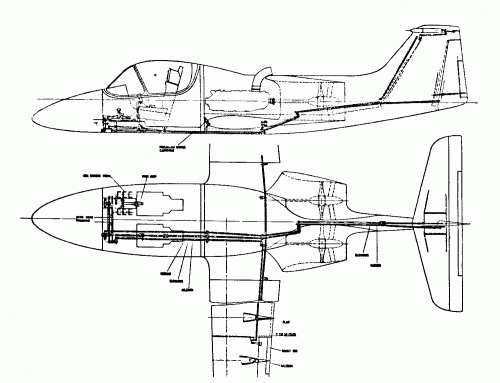

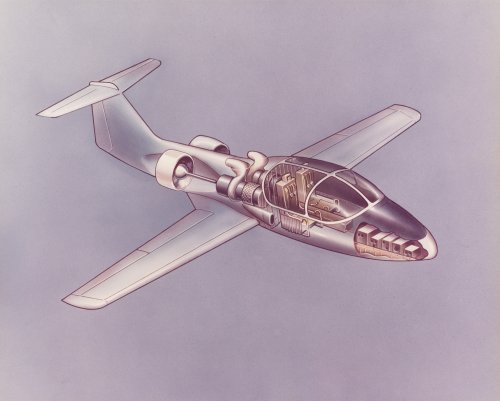

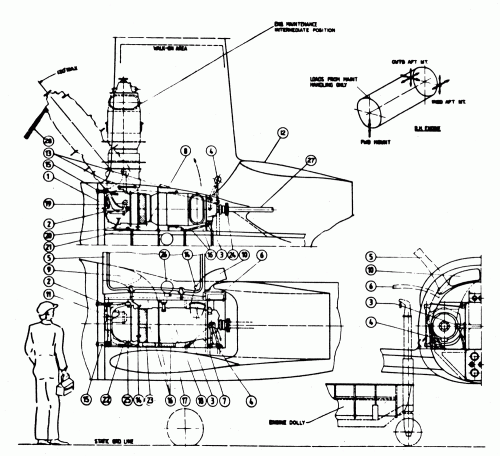

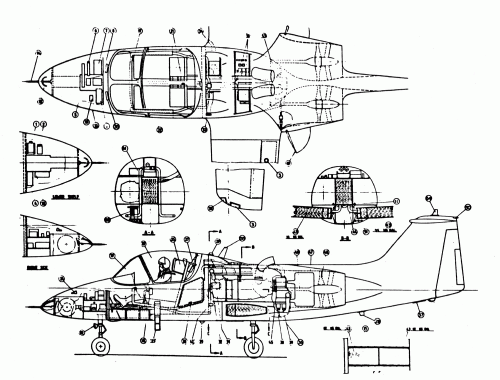

Here are a cutaway and a background showing progression to the Eaglet.




bill


Attachments

  • 10-25-12-0009.jpg
    61 KB · Views: 1,121
  • 10-25-12-0003.jpg
    62.5 KB · Views: 1,689

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
369

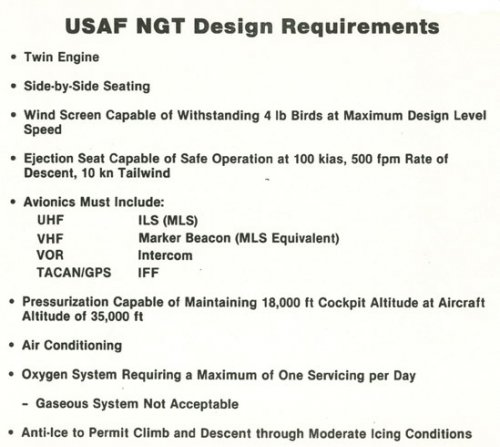

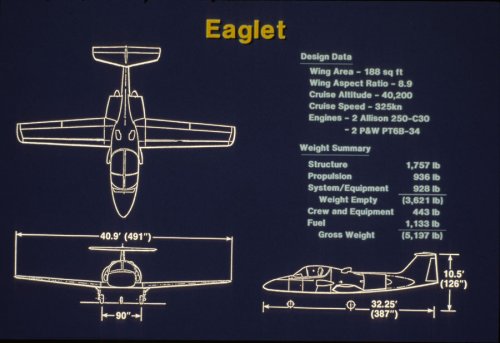

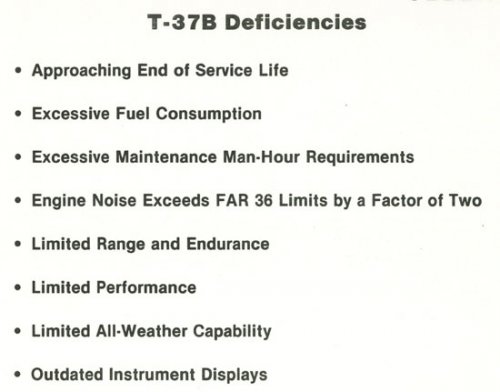

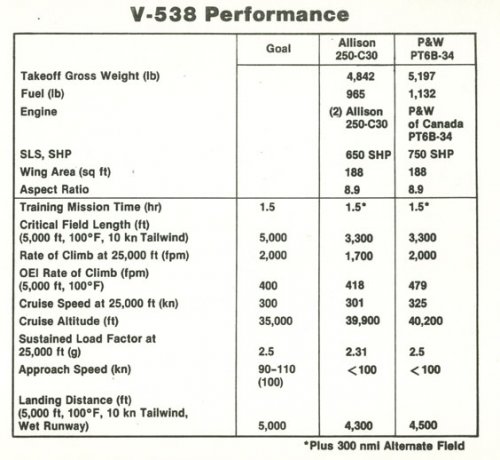

Here are some slides from a 25AUG80 presentation "Vought's USAF Next Generation Trainer Studies"credit Vought Heritage


This time T-37B Deficiencies
USAF NGT Design Requirements
Summary of Characteristics
and V-538 Performance with Allison and P&W Engines.


bill


Attachments

  • 10-25-12-0025.jpg
    30.3 KB · Views: 979
  • 10-25-12-0026.jpg
    44.2 KB · Views: 65
  • 10-25-12-0010.jpg
    45.7 KB · Views: 70
  • 10-25-12-0011.jpg
    53.5 KB · Views: 84

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Thanks a lot Bill! The presence of the V-533 design (similar configuration to the T-37B) called for a renaming of the topic.

Instead of mentioning "V-533 / V-538 / V-539 / V-541" in the title I opted to leave only the name Eaglet since it was officially given by Vought.

Interestingly the very same name also circulated at the time for the Fairchild FRC-225, which "won" the competition as the T-46A. Perhaps the Air Force, not the companies, originated the name of a small eagle to evoke an advanced trainer preceding the F-15 Eagle in the pilot's progression? Just a thought


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,126
Hi,

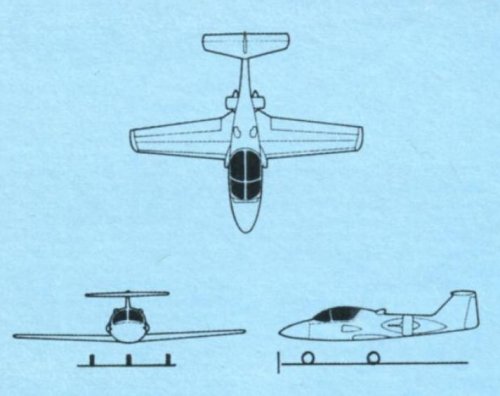

from JP4 magazine,here is a 3-view to Vought V-538 NGT aircraft project.


Attachments

  • V-538.JPG
    33 KB · Views: 111

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,662
Reaction score
4,273
V-539 pic


Source:


Luftfart International Jan 1981


Attachments

  • V-539.jpg
    187.1 KB · Views: 754

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
369
Nothing really new to add as far as information.
These are better scans/color scans of information previously presented.


bill


Attachments

  • Eaglet-Slide-VAHF.jpg
    61.5 KB · Views: 66
  • Vought-NGT-Background-Slide-VAHF.jpg
    66.2 KB · Views: 92
  • Eaglet-General-Arrangement-Slide-VAHF.jpg
    79.4 KB · Views: 131
  • V-539-Eaglet-Cutaway-VAHF.jpg
    88.1 KB · Views: 258
  • V-539-Eaglet-PK+Nagata.jpg
    89.6 KB · Views: 150

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651

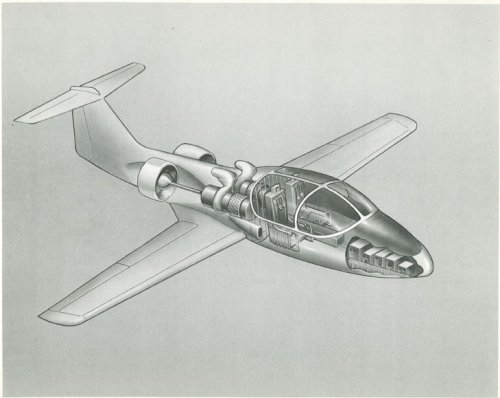

Good Day All -

A larger image of one posted by Bill S earlier on...

Enjoy the Day! Mark


Attachments

  • zV-539 Eaglet Cutaway Artwork.jpg
    zV-539 Eaglet Cutaway Artwork.jpg
    670.5 KB · Views: 299

allysonca

ACCESS: Secret
Top Contributor
Senior Member
Joined
Mar 11, 2011
Messages
202
Reaction score
336
I was lucky to win this on E-bay as in over 40 years of collecting the Vought Eaglet had eluded me. It had issues big time. Painted in trainer white, the paint was bubbling and chipping, and it was a very poorly executed example of the usually good Vought model shop models. I decided to redo and decided on the attack version. The only thing to finish is the wood stand this weekend....... Enjoy.


Attachments

  • Vought.jpg
    1.3 MB · Views: 195
  • Eaglet.jpg
    1.6 MB · Views: 203

allysonca

ACCESS: Secret
Top Contributor
Senior Member
Joined
Mar 11, 2011
Messages
202
Reaction score
336
All done with a new base and ID plate. Name plate was done with my Laser printer with clear decal paper and rendered in photoshop......... I like it.........


Attachments

  • EGLET NGT.jpg
    EGLET NGT.jpg
    481.2 KB · Views: 141

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651
Nicely done - love that display case full of models too!

Enjoy the Day! Mark


allysonca

ACCESS: Secret
Top Contributor
Senior Member
Joined
Mar 11, 2011
Messages
202
Reaction score
336

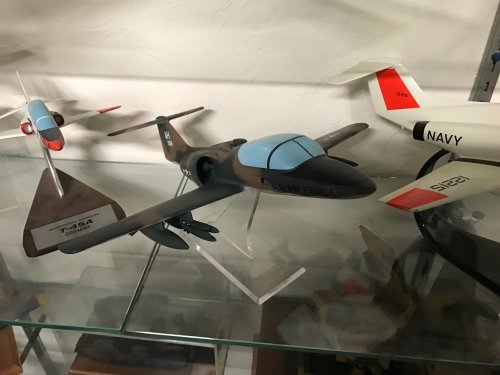

Sadly the display case is at the Vought Company and not the Vought (house).... sigh..........


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
369

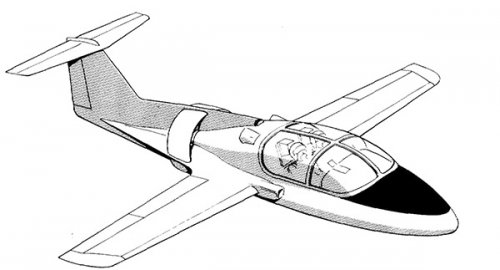

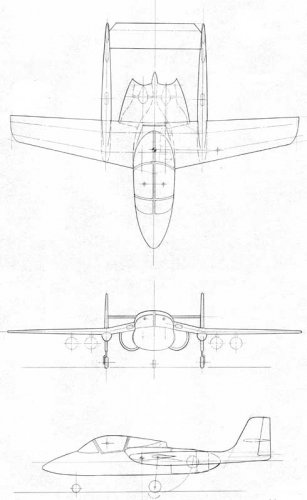

Here is a recently found drawing of the V-539 from early May 1980, that is slightly
different than other drawings in this thread. The intakes are in the wing leading
edges and the "strakes" around the fans. The length is a little shorter than other iterations as well.


Attachments

  • V-539-May-1980-Vought.jpg
    56.8 KB · Views: 917

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
369

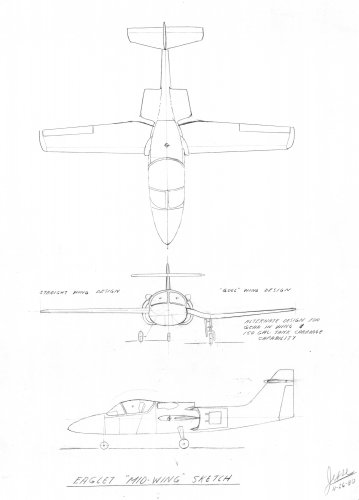

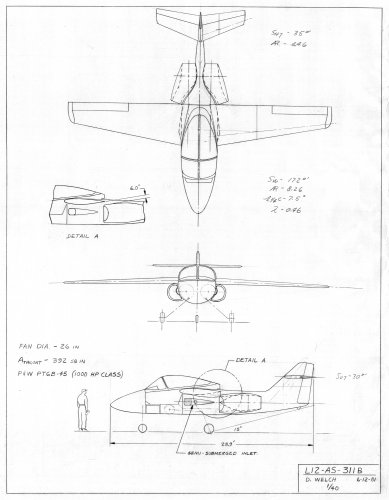

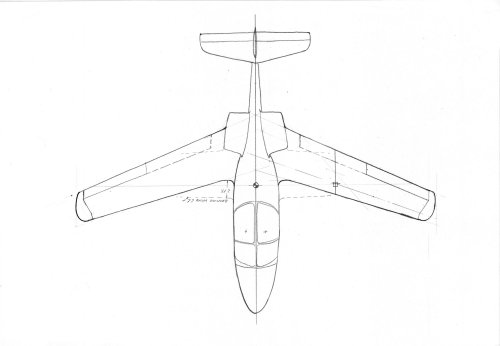

Something new for the conversation is this mid-wing twin boom gull winged Eaglet!
It also shows provisions for under-wing fuel tanks or stores.

This would make a great WHIF modeling project.

bill


Attachments

  • L12-AS-329-Eaglet-Mid-Wing-Twin-Boom-Concept-E-Nauman-8-4-81-ADJ.jpg
    25 KB · Views: 730

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,339
Reaction score
4,126
Great find my dear Bill,

always Vought used L12 designation;

https://www.secretprojects.co.uk/forum/index.php/topic,6564.0.html


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
369
I think your asking if L12 was an always used designation for the Eaglet, no it was not.
L12 was a prefix for Advance Products drawing numbers, nothing to do with the model number of the design.
There are L12-XX-XXXX drawings for the A-7 and a number of different projects including the Eaglet.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651

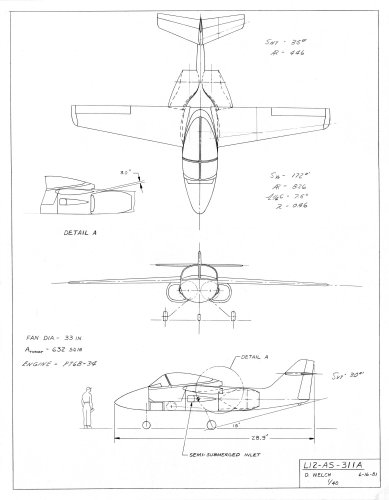

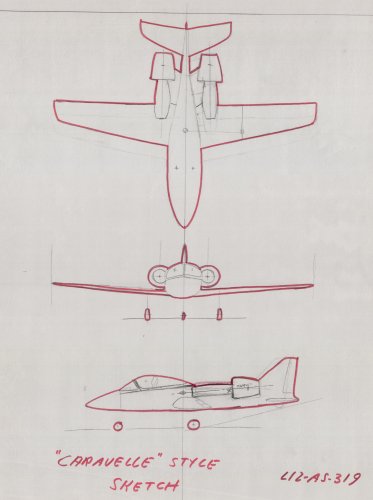

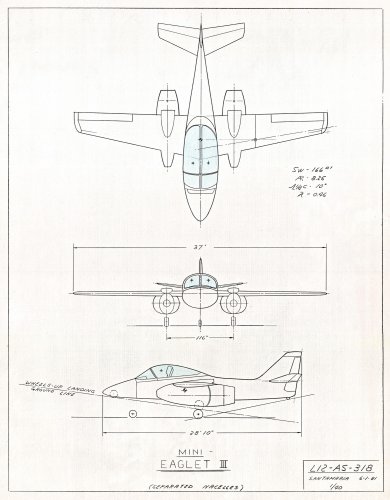

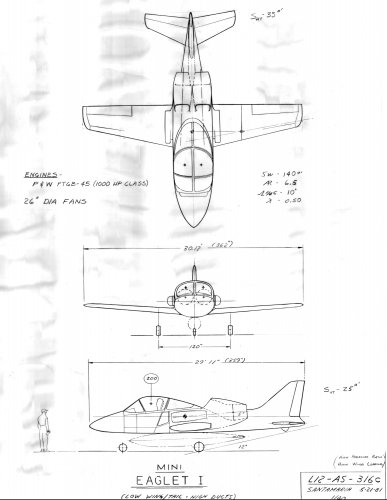

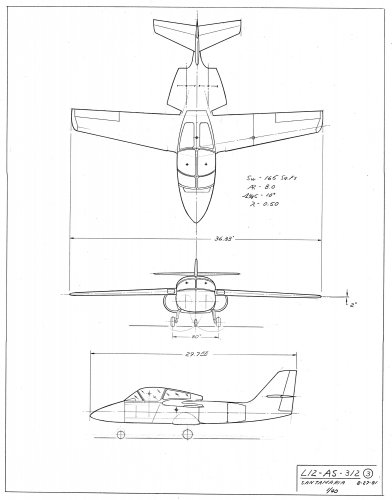

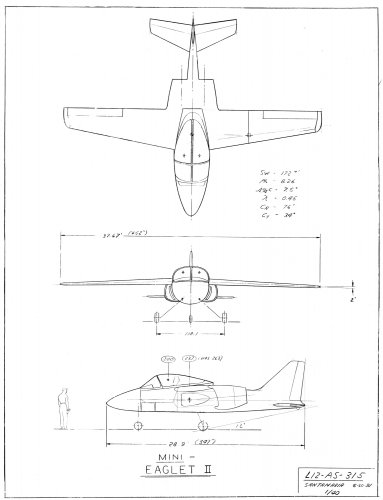

Greetings All -

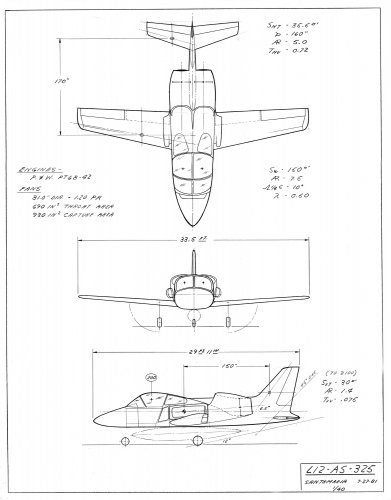

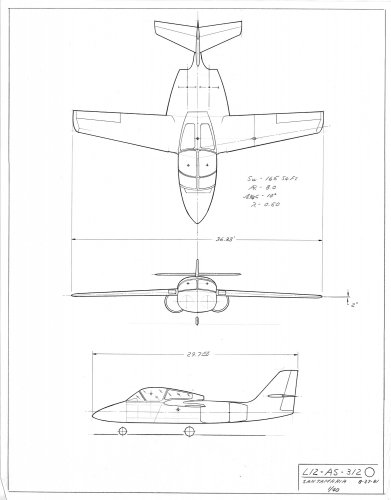

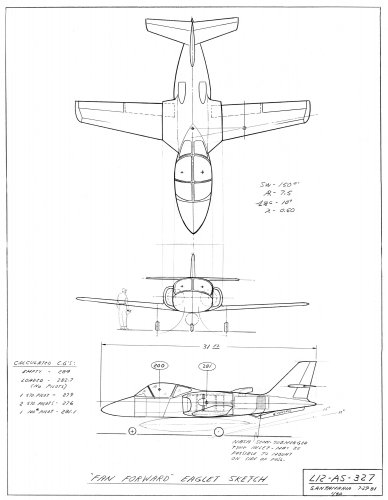

With a big thanks to Bill S for acting as the courier, some drawings from the Vought archives of various iterations of the Eaglet and Mini Eaglet.

Enjoy the Day! Mark


Attachments

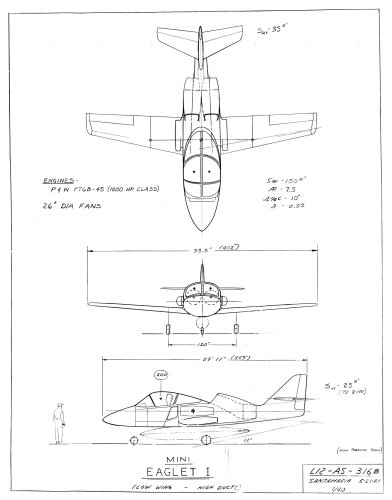

  • zL12-AS-318 Mini Eaglet III Separated Nacelles Jun-1-81.jpg
    zL12-AS-318 Mini Eaglet III Separated Nacelles Jun-1-81.jpg
    839.9 KB · Views: 79

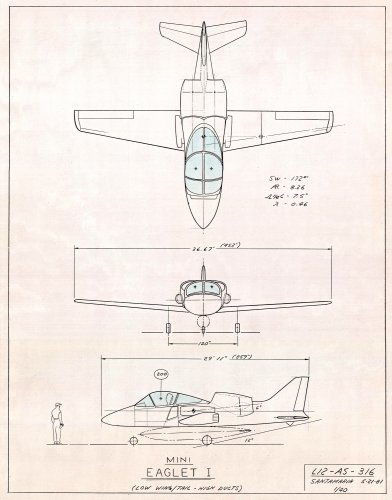

  • zL12-AS-316C Mini Eaglet I Low Wing-Tail High Ducts May-21-81.jpg
    zL12-AS-316C Mini Eaglet I Low Wing-Tail High Ducts May-21-81.jpg
    276.2 KB · Views: 67
  • zL12-AS-316B Mini Eaglet I Low Wing High Duct May-21-81.jpg
    zL12-AS-316B Mini Eaglet I Low Wing High Duct May-21-81.jpg
    240.7 KB · Views: 74
  • zL12-AS-316 Mini Eaglet I Low Wing-Tail High Ducts May-21-81.jpg
    zL12-AS-316 Mini Eaglet I Low Wing-Tail High Ducts May-21-81.jpg
    936.1 KB · Views: 69
  • zL12-AS-315 Mini Eaglet May-20-81 .jpg
    zL12-AS-315 Mini Eaglet May-20-81 .jpg
    212.8 KB · Views: 64
  • zL12-AS-312-3 Aug-27-81.jpg
    zL12-AS-312-3 Aug-27-81.jpg
    226.7 KB · Views: 62
  • zL12-AS-312 Aug-27-81.jpg
    zL12-AS-312 Aug-27-81.jpg
    209.9 KB · Views: 62
  • zL12-AS-311B Jun-12-81.jpg
    zL12-AS-311B Jun-12-81.jpg
    525 KB · Views: 333
  • zL12-AS-311A Jun-16-81.jpg
    zL12-AS-311A Jun-16-81.jpg
    267.9 KB · Views: 366
  • zL12-AS-270 V-539 Twin Fantrainer Eaglet Aug-2-80.jpg
    zL12-AS-270 V-539 Twin Fantrainer Eaglet Aug-2-80.jpg
    284.9 KB · Views: 397

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
651
And a few more.... Mark


Attachments

  • zEaglet Mid-Wing Sketch Nov-26-80.jpg
    zEaglet Mid-Wing Sketch Nov-26-80.jpg
    206.1 KB · Views: 70

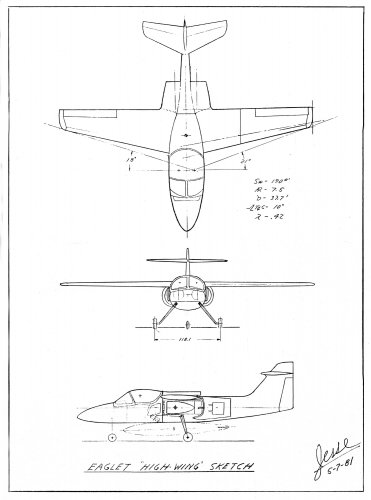

  • zEaglet High-Wing Sketch May-7-81.jpg
    zEaglet High-Wing Sketch May-7-81.jpg
    301.7 KB · Views: 69
  • zEaglet High-Wing Sketch May-5-81.jpg
    zEaglet High-Wing Sketch May-5-81.jpg
    250.1 KB · Views: 73
  • zL12-AS-327 Fan Forward Eaglet Sketch Jul-29-81.jpg
    zL12-AS-327 Fan Forward Eaglet Sketch Jul-29-81.jpg
    267.2 KB · Views: 71
  • zL12-AS-325 Jul-27-81.jpg
    zL12-AS-325 Jul-27-81.jpg
    278.8 KB · Views: 74
  • zL12-AS-319 Mini Eaglet Caravelle Style Sketch.jpg
    zL12-AS-319 Mini Eaglet Caravelle Style Sketch.jpg
    722.4 KB · Views: 72
  • zEaglet Plan View Forward Swept Wing.jpg
    zEaglet Plan View Forward Swept Wing.jpg
    170.8 KB · Views: 75

Similar threads

Top
