Greetings All!

Happy New Year to the group - may 2010 be filled with many new finds!

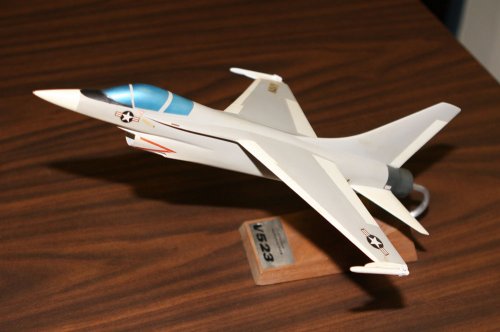

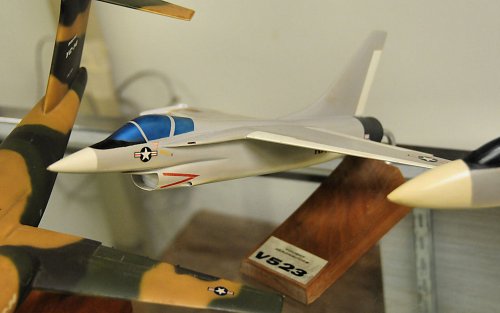

Attached is a photo of the V-523 model in the Vought Archives collection. A friend of mine, Fred Harl, came along on my last trip down to Vought in August and photographed a number of the models while I was digging thru the document and photo drawers. A nice looking aircraft in my view...

Enjoy the Day! Mark


Attachments

  • xV-523 Model.jpg
    xV-523 Model.jpg
    100.6 KB · Views: 2,133

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
Interesting cross between a Crusader and a V-1600... Thanks for sharing.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,427
Compare the late V-1100 LWF : very similar (aside from the canopy and a larger radar and wingtip AIM-95 AAMs)

Last edited:

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
581
Reaction score
463
Mark Nankivil said:
Greetings All!

Happy New Year to the group - may 2010 be filled with many new finds!

Attached is a photo of the V-523 model in the Vought Archives collection. A friend of mine, Fred Harl, came along on my last trip down to Vought in August and photographed a number of the models while I was digging thru the document and photo drawers. A nice looking aircraft in my view...

Enjoy the Day! Mark

Poor Fred, came to photograph planes and trains, got models instead!
Thank him for his efforts, it was good to see the two of you.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,948
Reaction score
344
Great find gents
Thanks!!
Nice looking bird - with some good wing area!

Overscan you beat me to the draw with the wingtip AIM-95 AAMs!


Regards
Pioneer


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,427

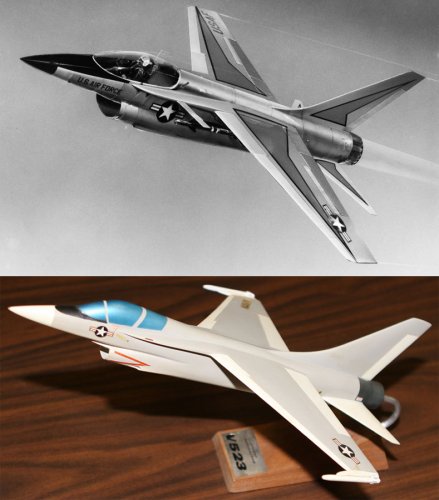

Better comparison. Pretty much identical.


Attachments

  • V-1100-and-V-523-comparison.jpg
    238.5 KB · Views: 1,300

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
148
Different intake, too. Probably different engine. Moreover, the V-1100 has two little canards (probably retracting) for use at very high angle of attack, I suppose.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,427
I thought that about the engines- but its hard to be certain due to the different angles.

The canards are retractable, so not being present on the V-523 model isn't conclusive.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
690

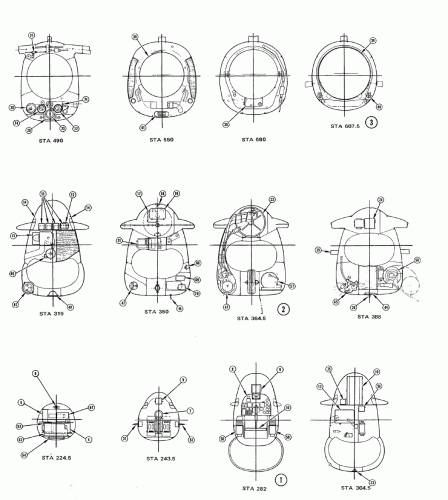

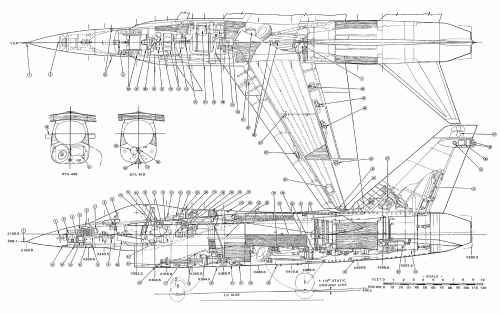

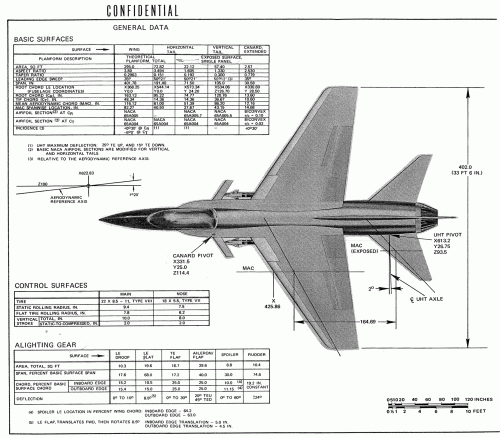

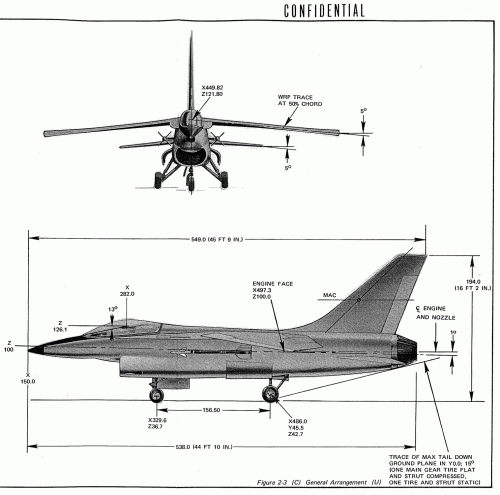

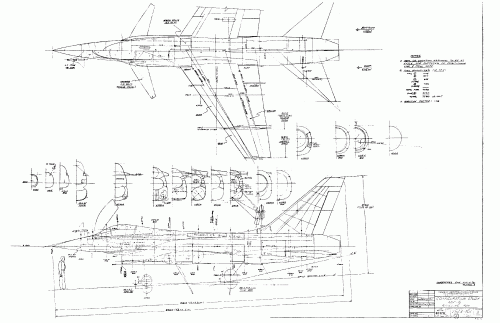

Thanks to Bill S for some scans he sent me nearly 1-1/2 years ago (and only now realized I had ::) ),
we have some V-523 drawings to peruse.

Enjoy the Day! Mark


Attachments

  • V-523 inboard profile - 2.gif
    V-523 inboard profile - 2.gif
    198.9 KB · Views: 468
  • V-523 inboard profile - 1.gif
    V-523 inboard profile - 1.gif
    592.2 KB · Views: 1,296
  • V-523 3V - 2.gif
    V-523 3V - 2.gif
    422.2 KB · Views: 3,616
  • V-523 3V - 1.gif
    V-523 3V - 1.gif
    808.1 KB · Views: 3,775
  • V523-101 Configuration Study - 1.gif
    V523-101 Configuration Study - 1.gif
    67.1 KB · Views: 1,471

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,427
overscan said:
I thought that about the engines- but its hard to be certain due to the different angles.

The canards are retractable, so not being present on the V-523 model isn't conclusive.

And indeed, I was right. V-523 does have canards :)


Richard N

Lost in the Sky
Senior Member
Joined
Jun 18, 2009
Messages
637
Reaction score
537

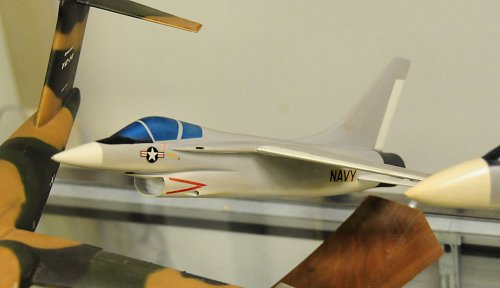

A sibling of the V-1100?


Attachments

  • DSC_0261 ES2.JPG
    DSC_0261 ES2.JPG
    82.1 KB · Views: 510
  • DSC_0268 ES2.JPG
    DSC_0268 ES2.JPG
    97.9 KB · Views: 542

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,427
Not quite.


V-523: 1973 (VFAX)
V-1100: 1971 (LWF)


V-523 was a further developed V-1100 for the US Navy VFAX. It was supplanted by the larger V-526 which met the requirements better.


Where are the photos from?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
overscan said:
Not quite.


V-523: 1973 (VFAX)
V-1100: 1971 (LWF)


V-523 was a further developed V-1100 for the US Navy VFAX. It was supplanted by the larger V-526 which met the requirements better.


Where are the photos from?

Sorry about that, Paul! Thanks for correcting my mistake. But why do I have V-523 as the "VF-XX high-performance lightweight fighter project"? Another mistake??


Richard N

Lost in the Sky
Senior Member
Joined
Jun 18, 2009
Messages
637
Reaction score
537
overscan said:
Not quite.


V-523: 1973 (VFAX)
V-1100: 1971 (LWF)


V-523 was a further developed V-1100 for the US Navy VFAX. It was supplanted by the larger V-526 which met the requirements better.


Where are the photos from?

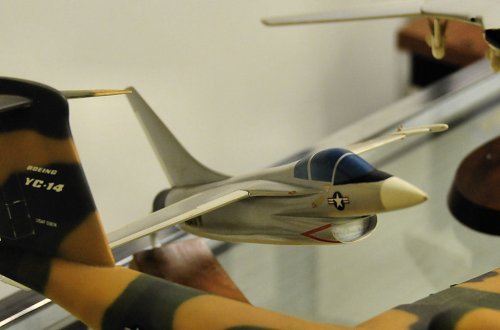

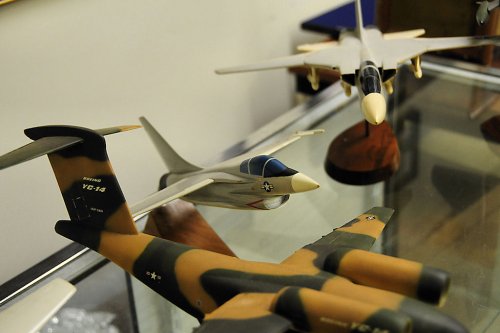

I shot the photos at Vought on February 2, 2012. I was there to see the restored V-173 and visited a meeting room which had a number of display cases of models, as well as their restoration area where they are building a Corsair I biplane and restoring a Cutlass.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,427
Stargazer2006 said:
overscan said:
Not quite.


V-523: 1973 (VFAX)
V-1100: 1971 (LWF)


V-523 was a further developed V-1100 for the US Navy VFAX. It was supplanted by the larger V-526 which met the requirements better.


Where are the photos from?

Sorry about that, Paul! Thanks for correcting my mistake. But why do I have V-523 as the "VF-XX high-performance lightweight fighter project"? Another mistake??

Maybe not - I think V-523 was probably initiated before the official VFAX requirements were released. I haven't found any reference to VF-XX except Vought, so it may have been a notional not actual requirement.


According to Tony Buttler V-523 was drawn 17/08/1972. McDonnell-Douglas drew up the first Model 263 on 09/10/1972.

June 1974, the Naval Air Systems Command (NAVAIR) released a presolicitation notice to the aerospace industry soliciting expressions of interest in and comments on the proposed VFAX development program. Industry responses were received in July 1974.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,427
Richard N said:
overscan said:
Not quite.


V-523: 1973 (VFAX)
V-1100: 1971 (LWF)


V-523 was a further developed V-1100 for the US Navy VFAX. It was supplanted by the larger V-526 which met the requirements better.


Where are the photos from?
I shot the photos at Vought on February 2, 2012. I was there to see the restored V-173 and visited a meeting room which had a number of display cases of models, as well as their restoration area where they are building a Corsair I biplane and restoring a Cutlass.


Excellent, thanks for posting these.


Richard N

Lost in the Sky
Senior Member
Joined
Jun 18, 2009
Messages
637
Reaction score
537

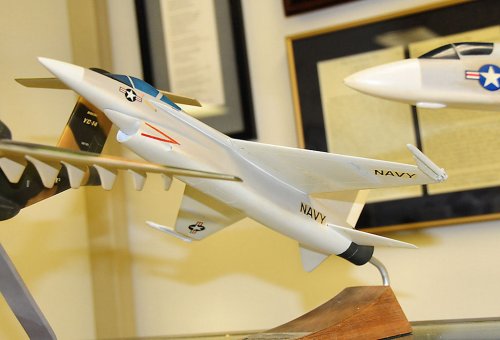

A few more of the V-523 model.


Attachments

  • DSC_0253 ES2.JPG
    DSC_0253 ES2.JPG
    80.5 KB · Views: 1,348
  • DSC_0260 ES2.JPG
    DSC_0260 ES2.JPG
    72.9 KB · Views: 1,320
  • DSC_0276 ES2.JPG
    DSC_0276 ES2.JPG
    91.9 KB · Views: 1,288

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,757
Reaction score
4,427
index.php



In the V-526 topic (http://www.secretprojects.co.uk/forum/index.php/topic,15854.msg157448.html#msg157448) we have the evolution of that design. I just noticed that the first configuration appears to be 100% identical to the V-523.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
581
Reaction score
463
99.99% sure it is the same model as a number of the models from that showcase went to UTD.
