Vought V-382

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582
Hi All!

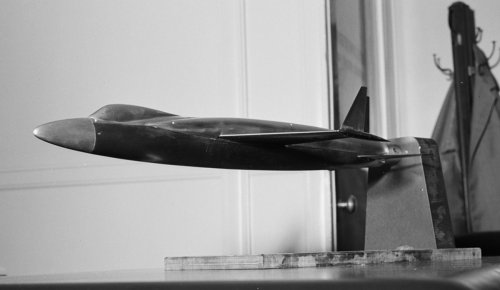

I think this will be a world exclusive on Secret Projects - the first known image of the Vought V-382. According to the designation listing, this was to be an attack aircraft for the USAF. Anyone know of a 3 view or any other drawing of this aircraft?

Thanks to the great gang over at the Vought Retiree's Group and to "PhotoGator" for spending time in the archives with me.

Enjoy the Day! Mark


Attachments

  • xCVA-15306 V-382 Wind Tunnel Model 5-12-53.jpg
    xCVA-15306 V-382 Wind Tunnel Model 5-12-53.jpg
    92.6 KB · Views: 921

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,578
Reaction score
3,880
You forgot to mention - 1952. Can't imagine the USAF was that keen on attack aircraft at that time.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
You forgot to mention - 1952. Can't imagine the USAF was that keen on attack aircraft at that time.

There was a war in Korea... the Martin Midget comes from the same needs.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582
Tony Buttler's book has a sketch of this one - there are vertical fins on the wing tip and a rather small vertical fin. The wind tunnel model matches up with the drawing and as Scott noted, the shoulder inlets are simply faired in on the wind tunnel model. I thought that might be a tip fin but wasn't sure - now I know.

Enjoy the Day! Mark


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,036
Reaction score
117
overscan said:
You forgot to mention - 1952. Can't imagine the USAF was that keen on attack aircraft at that time.

Errr, that is the exact time period they were adopting the B-57 Canberra. It might not have had an "A" designator but its mission was very much that of an Attack aircraft, IMO.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582

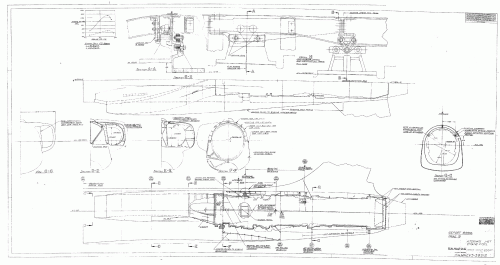

Thanks to Bill S, here are some drawings of this aircraft. I rather like the lines of it myself and it is interesting to compare the J-67 and J-57 installations.

Thanks Bill!

Enjoy the Day! Mark


Attachments

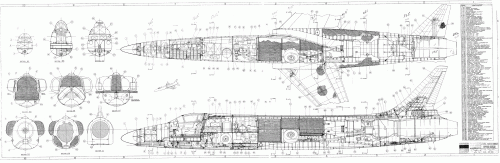

  • CVS-39301_V-382_InboardProfile.gif
    642.8 KB · Views: 948

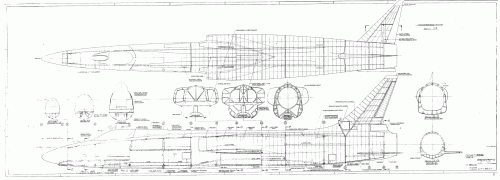

  • CVS-39307_V-382_Fuselage.gif
    379 KB · Views: 846

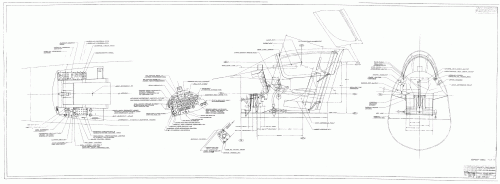

  • CVS-39321_V-382_PilotsEnclosure.gif
    286.1 KB · Views: 696
  • CVS-39312_V-382_J-67Engine.gif
    402.2 KB · Views: 644
  • CVS-393xx_V-382_J-57Engine.gif
    296 KB · Views: 254

AL

ACCESS: Confidential
Joined
Nov 3, 2007
Messages
159
Reaction score
6
Mark, do you mean the upcoming Bombers book or the Fighters book?


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
563
Reaction score
324
Mark Nankivil said:
Thanks to Bill S, here are some drawings of this aircraft. I rather like the lines of it myself and it is interesting to compare the J-67 and J-57 installations.

Thanks Bill!

Enjoy the Day! Mark

Stealin my thunder. :eek:

I guess I need to dig out the general arrangement and get that posted as well. :)


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582
Hi AL - the previously published Fighters book.

HTH! Mark


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
12
Website
www.io.com
Mark Nankivil said:
Tony Buttler's book has a sketch of this one - there are vertical fins on the wing tip and a rather small vertical fin.

...Mark, are you *sure* about that? From that perspective, it's really hard to tell, and I blew up the image quite a bit to see if I could clarify things.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582
Hi OM -

Those are articulated wing tips - - see the attached drawings which define the mechanism. Also look at the J-57 Engine drawing - there's a sketch there that shows the wing tips in the vertical position.

Maveric - I don't have a data sheet for this - Bill S may have that info on the General Arrangement drawing.

Thanks again to Bill S for the scans!

HTH! Mark


Attachments

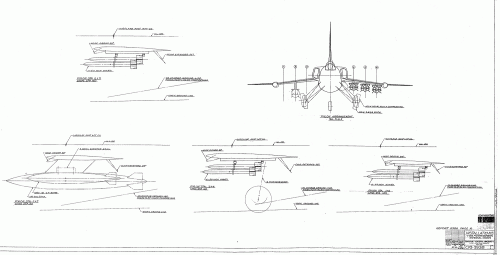

  • CVS-39318_V-382_ExternalStores copy.gif
    CVS-39318_V-382_ExternalStores copy.gif
    94.8 KB · Views: 279

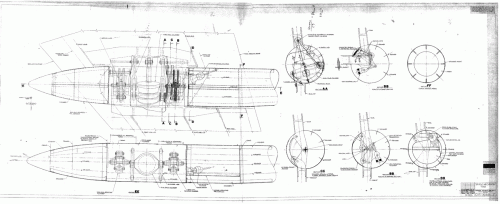

  • CVS-39306_V-382_WingTipFold copy.gif
    CVS-39306_V-382_WingTipFold copy.gif
    168.7 KB · Views: 208
  • CVS-39305_V-382_Wing.gif
    228.6 KB · Views: 186

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
563
Reaction score
324

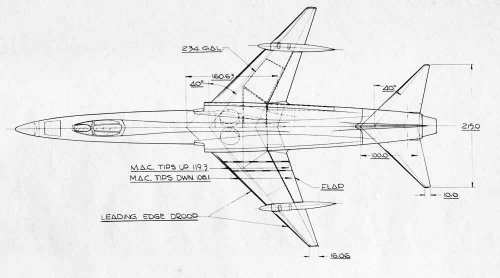

More V-382 views with the only data block I have
on this aircraft so far.

Vought archives


Attachments

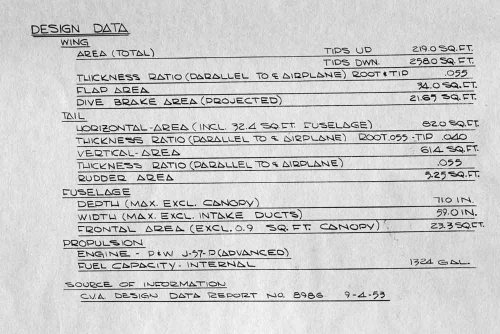

  • V382-Data_Plate.jpg
    61.2 KB · Views: 149

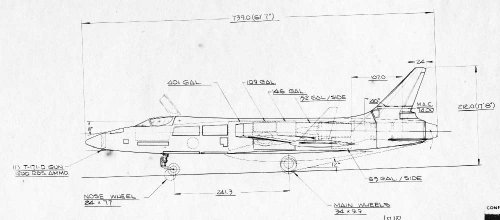

  • V382-Side-View.jpg
    37.3 KB · Views: 869
  • V382-Top-View.jpg
    27.8 KB · Views: 302
  • V382-Front-View.jpg
    35.4 KB · Views: 234

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
12
Website
www.io.com
Mark Nankivil said:
Those are articulated wing tips - - see the attached drawings which define the mechanism. Also look at the J-57 Engine drawing - there's a sketch there that shows the wing tips in the vertical position.

...Thanks. I see it in the drawings, but if it weren't for those the angle that shot was taken at sure can fool you. Especially since this is a bird I've heard of, but like most people apparently have never seen an image of. I take it this one never made it to flight test stage?


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,986
Reaction score
346
Thanks for the good service and this nice drawing, very interesting the Vought archive :eek:


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582
Thanks Bill S - you're my scanning guru/hero!

OM, don't even think they cut a piece of wood for a mock up. Shame really, has a very cool WOW factor to my eyes.

Enjoy the Day! Mark


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
563
Reaction score
324

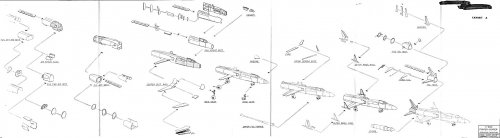

Another V-382 recent find, a production breakdown drawing for the fighter-bomber
Vought Archives


bill


Attachments

  • xV-382-Production-Breakdown.jpg
    133.6 KB · Views: 447

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
246
How did I miss this one :eek: Very interesting and good looking design!!In Mark Nankivil's Reply #6 - aka the first cut-away drawing it looks like a multi-barrelled / rotary cannon in the lower nose ??Could this be an M61 20mm cannon? If so, was the M61 around in 1952? Regards Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,020
Pioneer said:
... Could this be an M61 20mm cannon? If so, was the M61 around in 1952? Regards Pioneer

General Electric tested gatling guns for aircraft use already in 1949. The 20mm version, still designated
as T 171, was testfired first in 1952. So it could actually be a GE 20 mm gun of that type.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
246
Thanks for the clarification Jemiba, that makes sense then!
The first aircraft I was aware of that used the M61 I think was the Republic F-105 (but I could be wrong :eek: )

Regards
Pioneer
