Greetings All -

With the references to turboprop options at the beginning of the program, these two Vought designs seem to fit best in the TS149 topic. Both specifically reference all weather and the radar on the designs makes me think these designs are for this.

As usual, from the Vought Archives :)

Enjoy the Day! Mark


Attachments

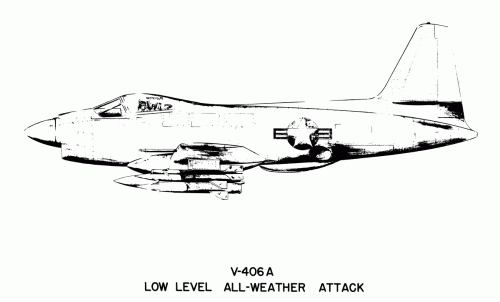

  • Vought V-406A SV.gif
    Vought V-406A SV.gif
    60.2 KB · Views: 1,179

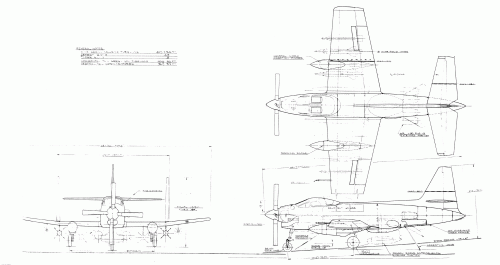

  • Vought V-406A 3V.gif
    Vought V-406A 3V.gif
    274.2 KB · Views: 1,274

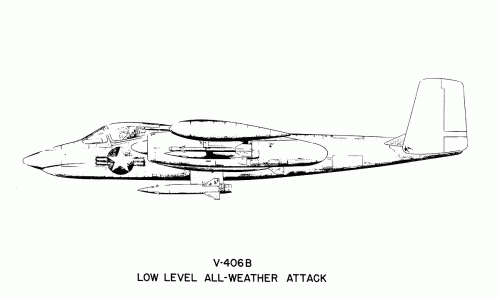

  • Vought V-406B SV.gif
    Vought V-406B SV.gif
    40.2 KB · Views: 1,153

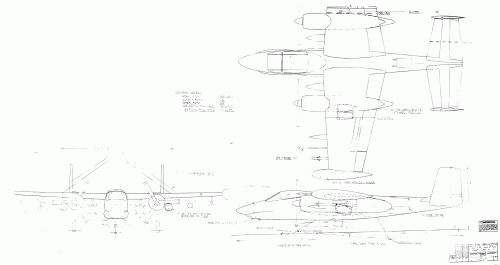

  • Vought V-406B 3V.gif
    Vought V-406B 3V.gif
    184.1 KB · Views: 1,215

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
877
Reaction score
158
overscan said:
Moved to own topic. The timing seems a bit early for TS 149. I like the look of the V-406B in particular.

The designs do seem to be somewhat reminiscent of the Grumman 128F, although that proposal had a tail dragger landing gear, which seems almost inexplicable by the mid-1950s?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
14,563
Reaction score
11,164
Hmmm, yes. As TS 149 started as an Marine Skyraider replacement, I guess that it probably does belong there. I just thought 1955 was a bit early - will check some books when I get home.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
14,563
Reaction score
11,164
Having read a few accounts it seems this does belong in the TS 149 topic.

Basically, 1955 saw the Navy LRO study group looking at future requirements. They foresaw more Korean style "brushfire" wars, for which a conventional, low level near-sonic all-weather attack aircraft was needed. The USMC had a requirement for a STOL Close Air Support type. Money was made available for industry studies to help formulate the concept.

It seems likely that the Vought V-406, like the early turboprop Grumman Model 128F, was part of these initial industry "concept formulation" studies.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
634
Reaction score
886
V-406A


Height 8' - 6"
Length 44' - 7"
Span 43' - 7.2"


T-56 Engine

V-406B


Height 13' - 5"
Length 49' - 2"
Span 48' - 8"


Dart Engines

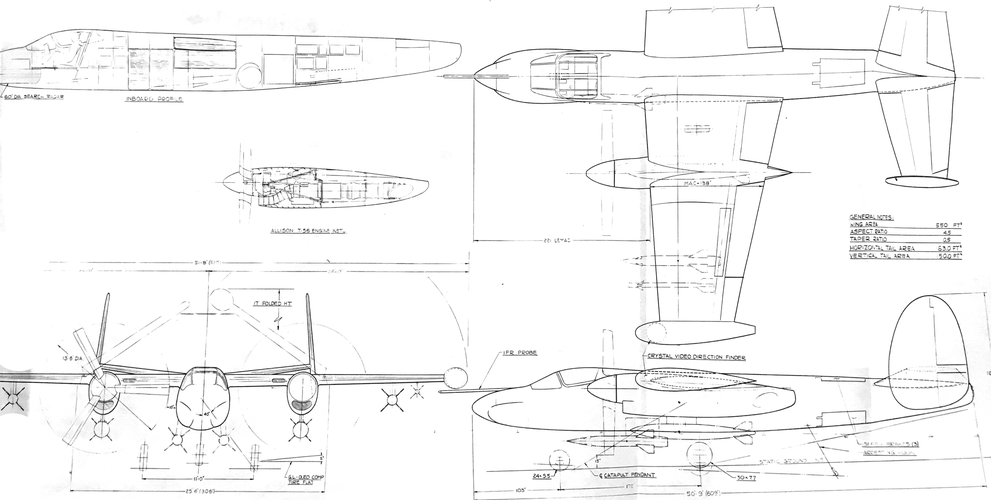

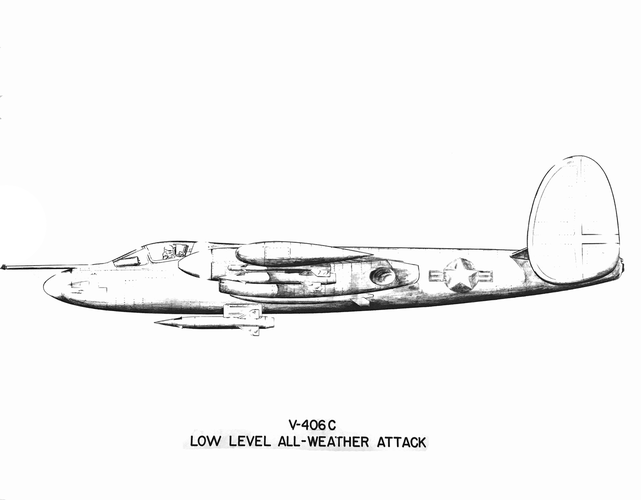

V-406C


Height 16' - 4"
Length 50' - 9"
Span 25' - 6"


Allison T-56 Engine


bill



hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,209
Reaction score
7,168
Great info Bill,


do you have a drawing to Type C ?.
