Vought "Advanced Interceptor" studies (SAMI, ADLI, HSV)

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
484
Website
deeptowild.blogspot.com
LTV Advanced Interceptor concept artwork lithograph painted by RG Flores circa 1968 found on eBay.

URL:
http://www.ebay.com/itm/ADVANCED-INTERCEPTOR-LTV-AEROSPACE-CORP-LITHOGRAPH-RG-FLORES-69-/251084982945?pt=LH_DefaultDomain_0&hash=item3a75d4caa1


Attachments

  • $(KGrHqF,!k0E-ir-MST5BP2UIVqlT!~~60_57.JPG
    581.3 KB · Views: 272

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,820
Reaction score
189
Outstanding work!
Outstanding find!

Thanks Bill and Mark

Regards
Pioneer


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
Bill, thank you very much.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,262
Reaction score
3,149
Do not bid on this item please, a forum member is bidding already. An identical item is available from the seller if anyone else wants a copy.


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,619
Reaction score
432
Greetings All -

A recent EPay buy was this print of the Advanced Interceptor concept dated 1969. We have this elsewhere in the thread but worth posting nonetheless. Also obtained was this print of the LTV Universal Hypersonic Test Vehicle concept from 1968.

Enjoy the Day! Mark


Attachments

  • zLTV Advanced Interceptor 1969 Artwork-a.JPG
    zLTV Advanced Interceptor 1969 Artwork-a.JPG
    427.3 KB · Views: 341
  • zLTV Universal Hypersonic Test Vehicle Concept-1968-a.JPG
    zLTV Universal Hypersonic Test Vehicle Concept-1968-a.JPG
    217.5 KB · Views: 341

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282

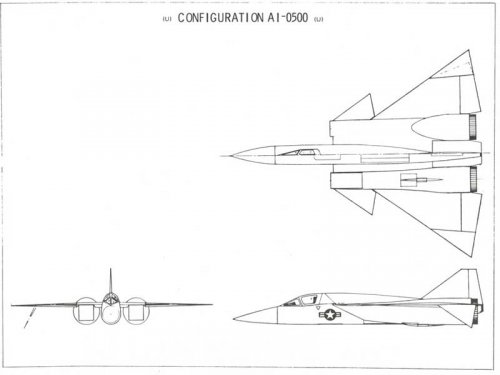

AI-500 Series
"This configuration series emerged as the Phase I Cycle Screening and preliminary configuration sizing studies were being completed. It was indicated that use of twin powerplants and/or twin air induction systems might reduce system weight and simplify integration of extremely large powerplants with the airframe." [/size]From Advanced Airbreathing Interceptor Concept Studies Volume 1 - Summary Vought Aeronautics Division 1969


AI-500
"A large delta wing carried underslung nacelles and folding tips for aerodynamic center control and high speed directional stability improvement. All-moving canard surfaces are mounted outboard of the nacelles to minimize interference with the inlets. Relative location of the wing, body, and nacelle components of this configuration offer unusual potential for wave drag minimization through desirable interference between components. A number of configuration variants were thus developed to explore achievable aerodynamic benefits of this general arrangement."
[/size]From Advanced Airbreathing Interceptor Concept Studies Volume 1 - Summary Vought Aeronautics Division 1969
Source Vought Archives

bill


Attachments

  • AI-500-General-Arrangement.jpg
    22.8 KB · Views: 486

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282

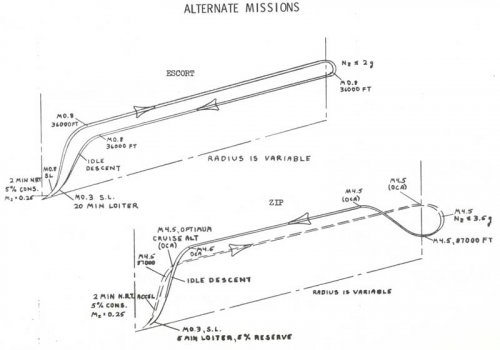

Alternate mission profile diagram


Vought Archive


bill


Attachments

  • Alternate-Missions.jpg
    28.4 KB · Views: 416

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282

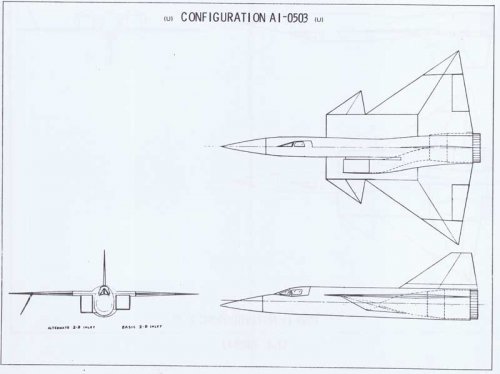

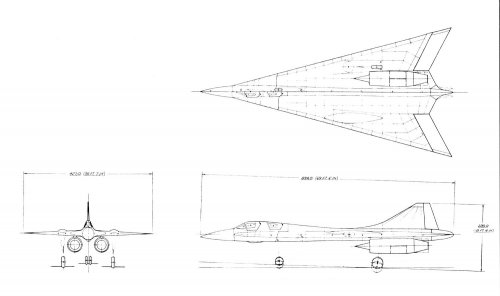

AI-503 General Arrangement

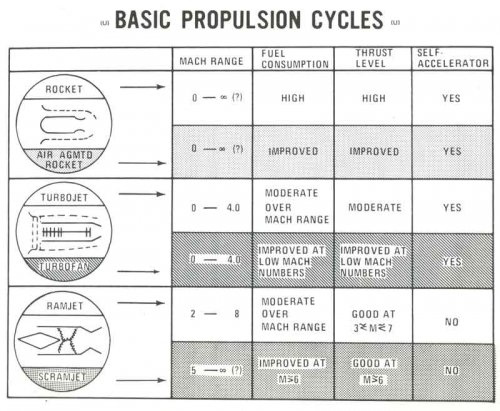

Basic Propulsion info of possible interest.
Vought Archives


bill


Attachments

  • Basic-Propulsion-Cycles.jpg
    56.8 KB · Views: 558

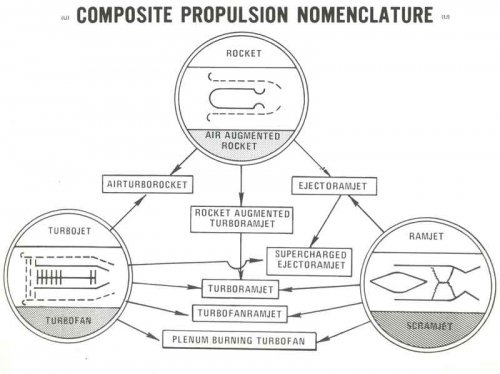

  • Composite-Propulsion-Nomenclature.jpg
    32.6 KB · Views: 593
  • AI-503-General-Arrangement.jpg
    24.5 KB · Views: 651

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,619
Reaction score
432
These ought to satisfy Scott's need for measurements. Did not find measurements for AI-0400 but the drawing on the base point configurations chart implies a larger vehicle than the other configurations.

I also have a copy of a Marquardt preliminary engine performance report for the SERJ-176E-4A supercharged ejector ramjet engine for Mach 0-4.5. I'll get that scanned and posted too.

Enjoy the Day! Mark


Attachments

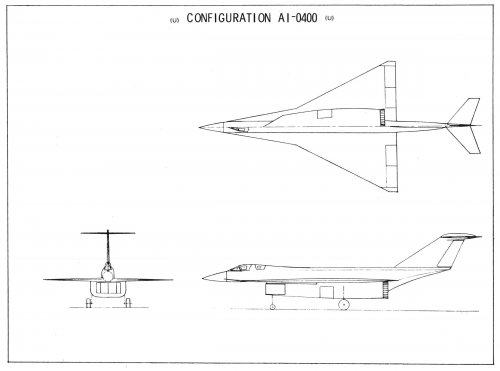

  • zConfiguration AI-0400.jpg
    zConfiguration AI-0400.jpg
    167 KB · Views: 1,009

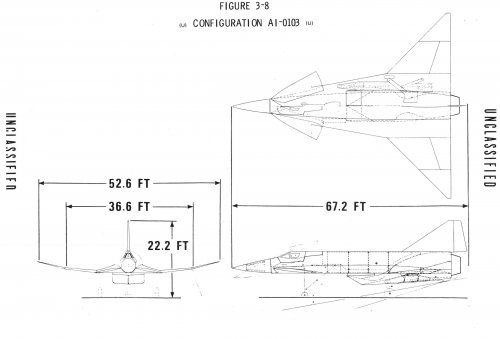

  • zConfiguration AI-0103.jpg
    zConfiguration AI-0103.jpg
    190.4 KB · Views: 1,063

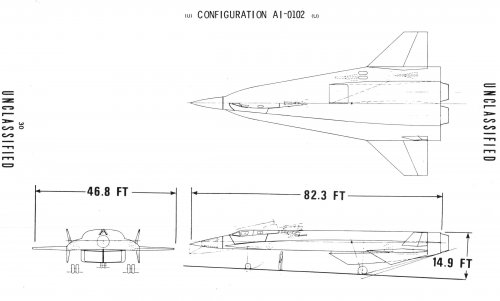

  • zConfiguration AI-0102.jpg
    zConfiguration AI-0102.jpg
    162.5 KB · Views: 1,090

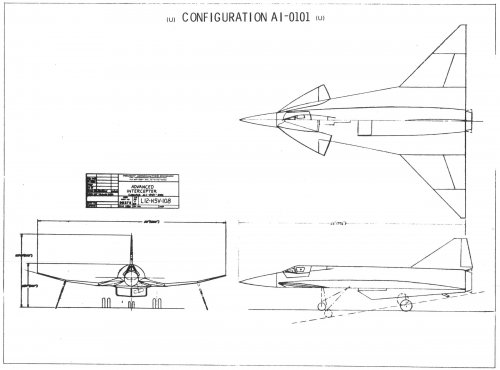

  • zConfiguration AI-0101.jpg
    zConfiguration AI-0101.jpg
    205.2 KB · Views: 1,400

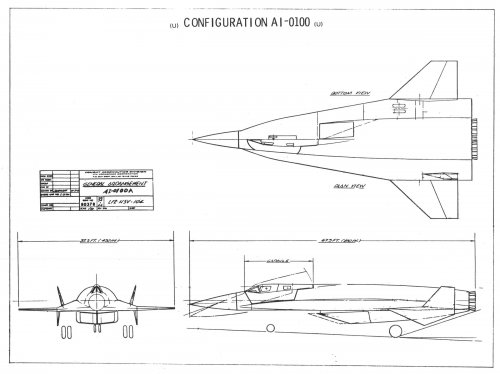

  • zConfiguration AI-0100.jpg
    zConfiguration AI-0100.jpg
    232.3 KB · Views: 1,442

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,619
Reaction score
432
...and a few more from a different report...

Enjoy the Day! Mark


Attachments

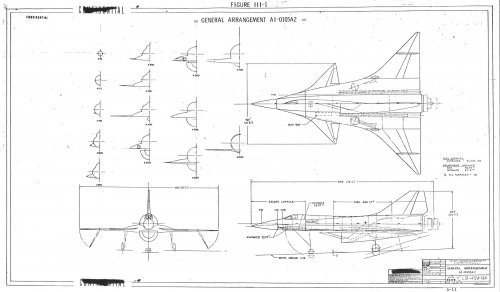

  • zAI-0105A2 General Arrangement.jpg
    zAI-0105A2 General Arrangement.jpg
    259.6 KB · Views: 286

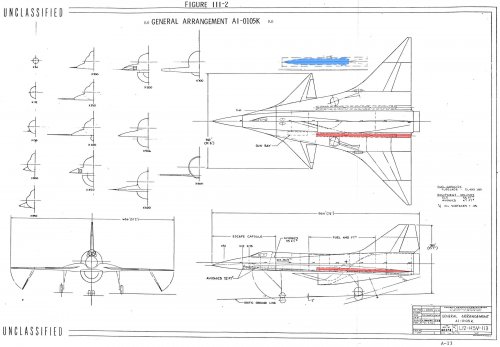

  • zAI-0105K General Arrangement.jpg
    zAI-0105K General Arrangement.jpg
    287.9 KB · Views: 300

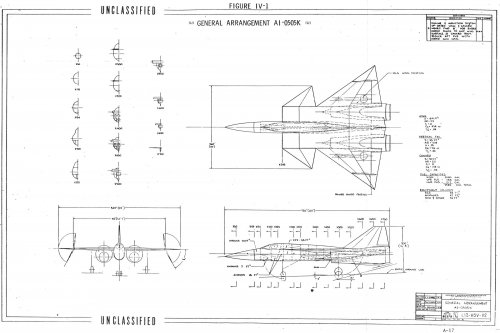

  • zAI-0505K General Arrangement.jpg
    zAI-0505K General Arrangement.jpg
    284.2 KB · Views: 289

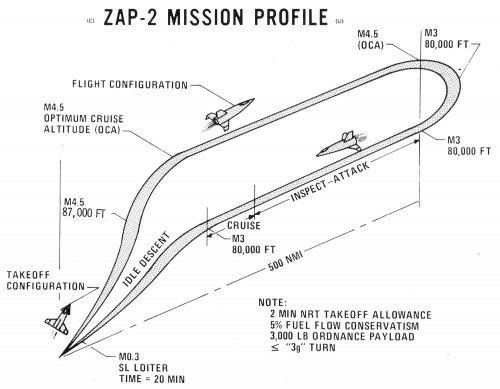

  • xZAP-2 Mission Profile.jpg
    xZAP-2 Mission Profile.jpg
    146 KB · Views: 268

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,619
Reaction score
432
Greetings All -

I made a point of looking for powerplant related material on this trip and found a few items along those lines. I'll post a Marquardt report shortly.

The following Pratt & Whitney images were in a report but nothing else separate and distinct about the P&W engine options. The AI-0507B15725 drawing was presented with these engine drawings.

Enjoy the Day! Mark


Attachments

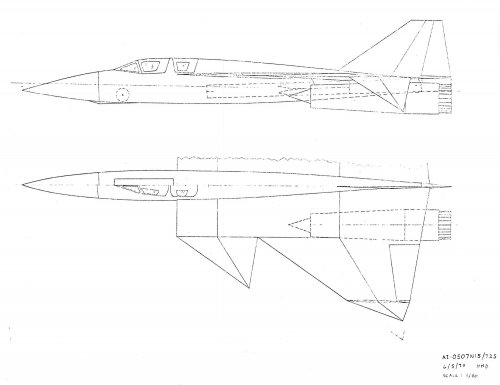

  • zAI-0507N15725.jpg
    145.7 KB · Views: 248

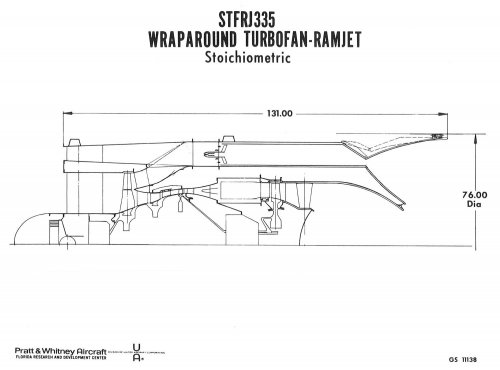

  • P&W STFRJ335 Wraparound Turbofan-Ramjet Stoichiometric.jpg
    P&W STFRJ335 Wraparound Turbofan-Ramjet Stoichiometric.jpg
    95.5 KB · Views: 183

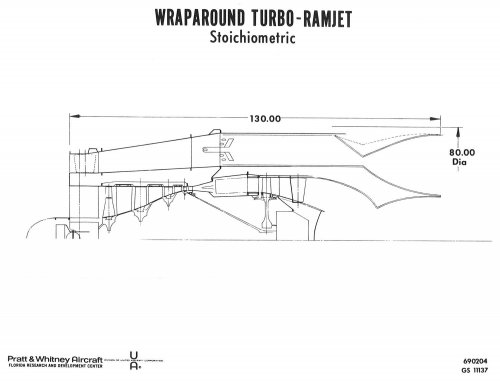

  • P&W Wraparound Turbo-Ramjet Stoichiometric.jpg
    P&W Wraparound Turbo-Ramjet Stoichiometric.jpg
    87.7 KB · Views: 154

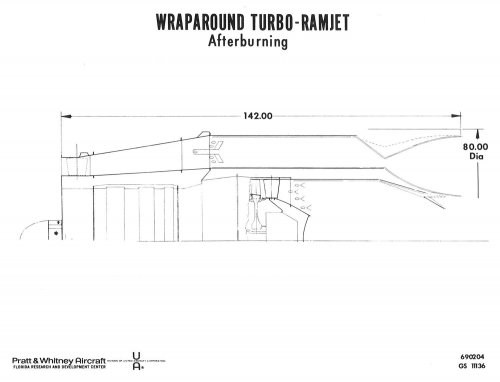

  • P&W Wraparound Turbo-Ramjet.jpg
    P&W Wraparound Turbo-Ramjet.jpg
    78.1 KB · Views: 162

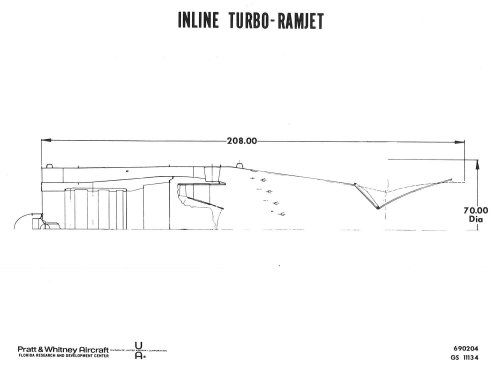

  • P&W Inline Turbo-Ramjet.jpg
    P&W Inline Turbo-Ramjet.jpg
    65.3 KB · Views: 161

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,619
Reaction score
432
The attached GE drawing was the only reference I found to any of their designs/products.

The Air Induction System, engine and installation drawings were in the Marquardt document and I am including it here to highlight it outside of reading/perusing the whole report.

Enjoy the Day! Mark


Attachments

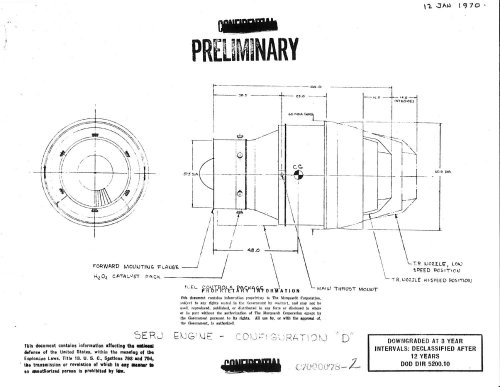

  • Marquardt SERJ Configuration D.jpg
    Marquardt SERJ Configuration D.jpg
    152 KB · Views: 223

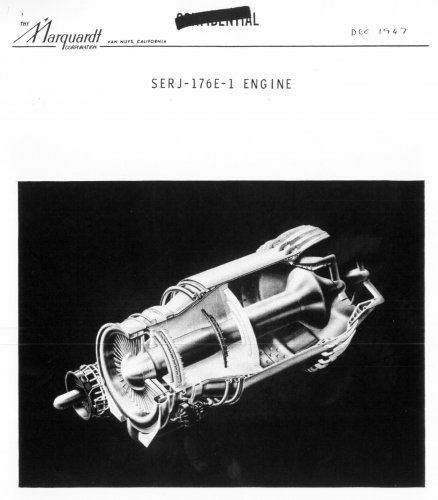

  • Marquardt SERJ-176E-1 Engine.jpg
    Marquardt SERJ-176E-1 Engine.jpg
    254.2 KB · Views: 220

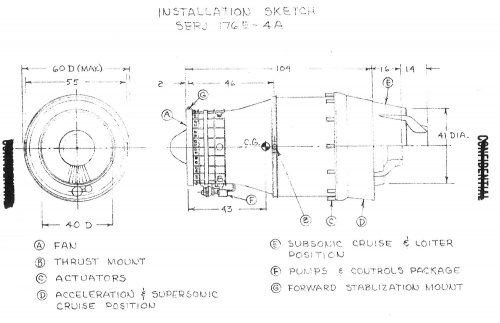

  • Marquardt SERJ176E-4A Installation Sketch.jpg
    Marquardt SERJ176E-4A Installation Sketch.jpg
    120.7 KB · Views: 219
  • Configuration AI-0103A Air Induction System.jpg
    Configuration AI-0103A Air Induction System.jpg
    149 KB · Views: 222

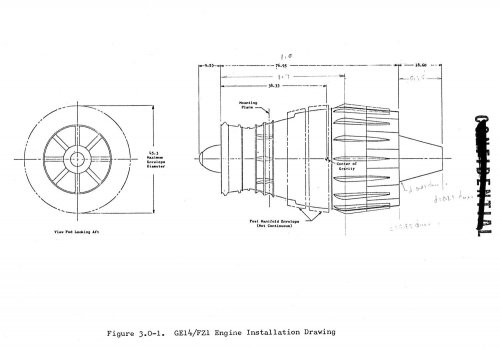

  • GE14FZ1 Engine Installation Drawing.jpg
    GE14FZ1 Engine Installation Drawing.jpg
    95.1 KB · Views: 175

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
thanks God we have you guys digging da archives





dannydale

CLEARANCE: Secret
Joined
May 13, 2007
Messages
220
Reaction score
11
You're doing God's work, breaux! B)


Attachments

  • awesomecat.jpg
    30.8 KB · Views: 286

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,327
Reaction score
2,458
Thanks for sharing us such a interesting report. SAMI,etc were planned to have special engine!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,327
Reaction score
2,458
robunos said:
some type of supercharged ejector ramjet??

cheers,
Robin.
Robin! You are really one of the outstanding,too. :eek:


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,619
Reaction score
432
Greetings All -

A few more drawings from the Vought Archives for your perusal...

Enjoy the Day! Mark


Attachments

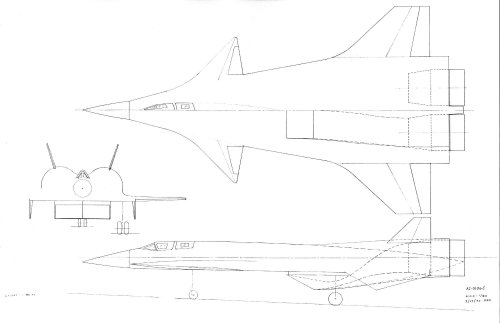

  • zAI-0106J 3V Mar-17-70.jpg
    zAI-0106J 3V Mar-17-70.jpg
    125.6 KB · Views: 1,264

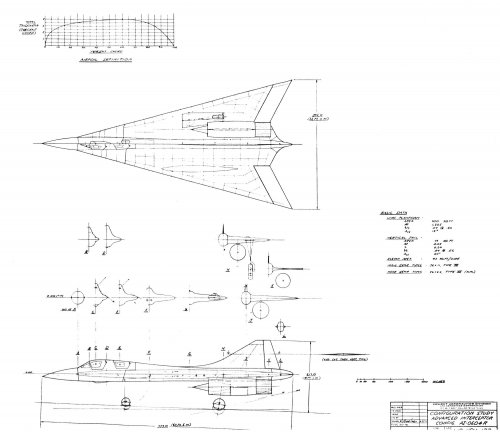

  • zAdvance Interceptor AI-0604R Configuration Study.jpg
    zAdvance Interceptor AI-0604R Configuration Study.jpg
    209.3 KB · Views: 1,305
  • xAdvance Interceptor AI-0603R L12-HSV-122 General Arrangement.jpg
    xAdvance Interceptor AI-0603R L12-HSV-122 General Arrangement.jpg
    74.8 KB · Views: 1,330

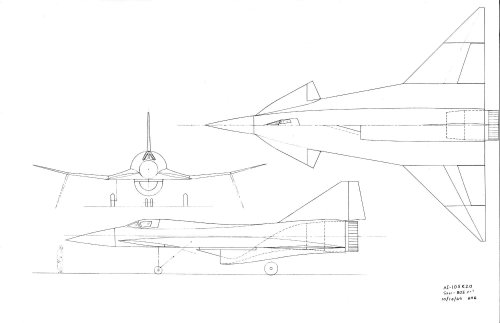

  • zAI-105K20 3V Oct-10-69.jpg
    zAI-105K20 3V Oct-10-69.jpg
    120.8 KB · Views: 1,319

KJ_Lesnick

CLEARANCE: Top Secret
Joined
Feb 13, 2008
Messages
1,033
Reaction score
26
You know had they used LCH4 they could have made the SERJ idea work even better... use the LCH4 vaporizing to spin the engine; then burn it with the air


c460

CLEARANCE: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
24

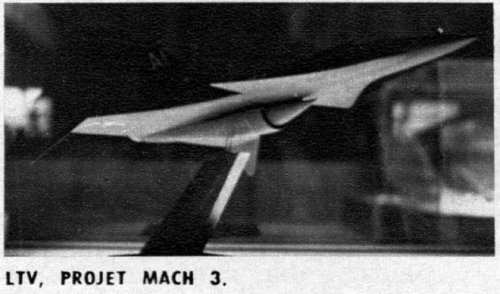

This is a model of a LTV Mach 3 project with turbo-ramjet, exhibited at Le Bourget 1971, from Aviation Magazine 565.
I've searched for an appropriate thread to post this but I didn't find one.
Adrien


Attachments

  • LTV_mach_3_avimag_565_p39.jpg
    73.5 KB · Views: 468

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

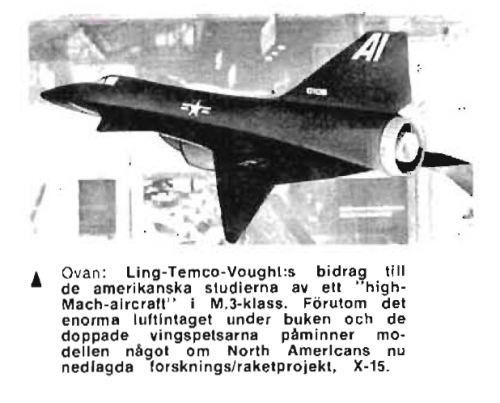

the mystery Vought 3 mach fighter.


Flygvapennytt 4-1971


Attachments

  • Vought   4-1971.png
    Vought 4-1971.png
    170.1 KB · Views: 298

PlanesPictures

CLEARANCE: Top Secret
Senior Member
Joined
May 13, 2006
Messages
957
Reaction score
299

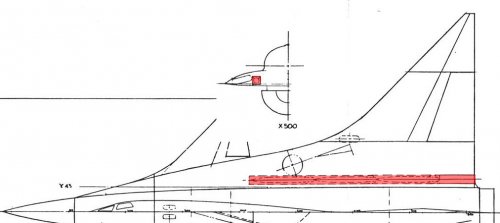

On picture in this topic wing has clear edge as fighter but it seems AI-0105K had two bombbays in wings every for three bombs (system as A-5A Vigilante). Was it bomber?


Attachments

  • AI-0105K bomber.jpg
    AI-0105K bomber.jpg
    66.1 KB · Views: 937

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282
PlanesPictures,

In all the material I looked through and the mission profiles that Mark and I have posted to this topic, nothing mentioned or pointed to it having a secondary or another mission as a bomber. Most everything is about the ZAP mission profiles and the AI-603/604 did have some radar and weapons employment information. I don't recall seeing anything off hand for the AI-100/105, but has been awhile since I looked at my notes. What you highlighted in the drawing might be a fanciful concept of an AAM or something we have yet to find....................................


bill


Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282
PaulMM (Overscan) said:


Paul,

Thanks for merging the topics all in one place. It helps to keep up with the discussion and have all the posted reference in one place.

bill

bill


Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282

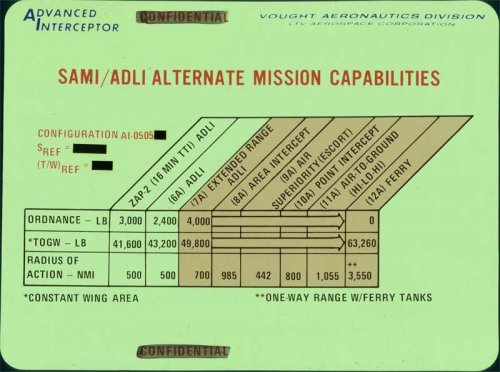

In going back and looking there was this image of a briefing slide that does show an Air to Ground mission for the AI-505 the specific letter is blacked out when the slide was declassified. It shows a 4,000 lb ordnance load and a radius of 1055 NM. VAHF archives.


bill


Attachments

  • SAMI-ADLI-Alternate-Missions-Slide-VAHF.jpg
    52 KB · Views: 913

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282
Another aspect of the program that dd not get much attention in the earlier posts is the pitch for a Universal Hypersonic Test Vehicle UHTV and the Advanced Unmanned Interceptor variants of that concept.


Attached is a concept art slide of the UHTV, drawings of AUI-1, AUI-2 and some Time To Intercept information for even more advanced versions of the concept that I do not have drawings of AUI-3, AUI-3P/J or AUI-4P.


bill


Attachments

  • UHTV-Slide-VAHF.jpg
    45.2 KB · Views: 874

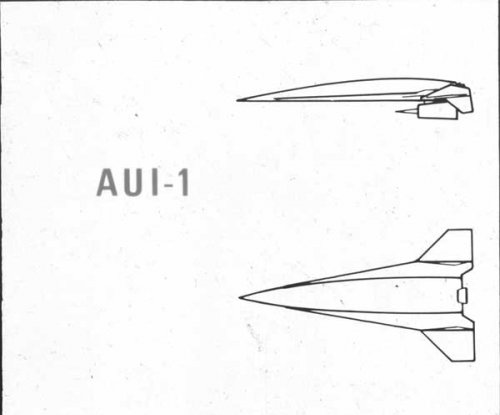

  • AUI-1-Configuration-VAHF.jpg
    12.5 KB · Views: 847

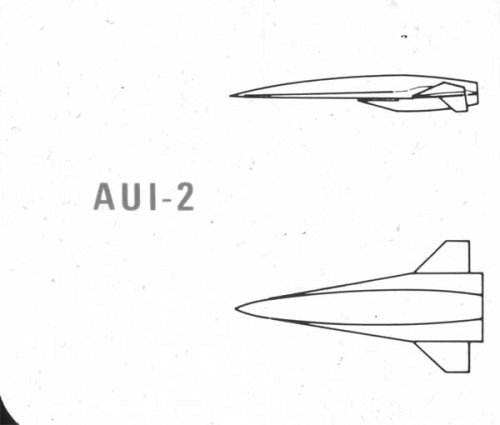

  • AUI-2-Configuration-VAHF.jpg
    10.2 KB · Views: 838

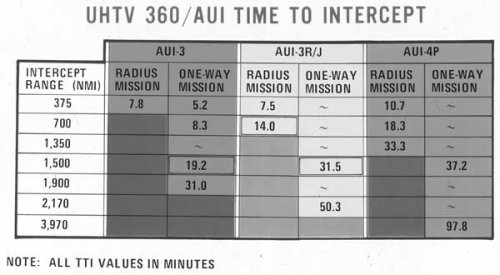

  • UHTU-AUI-Time-To-Intercept-VAHF.jpg
    24.2 KB · Views: 131

PlanesPictures

CLEARANCE: Top Secret
Senior Member
Joined
May 13, 2006
Messages
957
Reaction score
299
Probably not bomb but air-to-ground missile due to back of object and place for rocket engine. As source I have only this picture(s) from this topic. AI-103 and AI-103A have air-to-air missile but AI-105A2 and AI_105K (they differ only in engine exhaust) have probably air-to-ground missile


Attachments

  • AI-0105K air-to-ground missile.jpg
    AI-0105K air-to-ground missile.jpg
    313.9 KB · Views: 280
