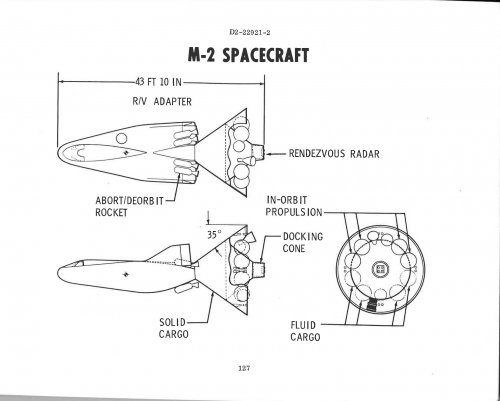

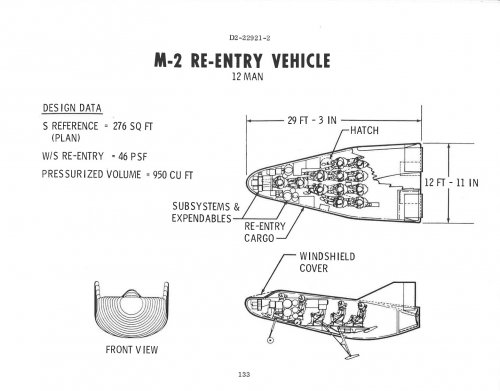

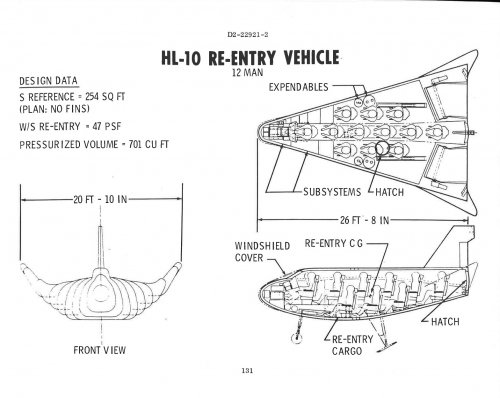

US Lifting Bodies Studies - START (ASSET/PRIME), FDL, X-24, etc.

Dynoman

CLEARANCE: Top Secret
Joined
Jul 29, 2009
Messages
903
Reaction score
255

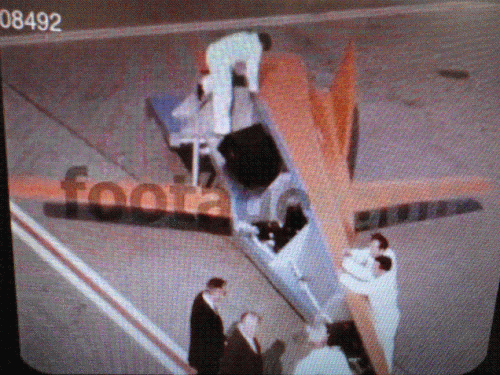

Here is a poor pic of the screen of the Lockheed Film "Hypersonics," showing the mockup of the HLD.


Attachments

OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
10
Website
www.io.com
...Can't believe this flick isn't on YouTube. Anyone got an online source for it? :eek:


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,008
Reaction score
800
OM said:
Anyone got an online source for it? :eek:
Check screenshots watermark...


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
10
Website
www.io.com
dannydale said:
I think this might be it. I searched "hypersonic" on that site for the lulz and found awesome!

...Yessir, either that's the clip, or at least the clip encompasses the footage in question. Excellent bit of detective work, sir. A tip of the OM Hat goes your way, natch! ;)


XP67_Moonbat

CLEARANCE: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
At Airrocket,

Do you have anything on Lockheed's MRS concept from the 60's?


circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
126

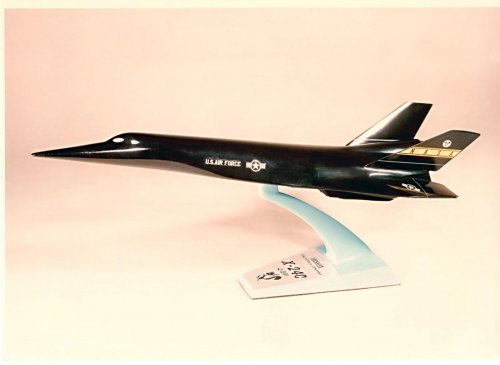

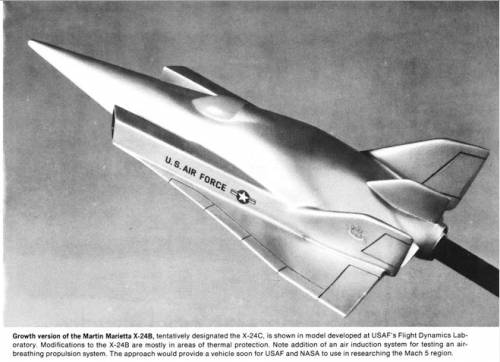

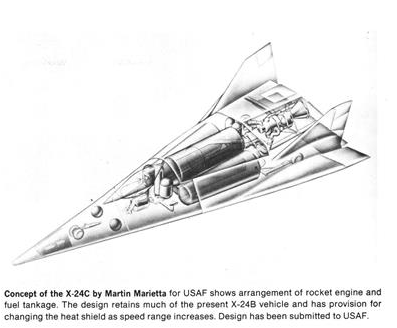

Lockheed X-24C L-301 display model by the Lockheed model shop, Burbank, California, 1976.


Attachments

airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
7
Website
RetroFlight.com
Give those wings more anhedral to form an "X" pattern with the vertical fins and they get more bite at high AOA and roll stability on high swept gothic delta planform otherwise 301 looked very good.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,760
Reaction score
128
Has anybody seen pictures of PRIME being recovered from the ocean? I just saw a photocopy of a recovery, although I suspect that it was not the flight vehicle but a recovery test of a mockup.


Void

CLEARANCE: Confidential
Joined
Mar 2, 2008
Messages
133
Reaction score
10
This would have been a better place for what I just posted, it might even be here.

Woops. :-[


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,722
Reaction score
478
Website
deeptowild.blogspot.com

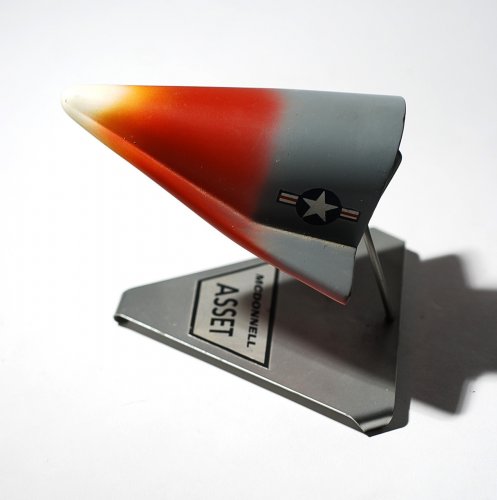

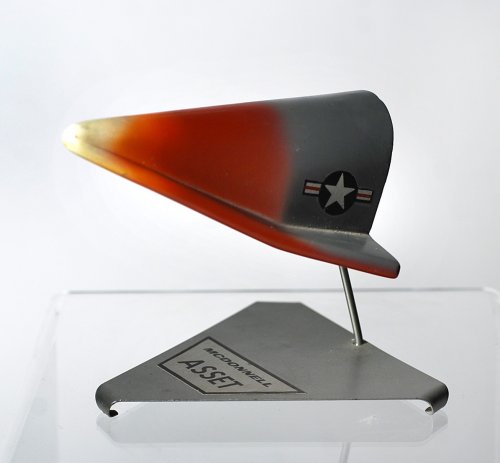

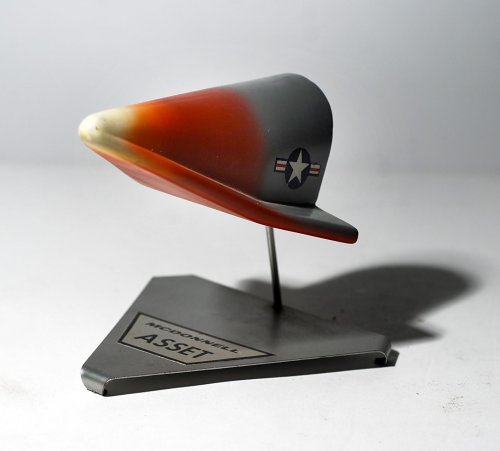

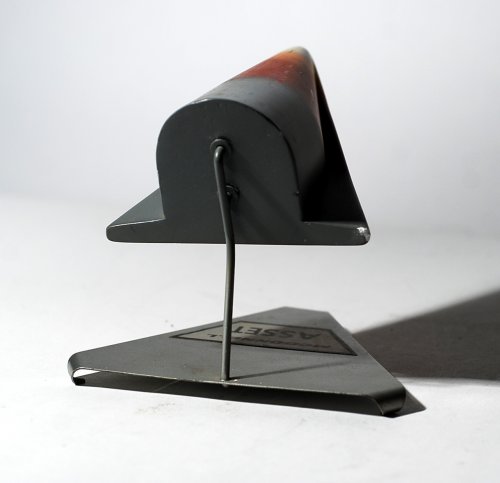

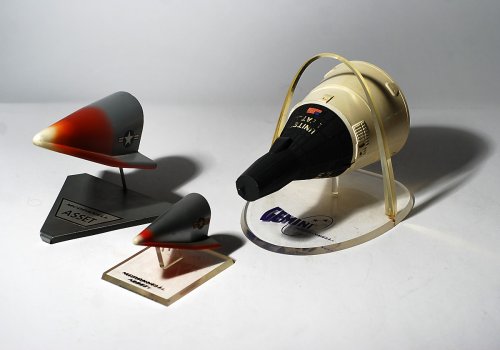

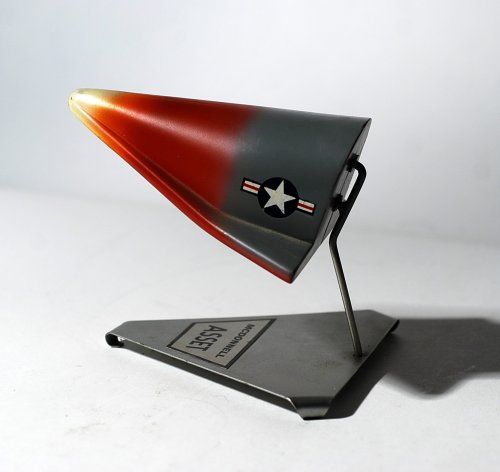

Model of McDonnell ASSET found on eBay.

Source:
http://www.ebay.com/itm/Vintage-RARE-McDonnell-ASSET-Mercury-GEMINI-NASA-Spacecraft-DESK-MODEL-/281138881739?pt=LH_DefaultDomain_0&hash=item41752ee4cb

Seller's description:
60s Metal RARE McDonnell ASSET ReEntry GEMINI NASA Spacecraft SMALL DESK MODEL

This great model came from an Engineer from McDonnell in St Louis (birthplace of the Gemini capsule) who also had a few other models from similar Space and Air Force projects, see sellers list in coming days.

ORIGINAL Vintage piece DECAL WEAR as seen, possibly chalk/ plaster on a great metal base. A great piece of US ( United States of America) Space History. The unit is about 5 inches long and does not come off the stand which is about 5 1/2 inches wide. The story behind this craft is fascinating please read below, not stated but possible pre-technology of the shuttle.


ASSET, or Aerothermodynamic Elastic Structural Systems Environmental Tests


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,722
Reaction score
478
Website
deeptowild.blogspot.com

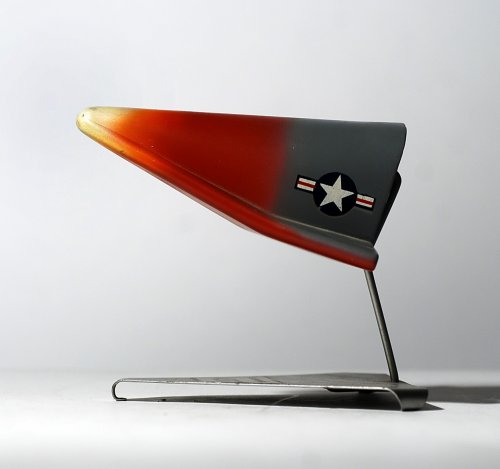

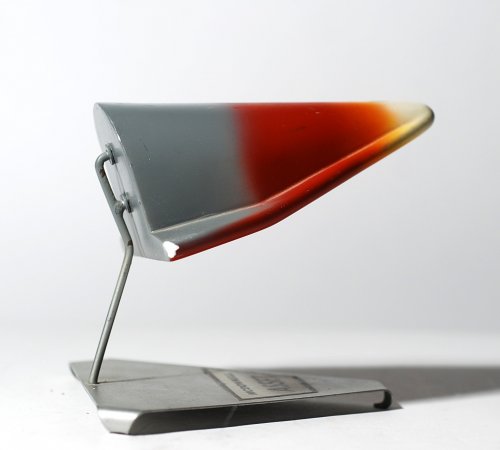

Model of McDonnell ASSET (Aerothermodynamic Elastic Structural Systems Environmental Tests) found on eBay.

Source:
http://www.ebay.com/itm/Vintage-RARE-McDonnell-ASSET-Mercury-GEMINI-NASA-Spacecraft-DESK-MODEL-/281138881739?pt=LH_DefaultDomain_0&hash=item41752ee4cb


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,722
Reaction score
478
Website
deeptowild.blogspot.com
Of the six vehicles built, only one was successfully recovered and is currently on display at the National Museum of the United States Air Force in Dayton, Ohio.


Boxman

CLEARANCE: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
123
Recently posted by the San Diego Air & Space Museum (SDASM) Archives on their YouTube page, film (albeit silent) of a PRIME / X-23 test article being unloaded, mated to and launched from an Atlas missile.
SDASM Title: "Atlas X-38 Prototype Arrival (PRIME/X-23), Unloading, Mating and..."
http://www.youtube.com/watch?v=gDAPjumZA1s


XP67_Moonbat

CLEARANCE: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
ASSET pamphlet.

http://aviationarchives.blogspot.com/2014/03/mcdonnell-asset-program.html


Dynoman

CLEARANCE: Top Secret
Joined
Jul 29, 2009
Messages
903
Reaction score
255

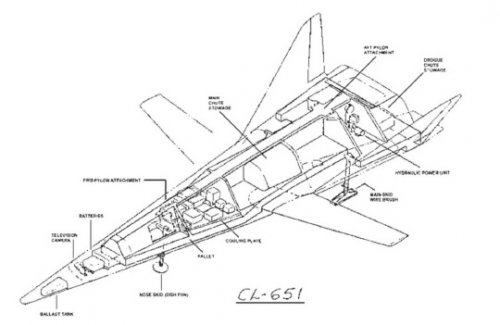

Lockheeds CL-651 unmanned air launched test vehicle from Bill Rose's Secret Projects-Military Space Technology. The USAF sponsored program produced "about 10 distinct designs that were all capable of being air dropped from a number of different USAF fighters and bombers."
The project was "linked to proposals for larger re-entry vehicles," Possibly MRS.


Attachments

Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
10
Website
rwrwalker.ca

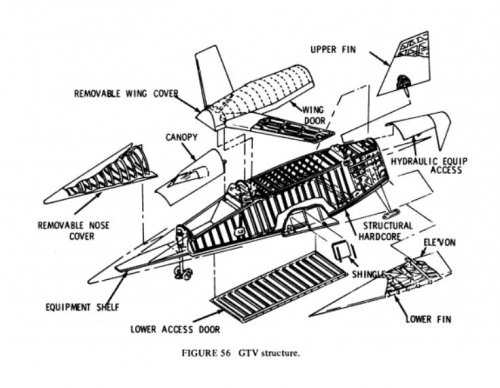

GTV is often used for Ground Test Vehicle. These can be used for things like stiffness and natural frequency tests before flight.


JimK

CLEARANCE: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8

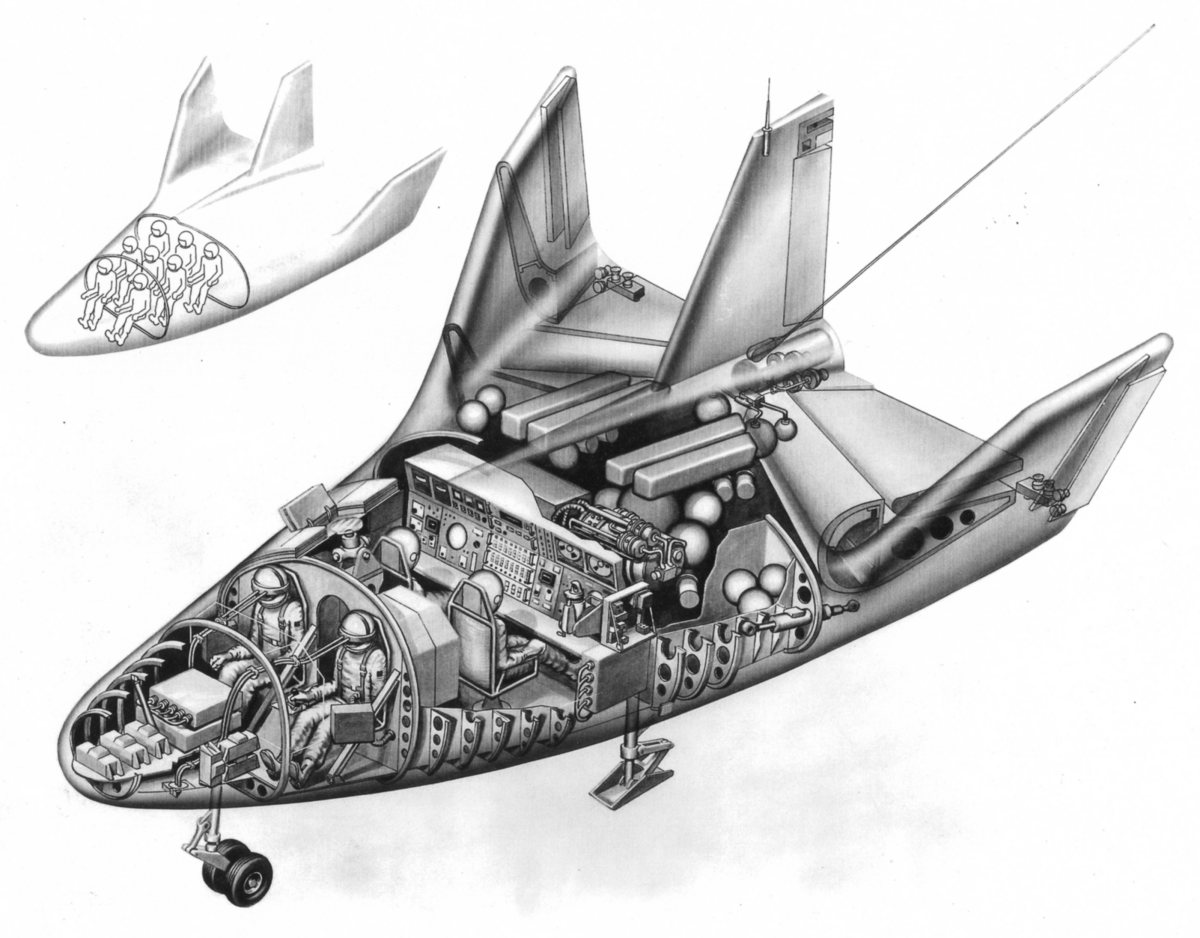

While trolling the Internet for some other cutaway I came across this:

It was identified as the Martin Scout and was called "vintage". I looks to be a late-60s study and approximates in shape the AFFDL F-3K or F-4 lifting bodies. The cutaway presentation shows some curious details: It is, apparently, unpowered. It has a small payload bay, which can be opened to the outside. What is that at the blunt end? Some sort of detachable lifting body? Check out that visual aid for the high-alpha landing attitude. Anyone have any ideas as to what it was supposed to "scout"?


Attachments

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,842
Reaction score
1,045
Website
www.aerospaceprojectsreview.com
JimK said:
Some sort of detachable lifting body?
Most likely a nuke. If this was a research vehicle, it's unlikely it'd have three crew. "Scout" might not actually be a relevant designation, but it might have been meant to scout out ground targets to take out. Mobile ICBMs and the like.


ohpossum

CLEARANCE: Restricted
Joined
Sep 10, 2008
Messages
15
Reaction score
0
JimK said:
It is, apparently, unpowered.

To me, the rectangular smoke stack means its coal fired..the two guys in the backseat have to stoke the boilers ;)


The landing aid is very intriguing. But also, I've never seen skid+wheel combos for the main gear. I was always under the impression skid-type main gear were required when the aft end heating would be more than wheel/tire materials at the time could handle. Though being unpowered, maybe the reentry heating (suborbital only perhaps? Though the big winged nuke in the tail end makes that unlikely) on this design wouldn't be an issue. But then why skids at all then? well..they do look very cool, so that has to be worth some points


antiquark

I like the space shuttle!
Joined
Aug 29, 2013
Messages
23
Reaction score
0
The fiber-optic (?) periscope and landing skids are reminiscent to this one from up-ship.com. Seems to be lacking the nuke scout though.



antiquark

I like the space shuttle!
Joined
Aug 29, 2013
Messages
23
Reaction score
0
JimK said:
While trolling the Internet for some other cutaway I came across this:

It was identified as the Martin Scout and was called "vintage". I looks to be a late-60s study and approximates in shape the AFFDL F-3K or F-4 lifting bodies. The cutaway presentation shows some curious details: It is, apparently, unpowered. It has a small payload bay, which can be opened to the outside. What is that at the blunt end? Some sort of detachable lifting body? Check out that visual aid for the high-alpha landing attitude. Anyone have any ideas as to what it was supposed to "scout"?
If I may somewhat go out on a limb here, based on various things I've read...

That pointy, swept-back shape indicates that the vehicle had a good L/D ratio in the hypersonic gliding regime. This allowed it dip into the upper atmosphere, then maneuver around, performing continent-wide U-turns with enough energy to glide back home. It would be a pretty good bomber, coming in low, at 100,000 feet or thereabouts, and fast, at near-orbital velocities. So by the time it appeared on the enemies radar, it would be too late to respond to... the ultimate surprise attack weapon!

It's interesting that the payload is mounted "upside down" compared to the rest of the vehicle. However it's not hard to imagine a scenario that makes sense. "When you see Moscow, crank a hard left and then drop the bomb, which will make a hard right."

One tough engineering aspect of these hypersonic gliders is that they got extremely hot for a long period of time. They would have mostly relied on exotic metals and active cooling schemes, such as pumping water through the skin. So I think the crude "virtual reality" setup was needed because the vehicle had no windows, out of necessity.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,465
Reaction score
3,336
antiquark said:
The fiber-optic (?) periscope and landing skids are reminiscent to this one from up-ship.com. Seems to be lacking the nuke scout though.


Wow,very nice drawing,thank you Antiquark.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,716
Reaction score
1,864
Orionblamblam said:
JimK said:
Some sort of detachable lifting body?
Most likely a nuke. If this was a research vehicle, it's unlikely it'd have three crew. "Scout" might not actually be a relevant designation, but it might have been meant to scout out ground targets to take out. Mobile ICBMs and the like.
Alternatively, it could be some sort of deployable penetration aid for the bombers that the Scout was intended to support.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,465
Reaction score
3,336
flateric said:

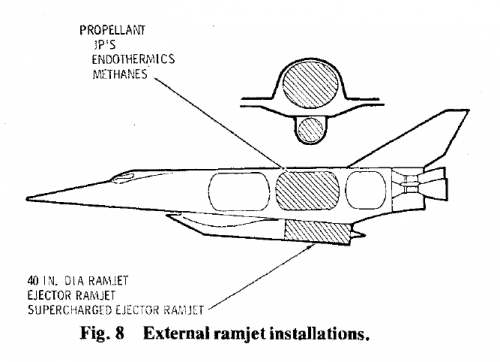

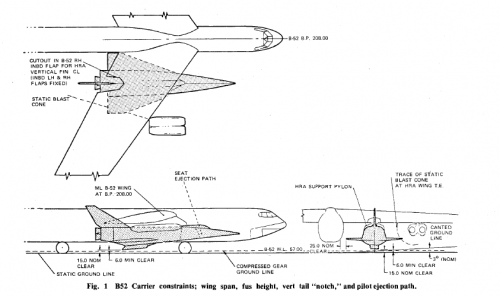

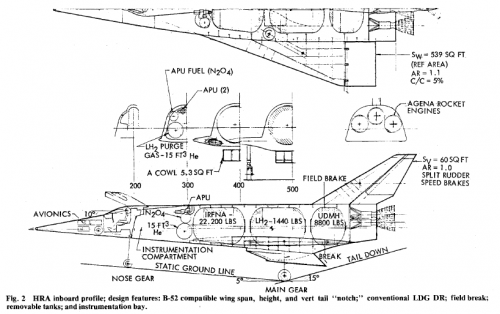

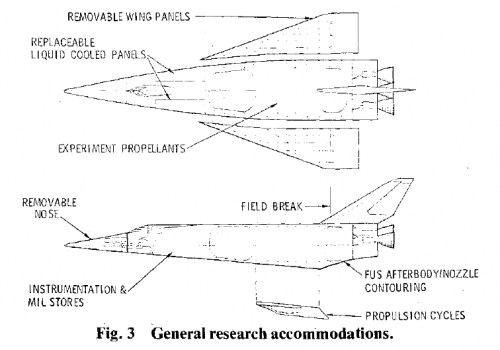

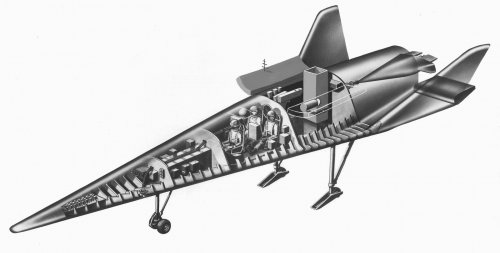

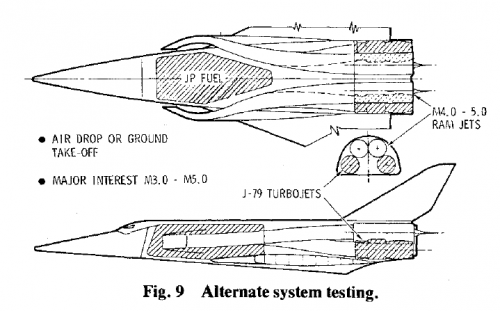

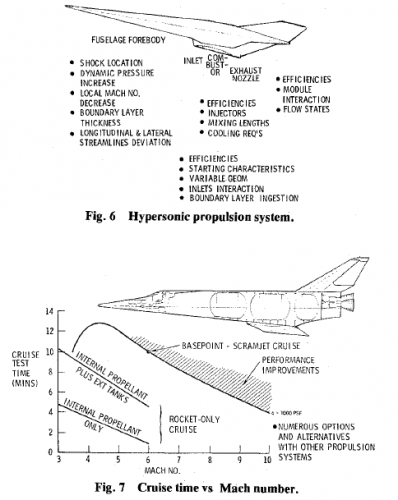

This is Rockwell's HRA (Hypersonic Research Aircraft), as it goes from the schematics above, it was 1973 Mach 10 subscale prototype of HSRA.

My dear Flateric,


here is a clearer views to Rockwell HRA;


http://arc.aiaa.org/doi/abs/10.2514/3.59842


Attachments

Bomiwriter

CLEARANCE: Confidential
Joined
Oct 9, 2008
Messages
58
Reaction score
1
Concerning Martin; they designed the second of the baby boost-gliders...called Prime and a few were successfully tested atop the Atlas booster. The other was McDonnell's Asset launched atop rebuilt ex-British loaned Thors. Asset tested out panels for Dyna Soar, while the Prime had a wrap-around insulation jacket testing it re-entry survivability. I believe it was designed by Hans Multhopp who was also one of the manager's in the BoMi Division of Martin-Bell, and helped design the team's Dyna Soar gliders. My Martin photo collection shows a family of models that are derivatives of the SV-5 config (lifting body type) modified into multiple astronaut carrying orbital supply, rescue, maintenance and orbital bombardment servicing gliders-they resembe "baguette" lifting body like vehicles like the X-24A. They tried to cover a field where the USAF was, during 1959-1961 or 1962, receiving studies from industry on both unarmed and armed boost-gliders or lifting body configurations necessary for a planned, or at least paper studied, orbital military space force...as Orion knows, this was the area many aeronautical firms threw in their hats with studies for same...it was known as SR-181...a very delicate subject even today. Martin was no slacker...they had several departments that did nothing but create radical ideas, pushing the known aerodynamics of hypersonic flight as far as they could go; their proposal for an orbital bombardment Dyna Soar was amazing...how in hell it was to be launched weighing around 34,000 pounds (I dunno if that was or without the reentry missiles aboard), and it came in short-snorter and long versions...short-snorter was for like 30 days or so while the long version was supposedly good for 6 to 12 months. Supplied, of course, by ta-da, Martin lifting-body spacecraft for crew-change and resupply. Amazing stuff and not in any way Star Wars style fighting ya know. Bomwriter ends.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,465
Reaction score
3,336
Hi,

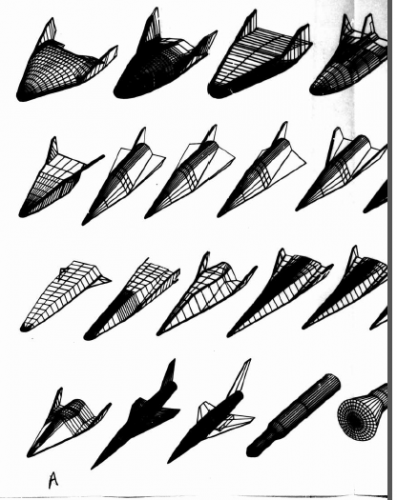

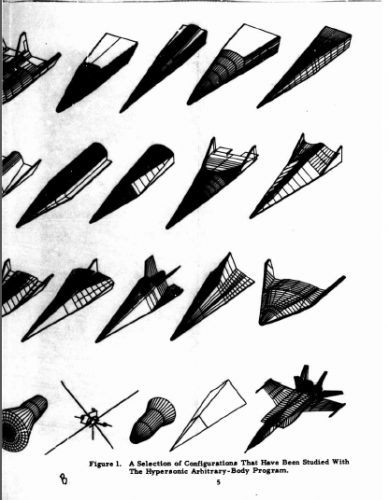

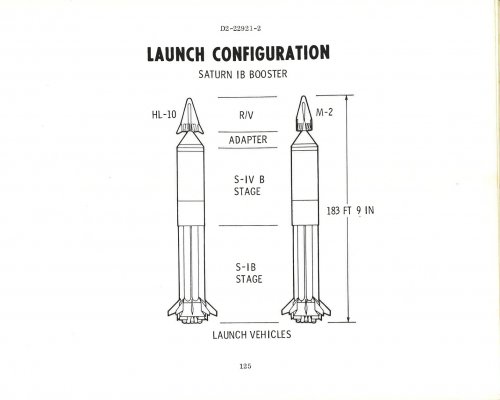

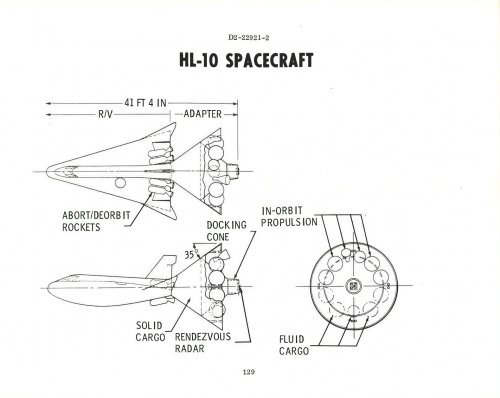

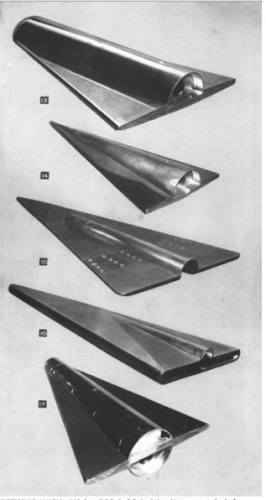

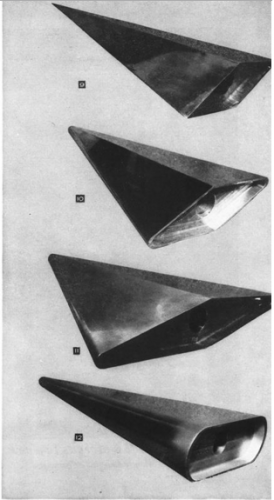

here is the McDonnell-Douglas Hypersonic Arbitrary-Body Concepts.


http://www.dtic.mil/dtic/tr/fulltext/u2/0851811.pdf


Attachments

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,618
Reaction score
430
Good Day All -

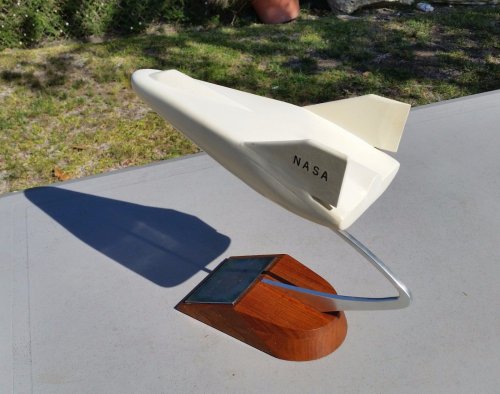

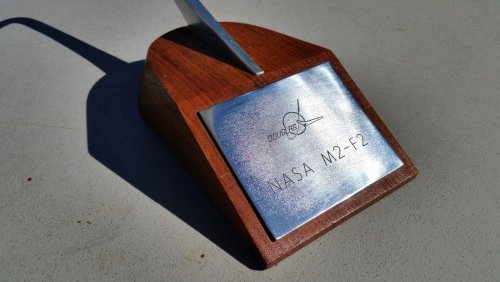

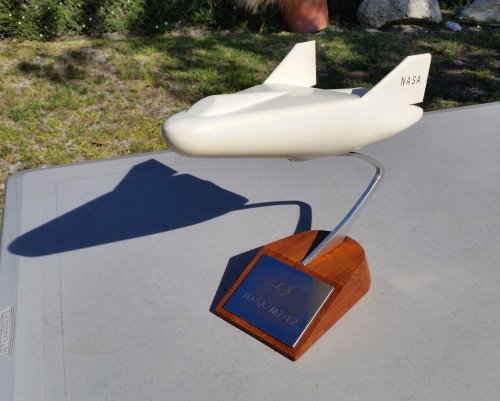

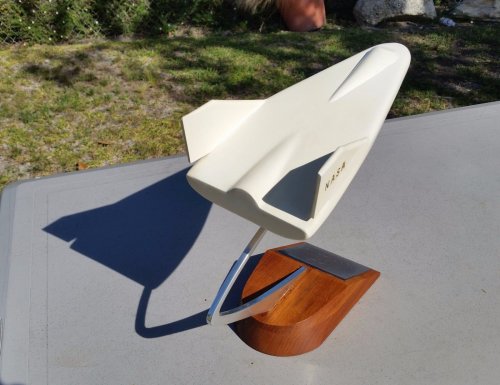

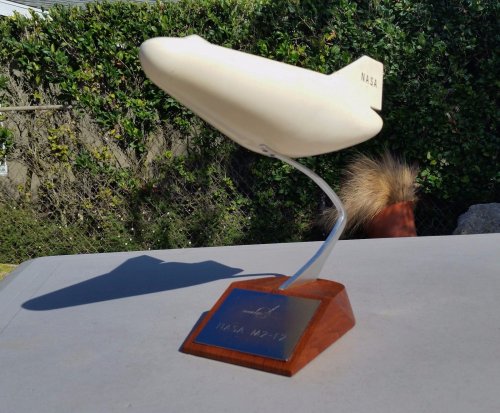

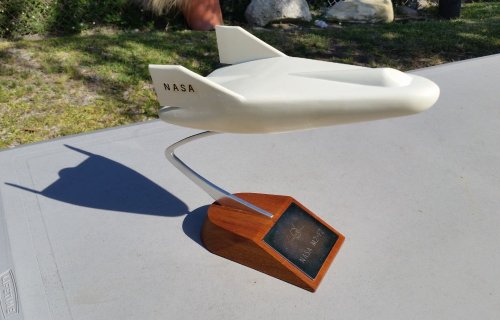

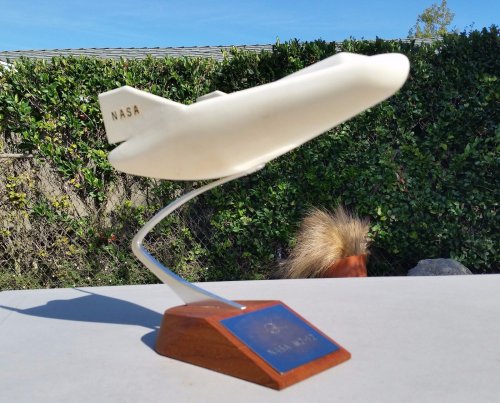

On EPay is this model of the Douglas proposal for the M2-F2.

http://www.ebay.com/itm/Vtg-Rare-Douglas-Aircraft-Space-Model-NASA-M2-F2-Lifting-body-Proposal-In-house-/331666639863?hash=item4d38df4bf7

Enjoy the Day! Mark


Attachments

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,618
Reaction score
430
Hi All -

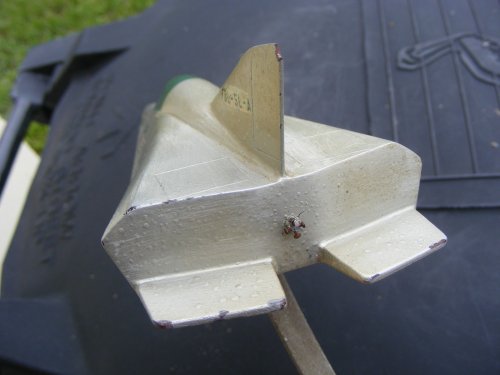

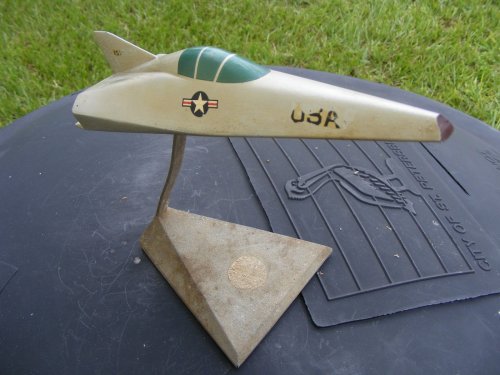

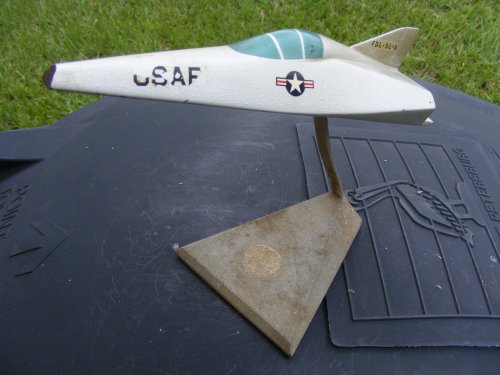

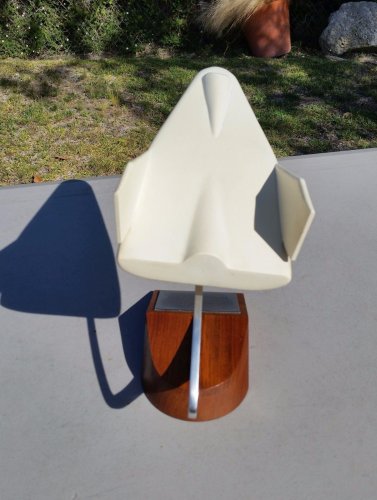

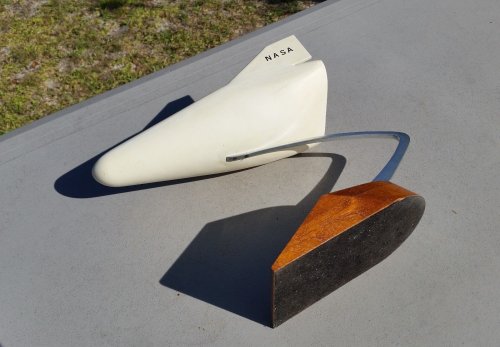

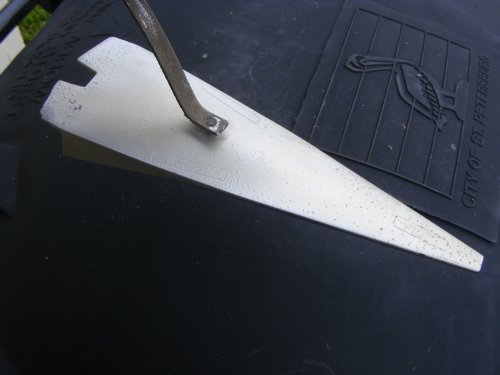

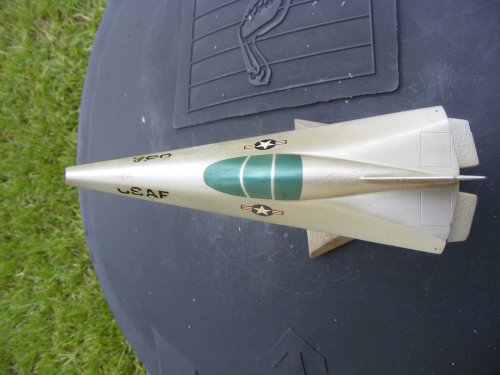

On EPay is this damaged unidentified display model - the decal on the fin is "FDL-5L-A":

http://www.ebay.com/itm/Factory-Desktop-Model/191702395576?_trksid=p2047675.c100005.m1851&_trkparms=aid%3D222007%26algo%3DSIC.MBE%26ao%3D1%26asc%3D33421%26meid%3D9758f427e29b48e1ac16315f8a786c28%26pid%3D100005%26rk%3D3%26rkt%3D6%26sd%3D331666639863

Enjoy the Day! Mark


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,240
Reaction score
428
Mark Nankivil said:
Hi All -

On EPay is this damaged unidentified display model - the decal on the fin is "FDL-5L-A"
Well, that's not what I call "unidentified". It is clearly an FDL-5 proposal, therefore an FDL-5L-A it must be! Now is it generic or by a certain manufacturer of course remains unknown...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,465
Reaction score
3,336
Hi,

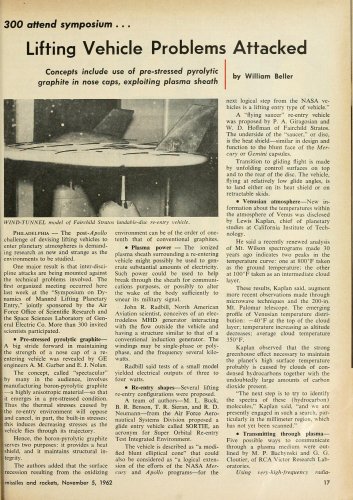

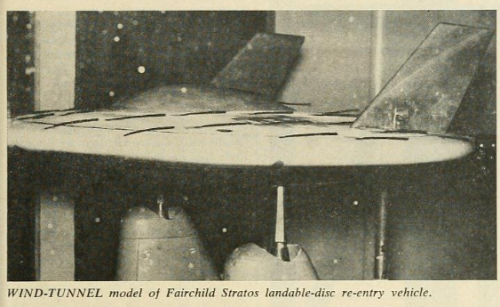

here is a model of Fairchild Stratos landable-disc re-entry vehicle,


https://archive.org/stream/missilesrockets1119unse#page/n501/mode/2up


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,465
Reaction score
3,336
XP67_Moonbat said:
:D I'll just leave this here

https://farm4.staticflickr.com/3303/4589926701_25f47c74b0.jpg

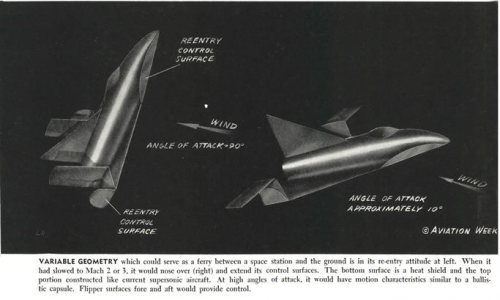

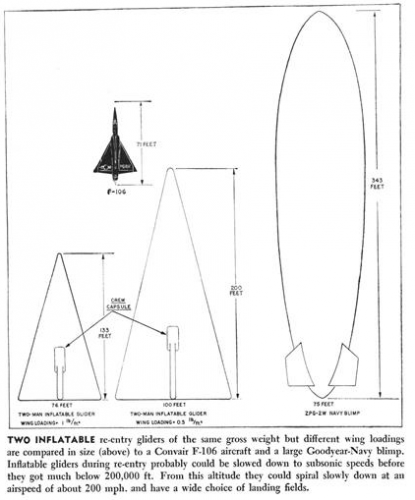

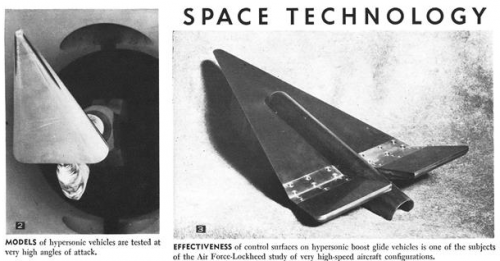

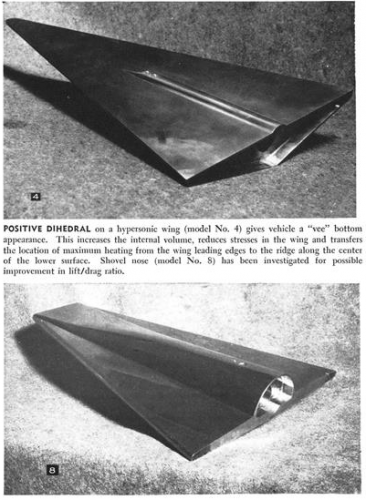

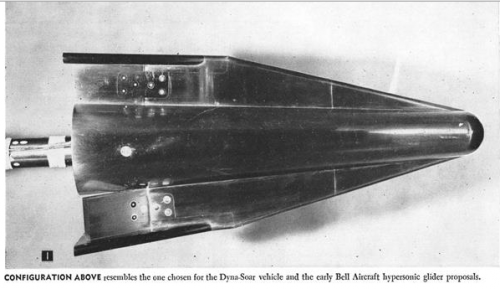

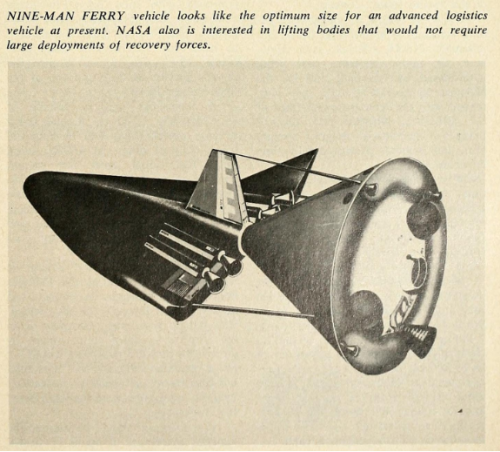

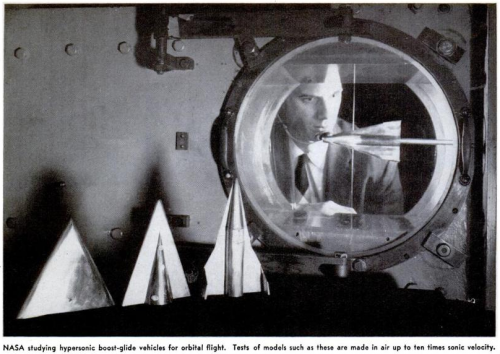

Hi,

https://archive.org/stream/missilesrockets1719unse#page/n691/mode/2up


Attachments

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,601
Reaction score
591
What for interesting find, blackstar

thanks


Richard9038

I really should change my personal text
Joined
Nov 22, 2015
Messages
3
Reaction score
0
I have an X-24B checklist given to me by one of the pilot., Any idea on the worth? I plan on having it preserved and put it under glasss
