Secret Flight Test History - An Alternate History of the X-24C

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351

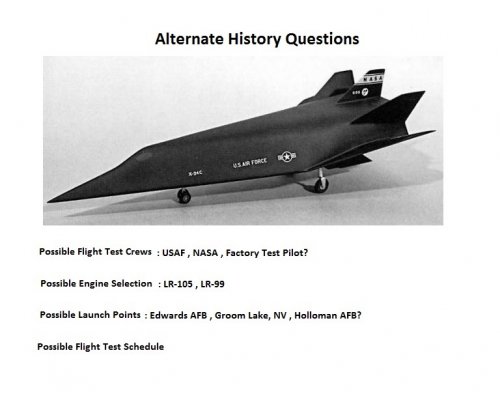

This is just a little thought exercise in a 'what-if' scenario for a hypersonic flight research program.

The US efforts to develop a hypersonic aircraft design in the 1950's (Aerospaceplace, X-15), 1960's (X-20, Lifting Bodies), and 1970's (X-24C, HYFAC) culminated, for a time, in the USAF and NASA X-24C project, which would have been a follow-on to the X-24A/B, HL-10, M2-F1/2/3, etc.

With what we know of the X-24C program this alternative history examines the questions of:
1. Which project pilots (USAF, NASA, and Contractor) would have been the likely candidates to have flown the aircraft during the projected timeframe?
2. Which manufacturer had the lead in receiving the contract (i.e. McAir or Lockheed)?
3. Which engine combination was likely the one to be used, or both in a program designed for growth?
4. Where there any additional configurations that might have been best to consider in the program (drop tanks, different carrier aircraft, fin arrangement, etc.)?
5. Which launching station would have been used and would Groom Lake have been considered as a recovery site?
6. Which experiments would have likely flown?
7. Where could the program have gone after the X-24C (e.g. X-24D)?


Attachments

  • X24C Questions.jpg
    X24C Questions.jpg
    78.2 KB · Views: 575

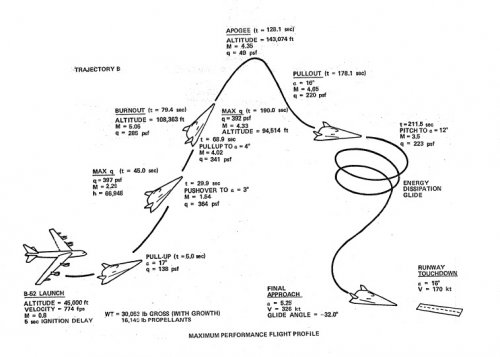

  • X24cFlightProfile.jpg
    78 KB · Views: 537

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
I certainly think that Milt Thompson of NASA would have been NASA's project pilot on the X-24C, due to his flight experience with the NASA lifting body programs. John Manke would have been another likely NASA candidate. Jerry Gentry would have been a good USAF candidate.
McAir also had extensive hypersonic and spacecraft development talent and experience.
LR-99 had extensive experience with the X-15 and could have been used in the X-24C's initial flight test program. The proposed use of the LR-105 would have required additional engines to sustain cruise flight above M6.
The launch locations could have mimicked the X-15's launch sites since the maximum altitude and speed profiles were within X-15 ranges.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351

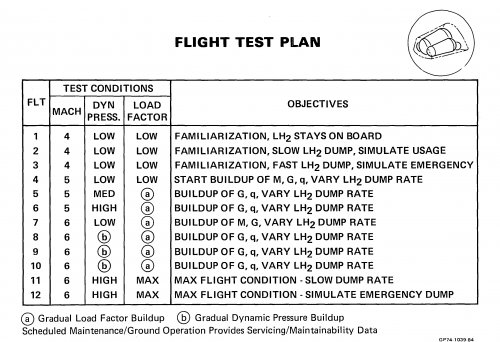

The McDonnell Douglas X-24C Flight Test Plan called for one test article, developed and flown over a 25 month period, with a 3 month flight test schedule.

The X-24C was officially cancelled in September of 1977, however, if it was instead authorized and continued development the vehicle could have been flown by the second quarter of 1980.

Two Primary Flight Test Experiments were planned: The Integral Liquid Hydrogen Tank Experiment (12 Flts) and the Active Cooling Flight Experiment (9 Flts).

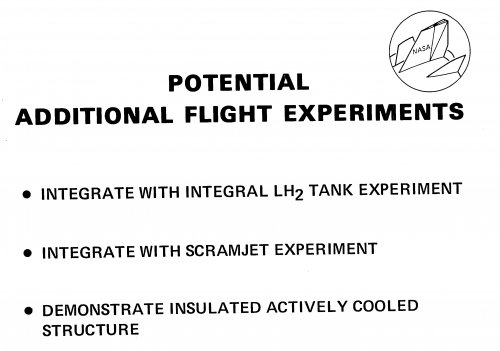

Additional experiments to consider are an integral LH2 tank experiment, an integrated scramjet experiment, and an actively cooled insulation structure.


Attachments

  • X24C_Flt_Tst_Pln.jpg
    904.2 KB · Views: 474
  • X24C_Flt_Tst_Pln2.jpg
    1 MB · Views: 418
  • X24C_Add_Exp.jpg
    391.8 KB · Views: 356

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
Lockheed's X-24C vehicle was a refined design. Its baseline design changed between its Phase II and Phase III studies.

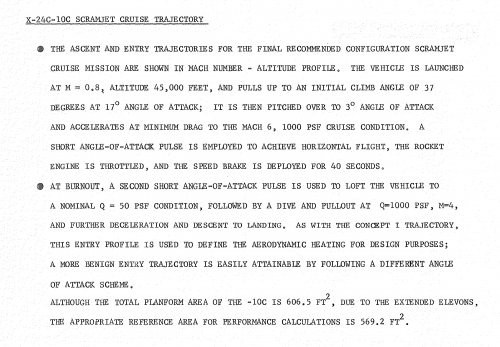

Mission Profile for the Lockheed X-24C (Lockheed Phase III Study):

"A typical profile for the scramjet cruise mission of 40 seconds at Mach 6.6. Other mission profiles considered in the vehicle design included; 40 seconds cruise on sustainer rockets, (without scramjets) at Mach 6.6 and zoom to Mach 7.8 with no cruise time.

Each mission starts with a subsonic launch from the B-52 launch vehicle, at 13.7 kM MSL, where boost rocket engine is ignited to accelerate. At this point, the X-24C vehicle is heavy with large loads applied to the structure due to the positive 2.5 g limit maneuver and rocket axial thrust. Vehicle structure remains relatively cool during this initial maneuver. At the end of the acceleration phase a 0.0 g push over is initiated to align the vehicle for the desired cruise condition. At start of the cruise phase, the take-off mass has been reduced approximately 50 percent. The structure is increasing in temperature towards a peak shortly after the end of the cruise segment. To stay within the test range constraint, the vehicle performs a high drag 3.0 g pullup combined with a banking maneuver at time of cruise power burnout. Temperatures are combined with flight loads during deceleration. During vehicle descent, the structure begins to cool with the vehicle mass remaining at approximately 12.9 Mg.

The mission for the cruise on sustainer rockets follows the identical flight profile noted above for scramjet cruise.Vehicle structural differences are reflected in the skin panel changes, on removal of scramjet modules, required to accommodate the thermal gradient difference to the vehicle shell resulting from scramjet removal.

The dash to Mach mission follows the same profile as for the sramjet mission, except the acceleration phase is extended to Mach 7.8. Level flight is obtained at the end of the acceleration phase followed by the deceleration maneuver identical to the one used in the scramjet mission. Heating peaks occur shortly after the start of deceleration, like in the scramjet mission, but are not as high as in the Mach 6.6 mission due to the shorter mission elapsed time involved. Consideration of this mission, however, was made due to the difference in the vehicle shell temperature gradients in the non-scramjet configuration."


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
Martin's X-24C concept had the following flight profile:


Attachments

  • Martin_X24C_Launch.jpg
    951.8 KB · Views: 66

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351

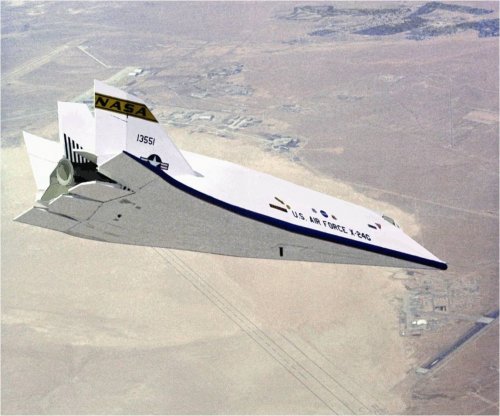

A speculative X-24C via MS Paint.


Attachments

  • X24C_Alt_History.jpg
    359.4 KB · Views: 126

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351

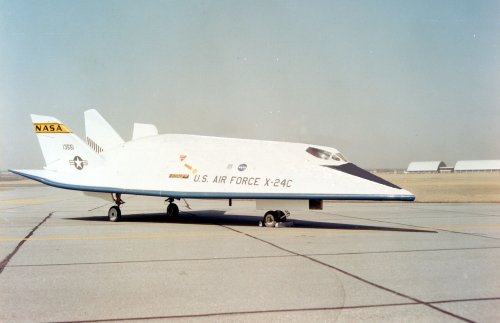

And another one with the XLR-99 (again MS Paint).


Attachments

  • x-24Capproach_Alt_History.jpg
    268.6 KB · Views: 105

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351

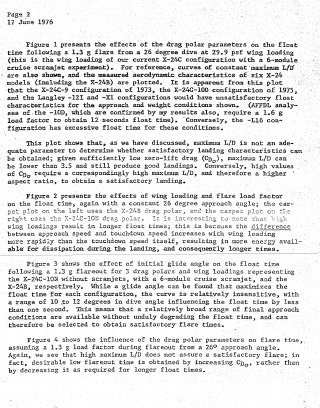

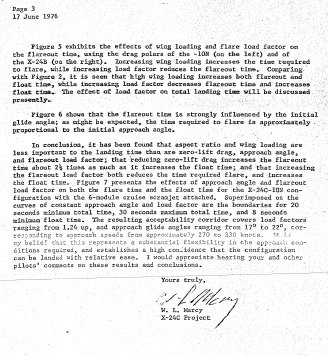

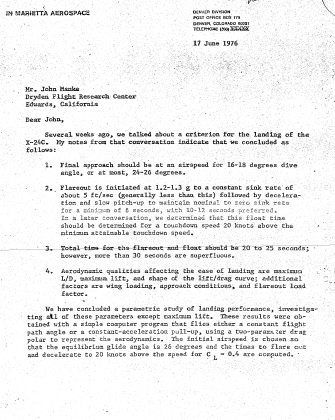

Using the X-15, X-24A, X-24B, HL-10, and M2-F3 first flight profiles and flight test events as a baseline for the X-24C a generic first flight scenario can be hypothesized considering that the subsonic handling and control characteristics of the vehicle were being designed to compare with the X-24B. John Manke, NASA Test Pilot, who flew almost all of the lifting bodies was consulted regarding the approach and landing of the X-24C.


Attachments

  • Manke Letter3.jpg
    Manke Letter3.jpg
    68.1 KB · Views: 40
  • Manke Letter2.jpg
    Manke Letter2.jpg
    82.4 KB · Views: 39
  • Manke Letter.jpg
    Manke Letter.jpg
    69.8 KB · Views: 46

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
The X-24C would have been transported to Edwards AFB where the vehicle would have been ground tested and prepared for flight tests. "Final checkout of the liquid hydrogen system would include fill, pressurization, leak and dump tests of the system using liquid hydrogen and facilities available at the flight test site. The experiment would then be installed aboard the X-24C aircraft and a final leak check would be conducted. The aircraft would then be ready for further ground crew familiarization and flight test" (McAir NASA Flight Experiments X-24C Final Briefing, January 1975).

McDonnell Douglas planned 12 flights at a rate of 3 per month for the Integral LH2 Tank Experiment (9 months with 3 flights per month for the Active Structural Cooling Experiment). The whole flight test program would be composed of one and a half months of flight test instrumentation and experiment installation and vehicle checkout, 4 months of flight tests, and two and one half months of flight test data analysis and evaluation.

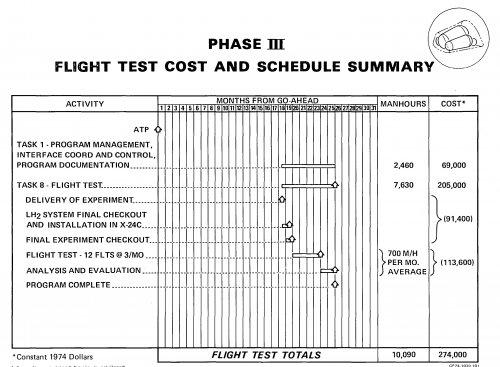

McDonnell Douglas conceived a Flight Test schedule for the X-24C as below:


Attachments

  • McAir X24C Schedule.jpg
    McAir X24C Schedule.jpg
    878.7 KB · Views: 56

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351

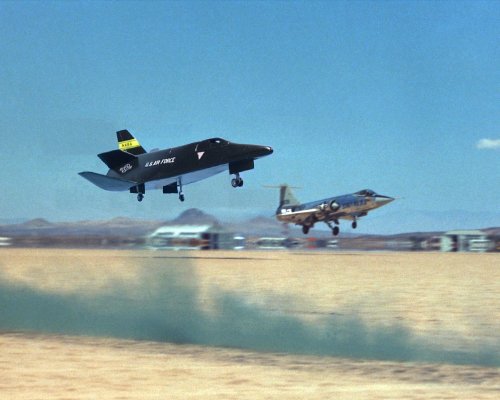

X-24C landing with F-104 Starfighter as chase plane (via MS Paint).


Attachments

  • X24C Chase landing.jpg
    X24C Chase landing.jpg
    1.7 MB · Views: 128

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,787
Reaction score
4,009
Very cool, I like it. Maybe you should consider posting it here
https://www.alternatehistory.com/forum/forums/alternate-history-discussion-after-1900.16/


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
Archibald, that looks like a very interesting website. I'll have to spend some more time on it.

I was trying to see how far I could develop the 'what if' concept, basing the project on some historical facts and a lot of suspected operations. Delving into the X-24C documentation its interesting to see how this project could have unfolded. It was an ambitious attempt at a hypersonic design that would have explored interesting technologies, such as scramjets, thermal protection materials, and structures, to name a few.

I'm currently looking at a comparison between all of the lifting body projects and the X-15, as well as other documentation, such as on TAV and HYFAC, on the stages and events of their flight test programs to see where there is commonality and which tests are relevant to the X-24C. Again, a neat mental exercise.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
Looking at NASA test pilots with Lifting Body aircraft experience and who would have been engaged in flight testing in the late 1970's early 1980's the list would be relatively short.

As mentioned before, Milt Thompson was very formative in the development of the Lifting Body concept and would have been an asset to the X-24C's design and test. However, his flying career as a NASA test pilot ended in 1967, when he took a more administrative duty at Dryden (Armstrong FRC).

John Manke, who had the most extensive experience with all of the Lifting Bodies would have been around for the early development of the X-24C (Manke becomes Chief of Flight Operations in 1981).

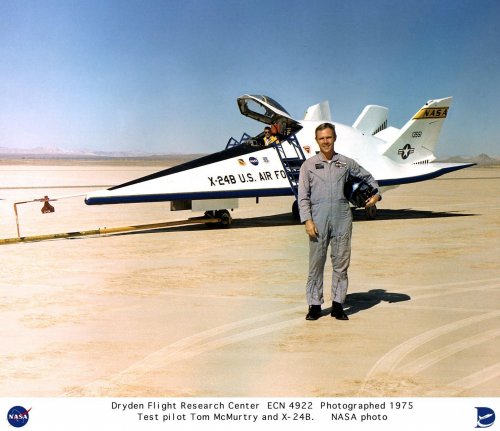

Thomas McMurtry was the last pilot to fly the X-24B. He could have been instrumental in the early development of the X-24C as his work in aerodynamic and stability testing of the F-8 Supercritical Wing (prior to X-24C timeframe) and involved in the Shuttle ALT program as a SCA B747 pilot. He could have easily been considered as an X-24C project pilot at the time.

Bill Dana was another candidate for the X-24C. He had extensive high speed flight research experience, having flown the X-15 and the Lifting Bodies.

NASA Photo: USAF Test Pilots Gentry and Hoag on left, NASA Test Pilots Manke and Dana on right. Bottom Picture NASA's McMurtry.


Attachments

  • lifting_body_pilots.jpg
    106.3 KB · Views: 60
  • X-24B_with_Test_Pilot_Tom_McMurtry_DVIDS727674.jpg
    246.9 KB · Views: 63

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
Scobee did fly the X-24B. Here's photo with a few of the X-24B pilots. Scobee is third from the left.

Also, here is a Martin report that identifies X-24C inflight experiments that could be conducted on the research aircraft.


Attachments

  • ECN-4968.jpg
    2.1 MB · Views: 34
Last edited:

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351

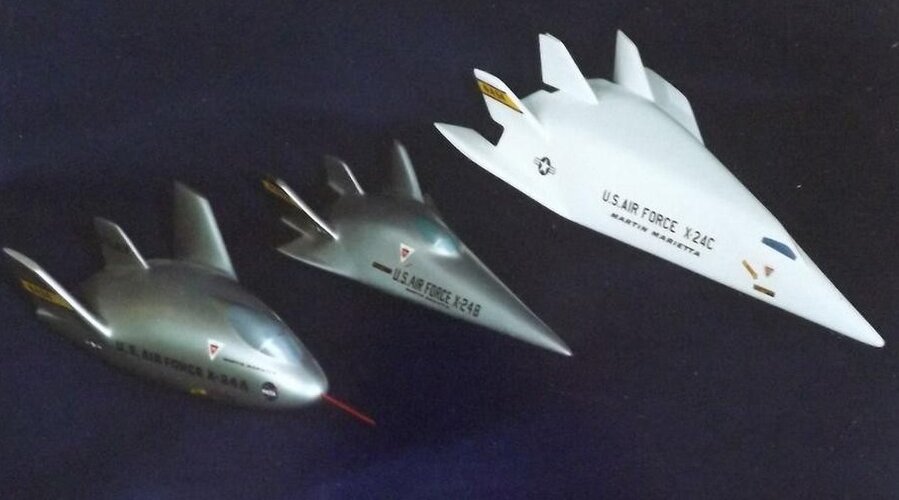

A size comparison between the X-24A, X-24B and X-24C.


Attachments

  • X24A X24B X24C Comparison.jpg
    X24A X24B X24C Comparison.jpg
    93 KB · Views: 55

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,787
Reaction score
4,009
I suppose you are aware of Flateric posts here > https://www.secretprojects.co.uk/th...sset-prime-fdl-x-24-etc.722/page-3#post-44176


It could very well have happened, had things took a different turn circa 1977. Requirements creep really killed that one and put an end to 30 years of high speed rocketplanes started with the X-1...

In December 1975, a
month after the final X-24B flight, NASA and the Air Force formed an X-24C Joint
Steering Committee. This consisted of the commanders of the Air Force Flight Test
Center and the FDL, and the directors of NASA’s Flight Test Center (now Dryden Flight
Research Center) and Langley Research Center.

Over the next several months, the group moved away from the relatively simple
X-24C concept, toward the larger, more complex vehicles proposed by Langley and the
FDL. The rationale was that a joint NASA/Air Force “research facility” should be
designed to undertake research into a wide range of “pacing technology” in hypersonic
flight, and serve as a focus for U.S. research efforts in the field. This, planners
envisioned, would combine a wide range of research goals into a single vehicle.
The Air Force wanted to test military-related technology experiments –
photography, weapons separation, radome heating, nose tip erosion, thermal protective
systems, and removable fins. Different air-breathing propulsion systems were to be
tested, including integrated rocket ramjets, as well as subsonic combustion ramjets. To do
this, designers moved away from the X-24C shape, toward a design more akin to those of
the Langley concepts. The vehicle would have a modular configuration, with a removable
center section of the fuselage, to accommodate the different experiments. With the
connection to the original X-24C vehicle now gone, the program received a new name.
The traditional X-plane designation was abandoned and replaced with the awkward
“National Hypersonic Flight Research Facility,” (NHFRF, but pronounced “nerf”).

The proposed NHFRF gained favor within NASA, as it fulfilled a number of
research and institutional needs.
(snip)
The project engineers envisioned construction of two
NHFRF vehicles, to be used in a 200-flight research program beginning in 1983, and
spanning a decade. This effort was estimated to cost $200 million.

Despite the support for the NHFRF by both NASA and the Air Force, however,
trouble for the project was ahead. Much of NASA’s budget was committed to the Space
Shuttle, and both technical problems and high inflation were causing the program’s costs
to balloon. At the same time, the Air Force was introducing a new generation of fighter
aircraft, against a background of funding cutbacks and poor morale. The increasing
complexity of the NHFRF had, by early 1977, raised the estimated cost to as much as
$500 to $600 million. NASA Headquarters was unwilling to foot the ever-growing bill,
and in September 1977 cancelled the agency’s participation in the project. James J.
Kramer, the acting NASA associate administrator for aeronautics and space technology,
stated that, “the combination of a tight budget and the inability to identify a pressing
near-term need for the flight facility had led to a decision by NASA not to proceed to a
flight test vehicle at this time.” The Air Force could not take over full funding of the
NHFRF, and ended its support for the effort.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
Archibald, thank you! You are exactly right. NASA wanted out of the X-24C as they began to pursue other hypersonic concepts, such as Shuttle and NHFRF (except for the folks at Dryden who were interested in testing hardware that was a relatively low risk initiative following the lifting body program. The USAF couldn't fund X-24C unilaterally and dropped the program (although some believe X-24C was the basis of Copper Coast, which ended around 1994). My attempt here was to create a thread that would look at some of the ancillary activities, people, and places that would have been used if the X-24C had been built and tested as reported in NASA literature, and how it would have been used in the investigation of 'classified' military technologies (weapons carriage/separation, optical systems and sensors in hypersonic flow fields, etc.). The actual history of the X-24C program, it's cancellation, and the follow-on programs (NHFRF, MRRV, BETA, Copper Coast, X-30 etc.) are a matter of the written record. This alternate history attempts to go a step further and address the program as if it did occur. The actual X-24C timelines and events provide the framework for this thread's alternate history.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,787
Reaction score
4,009
I'm a bit lost with the contractors... Lockheed, MDD and Martin ?

Somewhat naively I assumed that because of X-24A / B legacy, the -C would also be a Martin product.
Except that the X-24B was merely a X-24A in a different shape - but still with similar (modest) flight parameters.
X-24C would have been a whole new monster to replace the X-15 as much as the lifting bodies. So Martin just become a contractor.

Maybe it is the X-24C moniker that is confusing. They should have given that beast a brand new X-number.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
941
Reaction score
351
Maybe it is the X-24C moniker that is confusing. They should have given that beast a brand new X-number.
The designation convention between the lifting bodies varied.

NASA M2-F1: "M" for manned and "F" for flight was a NASA designation.
Northrop M2-F2, M2-F3: "M" for manned and "F" for flight, following NASA convention
Northrop HL-10, "HL" for horizontal landing was a NASA Langley model designation
Martin X-24A/B: "X" for experimental began with the USAF/NACA designation of Bell X-1 in 1944. Many of the joint USAF/NACA (NASA) flight research projects used "X." The X-24A and B were USAF FDL models.

The X-24C was also joint program and an FDL model and therefore, the X-24 would have been an appropriate designator. The difference in size and performance of the X-24C in comparison to the other lifting bodies would have warranted it to have its own designation IMHO.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,833
Reaction score
706
Without any joking, could it be the X-24C (in all its iterations) at the basis of the so-called "Aurora myth"?
I always wondered about the general description of the fictional Aurora would fit so much with the general X-24C layout.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,787
Reaction score
4,009
Problem with Aurora in the 80's and beyond: what purpose ?

When in 1964 General Schriever (pushed by Convair and Douglas) proposed the NRO the Mach 4.5 ramjet-powered ISINGLASS, he was told that was not acceptable because both SA-5 SAMs and Galosh ABMs would eat it for breakfast. Even more with nuclear warheads (remember Fail safe when the bomber gets nuked but gets through at the cost of a mostly fried crew)

In fact the NRO bluntly said "anything below mach 9 (yes, mach 9 !) post 1970 is toast against Soviet SAMs and ABMs."

Of course RHEINBERRY got a LOX-LH2 rocket to fly at mach 22 off the wing of a B-52 but there it was rejected too as unuseful and expensive in the days of orbital spysats.
In fact the hypersonic shockwave surrounding RHEINBERRY would have prevented any onboard camera from getting viable pictures. Same for any SAR / SLAR.
This was a problem in 1966 as much as it was in the 80's, the 90's or even today.
