US Lifting Bodies Studies - START (ASSET/PRIME), FDL, X-24, etc.

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,555
Reaction score
1,288

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
721
Reaction score
587

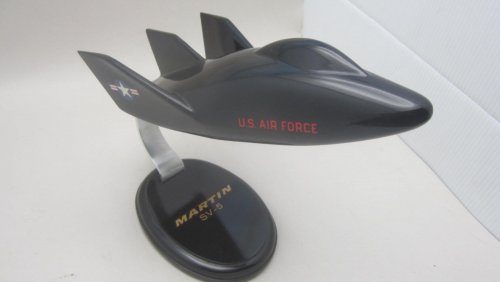

Martin SV-5 Model

http://www.ebay.com/itm/RARE-Vintage-Martin-SV-5-USAF-Resin-Lifting-Body-Contractors-Desk-Model-/222153233609?hash=item33b95d54c9:g:JXwAAOSwNuxXYGb1


Attachments

  • Martin SV-5.jpg
    Martin SV-5.jpg
    68.7 KB · Views: 825

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,173
Reaction score
134
You guys might like some of these pics. Some of those pics seem pretty new to me. Probably because I've never seen them before! :-D

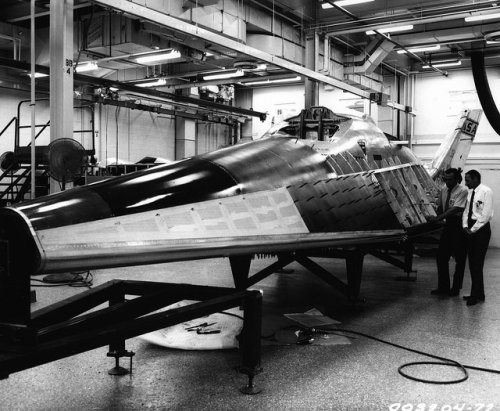

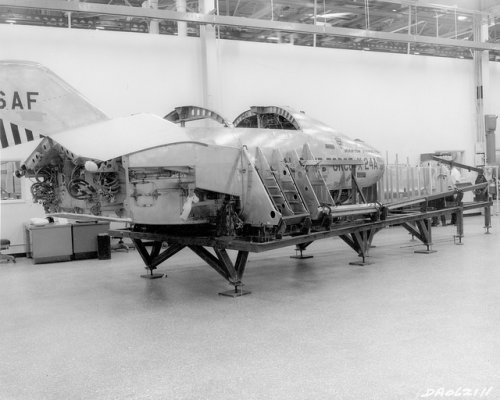

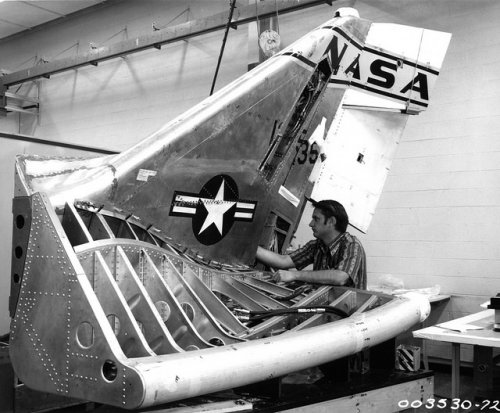

The shots of the X-24A being converted to the B configuration are worth a gander.

https://m.flickr.com/#/photos/128712737@N03/sets/72157654395157503/


Attachments

  • 29171373574_01e2b32c4a_z.jpg
    122.3 KB · Views: 154
  • 29173284313_8f6a915ee1_z.jpg
    120 KB · Views: 141
  • 29799030745_1217e0ee93_z.jpg
    126.7 KB · Views: 139
  • 29171402424_d101dc49be_z.jpg
    102.5 KB · Views: 176

Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
319
Reaction score
180
Recently posted on YouTube by NASA Armstrong Flight Research Center (Edwards AFB), December 12, 1969 footage of the remote controlled flight (piloted by Milt Thompson on the ground) of the Hyper III, after being dropped from altitude by a "borrowed" US Navy Sikorsky SH-3 Sea King helicopter (piloted by Bruce Peterson).
YouTube - NASA Armstrong Research Flight Center "Hyper III Drop Test From SH-3 Helicopter"
https://www.youtube.com/watch?v=pwdClhh1HwE


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,173
Reaction score
134

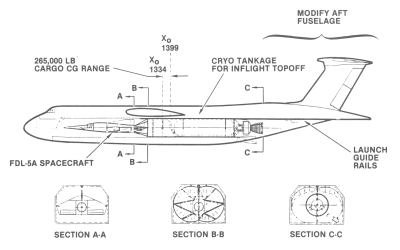

I'm not sure if this one's been posted before or not


http://www.up-ship.com/images/C5tav.jpg


Attachments

  • C5tav.jpg
    13.1 KB · Views: 237

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,574
Reaction score
2,991
XP67_Moonbat said:
I'm not sure if this one's been posted before or not
http://www.up-ship.com/images/C5tav.jpg

It's not !
And it's new here, thanks allot for posting !


bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
11,408
Reaction score
3,050

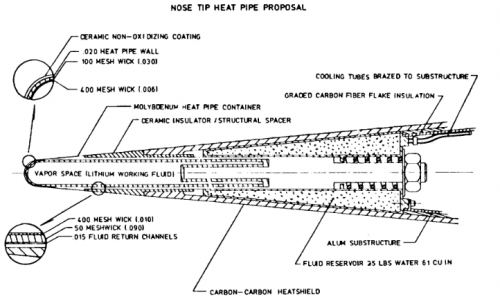

https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930012927.pdf


Attachments

  • NoseTipHeatPipe.PNG
    85.7 KB · Views: 156

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
721
Reaction score
587

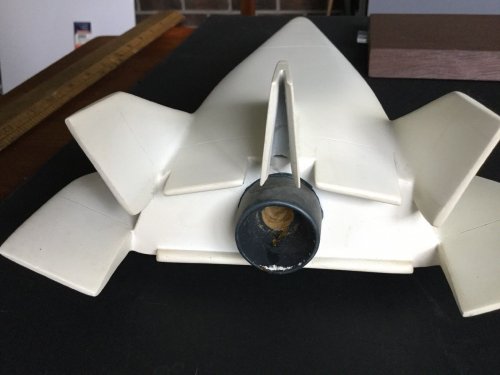

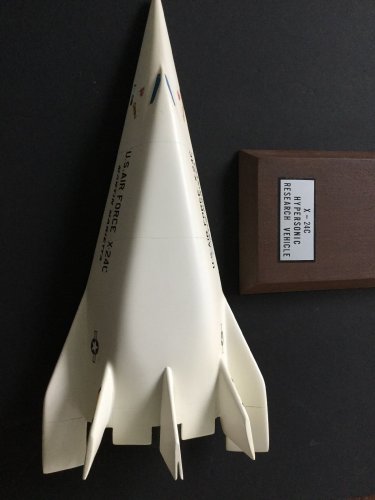

X-24C model

https://www.ebay.com/itm/X-24-C-Martin-Marietta-NASA-X24-Airplane-Desktop-Model-Hypersonic-Vehicle-As-Is/332796134043?hash=item4d7c32029b:g:J4gAAOSwohJbkZ97


Attachments

  • X24C 3.jpg
    X24C 3.jpg
    289.8 KB · Views: 115
  • X24C 2.jpg
    X24C 2.jpg
    223.2 KB · Views: 114
  • X24C 1.jpg
    X24C 1.jpg
    246.4 KB · Views: 135

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,510

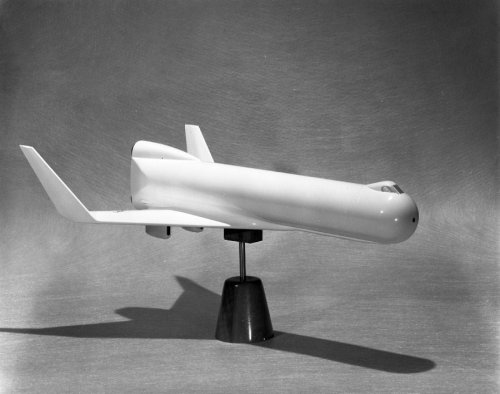

Hi,

https://www.flickr.com/photos/sdasmarchives/31288927261


Attachments

  • 31288927261_19840c92de_b.jpg
    88.6 KB · Views: 97

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,346
Reaction score
2,045
what it has to do with _lifting bodies_?


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,574
Reaction score
2,991
flateric said:
what it has to do with _lifting bodies_?

That's Convair version of reusable Atlas rocket
the reusable Second stage is a lifting body



hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,510
Michel Van said:
flateric said:
what it has to do with _lifting bodies_?

That's Convair version of reusable Atlas rocket
the reusable Second stage is a lifting body

Thank you my dear Michel.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,510
From L+K 12/1965,

I don't remember what was this Boeing ?.


Attachments

  • 1   12-1965.png
    1 12-1965.png
    16.3 KB · Views: 90

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,574
Reaction score
2,991
The idea is intriguing: Aero-Gravity Assist

Do a Fly-By so close to Mars and Venus, that the Spacecraft rams through its atmosphere at hypersonic speeds.
The study look into use of Waverider (Lifting Body) cover in Carbon heatshield to survive the temperature of 3000°K
According the Study it would reduce travel time to outer Solarsystem
Bonus the Waverider could use Aerodynamic capture at target Gas giants or Saturn Moon Titan



RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
1,002
Reaction score
509
The idea is intriguing: Aero-Gravity Assist

Do a Fly-By so close to Mars and Venus, that the Spacecraft rams through its atmosphere at hypersonic speeds.
The study look into use of Waverider (Lifting Body) cover in Carbon heatshield to survive the temperature of 3000°K
According the Study it would reduce travel time to outer Solarsystem
Bonus the Waverider could use Aerodynamic capture at target Gas giants or Saturn Moon Titan


Interesting stuff! I recall ASTRA (Association in Scotland to Research into Astronautics) proposed a similar mission plan for an Interplanetary Waverider around the same-ish time. Up to and including a 'flexible' aero-form for more utility. Can't find my good link :(

Randy


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
1,002
Reaction score
509
Some more Interplanetary Waverider stuff I came across:


[/URL]

Among others :) There appears to have been a couple of waves, (pardon the pun) of interest around the late 90s and mid-2000's for some reason.

Oh and this one is interesting both in the historic and conclusions on 'wedge' waveriders:

Randy


chimeric oncogene

ACCESS: Secret
Joined
May 23, 2019
Messages
266
Reaction score
231
The idea is intriguing: Aero-Gravity Assist

Do a Fly-By so close to Mars and Venus, that the Spacecraft rams through its atmosphere at hypersonic speeds.
The study look into use of Waverider (Lifting Body) cover in Carbon heatshield to survive the temperature of 3000°K
According the Study it would reduce travel time to outer Solarsystem
Bonus the Waverider could use Aerodynamic capture at target Gas giants or Saturn Moon Titan


Oh I remember seeing that. The most insane aerobraking concept ever. They hoped to be able to go into a retrograde orbit around the sun (or fall into it, solar probe style) by flying around Venus using Venus's atmosphere.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,646
Reaction score
6,510

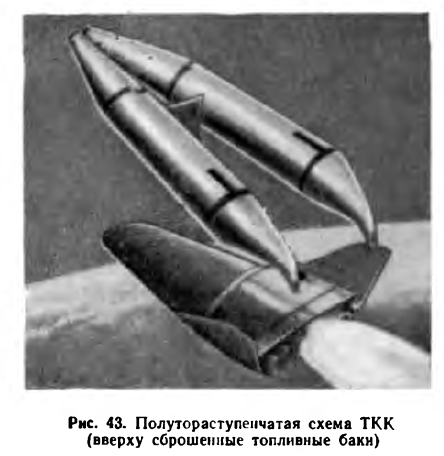

From; A Russian book about rockets,

what was this ?.


Attachments

  • 1.png
    161.4 KB · Views: 88

TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
4,977
Reaction score
4,574
At 3:09 you can see what seems to be the pylons extractor chutes?

Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
Per lack of a better thread...
The FDL-5 / L-301 / Model 176 family - gimme a break... I just red (I will link the papers later) that
- Lockheed build a halfscale FDL-5MA mockup in 1969
- the final vehicle was to have an aerospike (http://www.astronautix.com/a/amps-1.html)
- with LH2/ fluorine and ISP 468 seconds
- enough to haul itself into orbit with a pair of drop tanks (with a classic Titan III as a more reasonable alternative)
- and that L-301 inspired Lockheed Starclipper own V-tanks

My mind is completely blown. Please help clearing what is fantasy from what was real. Is that aerospike thing any serious ? and fluorine, for frack sake ? God help the unfortunate pilot...


GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
705
Reaction score
78
Per lack of a better thread...
The FDL-5 / L-301 / Model 176 family - gimme a break... I just red (I will link the papers later) that
- Lockheed build a halfscale FDL-5MA mockup in 1969
- the final vehicle was to have an aerospike (http://www.astronautix.com/a/amps-1.html)
- with LH2/ fluorine and ISP 468 seconds
- enough to haul itself into orbit with a pair of drop tanks (with a classic Titan III as a more reasonable alternative)
- and that L-301 inspired Lockheed Starclipper own V-tanks

The LF2 engine was part of a three-prong effort led by the Air Force Rocket Propulsion Laboratory in the mid-1960s. The other projects were a reusable storable-propellant upper stage and the XLR-129.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
Very interesting... XLR-129 was SSME ancestor and even early contender, plus ISINGLASS engine. So these two were related ? does this mean that ISINGLASS and FDL-5MA were related, too ? ISINGLASS also produced some hardware rather than paperware, since some kind of test article was build.

a reusable storable-propellant upper stage

Any more information ? considering the pedigree of the other two, this one might be interesting.


GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
705
Reaction score
78
Very interesting... XLR-129 was SSME ancestor and even early contender, plus ISINGLASS engine. So these two were related ? does this mean that ISINGLASS and FDL-5MA were related, too ? ISINGLASS also produced some hardware rather than paperware, since some kind of test article was build.
a reusable storable-propellant upper stage

Any more information ? considering the pedigree of the other two, this one might be interesting.

Lockheed won the Reusable Subsystems Design/Analysis study, covering three military space applications:
  • Project 1: Reusable upper stage
  • Project 2: Manned reusable launch vehicle, 25K lbm payload (ancestor of the Lockheed Star Clipper)
  • Project 3: FDL-influenced manned reusable spaceplane
The project 1 vehicle was dropped early on and its propulsion system was studied as an alternative (for obvious reasons) for the project 3 vehicle. The associated AFRPL propulsion systems and contractors were:
  • Project 1: N204/Hydrazine-50 -- Aerojet MIST
  • Project 2: LO2/LH2 -- Pratt & Whitney XLR-129-P-1
  • Project 3: LF2/LH2 -- Rocketdyne AMPS engine (one of many aerospike config studies by Rocketdyne in the 1960s)
Exec summary of the program (with the alternative propulsion options for vehicle 3) is here:

https://apps.dtic.mil/dtic/tr/fulltext/u2/506592.pdf


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
Same engine ? MIST is mentioned.


A US staged combustion storable props engine - that would be much like the Soviet / Russian Briz-M engine (whatever its name) or RD-270 no ?


GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
705
Reaction score
78
Same engine ? MIST is mentioned.


A US staged combustion storable props engine - that would be much like the Soviet / Russian Briz-M engine (whatever its name) or RD-270 no ?

Not sure -- both the USAF and NASA funded a lot of prototype engines of all types in the 1960s. There were at least four Rocketdyne aerospike programs in those days, for example, but presumably fundamental technology was shared among them.


antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
800
Reaction score
159
Hi,

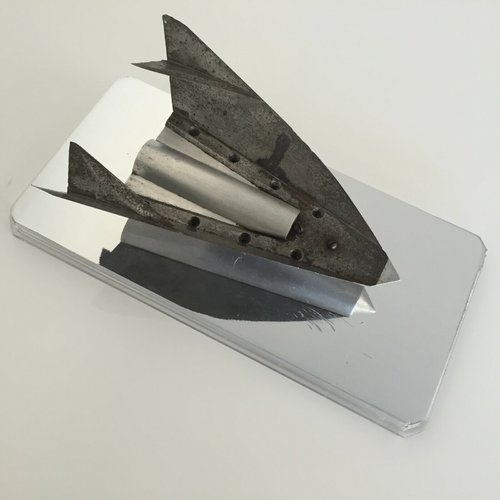

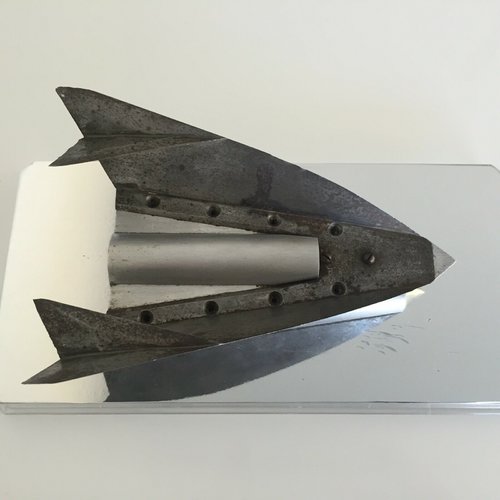

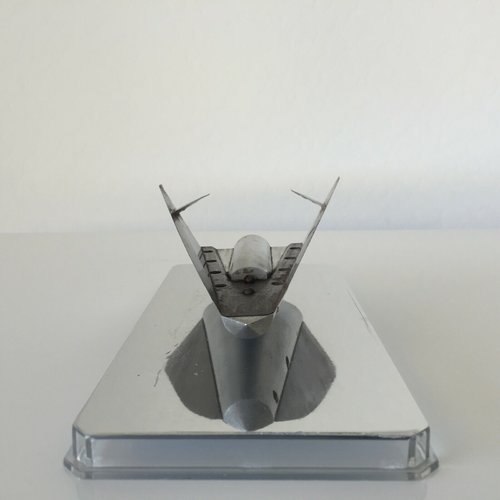

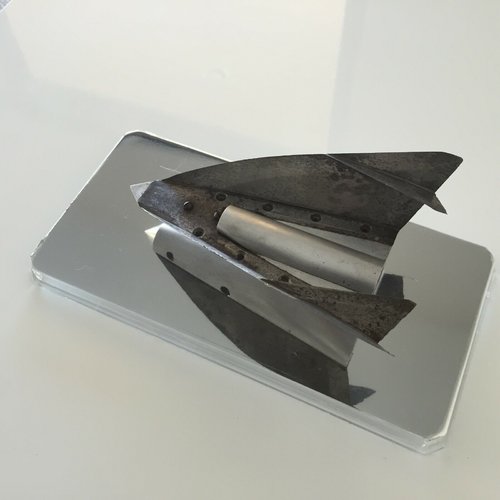

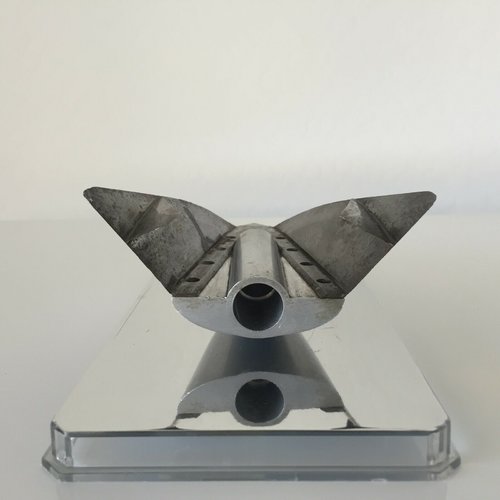

here is an unknown lifting body wind tunnel model likely from the late 1950s, found on the bay (item #352715830838).
Interesting shape.
Enjoy.

A.

Seller description goes as follow:
"RARE - METAL WIND TUNNEL MODEL - LIFTING BODY - PRELUDE TO THE SPACE SHUTTLE, Circa 1959-60's
Lifting Body Technology was crucial to the development of the Space Shuttle Transportation System.
This wind tunnel model is made with an aluminum base and still wings. Approximately 6.25 inches.
A very fine space collectors artifact that is nearly impossible to find. It comes from the private collection of a space historian,
To learn more about Lifting Bodies - See: https://airandspace.si.edu/exhibitions/space-race/online/sec500/sec541.htm"


Attachments

  • 352715830838-01.jpg
    169.8 KB · Views: 252
  • 352715830838-02.jpg
    150.7 KB · Views: 133
  • 352715830838-03.jpg
    169.2 KB · Views: 106
  • 352715830838-04.jpg
    152.5 KB · Views: 101
  • 352715830838-05.jpg
    195.6 KB · Views: 107
  • 352715830838-06.jpg
    184.2 KB · Views: 131

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,658
Reaction score
6,857
Awesome information on the Alpha Draco! The Model 122B was considered as a comparative vehicle in the ISINGLASS BGRV studies.

A case could be make, that ISINGLASS / RHEINBERRY was the true "missile with a man in it".


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
615
Reaction score
170
Hi,
here is an unknown lifting body wind tunnel model likely from the late 1950s, found on the bay (item #352715830838).
Interesting shape.
Enjoy.

A.

Seller description goes as follow:
"RARE - METAL WIND TUNNEL MODEL - LIFTING BODY - PRELUDE TO THE SPACE SHUTTLE, Circa 1959-60's
Lifting Body Technology was crucial to the development of the Space Shuttle Transportation System.
This wind tunnel model is made with an aluminum base and still wings. Approximately 6.25 inches.
A very fine space collectors artifact that is nearly impossible to find. It comes from the private collection of a space historian,
To learn more about Lifting Bodies - See: https://airandspace.si.edu/exhibitions/space-race/online/sec500/sec541.htm"
Looks like a NASA-AMES model tested around 1962.


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
1,002
Reaction score
509
Hi,
here is an unknown lifting body wind tunnel model likely from the late 1950s, found on the bay (item #352715830838).
Interesting shape.
Enjoy.

A.

Seller description goes as follow:
"RARE - METAL WIND TUNNEL MODEL - LIFTING BODY - PRELUDE TO THE SPACE SHUTTLE, Circa 1959-60's
Lifting Body Technology was crucial to the development of the Space Shuttle Transportation System.
This wind tunnel model is made with an aluminum base and still wings. Approximately 6.25 inches.
A very fine space collectors artifact that is nearly impossible to find. It comes from the private collection of a space historian,
To learn more about Lifting Bodies - See: https://airandspace.si.edu/exhibitions/space-race/online/sec500/sec541.htm"

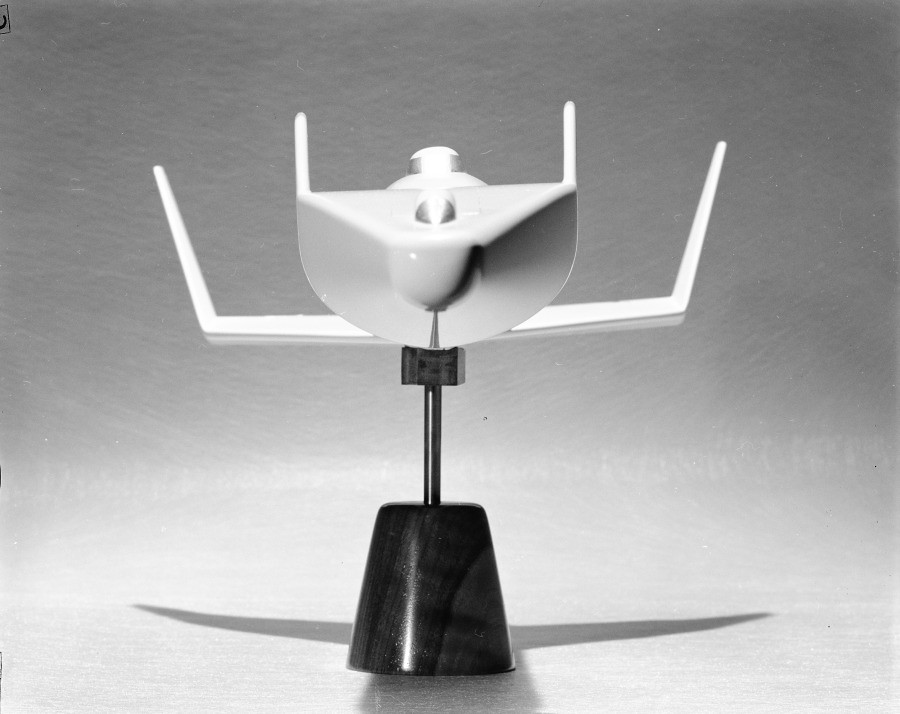

Holy-heck! It's the wind tunnel model for the "Boost-Glide Reentry Vehicle suitable for Operation as a Supersonic Aircraft” from Tech Memorandum X-656 dated 1963! It came in two flavors:
1) The first was a bit crowded 6 person RV which after the wings folded down and the fins deployed it would blow off the nose cap, (triangular bit on the front) to open an air intake to two turbojet engines for fly-back and cruise.

2) Version two was a four-turbojet single seat Mach 2 FIGHTER aircraft that could be delivered by sub-orbital trajectory anywhere in the world in under an hour! IIRC Scott suggested in might have been proposed/studied as a possible "secure-the-airspace" concept to clear the airspace for an incoming "Ithacus" troop transport ballistic rocket. (Neat I found a link to an original presentation :) )

It appears to be one of the models where the wings were not fully 'hinged' so that is only a single wing-position setting. The wings would normally fold over the 'top' of the vehicle and the forward area sealed with a cover that would be jettisoned once reentry was completed. The wing would then fold down to 'level' and the fins to upright.

I don't even have to look to know I can't afford this but it's neat that at least one model still exists.

Randy

Top
