We know that the US has been flying covertly obtained Russian (and possibly Chinese) military aircraft at locations like Groom Lake since the 1950s, but does anyone have any information about US aircraft recovered by the Russians?

I know the Russians obtained several intact examples of the F-86 in Korea and quite a lot of hardware during the Vietnam War that included F-4s and an F-111. There are also stories about countries like Iran selling F-14s to the Russians and Pakistan providing F-16s to the Chinese for attempts at reverse engineering. And I think there were attempts to re-construct the U-2 after bits of the plane that Gary Powers flew were recovered.


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,280
Reaction score
969
I remember only one foto with a cocooned F-4 and a cocooned Mirage (III ? V ?) on a russian military airport, but when and where and in what book/magazine ?


Lighterman

ACCESS: Restricted
Joined
Apr 12, 2007
Messages
1
Reaction score
0
I read somewhere that Beriev were assigned to build several copies of the Lockheed U-2, based on the parts recovered from the Powers aircraft. Presumably this was not too successful!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887
Personally I remember F-111 rescue capsule recovered from Vietnam at hardware hangar at our faculty.
AFAIR, some MAI students tried to find its crewmembers via pilots' name markings or a/c BuNo's, but not aware if it brought any success.
Of course, we should mention Lockheed D-21 Tagboard, its remains in a very good shape are still in TzAGI or TzIAM, don't remember exactly.
At least one Regulus missile was picked after landing on the water by soviet sub crew and extensively tested at wind tunnell with engine - last was destroyed at test incident after appropriate oils were not found to service it.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,660
Reaction score
538
I read somewhere that Beriev were assigned to build several copies of the Lockheed U-2, based on the parts recovered from the Powers aircraft. Presumably this was not too successful!

I have some info about it but it is in Russian (If any member is interested I can email it). The aircraft was designated C-13 in cyrillic letters (S-13 in latin alphabet?). In my info there is a 1:1 fuselage mock-up photo.


Stormbreaker

ACCESS: Restricted
Joined
Jan 10, 2007
Messages
32
Reaction score
1
It was rumored that the Iranians provided a complete F-14 to the Russians for evaluation and quite a lot of the technology found its way into later Soviet combat aircraft.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,365
Reaction score
1,608
Found the article, I was looking for, it was in Flugzeug Classic, June '02. Besides
the Tu-4, it covers the Kondratjew F-86 Seibr (a copy of the NA F-86, none of
them was finished), the Berijew S-13 (a U2 copy, no complete aircraft was built),
teh Tupol Woron (a D-21 copy) and several missiles. No russian clone of an american
aircraft, besides the TU-4, is mentioned to have ever flown .


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,706
Reaction score
8,048
Though the Kondratjev F-86 clone was abandoned, the radar was cloned and adopted, while the team working on it formed the nucleus of Sukhoi's reborn OKB, and F-86 influences might be seen in the Su-7/Su-9 series.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,097
Reaction score
644
For some info on the Beriev S-13, and a photo of the mock-up, page 13 of "Soviet X-Planes", Gordon and Gunston, Midland Counties Publications, ISBN 1 85780 099 0


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
135
Website
theavgeeks.com
Isn't there also an ex-VNAF F-5E Tiger that ended up being passed by the North Vietnamese to the Russians? I believe it's in a museum in Poland now?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887
I remember several pages article on F-5 tests in USSR in Samolyety Mira (Aircrafts Of The World). Will check up in the evening.


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,294
Reaction score
798
As per Ken Duffey, at least one F-5(A?) forward fuselage is still stored at MAI.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,224
Reaction score
102
Deltafan said:
I remember only one foto with a cocooned F-4 and a cocooned Mirage (III ? V ?) on a russian military airport, but when and where and in what book/magazine ?

International Air Power Review, sometime around issue 6-8, and it was in the feature about Zhukovskiy.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,660
Reaction score
538
International Air Power Review. Volume 7. Pg 88. Ramenskoye Russia's test centre. Piotr Butowski.

The photo was recorded 11 August 1971

Both aircraft (or replicas, because they're heavily bagged and it can't be seen if they're real or not) lie behind a Myasishchev 3MD. Both aircraft are armed with AIM-9. The F-4 corresponds to a "short nose" model while the Mirage seems to be a V model.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,706
Reaction score
8,048
AFAIK, the Russians were deeply impressed by the F-5's manouverabilty versus the MiG-21.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
212
Website
www.hitechweb.genezis.eu
There are a lot of F-5 aircrafts all around the middle Europe (that came from Vietnam). Yes, one is undoubtedly at Gbely museum in Czech republic, because I saw and touch it many times ;)

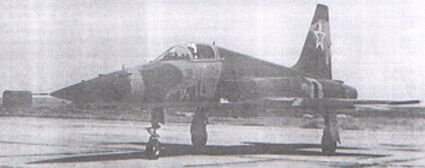

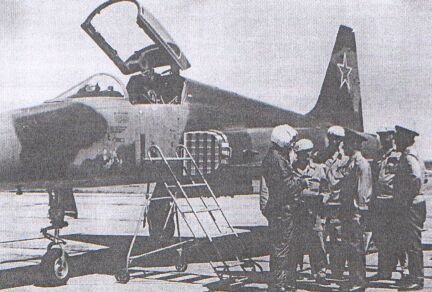

I have also detailed article about F-5 and A-37B testing in Soviet union, but unfortunately (for you) its all in Slovak language.

And I can put the "rumour" about at least two F-14 from Iran to more believable information. They were delivered at the early beginning of the 80s after Islamic revolution to the ZSSR. As a counter-value, Iranians received some soviet weapons and spare parts for the weapons originated in the USA (once again from Vietnam). Russians now admit just information about testing of AN/AWG-9 radar, but probably some parts from F-14 are still on Astrachan polygon.


Attachments

  • USSR F-5a.jpg
    USSR F-5a.jpg
    30.2 KB · Views: 370
  • USSR F-5b.jpg
    USSR F-5b.jpg
    11.6 KB · Views: 361

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
212
Website
www.hitechweb.genezis.eu

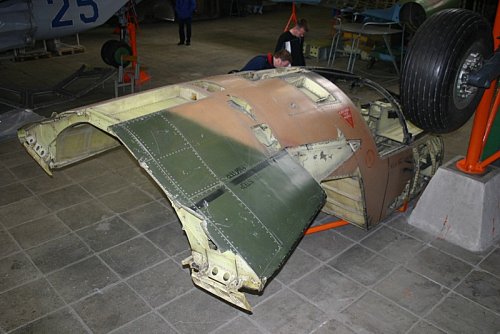

Ken Duffey's photos that were published at Key Publishing forum and Berijev S-13 drawing.


Attachments

  • mai_07.jpg
    132.2 KB · Views: 387
  • mai_08.jpg
    119.5 KB · Views: 365

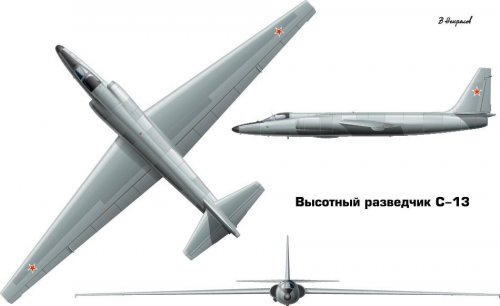

  • Berijev S-13.jpg
    Berijev S-13.jpg
    35.5 KB · Views: 429

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
135
Website
theavgeeks.com
Matej said:
And I can put the "rumour" about at least two F-14 from Iran to more believable information. They were delivered at the early beginning of the 80s after Islamic revolution to the ZSSR. As a counter-value, Iranians received some soviet weapons and spare parts for the weapons originated in the USA (once again from Vietnam). Russians now admit just information about testing of AN/AWG-9 radar, but probably some parts from F-14 are still on Astrachan polygon.

Interesting. A friend of mine who was a Air Mobility Command flight engineer (mostly the C-130) recounted a story to me that several years ago he was a flight crew that flew into Zhukovsky and noticed an F-14 in one corner of the field partially covered by a tarp and in what appeared to him to be a derelict condition. Most of what I understand about an F-14 in Russia via Iran always seemed to be dismissed by most folks as conjecture/urban legend, but the friend who told me this story is well-versed in aircraft types and wouldn't mistake anything else for the Tomcat.

I'm sure one of these days we'll know for certain, but until then, all we have are anecdotal reports.......


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
998
Reaction score
586
No russian clone of an american aircraft, besides the TU-4, is mentioned to have ever flown .

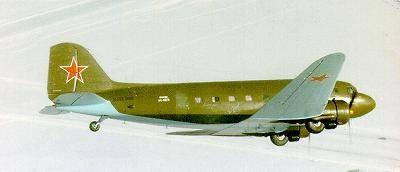

I would definitely count the Lisunov Li-2 as a clone that flew. With a license, indeed.

And we're not going to open anything about the Tu-144. The original wasn't US anyway ;D ;D ;D
(Really, let's not open anything. Just joking)


Attachments

  • Lisunov Li-2 'Cab' in flight.jpg
    Lisunov Li-2 'Cab' in flight.jpg
    8.7 KB · Views: 96

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,706
Reaction score
8,048
I've not seen any evidence to date of an F-14/AIM-54 transfer. Gennadiy Sokolovsky, Vympel, freely admitted copying Sidewinder (K-13) and Sparrow (K-25) but denied ever seeing an AIM-54.

Assuming your friend actually saw an F-14, its possible it was a mockup.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
135
Website
theavgeeks.com
That's just the thing. Everything so far points to no such transfer taking place and I'm more inclined to believe that based on everything out there so far.

Out of curiousity (and not to be argumentative), what purpose might be served by building an F-14 mockup?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,365
Reaction score
1,608
"Quote: No russian clone of an american aircraft, besides the TU-4, is mentioned to have ever flown .

I would definitely count the Lisunov Li-2 as a clone that flew. With a license, indeed."

Oops, you're right of course in a certain way.... BUT, as you already mentioned,
it was a license built aircraft, and then it was built to original plans, not reverse
engineered or at least externally copied, and that's what a clone is to me ! ;)
The Martin B-57, for example isn't a clone of the EE Canberra ....


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,445
Reaction score
327
Sentinel Chicken said:
Out of curiousity (and not to be argumentative), what purpose might be served by building an F-14 mockup?

RCS approximation, getting a better idea of the return it would show, looking for blind spots/weaknesses that could be exploited - basically, several different forms of threat analysis. I can't prove it, but I suspect the US does the same, if only analytically and with electronic models.


Arthur

ACCESS: Restricted
Joined
May 3, 2007
Messages
7
Reaction score
3
Sentinel Chicken said:
Interesting. A friend of mine who was a Air Mobility Command flight engineer (mostly the C-130) recounted a story to me that several years ago he was a flight crew that flew into Zhukovsky and noticed an F-14 in one corner of the field partially covered by a tarp and in what appeared to him to be a derelict condition. Most of what I understand about an F-14 in Russia via Iran always seemed to be dismissed by most folks as conjecture/urban legend, but the friend who told me this story is well-versed in aircraft types and wouldn't mistake anything else for the Tomcat.

I'm sure one of these days we'll know for certain, but until then, all we have are anecdotal reports.......
When would that have been? Right from the start of the airshows at Zhukovskii, the base has been extensively 'investigated' by aviation enthusiasts, and by extensively i mean just that. Apart from all the snooping around on the ground itself, people have arranged for 'recon flights' by balloon and Wilga to get an overview of the whole complex just as well.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887
http://www.youtube.com/watch?v=GGmBdqxrwbw


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887
Thanks for correction


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,477
Reaction score
2,692
Fascinating information for me

Had the K.G.B a "Salvage Program" for U.S. Aircraft ?

similar to those U.S. Programs:
1960 USAF "Blue Fly" & "Moon Dust" (lockate and Salvage Soviet Air&space crafts)
1967 U.S. Navy "Have Doughnut" (F-4 against Mig-21 on Groom Lake or Tonopah Test Range)

so far i know Israel played interesting role get a Mig-21 for U.S.
during 1967 War the Mosad convinced a Jordanian Mig-21 pilot on defected to the West
after Israel was finish with Analysis, the Plane went to U.S.

had the K.G.B similar successes convinced a USAF Pilot to defected?

A

avatar

Guest

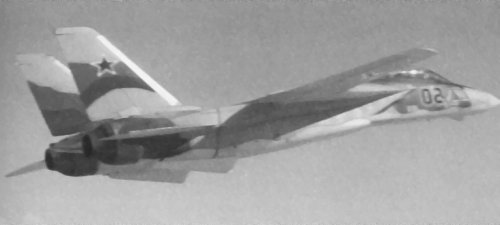

what about this image from carlo kopp's site?

http://www.ausairpower.net/000-F-14A-Iran-Soviet-1.jpg


Attachments

  • 000-F-14A-Iran-Soviet-1.jpg
    104.7 KB · Views: 315

Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,044
Reaction score
1,329
It's a psed FAKE ... I think at the Key-Forum, at ACIG and maybe even here this has been discussed about 1000-times.

Deino


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
556
Reaction score
216
Website
www.avicopress.ru
Hi all!
Two Phantoms have taken in Vietnam and delivered to MDB.
Also one F-5, and Mirage F-1 used for research work.
Detailed info in "Our wings" magazine published by Avico Press.


Attachments

  • MDB in 1968.jpg
    MDB in 1968.jpg
    97.2 KB · Views: 415

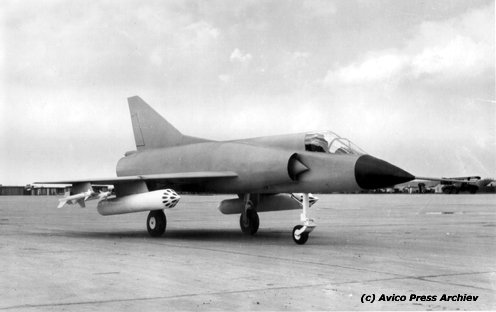

  • Mirage F-1.jpg
    Mirage F-1.jpg
    82.1 KB · Views: 402

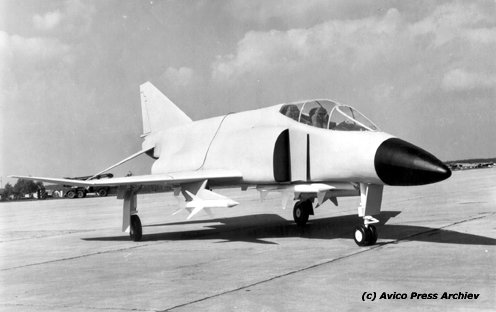

  • Phantom FII.jpg
    Phantom FII.jpg
    89.4 KB · Views: 417
  • Cover.jpg
    190.2 KB · Views: 321

Jax-Jason

ACCESS: Restricted
Joined
Jan 26, 2008
Messages
8
Reaction score
2
avatar said:
what about this image from carlo kopp's site?

http://www.ausairpower.net/000-F-14A-Iran-Soviet-1.jpg

Fake, just like everything else on Kopp's site.

attachment.php


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,549
Reaction score
320
ucon said:
Hi all!
Two Phantoms have taken in Vietnam and delivered to MDB.
Also one F-5, and Mirage F-1 used for research work.
Detailed info in "Our wings" magazine published by Avico Press.

The Phantom and Mirage look more like decoy dummies than real aircraft. The canopy framing is incredibly thin. The Soviet Union's biggest source of US aircraft was the fall of South Vietnam.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
615
Reaction score
166
The "Mirage" is a dummy of a Mirage IIIE version, but the nose shape and canopy size are wrong.


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
3,044
Reaction score
1,329
Retrofit said:
The "Mirage" is a dummy of a Mirage IIIE version, but the nose shape and canopy size are wrong.

... and the Phatom II too ?!!

Deino ???


TAKHISS

ACCESS: Confidential
Joined
Mar 4, 2009
Messages
56
Reaction score
5

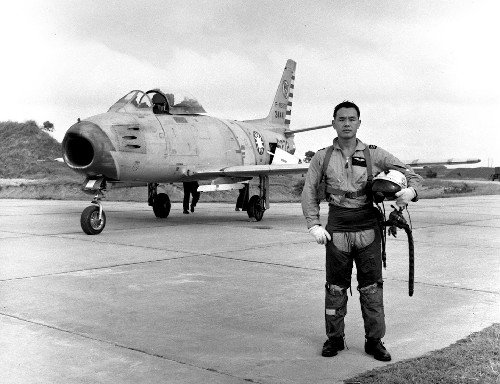

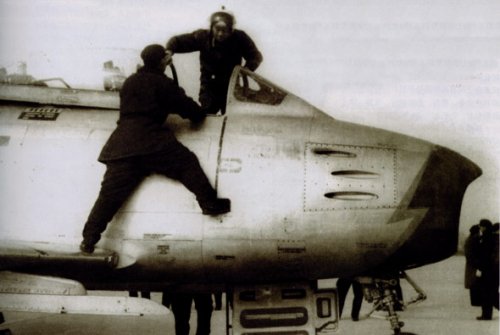

June 1, 1963.A ROCAF’s F-86 defected to the china.(Pilot is Flt Lt Ting-ze Xu )
PLAAF's pilot Wen-yong Ge is testing this aircraft.


Attachments

  • xinsrc_5520602020916078137865.jpg
    56.6 KB · Views: 100
  • 20090411_2d60519a48680e9de73c8qbvUbiRMnX4.jpg
    45.8 KB · Views: 93
