Unbuilt Light aircraft variants

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

To get a new projects it's not easy,but there was many projects to
a light aircraft didn't build.

The Zlin Z-120 was a project of six-seat with retractable undercarriage,
a stretch version of Z-20 twin engined low wing light monoplane.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

The Frati F-10 was low wing light jet trainer project in general
layout of F-5 but with side-by-side two seat and powered by
one Turbomeca Marbore 2 and had estimated speed of 298 mph.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

The SIPA S.262 Anjou was a project of six-seat stretch version
of SIPA S.261 Anjou light twin aircraft which itself developed from
Boisavia B.260 Anjou.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

The Zlin Z-122 was deveoped from Z-22 but powered by
one 105 hp Toma engie and Z-33 was side-by-side two seat
trainer wich was Junak with a cut-down rear fuselage and
a bubble canopy,projects only.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

The Fairchild FA-227 Metro25 was a project of Metro III
with belly baggage compartment,25 seats and TPE331-12
turboprops.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

The Zlin Z-426 was agricultural version of Z-326 but not
built and the Frati F-15D was a project developed from
F-15B with 250 hp Franklin engine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

The Learjet Model-55C was a project developed from
Model-55B with delta fins and redesigned engine pylons.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

Of course we know Aerospatiale SN-602 Corvette which was
general similar to SN-601 but powered by two 3,755 1b Snecma/
Turbomeca larzac 03 turbofans,but there was anther little
known project versions of Corvette;

the Corvette 200,which had a lengthened fuselage to accommodate
18-seat and Corvette 300,which was powered three engined.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,254
Reaction score
1,011

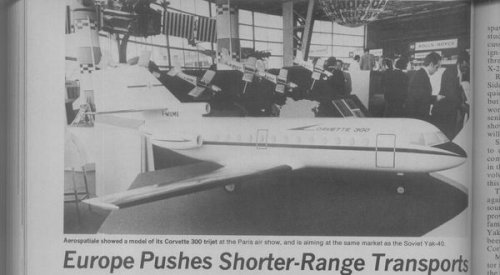

From Aviation Week 1973 14-26, the Corvette 300 :


Attachments

  • AS-Corvette300.JPG
    30.3 KB · Views: 637

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,083
Reaction score
975
Damn hell the light aircraft was this.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,254
Reaction score
1,011
Ok, Flateric is quite right, I think !
In the US and canadian definition, a light aircraft has a TOW
of not more than 12.500 lbs (5.670 kg), definitions in other
countries are probably similar, strictly spoken, neither the Corvette,
nor any of the Learjets fall in this category .

But judged against other airliners, they still are "light aircraft" ! ;)

And now back to single engined aircraft, as the majority of light
aircraft (one to six seats ?) have just one engine.
Maybe an interesting question : Which number of engines was the highest
for light aircraft ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Thank you my dear Jemiba,

And for the Corvette the USA purchased about 90 %
from its production.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

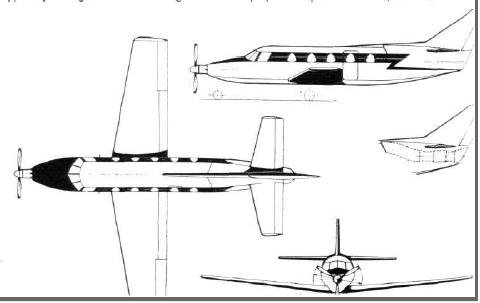

the Moynet-2000 was designed to carry five passengers and two
pilots,that project was powered by one Turbomeca Astazou X
turboprop in the nose and a P&W JT12 turbojets in the tail.
The Moynet 700 was a version with two 290 hp Lycoming and
large fusealge to accommodate 6/7 people.

http://www.flightglobal.com/PDFArchive/View/1963/1963%20-%201049.html?search=moynet%202000
http://www.flightglobal.com/PDFArchive/View/1963/1963%20-%200939.html?search=moynet%202000


Attachments

  • Moynet 2000.JPG
    Moynet 2000.JPG
    16.5 KB · Views: 545

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,254
Reaction score
1,011

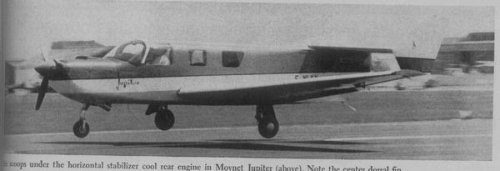

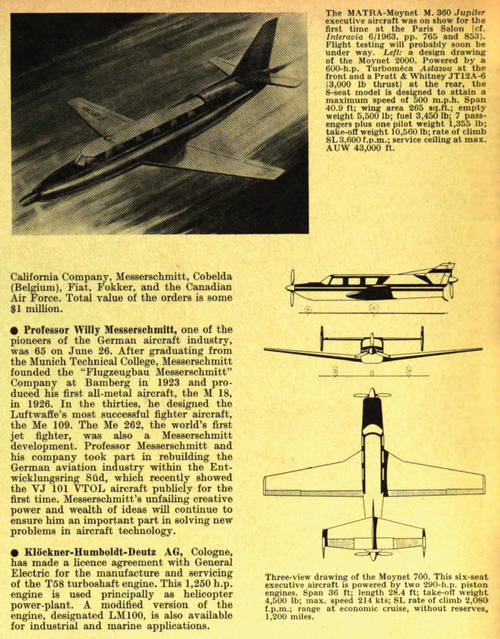

In fact a development of the push-pull twin engined Matra Moynet 360 Jupiter.
(from Aviation Week 9/1965)


Attachments

  • Moynet-Jupiter-1.jpg
    18.9 KB · Views: 534

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Thank you my dear Jemiba,

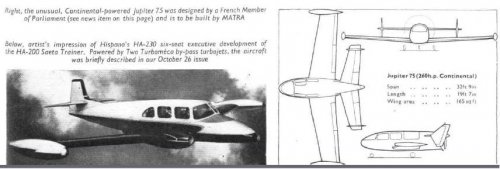

the MATRA moynet original design and the Hispano HA-230.

http://www.flightglobal.com/PDFArchive/View/1961/1961%20-%201771.html


Attachments

  • untitled.JPG
    40.7 KB · Views: 607

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

Mooney M-22 :experimental twin engined version of M-20A with
two 150 hp Lycoming O-320 (later 180 hp O-360)
engines.(not related to M-22 single engine aircraft).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

Volpar (Beechcraft) Mini Tanker : was a version,developed
from Turboliner,equipped as a tanker for in-flight refuelling,
terminated at early of 1970s.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
14
Does 'unbuilt' in the subject mean never built or only a prototype? There was a prototype of the twin engined Mooney.



hesham said:
Hi,

Mooney M-22 :experimental twin engined version of M-20A with
two 150 hp Lycoming O-320 (later 180 hp O-360)
engines.(not related to M-22 single engine aircraft).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
You are right Frank,

the Ted Smith Aerostar Model-400 was a version powered
two 200 hp Lycoming IO-360 engines,the Model-500 was
a version with 250 hp fuel injected engines,they remained
only a projects.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

the Waco TS-250-3F Meteor 2 was developed from the
TS-250-3 Meteor with Franklin 6AS-350A engine,but
it didn't happen,and it remained only a project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
Hi,

the Auster J/6 was a three-seat version based on the J/1 with
145 hp Gipsy Major X,prototype was never completed.

Also the Auster J/7 was two-seat similar to J/2 with 100 hp
Cirrus Minor engine,never built.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724

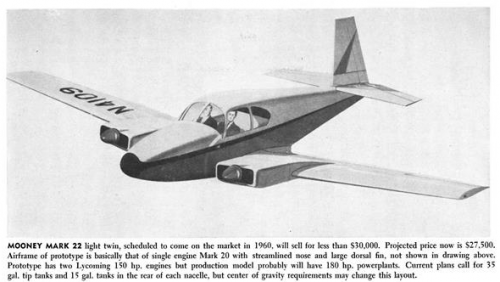

hesham said:
Hi,

Mooney M-22 :experimental twin engined version of M-20A with
two 150 hp Lycoming O-320 (later 180 hp O-360)
engines.(not related to M-22 single engine aircraft).

Hi,

http://archive.aviationweek.com/image/spread/19571230/12/2


Attachments

  • 1.png
    157.8 KB · Views: 451

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
624
Reaction score
76

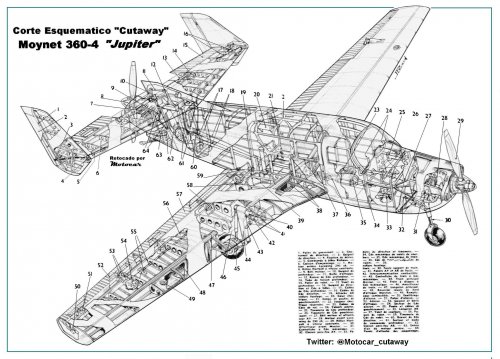

Cutaway Moynet /Matra 360-4 Jupiter twin engine


Attachments

  • 24849897792_a38407e76b_k.jpg
    622.8 KB · Views: 357

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724
hesham said:

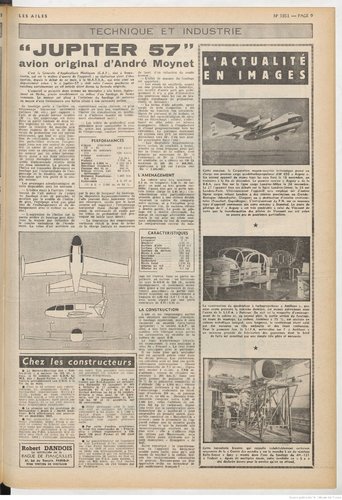

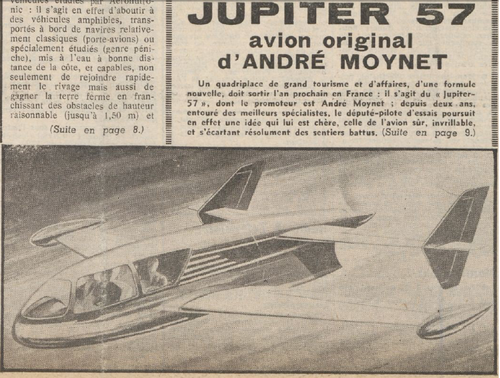

By the Way,


the MATRA Moynet Project in Flightglobal was called Type-57.

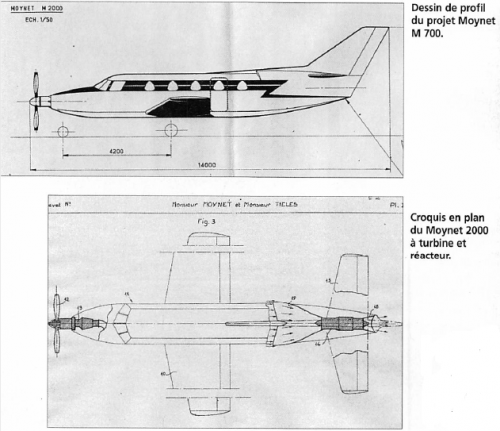

From Le Fana 392,

the Matra Type-57.


Attachments

  • c.png
    822 KB · Views: 235

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724

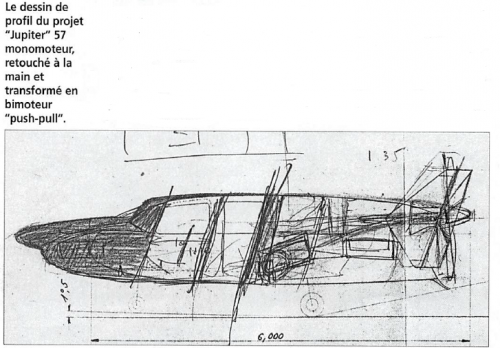

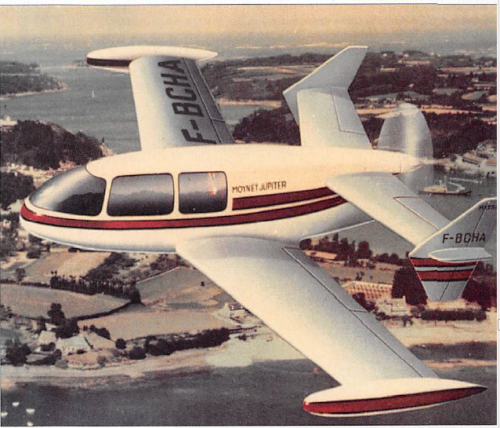

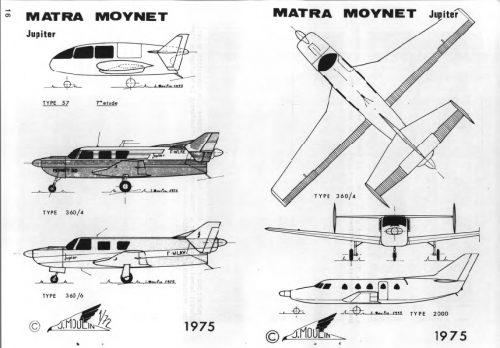

From Le Fana 393,

I don't know if Matra Type-700 also called Type-2000 or not ?,and a sketch for Type-57.


Attachments

  • a.png
    264.3 KB · Views: 204
  • b.png
    343.5 KB · Views: 80

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
337
Reaction score
546

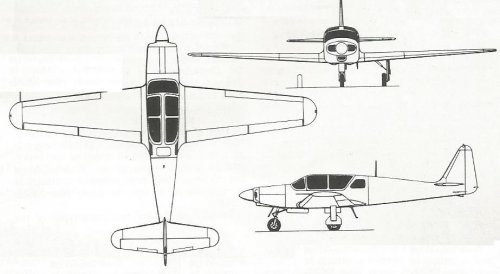

Although mention has been made of the type elsewhere in the forum, I would like to add the Taifun Flugzeugbau Me 108F to this category. Although it was a development of the original Bf 108 Taifun communications aircraft, it still featured further improvements. Please find attached a GA and the text from Air Enthusiast International June 1974 issue.


Attachments

  • Taifun me108f text.pdf
    218.1 KB · Views: 12
  • Taifun me108f.jpg
    Taifun me108f.jpg
    77.9 KB · Views: 87

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,026
Reaction score
3,724

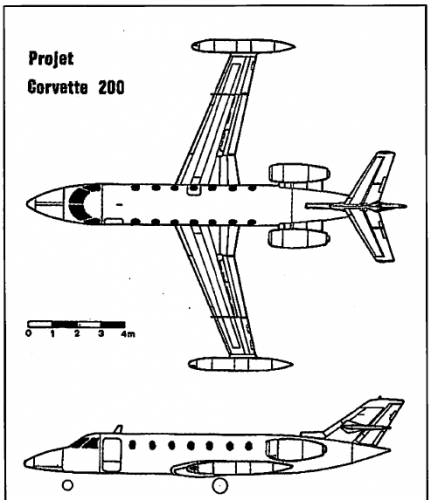

From Le Fana 294,the Corvette 200.


Attachments

  • 1.png
    32.3 KB · Views: 80

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
282
Reaction score
87
It's worthy of mention that Moynet Jupiter M360/6 F-BLKY is now flying again out of Angers-Marcé following its restoration there by Espace Air Passion.
