My dears,

you know Folland company,and it was designed many fighters up to
1945,after that it was going to design a civil aircraft,Fo.122 was
single engined low wing tricycle undercarriage monoplane,it had a
capacity of four seat plus pilot,followed by Fo.124 two/three seat
trainer/aerobatic low wing aircraft,powered by one 100 hp Lycoming
O-235-C engine and estimated speed 205 km/h,Fo.127 all metal three
engined high wing light transport,in strange mounted to the engines
(one tractor and two pusher mounted immediately under the rear of
the wing),each 142 hp DH Gipsy Major 10 engines and estimated speed
262 km/h,the last Fo.130 six-eight seat low wing light aircraft powered by
three 155 hp Blackburn Cirrus Major III and estimated speed 286 km/h.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
.. but the most interesting aircraft mentioned in AE 9/10 2006, is
the Fo.122 of which "no three-view drawing is known to survive" .
Ideal prey for a determined hunt, or food for the "what-if" fans ... ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,287
Hi,

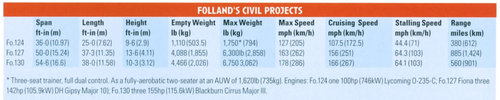

and from Air Enthusiast Issue 125.


Attachments

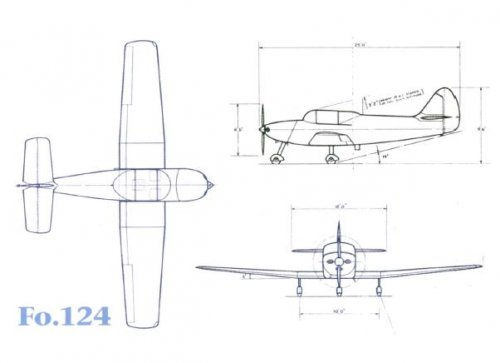

  • Fo.124.JPG
    18.9 KB · Views: 222

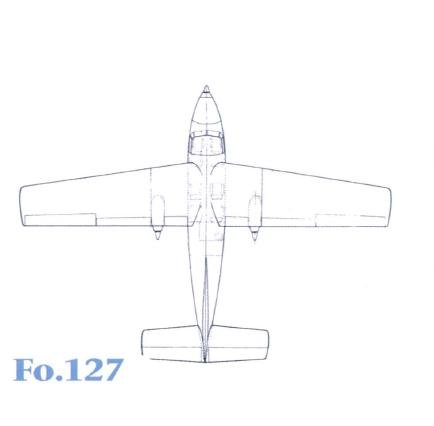

  • Fo.127.JPG
    16.2 KB · Views: 220

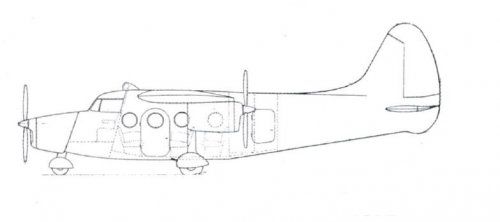

  • Fo.127   2.JPG
    Fo.127 2.JPG
    9.5 KB · Views: 214

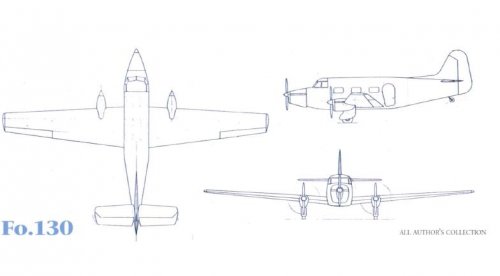

  • Fo.130.JPG
    18.8 KB · Views: 218

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
I love these projects! I'll have to get copies of those latter numbers of Air Enthusiast, which I do not have.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,550
Reaction score
792
Little published. The Fo129 appears to have been a re-engined (with Gypsy Queen 30 series) version of the Fo127
