Partenavia PD.90 Tapete Truck :twin boom high wing light utility
transport aircraft,powered by two P&W Canada
PT6 turboprops.
SIAI S-101 :single engined six seat cantilever low wing monoplane
with retractable landing gear and powered by a 235hp
Walter Bora radial engine.
CVV P.110 :three/four seat cabin monoplane.
CVV PM.280 Tartuca :single seat low wing single engined monoplane.
Agusta CP-110 :four seat monoplane powered by a 145 hp Alfa
110ter engine.
Agusta A-111 :single engined two seat version of CP-110.
Marineavia QR.14 Levriero :twin engined four seat touring aircraft,
powered by De Havilland Gipsy Major 10 engine.


Andrewjs2007

ACCESS: Restricted
Joined
Jun 24, 2007
Messages
40
Reaction score
3
Dear All

I am very impressed with people's knowledge and sources referred to on this list. For someone who likes obscure and 'paper' planes this is heaven!

Here is a short list of Italian aircraft projects I'd love to find plans/sketches for, can anyone help?

1) Caproni-Vizzola F.7
2) Caproni Ca 350
3) Caproni Ca 365/370
4) Fiat G.52 (only detailed part-plan I have seen is in Ali DiItalia No.6 "Fiat G.50" by Piero Vergnano)
5) Breda Zappatta BZ.306 bomber

Also does anyone have any technical specs on the Piaggio P.127 bomber andf P.132 fighter (as shown in Aerofan No.65)?

Cheers

Andrew


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Ahem....
F.7, and Capronis, you'll have to wait (publishing project on the way...). G.52, maybe I have something. Zappata BZ.306: forget about it. Everything, save the specs, were destroyed in post-bankrupcy chaos in Breda Aviazione. Nothing in Zappata's estate, too. P.127 and P.132: nothing. The drawings themselves comes from Ing. Casiraghi estate. Piaggio archives have been destroyed (save the windtunnel models).


Andrewjs2007

ACCESS: Restricted
Joined
Jun 24, 2007
Messages
40
Reaction score
3
Skybolt

Thanks for that. Book sounds intriguing - just Italian aircraft or broader than that?

Try and get Flitzer to do some artwork for it - his colour drawings are fabulous!


Cheers

Andrew


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
527
Reaction score
143
Skybolt, that does sound intriguing - care to share?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Book will be on the Caproni Bergamasca's last projects (up to Ca.381 and a score of unnumbered ones). I'm helping in editing and adding images to an unpublished manuscript by the great Rosario Abate. BTW, in next issue of Aerofan (n. 100) you'll find an article on the last Caproni-Taliedo projects (up to and including the Ca.195). And next Ali d'Italia will be on the Ca.323 series.


Andrewjs2007

ACCESS: Restricted
Joined
Jun 24, 2007
Messages
40
Reaction score
3
Well sounds like some good stuff coming up!

Will you let us know as/when these various books become available to buy?

Cheers

Andrew


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Sure: Ali d'Italia in in print now, so give a month. Aerofan 100 is closed now, will go to press next week or so. The Caproni one, no earlier than december.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,463
Reaction score
194
Thanks for the info,Skybolt

Would you please keep updated about the Caproni Book publication date? I'd like to order a copy.


Andrewjs2007

ACCESS: Restricted
Joined
Jun 24, 2007
Messages
40
Reaction score
3
Hi Skybolt

Did you have chance to look to see if you had any sketches/drawings on the Fiat G.52 fighter project?


Many thanks


Andrew


Andrewjs2007

ACCESS: Restricted
Joined
Jun 24, 2007
Messages
40
Reaction score
3
Skybolt

I've been looking out for the Ali d'Italia book you mentioned on the Ca.323 series but no-one is showing it for sale yet. Do you know if it has been delayed?


Cheers


Andrew


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Er, my mistake, Ca.311-314.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
Reggiane 2001 bis

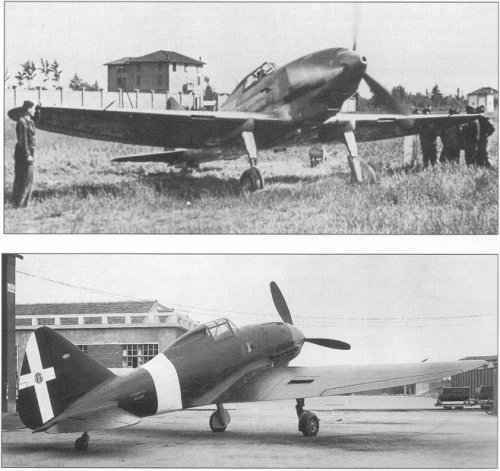

One prototype built (MM538) using parts from the initial Re 2001 prototype (MM409). Changes are removal of wing guns (2x7.7mm Breda-Safat) and the relocation of the radiators to the leading edges of the wings. Tests were conducted from the summer of 1941 to 1942 where a maximum speed of 600km/h at 6000m was attained, as opposed to 540km/h for the conventional Re 2001. The wing radiators would later be adopted for the Re 2006.


Attachments

  • Re-2001.jpg
    118.2 KB · Views: 700

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

as I promised,the site which speak about the CMASA BS.12
four engined seaplane and CMASA RS14 competitors;Piaggio
P.110,IMAM Ro.55,CANT Z-510,Piaggio P.32 Idro,Macchi MC.203,
Caproni Ca.124 and Caproni-Reggiane Ca.410.

http://babelfish.yahoo.com/translate_url?tt=url&trurl=http%3A%2F%2Fwww.ing.unipi.it%2F%7Edimnp%2Fstaff%2Fmanfredi%2F100_Anni_compact.htm&lp=it_en&.intl=us


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

I spoke before about the IMAM Ro.47 and it was a fighter,a friend
told me that it was developed from Ro.37,but he didn't give me any
source for that,can anybody confirm this ? for my source;
http://pzkfw.tripod.com/technika/italia/samoloty/samoloty.htm


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

from Aerofan magazine,the Breda Ba.204 was single seat low wing
fighter project and Fiat B.R.26 two seat light bomber.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

the Caproni Ca.121 was monoplane bomber and CANSA had a project
for glider dive bomber,can anybody confirm those informations ?.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
887
Cansa glider dive bomber project

According to AeroKnow, there's a 3-view in Aerofan 3/83

Caproni Ca-121 3-view and short text in Aerofan 4/80

http://www.aeroknow.com/ADI/ADImisc/ITALY1-ADI.htm


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

also in the same site http://www.aeroknow.com/ADI/ADImisc/ITALY1-ADI.htm,
the Caproni Ca.92 biplane and Ca.186 (lw tadr ltpln) and I know the first
brief word means low wing and the third means lightplane,what is the second word
meaning ?.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
887
Hi Hesham,

On AeroKnow, "tadr" just refers to a tail-dragger configuration.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Dear Apophenia,

what was that mean ?.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
887
Hesham,

Do you mean what does "tail-dragger configuration" mean?

If so, "tail-dragger" is just a slang term for any aircraft with a tail wheel (as opposed to a tricycle undercarriage arrangement, for example).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

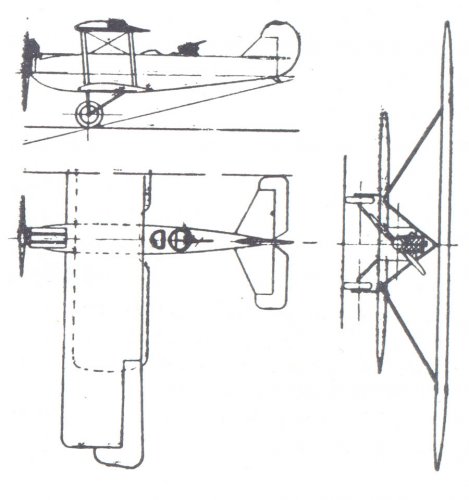

the Caproni Ca.92.


Attachments

  • CA.92.jpg
    111.4 KB · Views: 500

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

I spoke before about the CANT Z-1003.
http://babelfish.yahoo.com/translate_url?tt=url&trurl=http%3A%2F%2Fit.wikipedia.org%2Fwiki%2FCANT_Z.506&lp=it_en&.intl=us&fr=yfp-t-501


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
243
Reaction score
30
Website
www.res-aeronautica.com
HI,

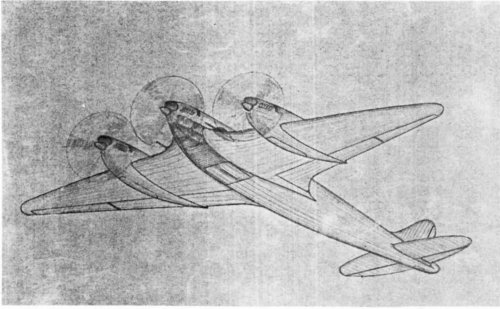

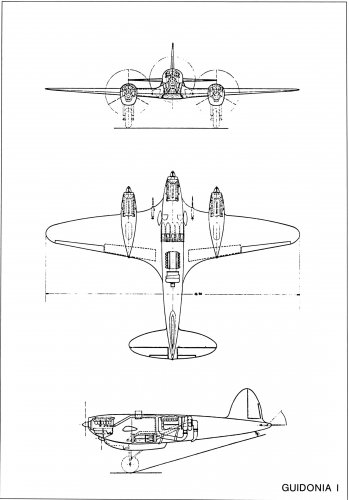

I add here the drawings of the Guidonia I, a three-engined bomber project remained on paper designed by Santangelo, of which only the wood models were build. The project was presented in 1938, for the competition for a new bomber for the Regia Aeronautica. The project was not accepted, and they did nothing with that. The pictures are taken from "Aerofan" magazine, in detail the number 4/1983.


Attachments

  • Guidonia draw.jpg
    Guidonia draw.jpg
    320.4 KB · Views: 612
  • Guidonia models.jpg
    Guidonia models.jpg
    162.5 KB · Views: 497
  • Guidonia paint.jpg
    Guidonia paint.jpg
    161.8 KB · Views: 453

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
lucamax said:
HI,

I add here the drawings of the Guidonia I, a three-engined bomber project remained on paper designed by Santangelo, of which only the wood models were build. The project was presented in 1938, for the competition for a new bomber for the Regia Aeronautica. The project was not accepted, and they did nothing with that. The pictures are taken from "Aerofan" magazine, in detail the number 4/1983.

you meant that competition;

http://www.secretprojects.co.uk/forum/index.php/topic,236.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

I know only the Piaggio P.25 was a biplane,can anyone tell me
a more info about it ?.


hole in the ground

ACCESS: Secret
Joined
Aug 6, 2008
Messages
237
Reaction score
3
lucamax said:
HI,

I add here the drawings of the Guidonia I, a three-engined bomber project remained on paper designed by Santangelo,

Is that a fourth engine in the rear fuselage? It looks like it is powering some sort of turbocharger. Seems odd to have the weight of a whole engine to power a single turbo unit for three other engines...

Maybe I am missing something?


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233
Is that a fourth engine in the rear fuselage? It looks like it is powering some sort of turbocharger. Seems odd to have the weight of a whole engine to power a single turbo unit for three other engines...

It appears to be a version of the german 'HZ-Anlage' device, as fitted to the Henschel Hs 130E,
and Dornier 217P aircraft.
A system operating on the same principle was also used by some Soviet Pe-8/TB-7 aircrasft.
More information to follow shortly.....


cheers,
Robin.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233
For more information on the HZ-Anlage system see here :-

http://www.secretprojects.co.uk/forum/index.php/topic,10886.msg102433.html#msg102433

Seems odd to have the weight of a whole engine to power a single turbo unit for three other engines..

The increased power at altitude more than compensates for the extra weight...


cheers,
Robin.


Panzerknacker

ACCESS: Restricted
Joined
Feb 22, 2010
Messages
35
Reaction score
10

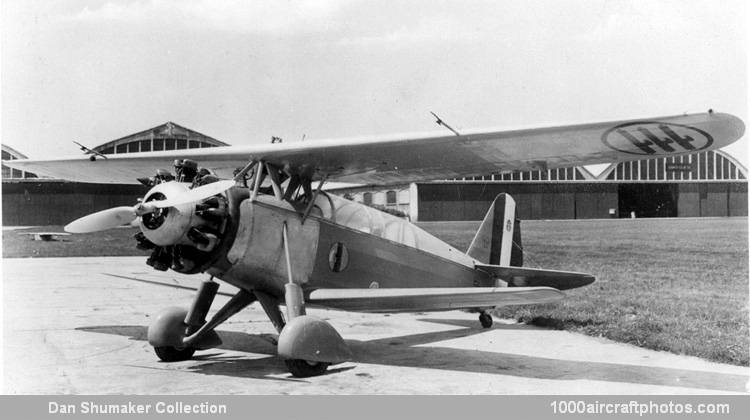

Nice topic lads, here a weirdo the "free wing" prototype Jona J6



Info

http://www.1000aircraftphotos.com/Contributions/Shumaker/9517.htm

A video in flight

http://www.archivioluce.com/archivio/jsp/schede/videoPlayer.jsp?tipologia=&id=&physDoc=12764&db=cinematograficoCINEGIORNALI&findIt=false&section=/


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
160
more info on the Jona J.6 can be found in the Flight archives

http://www.flightglobal.com/pdfarchive/view/1935/1935%20-2-%200412.html?tracked=1


Panzerknacker

ACCESS: Restricted
Joined
Feb 22, 2010
Messages
35
Reaction score
10
Beautiful, interesting concept that movable wing, the aircraft seems a bit unestable though. Thanks for the link.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

Caproni Ca.225 was two seat twin engined low-wing
medium bomber,powered by two 1250 hp Isotta-Fraschini
Zeta R.C.42 engines.


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
343
Reaction score
142
More information on the Jona or Magni-Jona J.6 can be found at:

http://www.airwar.ru/enc/other2/j6.html
http://www.giemmesesto.org/Documentazione/Aerei/MagniJonaJ6J6s.html


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
343
Reaction score
142
The one source that I have to hand, Jonathan Thompson's Italian Civil and Military Aircraft 1930-1945 (Aero, 1963), says that the articulated wing on the Magni-Jona J.6 was fitted with an automatic aileron control system. The design made the airplane unspinnable and thus inherently safe unless the pilot locked the wing.

A J.6S derivative with a fixed wing was offered as a military trainer. The G.M.S. web site says that six were ordered.


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
343
Reaction score
142
hesham said:
Hi,

Caproni Ca.225 was two seat twin engined low-wing
medium bomber,powered by two 1250 hp Isotta-Fraschini
Zeta R.C.42 engines.

The Thompson book says that this was an attack bomber design with 4 x 20-mm cannon and 2 x 12.7-mm machine guns. It was to have a span of 48 ft 6.66 in and a length of 43 ft 5.66 in. Loaded weight was planned to be 12,560 lbs. With the Zeta engines, it was expected to achieve 395 mph.
