Hi,

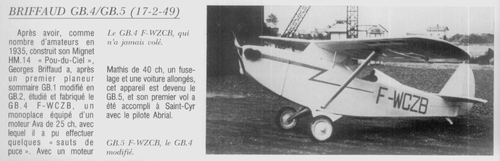

Mr. Georges Briffaud was a French,burned in 1917,and in 1934 he created a GB.1,it was very similar to Chanute biplane glider,after some modifications,this glider became GB.2,the GB.3 or GB.30 was also a glider,but never completed,the GB.4 was a single seat high-parasol-wing light monoplane of 1949,powered by 25 hp Ava engine,followed by GB.5 which developed from the later one,but had a 40 hp Mathis engine.

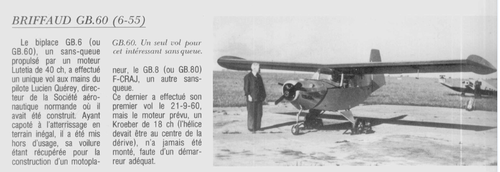

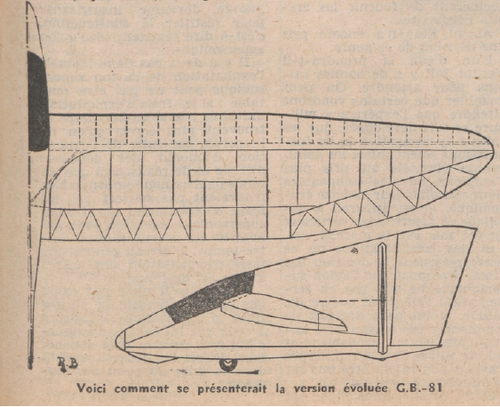

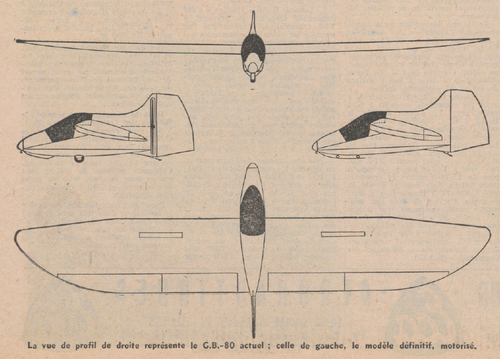

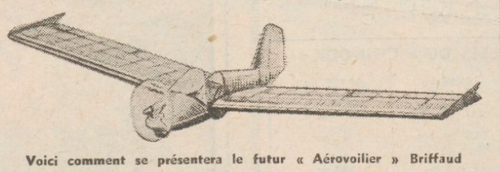

The GB.6 or GB.60 was a two-seat high-wing light tailless monoplane,with tricycle fixed landing gear,powered by one 40 hp Lutetia engine,the GB.7 was not known,and GB.8 or GB.80 was a single seat motor glider tailless monoplane,powered by one 18 hp Kroeber M4 engine,the GB.81 was a Project developed from it.

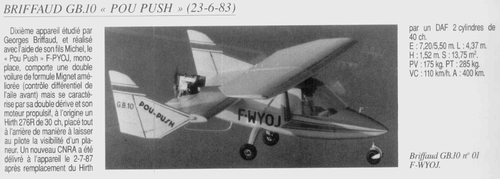

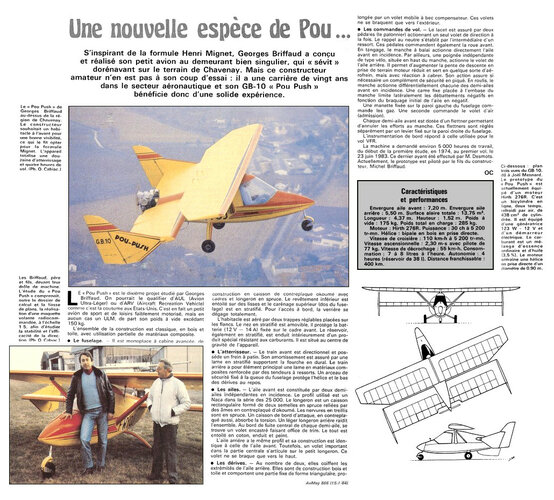

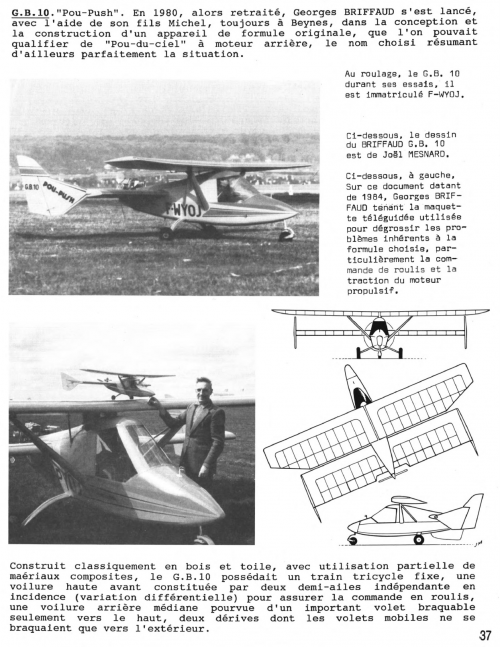

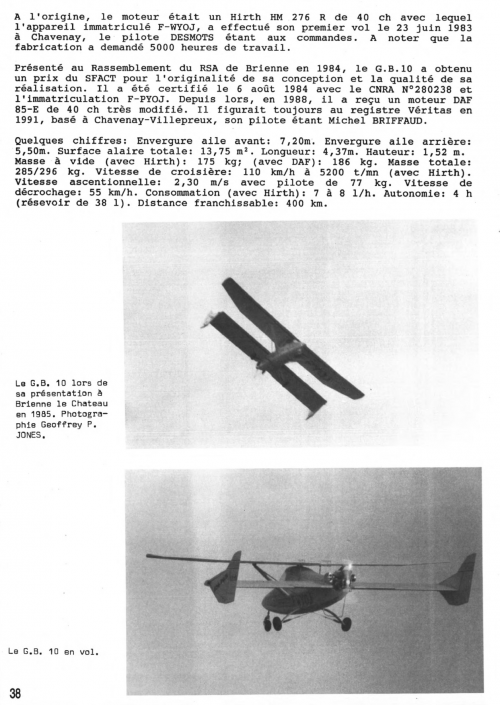

Also the GB.9 was not known,the GB.10 Pou Push was a single seat tailless monoplane,powered by one 30 hp Hirth 276R engine.

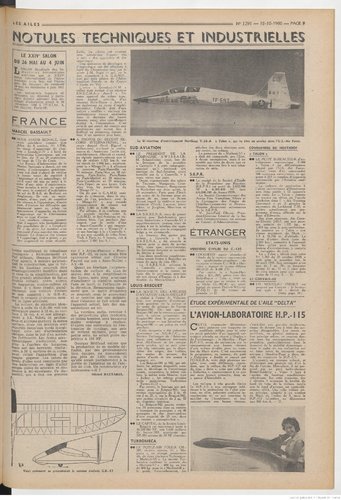

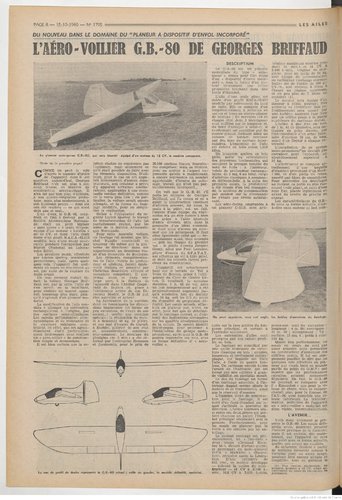

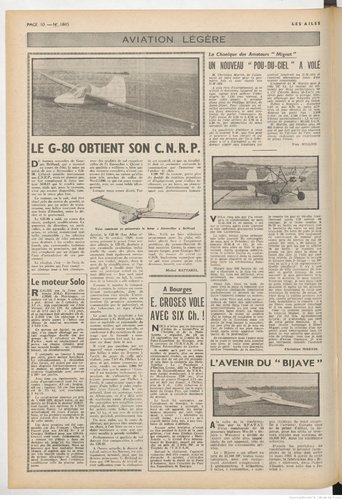

Ailes 15/10/1960


Attachments

  • 1.png
    219.3 KB · Views: 31
  • 2.png
    204.3 KB · Views: 35
  • 3.png
    877.6 KB · Views: 36
  • 4.png
    466.2 KB · Views: 37
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k3209276p_8.jpeg
    2.1 MB · Views: 36
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k3209276p_9.jpeg
    2 MB · Views: 36
  • 1.png
    223.7 KB · Views: 34
Last edited:

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,629
Reaction score
1,097
Those flying plank sailplanes look like they were based on Fauvels.
The Push Pou looks like it was based on Henri Mignet’s Pou d Ciel (Flying Flea).


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,033
Reaction score
432
So it will be nice to see pics from G.B.1, G.B.2 and G.B.3. ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,448
Reaction score
6,106

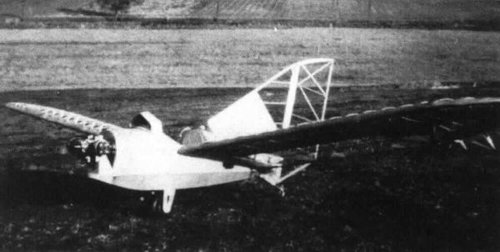

From Ailes 29/9/1961.


Attachments

  • 1.png
    226.5 KB · Views: 28
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k3201033r_10.jpeg
    1.7 MB · Views: 29
