Hi,

Mr. Léon Lacroix was a French designer,he associated with a numbers of other designers to
create a light airplanes,most of them were very similar in conception to Mignet Pou-du-Ciel.

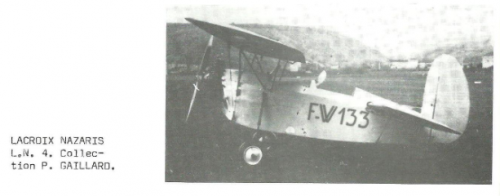

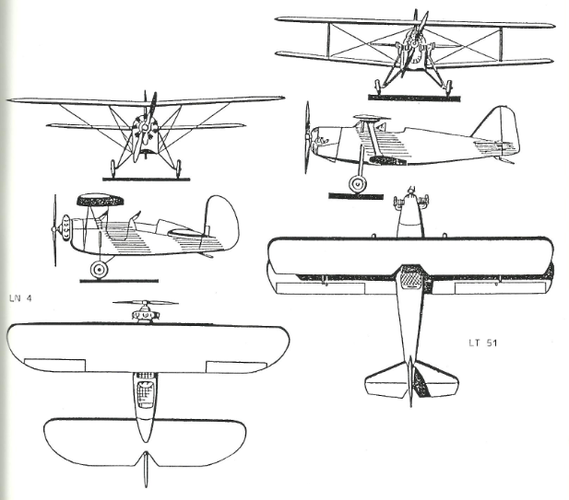

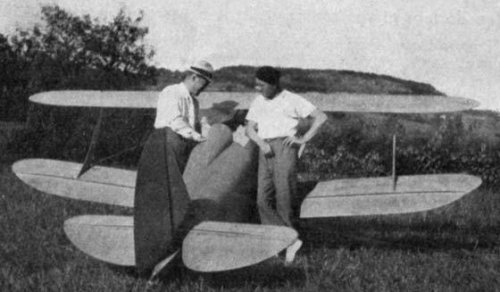

He began with Barret de Nazaris to develop a LN-1 Autoplan,a single seat tandem monoplane
tourist light aircraft,powered by one 32 hp engine,followed by the same idea,the LN-2 & LN-4,
but the later was different a little,the LN-3 was a single seat tourist biplane,powered by one 40
hp engine.

Barret de Nazaris alone,developed a glider looks like Elytroplane shape,maybe called N.5,the

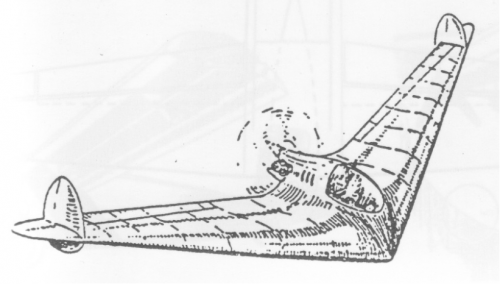

N.6 was a single seat pusher tandem monoplane Project,later the N.7 was a single seat tailless
pusher airplane,and the tail fins mounted almost at the tip of the wings,also remained a Project
only.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0
Sorry for this mistake,

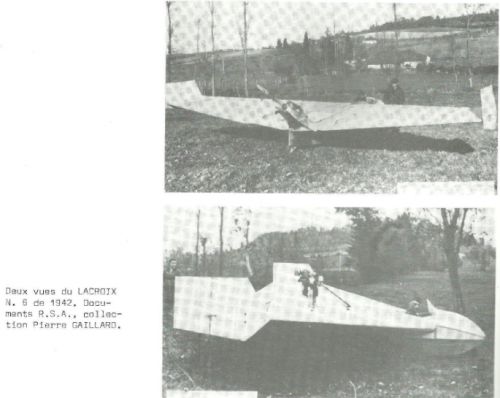

the N.6 was a single seat ultralight tailless pusher airplane,powered by one 18 hp engine,
but the anther pusher biplane Project,maybe called N.5 ?.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0
Maybe I am wrong,

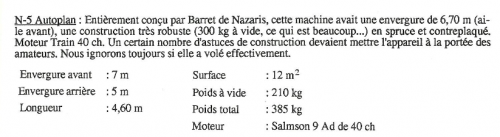

I search in my files again,and found this Info about N.5,please can anyone translate.


Attachments

patvig

CLEARANCE: Confidential
Joined
Jan 28, 2012
Messages
113
Reaction score
0
Website
www.vignaud.org
hesham said:
Maybe I am wrong,

I search in my files again,and found this Info about N.5,please can anyone translate.
Proposed translation:

N-5 Autoplan
Fully designed by Barret de Nazaris, this machine had a span of 6.7 m (front wing), was strongly built (300kg empty, that is a lot) in spruce and plywood. Engine: Train 40 cv. A number of building tricks was included to help amateur building. We do not know it if actually flew.
Front span: 7m, rear span : 5 m, lenghth: 4.6 m, area: 12 m², empty weight: 210 kg, full weight: 385kg, engine: Salmson 9 Ad, 40 cv


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0
Thank you my dear Patvig.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0
My dear Patvig,

please I want to check if this caption was for this Project or not,and thanks.


Attachments

patvig

CLEARANCE: Confidential
Joined
Jan 28, 2012
Messages
113
Reaction score
0
Website
www.vignaud.org

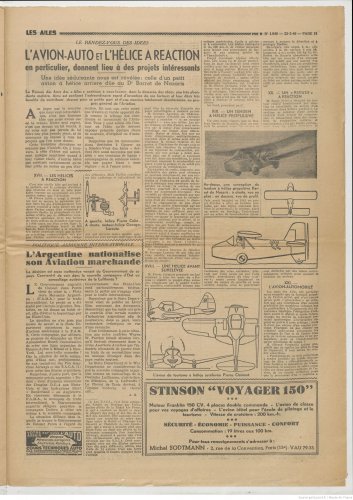

hesham said:
My dear Patvig,

please I want to check if this caption was for this Project or not,and thanks.
During WWII, Barret de Nazaris built a glider whose vertical stabilisation concept was similar than the one used in elytroplans. Unfortunately, due to various defects (centering too backside,towing speed too high, bad use of elytroplan principle), this machine was damaged during fisrt flight. Barret de Nazaris broke his leg.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0
Thank you my dear Patvig,

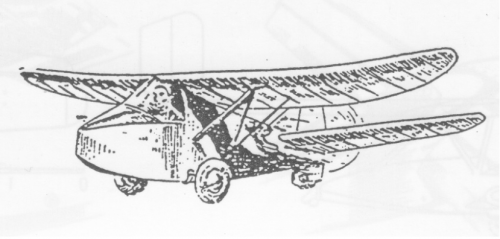

and maybe they meant this airplane in artist drawing ?.


patvig

CLEARANCE: Confidential
Joined
Jan 28, 2012
Messages
113
Reaction score
0
Website
www.vignaud.org

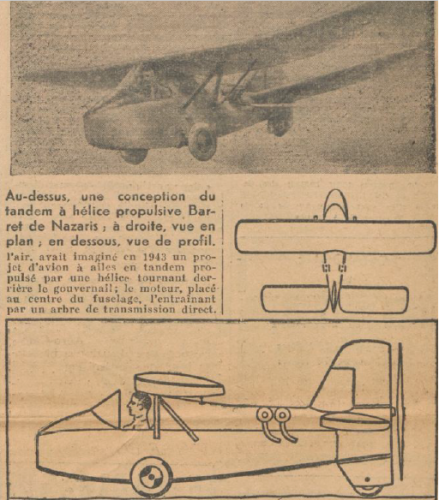

hesham said:
Thank you my dear Patvig,

and maybe they meant this airplane in artist drawing ?.
I don't think so because the text tells about a glider and the dawings shows the cicle of a propeller at the rea.


avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
201
Reaction score
0
What's more, the drawing bears no resemblance to an elytroplan. Contrast it to any of de Rougé's designs, or those of his followers, and the difference will be evident.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0
avion ancien said:
What's more, the drawing bears no resemblance to an elytroplan. Contrast it to any of de Rougé's designs, or those of his followers, and the difference will be evident.
Yes my dear Avion,

it was only a Project,without designation number.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0

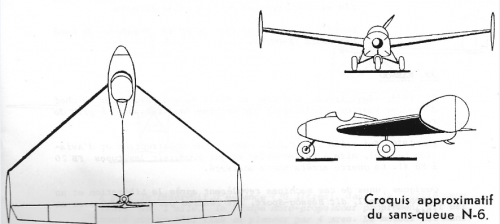

Here is a 3-view to N.6.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0

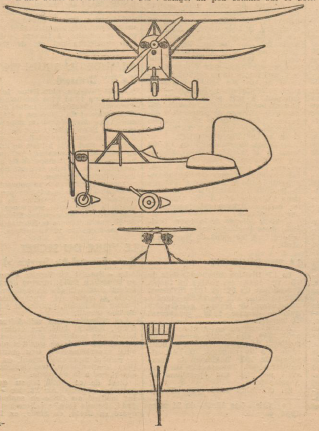

From Ailes 4/1945,

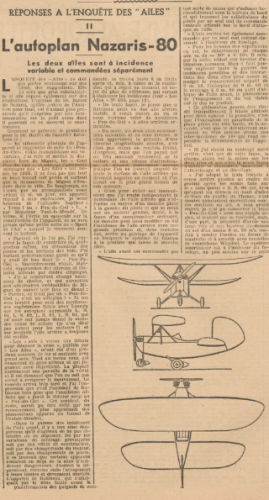

here is Barret-Vazaris Type-80.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0
From Ailes 1/1952,

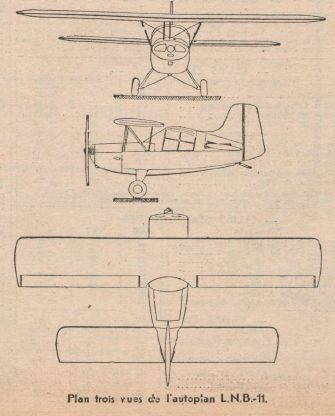

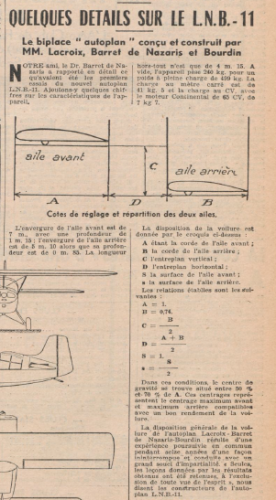

here is a Lacroix-Nazaris-Bourdin LNB.11 aircraft.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,057
Reaction score
0

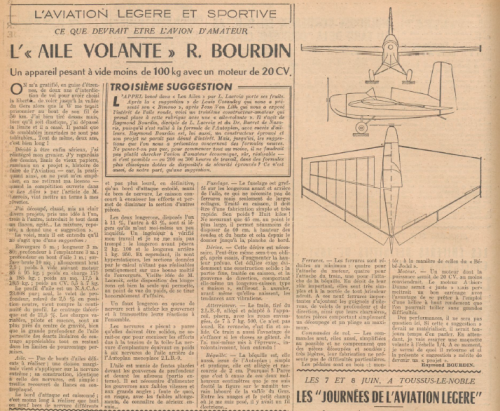

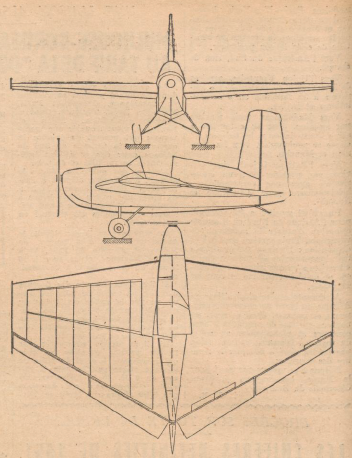

From Ailes 5/1952,

here is a Bourdin Project for tailless single seat tourist monoplane,maybe it
was 2LB.10 ?.


Attachments
