Hi,

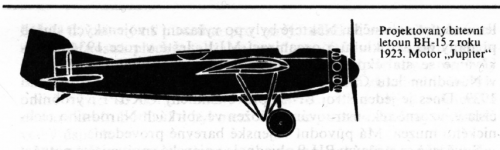

-BH-15 was a two-seat recce airplane, powered by one 450 hp Lorraine.

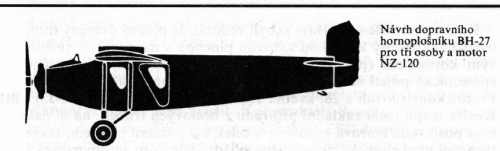

-BH-27 was a four seat high-wing transport monoplane project,powered by one 110 hp piston engine

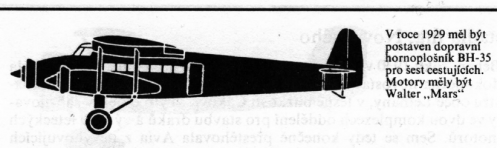

-BH-35 was a high-wing three engined postal and transport monoplane project of 1929

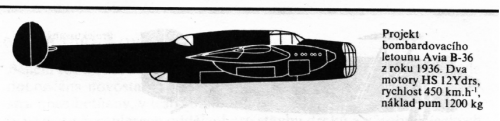

-B.36 was a twin engined mid-wing medium/heavy bomber monoplane project of 1936

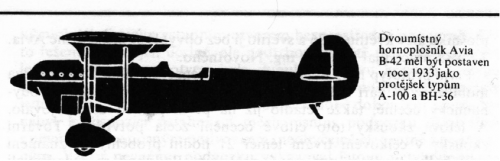

-B.42 was a two seat high wing recce and light bomber aircraft project of 1932

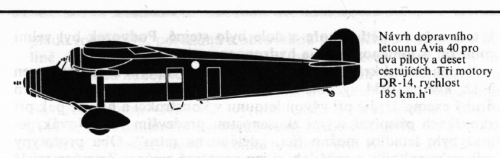

-B.40 was a three engined high-shoulder-wing transport monoplane project,accommodated ten
passenger,powered by three DR-14 engines

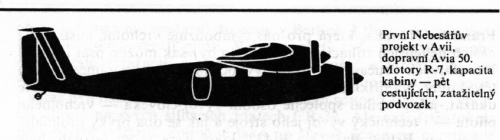

-B.50 was a three engined high-wing light transport project

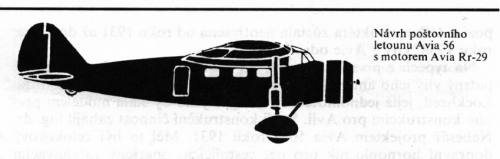

-B.56 was a single engined high-wing light transport project,led to develop B.156


Attachments

  • 1.png
    156.9 KB · Views: 367
  • 8.png
    153.5 KB · Views: 57
  • 7.png
    154.7 KB · Views: 50
  • 6.png
    161.4 KB · Views: 50
  • 5.png
    172.4 KB · Views: 268
  • 4.png
    137 KB · Views: 288
  • 3.png
    160.1 KB · Views: 313
  • 2.png
    167.6 KB · Views: 331

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,790
Reaction score
4,944
And;

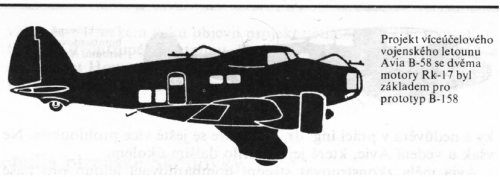

-B.58 was a twin engined medium bomber aircraft,led to develop B.158

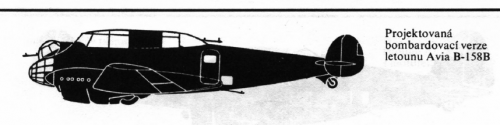

-B.158B was a revised design of B.58 twin engined medium bomber,with many improvements


Attachments

  • 9.png
    168.4 KB · Views: 59
  • 10.png
    126.9 KB · Views: 77

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
45
The B 50 was a Rohrbach design :

http://www.secretprojects.co.uk/forum/index.php/topic,2818.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,790
Reaction score
4,944
Hi,

Avia had unbuilt Projects developed from BH-33 single seat Fighter,the BH-38N was powered
by one Jupiter VI engine,BH-38NH was powered by one Hornet engine and BH-38-VII was
powered by one high altitude Jupiter VII engine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,790
Reaction score
4,944
Hi,

the Ba.33 was different from BH-33 in airframe,but also a single seat fighter,but also
tested as a racer airplane.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,790
Reaction score
4,944
From L+K 1965/6.


Attachments

  • 1   6-1965.png
    1 6-1965.png
    39.7 KB · Views: 47

Aubi

ACCESS: Secret
Joined
Aug 31, 2009
Messages
229
Reaction score
307
Website
www.armedconflicts.com

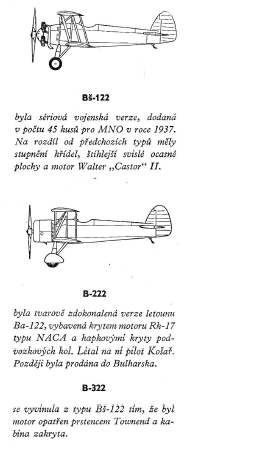

Bš-122 - military variant of Ba-122 for aerobatic training, 45 built for te Ministry of Defence in 1937. Non-stagered wings, engine Walter Castor II. Later some used by the Slovak State and also by Bulgaria, as "Osa" (Wasp).
B-222 - aerodynamically smoothened variant of Ba-122 with NACA-cowled Avia Rk-17. Flown by factory pilot Oldřich Košař. Later sold to Bulgaria. (Second machine, without engine cowling, was offered to Yugoslavia).

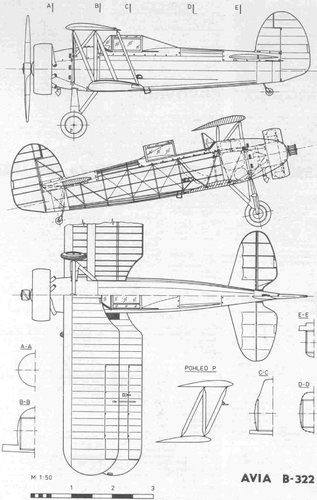

B-322 - prototype with Townend-cowled Rk-17 engine and closed cockpit, not much more known.

Drawing of B-322, source: http://www.mo-na-ko.net/letadla-planky.htm#Avia


Attachments

  • AviaB322_02.jpg
    77.3 KB · Views: 61
Last edited:

Aubi

ACCESS: Secret
Joined
Aug 31, 2009
Messages
229
Reaction score
307
Website
www.armedconflicts.com
Hi,

the Ba.33 was different from BH-33 in airframe,but also a single seat fighter,but also
tested as a racer airplane.
Ba.33, factory designation BH.33L, was a fighter aeroplane with Škoda L W12 engine (sort of Hispano-Suiza 8Fb / Napier Lion hybrid) as oposed to Walter Jupiter radial engine of BH.33E, 82 built.
