Hi,

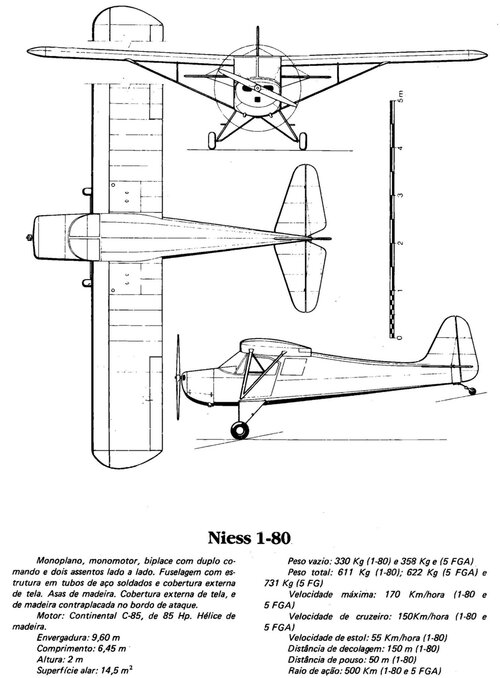

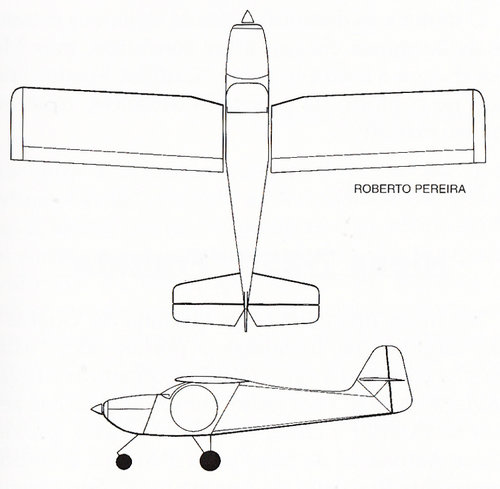

here is the Brazilian Marc Niess series of aircraft and projects,the 1-80
was side-by-side two seat high-wing monoplane,powered by one 80 hp engine,the 2-100 was three seat variant of (1-80) powered by one 100 hp engine,the 3-150 was all-metal four seat with swept forward wings and
powered by one 150 hp engine.

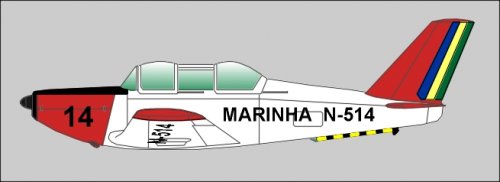

The designs 4,5 & 6 are not known,the 7-250 Fragata was tandem two-
seat trainer aircraft project,the later was the last creation for CBA
(Companhia Brasileira de Aeronáutica).

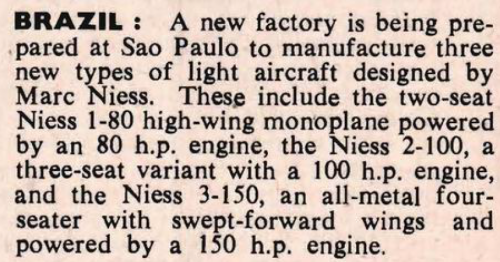

Flying Review 11/1956

http://www.naval.com.br/anb/ANB-historico/ANB-hist16_avioes_da_MB.htm


Attachments

  • 7-250 Fragata.jpg
    7-250 Fragata.jpg
    45.1 KB · Views: 226
  • 1.png
    842.3 KB · Views: 230
Last edited:

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357
The Niess 4-200 was a high-wing 4seat touring project.
The Niess 5-250 was a high-wing 4seat touring project.
The Niess 6-250 "Cadillac Voador" was a training aircraft, forrunner of Niess 7-250 "Fragata".


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357
The Niess series run up to the 22-65 with many unnumbered aircraft.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,605
Reaction score
4,562
Thank you my dear Maveric,


and can I ask you,what is your source ?.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357
Roberto Pereira: Enciclopedia de Avioes Brasileiros.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,605
Reaction score
4,562
My dear Maveric,


last question,is that any or more drawings to all of those projects ?,and thanks.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357
At the moment I have no time to scan this book... :-X


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,605
Reaction score
4,562

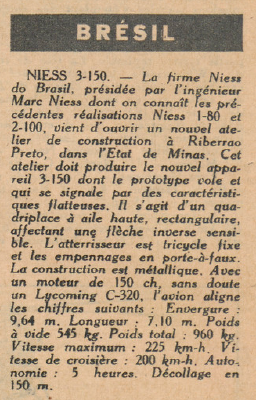

From Aviation magazine 1959,

here is all Info about Niess 3-150.


Attachments

  • Niess.png
    222.5 KB · Views: 20

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
105

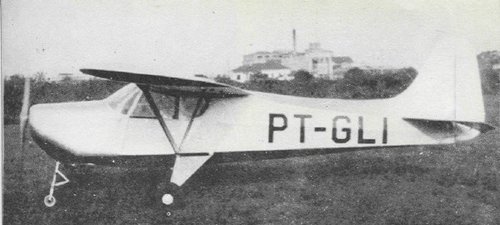

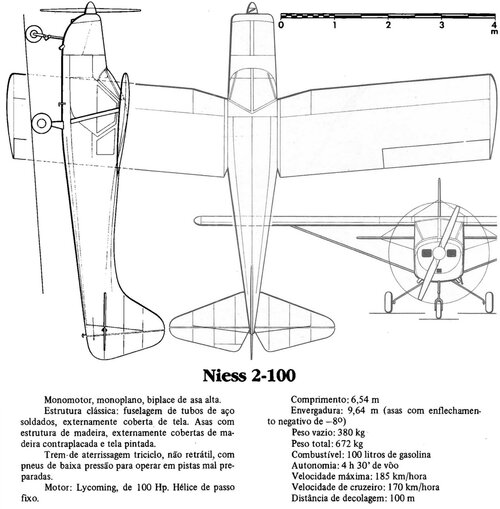

I think that only the 2-100 was actually built with reports that 2 examples were constructed (PT-GLI and PT-ZPE)
Attached a photo of PT-GLI and some text.
2-seat sport
one 100hp Lycoming 0-235 piston engine
max. speed 115 mph, cruise 105 mph, ceiling 16,000ft
wingspan 31.625ft; length 21.458ft
DETAILS: The Model 2-100 design of Mr. Marc William Niess was more or less a tricycle u/c version of the Maranhao, but also differed in other aspects, including the installation of one more powerful 100hp Lycoming O-235 engine and the use of slightly forward swept wings. The first of 2 prototype aircraft made the first flight in 1952. Further development was halted.
Production: 2


Attachments

  • Niess 2-100.jpg
    Niess 2-100.jpg
    47.5 KB · Views: 21

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
105
The I-80 was only built in prototype form. It was initially known as I-80, but later received modifications as I-80A and a more engine (85hp Continental C85 instead of the original A80). Production was carried out by Fábrica do Galeão as the Model 5-FG Maranhão and reportedly some 68 were built. The production model differed from the I-80 prototype in having a mix of fabric and pywood covering, rather than the fabric covering on the I-80/I-80A and larger fuel tanks. The C85 engine was retained for the production model.
Two aircraft were modified as Model 5-FGA and in order to reduce the empty weight, the plywood panels were replaced by fabric. One 5-FGA was thus modified by the Sao Paulo Aeroclub and the other by Campinas Aeroclub.
Attached a photo of the I-80 and some text.
2-seat sport/trainer
one 85hp Continental C85-8 piston engine
max. speed 110 mph, cruise 85 mph, icr 690ft/minute, ceiling 12,500ft, range 380 miles
wingspan 34.5ft; length 22ft; height 6.5ft
DETAILS: The I-80 was based on the CAP-4 Paulista, but it differed in having a wider cabin, a modernised construction and one more powerful engine. The type was developed by Mr. Marc William Niess.
Model I-80: The prototype aircraft which had one 80hp Continental A80 and which was first flown in June 1950.
Model I-80A: The same aircraft, after having received some modifications and one 85hp Continental C85-8 engine.


Attachments

  • Niess I-80.jpg
    Niess I-80.jpg
    47.5 KB · Views: 23

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,605
Reaction score
4,562
From, Historia da Construcao Aeronautica no Brasil,

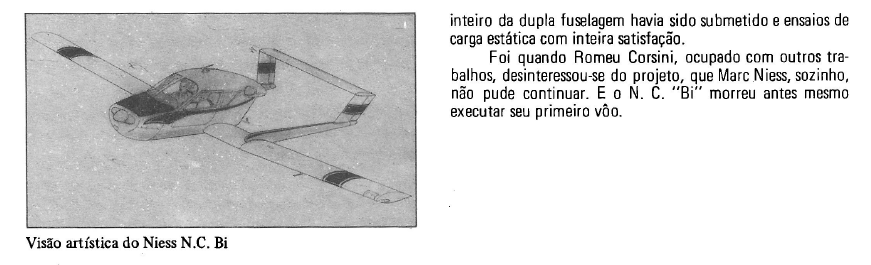

here is a twin boom Project,maybe 8-?,and a small Info about

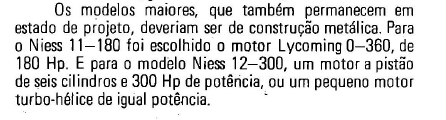

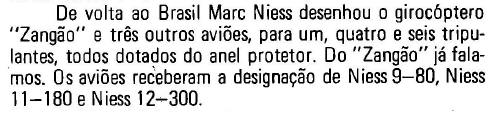

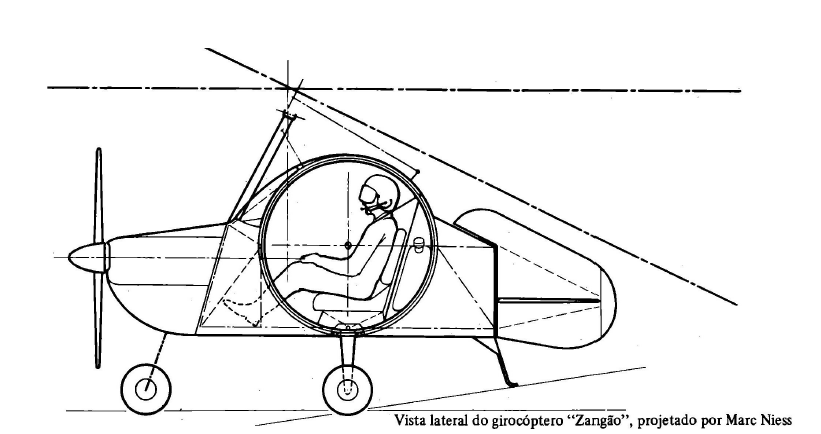

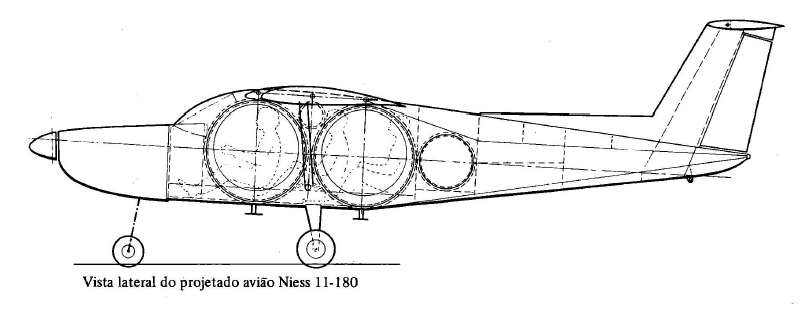

Niess 9-80,11-180 & 12-300,also a gyrocopter,maybe it was a

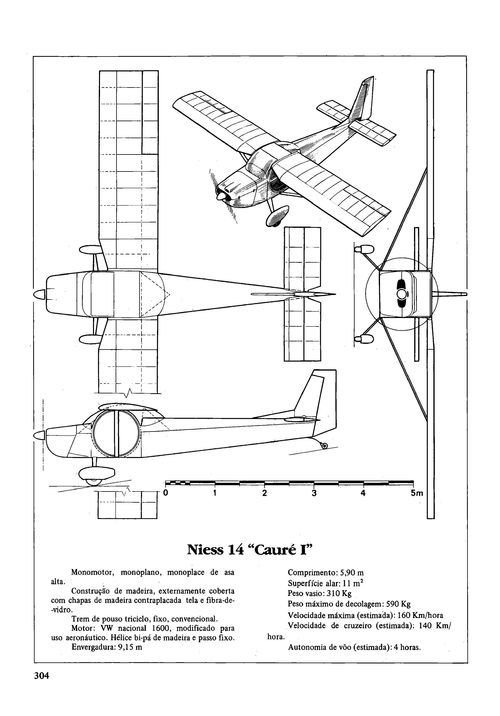

10-?,finally the 14-I Caure I.


Attachments

  • A.png
    124.4 KB · Views: 11
  • B.png
    77 KB · Views: 10
  • C.png
    62.1 KB · Views: 11
  • D.png
    1.2 MB · Views: 13
  • N-1.png
    42.6 KB · Views: 10
  • N-2.png
    33.4 KB · Views: 6
  • N-3.png
    29.5 KB · Views: 9
