Hi all!
Here is some info about unrealized pre-war projects of Czechoslovakian Zlin company - addition to "Zlin designations" topic (http://www.secretprojects.co.uk/forum/index.php/topic,9747.0.html). My source is the first volume of Československa letadla (Czechoslovakian Aircraft) bible by Vaclav Nĕmeček.

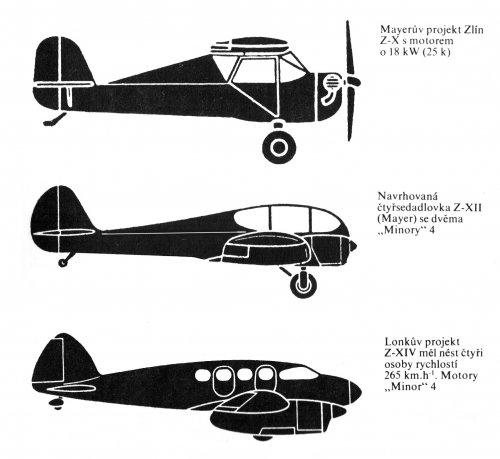

The popular pre-war Z-XII light aircraft, as well as Z-X glider, weren't the first applications of these indexes! Both these designs by eng. Jaroslav Lonek were preceded by unbuilt projects of František Oskar Majer (the previous chief designer of Zlin a/c), carrying the same designations. Majer’s Z-X was a high-wing ultralight with 25-hp engine, and his Z-XII was 4-seat aircraft with two 95-hp Walter Minor 4 engines.

Z-XIV designed by Lonek was a twin-engine aircraft “carrying four persons” – it’s Nĕmeček’s text, and I don’t know if he meant only the passengers or with the pilot(s). If the second assumption is correct, then Z-XIV belongs to the same category as Majer’s Z-XII project; also Nĕmeček mentioned the same type of engines (Walter Minor 4). But Z-XIV, as it is drawn in the book, looks much more “solid” aircraft. To my mind, it looks rather 5- or 6-seat (carrying 4 passengers, plus 1 or 2 pilots). Also Nĕmeček specifies its speed – 265 km/h, which seems a bit optimistic for two 95-hp engines. Maybe “Minor 4” is a misprint, and they must be Major 4 – 130 hp each?

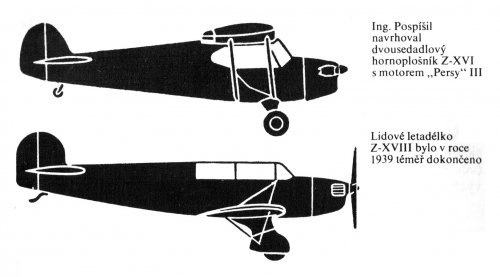

Z-XVI was a project by eng. František Pospišil, who replaced Lonek as Zlin chief designer in 1938 (he was also a designer of Z-XV and unfinished Z-XVIII). Z-XVI was two-seat, high-wing monoplane with 55-hp Persy III opposite engine produced by Zlin.

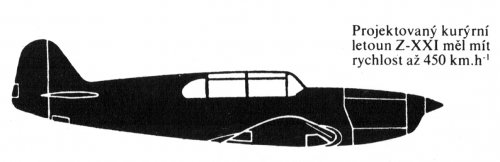

Z-XVa also wasn’t built because of Nazi occupation; it was Z-XV version with side-by-side cockpit layout. The last pre-war project was Z-XXI courier aircraft: resembling Z-XV but bigger, with retractable landing gear, and twice faster (450 km/h)! Unfortunately Nĕmeček doesn’t specify what engine was planned for Z-XXI: maybe 390-hp Minor 12-I-MR, or even 600-hp Sagitta?


Attachments

  • Z-X (Majer)_ Z-XII (Majer)_ Z-XIV.jpg
    Z-X (Majer)_ Z-XII (Majer)_ Z-XIV.jpg
    181.1 KB · Views: 672
  • Z-XVI_Z-XVIII.jpg
    115.1 KB · Views: 554
  • Z-XXI.jpg
    60.4 KB · Views: 522

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,426
Reaction score
6,090
Hi,

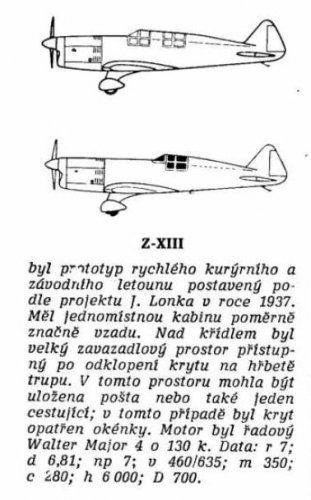

the Zlin Z-XIII was actually built,but here is two variants,from L + K.


Attachments

  • Z-XIII.JPG
    42.2 KB · Views: 393

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,426
Reaction score
6,090
By the way,


there was also a project called Z.XXIa,but I have no more info about it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,426
Reaction score
6,090
hesham said:
there was also a project called Z.XXIa,but I have no more info about it.


The info about Z.XXIa from L + K 1974.


Attachments

  • XXIa.png
    700.2 KB · Views: 279

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
602
Reaction score
316

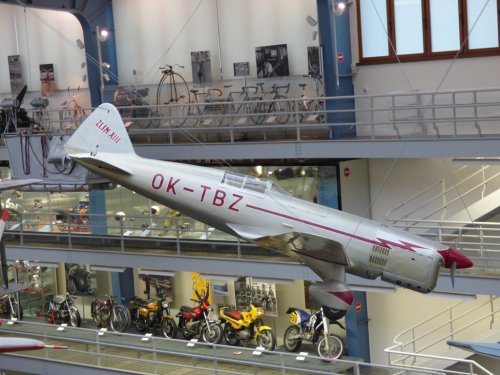

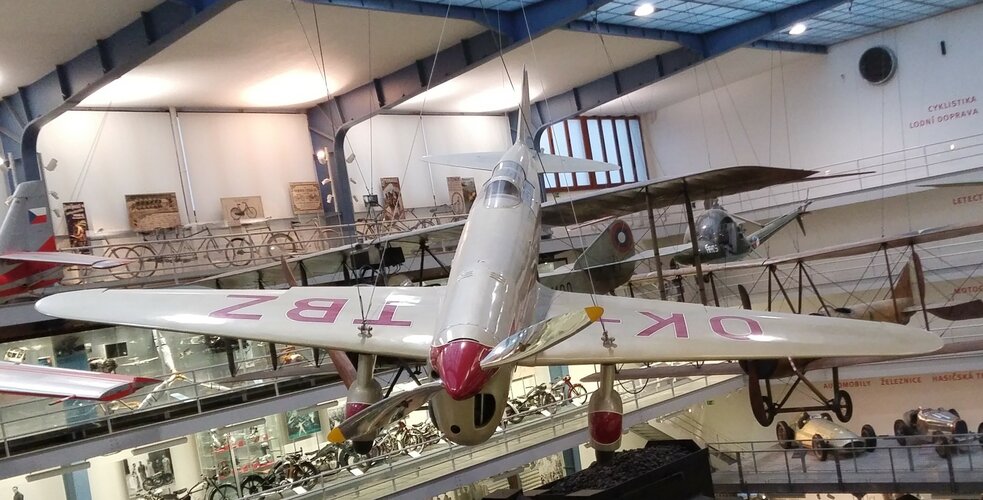

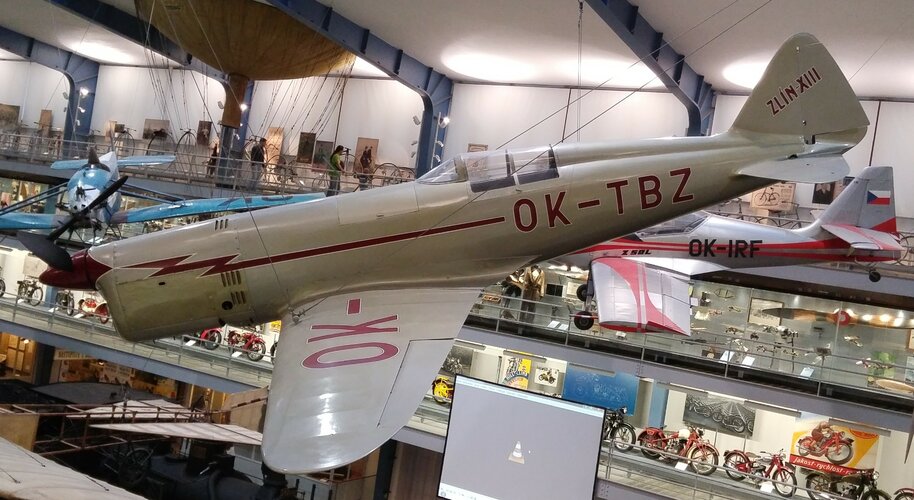

Zlin XIII on display at Prague Technical Museum


Attachments

  • Zlin_XIII_(P1000461)_OK-TBZ_NTM_Nov_2015_Image.JPG
    330 KB · Views: 90

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,426
Reaction score
6,090
From L+K 5/1967,

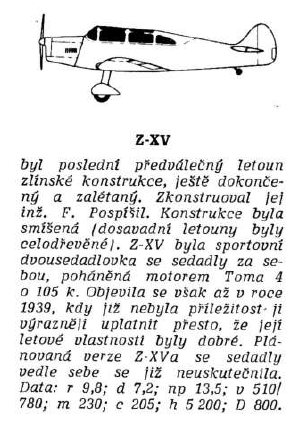

the Zlin Z-XV Project with profile drawing.
