Tank (Focke-Wulf) Ta 283 ramjet-powered fighter

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Less impressive than Josef Gatial's work of course, but historically interesting, this 1958 painting by Th. Fassig, showing four aircraft from two distinct Ta 283 projects:


Attachments

  • Ta 283 artwork (1958) small.jpg
    Ta 283 artwork (1958) small.jpg
    444.6 KB · Views: 1,153

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
974
Reaction score
437

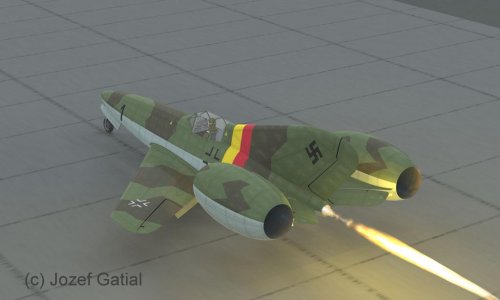

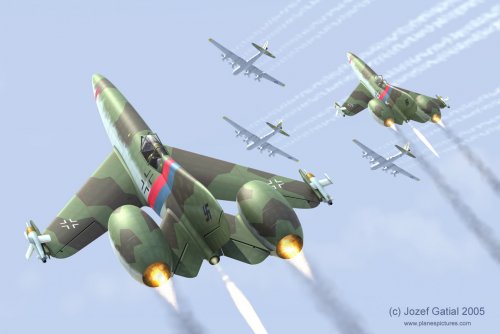

Some years ago I have done a lot of pictures of this plane. I knew it only as Ta Fighter (its bigger brother was Ta Bomber). Was this plane version of Ta 283?


Attachments

  • TaFighter_poster.jpg
    56.5 KB · Views: 863

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
974
Reaction score
437

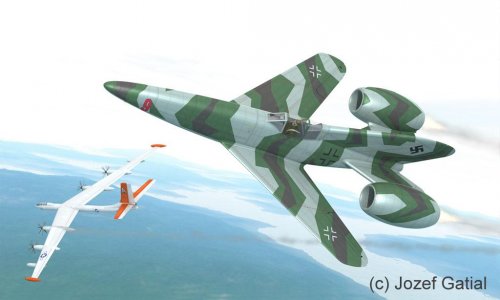

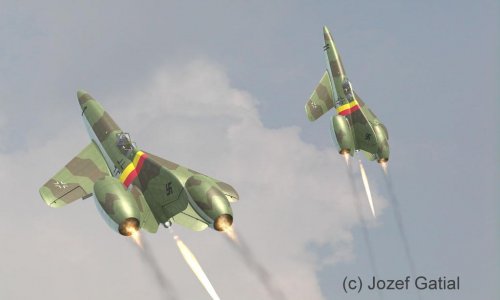

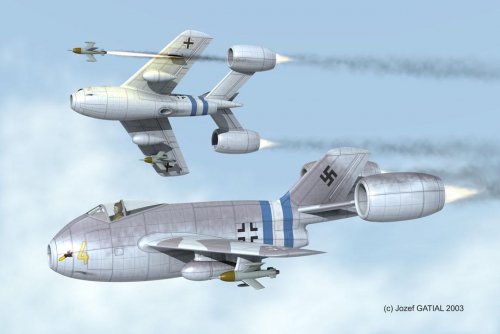

I found in my archives and as you can see some of pictures passed away

Note: Last one picture is so damaged already on my storage. I presented it only as sample that time is going on and full version of picture is lost


Attachments

  • Ta283_03.jpg
    51 KB · Views: 818
  • Ta283_18.jpg
    40.4 KB · Views: 797
  • Ta283_19.jpg
    33 KB · Views: 113
  • Ta283_20.jpg
    101 KB · Views: 148

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
974
Reaction score
437

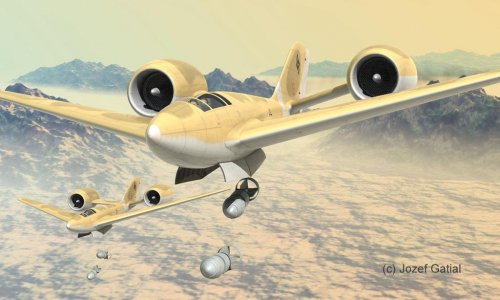

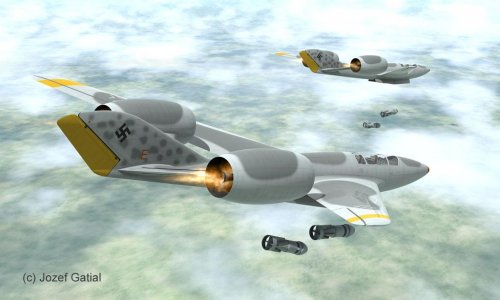

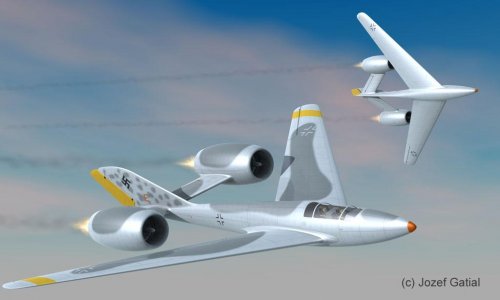

And mysterious Ta Bomber


Attachments

  • TaBomber_07.jpg
    38.2 KB · Views: 171
  • TaBomber_06.jpg
    81.8 KB · Views: 183
  • TaBomber_02.jpg
    66.8 KB · Views: 176

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
974
Reaction score
437
Model of Ta Bomber is based on single poor sketch (handly made). I saw it on net and it is in David Myhra's books, too. Do we know history of that sketch?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,216
Reaction score
1,863

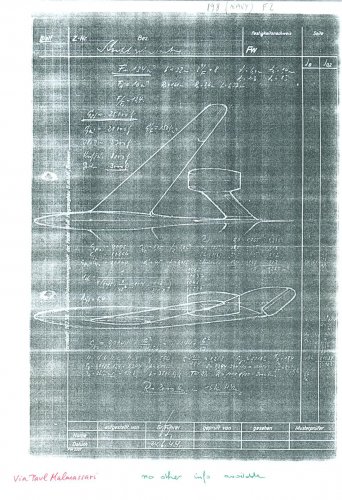

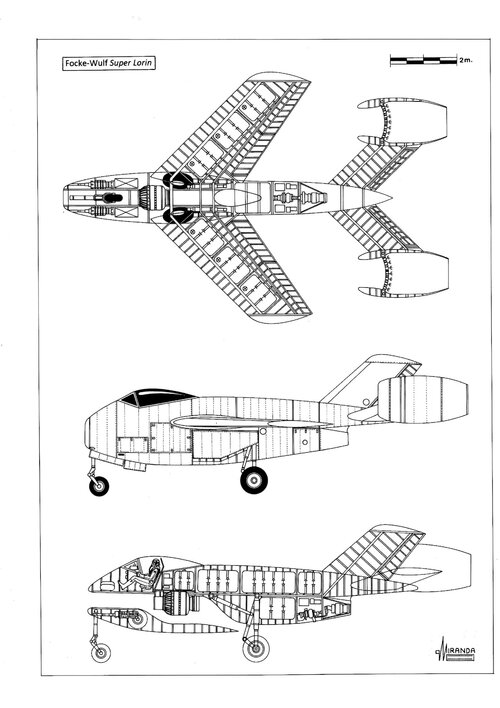

Source: Paul Malmassari collection.


Attachments

  • Source.jpg
    636.7 KB · Views: 214

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
930

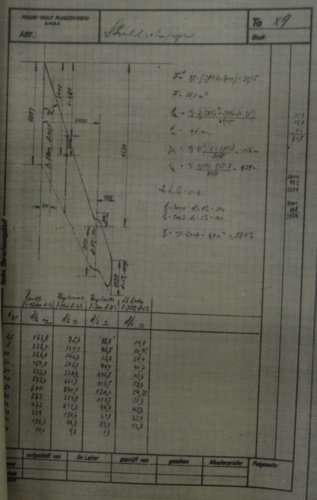

The handwriting under the printing "Bez." (short for "Bezeichnung" = designation) may indeed
say "Strahlschnellbomber" (Fast jet bomber), but it's quite difficult to read. "F" may stand for
wing area (134 m²), given, too is "F1" as 10 m², and F/F1 as 13.4. Mathematically correct, but in
the moment, I have no idea, what F1 actually is. Maybe the area of the tailplane ? "GST" could be
"Startgewicht" /take-off weight (25,000 kg) and another weight data (G) is given as 20,000 kg,
obviously used for calculating wing loading, which is quite correctly given as 150 kg/m².
Fuel could have been 8,000 kg and bomb load 3,000 kg.
The sketch is drawn on a "Festigkeitsberechnungblatt" (sheet for stress analyses. It obviously
isn't that, but to my opinion a just very rough calculation of an enlarged derivative of the Ta 283.


Basil

ACCESS: Secret
Joined
Aug 10, 2009
Messages
254
Reaction score
50
Very interesting document; I have never heard about this one. Seems to be original and no fake. Jemiba, thanks for analyzing the numbers. I think your assumptions are correct. Although Focke Wulf had its own ramjet program (via Dr. Otto Papst) it would make little sense to install ramjets as propulsion for a subsonic (or transsonic) bomber (even for a "Schnellbomber"). Perhaps the ramjet was to be combined with a turbojet (like Leduc).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
newsdeskdan said:
Can I add something upsetting to this thread?

If it's of that scope and quality, you can add upsetting stuff all over the forum as far as I'm concerned!!!

newsdeskdan said:
Anyway, here's my list. If you know of any more (and have the documents to prove it), please let me know!

May I suggest that you start a new topic in the "Designation Systems" section for these? They'd get a much better exposure there and it would make future searching and updating easier I think.

Again a million thanks newsdeskdan for your most valuable contributions.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Amazing list Newsdeskdan,


please can you complete the Nr list,and thanks.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Hi!

http://www.luft46models.com/manufacturers/fw/fwta283.php

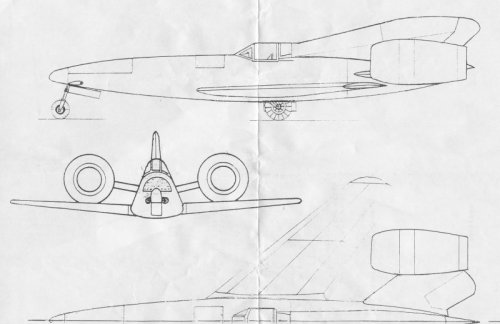

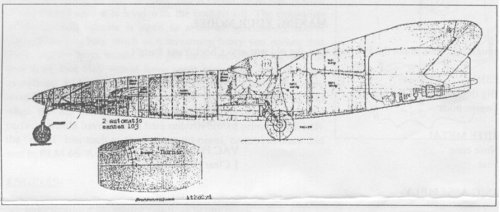

The first drawing is the original one. How about the second drawing?
You can see Otto Pabst ram jet engine and Walter HWK 109-509 rocket booster at the tail of the aircraft.

Japanese site.
http://www.jttk.zaq.ne.jp/baabb103/Ta283.html


Attachments

  • Ta213.jpg
    112 KB · Views: 212
  • fwta283x.jpg
    51.4 KB · Views: 212

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

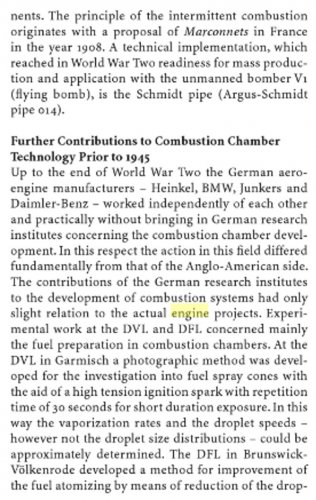

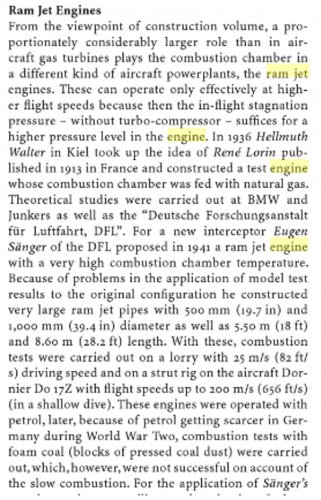

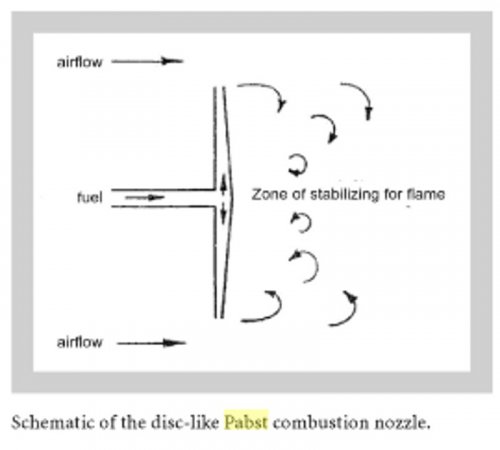

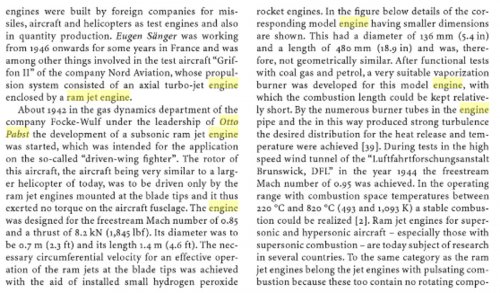

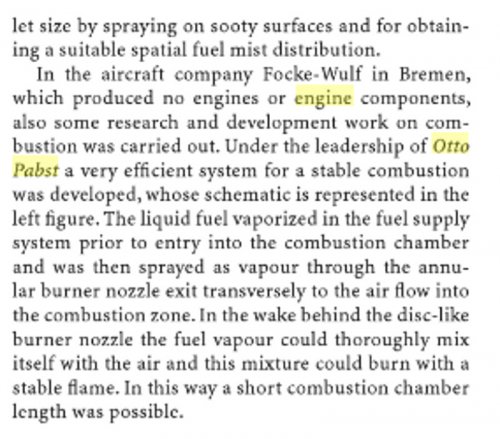

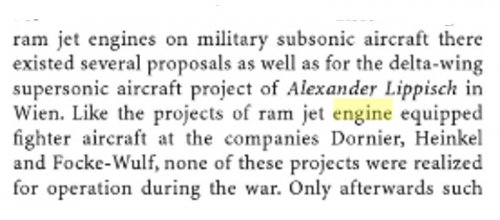

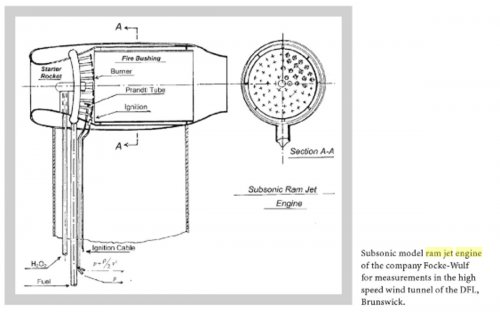

You can see Pabst ram jet engine explanation here.
https://books.google.co.jp/books?id=eJ7oCAAAQBAJ&pg=PA243&lpg=PA243&dq=Otto+Pabst+ramjet+engine&source=bl&ots=YAq_TijVA4&sig=9DF75QzsSA988IwiK08h64NMDqg&hl=ja&sa=X&ved=0ahUKEwj0xtz3hqLNAhWEppQKHZkLCL0Q6AEIJjAC#v=onepage&q=Otto%20Pabst%20ramjet%20engine&f=false


Attachments

  • 7.jpg
    104.7 KB · Views: 67
  • 6.jpg
    188.9 KB · Views: 50
  • 5.jpg
    32.9 KB · Views: 179
  • 4.jpg
    78.7 KB · Views: 187
  • 3.jpg
    217.7 KB · Views: 257
  • 2.jpg
    50.1 KB · Views: 265
  • 1.jpg
    198.5 KB · Views: 281

newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
953
Reaction score
457
Justo Miranda said:
Source: Paul Malmassari collection.

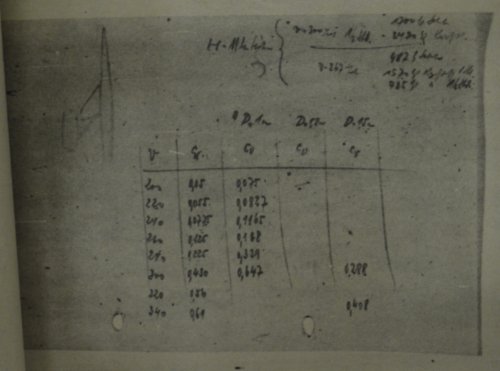

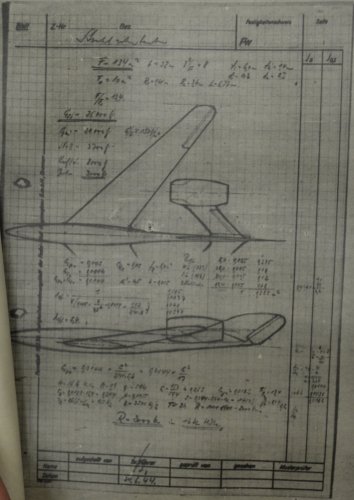

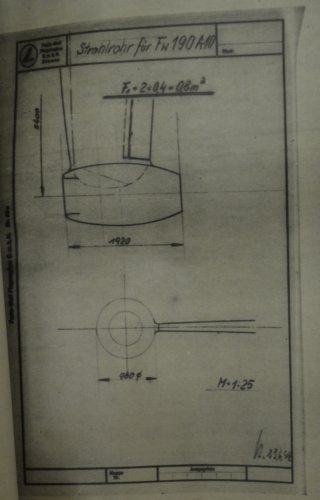

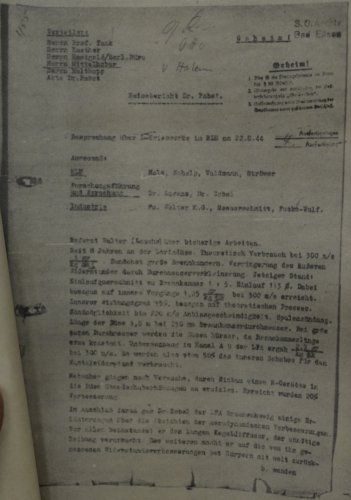

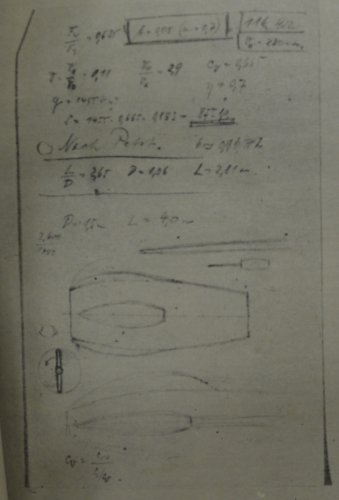

All from the same scrappy notebook. Paul Malmassari version attached for comparison.


Attachments

  • Source.jpg
    636.7 KB · Views: 80
  • 6.jpg
    1.1 MB · Views: 70
  • 5.jpg
    863.8 KB · Views: 66
  • 4.jpg
    921.6 KB · Views: 58
  • 3.jpg
    1.1 MB · Views: 83
  • 2.jpg
    1.1 MB · Views: 90
  • 1.jpg
    1.1 MB · Views: 85

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
618
Reaction score
274
In Luftwaffe: Secret Projects of the Third Reich, Dan Sharp notes on page 61 that Ta 283 is merely a fictional designation for the Focke-Wulf Strahlrohrjäger stemming from Nr 283 for the Strahlrohrjäger. I remember that the alleged designation Fw 226 for the Focke-Wulf Flitzer come from the digits 226 in the drawing number 0310 226 for the Flitzer designs, so the Focke-Wulf Strahlrohrjäger, like the Flitzer, never had an RLM designation assigned to it.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
355
Reaction score
103
I'm not an engineer and I don't play one on TV (but I did sleep once at a Holiday Inn Express - If you are American you might remember the commercial advertisement and get the joke), but the design of this airplane seems to me would be tail heavy: 1. you have the engines way in the back and 2. If you hope to not have the engines tear off those mounts you would have to really reinforce them (ie make them heavy as well). Am I missing something here? (Always willing to learn something new!)


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,104
Reaction score
548
Those ram jets may not be very heavy, but that aft fuselage sure looks thin. I worry that asymmetric thrust might bend or break that slender fuselage.


gruff

ACCESS: Restricted
Joined
Jan 31, 2020
Messages
13
Reaction score
4
I think that at the end of the War, the less traditional and sound your design was, the more likely you were to get funding...

Most of these birds weren't much more advanced than the proverbial Drawing on a napkin after a few pints of Schnaps at the Air Show.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,104
Reaction score
548
Warning!
Speculation!
Perhaps they intended to use one ram-jet for cruise and both for combat.
Though it would make more sense to install both engines close to the centre-line.
Warning!
Speculation!
