Focke-Wulf Fw 187 variants

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
131
Hello,

I came across this nice article on this performant and handsome aircraft in wikipedia:
http://en.wikipedia.org/wiki/Focke-Wulf_Fw_187

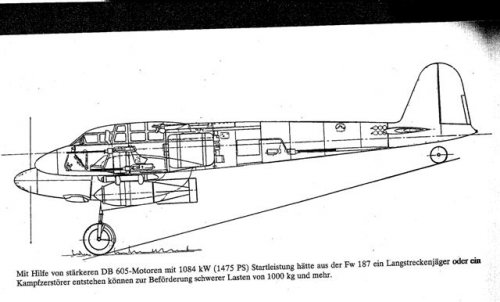

"Tank nevertheless directed studies on a wide variety of new versions of the basic airframe, everything from dive bomber, night fighter, fighter-bomber, high-altitude interceptor (with greater wingspan and lengthened rear fuselage) and others. These sported a variety of engines, including the Daimler-Benz DB 601, DB 605 and even the BMW 801 radial".

I will add also what I believe to be one of those proposals, taken from "'Kurt Tank - Konstrukteur und Testpilot bei Focke Wulf", Motorbuch Verlag.

Do you guys know more on this proposals?


Attachments

  • Fw187v.jpg
    39 KB · Views: 578

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,404
Website
www.amazon.com

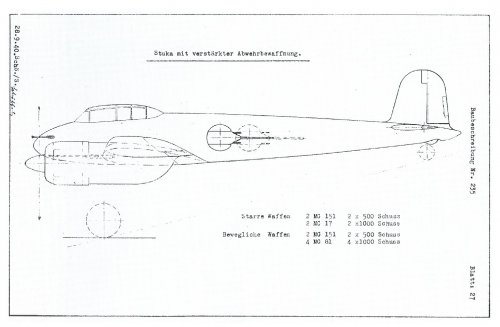

Here Focke Wulf dive bomber with 2 x BMW 801


Attachments

  • Escanear0001.jpg
    119 KB · Views: 556
  • Escanear0002.jpg
    68.9 KB · Views: 512

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,404
Website
www.amazon.com

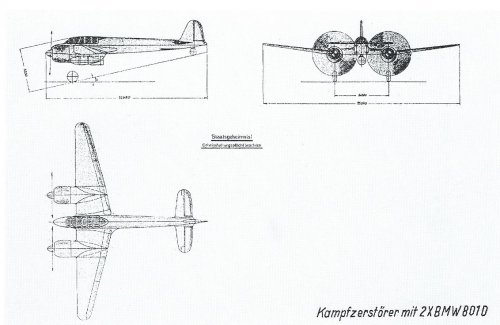

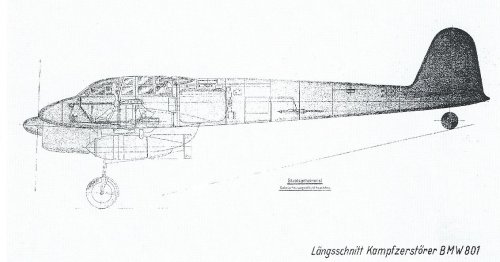

Here Focke Wulf fighter bomber with 2 x BMW 801


Attachments

  • Escanear0001.jpg
    329.1 KB · Views: 522
  • Escanear0002.jpg
    134.1 KB · Views: 510
  • Escanear0003.jpg
    144.5 KB · Views: 176

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,404
Website
www.amazon.com

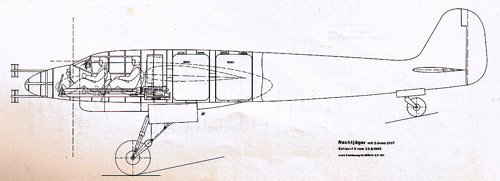

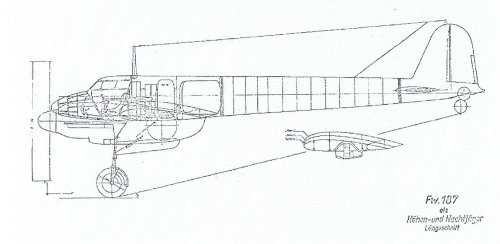

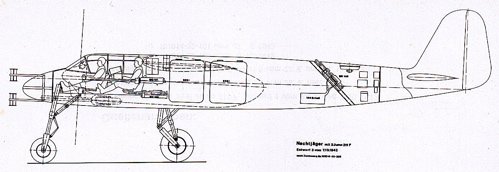

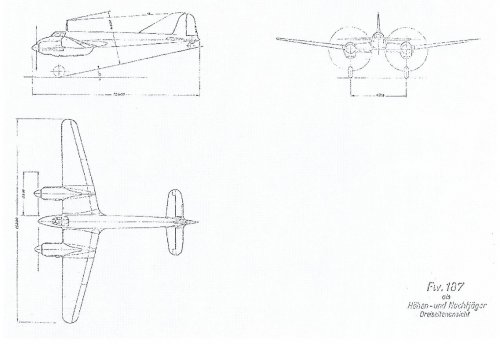

Here Fw 187 H high altitude interceptor (2x MG 131 and 2x MG 151)
and Fw 187 N night fighter (4xMG 151)


Attachments

  • Escanear0003.jpg
    117 KB · Views: 188
  • Escanear0002.jpg
    103.5 KB · Views: 174
  • Escanear0001.jpg
    77.1 KB · Views: 152

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
131
Hi,

Justo, glad to have you.

also from that article:

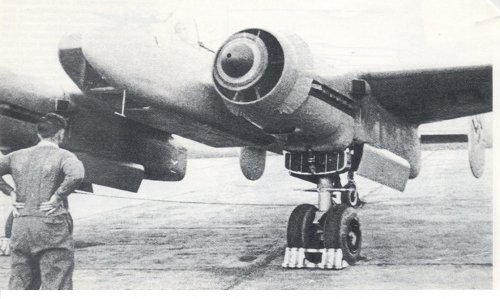

"Several changes were made to the design as a result of the testing, including new DVL propellers in place of the original Junkers-Hamiltons, and experimental twin wheel bogies that were abandoned after testing".

Twin wheel bogies????

I appreciate that those specifications relate to a SINGLE ( EINMOTORIGES )engined dive-bomber. ???

P.s Justo, have a look at your message box.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
Wurger said:
I appreciate that those specifications relate to a SINGLE ( EINMOTORIGES )engined dive-bomber. ???

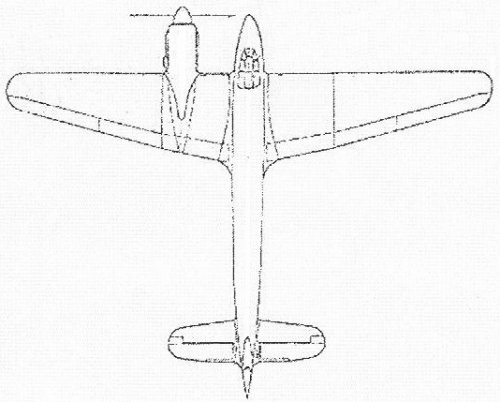

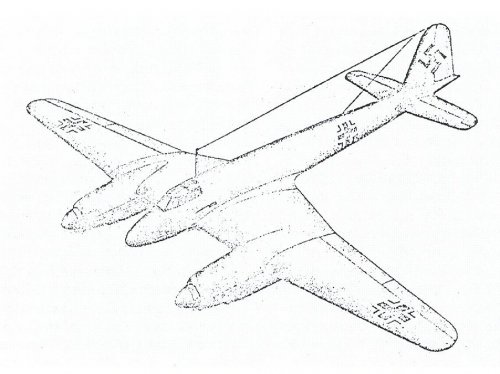

A single-engined Fw 187? Do you imagine a nose engine? or else an asymmetric layout like this?


Attachments

  • Fw187y_a.jpg
    51.9 KB · Views: 100

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
45
:D And here ,the missing links from Fw 187 to Ta 154

From Luftfahrt International No 11 /1975

22/9/42 ; 22/9/42 ;7/10/42 .


Attachments

  • Fw3.jpg
    50.1 KB · Views: 194
  • Fw1.jpg
    53.7 KB · Views: 199
  • Fw2.jpg
    47.3 KB · Views: 199

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,404
Website
www.amazon.com
"Several changes were made to the design as a result of the testing, including new DVL propellers in place of the original Junkers-Hamiltons, and experimental twin wheel bogies that were abandoned after testing".

Twin wheel bogies????

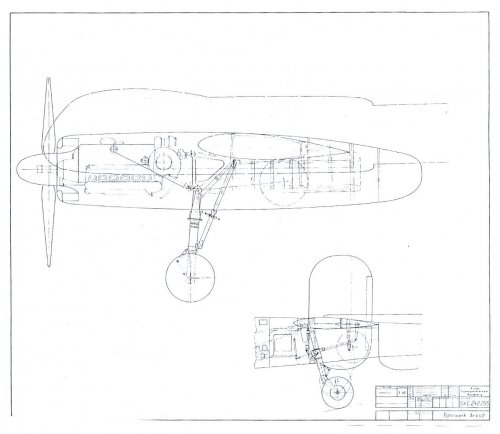

I have some Ar E-240 V2 stuff only

[/quote]


Attachments

  • Escanear0001.jpg
    140.4 KB · Views: 167
  • Escanear0002.jpg
    101.3 KB · Views: 175

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
131
Hello chaps,

thank you Justo and Richard for sharing this tremendous material.

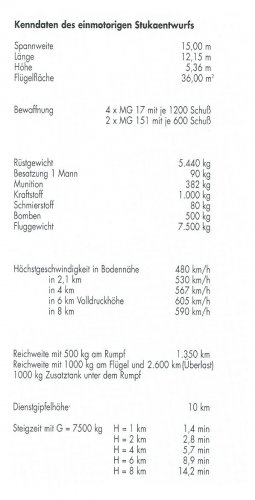

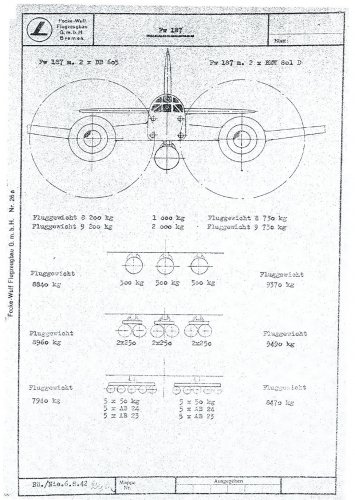

Hi tophe, I was relating to the third image in this thread, "Kenndaten der Einmotorigen Stukaentwurfs". It means roughly "Specifications of the single engined dive bomber development", and besides the span ( around 15m ) all other data is far from the "Falke". Justo, can you give us the context in which this specifications are included in that article? Probably the text gives a hint.
