Speculative Heinkel 100 Variants

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,766
https://en.wikipedia.org/wiki/Heinkel_He_100

"There was also a serious shortage of advanced aero engines in Germany during the late 1930s. The He 100 used the same Daimler-Benz DB 601 engine as the Messerschmitt Bf 109 and Bf 110, and there was insufficient capacity to support another aircraft using the same engine. The only available alternate engine was the Junkers Jumo 211, and Heinkel was encouraged to consider its use in the He 100. However, the early Jumo 211 then available did not use a pressurized cooling system, and it was therefore not suitable for the He 100's evaporative cooling system(Skin cooler)."

"The only option open to Heinkel was a switch to another engine, and the RLM expressed some interest in purchasing such a version of the He 100. At the time the only other useful inline engine was the Junkers Jumo 211, and even that was in short supply. However, the design of the He 100 made adaptation to the 211 difficult; both the cooling system and the engine mounts were designed for the 601, and a switch to the 211 would have required a redesign. Heinkel felt that it wasn't worth the effort, considering that the aircraft would end up with inferior performance, and so the He 100 production ends on that sour note. For this reason, more than any other, the Focke-Wulf Fw 190 became the next great aircraft of the Luftwaffe, as it was based around the otherwise unused Bramo 139 (and later BMW 801) radial engine. Although production of these engines was only starting, the lines for the airframes and aircraft could be geared up in parallel without interrupting production of any existing design, which was exactly what happened."

http://www.alternatehistory.com/discussion/showthread.php?t=141490
http://beyondthesprues.com/Forum/index.php?topic=1552.0


Attachments

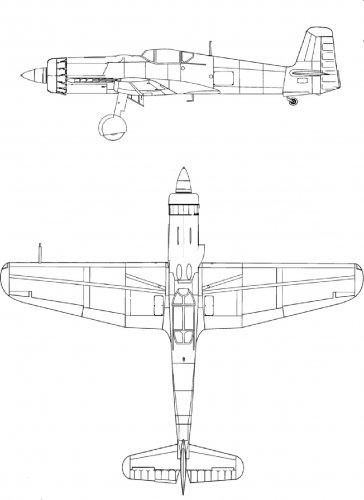

  • He100 with Jumo211 engine.jpg
    He100 with Jumo211 engine.jpg
    128.6 KB · Views: 241

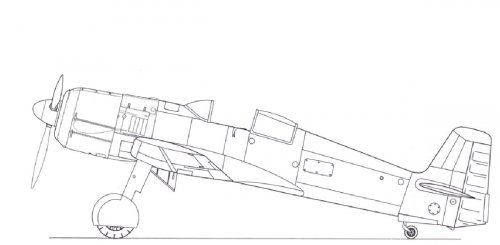

  • He100 with BMW801 engine.jpg
    He100 with BMW801 engine.jpg
    69.6 KB · Views: 238

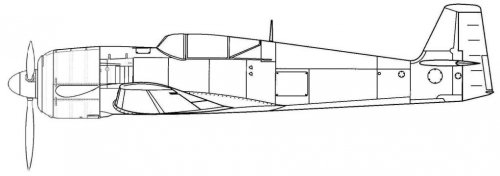

  • 2d4bcda0.jpg
    29.1 KB · Views: 226

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,048
Reaction score
568
Website
beyondthesprues.com
I can assure you that the second and third images are pure whiff - I did them years ago.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,766
GTX said:
I can assure you that the second and third images are pure whiff - I did them years ago.
Thanks a lot. I think your these drawings are excellent speculative drawings. ;)


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
518
Reaction score
51
The BMW 801 cowling seems to be out of scale (or this would be not a He 100 conversion, but a new design similar in shape but notably bigger).
