So pick one:

These are the same radars, and hence Su-57 side array is PESA.
These are the same radars, but the Su-57 uses a different AESA side array not yet shown.
These are different radars.



[stealthflanker]

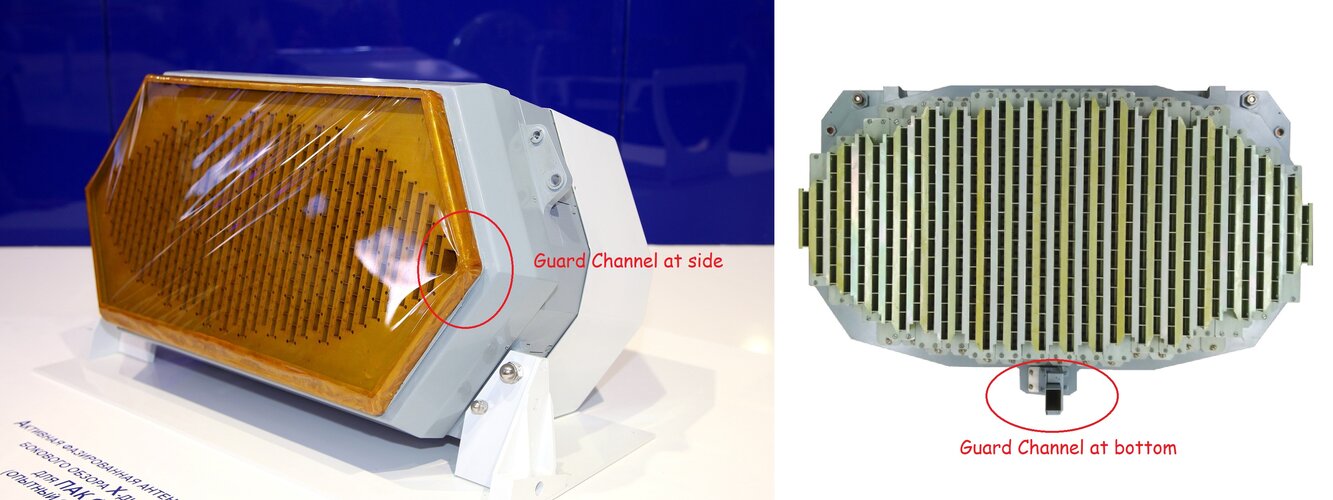

I would say different radar from the position of the guard channel.

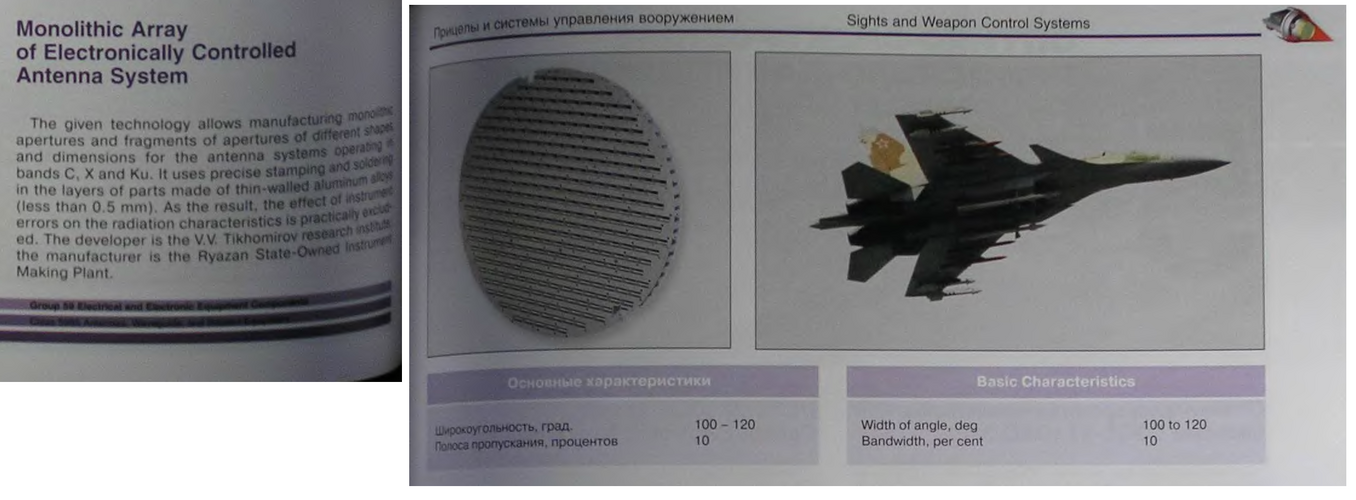

Regarding PESA or AESA tho, Russians been using same horn/waveguide end radiators for both their AESA and PESA design. Particularly one designed by NIIP Thikomirov.



[QuadroFX]

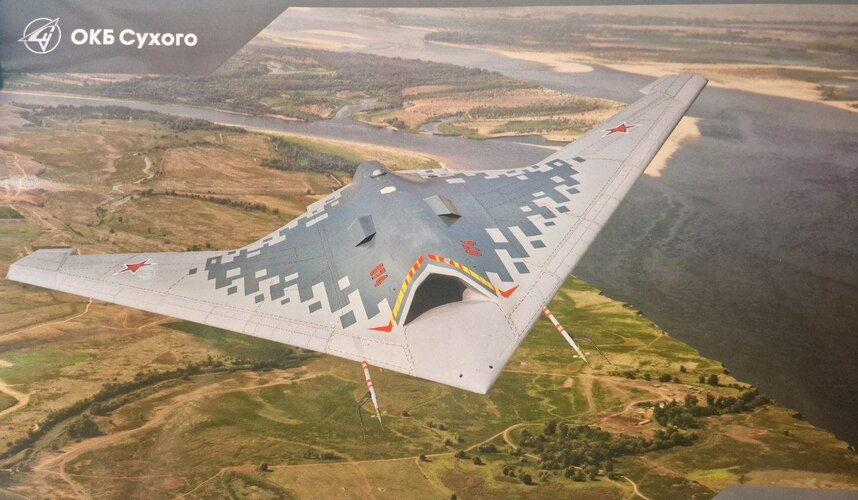

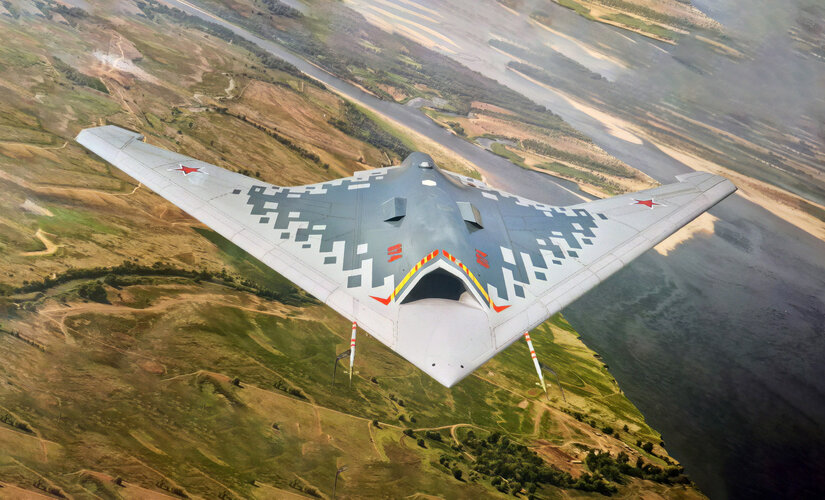

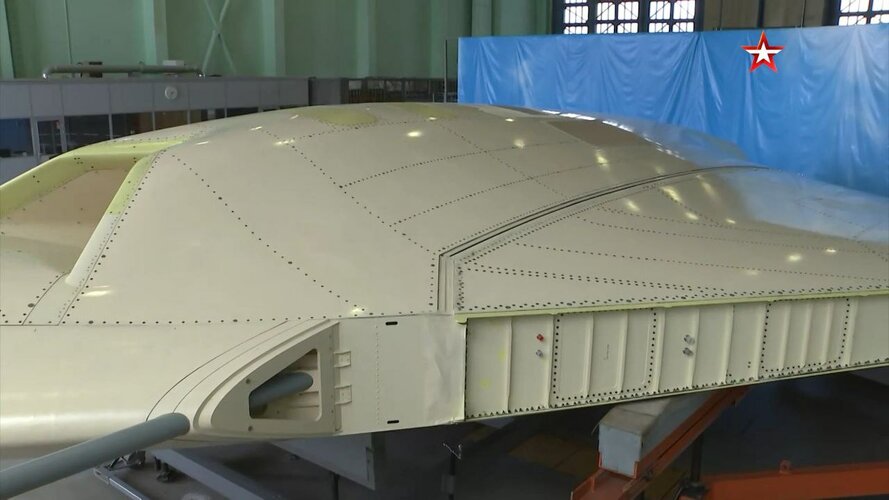

Second(?) prototype

Fighterbomber

t.me



[QuadroFX]

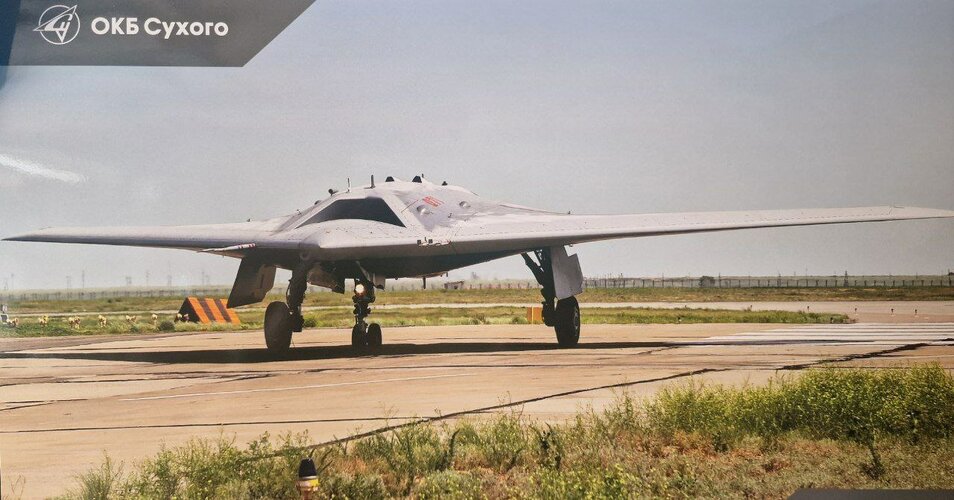

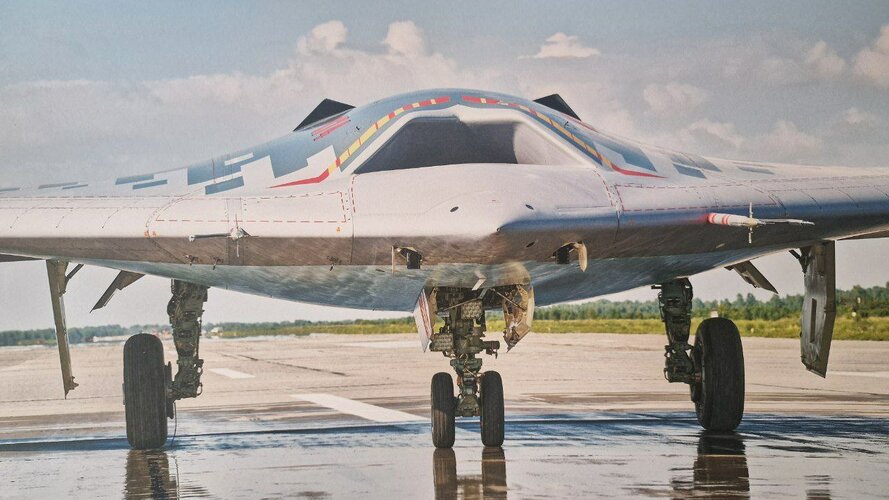

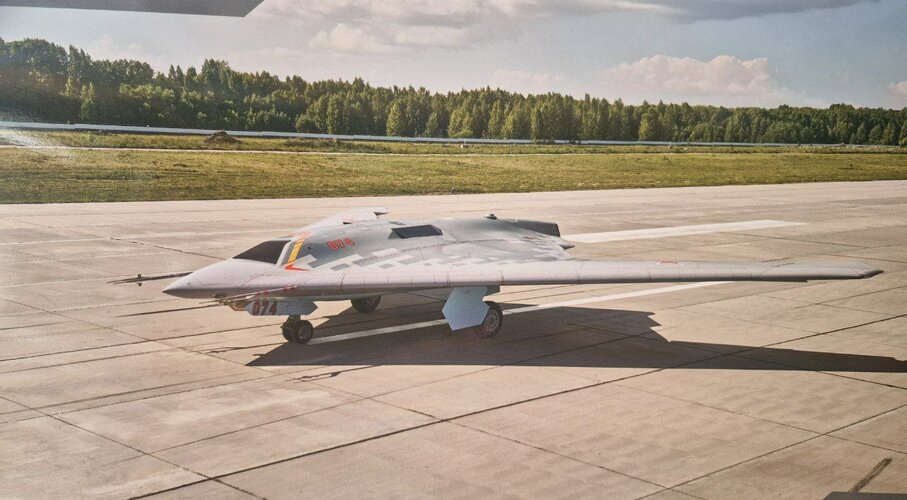

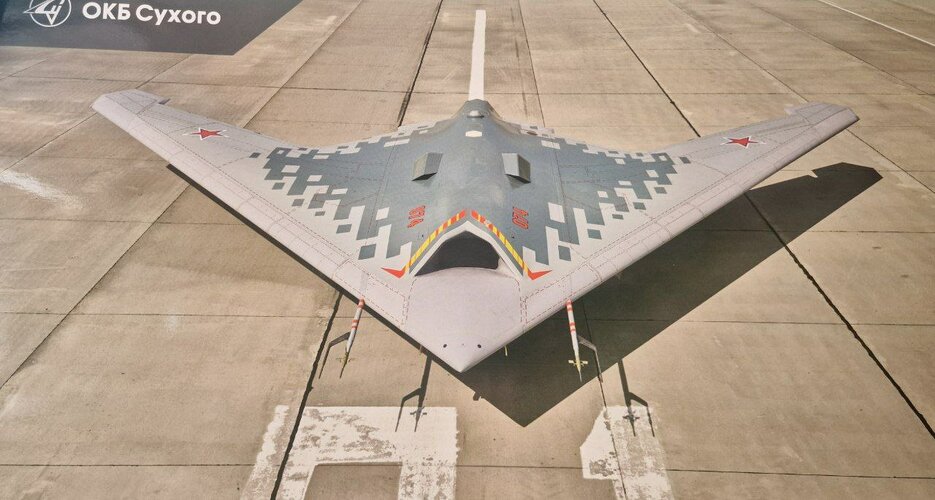

First prototype and artificial hi-res as option:

Spoiler: Artificial high resolution images by Topaz software



[Willythekid]

Thanks PS!



[flateric]

It wouldn't fly long with control surfaces dropped / hydraulic system pressure off like here



[Acatomic]

Rumor:
Yesterday a good friend from the aviation industry said: "The pilot batch has been launched."

С-70 "Охотник" / Су-70Б • Форум "Стелс машины"

Авиация, флот и космос - реальность и перспектива.

paralay.iboards.ru

I would say this rumor has a high probability of being true since we saw all the production rigs, and it matches the timeline in the available documents.

Rumor confirmed:
https://rostec.ru/news/vladimir-art...t-interesa-k-nbsp-rossiyskomu-oruzhiyu-v-nbs/

— At what stage are the tests of the heavy attack drone S-70 Okhotnik?

— The program is currently at the preliminary testing stage. Several prototypes are flying. At the same time, the UAC plant is preparing to manufacture a pilot batch of heavy attack drones. The project is going according to plan.
