Soviet N1 rocket

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,384
Reaction score
1,423

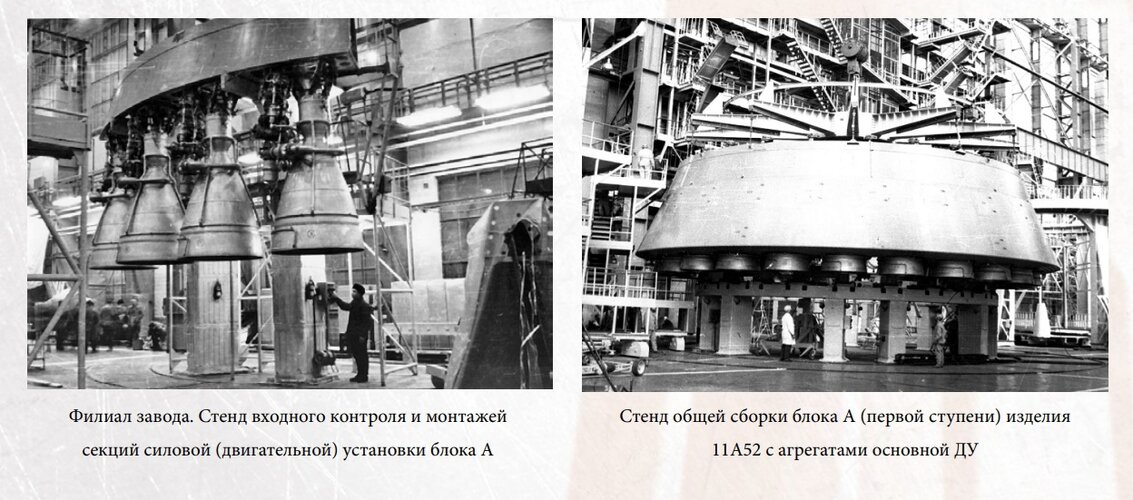

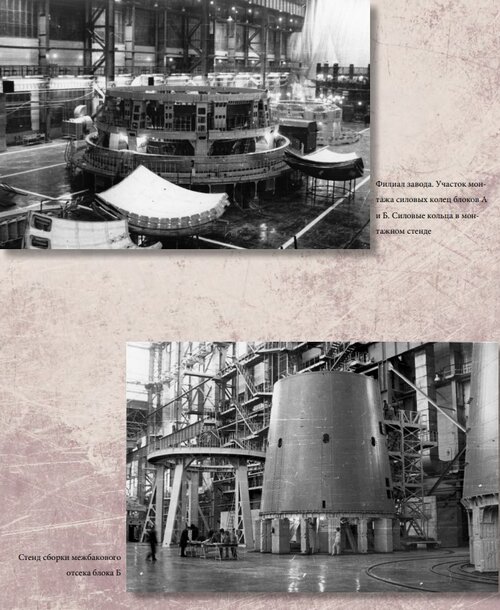

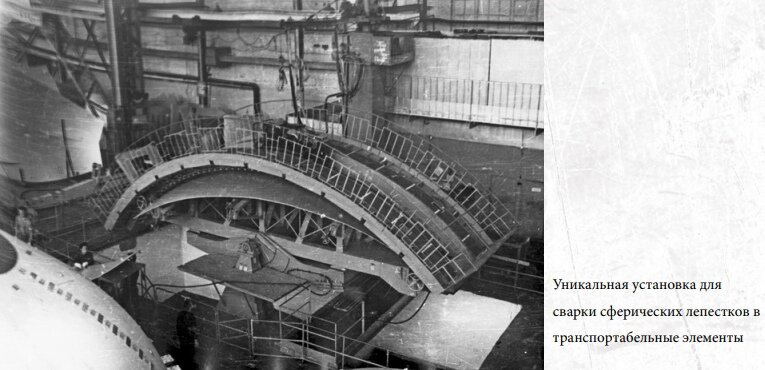

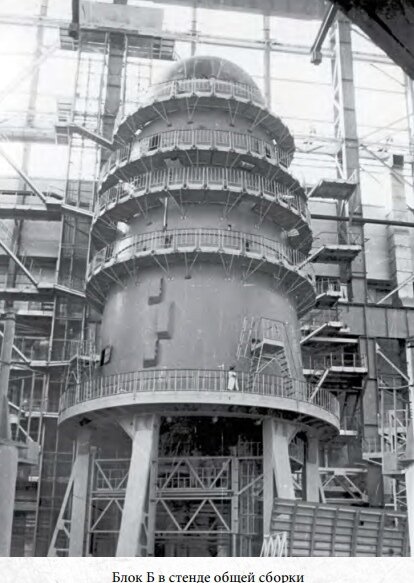

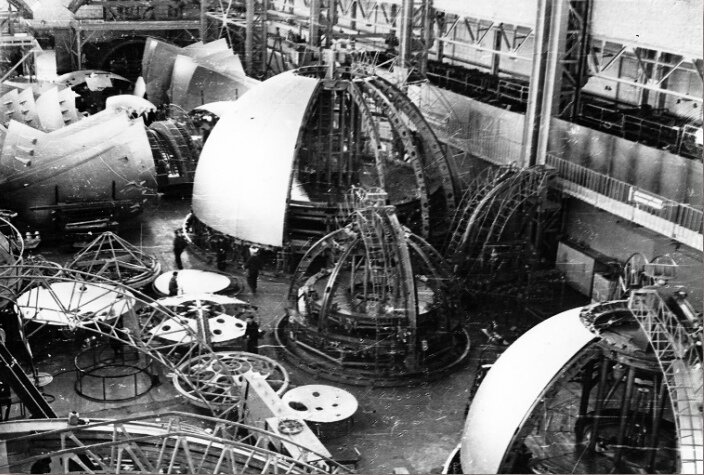

That must have been something to see them tip THAT beast to vertical.


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
749
Reaction score
153
A video
https://www.youtube.com/watch?v=BLg1QUq5GQM
https://www.youtube.com/watch?v=kk8rc6p_jmc


merriman

David Douglass Merriman lll
Joined
Mar 18, 2013
Messages
477
Reaction score
587
This is good stuff! Not too far from photo-real. Amazing.

David


FighterJock

ACCESS: Top Secret
Joined
Oct 29, 2007
Messages
1,571
Reaction score
332
Anyone know what caused the N-1 rockets to fail? I have read various articles that say it was the engines that did not produce enough thrust to software problems in the rockets hardware.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
too lazy to read wiki?


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
854
Reaction score
220
Beyond the immediate causes as described in Wikipedia:

- Early on, it was decided not to build a test stand for the first stage, as this would take too long (I've also seen a claim that a test stand would tie up too much of the USSR's concrete production, but haven't been to able to find a source for this). Instead, they planned to do a series of launches with dummy payloads. 14 tests were planned, and it was expected that a lot of these would lead to launch failures/explosions.

- The death of Korolev slowed down the program, and the new director wasn't a fan of the N-1.

- There were quality control issues (one of the failures was caused by welding slag left behind in a propellant tank).

- The engines were designed for single use, to the point where they couldn't be test-fired prior to installation in the stage. They 'solved' this by building engines in batches of 6, testing 3 of them and if they passed, installing the remaining 3. A follow-on design that fixed this was scheduled for the 5th launch, IIRC.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,763
Reaction score
1,909

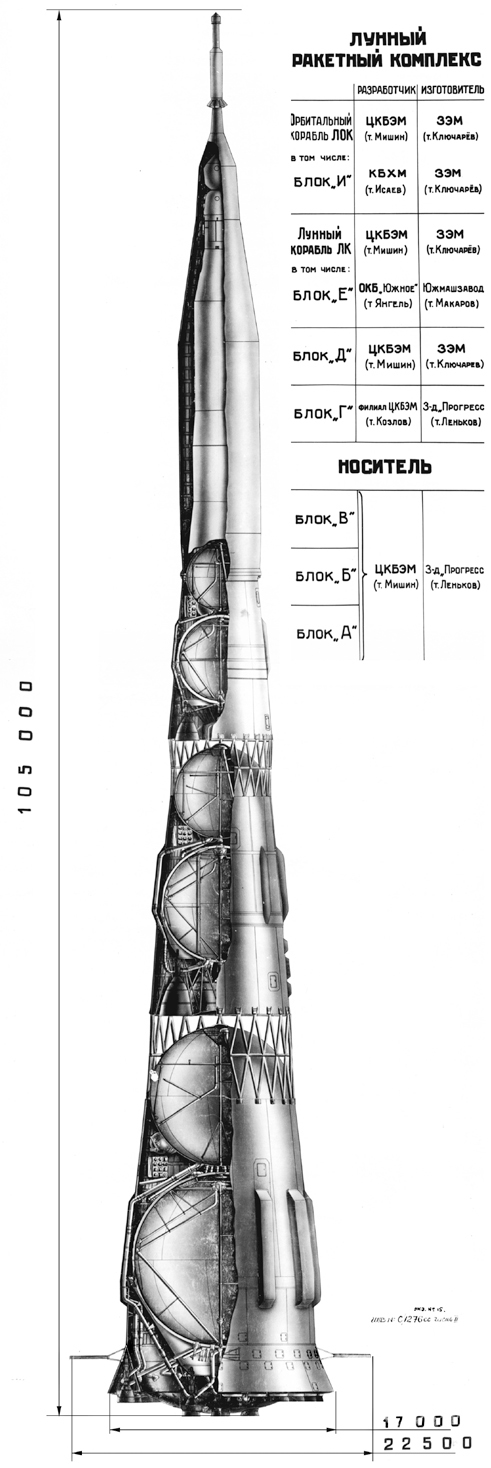

With regards as to the L3 Lunar Expedition, as well as the follow on L3M plans:
L3 - Russian manned lunar expedition. Development begun in 1964. All hardware was test flown, but program cancelled in 1974 due to repeated failures of the project's N1 launch vehicle. Status: Cancelled 1974. Gross mass: 95,000 kg (209,000 lb).


L3M - Russian manned lunar base. Study 1970-1972. Follow-on to the L3, a two N1-launch manned lunar expedition designed and developed in the Soviet Union between 1969 and 1974. Status: Study 1970.

Last edited:

Flyaway

ACCESS: Top Secret
Senior Member
Joined
Jan 21, 2015
Messages
4,280
Reaction score
1,981

View: https://twitter.com/nick_stevens_gr/status/1322856728074092547


A video I did of the Soviet N1-3L at the launch tower, for the first edition of the book "N1 for the Moon and Mars"

View: https://twitter.com/nick_stevens_gr/status/1322862746992562177


The second edition is well underway, with a LOT more information, and many new high quality photographs.

It will be extending to cover competing Soviet Moon rockets, and alternate lander designs.

View: https://twitter.com/nick_stevens_gr/status/1322868092280688641


The current very rough estimate is that we will have it written and ready for the Kickstarter about the end of March.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,198
Reaction score
1,734
I love the seemingly never-ending access stairs on the side of the tower. Must have been one hell of a cardio-training for the ground crews, climbing up and down those things.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,198
Reaction score
1,734
With regards as to the L3 Lunar Expedition, as well as the follow on L3M plans:
L3 - Russian manned lunar expedition. Development begun in 1964. All hardware was test flown, but program cancelled in 1974 due to repeated failures of the project's N1 launch vehicle. Status: Cancelled 1974. Gross mass: 95,000 kg (209,000 lb).


L3M - Russian manned lunar base. Study 1970-1972. Follow-on to the L3, a two N1-launch manned lunar expedition designed and developed in the Soviet Union between 1969 and 1974. Status: Study 1970.

The Soviets surely had a shitload of lunar programs running in parallel ! No surprise they ran out of money pretty fast.

- E-8 robotic orbiters
- E-8 robotic sample scoopers
- E-8 robotic lunokhods
- L-1 manned lunar flyby ship
- LOK-L3 "official" manned lunar program
- UR-700 / LK-700 / RD-270 "backup" plan (there was a decree + some tests)
- L3M : Mishin improved lunar plan post 1970.

And by the year 1969 all of them collided together like a train wreck.

-the RD-270 was running on the bench
- Mishin started working on the L3M
- The N-1 launched twice and exploded twice
- The very unreliable Proton was overburdened with... everything else: all three Ye-8s plus the agonizing L-1, plus Mars and Venus probes.

Baikonur was a pretty dangerous place: between two huge N-1 explosions a Proton poisoned its launch complex with storable propellants - after exploding uncomfortably close from the ground...

Last edited:

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
656
The Soviets surely had a shitload of lunar programs running in parallel ! No surprise they ran out of money pretty fast.
Not only that, they fight under each other like Cats and Dogs, see Chelomei vs Mishin
Next to problem of Mishin way of "we need 12 N1 flights to test the Rocket", was not helpful.
Also that politburo not care and budget low was also hell of a problem...

...oh members of politburo ran for there life as that Proton try to return to it's launch pad !


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,198
Reaction score
1,734
And they ran fast, because it rained N2O4 and N2H4 - storables maybe, but toxic and corrosive like crazy, for sure. To think they wanted fluorine, at some point... they would have ran even faster. Or just dropped into ashes, Wile E. Coyote style.


Zoo Tycoon

ACCESS: Secret
Senior Member
Joined
May 27, 2008
Messages
385
Reaction score
414
The use of fluorine as a rocket fuel;-
“If, however, this coat is melted or scrubbed off, and has no chance to reform, the operator is confronted with the problem of coping with a metal-fluorine fire. For dealing with this situation, I have always recommended a good pair of running shoes.”

Ignition by John Clarke


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
926
Reaction score
374
Can't recall the mix that Glushko wanted to use but while the oxidizer made some sense (H2O2) the fuel he chose was (IIRC) some exotic boron thing that was not only deadly toxic as it was but the exhaust was highly corrosive as well. And I think everyone at some point did some work with fluorine... That they actually built a test site and did some testing ... Then again... I mean a nuclear propelled ICBM, the Orion drive, you can't fault the imagination.

Randy


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,198
Reaction score
1,734
What really surprised me was Lockheed FDL-5A's Rocketdyne AMPS-1 aerospike engine... that was build and tested with fluorine.
I suppose the Air Force badly needed the +50 seconds of isp (460 > 510) to take such risks.
Either to get closer from a SSTO or have better payload to orbit.
But on a piloted rocketplane with drop tanks on the wing leading edges...??!! gasp.


Zoo Tycoon

ACCESS: Secret
Senior Member
Joined
May 27, 2008
Messages
385
Reaction score
414
John Clarke (from Ignition) suggests FLOx was the favourite way forward for using Florine as a propellant. This is a mixture of liquid fluorine and liquid oxygen. The introduction of oxygen into the mix stabilises the Florine, changing its handling from “Deeply troubling” to “Deeply challenging ”.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
2,629
Reaction score
1,240
The failure of the N1 is in marked contrast to the success of the Soyuz, which has become the most used manned system.
Rather like the Titan and Gemini, Soyuz could have been an alternative, if risky, way to the Moon.
Saturn vs N1 shows the advantage not just of Von Braun's absolute authority but the lavish amounts of money and industrial resource available to the USA. If it looks right it is. The relatively simple and effective modular approach of the Saturn V compared with the crazy piping and numerous nozzles of the N1, which looks like the plumbing system in the old film.The Mouse on the Moon.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
656
Can't recall the mix that Glushko wanted to use but while the oxidizer made some sense (H2O2) the fuel he chose was (IIRC) some exotic boron thing that was not only deadly toxic as it was but the exhaust was highly corrosive as well.
It's Pentaborane with N2O4 for UR-700
it would have increased specific impulse of the RD-270M engine by 42 seconds
i hear that Glushko worked also on engine that burn 30% Beryllium / 70% Hydrazine+Pentaborane mixture.

Against that, the Proton H4 stage with Fluorine /Ammonia sound suddenly healthful !


Byeman

ACCESS: Top Secret
Joined
Jan 8, 2010
Messages
794
Reaction score
19
The failure of the N1 is in marked contrast to the success of the Soyuz, which has become the most used manned system.
Rather like the Titan and Gemini, Soyuz could have been an alternative, if risky, way to the Moon.
Saturn vs N1 shows the advantage not just of Von Braun's absolute authority but the lavish amounts of money and industrial resource available to the USA.
It had nothing to do with Von Braun's "absolute authority", which never existed. Von Braun did not design the Saturn V. His organization did (Koelle). It was another center (Silverstein) that told him to use hydrogen in the upperstages. Also, all up testing was a Headquarters mandate (Mueller).

Also, it wasn't the "lavish amounts of money and industrial resource", it was just doing ground tests.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
656
It had nothing to do with Von Braun's "absolute authority", which never existed. Von Braun did not design the Saturn V. His organization did (Koelle). It was another center (Silverstein) that told him to use hydrogen in the upperstages. Also, all up testing was a Headquarters mandate (Mueller).
Had Von Braun his way
the Saturn V would be all Kerolox in all Stages and conduct around 12 test flights like Saturn I
4 flight First stage, 4 flights with First and second, 4 flights all Stages
Mueller say on that: NO WAY and after SA-501 & 502 was Saturn V qualified for manned flight

odd Mishin wanted also 12 test flights with N1

This question burn for years in my mind...
Has Mishin redesign of N1 doomed the Rocket ?
He went for super cooled Lox, dit he order change on Lox feedline to withstand that stress under those temperature ?


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
854
Reaction score
220
The failure of the N1 is in marked contrast to the success of the Soyuz, which has become the most used manned system.
Rather like the Titan and Gemini, Soyuz could have been an alternative, if risky, way to the Moon.
Saturn vs N1 shows the advantage not just of Von Braun's absolute authority but the lavish amounts of money and industrial resource available to the USA.
It had nothing to do with Von Braun's "absolute authority", which never existed. Von Braun did not design the Saturn V. His organization did (Koelle). It was another center (Silverstein) that told him to use hydrogen in the upperstages. Also, all up testing was a Headquarters mandate (Mueller).

Also, it wasn't the "lavish amounts of money and industrial resource", it was just doing ground tests.

Ground tests of the first stage were not carried out due to time pressure (it'd take too long to build the test stand), money was also a factor (the concrete required for such a test stand would disrupt other parts of the Soviet economy too much). So yes, (lack of) lavish amounts of money and industrial resources played a role. Official waffling was also a factor (they spent several years dithering over the N-1, by the time the decision was taken time pressure ruled out first stage tests).


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,198
Reaction score
1,734
If only they had picked the N-11 in place of Proton, back in 1962-63...
- Every time a N-11 flew, they would have tested the N-1, minus the rotten tricky first stage.
- They would have had mostly identical rockets for Zond and Soyuz LOK
- Proton could launch a Zond only into a lunar flyby; the more powerful N-11 could have send it into lunar orbit, Apollo 8 style. No need for N-1 there.
- bonus: no toxic contamination each time the rocket drove itself into the solid ground (or steppe).

Well ideally, they would have flown the N-11 first, repeatedly and reliably - then asked Glushko for a RD-270 powered first stage to go below it as a superbooster.

Although that would have probably caused plenty of different issues, obviously.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
Has Mishin redesign of N1 doomed the Rocket ?
He went for super cooled Lox, dit he order change on Lox feedline to withstand that stress under those temperature ?

Mishin proposed the modification to add 6 more engine in the central aerospike dome.
My dear Archibald, said that it is necessary to underline that all wasn't only Mishin to blame for such fault.
By one side the LOK/LK complex inceased its mass from time to time, on the other side the growth rate of the NK-15 engines was fairly poor.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
656
Mishin proposed the modification to add 6 more engine in the central aerospike dome.
That too, what produce hell of problems during Test launches as they produce during flight and shutdown massive POGO

but biggest change Mishin made was to lower the LOX temperature from -199°C down to −202 °C
i wonder if Lox feed line got too brittle under those temperature...
Those feed lines make sharp bents into NK-15 engines Turbopumps what also can let to issue under POGO

Also hat the NK15 engines serious issues, from Quality, inspection.


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156

Ground tests of the first stage were not carried out due to time pressure (it'd take too long to build the test stand), money was also a factor (the concrete required for such a test stand would disrupt other parts of the Soviet economy too much). So yes, (lack of) lavish amounts of money and industrial resources played a role. Official waffling was also a factor (they spent several years dithering over the N-1, by the time the decision was taken time pressure ruled out first stage tests).

The failure of the N1 is in marked contrast to the success of the Soyuz, which has become the most used manned system.
Rather like the Titan and Gemini, Soyuz could have been an alternative, if risky, way to the Moon.
Saturn vs N1 shows the advantage not just of Von Braun's absolute authority but the lavish amounts of money and industrial resource available to the USA.
It had nothing to do with Von Braun's "absolute authority", which never existed. Von Braun did not design the Saturn V. His organization did (Koelle). It was another center (Silverstein) that told him to use hydrogen in the upperstages. Also, all up testing was a Headquarters mandate (Mueller).

Also, it wasn't the "lavish amounts of money and industrial resource", it was just doing ground tests.

Ground tests of the first stage were not carried out due to time pressure (it'd take too long to build the test stand), money was also a factor (the concrete required for such a test stand would disrupt other parts of the Soviet economy too much). So yes, (lack of) lavish amounts of money and industrial resources played a role. Official waffling was also a factor (they spent several years dithering over the N-1, by the time the decision was taken time pressure ruled out first stage tests).

I think there were a bunch of factors, many of them interconnected:
-late start (they did not think that Apollo was a real program until several years after it started)
-lack of resources
-poor management
-infighting

Some of those things are interrelated. For instance, the infighting meant that they didn't get the resources they needed. If there had been a stronger consensus, there would have been more resources. There was also a bit of self-delusion involved. Even in 1967 and 1968 they thought that they could beat the Americans, but that required the Americans to stumble badly.

To use a race analogy, they didn't start running until long after the starting gun fired, and they were out of shape. So while technically they were racing the Americans to the Moon, they were not doing a good job of it.
