Sikorsky S-67 Blackhawk

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121

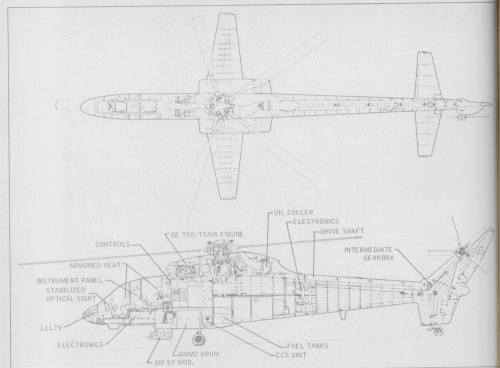

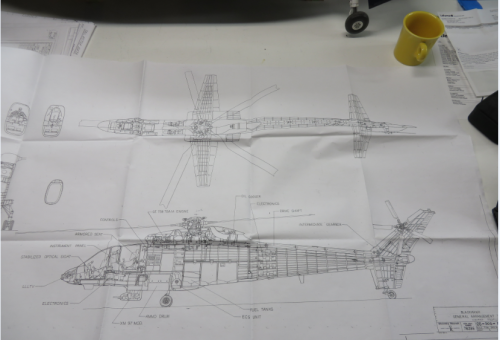

From AW 1971 94, an internal arrangement drawing, although the cabin isn't readily
recognisable here, contrary to the drawing in post #18:


Attachments

  • S-67_internal.gif
    239.3 KB · Views: 1,101

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
92
Website
sites.google.com
The S-67 with Fenestron rotor again, photo from the USAAM archives:


Attachments

  • 1448.jpg
    93.9 KB · Views: 777

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
92
Website
sites.google.com

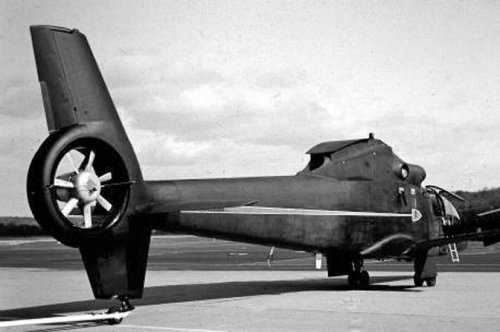

In-flight footage edited by Flyboy, from the Sikorsky FANTAIL DVD:


http://www.youtube.com/watch?v=S539vPUjYxE


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com
Source:
http://www.sikorskyarchives.com/S-67%20BLACKHAWK.php
http://www.abpic.co.uk/photo/1116351/


Attachments

  • S67-7A.jpg
    48.2 KB · Views: 554
  • 1116351F.jpg
    163.6 KB · Views: 520

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

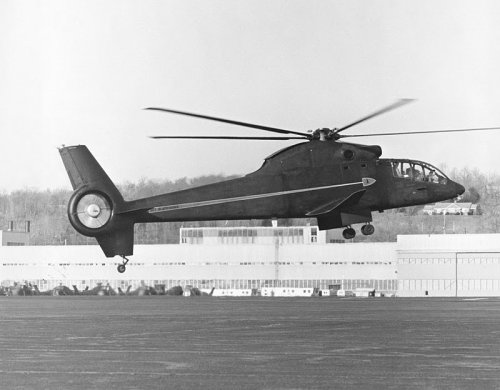

Sikorsky S-67 Fan-in-Fin Demonstrator.

Source:
http://www.sikorskyarchives.com/S-67%20BLACKHAWK.php


Attachments

  • S67-8A.jpg
    36.5 KB · Views: 125

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

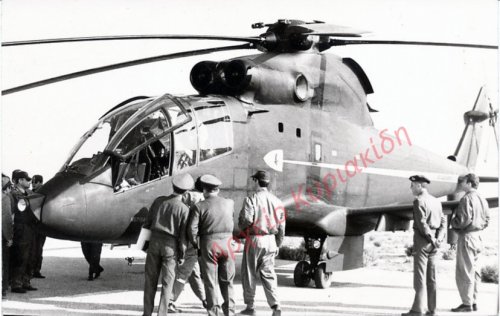

Who knows how I got S-67 in Greece


Attachments

  • img_0001ceb1 (1).jpg
    img_0001ceb1 (1).jpg
    106.3 KB · Views: 150

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42
who knows why the operations undertaken S-67 in Greece


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42
address http://hellenicarmyaviationhistory.wordpress.com/%CE%BB%CE%BF%CF%87%CE%B1%CE%B3%CE%BF%CF%83-%CF%84%CF%87-%CE%B5-%CE%B1-%CE%B4%CE%BF%CE%BD%CE%BF%CF%80%CE%BF%CF%85%CE%BB%CE%BF%CF%83-%CF%86%CF%89%CF%84%CE%B7%CF%83/


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121
mil said:
who knows why the operations undertaken S-67 in Greece

Judging the linked page, it was a demonstration tour during in Megara/Greece in 1971 to 72, using the S-67
N671SA, that later crashed in September 1974 in Farnborough.

C

CostasTT

Guest
Let me know if you need anything from the linked page translated from Greek to English. I'll be happy to help.


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

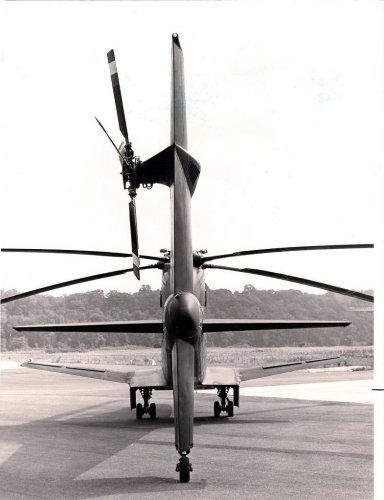

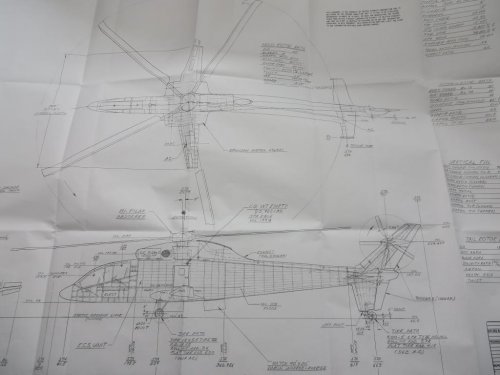

One of the rare S-67 staff


Attachments

  • 2013-03-04_182729.jpg
    140.8 KB · Views: 1,473

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

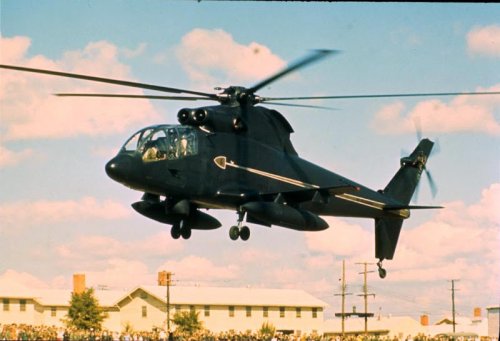

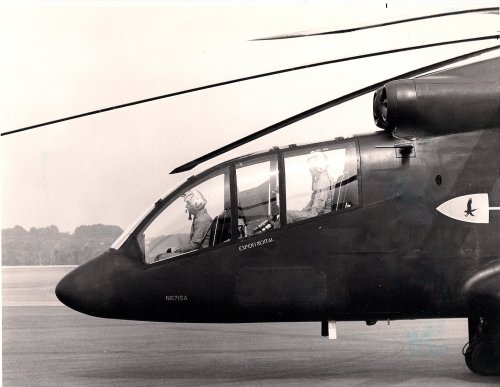

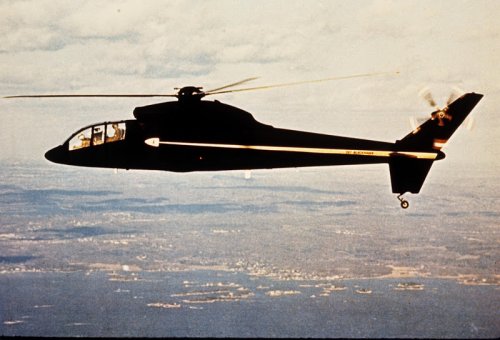

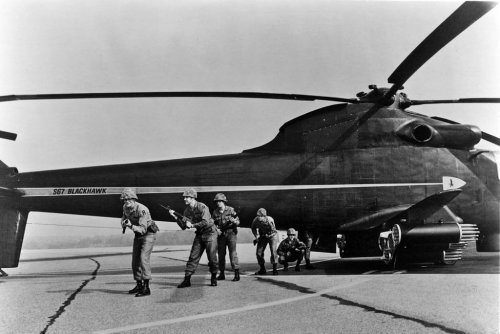

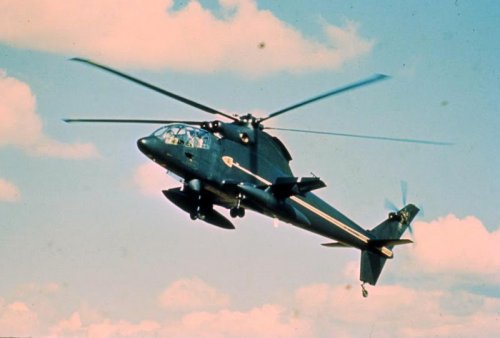

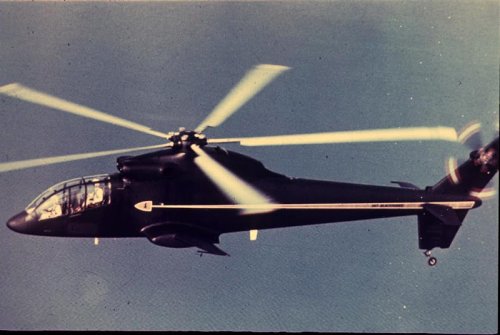

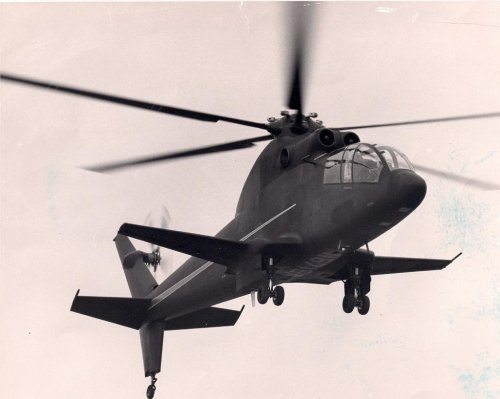

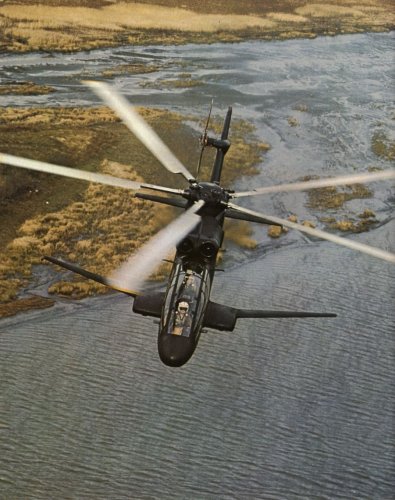

The Blackhawk in its original, handsome all-black scheme.


Attachments

  • 17-1.jpg
    198.6 KB · Views: 1,266

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

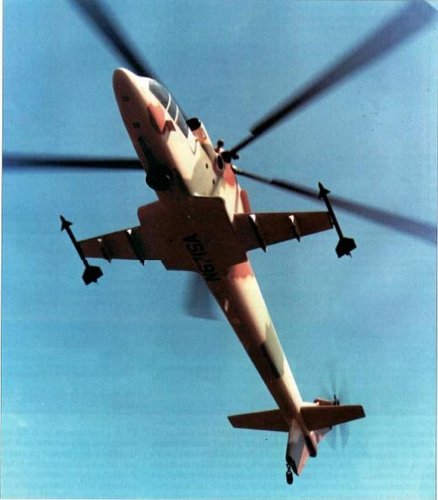

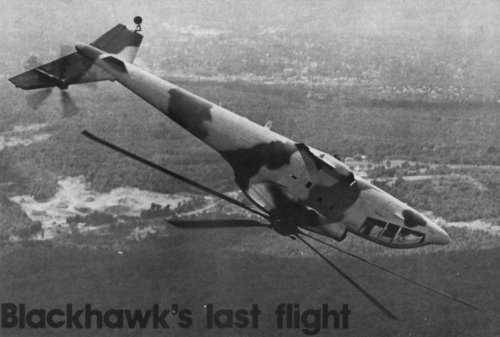

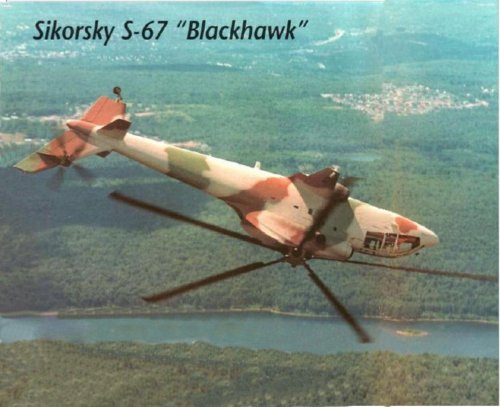

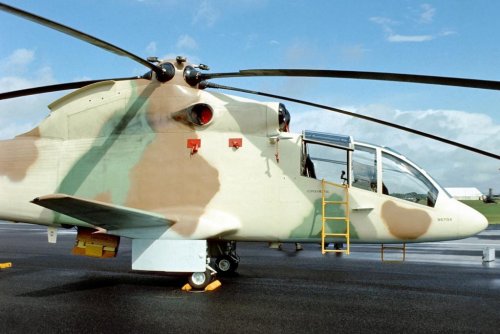

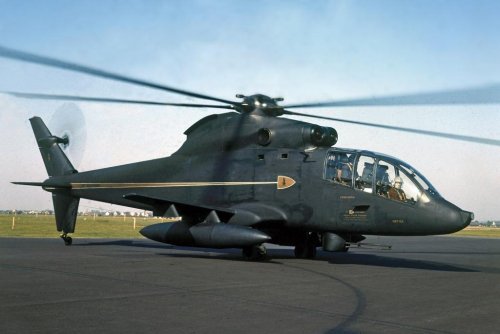

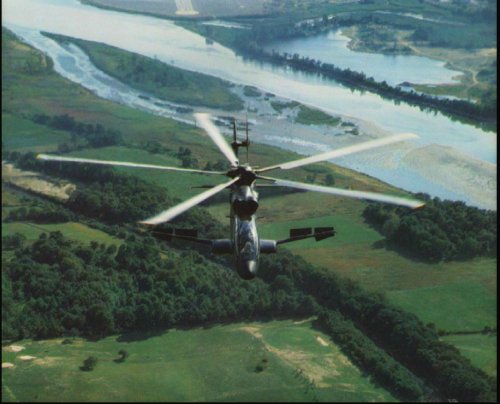

Picture shows the one and only Sikorsky S-67 Blackhawk rolling into a split-S turn in 1974, shortly after repainting in a camouflage finish. The world speed record for helicopters in its class is still credited to the S-67 [font=arial, helvetica, sans-serif][/size]http://crimso.msk.ru/Site/Crafts/Craft21815.htm[size=medium][/font]


Attachments

  • 17-2.jpg
    82.2 KB · Views: 1,168

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,357
Reaction score
404
second or third that emotion!


jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,357
Reaction score
404
what a resplendent creature...thank you for sharing :) :) :)


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,780
Reaction score
143
Had never seen that one, Thanks!


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

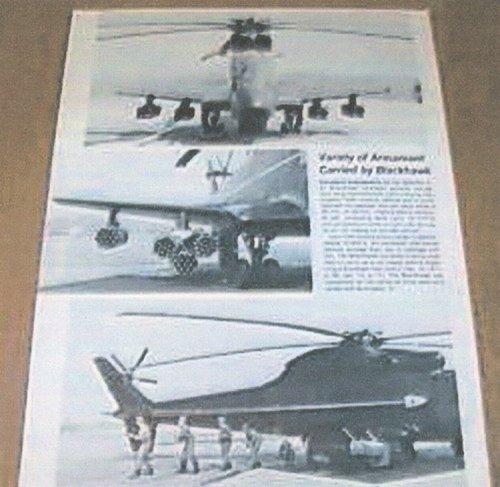

Tell me in what magazine published this image, in this photo quality is bad, I want a good quality of this photo, who can lay out?


Attachments

  • S-67.jpg
    113.5 KB · Views: 553

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121
Judging the layout and (as far as I can regognise) the type of font, it looks like AviationWeek to me.
I scanned some pictures/drawings from 1971 and 1974 issues, but unfortunately not the complete
articles.


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

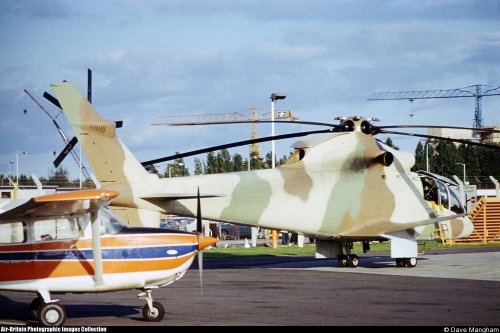

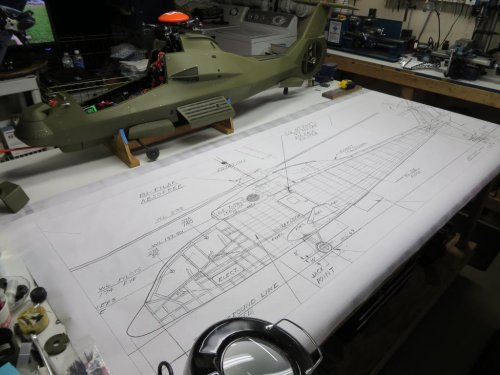

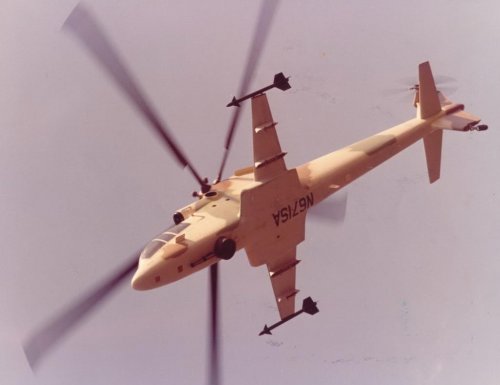

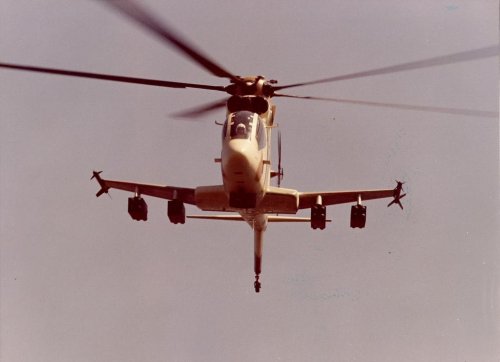

kamuflirovanny and black S-67 http://www.scalerchelis.com/phpBB2/viewtopic.php?f=14&t=16114


Attachments

  • S-67-50001.jpg
    84.5 KB · Views: 388
  • S-670001.jpg
    55.7 KB · Views: 140

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42
/


Attachments

  • S-67-60001.jpg
    75.5 KB · Views: 120
  • S-672.jpg
    1.1 MB · Views: 141
  • S-67-4.jpg
    40.9 KB · Views: 163

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
12,953
Reaction score
2,972
Stargazer said:
Wonderful pics, mil, thanks! The Blackhawk was just amazing from any angle!

It certainly would have shaken up the last decades of the Cold War if it had been adopted!


jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,357
Reaction score
404
Thank you mil for the pics. helps keep the faith :)


Hot Breath

I really should change my personal text
Joined
Mar 12, 2014
Messages
196
Reaction score
1
I've always felt that the Blackhawk was the West's equivalent of the Mi-24 Hind.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

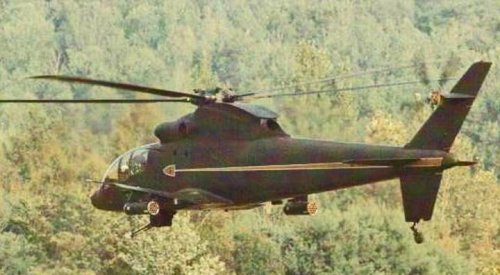

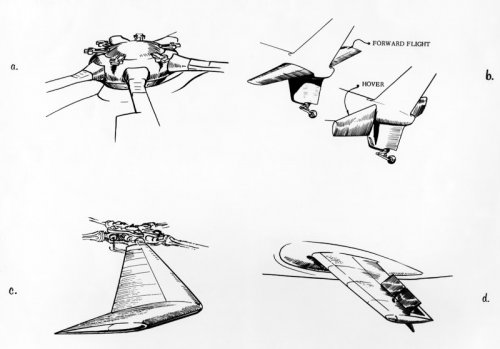

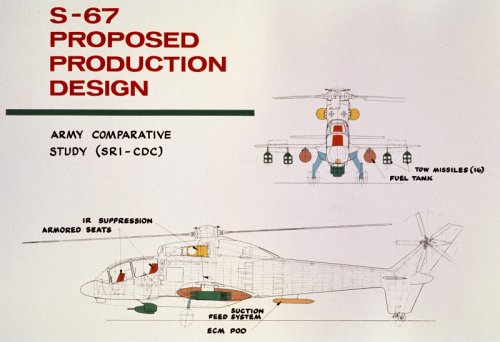

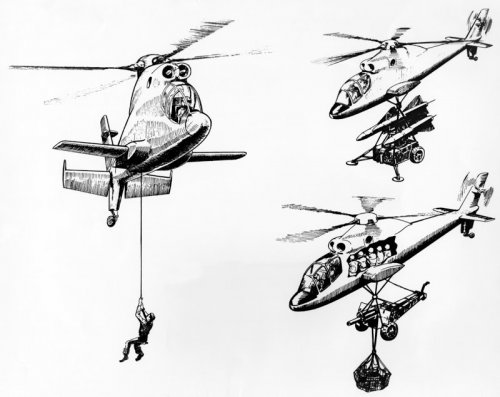

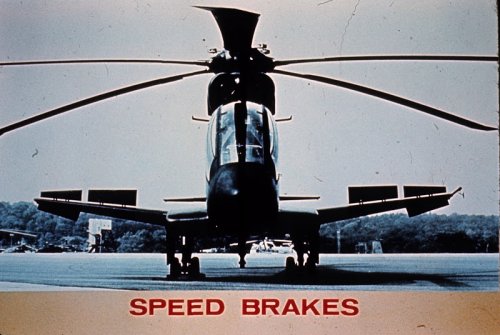

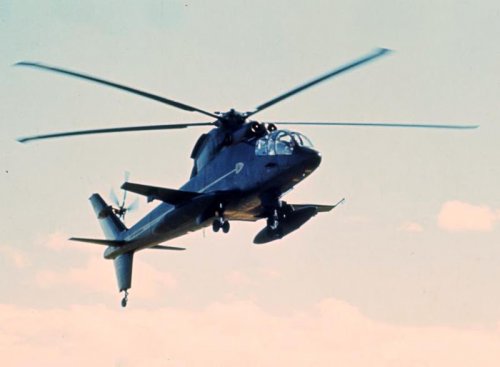

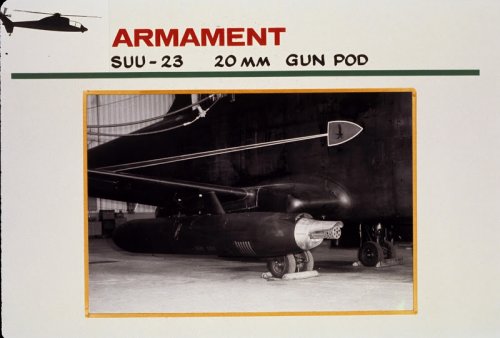

Originally posted by rotorwash on Stingray's Rotorcraft Forum.

Source:
http://stingraysrotorforum.activeboard.com/t26373067/sikorsky/?page=5#comment-47377339


Attachments

  • S-670010.jpg
    74.9 KB · Views: 108
  • Misc0007.jpg
    81.1 KB · Views: 129
  • Mischelo20048.jpg
    112.4 KB · Views: 314
  • Mischelo20049.jpg
    117.9 KB · Views: 279
  • S-670009.jpg
    73 KB · Views: 109
  • S-670008.jpg
    110.8 KB · Views: 952
  • S-670004.jpg
    83.5 KB · Views: 1,002
  • 1332.jpg
    59.1 KB · Views: 1,017
  • 1331.jpg
    82.2 KB · Views: 1,032
  • 1333.jpg
    51.7 KB · Views: 1,035

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

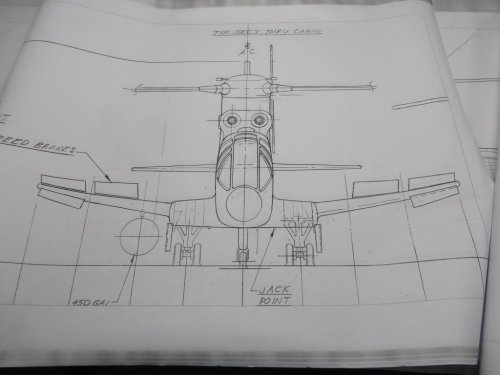

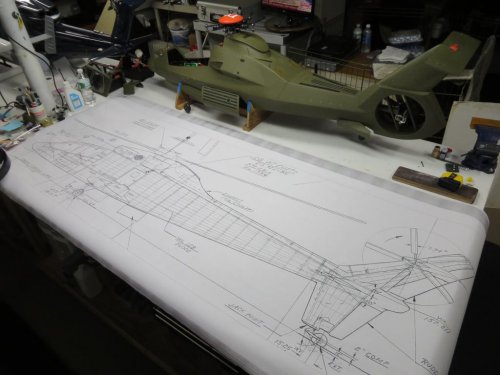

Originally posted by rotorwash on Stingray's Rotorcraft Forum.

Source:
http://stingraysrotorforum.activeboard.com/t26373067/sikorsky/?page=5#comment-47377339


Attachments

  • S-670002.jpg
    68.8 KB · Views: 121
  • S-670003.jpg
    58.5 KB · Views: 124
  • S-670001.jpg
    45.8 KB · Views: 147
  • Mischelo20051.jpg
    86.5 KB · Views: 131
  • Mischelo20050.jpg
    126.6 KB · Views: 96

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,488
Reaction score
707

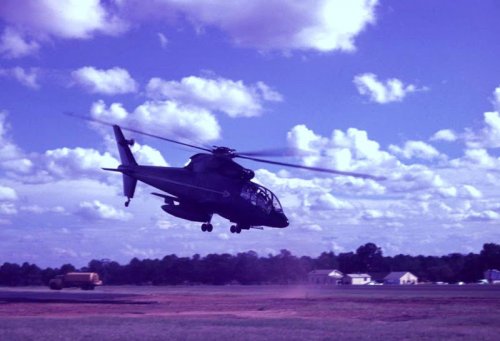

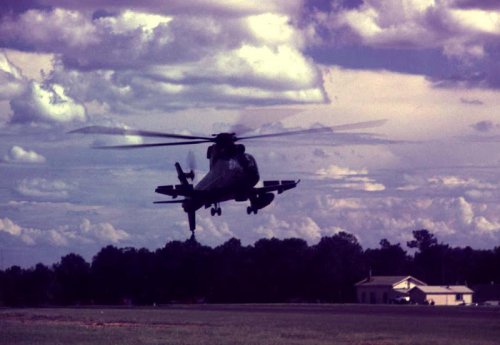

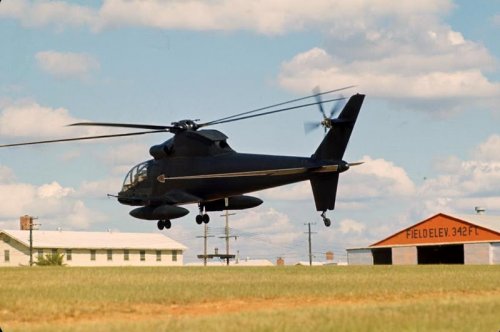

Wow! Great pictures. They were taken at Cairns Army Airfield which is the main airfield at the Army Aviation Center, Fort Rucker, AL. At least the color pictures with the external fuel tanks.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
542
Thanks for sharing these magnificent pics of what was arguably the most breathtaking helicopter ever!


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42
67


Attachments

  • =3.jpg
    71.9 KB · Views: 129
  • -7.jpg
    107.9 KB · Views: 131

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,


as I discovered before the Sikorsky DS-507 & DS-509,the S-67 was called DS-508;


http://www.scalerchelis.com/phpBB2/viewtopic.php?f=14&t=16114


Attachments

  • 4.jpg
    59 KB · Views: 148
  • 3.jpg
    85.2 KB · Views: 161
  • 2.jpg
    96 KB · Views: 169
  • 1.jpg
    75.8 KB · Views: 172
  • DS-508.png
    543.3 KB · Views: 186

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

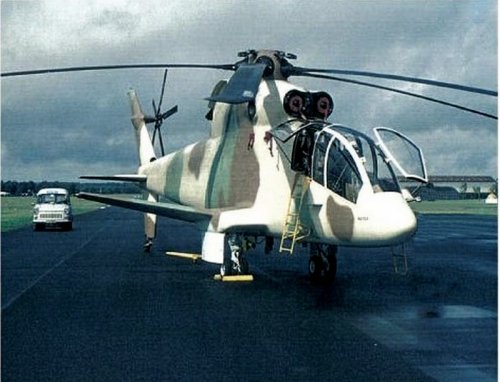

on the car which stands next to the S-67 to determine which country took this picture


Attachments

  • s-61- (2).jpg
    s-61- (2).jpg
    103.1 KB · Views: 244

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
542
I'm not anywhere near a car buff as I'm a plane buff... Still this car's design screams "British"!!!


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,426
Reaction score
839
Some pictures attached to this topic, which are from an article in the magazine Flug-Revue / Klassiker der Luftfahrt. :)

Links / Sources:
http://www.klassiker-der-luftfahrt.de/artikel/656916
http://www.klassiker-der-luftfahrt.de/geschichte/flugzeuge/sikorsky-s-67-blackhawk/656910/fsuebersicht


Attachments

  • fr 04-2015 Sikorsky S-67 (02)_7395258.jpg
    fr 04-2015 Sikorsky S-67 (02)_7395258.jpg
    84.1 KB · Views: 138
  • fr 04-2015 Sikorsky S-67 (05)_7395318.jpg
    fr 04-2015 Sikorsky S-67 (05)_7395318.jpg
    64.3 KB · Views: 167
  • fr 04-2015 Sikorsky S-67 (07)_7395358.jpg
    fr 04-2015 Sikorsky S-67 (07)_7395358.jpg
    84.9 KB · Views: 203
