Sikorsky Advancing Blade Concept (ABC) projects

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Not a new idea by Sikorsky : This ABC UTTAS proposal was shown
in Air & Cosmos 12.1968 (No design/type numbers given) :


Attachments

  • Sikorsky_UTTAS_ABC.JPG
    26.5 KB · Views: 1,245

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

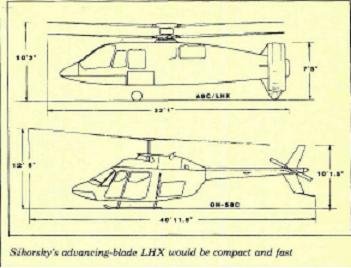

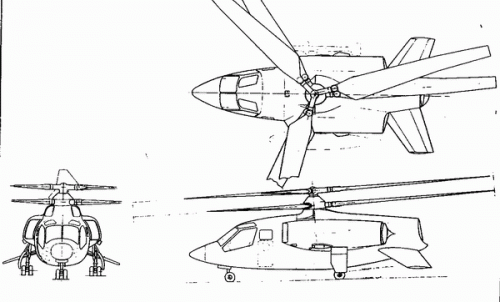

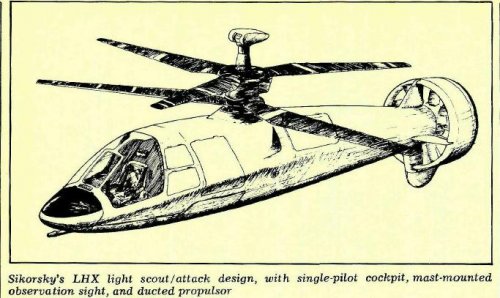

the Sikorsky LHX scout/attack project with single pilot.

http://www.flightglobal.com/PDFArchive/View/1982/1982%20-%201940.html?search=Grumman%20aircraft%20project%201985


Attachments

  • Sikorsky.JPG
    59.8 KB · Views: 1,163

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Another Sikorsky design, this time a LAAV proposal (Light Anti-Submarine Attack Vehicle),
using an ABC rotor and a pusher prop :
(from Aviation Week 1/1968 )


Attachments

  • Sikorsky-rigid-rotor-concepts-1.jpg
    26.6 KB · Views: 1,103

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,566
Reaction score
879

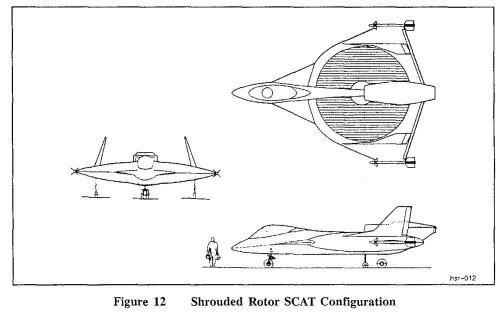

As the Sikorsky team worked on the ABC concept, they had a tremendous number of ideas. With the development of the X-59 there was a whole family of concepts developed, although I doubt many of them got beyond the very rough draft stage. A lot of the efforts went into deep freeze when the US Army elected to remain with conventional rotorcraft for the LHX program.

I include the second picture to show that even Sikorsky, who have been accused of being overly cautious in their design approach (not that anyone could blame them considering the vacillation of their primary customer), can think outside the mainstream box when asked to.


Attachments

  • Sikorsky_x-59_family.jpg
    101.9 KB · Views: 1,334
  • Sikosky_ShroudedRotor_Attack.jpg
    43 KB · Views: 502

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Very good projects my dears Jemiba and Yasotay,

and anther Sikorsky ABC and LHX projects from 1983.

http://www.flightglobal.com/PDFArchive/View/1983/1983%20-%201515.html


Attachments

  • Sikorsky.JPG
    16.9 KB · Views: 317

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,566
Reaction score
879
I agree with you Low. I also think that their earlier work (see Jemiba's Reply #7 on: December 26, 2007, 12:36:20 pm) had much influence. Of note though as the Sikorsky team went through their design iterations for the X2HS design, the ducted fan lost the ducting very early in the design process. Once they established that only troops over seven feet tall need be concerned with the props. I was not in on the discussion as to what aero-benefits were lost with removing the shrouds, however I do know that they were looking for any weight savings they could find. So I suspect that it was weight not aero-performance that cause Sikorsky to remove it.

I am hoping to find someone at Sikorsky who can dig up information on the Marine transport project in particular. Here is [a page of "What If" artwork] that I did over at the What If Speculative Modeling Forum. Had Sikorsky had the solution for the ABC challenges found with the X-59 program and the USMC had not elected to stay with the JVX program.

http://www.secretprojects.co.uk/forum/index.php/topic,3254.msg26237.html#msg26237


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Was there a collaboration during the '70s between Sikorsky and Westland in
the filed of the ABC rotor ?
At least this Westland design for a naval helicopter would fit perfectly into the
chart of Sikorsky projects (fromWestland Aircraft since 1915, Derek N.James, Putnam).


Attachments

  • Westland_ABC_naval.gif
    46.8 KB · Views: 432

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

the Sikorsky naval helicopter project in 1982.

http://www.flightglobal.com/PDFArchive/View/1982/1982%20-%200645.html


Attachments

  • Sikorsky.JPG
    56.7 KB · Views: 394

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,766
Sikorsky 350mph commercial project

Source:
Flying Review International, August 1968


Attachments

  • Sikorsky-ABC.jpg
    58.2 KB · Views: 264

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
Can someone tell me about the compound helicopter in this concept art? It reminds me a lot of the Sikorsky S-69 / XH-59 from 1972. Was this concept a possible configuration for a navalized Blackhawk? Was this part of Sikorsky ABC?


Attachments

  • Sikorsky-VTOL.jpg
    77.5 KB · Views: 2,105

saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
8
Website
www.aerofile.ca
Triton said:
Can someone tell me about the compound helicopter in this concept art? It reminds me a lot of the Sikorsky S-69 / XH-59 from 1972. Was this concept a possible configuration for a navalized Blackhawk? Was this part of Sikorsky ABC?

I agree, looks like a USN XH-59.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,316
Reaction score
245
The same picture has shown up on another post on the forum (can't remember which), and yes, that is positively a Sikorsky brainchild.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
AeroFranz said:
The same picture has shown up on another post on the forum (can't remember which), and yes, that is positively a Sikorsky brainchild.

It is a Sikorsky-designed vehicle and identified as such in the US VSTOL projects thread. I would like to know more.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,566
Reaction score
879
Unless someone knows better I think that it is nothing more than a concept that Sikorsky came up with to try and drum up support for continuing to work on the ABC rotor system. I do not think a lot of detailed work was done on the concept. There is a picture as I recall shows all sorts of ABC concepts for just about every mission the military has.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
yasotay said:
Unless someone knows better I think that it is nothing more than a concept that Sikorsky came up with to try and drum up support for continuing to work on the ABC rotor system. I do not think a lot of detailed work was done on the concept. There is a picture as I recall shows all sorts of ABC concepts for just about every mission the military has.

Thanks yasotay. I saw your artwork for a possible Sikorsky ABC rotor system version of the V-22 Osprey and a chart on this forum in another thread titled that had various configurations of ABC rotor system aircraft. It led me to believe that Sikorsky's ABC technology had competed against the Bell tilt-rotor technology.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930008694_1993008694.pdf


Attachments

  • Sikorsky 1.JPG
    Sikorsky 1.JPG
    28.8 KB · Views: 682
  • Sikorsky 2.JPG
    Sikorsky 2.JPG
    32.1 KB · Views: 681

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
Artist's impression of Sikorsky helicopter.

Glued to the back of the photograph:

CONCEPT OF SPEED

WASHINGTON, DC: This artist's rendering illustrates the Sikorsky Aircraft Company's concept of a light helicopter able to fly at 350 miles an hour. The design was discussed recently (9/16) at a meeting of the Air Force Association. Twin rotors mounted on a single axis and containing truly rigid blades -- different from the blades now mounted with hinges or flexible metal joints-- supply a balanced and superior lift. A pusher-propeller can be installed to provide auxiliary forward thrust.

(UPI PHOTO) 9/20/66

Source:http://cgi.ebay.com/ARTISTS-RENDERING-OF-THE-SIKORSKYS-CONCEPT-PHOTO-1966_W0QQitemZ380207439619QQcmdZViewItemQQptZLH_DefaultDomain_0?hash=item5886211f03


second picture added from Tritons post in the eBay section


Attachments

  • Heli-05.JPG
    335.5 KB · Views: 145
  • SikorskyConcept.JPG
    59.2 KB · Views: 522

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
The same picture was shown in Aviation Week, May 1967 with the description:
"Sikorsky's latest "Adavancing Blade Concept" pushes helicopter speeds over
300 m.p.h. Prototype hardware now under construction".


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
136
Reaction score
53
Someone can lay out picture Sikorsky S-69 from magazine Popular Science September 1982года on page 69. Thanks.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

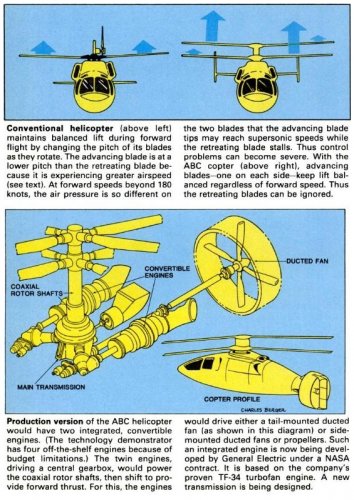

Here are the images for said article. Full page photograph scan offered on the Popular Science site is really lousy, so I had to apply some heavy photo editing, and even then it's not very good...


Attachments

  • Image13s.jpg
    279.8 KB · Views: 577
  • Image17.jpg
    196.5 KB · Views: 445
  • Image18.jpg
    334.5 KB · Views: 309

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
...


Attachments

  • xh-59a_concepts.jpg
    116.2 KB · Views: 537

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,316
Reaction score
245
Nice family picture! ;)

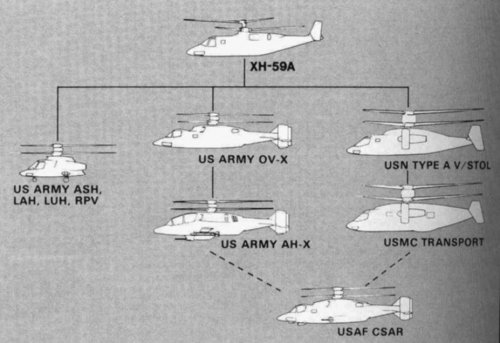

Interesting to see the transport version with split thrusters to accomodate a rear ramp.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,033
Reaction score
219
Dear Boys and Girls, here is a picture with a caption in French of the same Sikorsky co-axial rigid-rotor compound helicopter "project" with Lockheed-type rigid-rotors and a pusher propellor in the tail. The caption does not mention the high (350mph) speed quoted in other articles on the same "project".....

The picture comes from the 1st May 1967 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Sikorsky co-axial rigid-rotor compound helicopter project - Aviation Magazine International - No.jpg
    Sikorsky co-axial rigid-rotor compound helicopter project - Aviation Magazine International - No.jpg
    93.3 KB · Views: 173

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,442
Reaction score
4,183
Triton said:
Can someone tell me about the compound helicopter in this concept art? It reminds me a lot of the Sikorsky S-69 / XH-59 from 1972. Was this concept a possible configuration for a navalized Blackhawk? Was this part of Sikorsky ABC?

Triton said:
yasotay said:
Unless someone knows better I think that it is nothing more than a concept that Sikorsky came up with to try and drum up support for continuing to work on the ABC rotor system. I do not think a lot of detailed work was done on the concept. There is a picture as I recall shows all sorts of ABC concepts for just about every mission the military has.

Thanks yasotay. I saw your artwork for a possible Sikorsky ABC rotor system version of the V-22 Osprey and a chart on this forum in another thread titled that had various configurations of ABC rotor system aircraft. It led me to believe that Sikorsky's ABC technology had competed against the Bell tilt-rotor technology.

Actually, I think it was Sikorsky's proposal for the USN's Type A V/STOL requirement (1976-1982?), possibly from around early 1977. However, for some reason, Sikorsky never formally submitted it. This was perhaps because later on in 1977, the Type A program lost a lot of momentum and Sikorsky may have thought it was about to go the way of a lot of other programs of the 70's, i.e. cancelled. Have a look at the family chart flateric posted earlier in the topic.


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,784
Reaction score
170
Triton said:
yasotay said:
Unless someone knows better I think that it is nothing more than a concept that Sikorsky came up with to try and drum up support for continuing to work on the ABC rotor system. I do not think a lot of detailed work was done on the concept. There is a picture as I recall shows all sorts of ABC concepts for just about every mission the military has.

Thanks yasotay. I saw your artwork for a possible Sikorsky ABC rotor system version of the V-22 Osprey and a chart on this forum in another thread titled that had various configurations of ABC rotor system aircraft. It led me to believe that Sikorsky's ABC technology had competed against the Bell tilt-rotor technology.


Tilt Rotor (XV-15) and ABC (XH-59) were evaluated by NASA and the military at about the same time, I guess you could call it a competition in the sense that it decided who would get more money in the future. ABC results were disappointing (partly because of the technology of the time) while Tilt Rotor greatly exceeded expectations.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
179

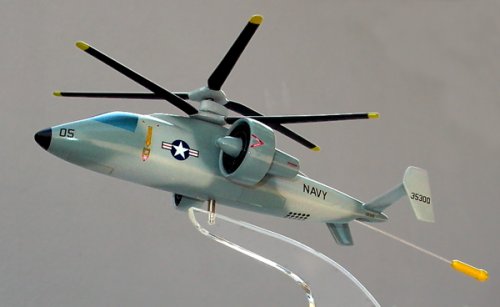

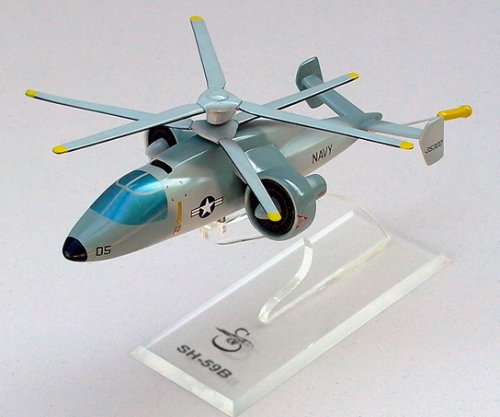

Sikorsky SH-59B (ABC) Factory Model:


Attachments

  • Sikorsky ABC 02.jpg
    Sikorsky ABC 02.jpg
    92.8 KB · Views: 1,766
  • Sikorsky ABC 01.jpg
    Sikorsky ABC 01.jpg
    153.5 KB · Views: 1,763

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
index.php


I presume that this artist's impression is the SH-59B based on circle-5's model. LAMPS III concept for the United States Navy?

index.php


index.php


Also on the model, what is written on the red area on the ducted fan? "Jet Intake"?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
Stargazer2006 said:
Er... Donald, this is embarrassing. The red marking is completely standard for "JET INTAKE" and has been so for over a half century!!!

Since it's a compound aircraft (helo + jet) it is perfectly normal to find it here...

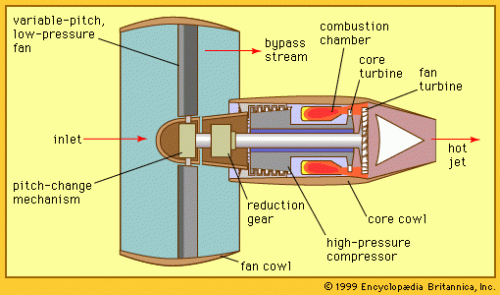

I guess it has dual Ultra High Bypass (UHB) turbofan engines. I thought that they were ducted propellers at first.


Attachments

  • Ultrahigh-bypass Engine.gif
    Ultrahigh-bypass Engine.gif
    15.1 KB · Views: 1,154

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,672
Reaction score
1,871
The engines seem to be ducted fans. Maybe not strictly "jets" but close enough for government work -- the warning marking just indicates that air is being sucked in there at high speed. You see the same on the inlets for helicopter turboshafts, for example.

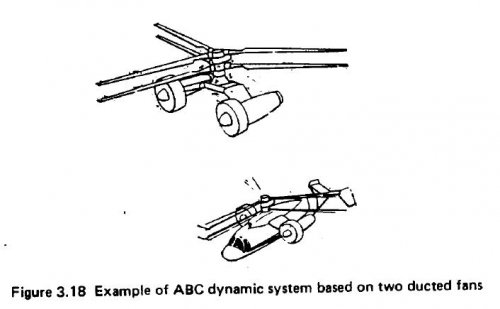

I think the XH-59 derivatives chart we've got posted a couple of times in this thread makes this aircraft more likely to be a V/STOL Type A concept than a LAMPS III candidate. (Or maybe the smaller V/STOL C, given that we see it flying over a destroyer rather than a carrier-type ship)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
I misread your comment Donald, for which I'm sorry... :'(

I believe the text is still "JET INTAKE", not because it's a jet engine, but become of the jet of air that could swallow you if you bypass the warning. My two cents...


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
Stargazer2006 said:
I misread your comment Donald, for which I'm sorry... :'(

I believe the text is still "JET INTAKE", not because it's a jet engine, but become of the jet of air that could swallow you if you bypass the warning. My two cents...

No worries. :D It was the manner in which I asked the question. I should have rephrased it and asked if the model shows dual Ultra High Bypass (UHB) turbo fan engines.


Firebee

ACCESS: Confidential
Joined
Apr 1, 2011
Messages
100
Reaction score
2

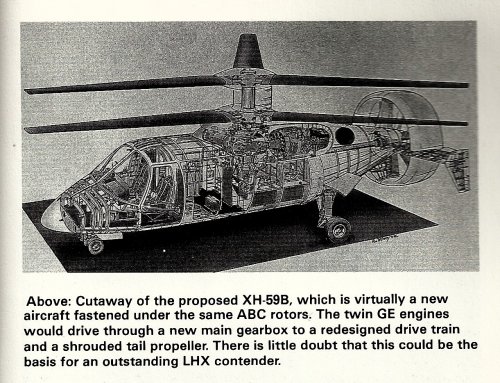

I don't think this has been posted here yet. It is a cutaway drawing of a proposed B-version of the XH-59. The image source is 'Illustrated Guide to Future Fighters and Combat Aircraft' pub'd by Salamander in 1984.

Sorry for the poor scan, the image in the book doesn't look very good either.


Attachments

  • XH59B.jpg
    571.6 KB · Views: 1,145

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
136
Reaction score
53
that's such a maneuver could perform S -69


Attachments

  • 2013-03-04_1827291.jpg
    151 KB · Views: 909

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,566
Reaction score
879
mil said:
that's such a maneuver could perform S -69

Think that is what happened when the pilots took their hands off the controls :D

Thanks! that is the first time I have seen the XH-59 "maneuvering"


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,


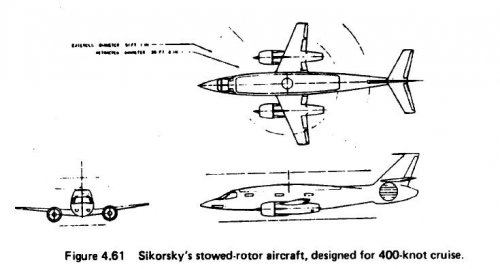

here is a weird picture to Sikosky S-69 helicopter model,from L + K 19/1972


Attachments

  • S-69.png
    151.9 KB · Views: 674

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,169
Reaction score
1,878

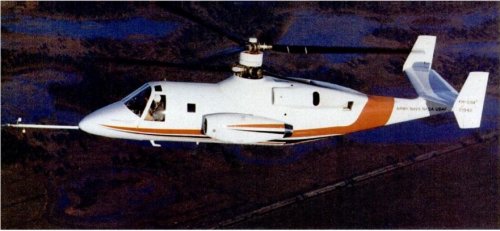

Another artist's impression of the Sikorsky ABC project, this time from Naval Proceedings (Nov. 1980).


Attachments

  • Sikorsky Advancing Blade Concept.png
    Sikorsky Advancing Blade Concept.png
    88.4 KB · Views: 559

Similar threads

Top
