Ranger 'X' - Lunar Flyby with film return capsule

[Graham1973]

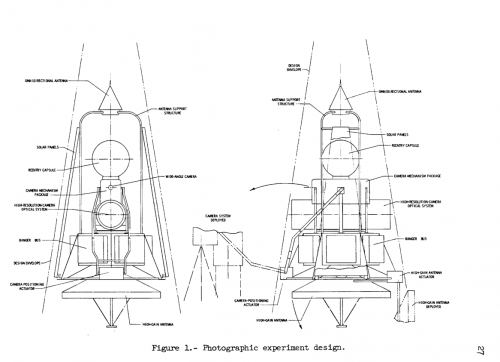

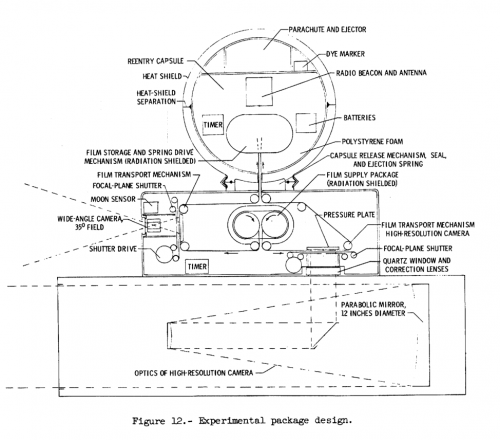

It seems that in 1962 the proposal was made to fit out what could have been 'Ranger 6' with a camera installation comprising the Ranger 3-4-5 vidicon unit paired with a high resolution (80ft at closest approach) film camera and a re-entry capsule that would drop the high resolution camera film into the Pacific ocean.

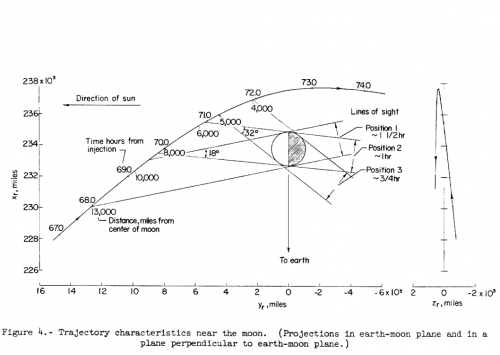

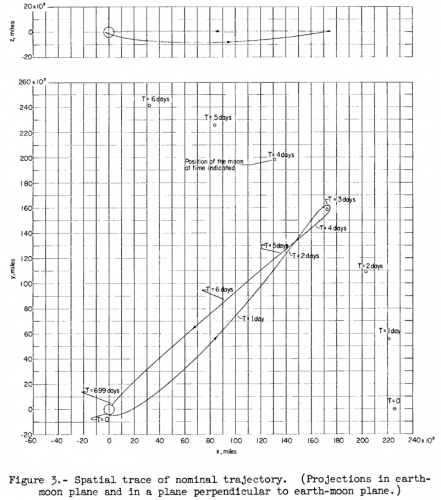

Feasibility Study of a Circumlunar Photographic Experiment

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19620002164_1962002164.pdf



[Grey Havoc]

On a similar note, though this seems to have been a backup configuration for the Block II Ranger probe design:

https://www.reddit.com/r/RetroFuturism/comments/xy2tvy

View: https://www.reddit.com/r/RetroFuturism/comments/xy2tvy/moon_ranger_pierre_mion_1962/
