Matra R.100 and R.110

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,732
From my dear Jemiba,

the Matra R.100 was twin boom tandem two seat tactical reconnaissance
and close air support aircraft project,and it had a completely glaze cabin in
a central nacelle,powered by two or three Hispano-Suiza 24 Z radial engines,
and the Matra R.110 was developed from R.100 but fitted with two Rolls-
Royce Griffon piston engines.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,432
Reaction score
1,936
There was superb 3D-rendering of these projects in "Le Fana de L'aviation" (can't remember when, but this was circa 2003, the article was intitled "Matra, des avions avant des missiles"). I have to check :)
They were very similar to the SO-8000 narval which was a complete failure (crappy piston engine... in 1950. Game over!)


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,977
Reaction score
331
MATRA Projects

Hi all,

I search for drawings of the french MATRA projects R.110 and R.120...
And a second question: Was the R.130 the last aircraft project by MATRA ???

Best regards Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,732
Hi,

Please also note the rockets R.101,R.104 and R.105

http://aerophile.over-blog.com/


Attachments

  • R-100.jpg
    76.8 KB · Views: 307
  • R-110.jpg
    33 KB · Views: 315

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
13
Re: MATRA Projects

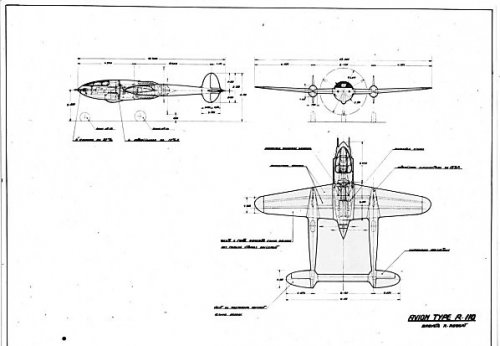

Hi, Maveric. Here several drawings from my archive:


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
13
Re: MATRA Projects

1


Attachments

  • File8003_WEB.jpg
    61.6 KB · Views: 526

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
13
Re: MATRA Projects

2


Attachments

  • File7747-2_WEB.jpg
    31.6 KB · Views: 512

avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
282
Reaction score
87
Re: MATRA Projects

Maveric said:
Was the R.130 the last aircraft project by MATRA ???

No. I'd say the Matra Moynet Jupiter was the last. But that, presumably, would take us to another sub-forum.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,732
Re: MATRA Projects

avion ancien said:
No. I'd say the Matra Moynet Jupiter was the last. But that, presumably, would take us to another sub-forum.


My dear Avion,there was anther two.


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
543
Reaction score
158
Re: MATRA Projects

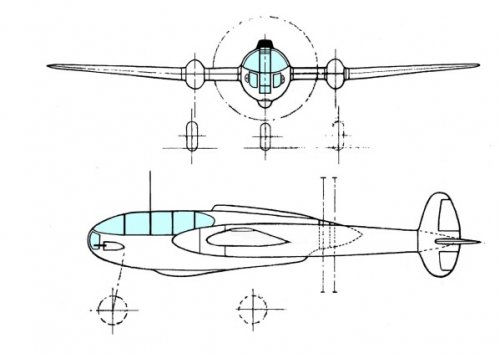

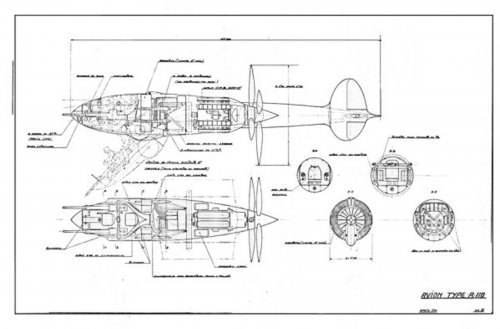

What engine is installed in the R110 drawing?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
Re: MATRA Projects

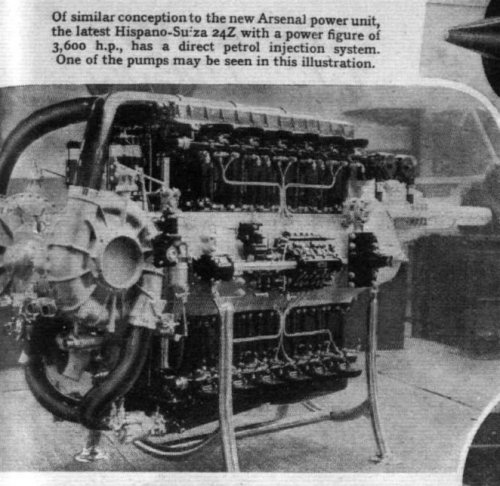

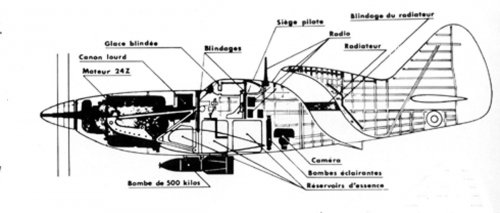

According to Jean Cuny, "Les Avions De Combat Francais", Tome I,
it was a Hispano-Suiza 24Z with 2.400 hp.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,761
Re: MATRA Projects

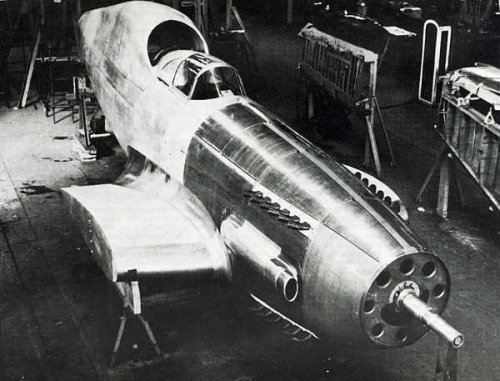

This design is hard to understand for me, especially engine cooling and supercharging. ;D
http://aerophile.over-blog.com/article-capra-matra-100-et-110-63334828.html

Auto translation

For R-110, Roger Robert also conceived a system of cooling radiators circular and went up around the airframe, has inside with two air-intakes on quoted by the airframe behind the post of crew.
These apparatus are left, before 1948, and the market is shortly afterwards cancelled.
If these apparatus are not developed, it led however STAÉ to admit that the system of envisaged weaponry is very promising. And the technical Service of Aeronautics decided to ask MATRA to study these rocket launchers to equip other planes, it is the beginning of vocation weaponry of MATRA.


I can understand SNCASE S.E.580 design.


Attachments

  • 24Z engine.jpg
    24Z engine.jpg
    80.7 KB · Views: 73
  • 24Z engine.jpg
    24Z engine.jpg
    38.9 KB · Views: 152
  • HS%2024Z.jpg
    144.4 KB · Views: 181
  • R110.jpg
    175.3 KB · Views: 277

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
952
Reaction score
1,010
Website
galgot.com
Re: MATRA Projects

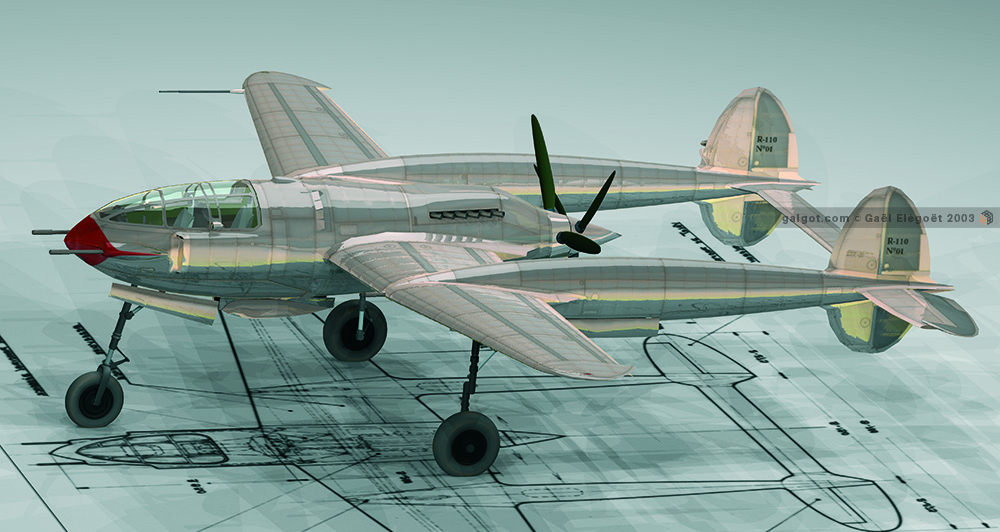

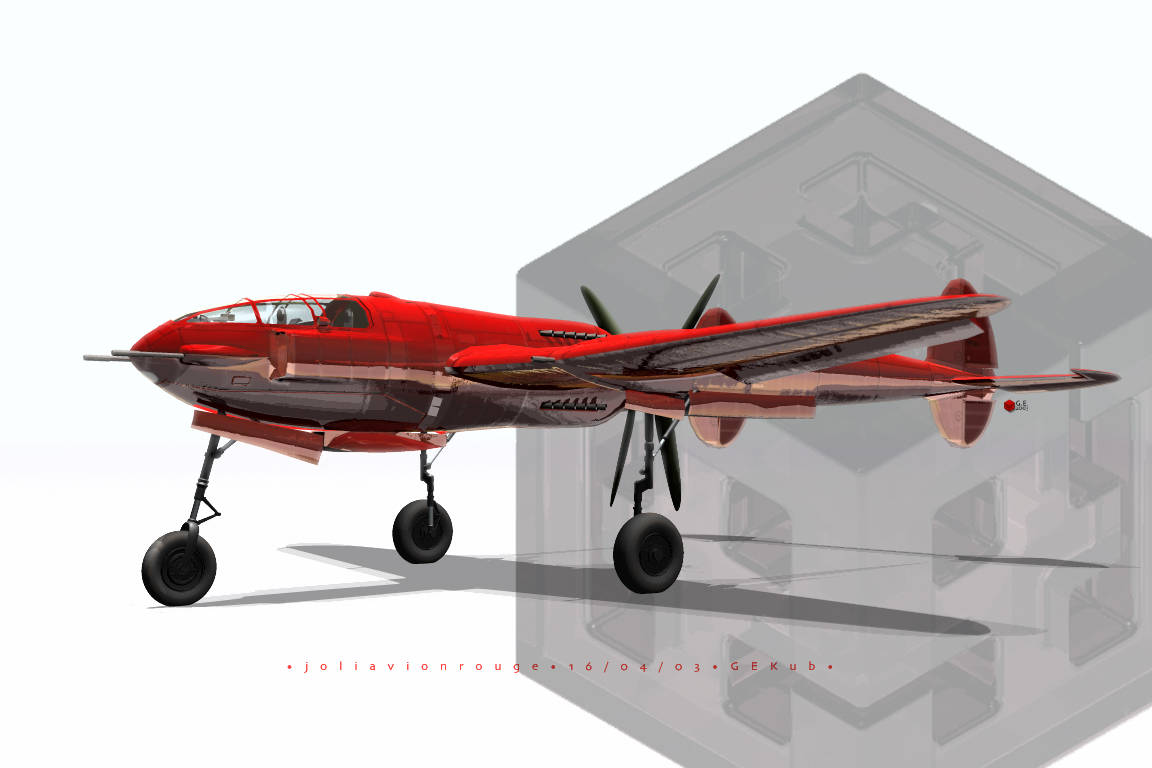

Funny , I did that one long time ago :

Also did it in French AF markings, but can't find it any more...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,732
Re: MATRA Projects

avion ancien said:
No. I'd say the Matra Moynet Jupiter was the last. But that, presumably, would take us to another sub-forum.


My dear Avion,


for last Matra aircraft,please see;
http://www.secretprojects.co.uk/forum/index.php/topic,2249.msg245892.html#msg245892


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Re: MATRA Projects

galgot said:
Funny , I did that one long time ago :

A pretty red aircraft indeed! If you find the French AF one, I'd love to see it... ;-)


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
952
Reaction score
1,010
Website
galgot.com
Re: MATRA Projects

Skyblazer said:
galgot said:
Funny , I did that one long time ago :

A pretty red aircraft indeed! If you find the French AF one, I'd love to see it... ;-)

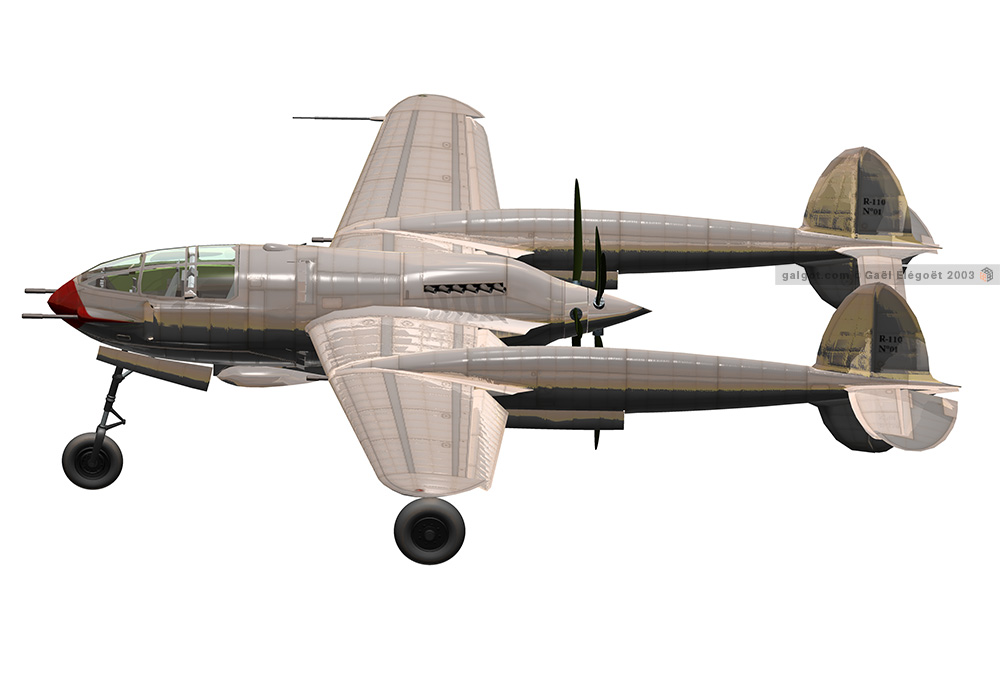

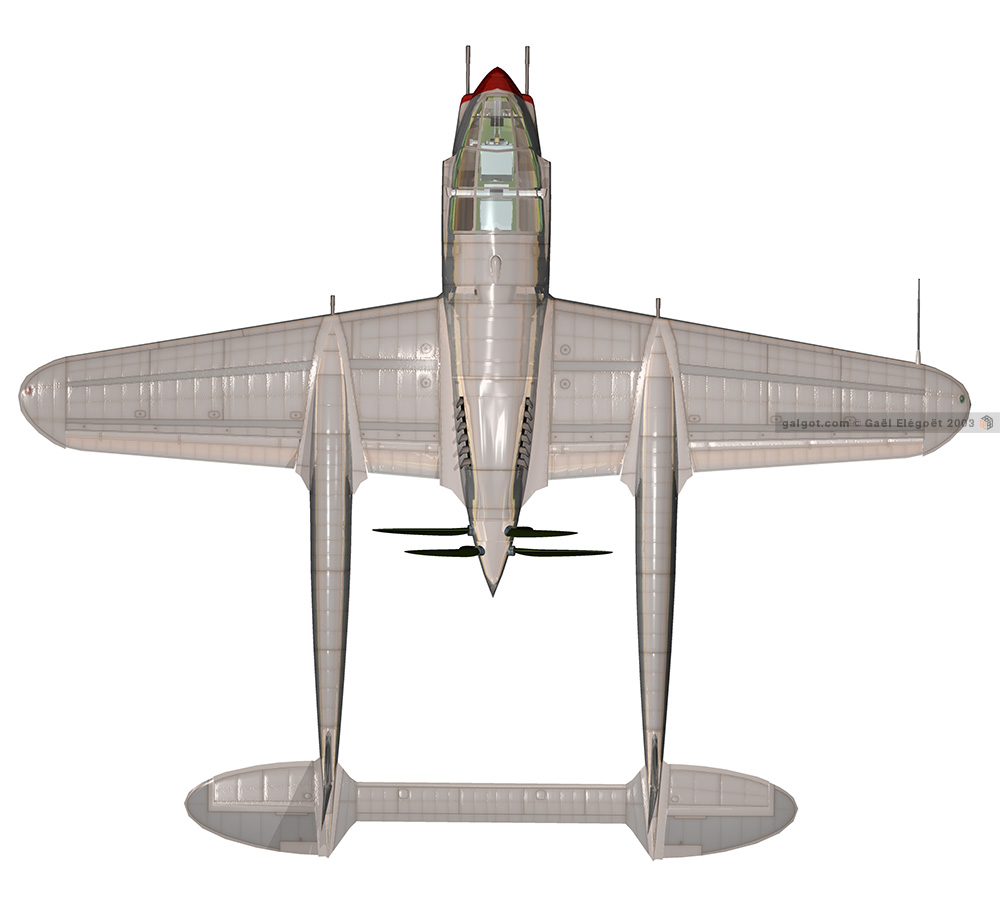

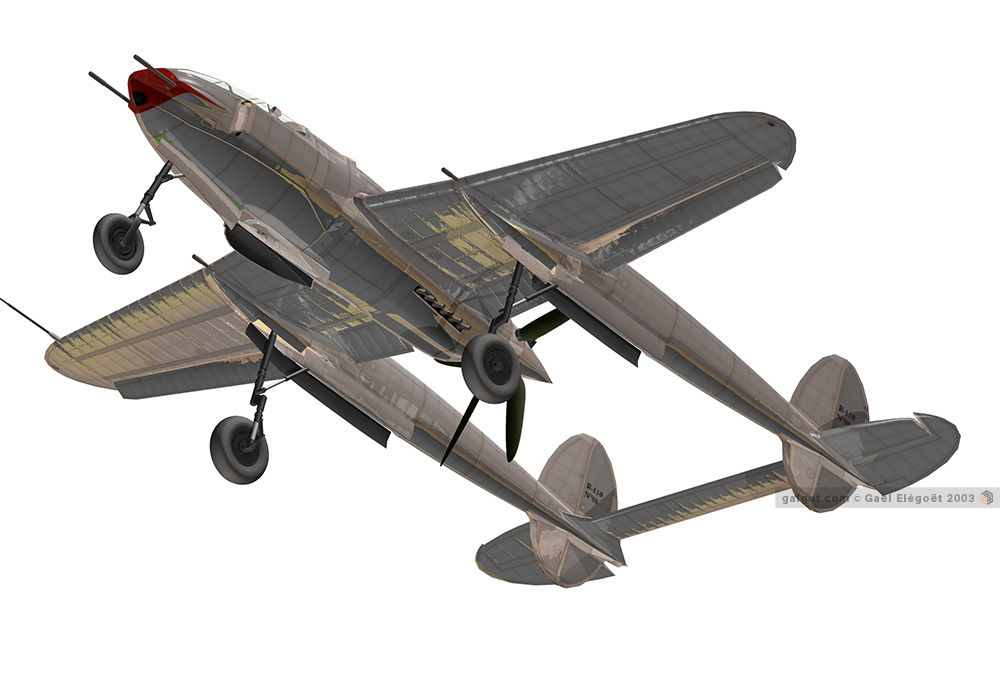

Sorry, the one I did in French AF markings was the Capra R-40, this one was done in natural metal. Lucky I've found these again, lost a lot of archives…
Old old stuff from 2003, low poly Strata 3D model :)







Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,748
Reaction score
537
Re: MATRA Projects

That's rather good B)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,732
Re: MATRA Projects

What a beauty,thank you Galgot.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,761
Re: MATRA Projects

Oh my goodness, heavenly Sir galgot! :eek:
We see outstanding work again.

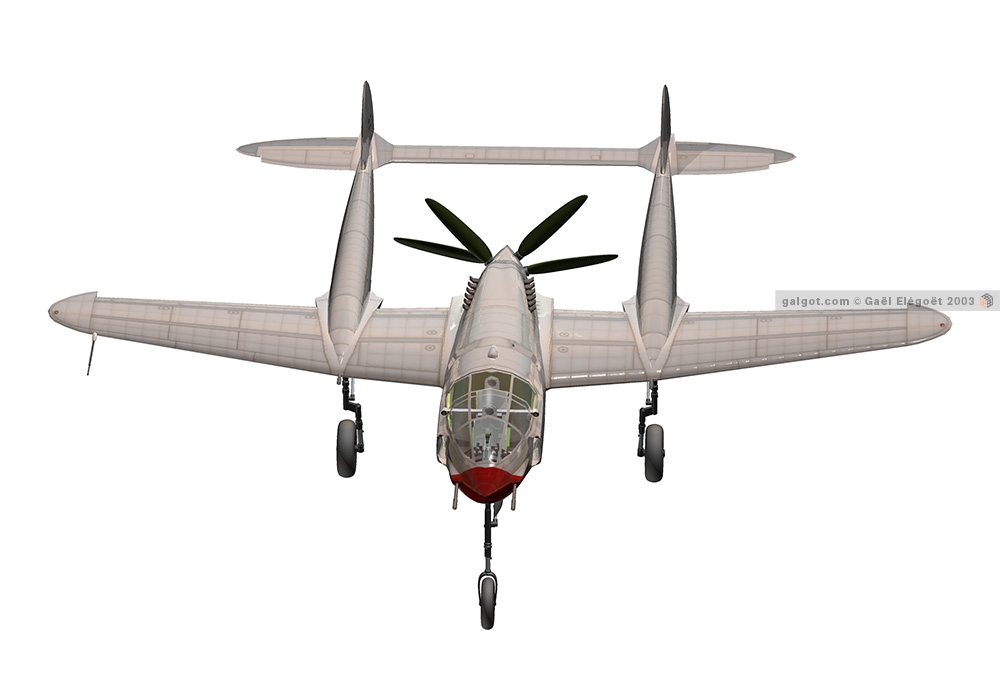

I can see radiator cooling air intake, radiator cooling air outlet flap and engine exhaust nozzle.
So the cylindorical radiator is located just behind the cockpit.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,761
Re: MATRA Projects

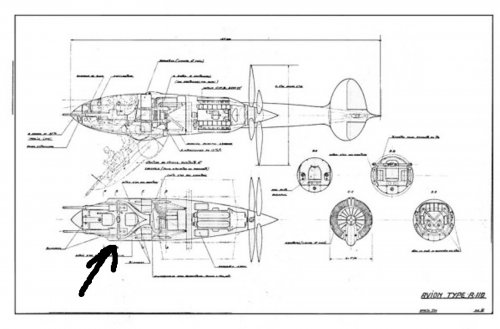

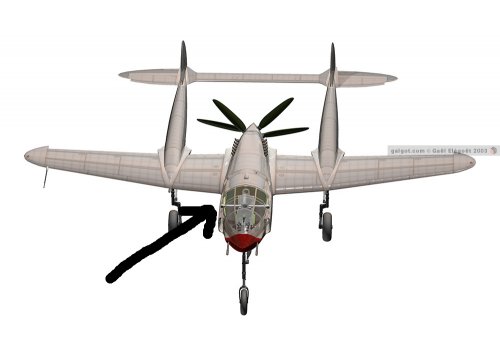

May I ask a question? What is this small device?
Range finder?

If it's wrong, I'm sorry. Are you an Indian Mr.galgot ?


Attachments

  • Musashi_06.jpg
    58.7 KB · Views: 46
  • 131206115125714234.jpg
    78.8 KB · Views: 136
  • R110.jpg
    178.9 KB · Views: 161
  • r110face1.jpg
    75 KB · Views: 146

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
952
Reaction score
1,010
Website
galgot.com
Re: MATRA Projects

Well , happy you like this old stuff.

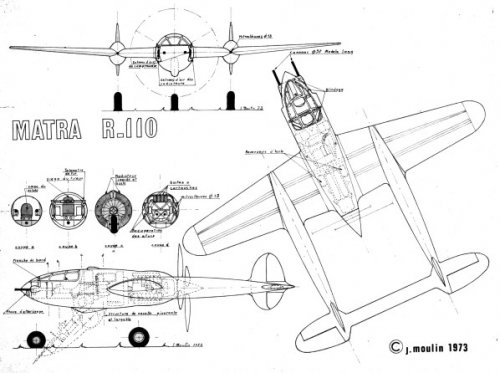

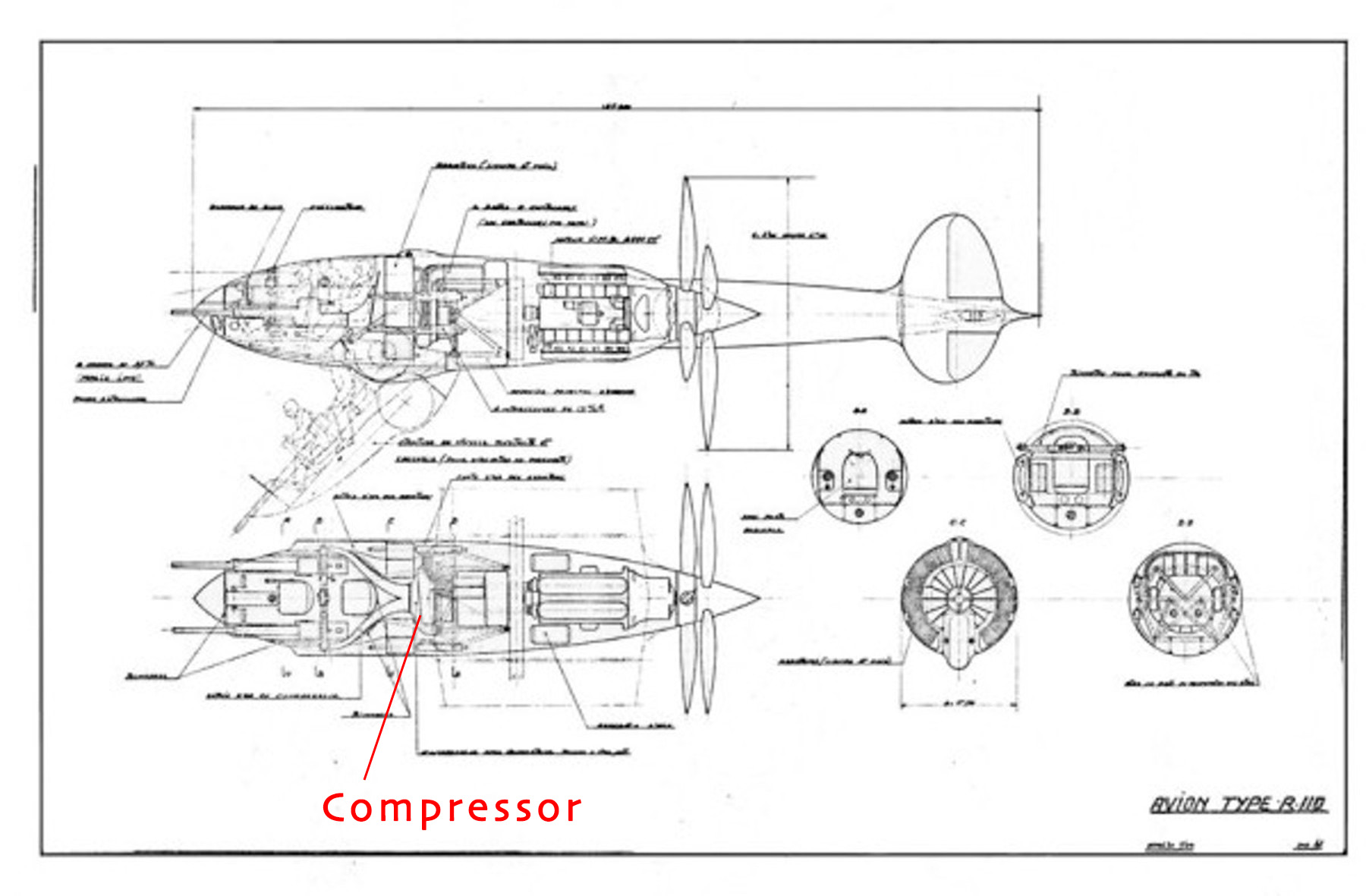

It seems from J.moulin scaleplan posted page 1 that these intake where used both for cooling (ring shaped radiator) and for a compressor (see Y shape on the upper view inside the fuselage).

blackkite said:
May I ask a question? What is this small device?
Range finder?

If it's wrong, I'm sorry. Are you an Indian Mr.galgot ?

Yes same J.Moulin plan describes this thing as a "télémètre de tir" (range finder) for the rear seated gunner, the pilot would have had a gunsight too.

And no problem, don't be sorry. not Indian at all, I'm only French :)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,761
Re: MATRA Projects

I'm terribly truly sorry. :'(


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Re: MATRA Projects

blackkite said:
I'm terribly truly sorry. :'(

As a Frenchman myself, I guess it's not too bad. Some Indians can almost pass off for French too... ;) ;D

https://www.youtube.com/watch?v=PJl2ExySh1w


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
952
Reaction score
1,010
Website
galgot.com
Re: MATRA Projects

blackkite said:
I'm terribly truly sorry. :'(


No problem at all. I could have been Indian all the same :)


@Skyblazer, liked that one :)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,761
Re: MATRA Projects

Sorry I imagined that you graduated Galgotias University in India. ;D
http://galgotiasuniversity.edu.in/


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,761
Re: MATRA Projects

Any way, I thank you very much for show me many rare information.

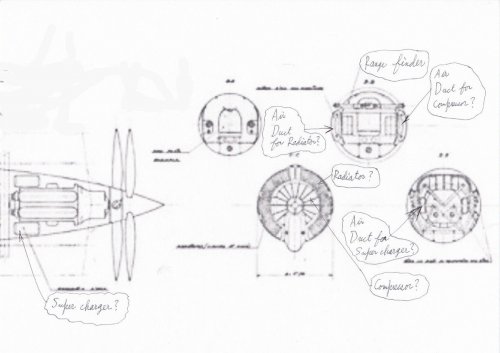

And I surprize very much that MATRA R.110 had unique design.
R.110 air intake size is very small compared with SNCASE S.E.580.
I imagine that large compressor had two function.
(1) Radiator cooling air suction(inverse ejector? Although I don't know such a equipment.)
(2) Engine intake air suction(the first stage super charger)

R.120. If this drawing is correct, tail boom is structurally very hard. P011 is good.
http://www.kristofmeunier.fr/TEOFG2.pdf

R110,120 and 130 were very unique.

(pictures from the R.130 post added here)


Attachments

  • R110.jpg
    113 KB · Views: 76
  • R120.png
    402 KB · Views: 52
  • MATRA R.74.jpg
    MATRA R.74.jpg
    78.1 KB · Views: 54
  • 2015-10-01_1447.jpg
    59 KB · Views: 40

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
952
Reaction score
1,010
Website
galgot.com
Yes , I'm no engineer but I believe it would have had serious cooling problems due to these small intakes.

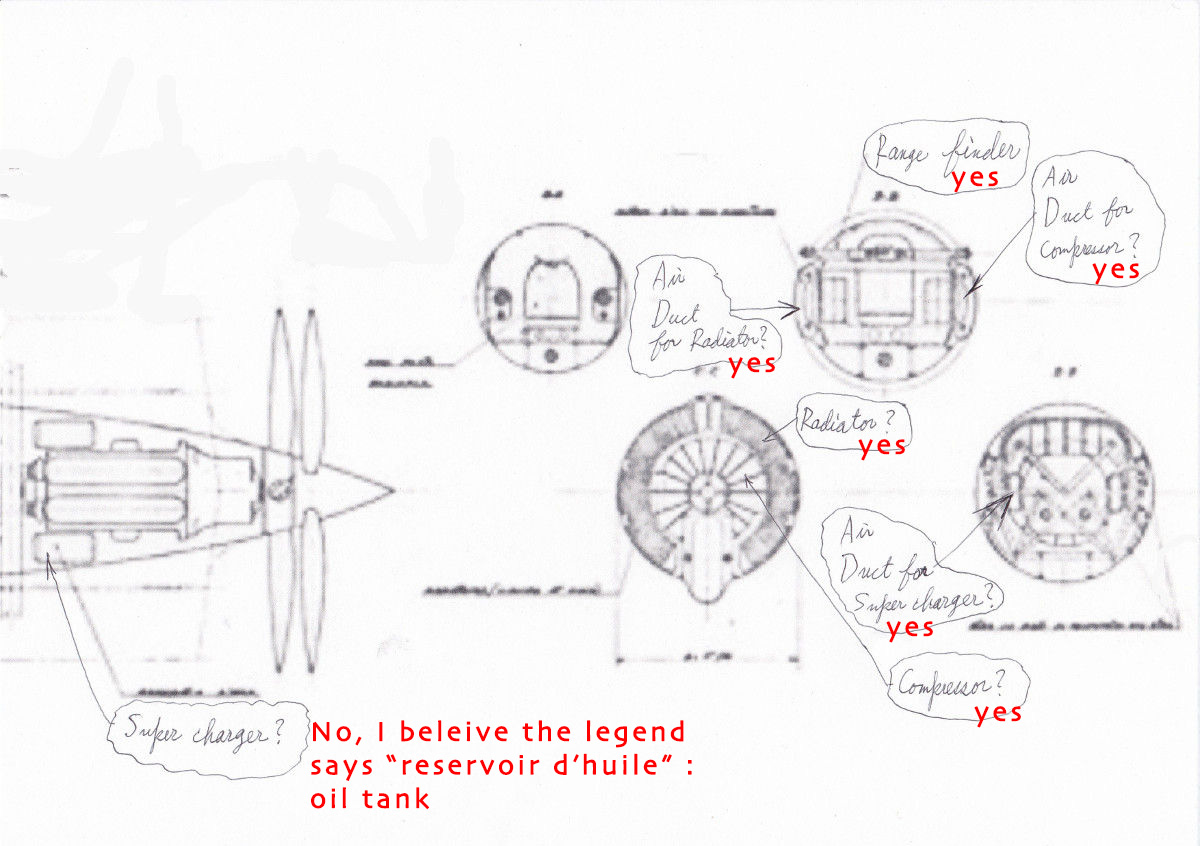

here my answers on the images :




blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,761
Thanks a lot galgot-san. Very interesting.
You have the aptitude more than a engineer. ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,732
Hi,


the Matra R.120 was a turbojet powered version or based on R.100 & R.110.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,482
Reaction score
2,761
hesham said:
Hi,


the Matra R.120 was a turbojet powered version or based on R.100 & R.110.
Hi!

http://www.kristofmeunier.fr/TEOFG2.pdf


Attachments

  • 2015-10-01_1447.jpg
    59 KB · Views: 141
  • MATRA R120.jpg
    MATRA R120.jpg
    42.9 KB · Views: 143
