Stargazer2006 said:
... The Renard R.31 (this one actually existed as a prototype but with an inline engine)...

The tenth production R-31 actually did fly with a Gnome-Rhône 14Krsd in 1935 but was redesignated Renard R-32. That aircraft (which had other difference from the R-31 such as extended canopy glazing, a larger, curved tailfin, and spats) was then re-engined with a an Hispano-Suiza 12Y. Apparently, the sole R-32 then reverted to standard R-31 configuration powered by a Rolls-Royce Kestrel II.S.

War Plane of the Second World War: Bombers and Reconnaissance Aircraft, Vol 7, William Green, pp.36-37


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599

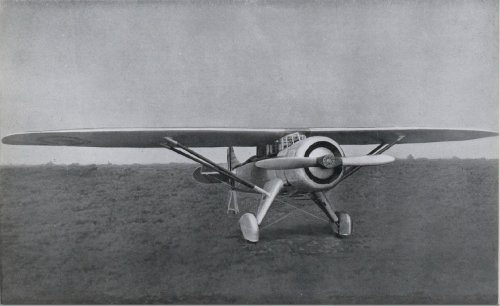

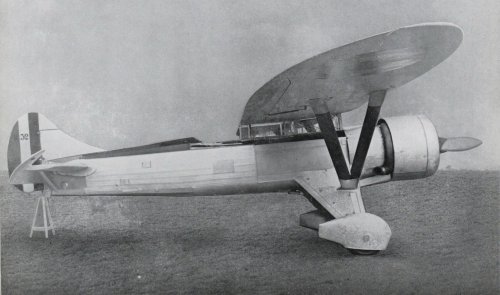

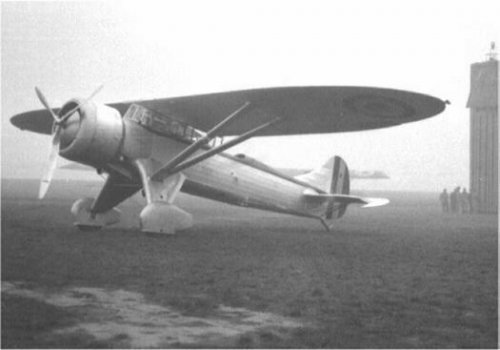

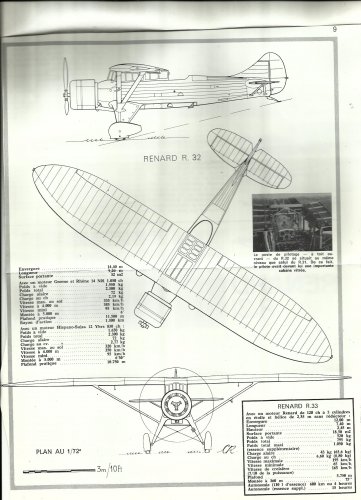

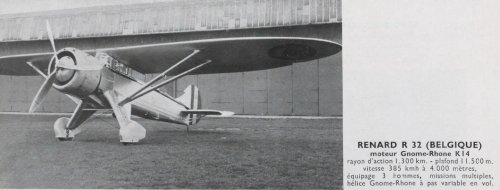

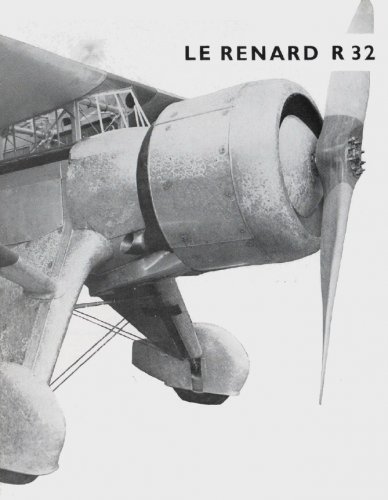

More pics of the Renard R-32:


Attachments

  • R-32.jpg
    19.1 KB · Views: 418
  • Renard R 32.jpg
    Renard R 32.jpg
    514.1 KB · Views: 381
  • Renard R.32 side view.jpg
    Renard R.32 side view.jpg
    882.8 KB · Views: 365
  • Renard R.32.jpg
    Renard R.32.jpg
    687.4 KB · Views: 315
  • Renard R 32 cutout.jpg
    Renard R 32 cutout.jpg
    251.6 KB · Views: 284

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
94
For members who wants to see more about aircraft
constructed in Belgium , the Fonds André Renard site is a
good start.
choose:avions construits en Belgique.

Enjoy.


theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
15
lark said:
For members who wants to see more about aircraft
constructed in Belgium , the Fonds André Renard site is a
good start.
choose:avions construits en Belgique.
Enjoy.


lark Could you please put the link ? I can't found it.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,703
Reaction score
1,120
Thanks for the link Arjen. Interesting cowling on that R-32 mockup. The 12H Pétrel-powered R-31 was also new to me.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
94
The information ,related to the Renard R-39 is very incomplete...

In one source, 'Les Avions Renard' by André Hauet - publ. 1984
it is described as a twinfuselage development of the R-36.
A study which was not continued.

In an other one, 'Les Avions Renard 1922-1970' by A.Hauet & Guy Roberty-publ. 1996
it should be a twin engined trainer aircraft corresponding to a 1938 request from
the Belgian Military Aviation.

Mention of this trainer concept was made in Interavia Courrier Rubrique de 6.8.1938.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
This topic was made up from posts of the older generic "Early Belgian Aircraft" thread.
Some posts were even cut, but I promise, that no one lost a post.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
This photo of the R.31 model was originall posted by Skyblazer on March 07, 2013
in the "Early Belgian Aircraft" thread


Attachments

  • renard_R.32_mockup_sp-stargazer.jpg
    223.3 KB · Views: 73

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
hi all

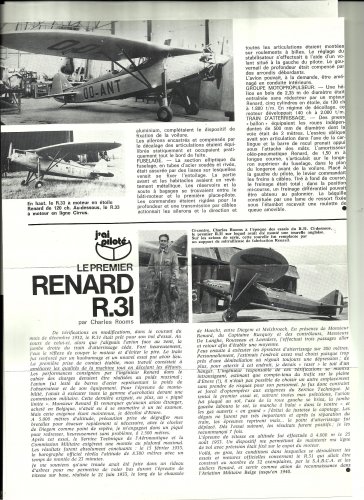

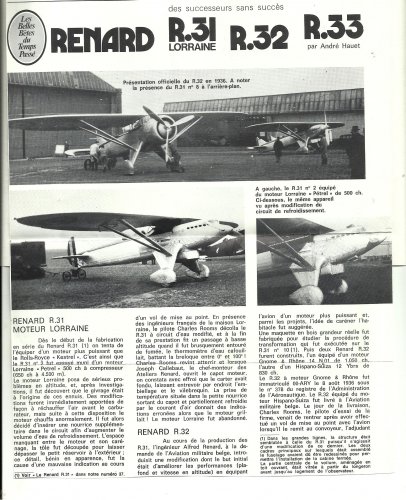

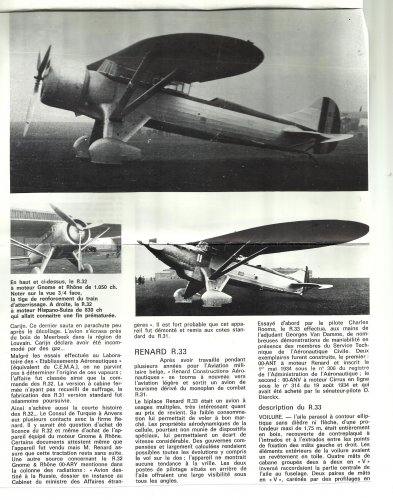

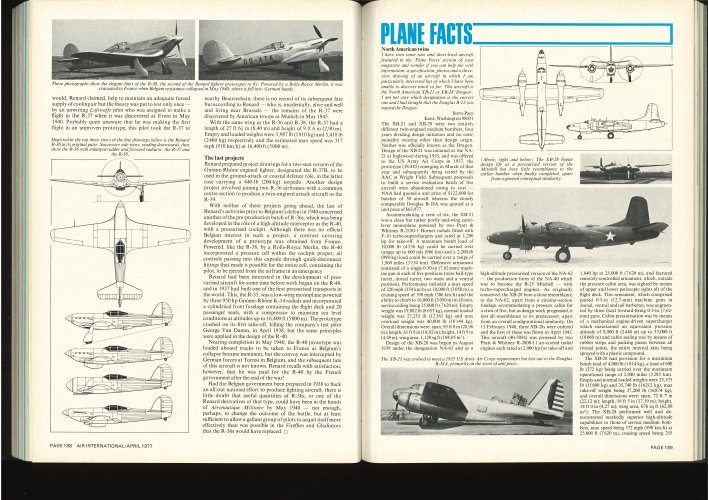

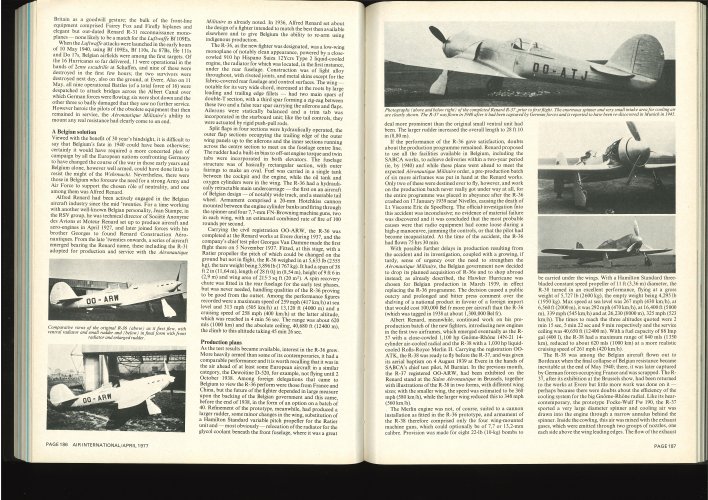

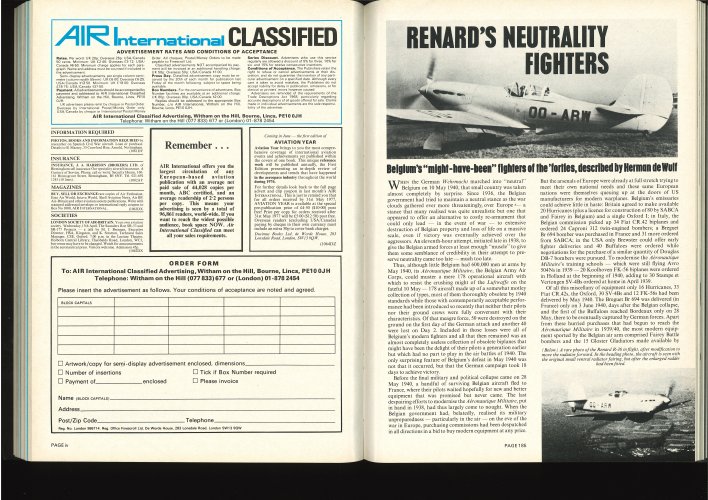

From "le fana de l'aviation"


Attachments

  • r 4.jpg
    r 4.jpg
    436.9 KB · Views: 133
  • r 3.jpg
    r 3.jpg
    950.9 KB · Views: 101
  • r 2.jpg
    r 2.jpg
    588.3 KB · Views: 90
  • r 1.jpg
    r 1.jpg
    803.4 KB · Views: 85

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622

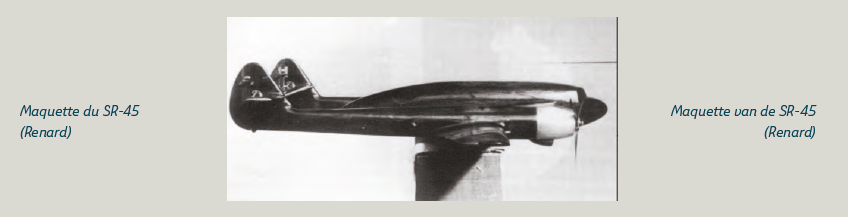

The Renard R.45 Model.


Attachments

  • REN_07-001.jpg
    209.1 KB · Views: 132

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Hi,

the Renard R.100 was a two-seat recce Project,led to develop R.31


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,703
Reaction score
1,120
the Renard R.100 was a two-seat recce Project,led to develop R.31

Thanks hesham. In Les avions SABCA et associés, prototypes et projets by Charles Mali, 2005, the study leading up to the R.31 is listed simply as the "Renard 100" - no 'R' prefix. I assume this "100" to be from an Étude designation series separate from Renard's 'R' series.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
You are right my dear Apophenia,

maybe we can called it Model-100.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622

Attachments

  • 1-2017-2.png
    98.4 KB · Views: 28
  • 2-2017-2.png
    40.8 KB · Views: 20
  • 3-2017-2.png
    7.3 KB · Views: 11
