M1 Abrams MBT Replacement

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,243
Reaction score
102
Website
zeef.com
In 2021 seems will be testing M1A2 SEP V4 Super Abrams or denominated like version M1A2D . Last version for now are M1A2C ( in service) and M1A2D ready for testing on 2021.

Last edited:

Bruno Anthony

I miss the Cold War
Joined
Aug 5, 2012
Messages
263
Reaction score
66
In 2021 seems will be testing M1A2 SEP V4 Super Abrams or denominated like version M1A2D . Last version for now are M1A2C ( in service) and M1A2D ready for testing on 2021.

Not to sound too pessimistic, but what’s going to be super?


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,594
Reaction score
1,728
In 2021 seems will be testing M1A2 SEP V4 Super Abrams or denominated like version M1A2D . Last version for now are M1A2C ( in service) and M1A2D ready for testing on 2021.

Not to sound too pessimistic, but what’s going to be super?
Probably some technlogy improvement .

Mostly electronics, starting with a new dual-band high-res FLIR, an integrated vehicle network, some ammo and fire control upgrades, all-around color cameras, laser warning, etc.

Trophy Active Protection System installation is happening in parallel with SEP v4, but isn't aligned with it, AFAIK, so there will probably be both SEP V3 and V4 tanks with Trophy as it rolls out.


Bruno Anthony

I miss the Cold War
Joined
Aug 5, 2012
Messages
263
Reaction score
66
In 2021 seems will be testing M1A2 SEP V4 Super Abrams or denominated like version M1A2D . Last version for now are M1A2C ( in service) and M1A2D ready for testing on 2021.

Not to sound too pessimistic, but what’s going to be super?
Probably some technlogy improvement .

Mostly electronics, starting with a new dual-band high-res FLIR, an integrated vehicle network, some ammo and fire control upgrades, all-around color cameras, laser warning, etc.

Trophy Active Protection System installation is happening in parallel with SEP v4, but isn't aligned with it, AFAIK, so there will probably be both SEP V3 and V4 tanks with Trophy as it rolls out.

Thank you for the details. More tinkering at the margins?
Sounds like the Abrams forever


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,904
Reaction score
800
In 2021 seems will be testing M1A2 SEP V4 Super Abrams or denominated like version M1A2D . Last version for now are M1A2C ( in service) and M1A2D ready for testing on 2021.

Not to sound too pessimistic, but what’s going to be super?
Possibly the long awaited espresso and milk frother to the BV. Just the job.


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
231

Mitsubishi

ACCESS: Restricted
Joined
Oct 1, 2020
Messages
1
Reaction score
0
JohnR said:
I remember seeing a TV programme a few years ago, that feature a prototype or technology demonstrator of a tank that was about 2/3 of the size of an M1 and had a hexagonal gun tube. Has anyone got any details on this?

Regards

All I have is the pictures below... And a link: http://www.militaryphotos.net/forums/showthread.php?89616-the-new-US-tank
Hi, what’s the type?


Kat Tsun

I really should change my personal text
Joined
Jun 16, 2013
Messages
103
Reaction score
29
The short tank is called Wombat.

It was just a tiny, mobile mockup. I think it was powered by a sedan engine or something. The US Army's TARDEC/TACOM (Tank and Automotive Research, Development, Engineering Command/Tank and Automotive COMmand) basically just built it in a garage to prove that they could theoretically make a tank tinier than T-80/T-72/T-64.

edit: It was also called HD-40T, presumably the "40T" meant 40 tons. I think it was part of the Future Combat System (singular) which was a TARDEC study looking at what a smaller, lighter M1 would look like. That whole study and associated mockup was done between '93 and '95. It vanished when they realized there was no tangible difference in mobility between 40 tons and 55 tons I guess. Then Future Combat Systems (plural) starts and they decide to try to make a 20 tons thing to replace M1 instead.

The TARDEC official history is sort of vague on Wombat, basically just mentioning a Discovery Channel show it was in and a picture of thing, because it's mostly an awkward looking footnote.

The weird rhombus barrel shroud is probably to get rid of radar reflections caused by ordinary round barrels; at the time, everyone and their dog was sort of obsessed with copying stealth fighters.

tl;dr: It was a mockup of a futuristic tank to replace M1. Then the US Army decided to make FCS Manned Ground Vehicle instead.

edit2: Muv-Luv is based.

Last edited:

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,424
Reaction score
457
One Western Euro looking and one Russian/Ukrainian looking. Neither appears to have a indirect fire capable gun.


shin_getter

ACCESS: Secret
Joined
Jun 1, 2019
Messages
254
Reaction score
208
Well, if vehicle counts in the field is not a huge constraint (as in enemy is outmatched), there is little pressure to multirole.

The real question is: where are the specs for the APS system? What are the sensor performance (range/Ewar resistence/coverage/sensor fusion/ESM vulnerability/etc), interceptor performance (interceptor load for each arc, maximum engagement rate, maximum range (to counter standoff top attack EFP), etc) What are the soft kill system that will have to save its life under saturation attack?

Some part of me is wondering if the correct future close combat concept is to just fight under a persistent smoke cloud while fighting using high resolution radar (including ground penetrating and wall penetrating variants), high accuracy maps and localization (probably involving LIDAR, now cheap). I'm saying that one has positioning so precise, one and achieve accurate "blind"- direct fires using battle network data. Perhaps shooting "through" structures to hit stuff on the other side is the correct way to use tanks with guns of extreme kinetic penetration and high tech fuzing.


Colonial-Marine

Fighting the UAV mafia.
Joined
Oct 5, 2009
Messages
718
Reaction score
74
Pretty nice models. I don't think any of the turrets are completely unmanned though, 1 and 2 look like low profile turrets while 3 is more traditional. It's interesting that there are hatches for two crew members in the hull which suggests a crew of four on all variants, though I'm guessing all of these feature an autoloader.

The number of shells carried seem a bit low on variant #1. I think they should aim for 42 shells total like on the M1A2.

The APS suite on these vehicles is certainly going to easily be as crucial as the armor itself. I hope to see a setup that includes both soft and hard kill systems.

I don't think having a true indirect fire capable gun is worth it. That's the job of artillery. If you really need to hit a target that is out of line-of-sight you load up an advanced ATGM with NLOS capability.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,904
Reaction score
800
More like an artistic impression, albeit nicely done, of three tanks in a hanger. The replacement bit is moot at the moment.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,594
Reaction score
1,728

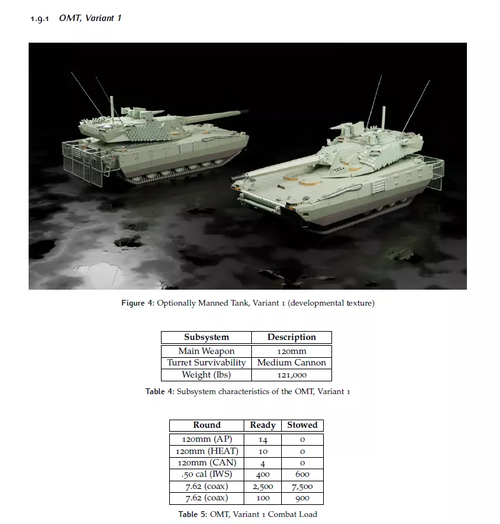

There's an alleged US Army study of several Optionally Manned Tank concepts floating around, mostly on Russian internet sites (which makes me highly skeptical of it). This pic seems to be a rendering of the three designs.

When all that was showing up was the renders and some specs, I assumed it was just some well-disguised fan art. The latest sites I've seen have some very plausible user comments, which make me think this may be legit.


Seems like it might be the output from events like this one:



stimpy75

Happy Happy,Joy Joy
Joined
Aug 23, 2007
Messages
128
Reaction score
74
a friend of mine posted these pics first at an discord channel, he had them from a friend from the Army (dont want to get into details)
he himself is a small arms weapons designer and ex TheFirearmBlog member
he specified not to share these pics, but somehow it landed on the octavaga forum....and the rest is history


Insomnium95

ACCESS: Restricted
Joined
Apr 13, 2020
Messages
2
Reaction score
7
a friend of mine posted these pics first at an discord channel, he had them from a friend from the Army (dont want to get into details)
he himself is a small arms weapons designer and ex TheFirearmBlog member
he specified not to share these pics, but somehow it landed on the octavaga forum....and the rest is history
Well these are only TARDEC concepts. Who knows if the Army will ever prototype them. General Dynamics is the only company in the states that can build MBTs so I would assume they will be the lead designer for OMT. Most likely it will be based on the M1 hull.


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,390
Reaction score
377
a friend of mine posted these pics first at an discord channel, he had them from a friend from the Army (dont want to get into details)
he himself is a small arms weapons designer and ex TheFirearmBlog member
he specified not to share these pics, but somehow it landed on the octavaga forum....and the rest is history
They're marked Distribution D, so there's potentially a whole lot of people who could have been the source rather than your friend or his source.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,532
Reaction score
311
The slide to the Cylon wars begins?!?!?!
Resistance is futile. Humankind agree about the dangers of AI but nobody can stop its development because AI promises superiority at the battlefield and economy.
The singularity will find us sooner or later. May be we should start working on counter mesures?


Fluff

ACCESS: Secret
Joined
Sep 9, 2019
Messages
486
Reaction score
267
The slide to the Cylon wars begins?!?!?!
Resistance is futile. Humankind agree about the dangers of AI but nobody can stop its development because AI promises superiority at the battlefield and economy.
The singularity will find us sooner or later. May be we should start working on counter mesures?
Counter measures? Like thicker tin foil?


shin_getter

ACCESS: Secret
Joined
Jun 1, 2019
Messages
254
Reaction score
208
It is a question to me that whether it is correct to demand the next tank to kinetically penetrate the "best armored plates" of conceivable peers.

The unmanned turret tanks enable a significant reduction in frontal surface area, which translates demand for Guns with increased power to penetrate the new "strongest plates." This means greater than historical tradeoffs with performance in other roles: large ammo, cost, difficulty in maneuvering in dense terrain, difficulty in integrating lower velocity ammo, elevation limits, and so on.

Now, a gun capable of penetrating opponent vehicles has been important as it has been the primary way of defeating vehicles, however things have changed a lot since WWII. Air power influences land vehicle combat at ever increasing amounts, denying direct vehicle on vehicle combat. Improvement in long range fire complexes and BLOS weapons means "battles at range" between mobile vehicles is increasingly a thing, pushed by fast targeting cycles in depth for counter battery duels. Missiles still remain effective at a fraction of the weight and cost of gun installations. While armor can be increased, sensors and weapons (at least other guns) is not any less vulnerable and firepower kills without penetration has become relatively easier. Instead of gun penetration, one can go for top attack, KEM, or non-penetrating mission kills.

KE Gun fire is likely to remain superior at close range engagements while engaging large number of targets. However is this realistic? How likely is a tank to be in position to defeat a hoard of "maximum 130mm+ HV gun armor penetration required targets" at short range while not dying to return or support fires in the process?

Some people think APS will remove the impact of the missile, however that doesn't seem likely. KEM does gun at lower cost/weight installation, minus minimal range. Top attack defense against standoff EFP is generalized C-RAM problem and that is more expensive than armor arrays and easy to saturate. The cost reduction in expensive active defense sensors will also likely happen at in conjunction to cost reduction in reliable munition guidance (the most expensive part of PGMs) and improvement in long range detection and targeting ability against vehicles.

It is not inconceivable that battles between Future "MBTs" ending up with networked BLOS GLATGM exchanges as low cost effective elevated (flying or masted) long range sensors provides sufficient targeting, nevermind combat against all lighter forces that have even less reason to close.

-----------
So what can you do if you dropped the requirement to frontally penetrate the opposing tank with the gun?
1. Add APS/C-RAM ability for even better protection
2. Add even more armor
3. Add long range (BLOS) capability
4. Add mobility
5. and so on....

---------------------------------------------------
Some earlier part of the thread talked about the weakness of multi-role vehicles as obviously of inferior performance at each role and "inability to concentrate" on a role.

Well, the MBT is terrible!1!!1111! We all know that there ought to be division into infantry support tanks, deep exploitation tanks, anti-tank tanks, urban warfare tanks, super heavy assault tanks, flame thrower tanks and machine gun tanks. After all, if the MBT is shooting up a structure it isn't shooting at other tanks thus there is no concentration of force, while a combined force of the diverse tank fleet can do it all!

*alternatively, pentagon wars clip*

Okay, sarcasm aside, the universal (aka multirole) tank's main value is shown in the high intensity warfare of ww2. In high intensity warfare, the enemy sets the conditions half the time and you'd almost never have the right assets in the right amount in the right place and time. It is easy to say, the artillery wouldn't do direct fire. You can not impose that when the enemy's plans works and enemy tanks end up running into rear line artillery force. You can't say that heavy tanks never should be used for exploitation when an assault on limited recon unexpectedly hits a weak point and collapses the enemy front when you are prepared to attritional fight. The difficult enemy is one that one can not gain such information superiority over as to enable control of the conflict to fit capabilities. The more one is surprised the more important multi-role gets.

With changing technology it would be natural that the breakdown of vehicle roles would change based on needs of the battlefield and capabilities of the technology, and vehicle spanning different roles would be fine if there is synergy.

Fleets of specialists is for fighting non-peers that have no initiative and one can shuffle forces around however needed to accomplish the goal.

Last edited:

Fluff

ACCESS: Secret
Joined
Sep 9, 2019
Messages
486
Reaction score
267
They clearly looked at the specialised tank/hevy armour at the end of WW2, with the T95, Tortoise etc. As you say, it being in the right place to meet the enemy Tortoise can only lead to jokes about tortoise racing.

What I think you suggest sounds like some of the Sci-Fi battles, once you run out of decoys/cant absorb any more energy/heat, you explode in a blaze of atoms.

I see a decoy battle. So currently Tanks are directional - i.e. heaviest armour to the front. with the available tech, you would be able to spot that tank, launch 4-6 remote ATGM pods, around it 2-3 at the front, 1 each side and rear. Not all pods need to be real/live, or can have an unguided rocket. Aim is to overload the tank, and your definite live guided round is the one at the rear/sides.

Logically, this means tanks become non-directional, same armour all round, crew in the middle. The battle would be decided by sensors, and who had the most ATGM pods/ APS shots.

Equally well, doesnt this sound like the age of battleships - the last few conflicts that came anywhere near Tank v Tank, were heavily decided by Aircraft/guided weapons/AT Helicopters, and now sensor and attack drones.

So does the tank go back to being the guy that has to go in and check the drones didnt miss anything, and to collect the surviving prisoners, i.e. escorting the heavy APC's, with drone cover/detection/destruction, and with robot escorts doing the close work.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,767
Reaction score
1,985
Just have a smart swarm of tiny drones come in and punch holes in the other guy's main guns with shaped charges. Done.


bobbymike

ACCESS: USAP
Joined
Apr 21, 2009
Messages
10,710
Reaction score
1,777
Just have a smart swarm of tiny drones come in and punch holes in the other guy's main guns with shaped charges. Done.
While I probably haven’t seen all the videos from Syria and the latest conflict in Azerbaijan what I have not seen is a single main gun tank kill of another tank. Lots of ATGMs and drone kills however


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
1,904
Reaction score
800
Their ability to disrupt drones is basically non existent, somewhat different for the major powers from what I have seen.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
3,158
Reaction score
500
Missiles still remain effective at a fraction of the weight and cost of gun installations.
Missiles are at least an order of magnitude more expensive than the most expensive cannon fired Kinetic energy penetrators.

If you select missiles as your main armament and the number of stowed kills stays the same, gun designers
are going to be able to show that they can apply all of the exotic weight reduction techniques that were previously
regarded as cost prohibitive.

The same would apply to all of the "exotic" concepts for enhancing cannon muzzle velocities or
to an extent gun launched guided rounds since there is quite a bit of work on guided rounds for
medium caliber and artillery tubes.


Fluff

ACCESS: Secret
Joined
Sep 9, 2019
Messages
486
Reaction score
267
Also - everyone seems to focus on penetration - how useable is a tank after a hit on the turret, that doesnt penetrate - sensors will be down, comms, APS in some areas?

Or a hit that takes out the tracks?

That tank is going to try and withdraw - or need engineers and some time to get it going.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
3,158
Reaction score
500
Also - everyone seems to focus on penetration - how useable is a tank after a hit on the turret, that doesnt penetrate - sensors will be down, comms, APS in some areas?
I think the ballistic shock requirements are the same rough order of magnitude as the shock requirements for withstanding
the main gun firing.


shin_getter

ACCESS: Secret
Joined
Jun 1, 2019
Messages
254
Reaction score
208
Missiles are at least an order of magnitude more expensive than the most expensive cannon fired Kinetic energy penetrators.

If you select missiles as your main armament and the number of stowed kills stays the same, gun designers
are going to be able to show that they can apply all of the exotic weight reduction techniques that were previously
regarded as cost prohibitive.
The question is how many LOS "anti-tank" stowed kills is needed? It should also be noted that historical ammo count is not representative: accuracy was poor and pk was low per shot. When pk is high and shots are not used for suppressive effects, ammo needs are low.

The problem with using a large, really high velocity gun is that your stowed kills against other targets is reduced. There is orders of magnitudes more infantry, more mini-ugv, micro-uav, holes in the ground, light/medium vehicles that needs servicing.

The previous conflicts in the past few decades have shown extremely few tank on tank engagements, and none that had a strategic impact.

-----------------
Even if we assume a conflict where formation tank on tank battle occurs, how likely is it we need large number of LOS stowed kills? Should we commonly expect 5+ kills per rearm against against a opponent that needs 130mm+ HV guns to defeat? As the life expectancy of the combat vehicle goes down the amount of stored kill needed also goes down since it is unlikely to fire them all.

You need a opponent that:
1. Manage to penetrate USAF fires
2. Manage to penetrate army BLOS fires
3. Arrive at front in dense, numerically superior force
4. With the American tank force not neutralized by enemy long range fires
5. That has combat power that defeats Abrams by protection but is utterly ineffective against FMBT in LOS combat, taking multiple losses per FMBT
6. Yet persist in engaging as opposed to disengaging
7. Under conditions where the American forces can not just disengage as well
8. While being the highly significant point of conflict

The problem is that #1, #2 is extremely hard, while matching FMBT on #5 is fairly easy as it is detected when it fires and joint fires or missiles (of sufficient capability) can defeat it, even if gun development is lagging. Even if technology is unavailable, Brute force methods like huge Kinetic kill missiles or large missiles salvos is still more economic than horrible exchange ratios, and it is not really conceivable way that a FMBT can be defended against all those methods and still pack a big gun and ammo and have mobility. It is also unlikely that sensor outmatch could enable large kill counts as LOS is limited and commercial thermals is getting good enough.

In any case even if this scenario is not literally impossible it is still likely to be very implausible, and optimizing for it as opposed to all the other very common scenarios is wasteful.

-------------------
Though thinking about the constraints a bit, I think huge number cheap stowed kills can enable completely different engagement logic. One can start firing semi-blind into smoke, cover, and poorly localized radar signatures and likes. However with a big chemical gun is still too constrained by ammo count and such such tactic would probably have to wait till practical railguns. You probably also need an anti-sensor revolution for this to be actually useful.
