Lun (Project 903) missile-carrier WIG

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
858
Reaction score
200
http://www.youtube.com/watch?v=OeUe6aVib08&mode=related&search=

A nice video showing (among other things) the Lun Ekranoplan at its final resting place in Kaspisk(?).


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
918
Website
deeptowild.blogspot.com

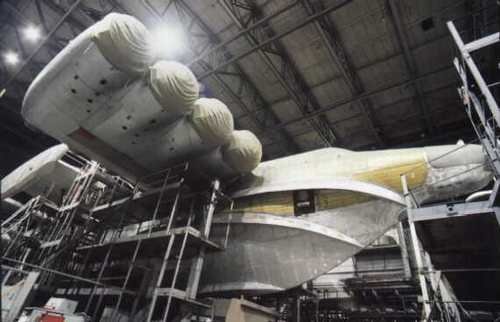

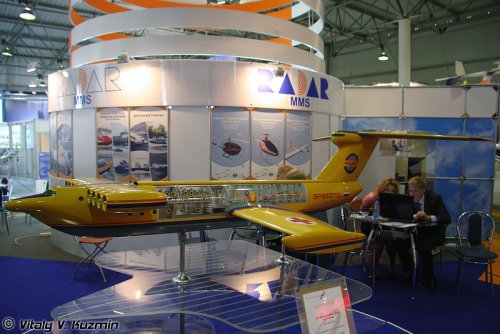

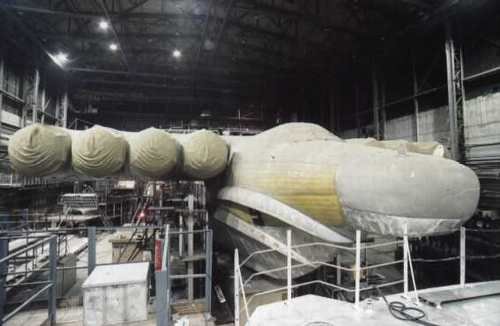

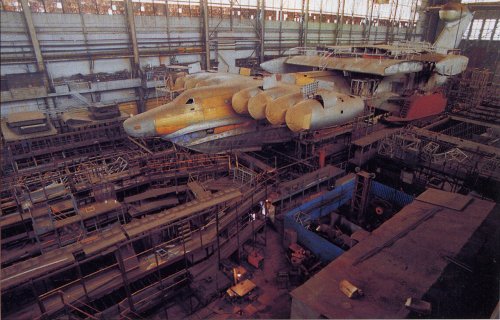

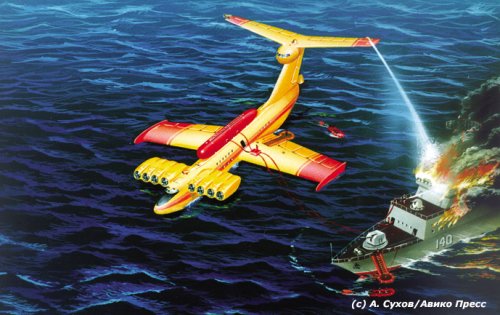

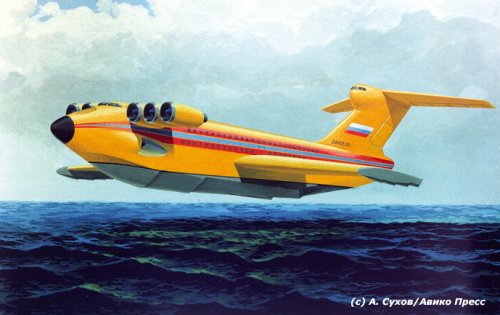

The second Lun ekranoplane was 80 percent complete when work was stopped. It was proposed that this ekranoplane should be completed as a a Search and Rescue (SAR) aircraft named ‘Spasatel", Russian for "rescue worker." Due to insufficient funding work was never completed.
http://avicopress.ru/category.php?id=53


Attachments

  • Ekr-10-1.jpg
    367.5 KB · Views: 1,017
  • Ekr-10-2.jpg
    260.2 KB · Views: 890
  • Ekr-10-3.jpg
    419.3 KB · Views: 878
  • 1252097548_g.jpg
    181.9 KB · Views: 817

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
192
Website
www.hitechweb.genezis.eu
Triton said:

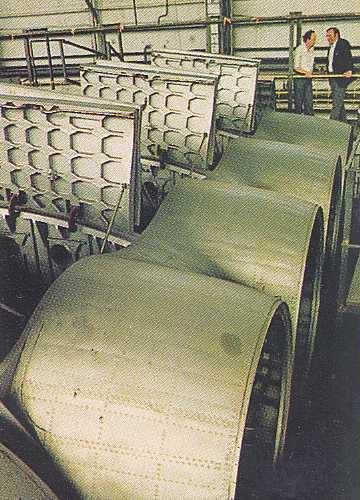

The second Lun ekranoplane was 80 percent complete when work was stopped.


Attachments

  • spas-2.jpg
    305.8 KB · Views: 840
  • spasatel_3.jpg
    51.3 KB · Views: 183
  • spasatel_4.jpg
    19.5 KB · Views: 145
  • spasatel_5.jpg
    20.9 KB · Views: 142

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,960
Reaction score
1,098
Here are close-up pictures of the Lun no. 1 ???

http://igor113.livejournal.com/52174.html
http://igor113.livejournal.com/51213.html


Deino


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,909
Reaction score
434

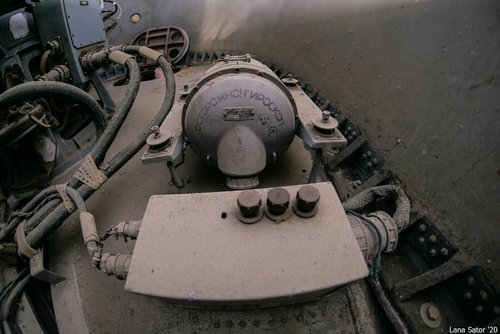

Wow, those Lun photos are amazing. I was really surprised at the complexity of the hull design, with all of it's steps and the retractable step. I also found the cockpit gauges informative. Especially the "artificial horizon" which apparently uses the water surface as the reference and has the strip gauges for height above the water on each side. I wonder if the height on each side was based off of wingtip height above the water? Perhaps it's in the text, but beautiful pictures of a very interesting WIG.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,219
Reaction score
223
Great photos. To paraphrase Wellington, I don't know what this thing would have done to the enemy, but by God, it frightens me.

And what in the blue blazes were they planning to shoot at with a forward-looking dual 23 mm turret?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
These Lun photo galleries are stunning. I don't know the present status of that craft, but given the amazing complexity of the details and the engineering stunt they represent, plus the uniqueness of the design, this really ought to be restored and displayed as a living testimony of a past era.


Kokoro

ACCESS: Confidential
Joined
Apr 8, 2009
Messages
50
Reaction score
4
Is the Spasatel still around? Or was it broken up. Pics of it sitting in the hanger have been around a long time.

Are there any campaigns to save the Lun? I was reading the other day the campaign to save the hulk of the City of Adeleide, although a noble cause I cannot believe that the Lun doesn't have it's own rescue campaign.


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,151
Reaction score
1,818
OMG Wat for Picture !
Zillion thanks OM for the link

that not a Transporter

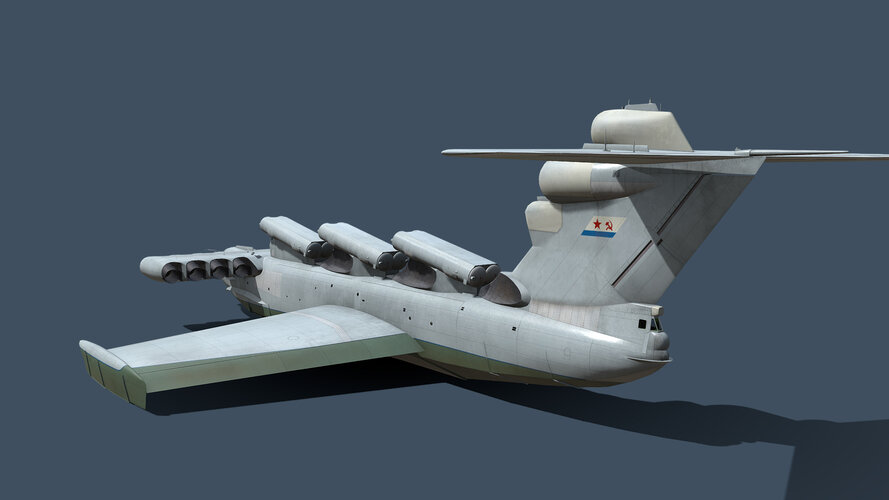

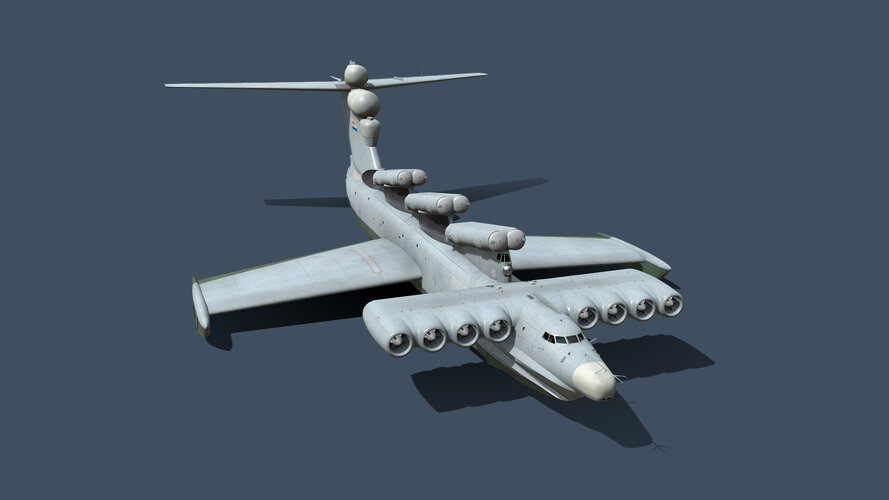

this is Lun-class ekranoplan with 6 Anti-Surface Warfare P-270 Moskit rockets.

http://en.wikipedia.org/wiki/Lun-class_ekranoplan


saintkatanalegacy

Little Miss Whiffologist
Joined
Mar 31, 2009
Messages
718
Reaction score
4
The plane deserves to be restored and preserved rather than just be left out and go into rust imho

poor thing :'(


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,214
Reaction score
1,526
Lun autonomous dock, an engineering wonder per ce, and the only way for her to be transported to the shore
http://igor113.livejournal.com/52878.html


kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,496
Reaction score
573
What a magnificent machine...I do hope it is preserved properly at some stage.
That must have been some ride.


paralay

ACCESS: Confidential
Joined
Mar 2, 2006
Messages
187
Reaction score
184
Website
www.paralay.ru

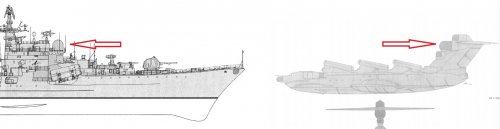

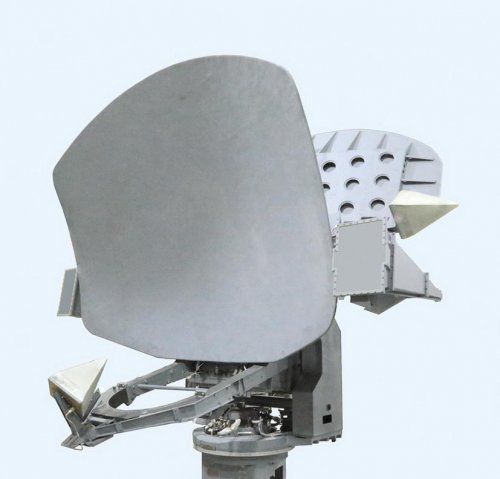

Passive radar for search purposes anti-ship missiles "Mosquito"


http://www.typhoon-jsc.ru/index.php/production-and-services/special-purpose/mineral-me


Attachments

  • mineral-me3.jpg
    42.5 KB · Views: 204
  • 956.JPG
    146.5 KB · Views: 702

paralay

ACCESS: Confidential
Joined
Mar 2, 2006
Messages
187
Reaction score
184
Website
www.paralay.ru
Navigation radar "Don-2". The radar before the cockpit

Radio equipment:
- Generic detection radar "Получас"
- Navigation radar "Дон-2"
- A set of electronic warfare, "Хиппер"
- Communication Complex "Редан-2"


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,177
Reaction score
6,325
paralay said:
Navigation radar "Don-2". The radar before the cockpit

Radio equipment:
- Generic detection radar "Получас"
Polyuchas
paralay said:
- Navigation radar "Дон-2"
Don-2
paralay said:
- A set of electronic warfare, "Хиппер"
Khipper
paralay said:
- Communication Complex "Редан-2"
Redan-2


NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
191
Reaction score
62
I know many Ekranoplan models were supposed to still have a basic flight capability. The Bartini model is the only one I've seen engaged in the activity, does anyone else have pictures of any of the more famous models engaged in "regular" flight?

Or did the Soviets never test that capability?


NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
191
Reaction score
62
paralay said:
"Orlyonok" was flying at an altitude of 3000 m, if I'm not mistaken

Yeah I've seen plenty of sites mentioning rudimentary "high altitude" flight available to most Soviet Ekranoplanes as well as many smaller civilian WiG aircraft. The problem is I've never seen any pictures or video footage of these craft engaging in it.

The typically short stubby wings will require ALOT of speed and probably quite a bit of AoA, but Soviet Ekranoplans seem to be built more as tandem wing "aircraft", of which there is actually quite a decent bit of lifting surface to get them airborne once they've hit enough airspeed..


paralay

ACCESS: Confidential
Joined
Mar 2, 2006
Messages
187
Reaction score
184
Website
www.paralay.ru
The WIG - is bad flying aircraft. For a flight from one sea to another across the continent enough height 1000 - 3000 meters.


Sineva

ACCESS: Confidential
Joined
Apr 29, 2010
Messages
71
Reaction score
175

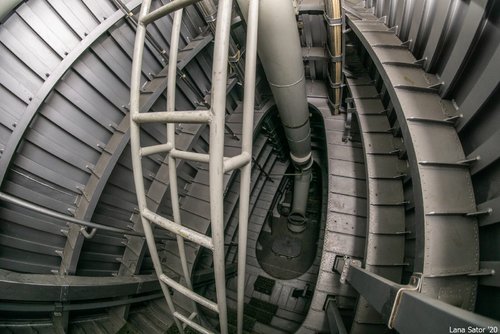

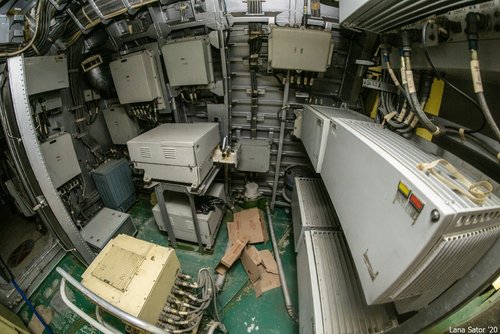

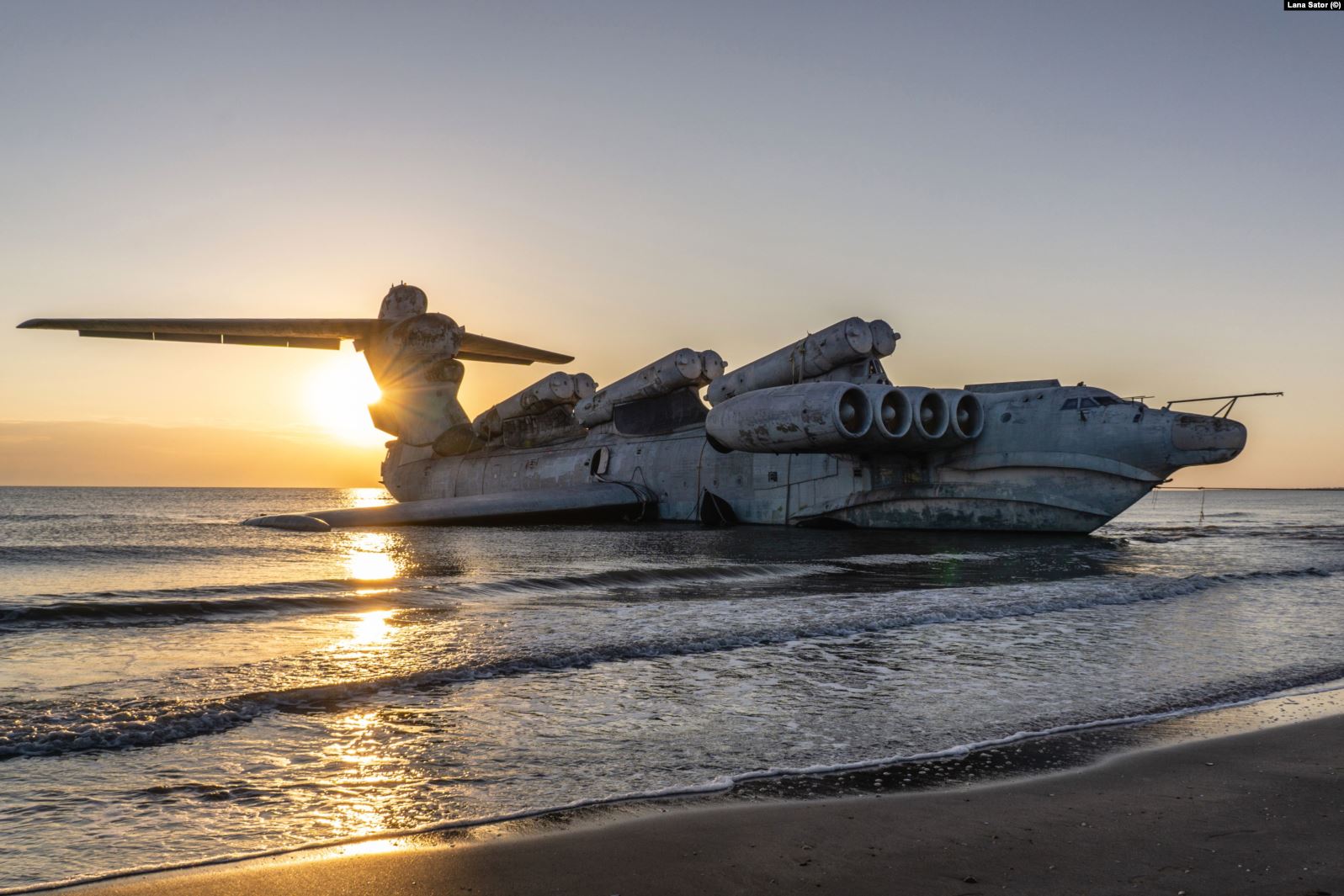

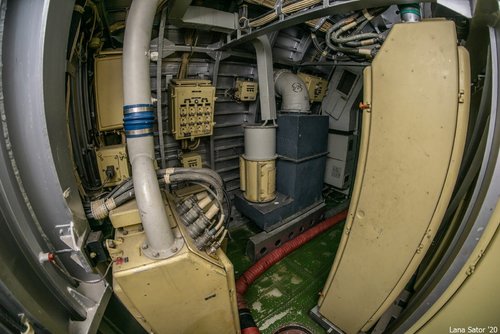

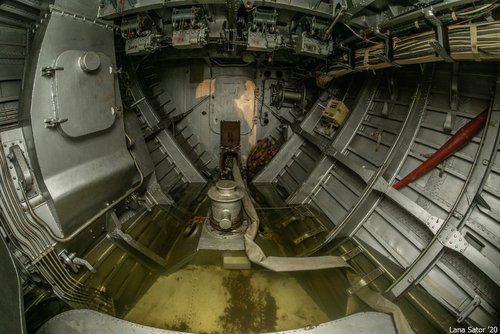

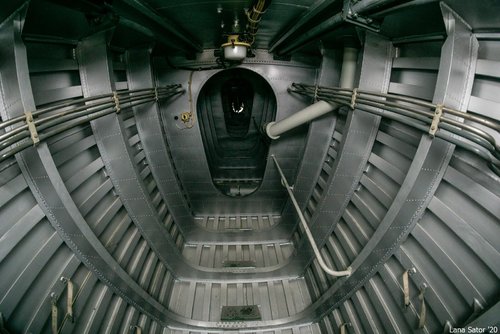

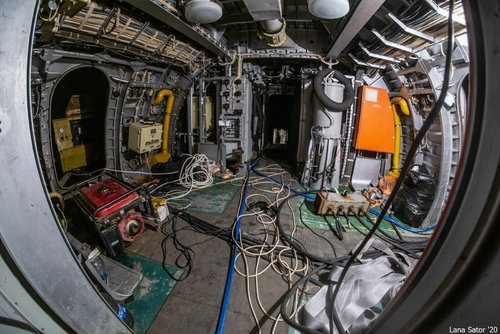

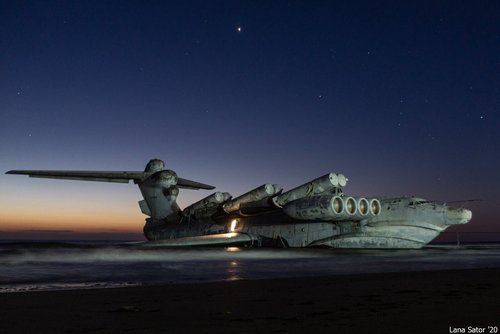

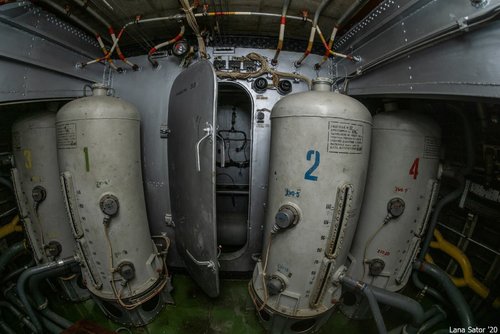

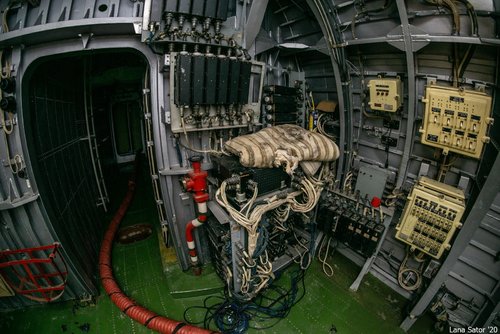

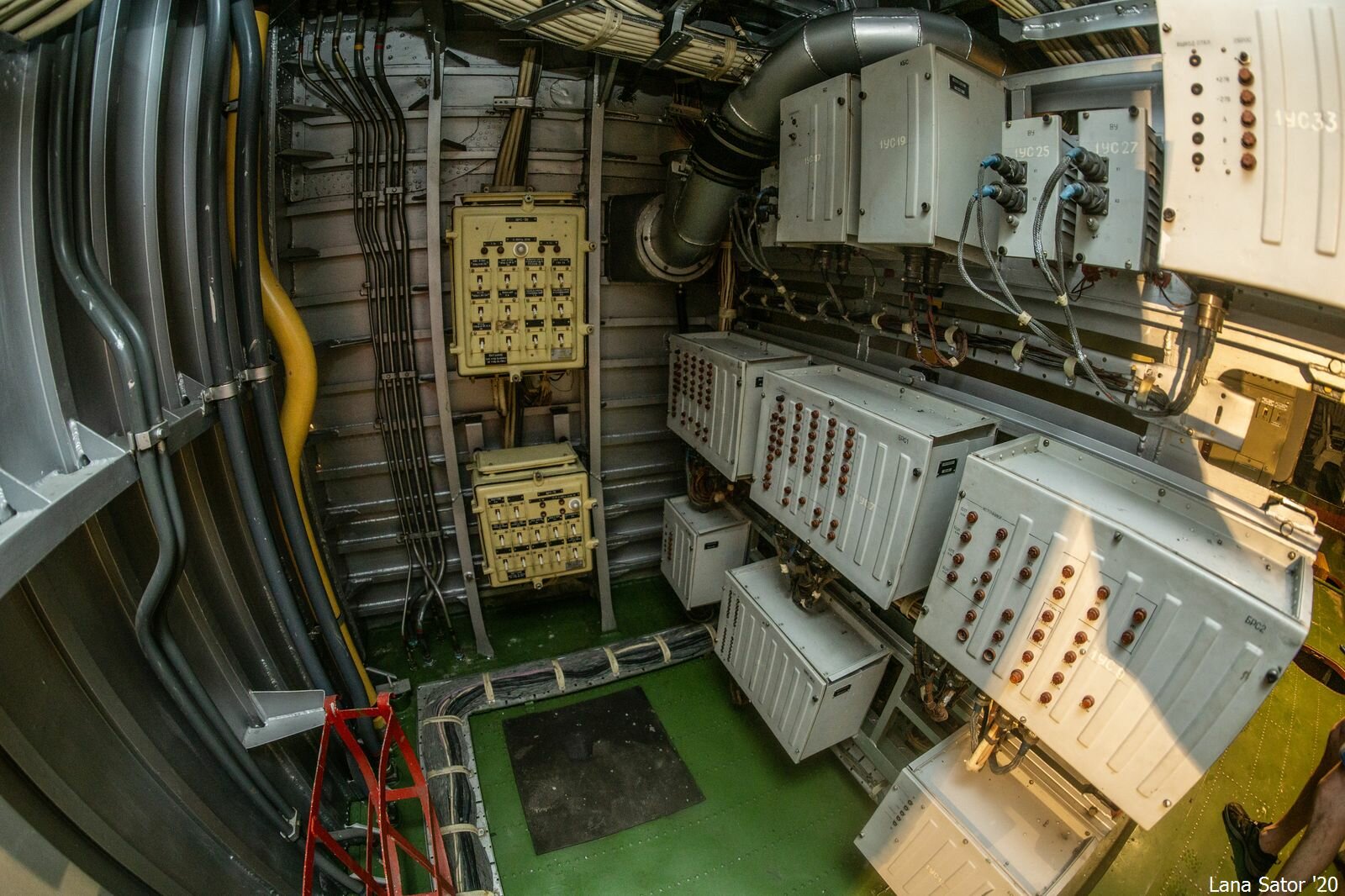

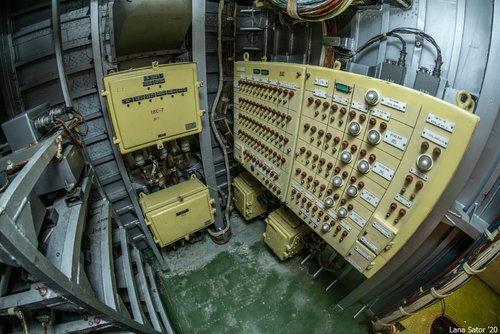

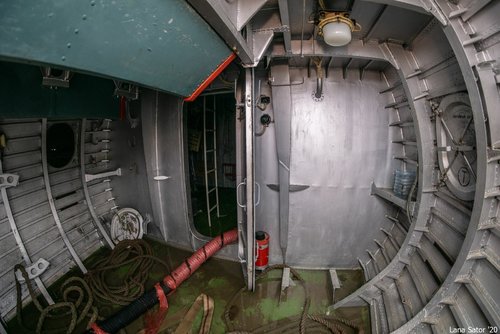

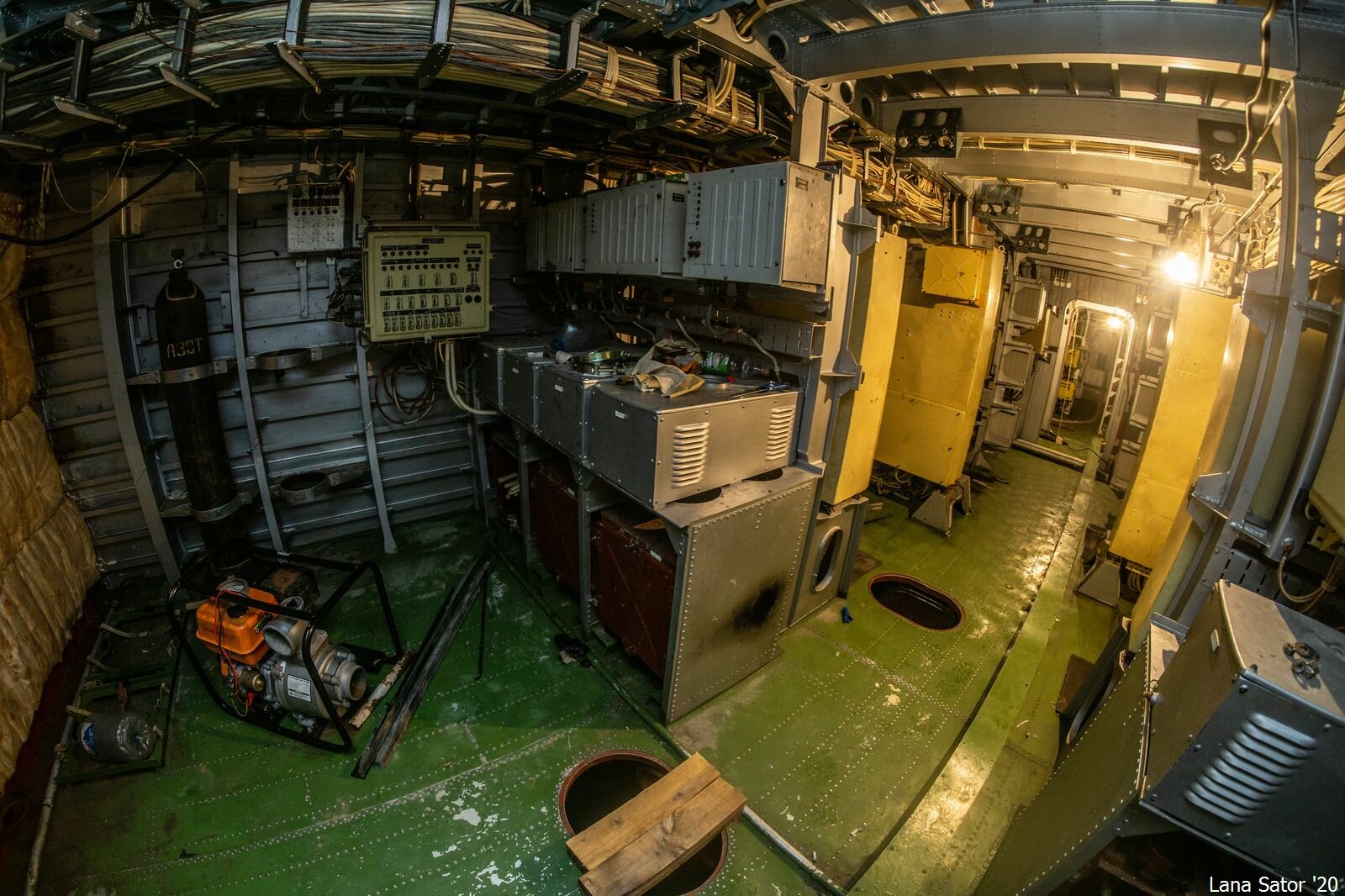

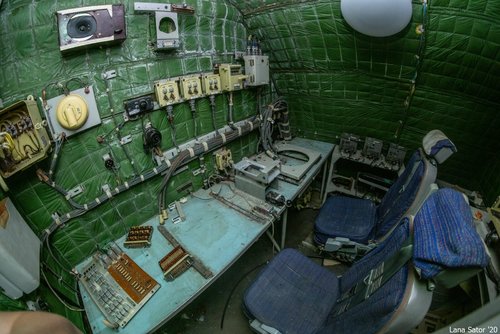

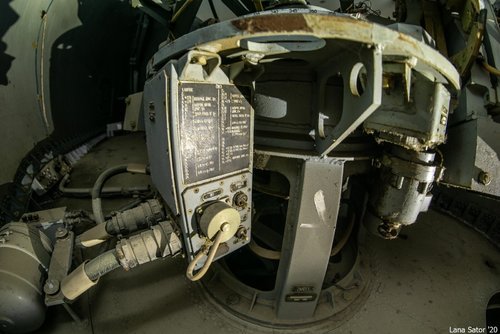

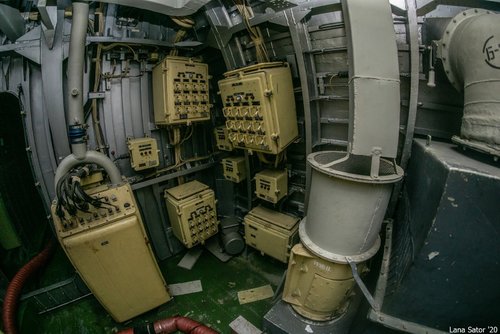

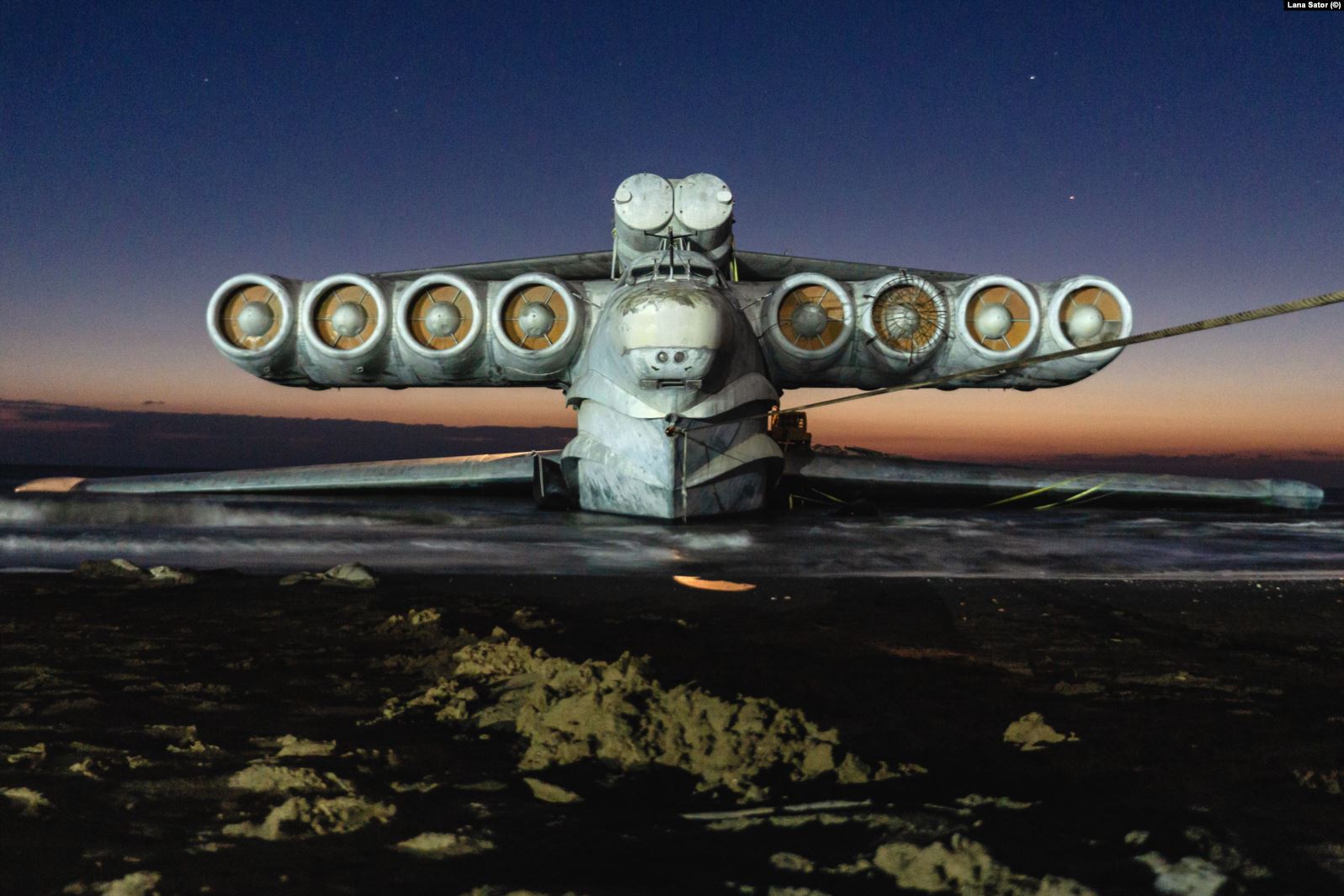

Some amazing pics from inside the Lun,taken under the nose of a snoozing security guard by some very brave urban explorers.
https://www.rferl.org/a/photographer-sneaks-inside-the-legendary-soviet-ekranoplan/30777774.html
https://zen.yandex.ru/media/lanasat...hranu-i-popast-vnutr-5f30e9b9bbe8572b801cebe9




Its pretty sad to see it in this state.

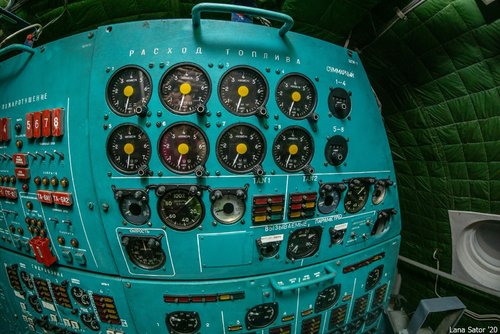

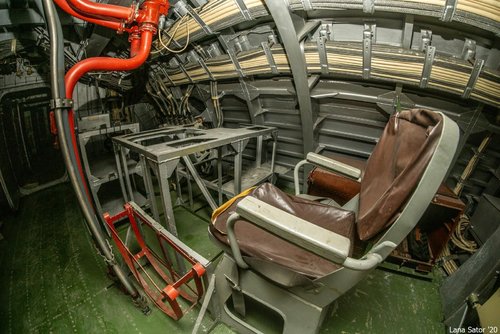

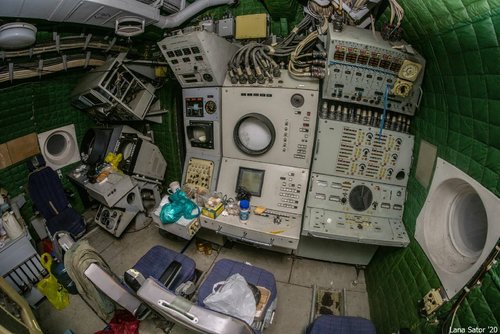

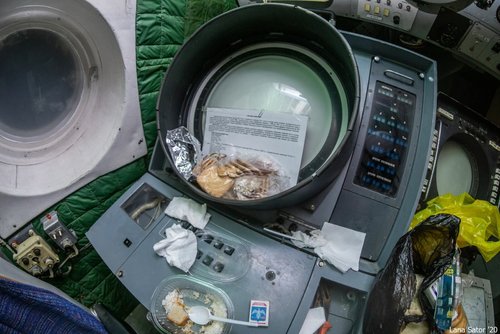

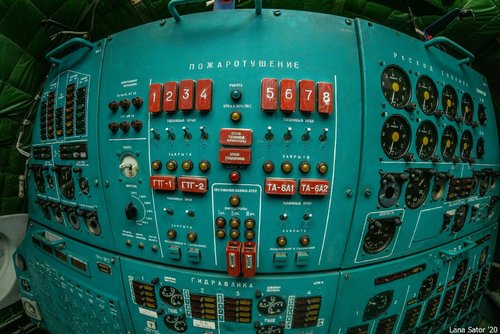

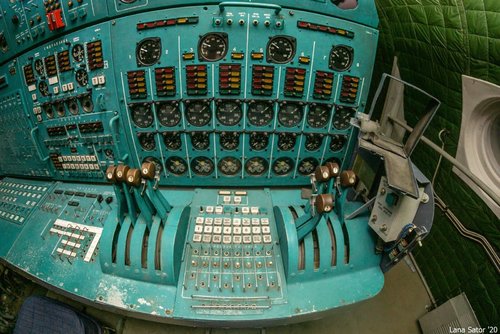

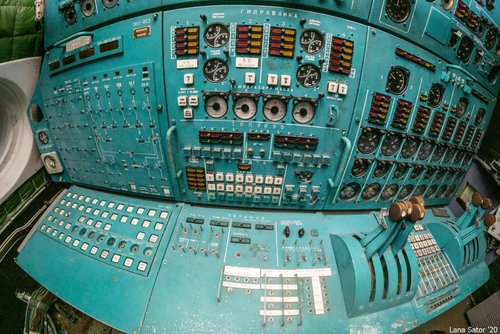

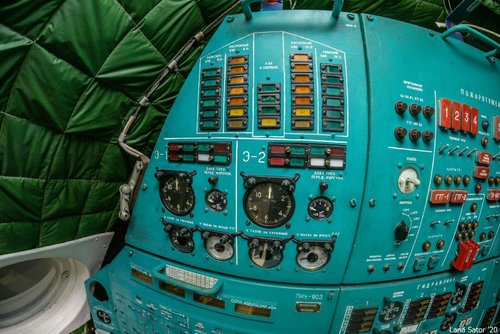

The cockpit and engineers stations.It looks like one member of the flight crews sole job is just monitoring and adjusting all of the engines,its like a throwback to the old multi-engined flying boats like the Do X.

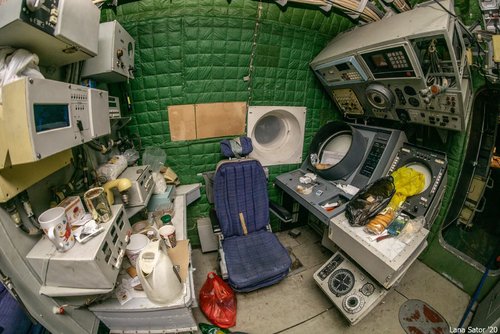

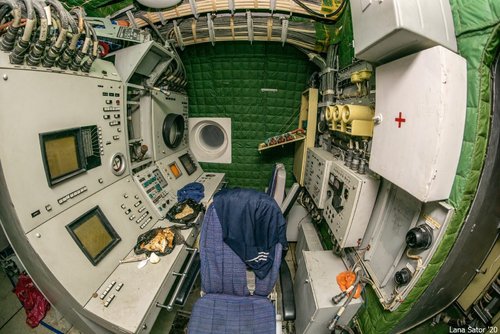

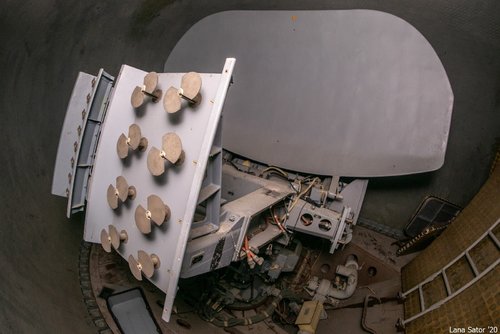

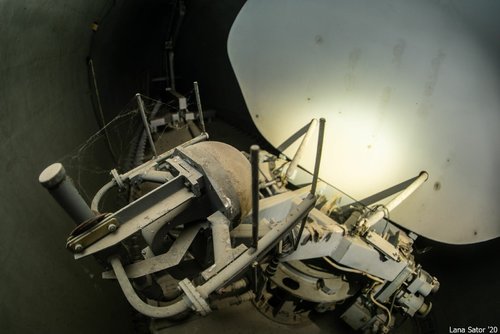

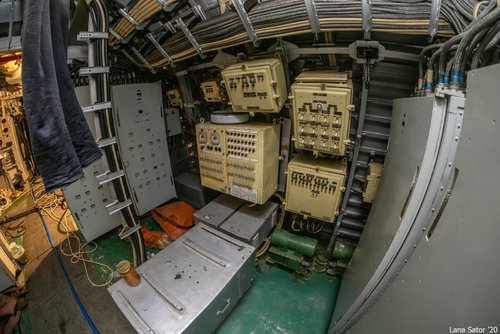

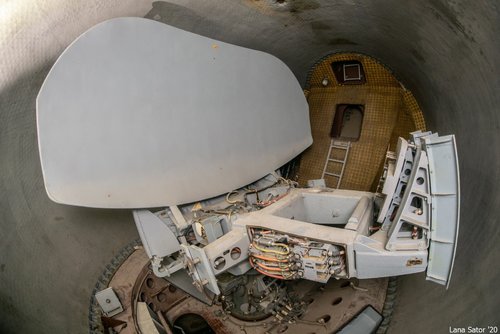

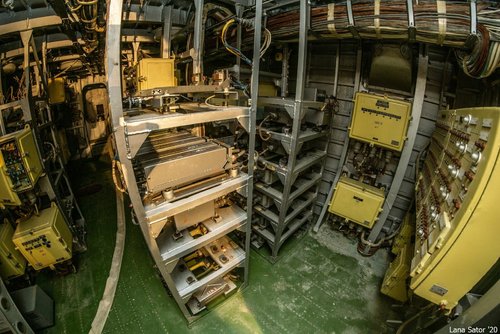

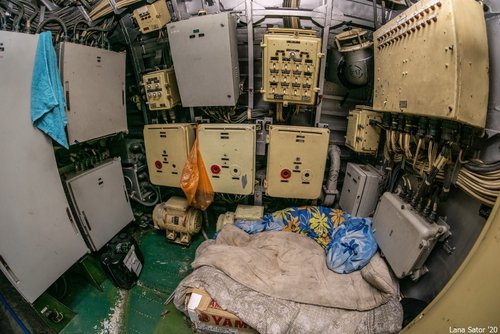

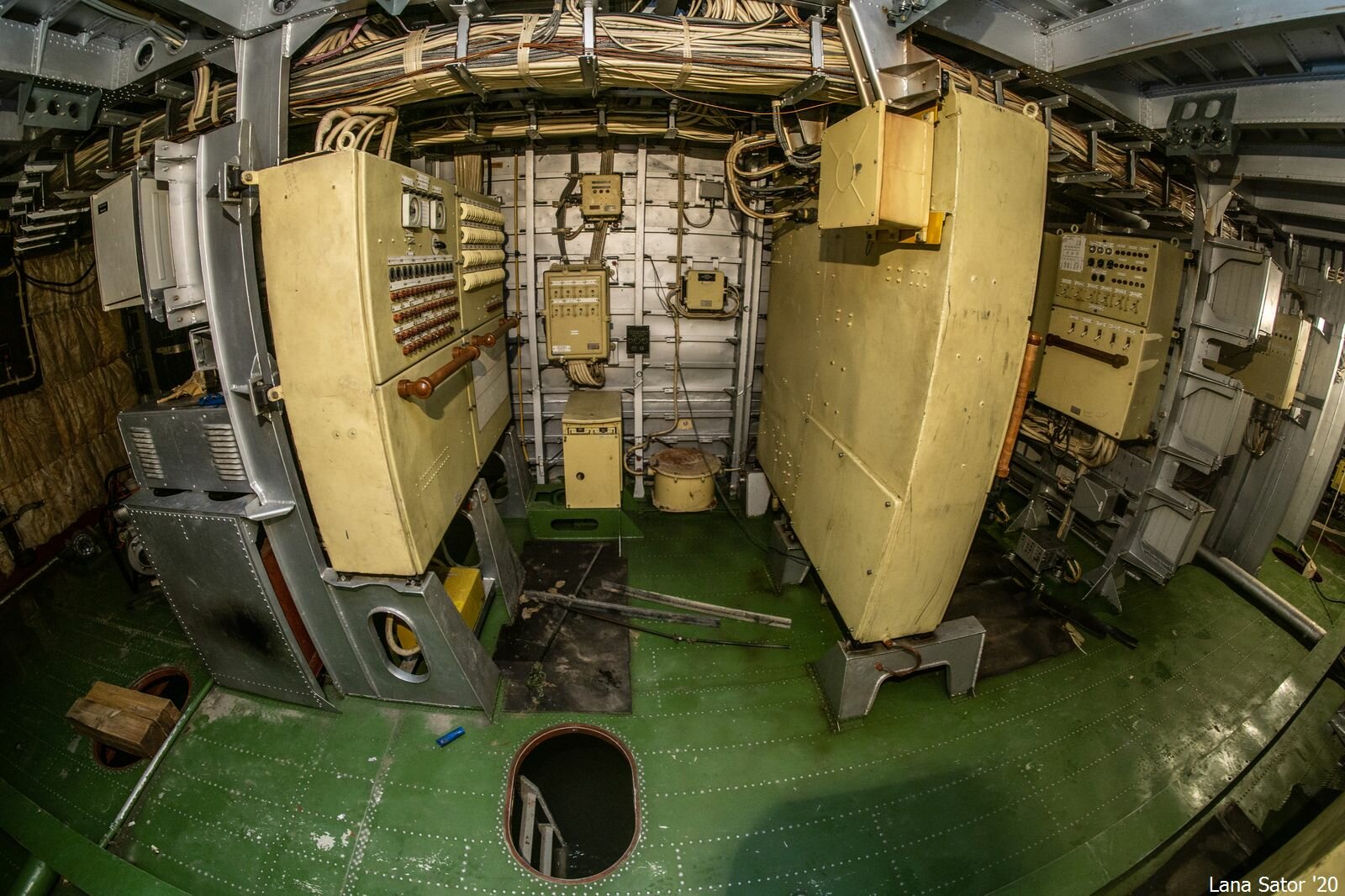

One of the radars mounted in its radome on the front of the tail,plus the radar operators console.Looks like various food items left by the transport crew.

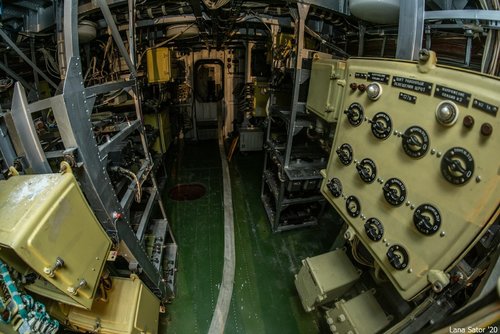

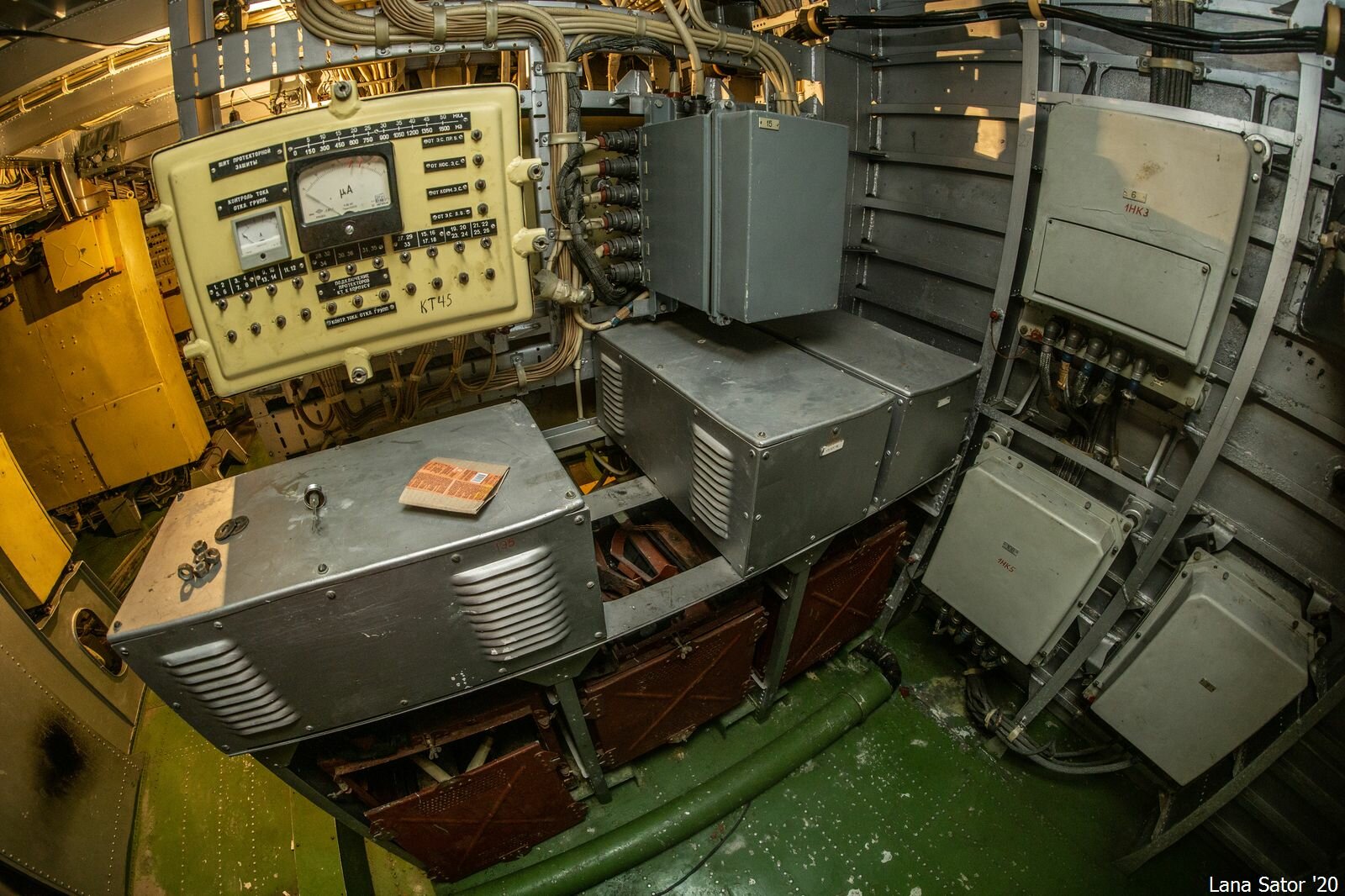

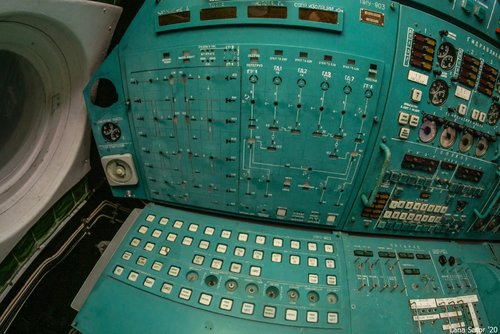

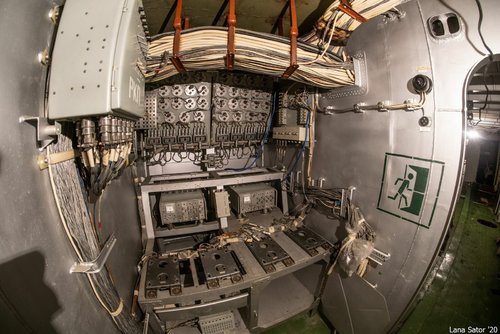

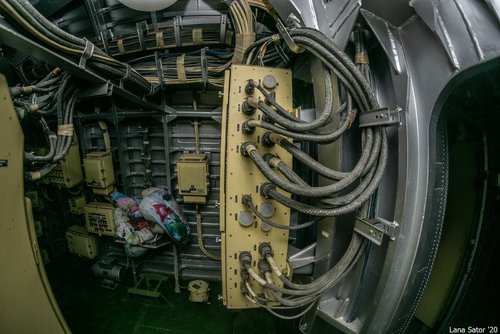

More radar/ew consoles

What an awesome machine.

Last edited:

covert_shores

Research + illustration
Senior Member
Joined
Oct 31, 2014
Messages
709
Reaction score
206
Website
www.hisutton.com

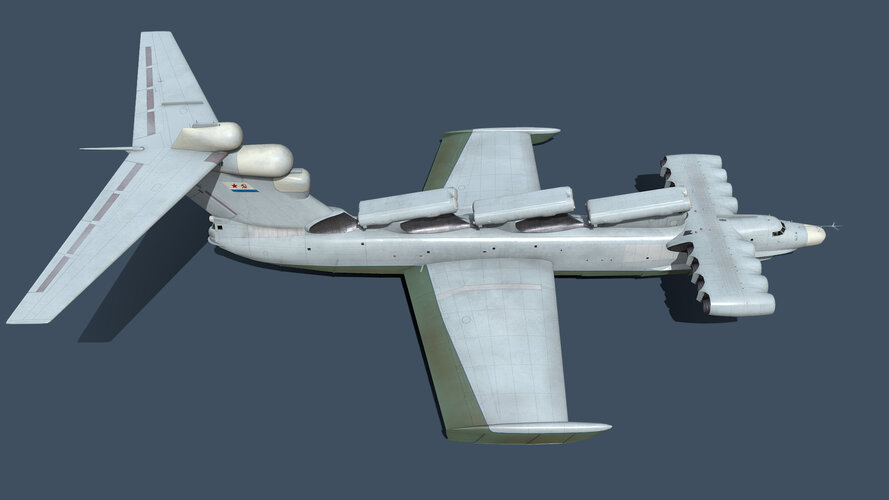

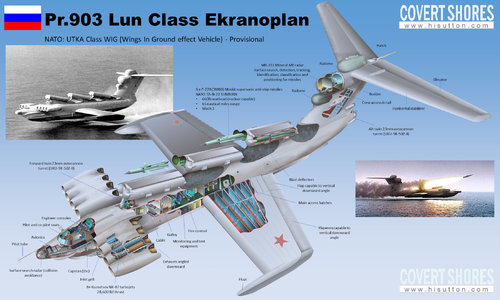

My attempt at a cutaway, from http://www.hisutton.com/Russian-Navy-Ekranoplan-WIG.html
This was drawn before many of the latest photographs from inside it have come out. I will update it some time, there are a few things to change. But hopefully still cool.


Also re its's fate, it is, as-of yesterday. still stuck on the beach where it could get damaged or destroyed by a storm. Not good.
