Korean KTX-II early concept with BAe

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,466
Reaction score
195

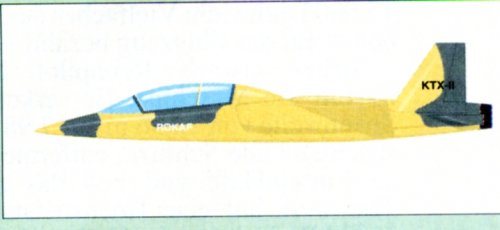

Found a drawing of the early KTX-II concept at Flug Revue May 1994


Attachments

  • KTX-II early.jpg
    KTX-II early.jpg
    82 KB · Views: 472

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,379
Reaction score
687

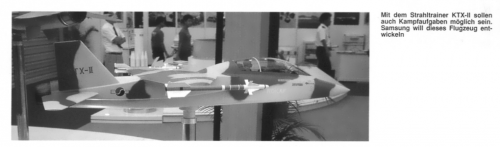

Here a picture showing a model of the Samsung KTX-II at the Asian Aerospace show in Singapore, 1994.


Source: Luftwaffenforum, 03-1994, page 16


Attachments

  • Samsung_KTX-II_project_model_Luftwaffen-Forum_03_1994_page16_1020x298.png
    160.8 KB · Views: 375

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,889
Reaction score
1,191
Design work on the KTX-2 began in 1992 with support from Lockheed as part of the F-16C/D offset deal. From the Flight report in Hesham's initial post it looks as though Rockwell were also involved.
The design in the pictures shown in this thread interestingly show a high-mounted wing, the original design had a mid-mounted with but otherwise looked identical.

Samsung had sought partners and Dassault and Daimler-Benz as well as BAe were possible contenders for co-operation.

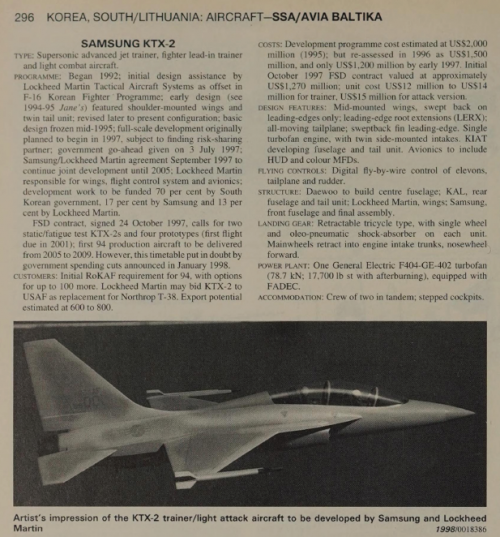

The KTX-2 had a wingspan of 7.8m (25ft 7in), length 13.7m (45ft), planned max speed of Mach 1.4 and range with max fuel 1,850nm (1,150 miles).

Source: Brassey's World Aircraft & Systems Directory, 1996-97.


litzj

BLOG : http://jaesan-aero.blogspot.com/
Joined
Feb 4, 2012
Messages
261
Reaction score
37
Website
jaesan-aero.blogspot.com
Hyundai proposed MAKO as other candidates of KTX-II.

Finally, KTX-II was decided as F-16 based F404 engined trainer.

Ironically, Samsung, Hyundai, and Daewoo are combined as KAI when Korea suffered economic crisis at end of 1990's
