Early concepts for BAe 146 aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
Hi,

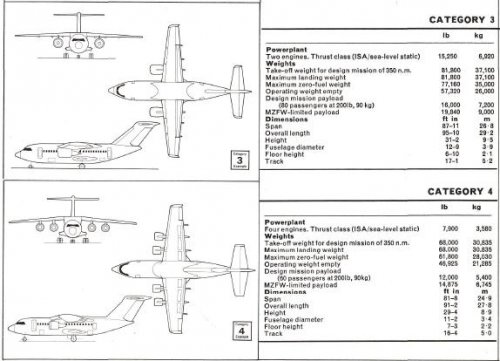

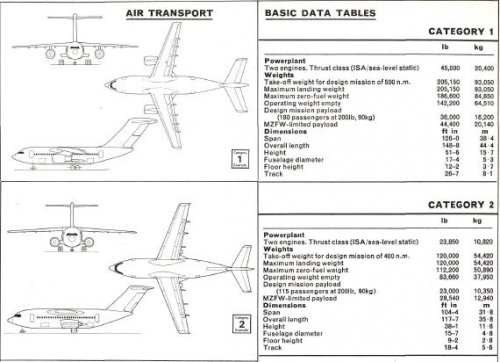

here is the early studies and concepts for the BAe 146 aircraft.

http://www.flightglobal.com/PDFArchive/View/1972/1972%20-%202532.html


Attachments

  • studies 1,2.JPG
    studies 1,2.JPG
    42.3 KB · Views: 830
  • studies 3,4.JPG
    studies 3,4.JPG
    43.2 KB · Views: 783

zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
208
Reaction score
222
Website
www.flickr.com
Im not so sure you know, these look more like the Europlane Quiet Stol project. BAC planned to test some of the high lift devices on a modified 1-11 475 that bore more than a passing resemblance to the forth study (and indeed a 146...)

The BAe 146 (HS146) evolved from numerous Hatfield studies including the DH126, HS131,136 and 144. The whole process is documented in Richard Paynes "Stuck on the drawing board"...

Zeb


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
76
zebedee said:
The BAe 146 (HS146) evolved from numerous Hatfield studies including the DH126, HS131,136 and 144. The whole process is documented in Richard Paynes "Stuck on the drawing board"...

Indeed, the four engine, high winged BAe 146 evolved directly from the low winged HS144 twin jet, an evolution forced by the cancellation of the RB.203.


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
13
It's interesting that some of the studies called for a twin but they went with a quad, especially in light that some of the final BAe-146/AvroJet projects called to revert back to a twin for better fuel efficiency.


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,138
Reaction score
269
That 2nd project looks like it would need a lot of vibration damping for the engines, and might be liable to a good deal a fatigue. As for cleaning runways - why bother? It could do that for itself ;D

Starviking


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
76
Just call me Ray said:
It's interesting that some of the studies called for a twin but they went with a quad, especially in light that some of the final BAe-146/AvroJet projects called to revert back to a twin for better fuel efficiency.

Engine availability is the often most important design driver. In the absence of the RB.203 Trent, the 4 engine high wing configuration was necessary - although the concept was most certainly influenced by the (apparently mistaken?) belief that there would be a shift to innercity airports for regional traffic.


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
799
Reaction score
247
Any guesses as to how effective the Category 1 design would have been as a Boeing or an Airbus competitor?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
Hi,

I heard that,from the early configurations to BAe 146M was a
a design had the same airframe but powered only by two Rolls-
Royce BR725 engines with a tail mounted one TP400 turboprop
engine,has anyone a drawing to it ?.


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
799
Reaction score
247
TinWing said:
Engine availability is the often most important design driver. In the absence of the RB.203 Trent, the 4 engine high wing configuration was necessary - although the concept was most certainly influenced by the (apparently mistaken?) belief that there would be a shift to innercity airports for regional traffic.

I wonder if it would have been possible to design the wing for 2 or 4 engines?


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
326
Reaction score
207
PMN1 said:
TinWing said:
Engine availability is the often most important design driver. In the absence of the RB.203 Trent, the 4 engine high wing configuration was necessary - although the concept was most certainly influenced by the (apparently mistaken?) belief that there would be a shift to innercity airports for regional traffic.

I wonder if it would have been possible to design the wing for 2 or 4 engines?

It's possible and Airbus has done it with the A330/A340, which use (to some degree, I'm not sure how much) a common wing. The result is less efficient structurally, and perhaps aerodynamically, than a wing optimized for 2 or 4 engines but the theory was that design, manufacturing and logistics efficiencies would make it worthwhile.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
hesham said:
Hi,

I heard that,from the early configurations to BAe 146M was a
a design had the same airframe but powered only by two Rolls-
Royce BR725 engines with a tail mounted one TP400 turboprop
engine,has anyone a drawing to it ?.

Hi,

here is a shadow to BAe 146M.


Attachments

  • 146M.jpg
    26.9 KB · Views: 534

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877

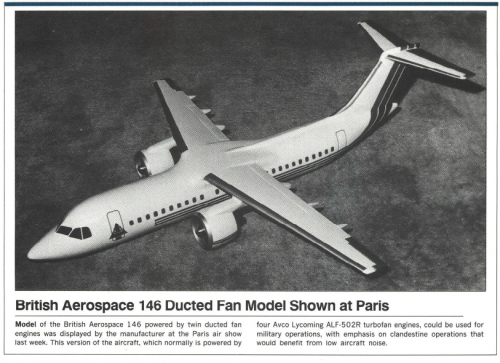

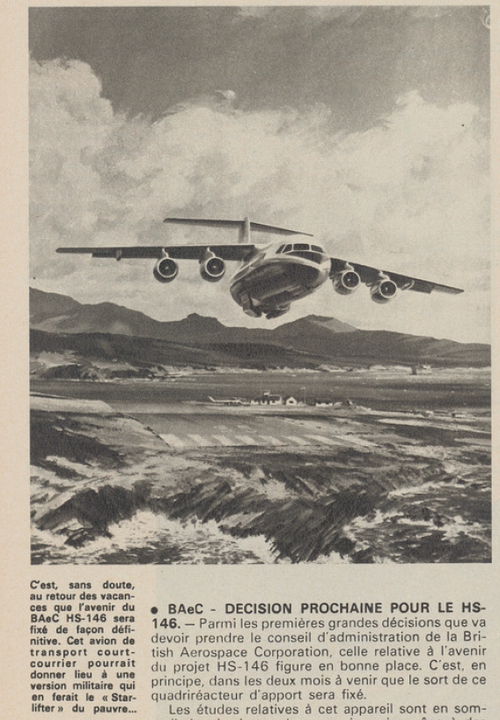

Hi,

http://archive.aviationweek.com/search?exactphrase=true&QueryTerm=LIFT-FAN&start=280&rows=20&DocType=Image&Sort=&SortOrder=&startdate=1916-08-01&enddate=1989-11-27&LastViewIssueKey=&LastViewPage=


Attachments

  • 1.png
    555.5 KB · Views: 309

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,725
Reaction score
1,174
About those Europlane studies in post #1 ... on page 2529 if the 21 Sept 1972 Flight, twin RB.211s are mentioned. I assume that to refer to the 'Category 1' concept with 45,000 lbf engines. But what RB211 variant was available in 1972 with that power output?


zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
208
Reaction score
222
Website
www.flickr.com

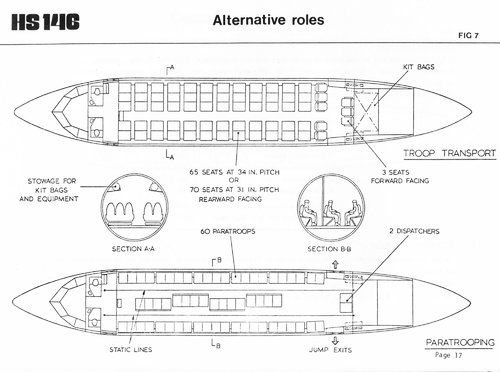

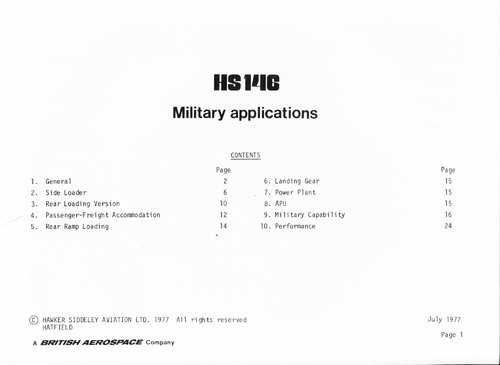

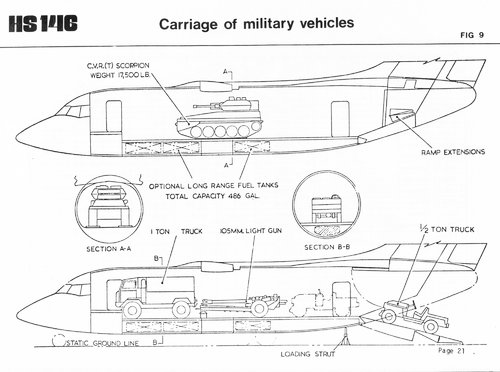

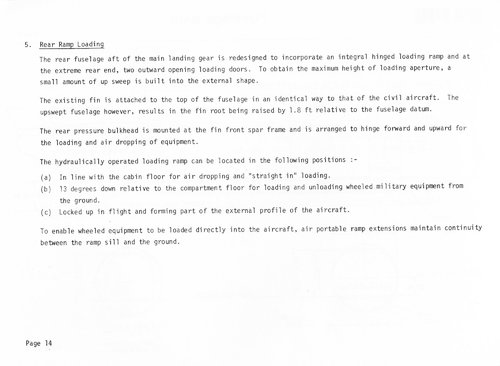

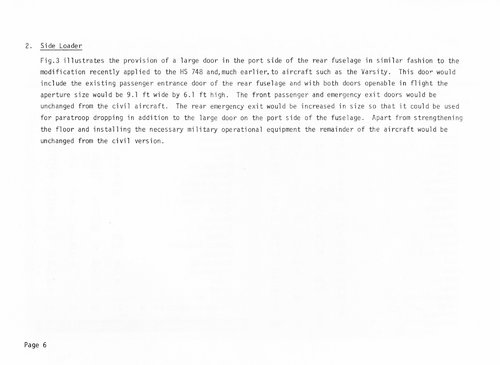

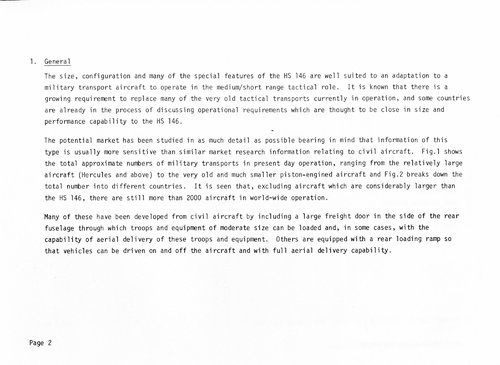

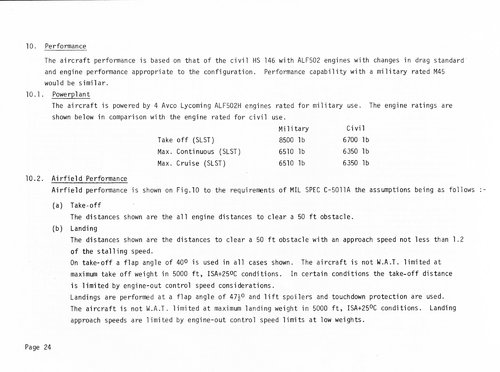

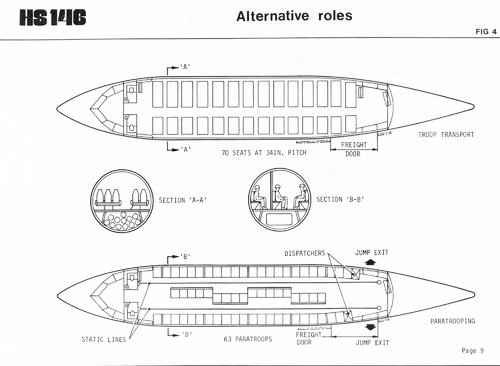

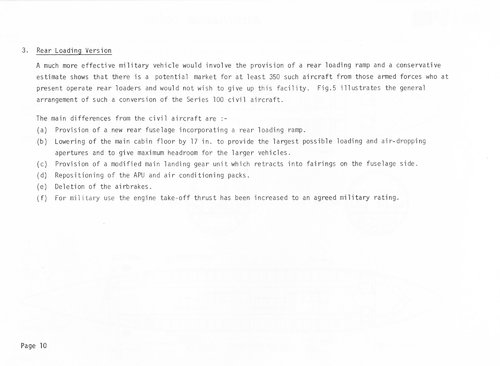

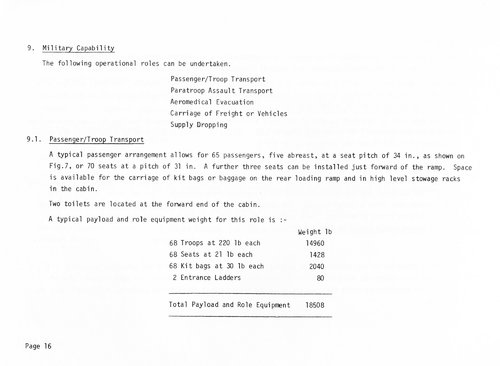

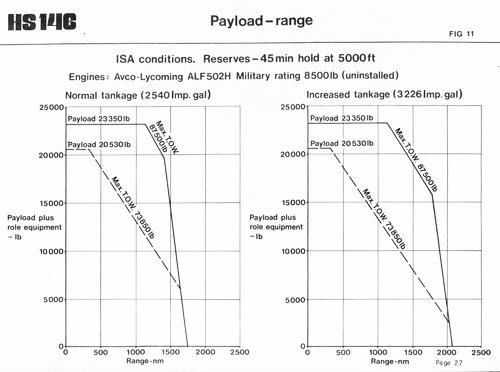

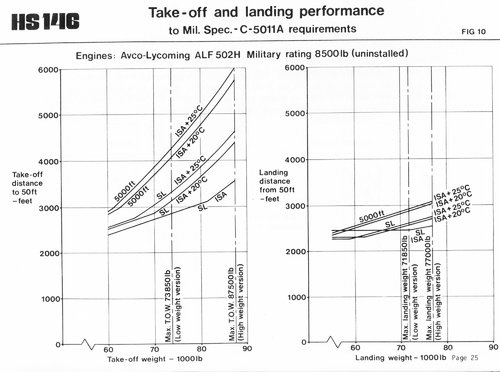

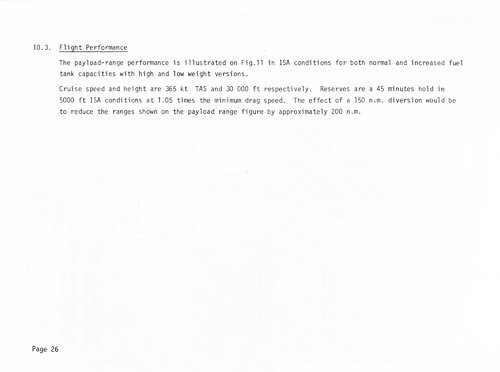

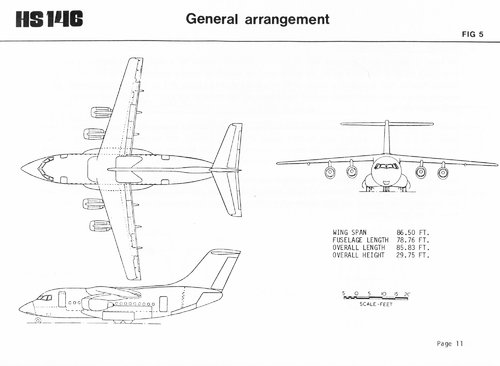

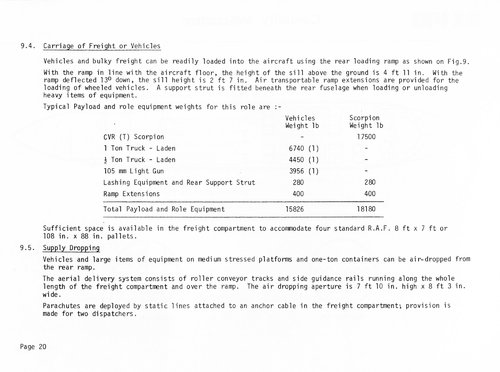

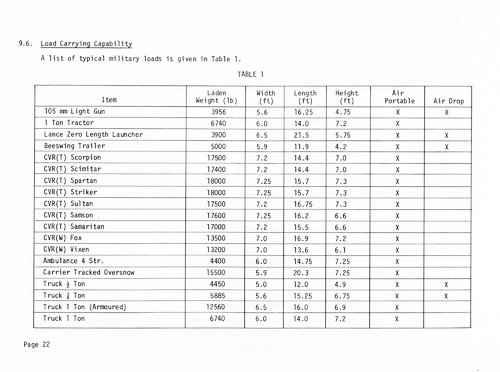

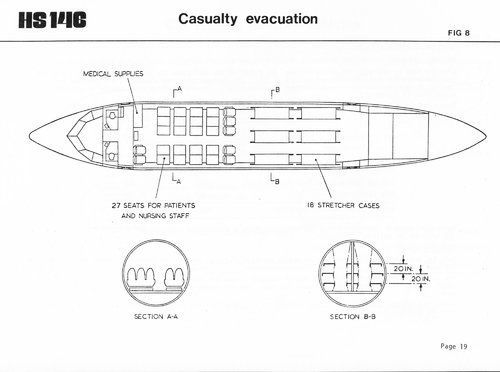

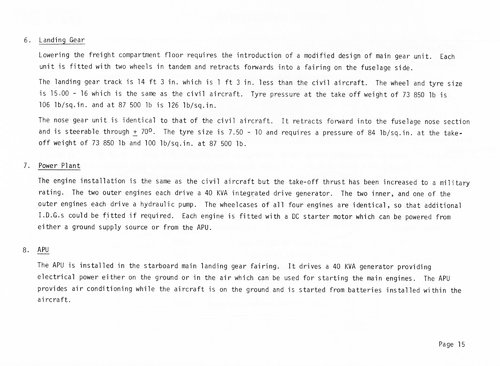

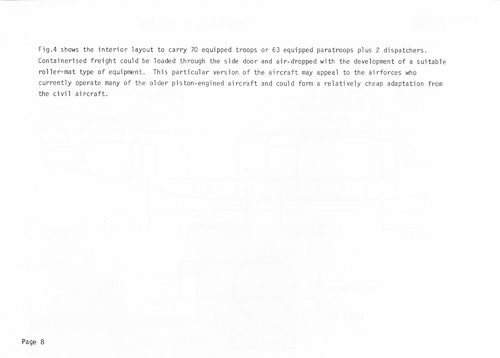

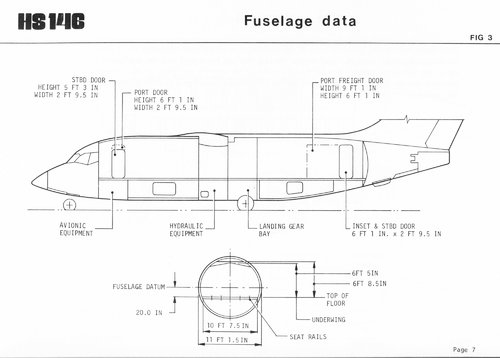

From a recently acquired brochure for the military HS146 dating from 1977... Some interesting images of the rear loading version including carriage of a CVR(T)... Of note is the Manchester Divisions involvement in its development (see also AW681 & HS802)

Zeb


Attachments

  • HS-146-7.jpg
    444.2 KB · Views: 55
  • HS-146-8.jpg
    162.6 KB · Views: 54
  • HS-146-9.jpg
    325.6 KB · Views: 44
  • HS-146-10.jpg
    190.9 KB · Views: 40
  • HS-146-11.jpg
    208 KB · Views: 46
  • HS-146-12.jpg
    216 KB · Views: 45
  • HS-146-13.jpg
    141 KB · Views: 51
  • HS-146-14.jpg
    274.3 KB · Views: 47
  • HS-146-15.jpg
    216 KB · Views: 55
  • HS-146-16.jpg
    222.6 KB · Views: 58

zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
208
Reaction score
222
Website
www.flickr.com
Some more...


Attachments

  • HS-146-17.jpg
    266 KB · Views: 52
  • HS-146-18.jpg
    275.1 KB · Views: 43
  • HS-146-19.jpg
    261.8 KB · Views: 43
  • HS-146-20.jpg
    317.1 KB · Views: 39
  • HS-146-21.jpg
    222.1 KB · Views: 44
  • HS-146-22.jpg
    333 KB · Views: 43
  • HS-146-23.jpg
    264.6 KB · Views: 44
  • HS-146-24.jpg
    235.9 KB · Views: 38
  • HS-146-25.jpg
    317.1 KB · Views: 46
  • HS-146-26.jpg
    343.6 KB · Views: 46

zebedee

ACCESS: Secret
Joined
Mar 18, 2007
Messages
208
Reaction score
222
Website
www.flickr.com
Some more...


Attachments

  • HS-146-27.jpg
    342.8 KB · Views: 48
  • HS-146-28.jpg
    281.5 KB · Views: 37
  • HS-146-29.jpg
    312.1 KB · Views: 35
  • HS-146-30.jpg
    327.8 KB · Views: 32
  • HS-146-31.jpg
    161.3 KB · Views: 33
  • HS-146-32.jpg
    287 KB · Views: 39
