FMA I Ae.28 Super calquin

blockhaj

Swedish "want to be" aviation specialist
Joined
Feb 9, 2017
Messages
162
Reaction score
69
Tried to recreate the I Ae.28 Super calquin with this picture.

And i thought it was a good diea to upload it here since there is no dedicated thread to the I Ae.28 Super calquin.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Re: Re: Argentine F.M.A./DINFIA/FAdeA designations

Nice work Blockhaj.


blockhaj

Swedish "want to be" aviation specialist
Joined
Feb 9, 2017
Messages
162
Reaction score
69
Re: Re: Argentine F.M.A./DINFIA/FAdeA designations

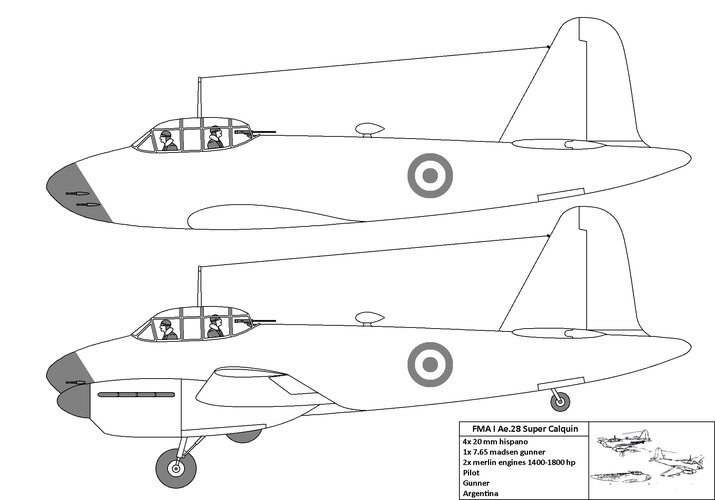

I decided to do an updated version which is more accurate. The only thing i have no clue about are the gun placements. Cuz the small pic down in the corner shows several placements and i almost think there are 6 placements in total which might be the cause since its descender the IAe.30 has 6x 20 mm's? It might be glass too but i cant confirm that since i have literally no description of the plane except for Calquin with merlin engines.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Re: Re: Argentine F.M.A./DINFIA/FAdeA designations

blockhaj said:
I decided to do an updated version which is more accurate. The only thing i have no clue about are the gun placements. Cuz the small pic down in the corner shows several placements and i almost think there are 6 placements in total which might be the cause since its descender the IAe.30 has 6x 20 mm's? It might be glass too but i cant confirm that since i have literally no description of the plane except for Calquin with merlin engines.

Amazing work,Blockhaj.


blockhaj

Swedish "want to be" aviation specialist
Joined
Feb 9, 2017
Messages
162
Reaction score
69
Re: Re: Argentine F.M.A./DINFIA/FAdeA designations

hesham said:
blockhaj said:
I decided to do an updated version which is more accurate. The only thing i have no clue about are the gun placements. Cuz the small pic down in the corner shows several placements and i almost think there are 6 placements in total which might be the cause since its descender the IAe.30 has 6x 20 mm's? It might be glass too but i cant confirm that since i have literally no description of the plane except for Calquin with merlin engines.

Amazing work,Blockhaj.
I should make a dedicated thread about this plane its gettin a bit off topic.


The posts from the designations section were merged with this thread.
Posts about specific aircraft are more appropriate for this section.


Erdosain

CLEARANCE: Confidential
Joined
Mar 10, 2020
Messages
104
Reaction score
353

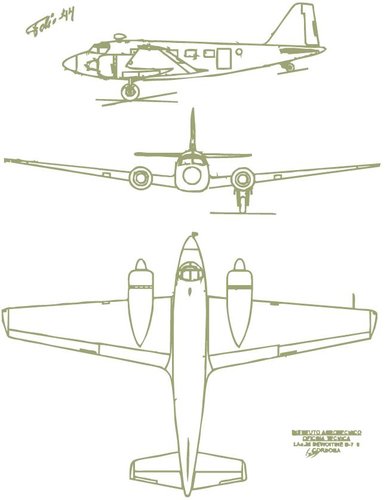

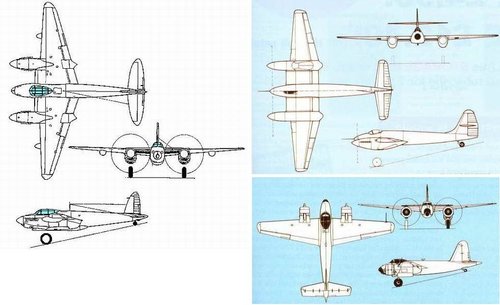

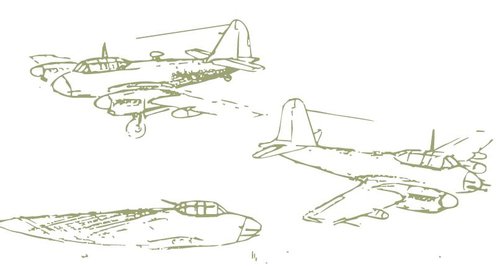

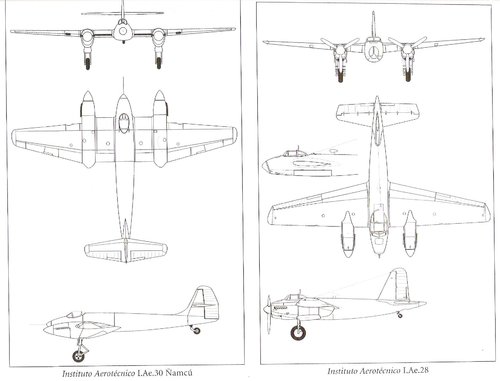

Some drawings of FMA I.Ae.28 Super Calquin, and comparisons of three views between I.Ae.24 Calquin, I.Ae.28 Super Calquin and I.Ae.30 Ñancu


Attachments

  • FMA I.Ae.24 vs I.Ae.28 vs I.Ae.30 Ñamcu_02.JPG
    FMA I.Ae.24 vs I.Ae.28 vs I.Ae.30 Ñamcu_02.JPG
    75.6 KB · Views: 87
  • FMA I.Ae.28 Super Calquin_01.JPG
    FMA I.Ae.28 Super Calquin_01.JPG
    28.3 KB · Views: 89
  • FMA I.Ae.28 Super Calquin_02.JPG
    FMA I.Ae.28 Super Calquin_02.JPG
    37 KB · Views: 86
  • FMA IAe-28 vs IAe-30.JPG
    FMA IAe-28 vs IAe-30.JPG
    158.2 KB · Views: 91

Wyvern

CLEARANCE: Secret
Joined
Jan 25, 2020
Messages
347
Reaction score
297
Weren't these the Argentine equivalents to the Mosquito and Hornet? They also look visually similar too.


Erdosain

CLEARANCE: Confidential
Joined
Mar 10, 2020
Messages
104
Reaction score
353
Weren't these the Argentine equivalents to the Mosquito and Hornet? They also look visually similar too.

The Calquin and Super Calquin were designed by Argentine engineers, the I.Ae.30 Ñamcú by the Italian engineer Pallavecino


Wyvern

CLEARANCE: Secret
Joined
Jan 25, 2020
Messages
347
Reaction score
297
Weren't these the Argentine equivalents to the Mosquito and Hornet? They also look visually similar too.

The Calquin and Super Calquin were designed by Argentine engineers, the I.Ae.30 Ñamcú by the Italian engineer Pallavecino

What I meant by that was whether they served a similar purpose to the Mosquito and Hornet.


Erdosain

CLEARANCE: Confidential
Joined
Mar 10, 2020
Messages
104
Reaction score
353
Weren't these the Argentine equivalents to the Mosquito and Hornet? They also look visually similar too.

The Calquin and Super Calquin were designed by Argentine engineers, the I.Ae.30 Ñamcú by the Italian engineer Pallavecino

What I meant by that was whether they served a similar purpose to the Mosquito and Hornet.

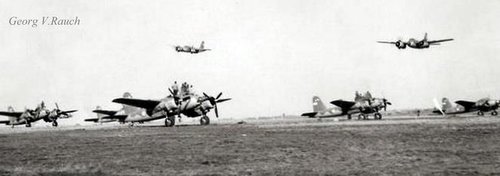

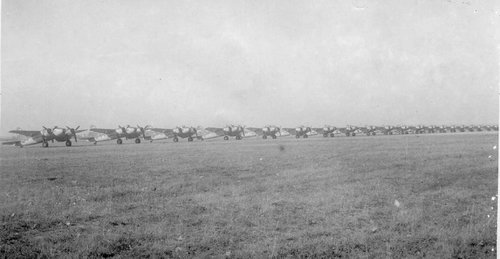

Yes, but only the I.Ae. 24 entered in service with the Argentina Air Force (FAA), one Hundred Calquins were built by the FMA. The I.Ae.28 was only a project and it was replaced by the more advanced I.Ae.30 Ñamcú, but only one prototype of I.Ae.30 Ñamcú was built because the FAA and the FMA considered that was outdated at the time and they decided to fund only the I.Ae.33 Pulqui II


Attachments

  • 13123_902052333172598_5928483744812900734_n.jpg
    19.3 KB · Views: 70
  • FMA IAe-24-11.jpg
    FMA IAe-24-11.jpg
    131.8 KB · Views: 70
  • badini-padin-al-fma-iae-24-calquin-fuerza-aerea-nuevo-D_NQ_NP_306311-MLA20529087853_122015-F.jpg
    badini-padin-al-fma-iae-24-calquin-fuerza-aerea-nuevo-D_NQ_NP_306311-MLA20529087853_122015-F.jpg
    29.5 KB · Views: 68

Wyvern

CLEARANCE: Secret
Joined
Jan 25, 2020
Messages
347
Reaction score
297
Weren't these the Argentine equivalents to the Mosquito and Hornet? They also look visually similar too.

The Calquin and Super Calquin were designed by Argentine engineers, the I.Ae.30 Ñamcú by the Italian engineer Pallavecino

What I meant by that was whether they served a similar purpose to the Mosquito and Hornet.

Yes, but only the I.Ae. 24 entered in service with the Argentina Air Force (FAA), one Hundred Calquins were built by the FMA. The I.Ae.28 was only a project and it was replaced by the more advanced I.Ae.30 Ñamcú, but only one prototype of I.Ae.30 Ñamcú was built because the FAA and the FMA considered that was outdated at the time and they decided to fund only the I.Ae.33 Pulqui II


Thanks!


blockhaj

Swedish "want to be" aviation specialist
Joined
Feb 9, 2017
Messages
162
Reaction score
69
Cool. Btw anyone who happens to have any good pictures of the I.Ae.24 Calquin with rockets?


blockhaj

Swedish "want to be" aviation specialist
Joined
Feb 9, 2017
Messages
162
Reaction score
69
