Argentinian unguided rockets

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
645
Reaction score
401
According to books published in Poland ("Rakiety bojowe 1900-1970" by Burakowski and Sala) and Czechoslovakia ("Vojenske rakety" by Kroulik and Ruzicka) there were several unguided rockets developed in Argentina in the 1950s.
These books mention three particular types:

The A3F artillery rocket.
Caliber: 100 mm or 101.6 mm. Length: 1.22 m. Weight: 28 kg. Warhead weight: 10.5 kg. Range: 8,850 m. Thrust: 387 kp. Max. speed: 400 mps.

The A3H air-to-ground rocket (a derivative of the above-mentioned A3F).
Caliber: 100 or 102 mm. Length: 0.976 m. Weight: 22.7 kg. Warhead weight: 10.4 kg. Range: 5,600 m. Thrust: 383 kp. Max. speed: 284 mps.

The A4M air-to-air rocket.
Caliber: 60 mm. Length: 0.72 m. Weight: 4.36 kg. Warhead weight: 1.58 kg. Range: 6,500 m. Thrust: 260 kp. Max. speed: 104 mps.

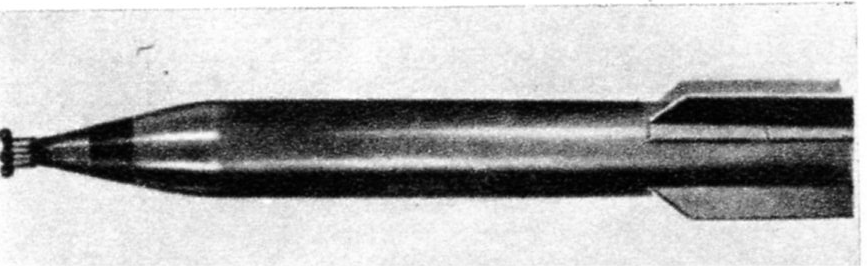

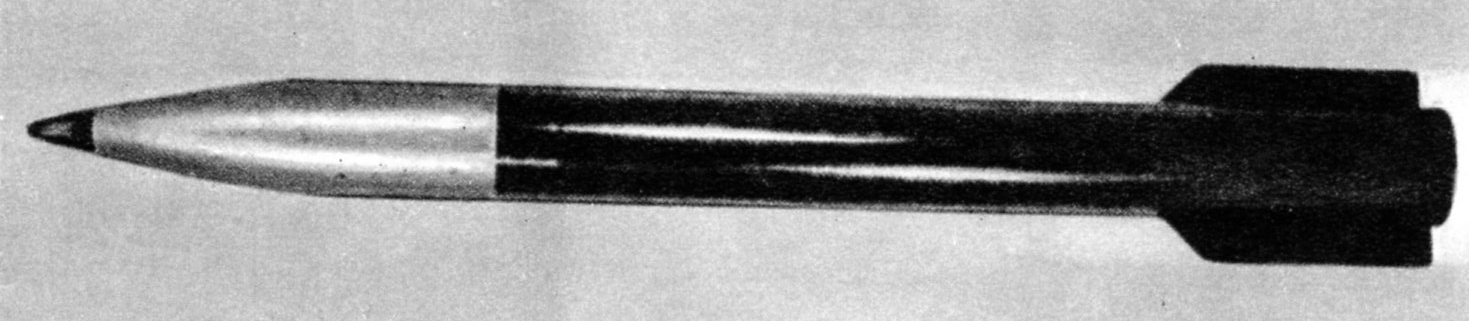

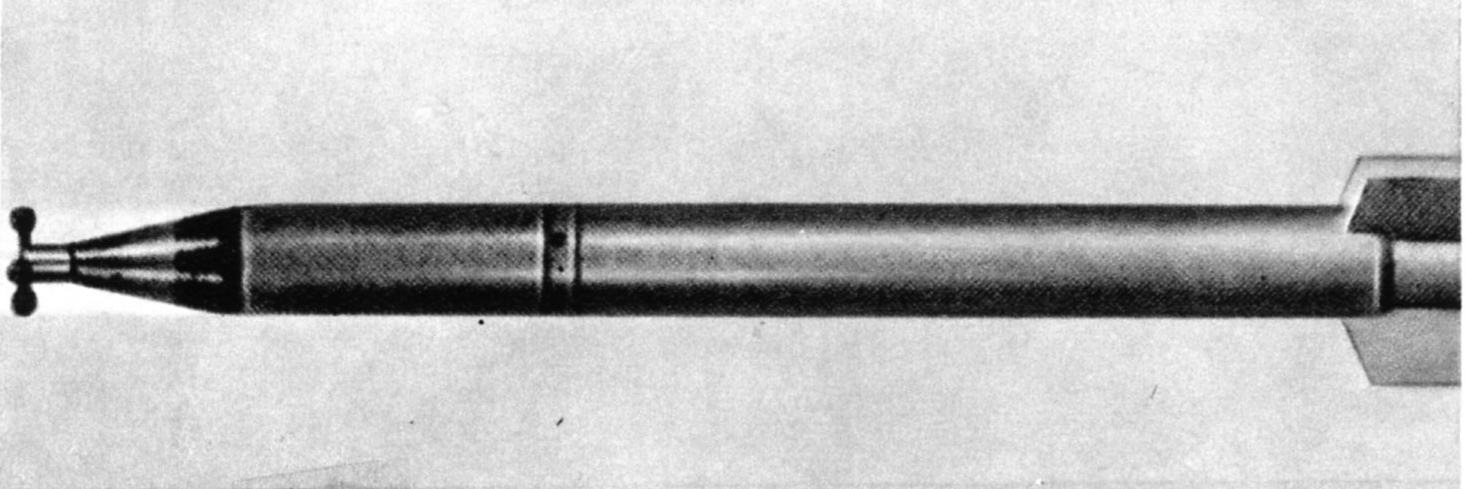

Below you may see photos of the rockets from the book by Burakowski and Sala.

Interestingly, information on these rockets come, as far as I know, exclusively from souces published in what was then the Warsaw Pact (I suppose that you could find some Soviet/Russian books or magazines where there are notes on the rockets). I have tried to google the rockets, but to no avail, which can mean that the designations given here are not actual.

Nevertheless the rockets must have existed. And the Argentinians (or rather the German engineers hired by the Argentinian authorities) did work on unguided rockets as early as 1940s and 1950s. In a description of almost every indigenous Argentinian (or actually German-Argentinian) aicraft that was developed in that era you may find that it was to be armed e.g. with 75mm unguided rockets. Some time ago I saw in a magazine (I cannot remember what magazine it was, it could most probably be the "Air Enthusiast" or the "Airplane Monthly") a pictorial of the Grumman F9F Panthers in service with the Argentinan Navy's air arm - they had under their wing rockets that were apparently smaller than the US 5-in HVARs. What were they?

So, the issue of the Argentinian unguided rockets remains (to me at least) a little bit misterious matter. Perhaps other members of our forum know more (or almost everything) on the subject?

Best regards,
Piotr


Attachments

  • A3F.png
    490.6 KB · Views: 2
  • A4M.png
    713.1 KB · Views: 2
  • A3H.png
    237.5 KB · Views: 4
Last edited:

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
645
Reaction score
401
I've just found an Argentinian article at http://movimientoperonista.com/martacurone/ficheros/Las%20grandes%20Realizaciones_emcurone.pdf, which says:

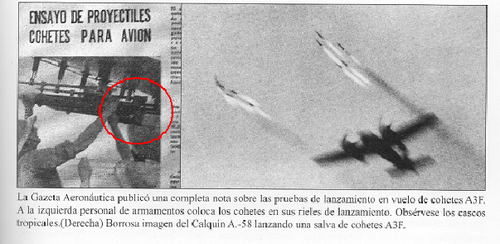

En ese año de 1954, finalizaron exitosamente las experiencias del cohete A3F,
calibre 10,5 cms., para ser aplicado en aviones de la fuerza aérea, de acuerdo
con las modernas teorías de combate, con la colaboración del Instituto
Aerotécnico y la Dirección General de Fabricaciones Militares.
Los primeros ensayos de lanzamiento en vuelo, estuvieron a cargo del capitán
Conan Jorge Doyle y del ler. Teniente Ruperto Pi Uriz, utilizándose el avión I.A.24
"Calquín".

So, apparently, not only did the A3F exist, but also had a calibre of 105mm, not 100mm as the above mentioned sources said.

Piotr


cardonet

ACCESS: Confidential
Joined
Feb 23, 2009
Messages
90
Reaction score
51
An Argentinean liquid-fueled rocket was designed as soon as 1947-48.

http://www.jpcoheteria.com.ar/TabanoAN1WEB.pdf


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
645
Reaction score
401

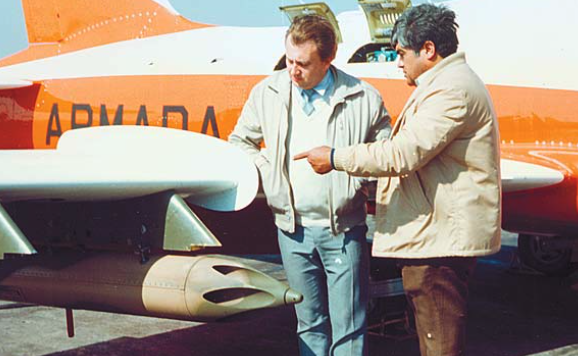

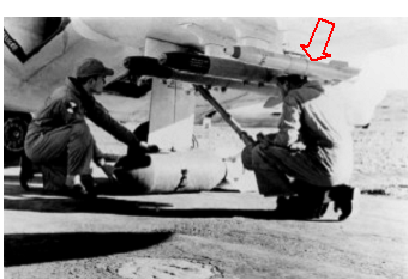

At http://www.nuestromar.org/noticias/mar_calmo_122008_21075_grumman_panther_en_argentina I've just found an interesting photo of the F-9F2 Panther in the Argentinian navy's service. The photo's caption says "Bomba de 500lbs y 2 HVAR de alta velocidad" (it doesn't need translation), but in the photo there is something else: a white rocket, apparently smaller a little bit than the HVAR.

It can't be any of other rockets used in Argentina, i.e. 2.25-inch SCAR or the French T-10, so most probably it is an indigenous Argentinian rocket, maybe A3H or A3F.

Piotr


Attachments

  • Bomba de 500lbs y 2 HVAR de alta velocidad.jpg
    Bomba de 500lbs y 2 HVAR de alta velocidad.jpg
    21.3 KB · Views: 24
Last edited:

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
645
Reaction score
401

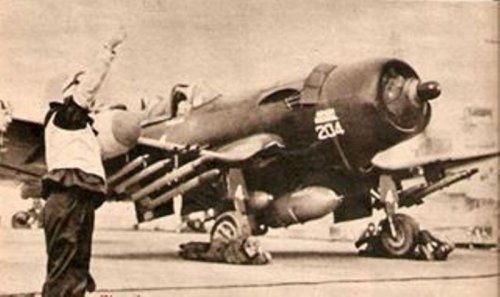

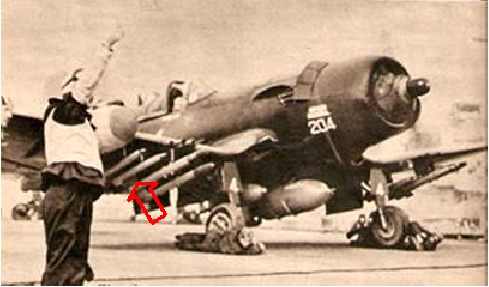

A photo of the Argentinian navy's Corsair armed with 5-in HVARs and rockets that might be the A3F. Found on an Argentinian forum.

Piotr


Attachments

  • Corsair_HVAR_A3F.jpg
    48.1 KB · Views: 142

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
645
Reaction score
401

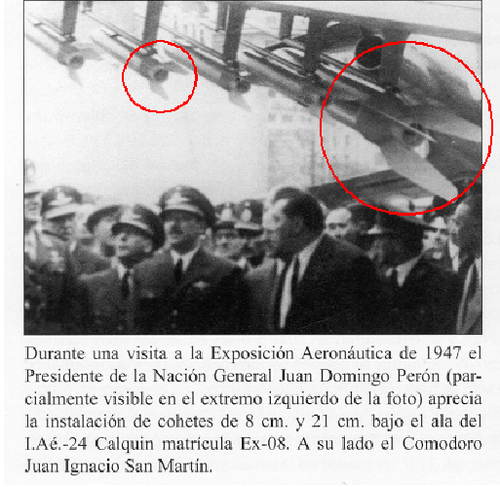

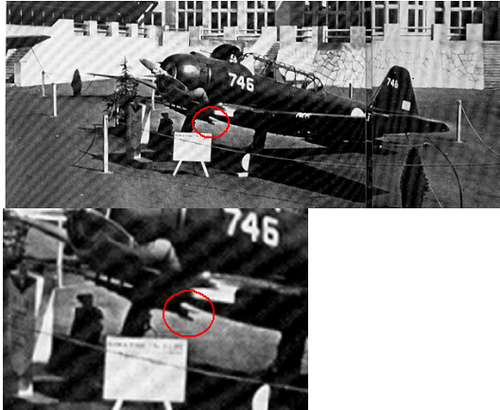

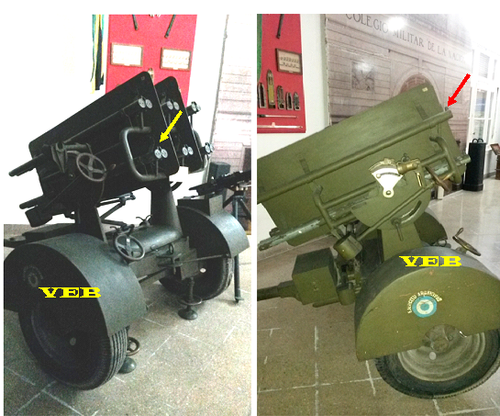

And here you've got few photos showing Argentinian rockets: in 8 cm calibre, in 21 cm (with three 8 cm rocket motors) and in 10 cm (A3F). The photos have been found somewhere on the Internet


Attachments

  • 8 cm Cohete -2.png
    8 cm Cohete -2.png
    240.3 KB · Views: 34
  • A3F Cohetes 04.png
    A3F Cohetes 04.png
    98.5 KB · Views: 28
  • A3F Lanzador.png
    A3F Lanzador.png
    427.2 KB · Views: 29
  • A3F Cohetes 03.png
    A3F Cohetes 03.png
    219.3 KB · Views: 29
  • A3F Cohetes 02.png
    A3F Cohetes 02.png
    124.9 KB · Views: 30
  • A3F Cohetes 01.png
    A3F Cohetes 01.png
    195.2 KB · Views: 28
  • 21 cm cohete 02.png
    21 cm cohete 02.png
    322.4 KB · Views: 27
  • 21 cm cohete.png
    21 cm cohete.png
    372.8 KB · Views: 22
  • Cohetes IA-24.png
    Cohetes IA-24.png
    240.9 KB · Views: 31
  • 8 cm Cohete.png
    8 cm Cohete.png
    165.1 KB · Views: 29

Roland55

ACCESS: Confidential
Joined
May 19, 2020
Messages
144
Reaction score
411

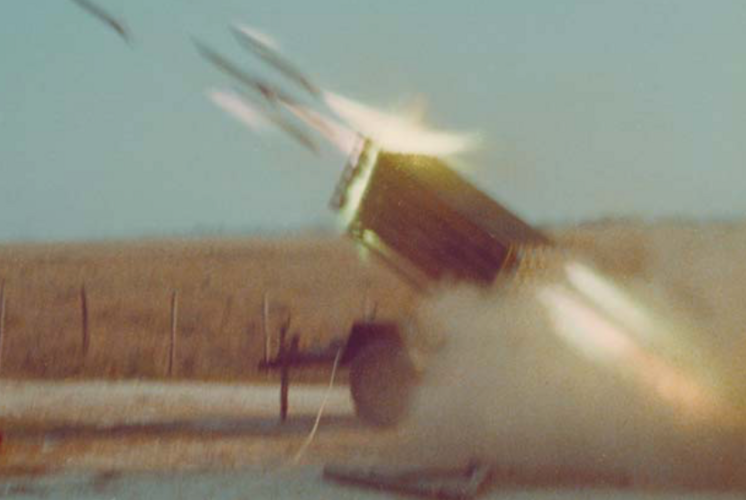

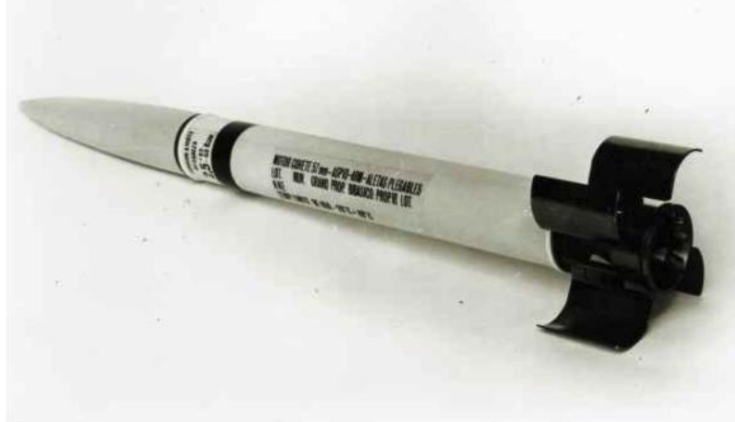

Probably a more recent example, the 57mm "Aspid" and 105mm Pampero rockets

The first is probably more used as a training tool (more like a replacement of the US training rockets that were used before)
The examples on the picture seem to be all Smoke while the one that stands out has an HE head(?)
Captura de pantalla 2020-02-13 a la(s) 21.38.03.png

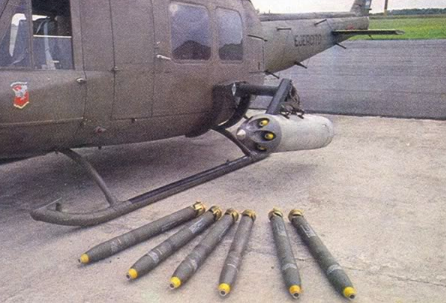

The other is a more heavy approach, The 105mm Pampero was thought to be used from both Ground batteries and thanks* to a series of aluminium and fiberglass rocket pods, in the army helicopters (Possibly tested on Pucara).
Captura de pantalla 2020-08-20 a la(s) 21.47.06.png
You could say this are a more "explosive" approach when compared to the 70mm FFAR that have been used along with them, you can't carry as much, but the explosive mass of them is way larger.

Regarding their service, the 57mm have been exported to some neighboring countries, while i couldn't find any information regarding the export of the 105mm ones.

There is quite a lot regarding the Rocket pods that ill talk about in another post, since its quite interesting.

Last edited:

Roland55

ACCESS: Confidential
Joined
May 19, 2020
Messages
144
Reaction score
411

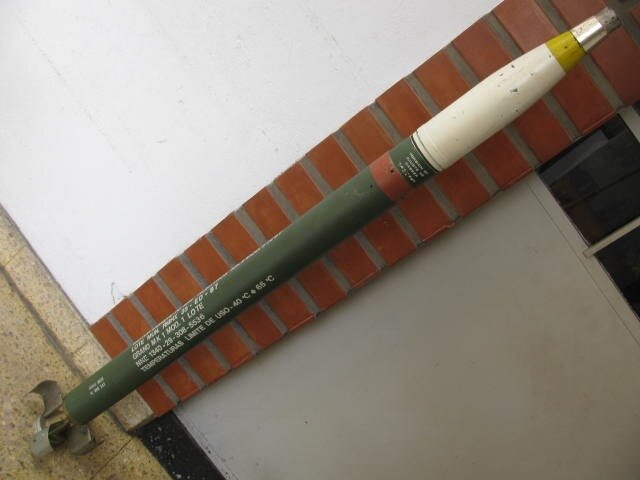

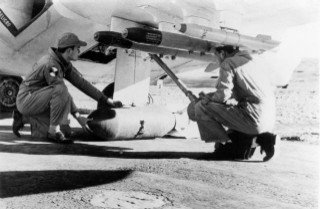

Another interesting (and maybe more used) rocket is the Albatros, a 70mm equivalent to the US FFAR, compared to it the albatross had a different system regarding its fins in the back, and a fuse more similar to the late versions of the American equivalent.
This picture is from an inert example.

Regarding a lot of the platforms that supported the 70mm Albatros, there are plenty!
Air launched
Captura de pantalla 2020-09-02 a la(s) 13.37.00.png

Ground based systems
Captura de pantalla 2021-07-05 a la(s) 15.23.22.png

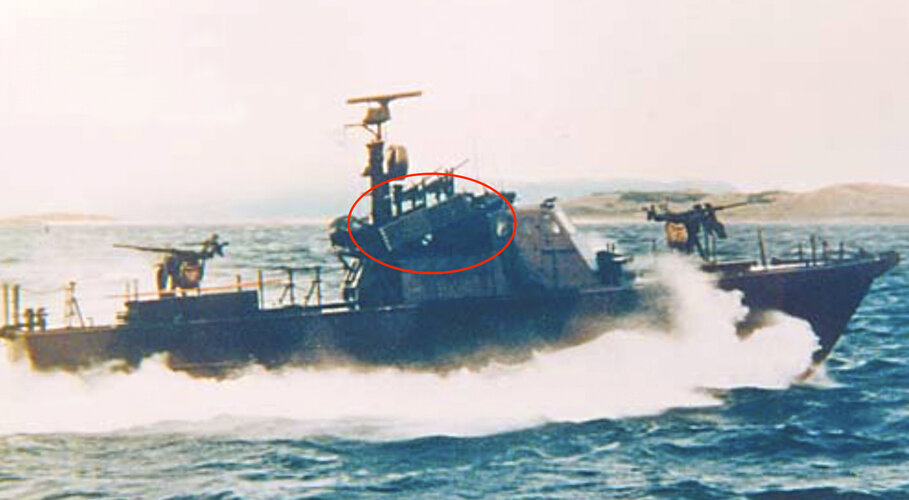

And even ships !

Copia de Delfin.jpg

I believe that it was compatible with the LAU-60/61 systems used by the FAA...but im not sure, ill probably give a more in depth about this systems, but for now, just a general idea!


Roland55

ACCESS: Confidential
Joined
May 19, 2020
Messages
144
Reaction score
411

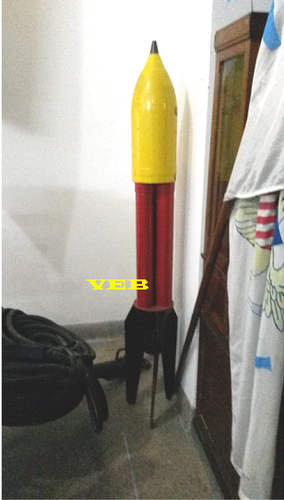

Well, i wouldn't be back if i didn't have something to show you, and im happy to say its...well look for yourselves !

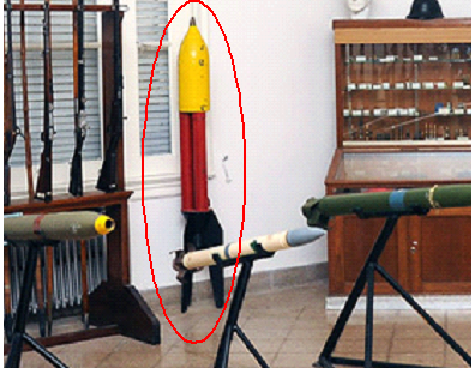

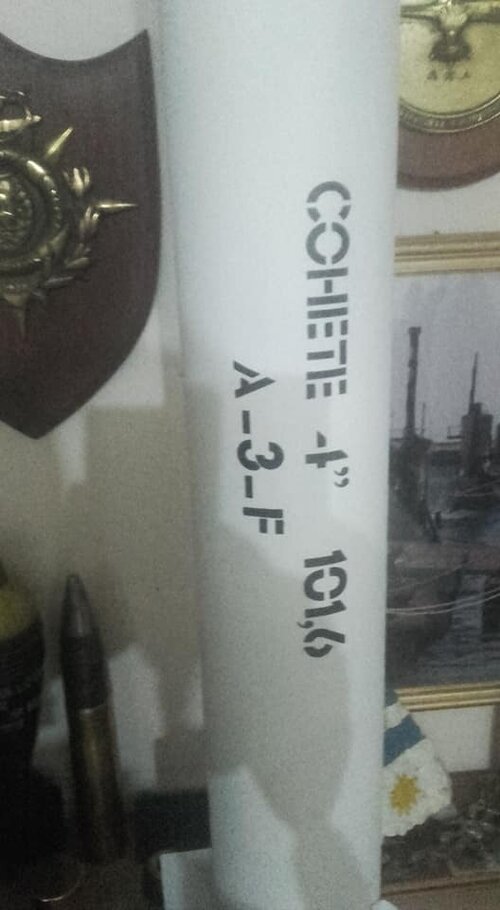

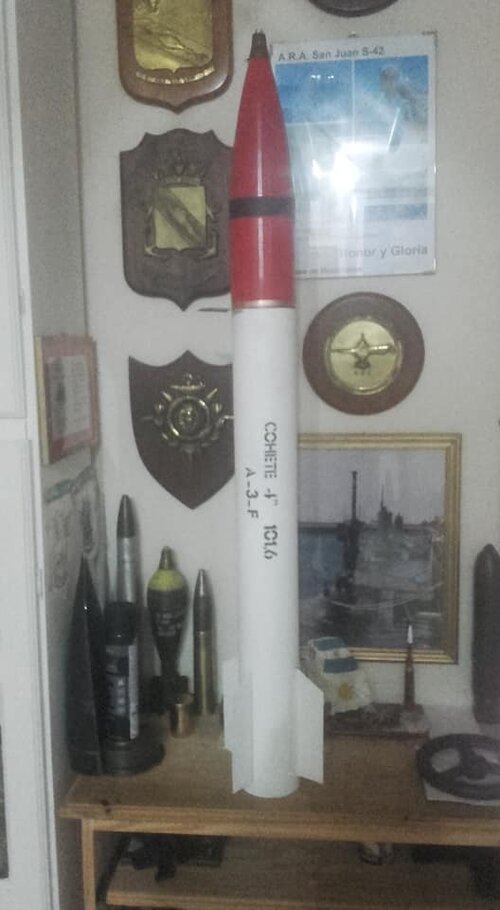

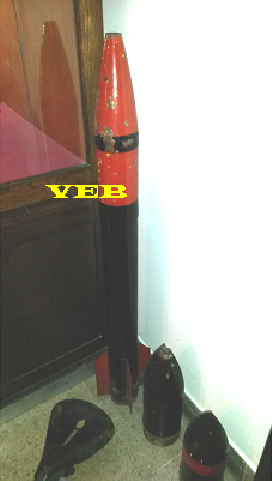

Well, this is in fact an A3F, that has been recovered and restored by a small museum, its interesting to know that there are claims that put the A3F with the I.Ae.24 Calquin, but i have my doubts about it. Nonetheless this is a huge thing, as its the second that its on display and the only one that was restored. Hope that more come this way!


klem

I really should change my personal text
Joined
Mar 7, 2015
Messages
209
Reaction score
313
According to books published in Poland ("Rakiety bojowe 1900-1970" by Burakowski and Sala) and Czechoslovakia ("Vojenske rakety" by Kroulik and Ruzicka) there were several unguided rockets developed in Argentina in the 1950s.
These books mention three particular types:

The A3F artillery rocket.
Caliber: 100 mm or 101.6 mm. Length: 1.22 m. Weight: 28 kg. Warhead weight: 10.5 kg. Range: 8,850 m. Thrust: 387 kp. Max. speed: 400 mps.

The A3H air-to-ground rocket (a derivative of the above-mentioned A3F).
Caliber: 100 or 102 mm. Length: 0.976 m. Weight: 22.7 kg. Warhead weight: 10.4 kg. Range: 5,600 m. Thrust: 383 kp. Max. speed: 284 mps.

The A4M air-to-air rocket.
Caliber: 60 mm. Length: 0.72 m. Weight: 4.36 kg. Warhead weight: 1.58 kg. Range: 6,500 m. Thrust: 260 kp. Max. speed: 104 mps.

Below you may see photos of the rockets from the book by Burakowski and Sala (I am really sorry for the pictures' quality, I photo-copied them from the book several years ago and only now I have scanned the photo-copies).

Interestingly, information on these rockets come, as far as I know, exclusively from souces published in what was then the Warsaw Pact (I suppose that you could find some Soviet/Russian books or magazines where there are notes on the rockets). I have tried to google the rockets, but to no avail, which can mean that the designations given here are not actual.

Nevertheless the rockets must have existed. And the Argentinians (or rather the German engineers hired by the Argentinian authorities) did work on unguided rockets as early as 1940s and 1950s. In a description of almost every indigenous Argentinian (or actually German-Argentinian) aicraft that was developed in that era you may find that it was to be armed e.g. with 75mm unguided rockets. Some time ago I saw in a magazine (I cannot remember what magazine it was, it could most probably be the "Air Enthusiast" or the "Airplane Monthly") a pictorial of the Grumman F9F Panthers in service with the Argentinan Navy's air arm - they had under their wing rockets that were apparently smaller than the US 5-in HVARs. What were they?

So, the issue of the Argentinian unguided rockets remains (to me at least) a little bit misterious matter. Perhaps other members of our forum know more (or almost everything) on the subject?

Best regards,
Piotr
Hi, dear Petrus,do you have a pdf of Rakiety bojowe.thanks


klem

I really should change my personal text
Joined
Mar 7, 2015
Messages
209
Reaction score
313
According to books published in Poland ("Rakiety bojowe 1900-1970" by Burakowski and Sala) and Czechoslovakia ("Vojenske rakety" by Kroulik and Ruzicka) there were several unguided rockets developed in Argentina in the 1950s.
These books mention three particular types:

The A3F artillery rocket.
Caliber: 100 mm or 101.6 mm. Length: 1.22 m. Weight: 28 kg. Warhead weight: 10.5 kg. Range: 8,850 m. Thrust: 387 kp. Max. speed: 400 mps.

The A3H air-to-ground rocket (a derivative of the above-mentioned A3F).
Caliber: 100 or 102 mm. Length: 0.976 m. Weight: 22.7 kg. Warhead weight: 10.4 kg. Range: 5,600 m. Thrust: 383 kp. Max. speed: 284 mps.

The A4M air-to-air rocket.
Caliber: 60 mm. Length: 0.72 m. Weight: 4.36 kg. Warhead weight: 1.58 kg. Range: 6,500 m. Thrust: 260 kp. Max. speed: 104 mps.

Below you may see photos of the rockets from the book by Burakowski and Sala (I am really sorry for the pictures' quality, I photo-copied them from the book several years ago and only now I have scanned the photo-copies).

Interestingly, information on these rockets come, as far as I know, exclusively from souces published in what was then the Warsaw Pact (I suppose that you could find some Soviet/Russian books or magazines where there are notes on the rockets). I have tried to google the rockets, but to no avail, which can mean that the designations given here are not actual.

Nevertheless the rockets must have existed. And the Argentinians (or rather the German engineers hired by the Argentinian authorities) did work on unguided rockets as early as 1940s and 1950s. In a description of almost every indigenous Argentinian (or actually German-Argentinian) aicraft that was developed in that era you may find that it was to be armed e.g. with 75mm unguided rockets. Some time ago I saw in a magazine (I cannot remember what magazine it was, it could most probably be the "Air Enthusiast" or the "Airplane Monthly") a pictorial of the Grumman F9F Panthers in service with the Argentinan Navy's air arm - they had under their wing rockets that were apparently smaller than the US 5-in HVARs. What were they?

So, the issue of the Argentinian unguided rockets remains (to me at least) a little bit misterious matter. Perhaps other members of our forum know more (or almost everything) on the subject?

Best regards,
Piotr


Attachments

  • Grumman Panther in Argentina.pdf
    1.4 MB · Views: 17
