Douglas XB-19 "Hemisphere Defender"

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Gentlemen,

Is there anyone of you who haves ever seen illustrations of the
6-engined initial design for the XB-19 ?

(3-view or artists impression)

Thanks in advance..


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
Hi lark.

Thanks for a source( Republic Rainbow development ).

At me is 3-view dravings and in two or three days I shall show.

Whether has looked source Aviation Week, 1948, Vol.49, N.3?(source of XB-55 competition)

If has looked, please show us.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
I have at least two sources mentioning a six engined
initial design for the Douglas XB-19.

One in Air Classics and one in Wings/Airpower.
I have to look for the correct isue info.

A couple of month ago , I send a drawing to Pometabla' of a
6 engined 100 ton Douglas bomber proposal.
He put it ons this forum in the Douglas XB-31 heavy bomber file.

The drawing comes from the Dutch pre WWII magazine Avia(1939 I think)
and shows a bomber with clear DC-4E influence...


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Douglas XB-19 early six engined proposal mentioned in:

Air Classics Oktober 1981.

Wings & Airpower March 1975

The Dutch magazine was not Avia but "Vliegwereld" of 29.2.1940.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
My local (milan) library asserts to have the Aviaton Week 1947-1956 collection.... Be patient and I'll undig the 1948 issue. Problem is that in that library specialist magazines collections tend to be patchy...


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Thanks Sky'

My search in the Royal Military Library produced no results.
No Aviation Weeks for 1948 nor for 1958.

The article of 5.12.1958 is interesting since it contains info of unbuilt
Republic designs.
Ref: Overscan and Tony Buttler

The 1948 issue mentioned by Devi is highly interesting since
it is the only source ,so far, who speaks about a B-55 competition.
All the sources I have mentioning this design only as a B-47 development.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
P.S. With my latest note , I think we are far from the XB-19... :-[


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35

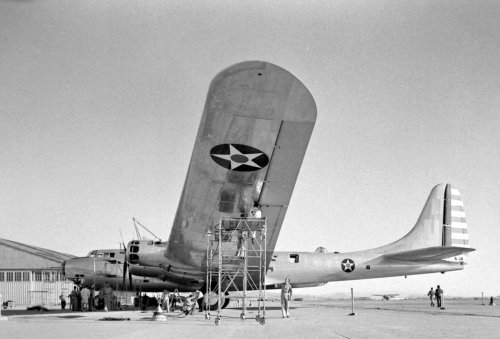

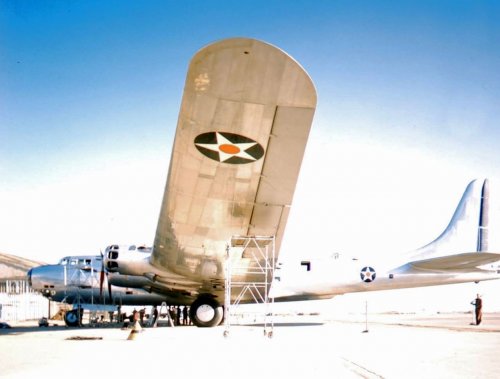

A few XB-19, XB-19A images from Life magazine.


Attachments

  • 9690b8ec6efb3ef6_large.jpg
    91.5 KB · Views: 740
  • ab3a782f1475bb9f_large.jpg
    140.3 KB · Views: 672

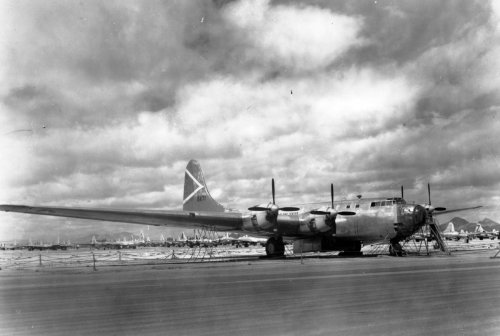

  • XB-19A prior to scrapping.jpg
    XB-19A prior to scrapping.jpg
    182.3 KB · Views: 689

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13
When you are talking about the 6 engined version of the XB-19, you are really talking about the XBLR-2.
Ordered on 9 July 1935 as XBLR-2, the design had initially 6 engines. In March 1938, by which time the design had evolved into a 4 engined aircraft, the designation was changed to XB-19. At that time no aircraft had yet been ordered. The 3-view is believed to be the XBLR-2. I do not know the source of this.


Attachments

  • BLR-2.jpg
    27.9 KB · Views: 678

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Jos,

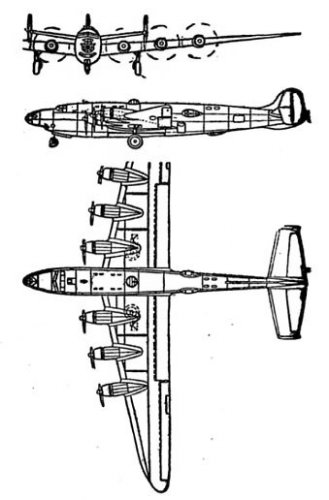

The 3-view is from the Dutch magazine 'Vliegwereld' 29.2.1940.
There are also a cutaway drawing and some specifications in it.

I suppose the information in this magazine is probably obtained
from a non-Dutch source,not mentioned.


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
A bomber development of the DC-4E?



Jos Heyman said:
When you are talking about the 6 engined version of the XB-19, you are really talking about the XBLR-2.
Ordered on 9 July 1935 as XBLR-2, the design had initially 6 engines. In March 1938, by which time the design had evolved into a 4 engined aircraft, the designation was changed to XB-19. At that time no aircraft had yet been ordered. The 3-view is believed to be the XBLR-2. I do not know the source of this.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
frank said:
A bomber development of the DC-4E?

If I remember well also Japanes tried out to sort a bomber version of the original Douglas DC-4E, this particular aircraft should be ended in Japan before the war.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
I'm with the understanding that the XBLR-1 became the XB-15, XBLR-2 the XB-19, and that the XBLR-3 was an offering from Sikorsky that was never proceeded with... -SP


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,717
Reaction score
494

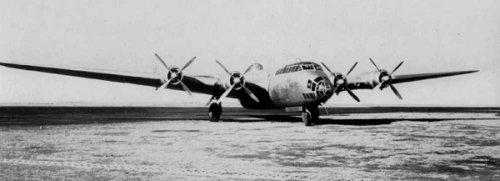

The DC-4E was developed into the Nakajima G5N Shinzan, I found a picture on http://en.wikipedia.org/wiki/Nakajima_G5N

According to René J. Francillon, Japanese Aircraft of the Pacific War, p. 423-425 six were built. Being overweight and fitted with unreliable engines they were not much of a success. Two G5N1s and the two G5N2s were converted to transports.
[It] retained the wing, powerplant installation and undercarriage of the American transport, but featured a new fuselage with glazed nose and ventral bomb-bay, new tail surfaces with twin fins and rudders, and was powered by four 1,870 hp Nakajima NK7A Mamoru 11 fourteen-cylinder radials.


Attachments

  • G5N.jpg
    39.8 KB · Views: 626

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
That's fine for Japanese a/c, but, see the 3 views here, regarding the DC-4E.
http://www.secretprojects.co.uk/forum/index.php/topic,9260.0/highlight,dc+4e.html

Pica said:
DC4E was developed into the Nakajima G5N Shinzan, I found a picture on http://en.wikipedia.org/wiki/Nakajima_G5N

According to René J, Francillon, Japanese Aircraft of the Pacific War, p. 423-425 six were built. Being overweight and fitted with unreliable engines they were not much of a success. Two G5N1s and the two G5N2s were converted to transports.
[It] retained the wing, powerplant installation and undercarriage of the American transport, but featured a new fuselage with glazed nose and ventral bomb-bay, new tail surfaces with twin fins and rudders, and was powered by four 1,870 hp Nakajima NK7A Mamoru 11 fourteen-cylinder radials.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13
XB-70 Guy said:
I'm with the understanding that the XBLR-1 became the XB-15, XBLR-2 the XB-19, and that the XBLR-3 was an offering from Sikorsky that was never proceeded with... -SP

You are correct:
On 28 June 1934 a contract was placed for one XBLR-1 with serial 35-277. On 29 June 1935, and prior to the first flight of the aircraft, the designation was changed to XB-15. It is not clear if the XBLR-1 design was exactly the same as XB-15.

Also known as project M5-35, a design for the XBLR-3 was submitted on 29 February 1936 whilst a wooden mock up was built in March 1936. The design was rejected in favour of the BLR-2. No aircraft were ordered.

It has been suggested that the XBLR-4 designation was associated with the Martin 145 model that was re-designated as B-16 before the XBLR-4 designation was assigned.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Jos Heyman said:
On 28 June 1934 a contract was placed for one XBLR-1 with serial 35-277. On 29 June 1935, and prior to the first flight of the aircraft, the designation was changed to XB-15. It is not clear if the XBLR-1 design was exactly the same as XB-15.

Someone recently suggested (was it you?) that the Boeing Model 294 was first called XB-15, then XBLR-1, then XB-15 again... Or was it the other way round? Can you confirm that, Jos?

Jos Heyman said:
Also known as project M5-35, a design for the XBLR-3 was submitted on 29 February 1936 whilst a wooden mock up was built in March 1936. The design was rejected in favour of the BLR-2. No aircraft were ordered.

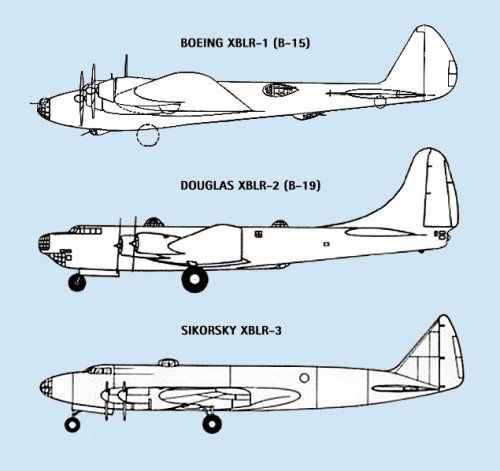

The Sikorsky bomber was a handsome design (see attachment for profile comparison — couldn't find any of the XB-16, sorry). Shame it never made it to prototype form. I believe it was also the last non-flying boat aircraft Sikorsky studied before going all rotary.

Jos Heyman said:
It has been suggested that the XBLR-4 designation was associated with the Martin 145 model that was re-designated as B-16 before the XBLR-4 designation was assigned.

Very interesting. First time I've ever read about this theory, and that would have been very logical indeed.


Attachments

  • BLR.jpg
    98.7 KB · Views: 522

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

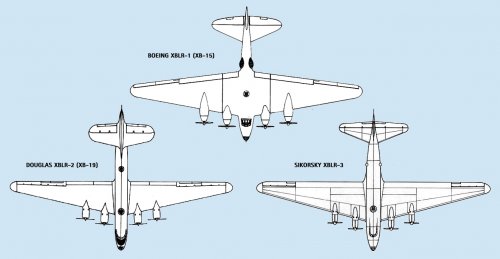

And the top views...

(NOTE: all these are for design comparison purposes and not necessarily exactly to scale).


Attachments

  • BLR top.jpg
    BLR top.jpg
    151 KB · Views: 520

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,717
Reaction score
494
@Stargazer2006:
The first drawings I have ever seen of the Sikorsky design, thanks!
As for the XB-15, the in-house designation was model 294, the Army designation was XBLR-1 at the time the contract was drawn, changing to XB-15 in July 19361.

@frank 7 dec 07:29:16 pm:
Initial design of the DC-4E started in the second half of 19352, Douglas started preliminary design of the XBLR-2 on 31 July, 19353. Francillon writes that development of the XB-19 was considerably delayed because Douglas was forced to spend more of its own funds than expected, and design personnel being needed on other projects4. Eventually the DC-4E was completed in May 19385, whereas the XB-19 was completed in May 19416. Both designs show obvious Douglas-features, but in my opinion this is more likely to stem from parallel development in a common environment rather than one design (XB-19) being derived from the other (DC-4E). After the DC4-E had been acquired by the Japanese in late 1939, it was first assembled by Douglas personnel in Japan, only to be dismantled just months later by Nakajima when its wings were used in the construction of the Nakajima G5N-prototype7.

1 Peter M Bowers, Boeing Aircraft since 1916, Putnam 1989, p.228.
2 René J Francillon, McDonnell Aircraft since 1920, Vol. I, Putnam 1988, p.265
3 Francillon, p.308.
4 Francillon, p.309.
5 Francillon, p.267.
6 Francillon, p.310.
7 Francillon, p.268.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Pica said:
Both designs show obvious Douglas-features, but in my opininion this is more likely to stem from parallel development in a common environment rather than one design (XB-19) being derived from the other (DC-4E).

Ah, but I think he refered to the OTHER Douglas design, the one that was posted as "BLR-2" and which is not only very different, but pretty similar to the DC-4E's configuration.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,717
Reaction score
494
According to Francillon the XB-19 was a re-designated XBLR-2:
Finally, as funds were made available, construction of a prototype - now re-designated XB-19 - was authorized on 8 March, 1938.
Francillon does not mention any six-engined XBLR-2 design, I was pleasantly surprised by the drawing.

The XBLR-2 as seen in the drawing is very different from the XB-19 as built, but as the XB-19
- was the final product of a development of which the six-engined variant was an earlier stage
- a development that started at about the same time as development of the DC-4E
- the XB-19- and XBLR-2-designs were considerably larger than the DC-4E
in my opinion the XB-19 was no bomber variant of the DC-4E. <edit> Having said that, if anyone digs up a link between the XBLR-2/XB-19 and the DC-4E, I would love to hear of it. Live and learn :). </edit>

Come to think of it, with its all-new fuselage and tail-assembly, neither was the Nakajima G5N.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13
Here are the redesignation dates I have in my files:

"Studies for a heavy bomber began in April 1934 followed by a contract as XBLR-1 on 28 June 1934. On 29 June 1935 the design was redesignated as XB-15"

and

"The XB 19 four engined heavy bomber was originally ordered as XBLR-2 and redesignated in March 1938."

Sources for this? No idea. I have collected data over the past 45 years of all US military aircraft and did not and can not afford the storage space for all detailed references. Be assured that 'weird data' (such as the suggested XBLR-4) is labelled as such in my files.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
From the French 'AirMagazine' No.47 Sept.Oct.2009.

A fourteen page article "Un Géant précoce:Le Douglas XB-19"
by Rene J.Francillon.
Translated text on page 6.

...Douglas recommend on 30August 1938 to abandon the program for the benefit
of a less complex machine,the DB-4,derived from the first DC-4,the one with the 3tailfins
who would become the DC-4E. The Material Division opposed because the Army Air Corps
wanted the first machine as a flying testbank...
So far :Rene J.Francillon.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Jos Heyman said:
Sources for this? No idea. I have collected data over the past 45 years of all US military aircraft and did not and can not afford the storage space for all detailed references. Be assured that 'weird data' (such as the suggested XBLR-4) is labelled as such in my files.

I know exactly what you're talking about. I have collected aircraft designations since I was 7, filled copybooks and notepads with notes taken down in libraries... and could NOT bother to specify the sources for each particular one!
And I also do the same as you: any dubious or uncircumstanciated piece of information is duly marked as such. ;)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
lark said:
...Douglas recommend on 30August 1938 to abandon the program for the benefit
of a less complex machine,the DB-4,derived from the first DC-4,the one with the 3tailfins
who would become the DC-4E. The Material Division opposed because the Army Air Corps
wanted the first machine as a flying testbank...
So far :Rene J.Francillon.

Very interesting. The DB-series is sort of shaping up, with DB-1 being the B-18 Bolo, the DB-2 a derivative prototype with a nose turret, the DB-4 a proposed version of the DC-4E and the DB-5 a proposed version of the DC-5... (I suspect the DB-3 must have been the B-23 Dragon, although I never actually found evidence of this).

For some reason, the B-19 didn't get a DB- designation (at least none that I know of). It is found as design DS-167C, and has been variously refered to as "Project D", "Hemisphere Bomber" and "Hemisphere Defender". As XB-19 it fell under specification X-203, while the XB-19A conversion with Allison V-3420-11 engines fell under MX-309.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,717
Reaction score
494

Attachments

  • XB-16_Martin_145.jpg
    77.9 KB · Views: 346

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

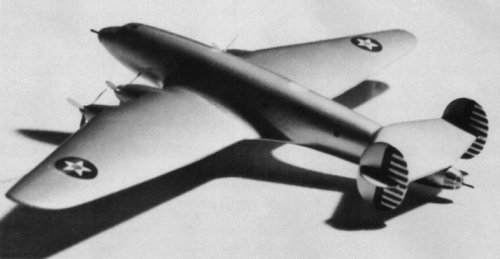

Yep, it's the most circulated image of the XB-16. However, it's only Model 145, one of two configurations proposed. The other one, Model 145A (strangely submitted before the twin-boom one), was radically different and more conventional (see attachments).


Attachments

  • Martin Model 145-A_1934_XB-16.jpg
    Martin Model 145-A_1934_XB-16.jpg
    26.9 KB · Views: 318
  • XB-16original.JPG
    29.2 KB · Views: 321

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,717
Reaction score
494

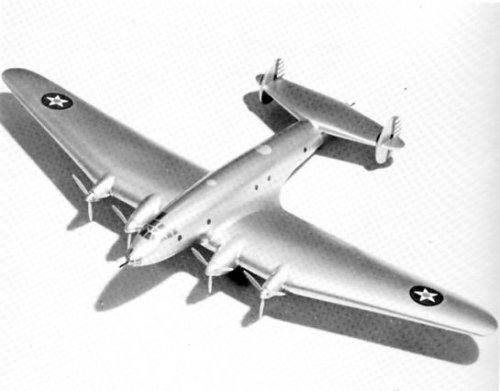

Breihan/Piet/Mason(p.120) write:
The Martin Model 145, a very long-range bomber projected in 1936 as the XB-16, was initially similar to Boeing's XB-15; both were designed for four Allison V-1710 liquid-cooled engines. The XB-16's wingspan was to be 140 feet and the loaded weight 65,000 pounds. The following year Martin proposed the Model 145A, a most unconventional six-engine bomber with twin booms, a span of 173 feet and a weight of more than 100,000 pounds. It was expected to attain 256 mph. Neither design went past the drawing stage, although the Air Corps purchased the engineering data and later publicized a four-engine version of the 145A as one of its "Airplanes of the Future".
This is the book's caption of the picture I posted:
This "4-engine bomber of the future" was based on the second XB-16 design, which had six engines rather than the nacelle guns shown.
... so I understand the picture was produced by the Air Corps, not by Martin.

Just to confuse me, page 121 shows a 3-view drawing of a design very much like the model in Stargazer2006's pictures - also labeled Model 145A.
http://www.marylandaviationmuseum.org/history/martin_aircraft/10_bombers.html ...is where you can find even more information, including a pdf with model 145/146 specs: http://www.marylandaviationmuseum.org/pdf/146_spec.pdf


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Either one should rename this topic or split it in two, because we are now waaaaay off topic... Let me continue in a separate thread, okay?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
The posts specific to the Sikorsky XBLR-3 are now in a separate topic here:

http://www.secretprojects.co.uk/forum/index.php/topic,16564.0


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,905
Reaction score
1,139
Website
www.aerospaceprojectsreview.com
XB-19 artwork from: http://www.flickr.com/photos/x-ray_delta_one/7689302716/in/datetaken/



redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
48

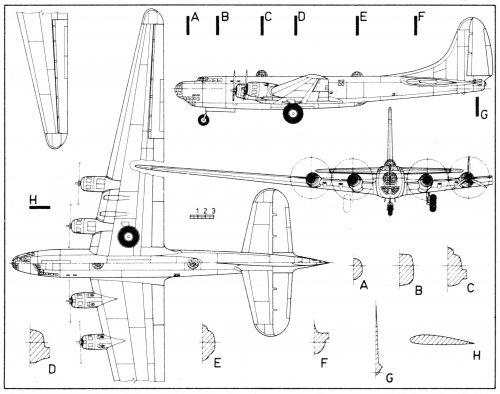

XB-19 drawing by Stanislav Smekal, from L+K 26/1988:


Attachments

  • XB-19_L+K resize.jpg
    XB-19_L+K resize.jpg
    472.4 KB · Views: 571

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
647
Reaction score
263
Nice little data file on the xb-19

http://www.alternatewars.com/SAC/XB-19_Technical_Report_-_18_July_1942.pdf


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
647
Reaction score
263

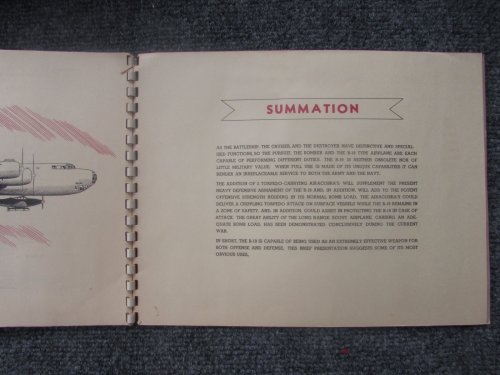

And how about the b-19 carrying torpedo armed P-39s :eek:

http://www.ebay.com/itm/Douglas-B-19-Bomber-Aerial-Cruiser-A-Comparative-Survey-Douglas-Aircraft-Co-/272105437278


Attachments

  • s-l1600 (5).jpg
    s-l1600 (5).jpg
    214.5 KB · Views: 336

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
686
Reaction score
391

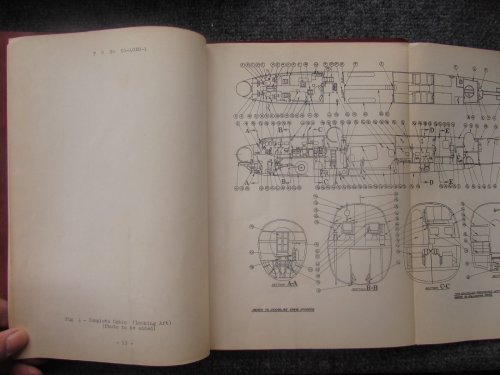

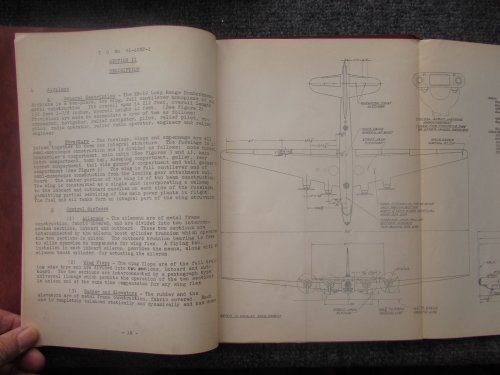

http://www.ebay.com/itm/Pilots-Handbook-of-Instructions-for-the-Operation-of-the-Douglas-XB-19-Bomber-/281909614784?hash=item41a31f58c0:g:nssAAOSwqrtWmDLk

XB-19 fight manual, current bid $500. I'd love this but out of my reach.


Attachments

  • XB19 flight manual.jpg
    XB19 flight manual.jpg
    278.7 KB · Views: 256
  • XB19 a.jpg
    XB19 a.jpg
    197.9 KB · Views: 269
  • XB19 b.jpg
    XB19 b.jpg
    205.6 KB · Views: 137

Similar threads

Top
