Do you have info on range/radius/endurance of those projects?

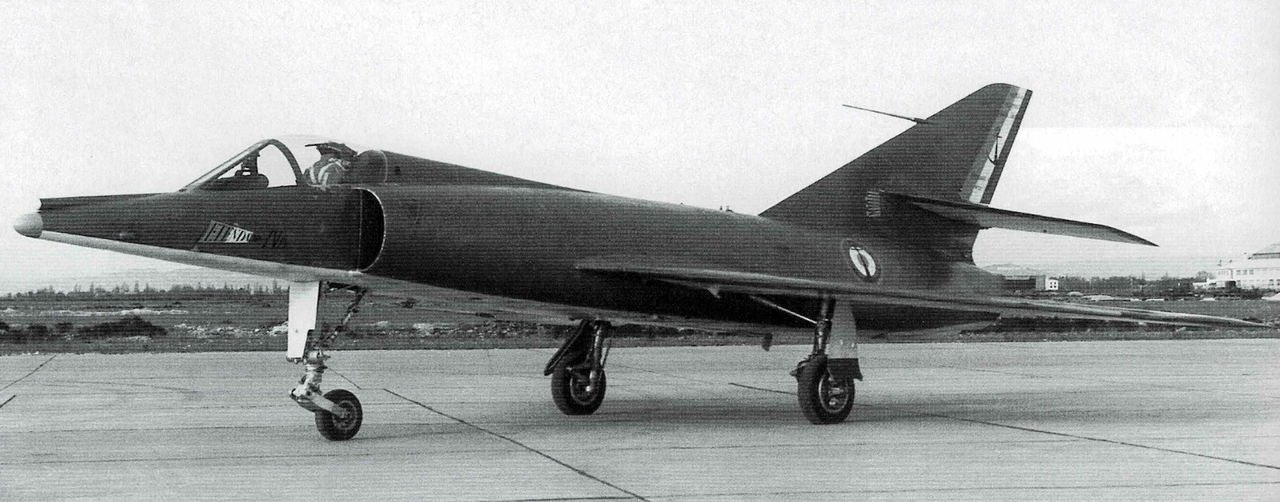

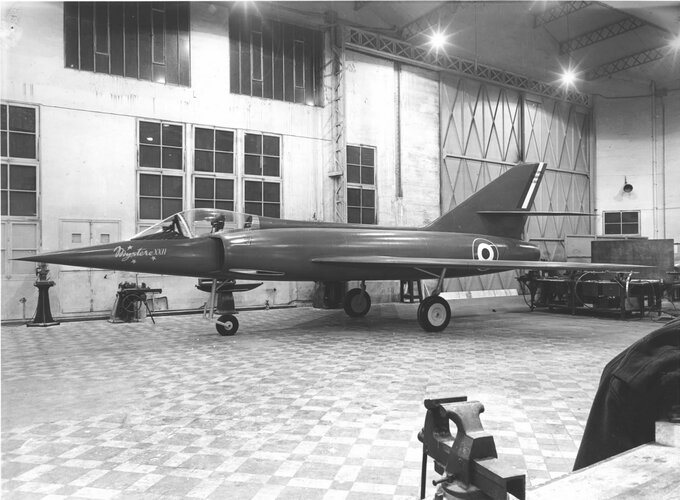

The only info I have on the Mystere XXII range is from Ailes Magazine (Dec 1955 article). They quote a ferry range of 2,200km with external tanks. However this is 7 months before 1st flight so no idea if this turned out to be an accurate estimate.


Per the specs I posted above, the Mystere XXII 01 prototype had 1,600L internal + 2x 350L external tanks, giving it a total ferry fuel capacity of 2,300L. The Mystere XXII Marine would have been able to do better obviously since it would have had 2,400L internal fuel.


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,488
Website
galgot.com
Indeed. Thanks for the head up. Also the light grey fairing behind the canopy is longer. But i can't read clearly what's written on the nose and rudder :/


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,994
Reaction score
1,045

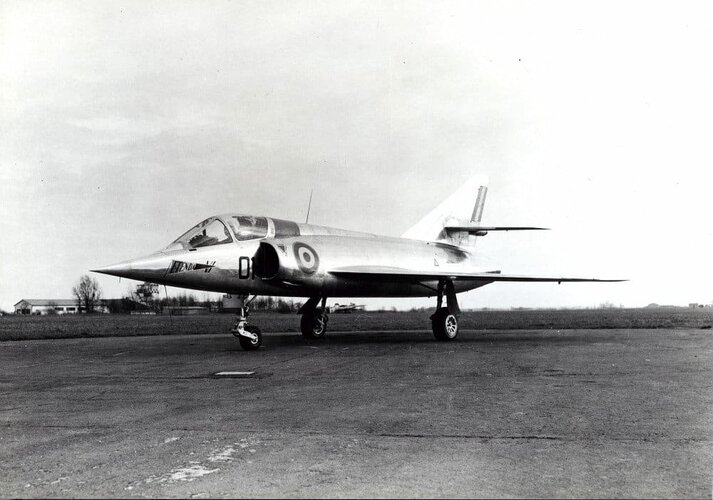

The last image in #42 shows the Étendard II - powered by 2 Turboméca Gabizo engines


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,994
Reaction score
1,045

Attachments

  • Etendard.png
    257.4 KB · Views: 46
  • Etendard VI.jpg
    Etendard VI.jpg
    74.7 KB · Views: 55
Last edited:

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,488
Website
galgot.com

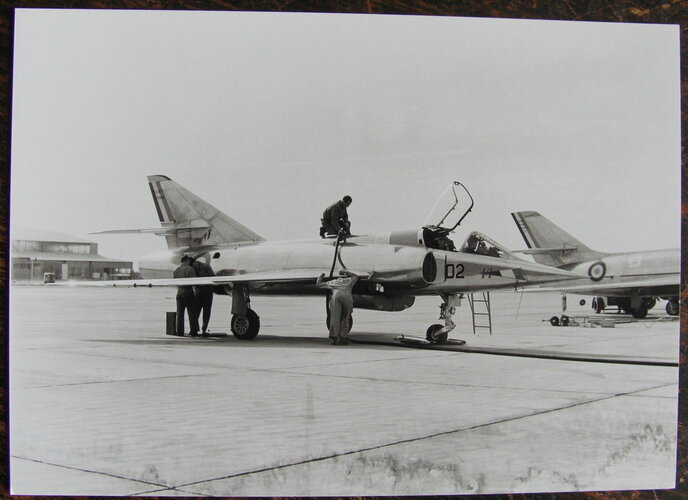

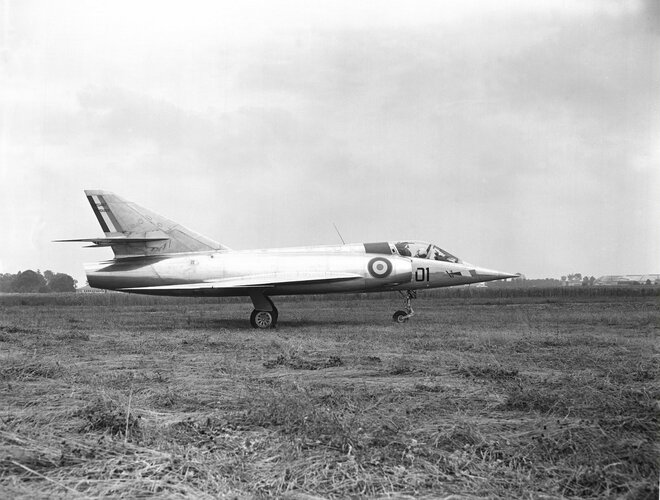

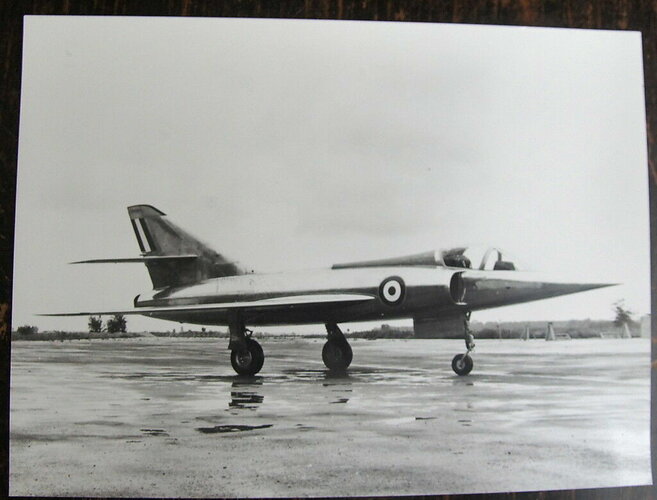

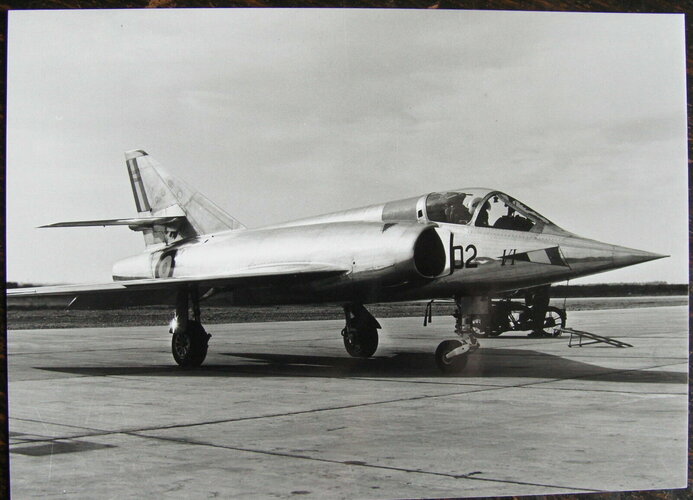

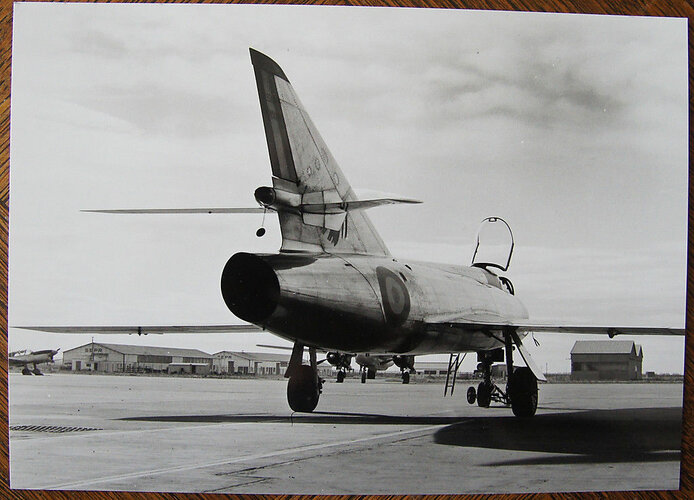

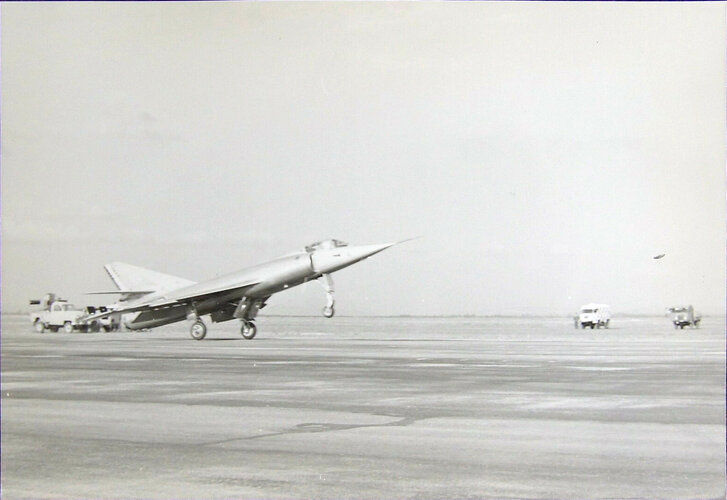

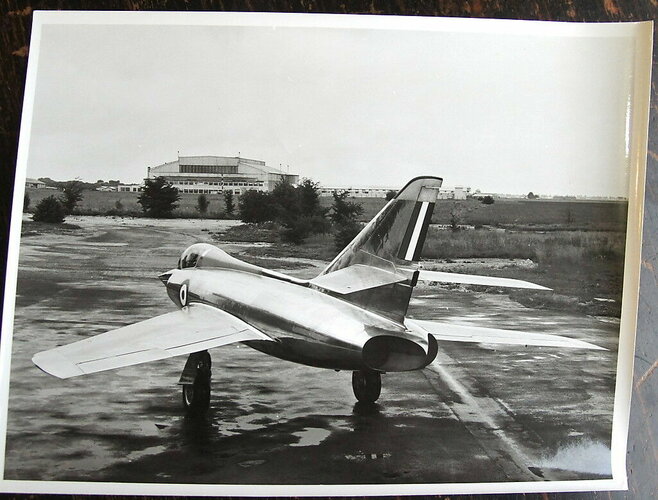

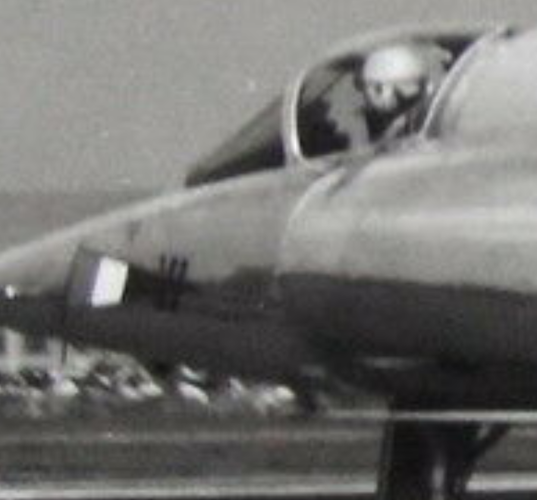

Seems it is the Etendard IV 01 (not the -M indeed) , but the image is mirrored , so one read a VI. And the VI has a much shorter nose.
Here straightened and re-mirrored :
s-l16003 copie.jpg
These are Le Bourget hangars on the right.

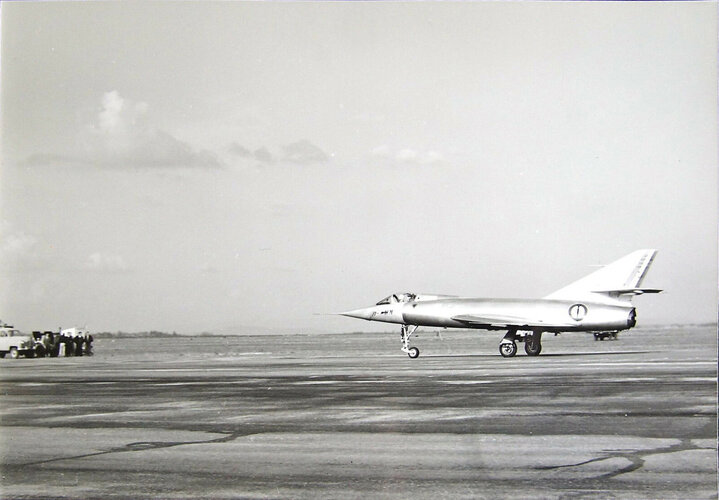

Same image can be found on this page also mirrored :

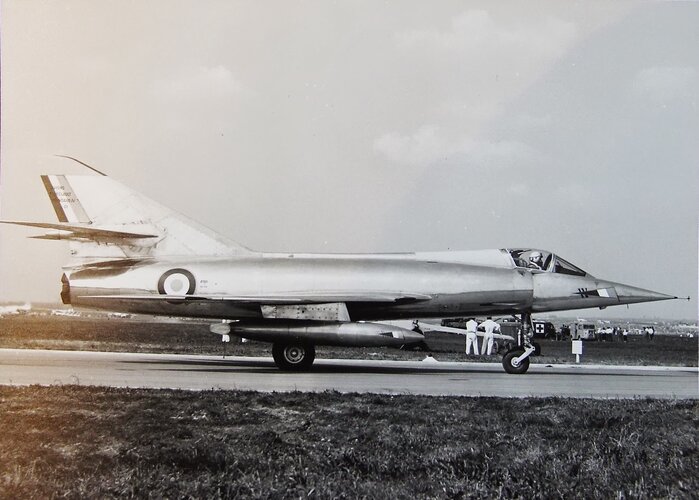

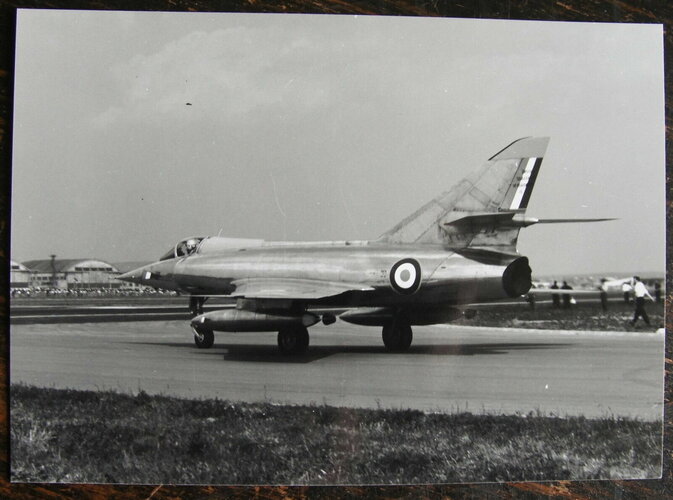

And also this one , with 01 on the rudder visible:

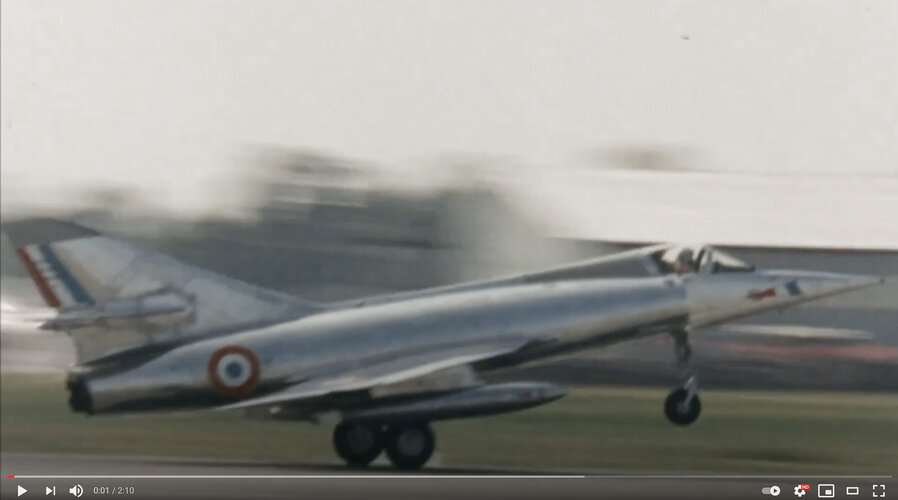

It's also the same plane at the beginning of the vid I posted above, which is from Dassault about the IV :


Edit:

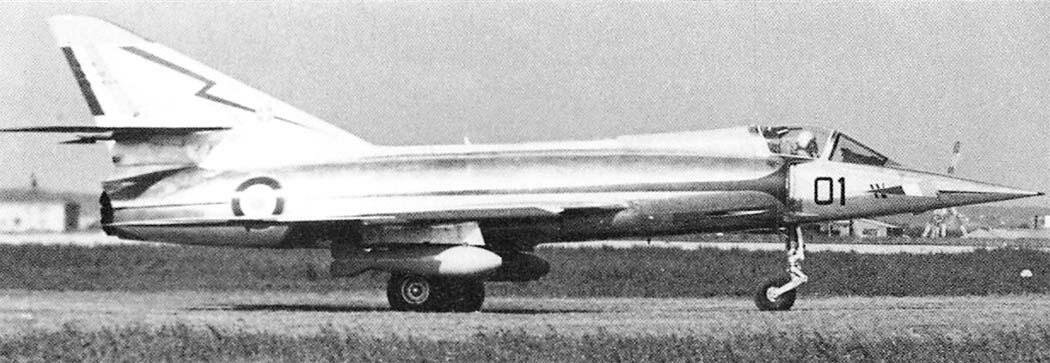

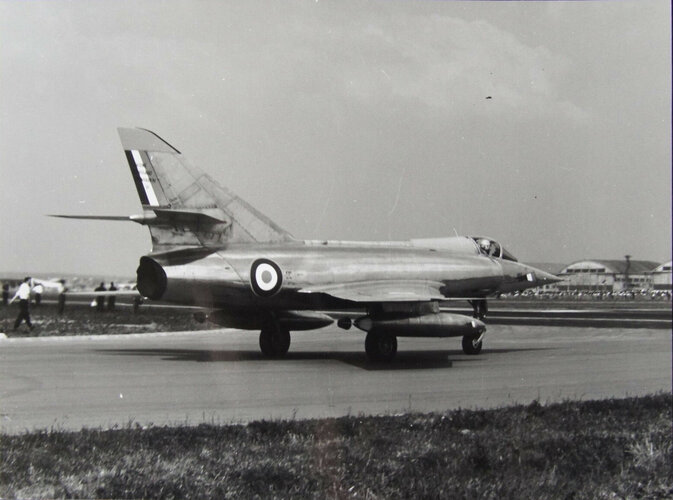

They apparently added red trims and lightning and "01" at one time :


The more I look at picts of Etendard IV, the more I like this plane...

Last edited:

kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,540
Reaction score
672
Are there any decent pics around of the IVB fitted with the Avon engine?


galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,488
Website
galgot.com
Are there any decent pics around of the IVB fitted with the Avon engine?

Not very decent...

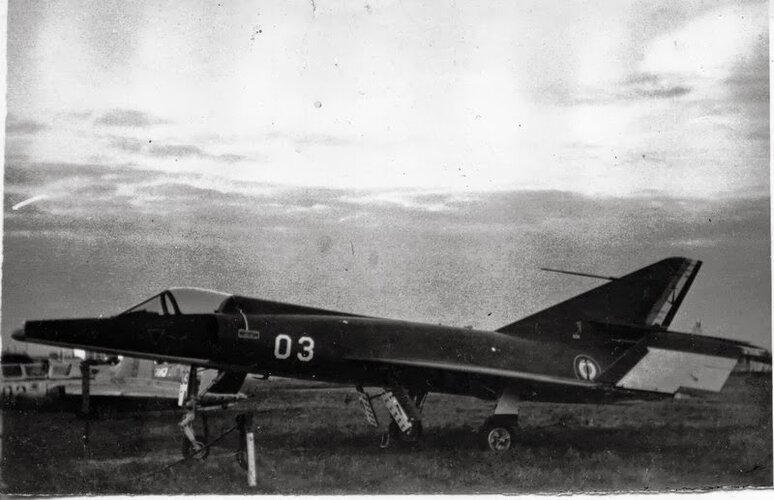

From here : http://spotaero.blogspot.com/2013/07/etendard-iv-de-la-genese-au-prototype_12.html
"Prototype 03 made its first flight from Melun-Villaroche on December 2, 1959 piloted by Jean-Marie Saget, it was named Standard IV B or Standard IV Avon because it was equipped with a British Rolls-Royce Avon engine with 5100 kg of thrust ( 1 tonne more than ATAR) and a boundary layer control system by blowing the flaps which reduces the stall speed from 220 km / h to 185 km / h but also increases the weight of the aircraft. 'a ton. This system being too complex it will not be used in series and the device will be reformed in 1962 ending its career at the school of mechanics of Rochefort."

#H_K posted more infos here : #32 too.

Last edited:

kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,540
Reaction score
672
Thanks Galgot.
I have seen that pic before, but it's hard to make out details, and the folded up wingtip is obscuring the rear fuselage.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,816
Reaction score
2,862
I know it is forbidden to cross thread but this little French toy Etendard belongs here.
If you like little planes there are more here


Attachments

  • IMGP0595.jpeg
    16.8 KB · Views: 58

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,488
Website
galgot.com
Thanks Galgot.
I have seen that pic before, but it's hard to make out details, and the folded up wingtip is obscuring the rear fuselage.
Yes :/ Only one I could find the same... Too bad, there is now a Museum at Rochefort, but the IVB was scrapped long before it was established.


H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
344
Reaction score
691
Are there any decent pics around of the IVB fitted with the Avon engine?

I’ll look through my copy of « La Saga Etendard ». Here’s a few pics of the Etendard IVB 03 I found online... the nose profile and markings changed over time (just like the other prototypes), which makes it hard sometimes to be 100% sure that this is actually #03.





CORRECTION: This last one is not the Etendard #03 IVB prototype but the Super Etendard #03 prototype... please ignore.

Last edited:

galgot

ACCESS: Top Secret
Senior Member
Joined
Jul 6, 2006
Messages
1,097
Reaction score
1,488
Website
galgot.com
Are there any decent pics around of the IVB fitted with the Avon engine?

I’ll look through my copy of « La Saga Etendard ». Here’s a few pics of the Etendard IVB 03 I found online... the nose profile and markings changed over time (just like the other prototypes), which makes it hard sometimes to be 100% sure that this is actually #03.

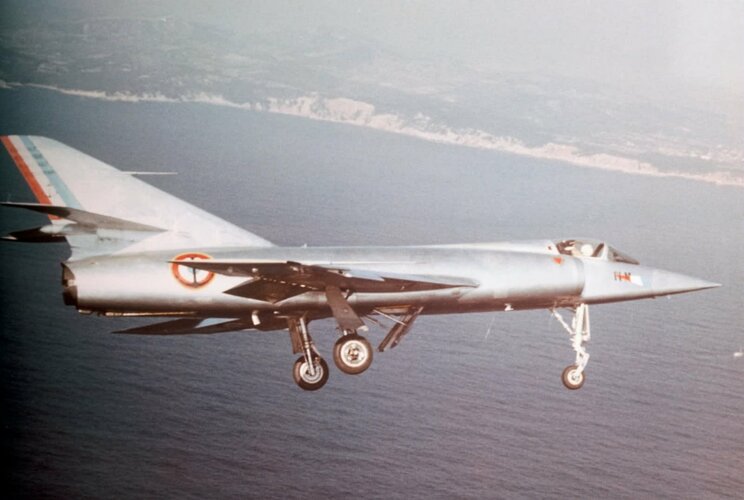

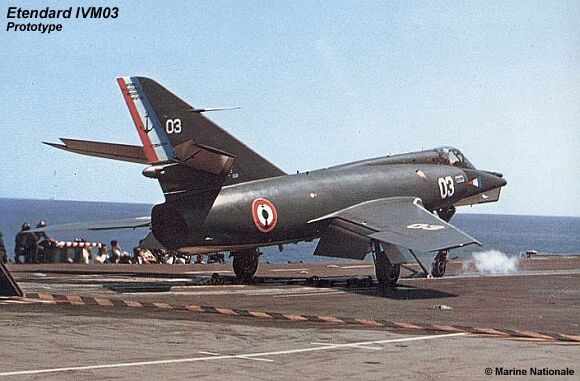

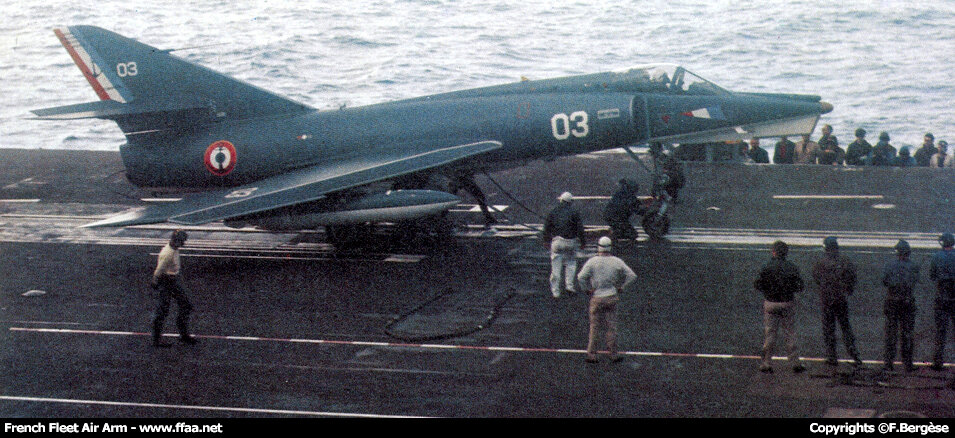

I think the color picture is in fact the Etendard IVM N°13, used as Super Etendard 03 prototype, with full leading edge slats and double slotted flaps, but stil retaining a IVM nose.

From here : http://www.ffaa.net/aircraft/super-etendard/super-etendard_fr.htm
"-The third, the Super-Étendard 03 is the Etendard IVM n ° 13. It is an Étendard with an optimized wing (new leading edge slats and double slit flaps) intended to equip the series Super-Étendard. It improves lift at low speeds. The maximum landing weight of 7.8 tonnes on the Etendard has increased to 8.3 tonnes on the Super-Etendard."

The other two, dunno... the one with the hook down seem to have a longer tail pipe ?


kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,540
Reaction score
672
The other two, dunno... the one with the hook down seem to have a longer tail pipe ?

It definitely looks like an extended tailpipe.
Thanks.
I was wondering in particular what changes were made in that area.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,301
Reaction score
6,292
From the very same, splendid website linked upthread

Le Super-Étendard 03 est quant à lui retransformé en Étendard IVM n°13.

Just to clear some confusion,

The Etendard IVB-03 =/= from the Etendard IVM-013

The Etendard IVM-013 become the Super Etendard 03, third prototype... and thus it got a 03 painted on its ass, too !

The former was a very unique airframe with Avon and BLC that flew in 1959 and probably died at Rochefort circa 1965.

The second one live beyond that date since it become one of the Super Etendard prototypes in 1972-75 before... being changed back into an Etendard IVM !

Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,301
Reaction score
6,292
The third Etendard IVM airframe got an Avon and BLC and a 03 painted on it.

The 13rd Etendard IVM airframe later become the third Super Etendard and thus also got a 03 painted on it.

Phew... my brain is bleeding in pain...


H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
344
Reaction score
691
@kaiserbill More details on the Etendard IV M #03 (IVB), mostly from the trials in Feb-Apr 1960.
Source: La Saga Etendard Tome 1 (JM Gall)

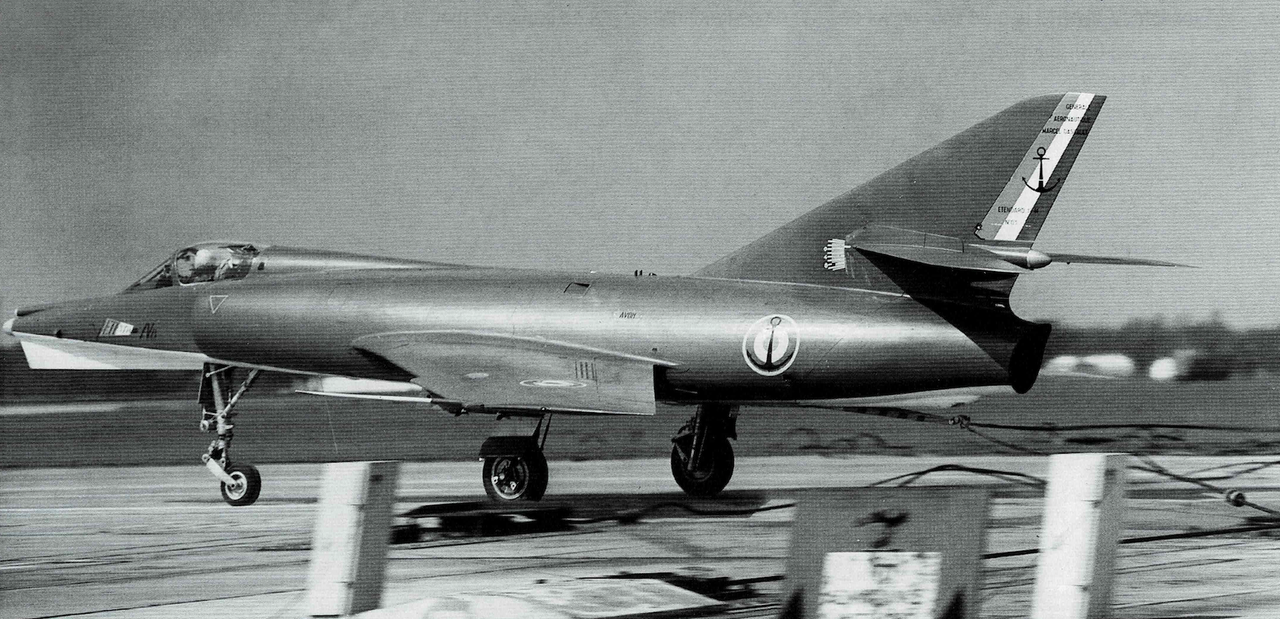

With the original nose: Feb/Mar 1960

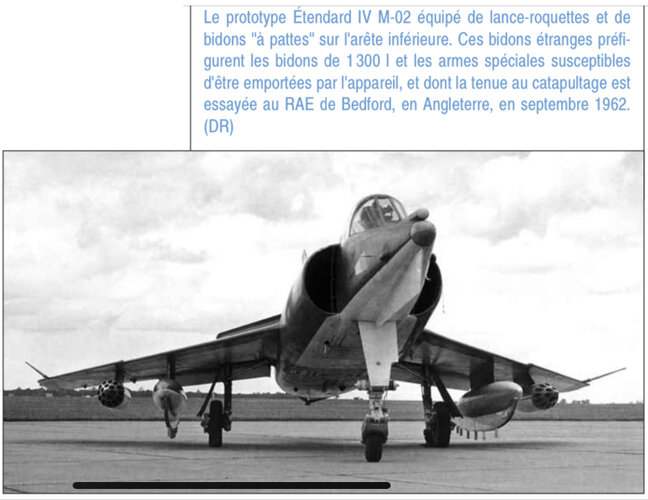

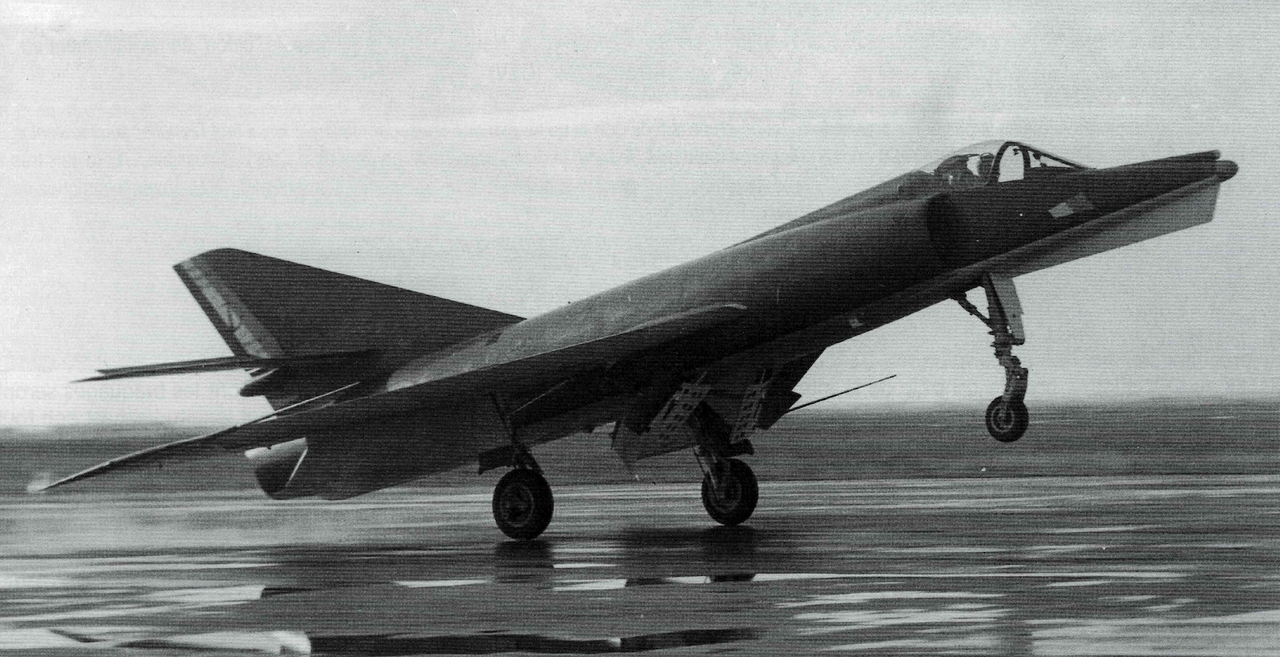

With modified nose, carrier compatibility trials at RAF Bedford: Apr 1960
Note the JL100 combined fuel tank/rocket launcher.


Good view of the longer jet pipe for the Avon:

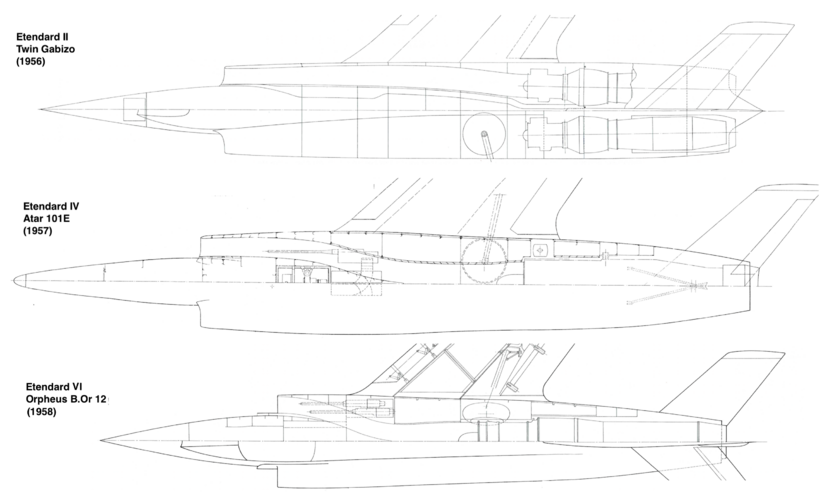

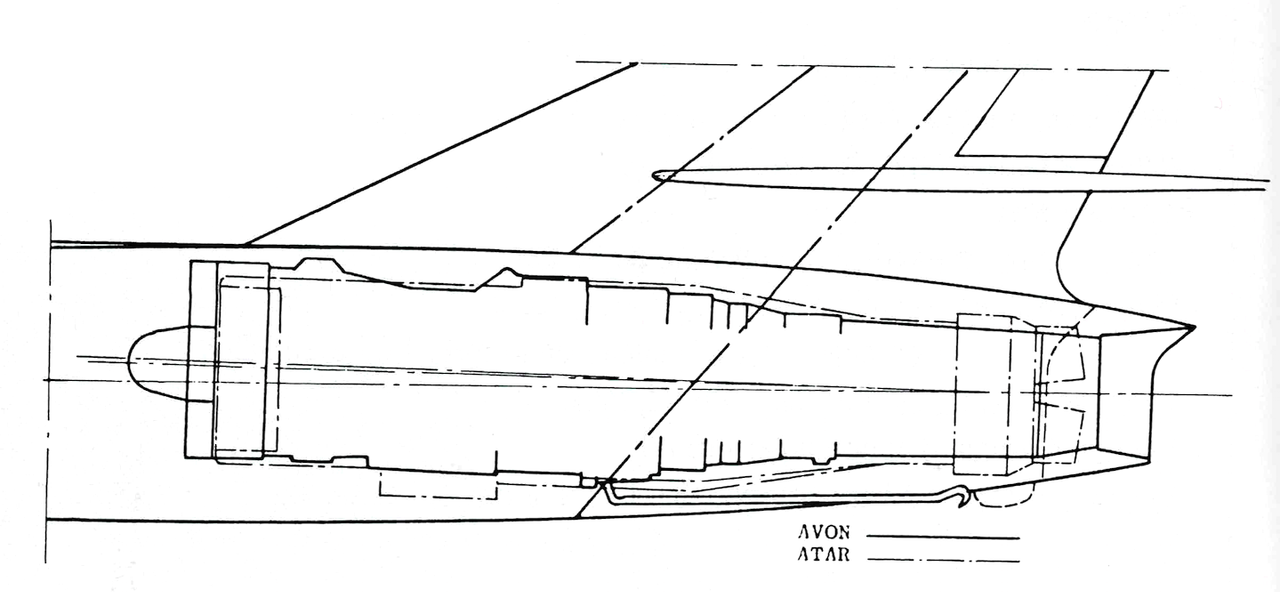

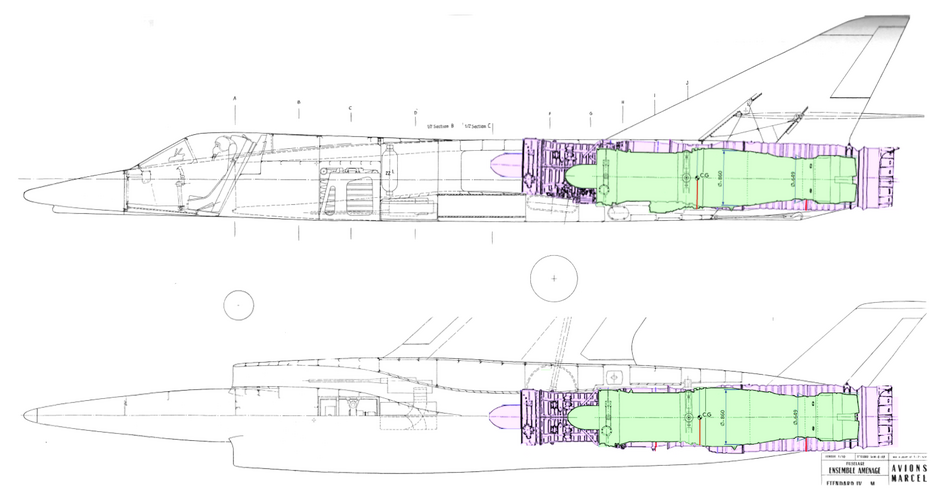

Avon vs. Atar installation details:

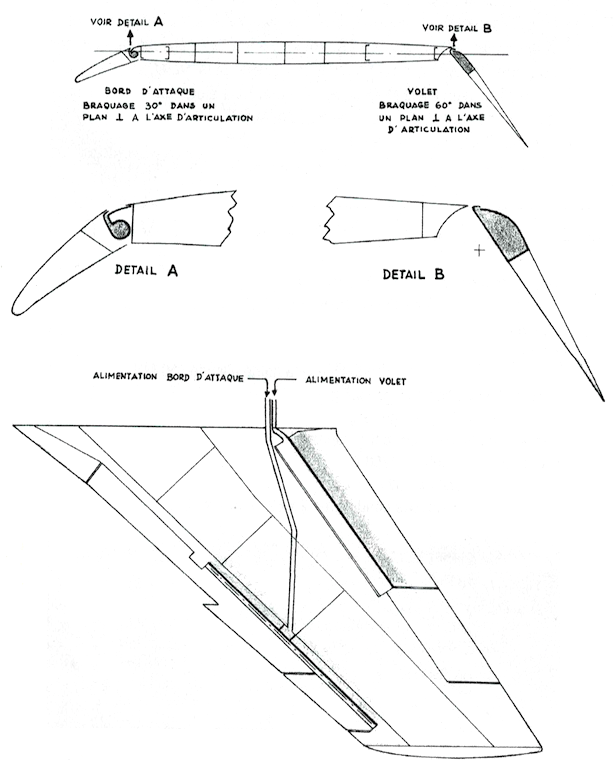

Blown wing details:

Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,301
Reaction score
6,292
Damn it, they had to put that extremely ugly nose on that one, too...

A tons of thanks to H_K for those pictures.

Somewhere on the other threads it said the plane was difficult to handle at low speed because of the BLC massive drain of power on the Avon. And the aircraft unfortunately remained marginal on Majestic carriers, according to Indian pilots.

Last edited:

kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,540
Reaction score
672
Thanks H_K.
Definitely then has a longer tailpipe.
I thought I saw a bulge in the rear fuselage in front of the vertical stabiliser, but your cutaway shows that it was simply my eyes fooling me.

Edit: interesting line comparison there also between the Avon and Atar.


H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
344
Reaction score
691

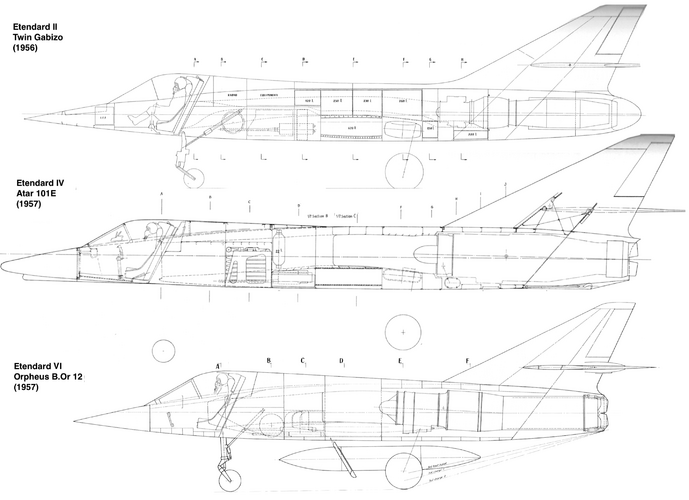

Here's a side-by-side comparison of the 3 Etendard variants... shows nicely the evolution from twin Gabizo to single Atar 101E to Orpheus Br.O 12


Attachments

  • Etendard II IV VI 200px =1m side Final.png
    Etendard II IV VI 200px =1m side Final.png
    723.6 KB · Views: 178

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,301
Reaction score
6,292
Both Mirage and Etendard were created as non-Atar LWFs for Armee de l'air and NATO. And thus unlike the contemporary late Mystere IV developments (IVB, SMB 1 2 4) they ended underpowered (Orpheus) or with bad engines (Gabizo, one of Turbomeca few failures).
By 1957 Etendard and Mirage were in serious trouble.
To Dassault credit, they turned these lemons into lemonade. first by putting an Atar into them: Etendard IV and Mirage III-01. Now they matched a SMB-2. Mirage went to AdA and Etendard, to the navy.
And the rest is History...


H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
344
Reaction score
691
Here's a side-by-side comparison of the 3 Etendard variants... shows nicely the evolution from twin Gabizo to single Atar 101E to Orpheus Br.O 12

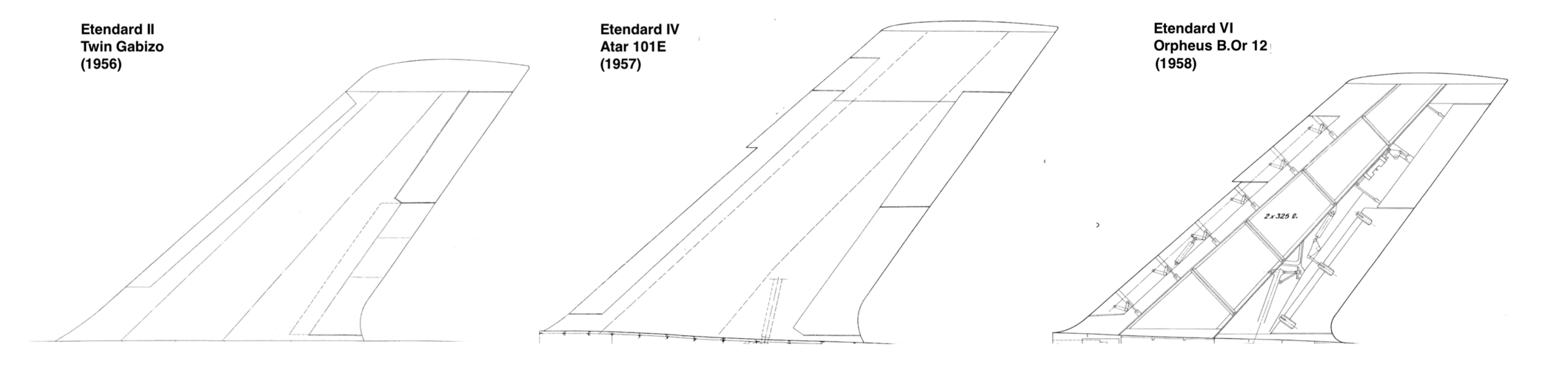

And now here's a top view of the 3 Etendard variants. Shows nicely the substantial improvement from the "fat" non-area ruled Etendard II to the single-engined IV & VI.

Keeping in mind that the VI had substantially more thrust with one engine than the II had with 2 engines (3,050kgf dry / 3,700kgf with AB for the Orpheus 12 vs. 2,100kgf dry / 3,050kgf with AB for 2 Gabizos) it really was a significant improvement across the board.

Next up... some cross sections.


Attachments

  • Etendard II IV VI 200px =1m top Final.png
    Etendard II IV VI 200px =1m top Final.png
    1 MB · Views: 126
  • Etendard II IV VI 200px =1m Wings Final.png
    Etendard II IV VI 200px =1m Wings Final.png
    628.1 KB · Views: 130
Last edited:

H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
344
Reaction score
691

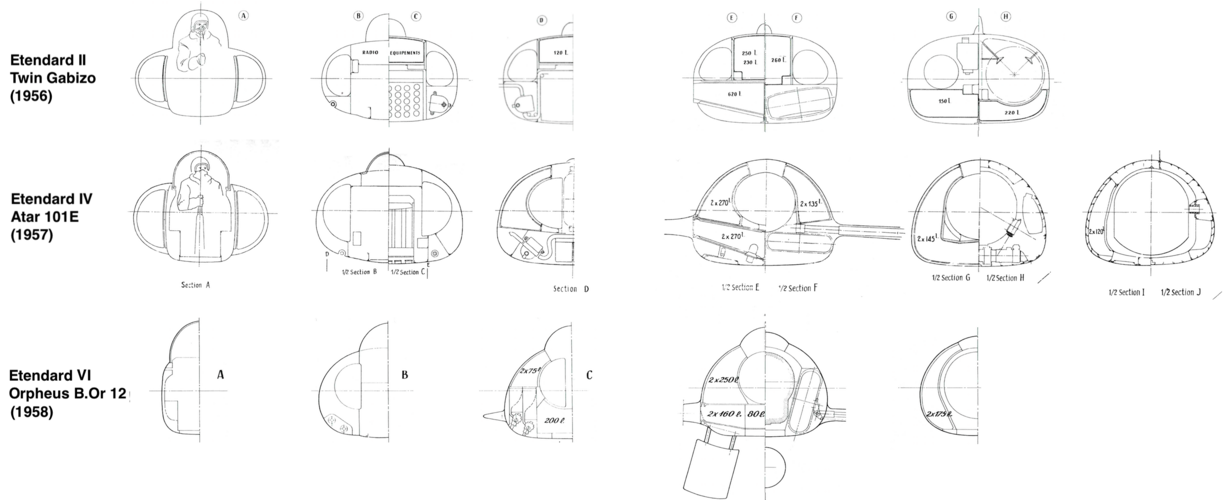

As promised, here are the cross-sections of the 3 Etendard variants. The Atar-powered -IV requires a visibly fatter fuselage than the Orpheus powered -VI.

But it's still interesting to see how similar the internal arrangements are from one design to the other... clearly this must have simplified the design work...


Attachments

  • Etendard II IV VI 200px =1m front Final 2.png
    Etendard II IV VI 200px =1m front Final 2.png
    856.4 KB · Views: 118

H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
344
Reaction score
691
Had forgotten to post this info on the Etendard VI:

- Etendard VI 01 prototype with Orpheus B.Or 3 engine (March 1956)
- Etendard VI A with significantly uprated Orpheus B.Or 12 engine (planned Feb 1958)

The ETD-VI A design would have been supersonic, with very good thrust-to-weight ratios and competitive fuel fraction. In fact T/W would have been comparable to the Mirage III & Mirage F1, and only slightly less than an F-8E or F-5E (!)... in a pint-sized package.

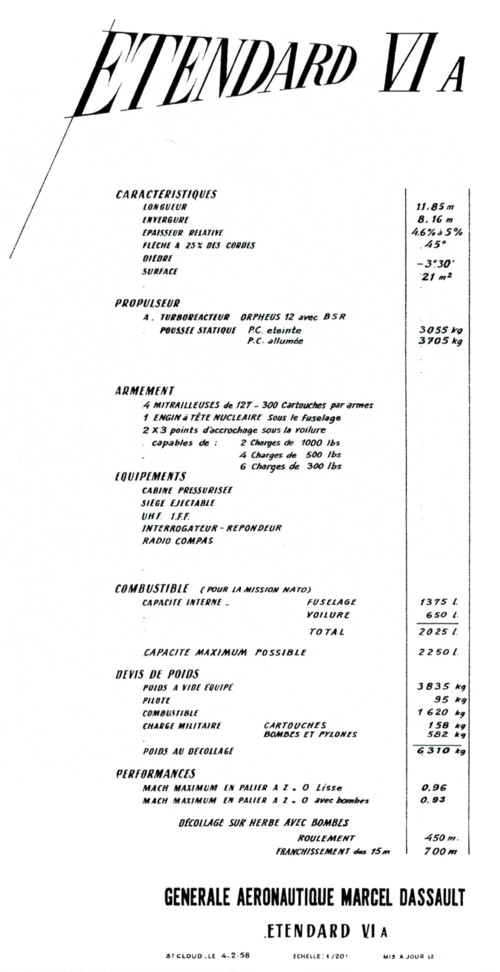

Etendard VI A characteristics
Length: 11.85m
Span: 8.16m
Wing area: 21m2
Engine: Orpheus B.Or 12SR with (6,810lb dry / 8,170lb wet; SFC 0.97 dry / 1.62 wet, weight 650-700kg)

Weight, empty: 3,835kg

Payload: 4x 12.7mm guns with 300 rpg, 1 nuclear weapon under fuselage, 2x 1,000lb or 4x 500lb bombs under-wing

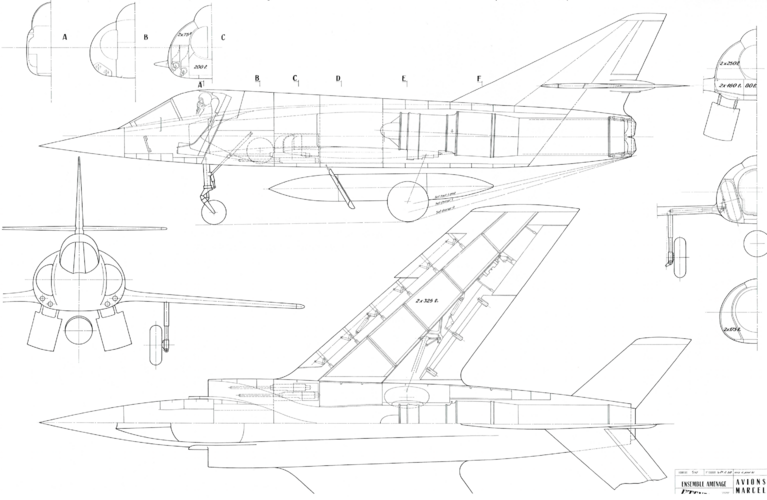

Fuel: 2,250L internal. The drawing also shows what looks like a ~600L drop tank under-fuselage.
T-O run: 450m on grass with 2x 500lb bombs


Attachments

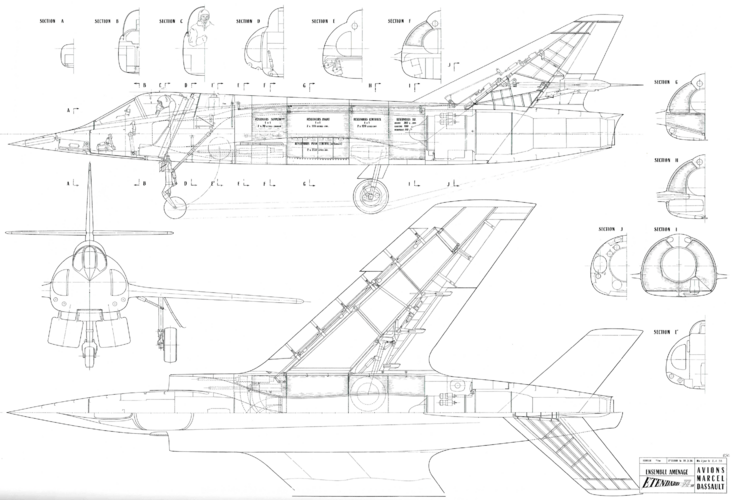

  • Etendard VI 01 March 1956 200px = 1m.png
    Etendard VI 01 March 1956 200px = 1m.png
    1.9 MB · Views: 60
  • Etendard VI A March 1958 200px = 1m.png
    Etendard VI A March 1958 200px = 1m.png
    1.4 MB · Views: 61
  • Etendard VI A Feb 1958 characteristics.png
    Etendard VI A Feb 1958 characteristics.png
    961.7 KB · Views: 58
  • CC5796FC-ACD6-4368-BD79-43D60056F3BC.jpeg
    58.8 KB · Views: 73
Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,301
Reaction score
6,292
Many thanks. Now I understand your interest for the Etendard VI. And some years down the road it could have had an Adour...


H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
344
Reaction score
691
Now I understand your interest for the Etendard VI.

Yes Etendard VI vs. F-5A is an interesting what if.

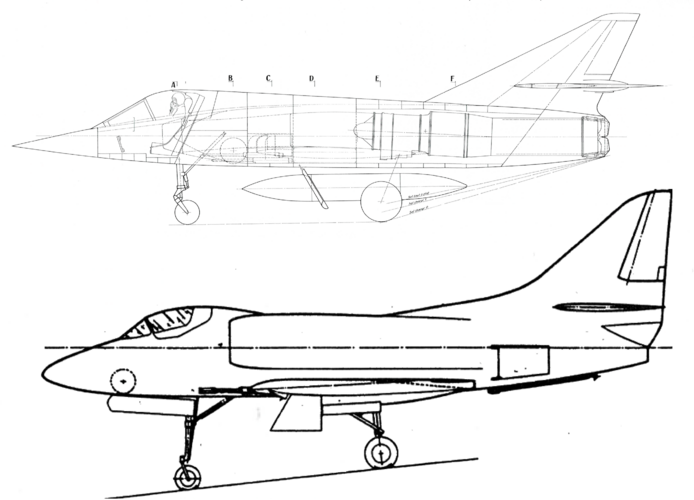

Another interesting comparison is vs. the A-4 Skyhawk. The Etendard VI was very similar in size, weight etc to the early A-4A. Even the avionics and missions were similar. So I like to think it might have enjoyed similar success for land-based users (e.g. Israel?).

The difference being obviously that the VI was optimized more as a transonic fighter (i.e. low drag, reheat), and traded that off for less fuel (it carried 25% less fuel than the A-4... which had an amazing fuel fraction thanks to its large wing tanks).


Attachments

  • Etendard VI A vs A-4A 200px = 1m.png
    Etendard VI A vs A-4A 200px = 1m.png
    949.9 KB · Views: 73
Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,301
Reaction score
6,292
Now I understand your interest for the Etendard VI.

Yes Etendard VI vs. F-5A is an interesting what if.

Another interesting comparison is vs. the A-4 Skyhawk. The Etendard VI was very similar in size, weight etc to the early A-4A. Even the avionics and missions were similar. So I like to think it might have enjoyed similar success for land-based users (e.g. Israel?).

The difference being obviously that the VI was optimized more as a transonic fighter (i.e. low drag, reheat), and traded that off for less fuel (it carried 25% less fuel than the A-4... which had an amazing fuel fraction thanks to its wing tanks).

And the A-4 in air combat (Vietnam, Israel, Top Gun) proved beyond any doubt, that being supersonic with a reheat is not mandatory to do good work.

Etendard VI vs Skyhawk in air combat would have been pretty interesting. Throw the Hawker Hunter into the lot... or Folland Gnat...


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,301
Reaction score
6,292
Now I understand your interest for the Etendard VI.

Yes Etendard VI vs. F-5A is an interesting what if.

Another interesting comparison is vs. the A-4 Skyhawk. The Etendard VI was very similar in size, weight etc to the early A-4A. Even the avionics and missions were similar. So I like to think it might have enjoyed similar success for land-based users (e.g. Israel?).

The difference being obviously that the VI was optimized more as a transonic fighter (i.e. low drag, reheat), and traded that off for less fuel (it carried 25% less fuel than the A-4... which had an amazing fuel fraction thanks to its wing tanks).

Another irony, in passing - back in 1973, the French Navy wanted their Super Etendard, not with Atar 8 but... J52. The Skyhawk very own engine. The Aéronavale always had an American tropism the AdA never really had. American aircraft, american engines... from V-156F to E-2D Hawkeye.

(V-156F "official" name was Vindicator for the Americans and Cheasapeake for the British. Which become "Wind indicator" and "Cheesecake" respectively - ROTFLMAO. I can see the French calling theirs "Chaise a piques" - "chair with spikes")


H_K

ACCESS: Secret
Joined
Feb 21, 2010
Messages
344
Reaction score
691
Etendard VI vs Skyhawk in air combat would have been pretty interesting.

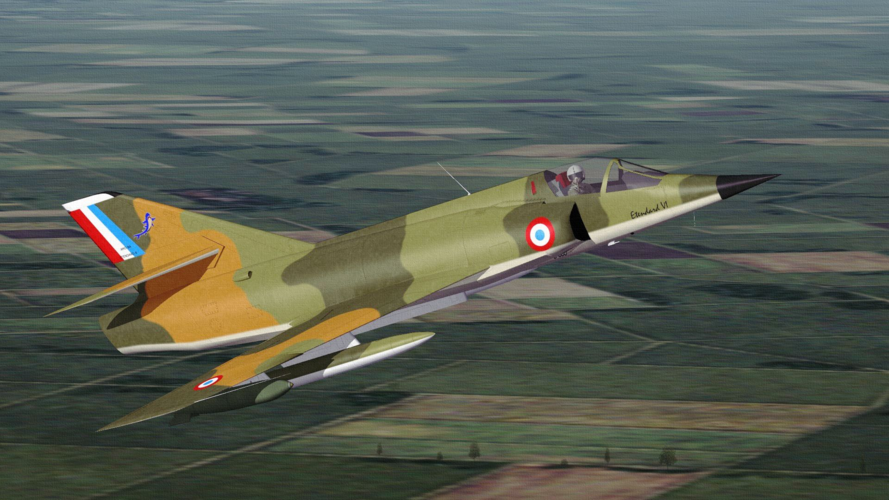

With the right color scheme the Etendard VI might have won on looks alone!


(Sorry for posting a virtual picture but that’s the best available given the paucity of color pictures of the Etendard VI… not even any model kits available sadly)


Attachments

  • D9C95FCA-7D05-49DB-9645-D115D4A4EC15.png
    3.4 MB · Views: 55
