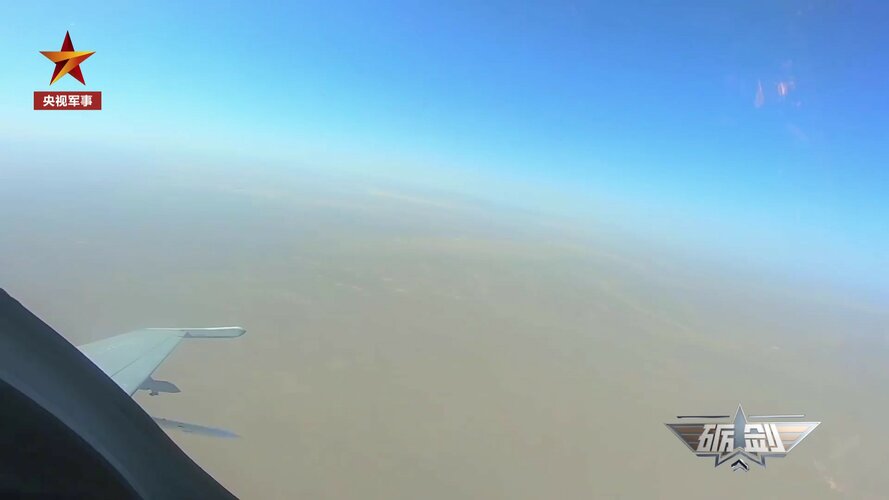

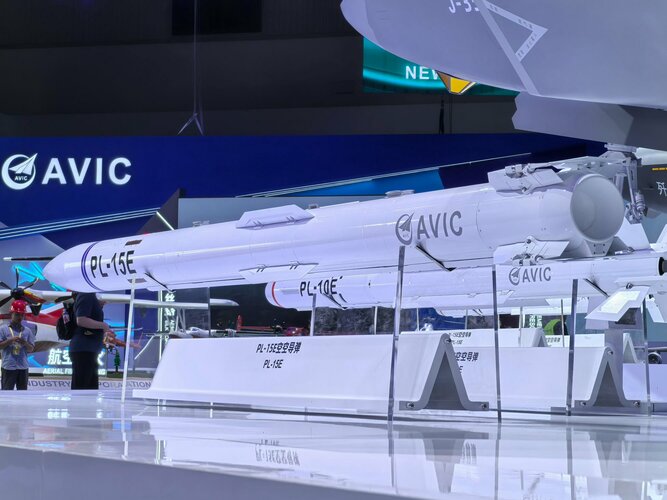

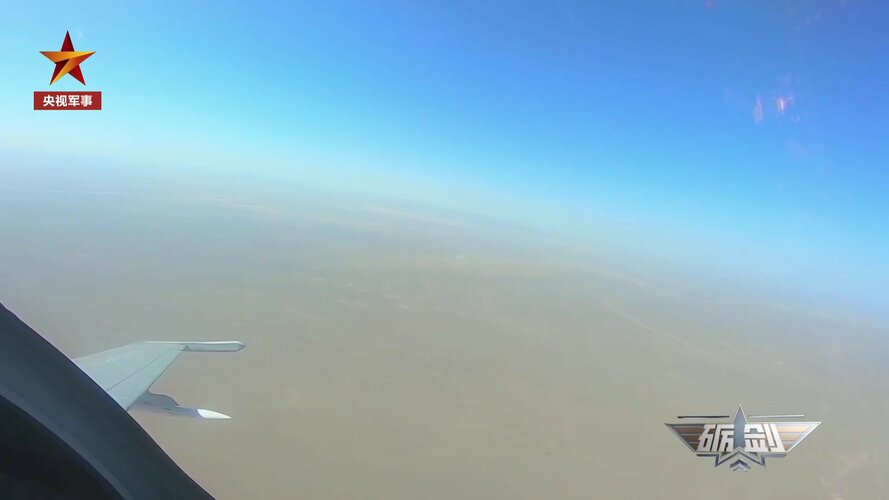

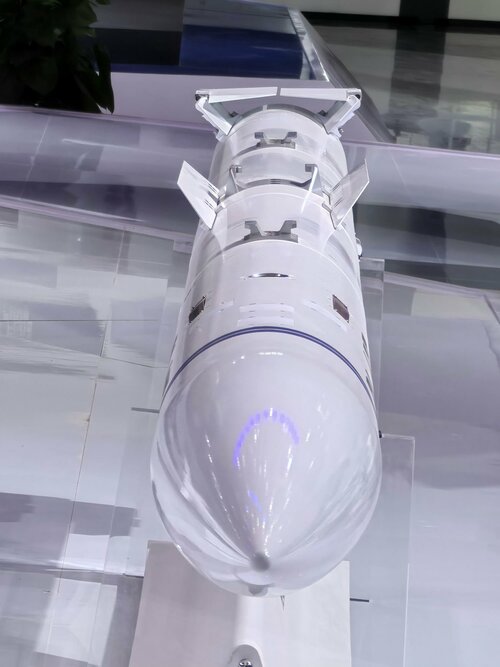

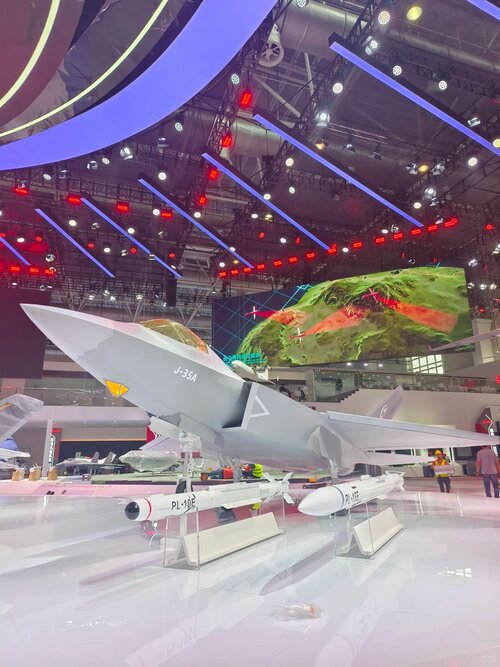

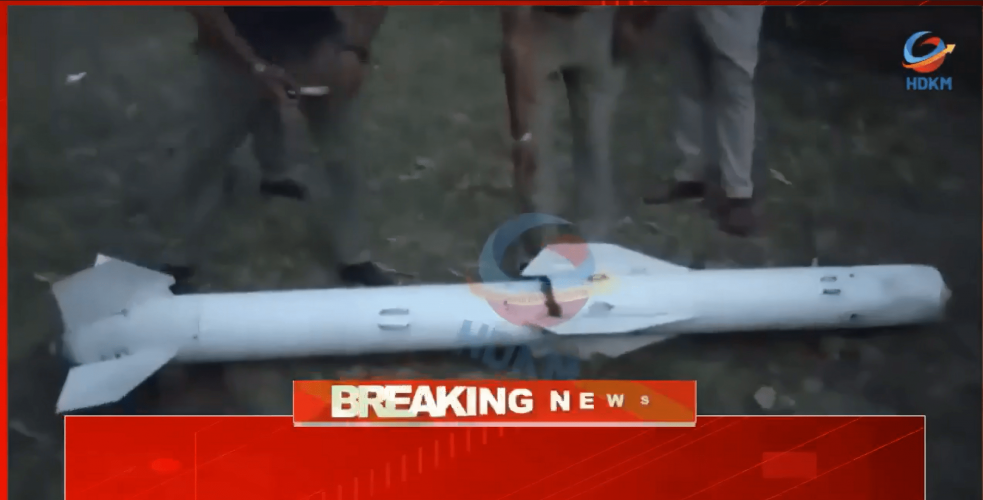

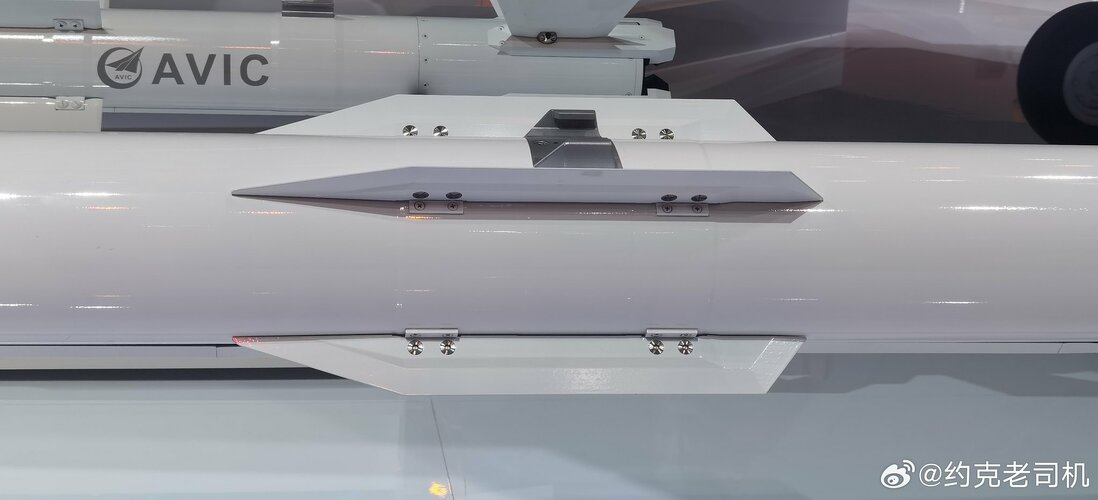

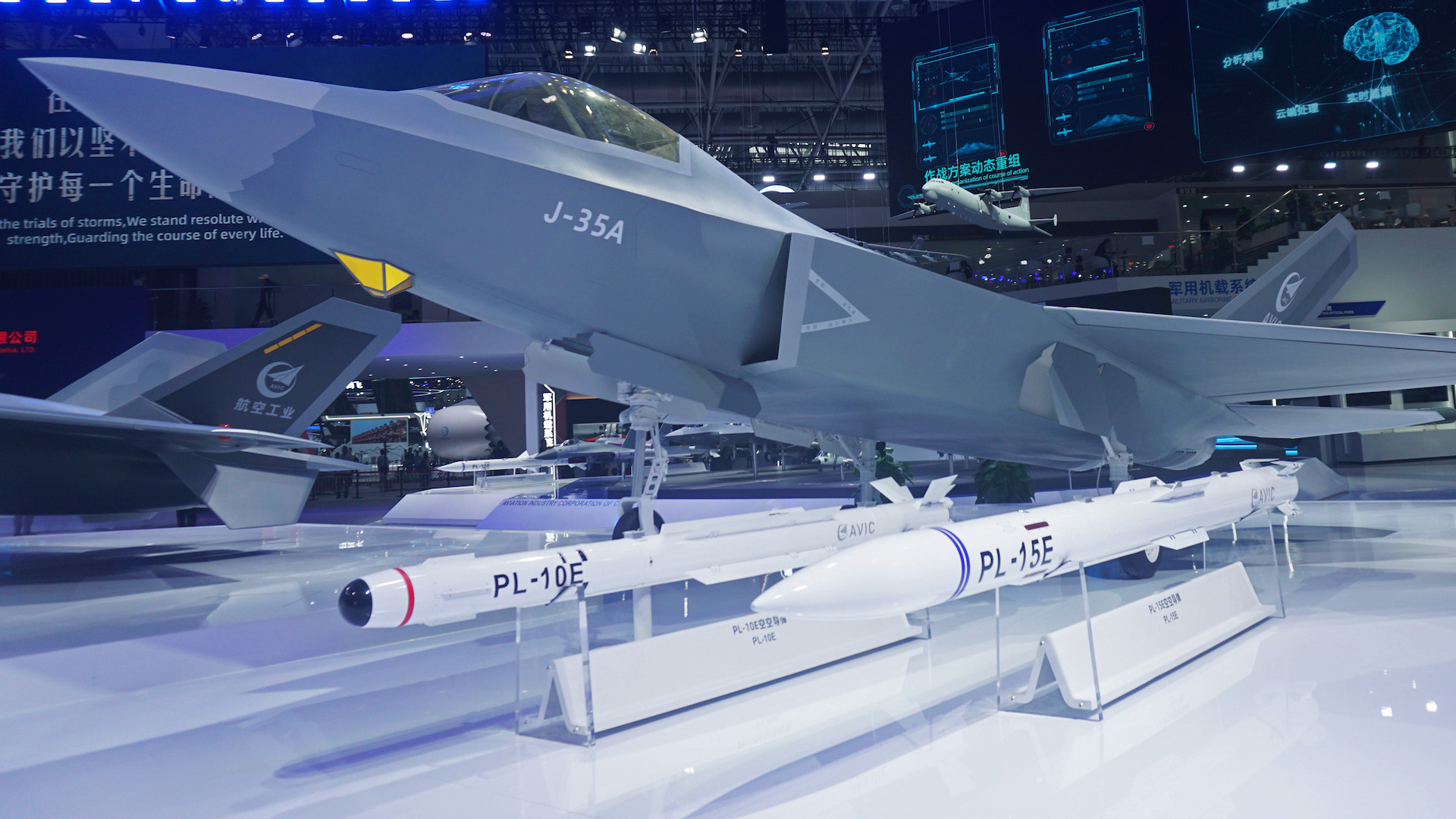

Well, it's basically just a compressed-carriage PL-15, right? It might simply be viewed as a PL-15 for J-35 weapons bay.

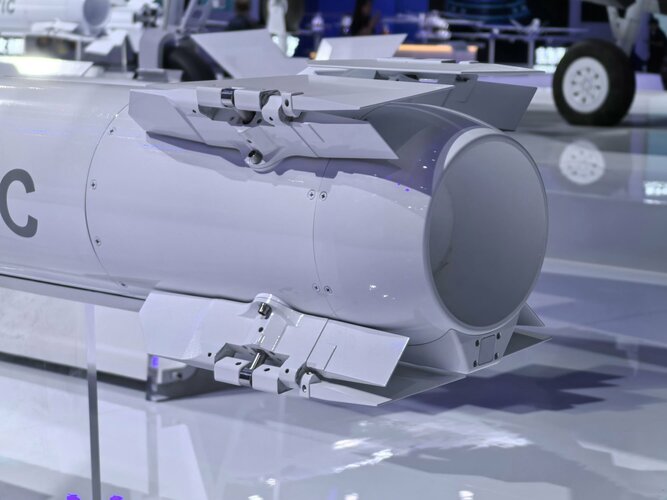

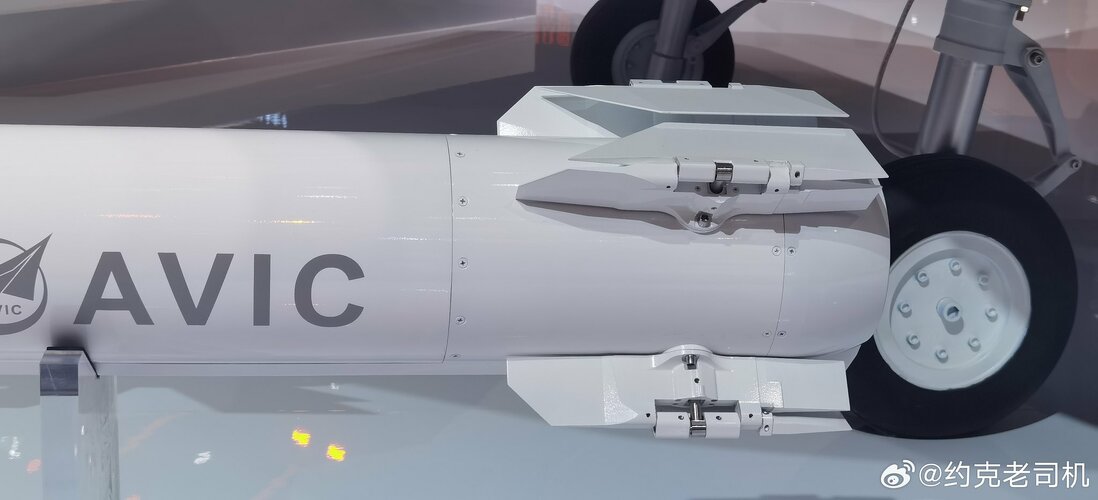

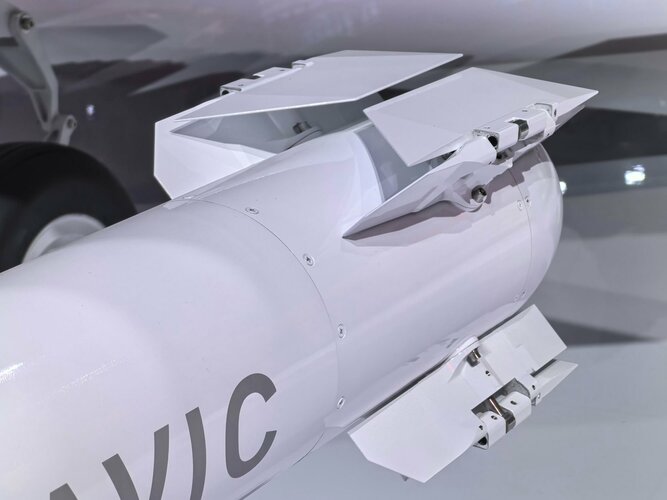

Folding fin variant should still get a different designation.
A) so users know what they are talking about
B) because there must be some slight differences in performance, due to extra weight, extra drag, a bit less mid body lift etc. if it was so easy and beneficial to put folding wings on a2a missiles, everyone would be doing it. Save for 2 fins on r37, i cant think of any other a2a missile doing it.

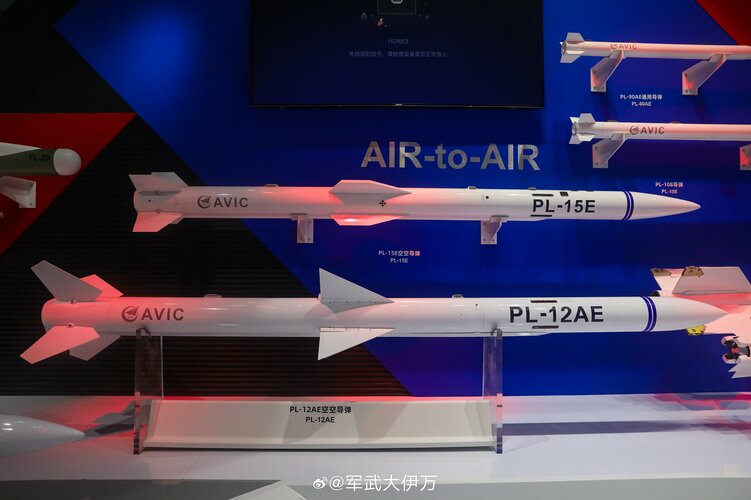

The PL-12AE air-to-air missile is a medium-to-long range radar air-to-air missile with the characteristics of long range, high guidance accuracy, and strong anti-interference ability.

It can undertake beyond-visual-range air combat missions and is used to attack fighters, bombers, drones, cruise missiles and other aerial targets.

The carrier platforms are Xiaolong, Menglong, large drones, etc.;
  • the launch method is rail and catapult
  • the maximum available g load is 38
  • the attack distance is ≥120km
  • the guidance method is a combination of strapdown inertial navigation/Beidou satellite + two-way data link correction + active radar terminal guidance
  • the missile length is 3939mm, the missile diameter is 203mm, and the mass is ≤214kg



Attachments

  • 54129686913_804a8f3b1d_k.jpg
    208.7 KB · Views: 9
  • 54128562287_98072f5707_k.jpg
    299.2 KB · Views: 11
  • 54129686898_72d0b6fcbc_k.jpg
    166.4 KB · Views: 11
  • 54129743494_c3c60123a8_k.jpg
    134.7 KB · Views: 11
  • 54129743489_5593edeff6_k.jpg
    142.4 KB · Views: 10
  • 54129396806_30c615aa08_k.jpg
    338.5 KB · Views: 11
  • 54129396826_8308fbf8f2_k.jpg
    213.1 KB · Views: 15
New member here. What are the dimensions of the PL-15 / PL-17 especially the wingspan? Can't seem to find them online

New member here. What are the dimensions of the PL-15 / PL-17 especially the wingspan? Can't seem to find them online

PL-15 is around the same length as PL-12 (4m) but has bigger girth and cropped fins. PL-17 is 2 meters longer.

PL-15 is around the same length as PL-12 (4m) but has bigger girth and cropped fins. PL-17 is 2 meters longer.

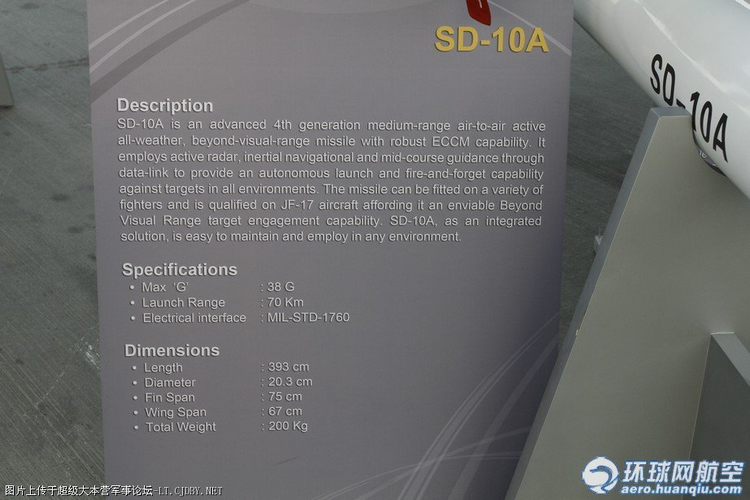

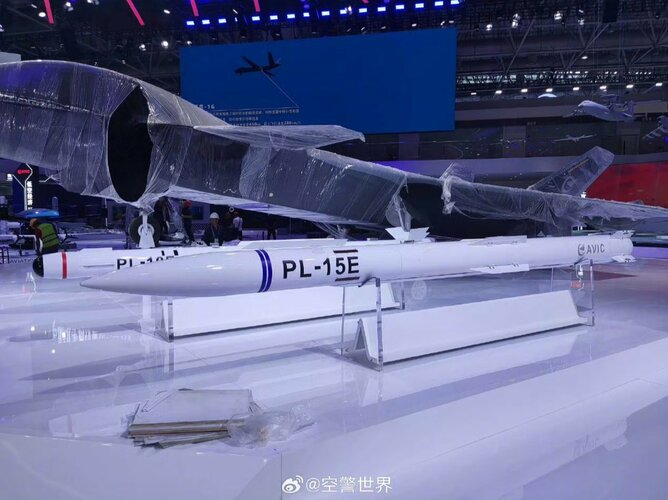

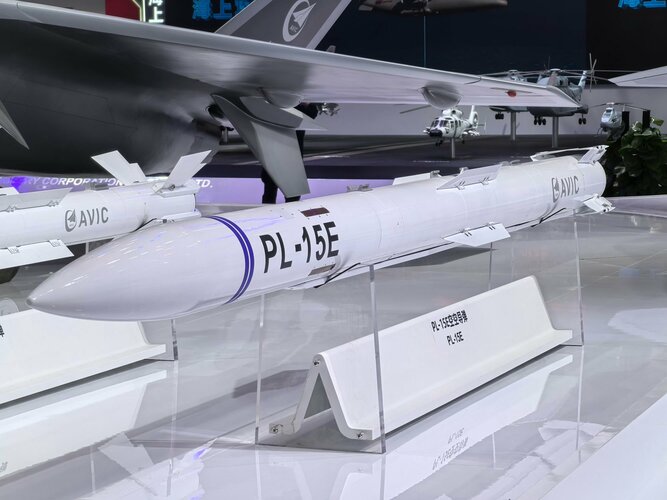

Based on placards of SD-10A/PL-12, and PL-15E/PL-15, the PL-15 has the same fuselage diameter as PL-12 (203mm), but is a little bit longer (3996mm vs 3930mm)

Of course, by virtue of having cropped fins, PL-15 has an overall narrower footprint than PL-12, but we don't have confirmation of the specific finspan of PL-15 (only that it is narrower than PL-12)




Based on placards of SD-10A/PL-12, and PL-15E/PL-15, the PL-15 has the same fuselage diameter as PL-12 (203mm), but is a little bit longer (3996mm vs 3930mm)

Of course, by virtue of having cropped fins, PL-15 has an overall narrower footprint than PL-12, but we don't have confirmation of the specific finspan of PL-15 (only that it is narrower than PL-12)


View attachment 757702

View attachment 757703

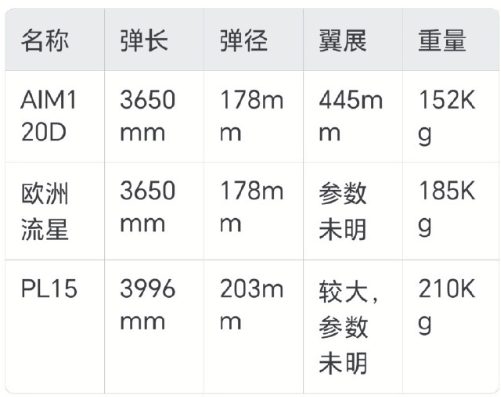

Would extrapolating the AIM-120D be a good estimate?

PL-15 doesn't have published wingspan, as said. But given that we have plenty of images around, and given that we have SD-10 dimensions, one can measure both missiles and then extrapolate the figures for the PL-15.

Anyway, when I measured PL-15, I got something like 560 mm for rear fin span and 430 mm for mid body wing span. Give or take.
