Chinese SAM and ABM

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,389
Reaction score
1,431
Does anybody have any info on these or any on Chinese ABM developements? All I have are these two photos and their names.

Thanks.


Attachments

  • FJ_1_ABM.jpg
    81.4 KB · Views: 717

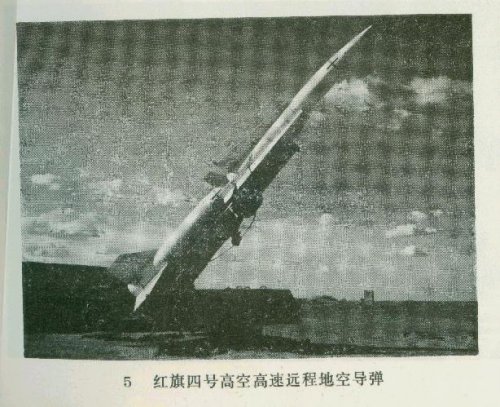

  • HQ_4.JPG
    82.5 KB · Views: 713

SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,194
Reaction score
30

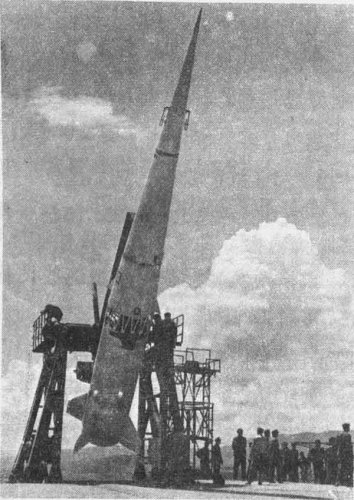

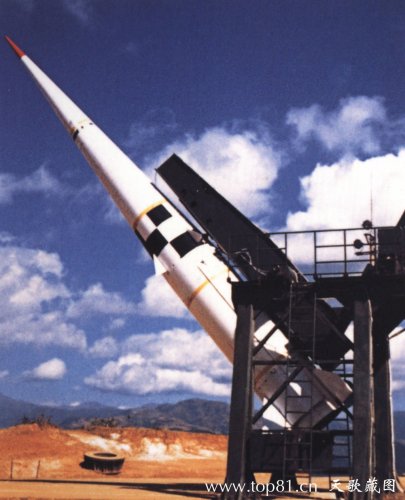

Bottom one is Fan Ji 1, top one is Fan Ji 2.

China's ABM program was underway from 1970-1985. It was called Project 640. Fan Ji 1 was tested twice in 1975 and was based in part on scaled-up HQ-2 SAM technology. Fan Ji 2 was tested five times between 1976 and 1985.

That is all of the information I've been able to uncover so far.


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,017
Reaction score
250
What do China's early warning capabilities look like? Surely they must have atleast a rudimentary radar network, even if an operational ABM system is absent?

Fan Ji 1 actually looks quite like a Phoenix with a huge booster rather than a HQ-2.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,727
Reaction score
496
Just found at the CMF (http://centurychina.com/cgi-bin/anyboard.cgi/plaboard?cmd=get&cG=33736333635343&zu=33373633363534&v=2&gV=0&p=)

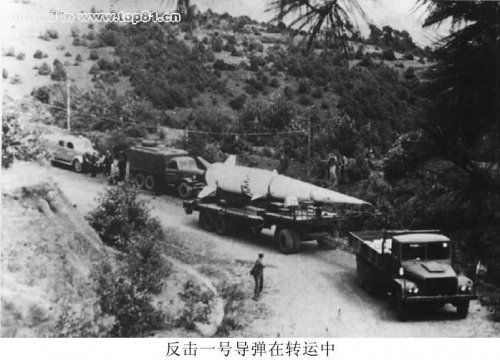

FJ-1 (counter strike 1) 1969-1980

FJ-2 1970-1973

FJ-3 1974-1977

FW-1 (anti satellite 1) 1977-?


Attachments

  • China ABM 01.jpg
    China ABM 01.jpg
    58.8 KB · Views: 617
  • China ABM 02.jpg
    China ABM 02.jpg
    214.9 KB · Views: 610

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,727
Reaction score
496
Trident said:
What do China's early warning capabilities look like? Surely they must have atleast a rudimentary radar network, even if an operational ABM system is absent?

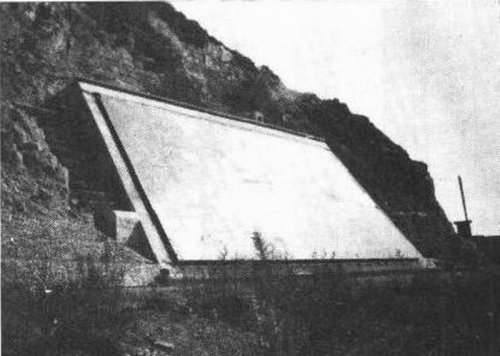

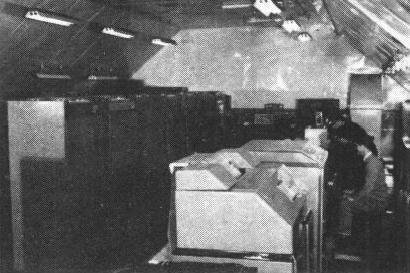

construction started in 1976, provided missile warning and space tracking during the 1980s. Project declassified in 1999


Attachments

  • 7010 radarControl.jpg
    7010 radarControl.jpg
    25.9 KB · Views: 66
  • 7010 phased array radar 02.jpg
    7010 phased array radar 02.jpg
    100.8 KB · Views: 61

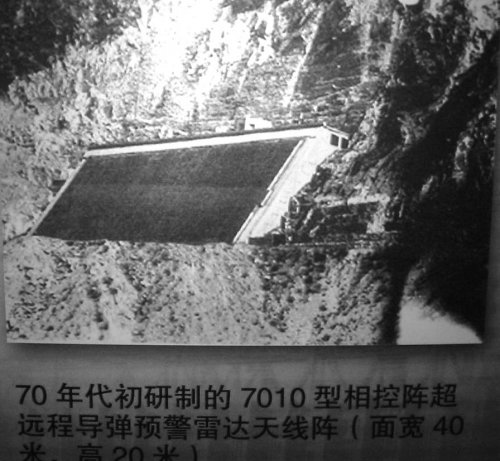

  • 7010 phased array radar 01.jpg
    7010 phased array radar 01.jpg
    103.7 KB · Views: 565

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,727
Reaction score
496

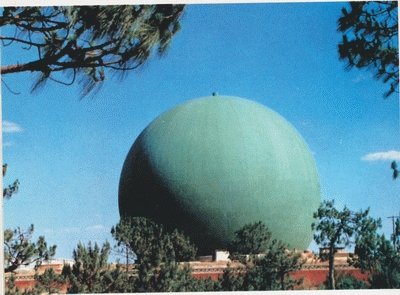

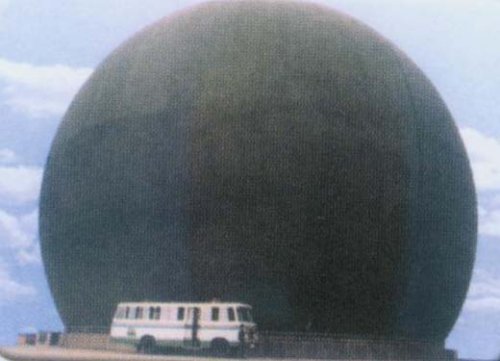

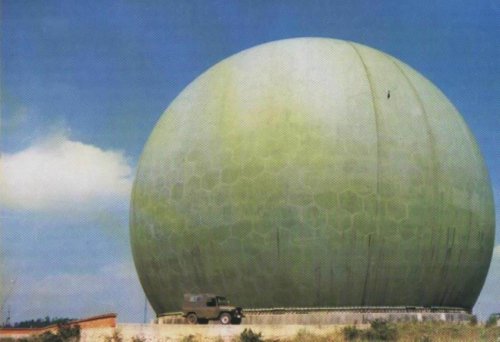

Prototype built in 1959, improvements made from 1965-1970. Located in base26, Yunnan province. Provided early warning to the NVA during the Vietnam war, also used in space tracking and research.


Attachments

  • 110 long range radar 01.jpg
    110 long range radar 01.jpg
    121.6 KB · Views: 44
  • 110 long range radar 02.jpg
    110 long range radar 02.jpg
    22.4 KB · Views: 45
  • 110 long range radar 03.jpg
    110 long range radar 03.jpg
    76.9 KB · Views: 45

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,017
Reaction score
250
Excellent stuff, thanks! Any idea where phased array is located? Perhaps GoogleEarth has some interestig coverage...


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,727
Reaction score
496
Maybe a new site ???

http://top81.jschina.com.cn/top81bbs/thread.php?cid=1&rootid=3486463&id=3486463


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,194
Reaction score
30
That's the BMEW site in Taiwan.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,777
Reaction score
1,913
The PRC nearly got a windfall, likely by accident!:

http://www.militaryphotos.net/forums/showthread.php?206236-Patriot-missiles-found-in-a-ship-at-Kotka-Finland

http://www.militaryphotos.net/forums/showthread.php?206238-Cargo-ship-held-in-finnish-port(suspected-arms-smuggling)


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,777
Reaction score
1,913
Finland 'finds Patriot missiles' on China-bound ship (BBC News)

The Finnish authorities have impounded an Isle of Man-flagged ship bound for China with undeclared missiles and explosives, officials say.

Police are questioning the crew of the MS Thor Liberty after what were described as 69 Patriot anti-missile missiles were found aboard.

Interior Minister Paivi Rasanen said the missiles were marked "fireworks".

The MS Thor Liberty had docked in the Finnish port of Kotka after leaving Germany last week.

Dock workers became suspicious after finding explosives poorly stored on open pallets, and the missiles were then found in containers marked "fireworks".


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,290
Reaction score
1,246
http://www.washingtonpost.com/world/europe/finnish-police-detain-ukrainian-captain-officer-in-missile-and-explosive-shipment/2011/12/22/gIQAMWPOBP_story.html


A spokesman for Germany’s Defense Ministry said the missiles were an official shipment that was fully declared and had all necessary clearings from German authorities.


“Those Patriot guided missiles are from the Bundeswehr’s stocks and have been shipped to South Korea” according to an intergovernmental treaty, he said, declining to be named in line with government policy.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,777
Reaction score
1,913
http://www.spacewar.com/reports/Finland_says_missile_ship_free_to_leave_999.html

Finnish customs are investigating the case as one of illegal export of defence material.

A German defence ministry spokesman said the Patriot missiles, produced by US firm Raytheon, came from the German military and were destined for South Korea.

He said it was a "legal sale on the basis of an accord between two states at the government level". He said the transaction had received an official export authorisation and was reported to customs authorities.

However Finland said Friday it had not received the paperwork required from Germany.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,777
Reaction score
1,913
Sixty-nine Patriot missiles impounded in Finland after being found on a merchant vessel in mid-December were headed for South Korea, the Finnish government said Wednesday, granting their transit through Finnish territory.

"The missiles in question had been sold to the Republic of Korea by Germany," the government said in a statement, adding that it had granted a licence to Seoul's "Defence Acquisition Programme Administration to transit through Finnish territory 69 Patriot missiles."

The surface-to-air missiles, produced by US firm Raytheon, were discovered on December 15 aboard the British-registered Thor Liberty docked in the southeastern Finnish port of Kotka.

http://www.spacedaily.com/reports/Helsinki_green-lights_Patriot_missile_shipment_to_SKorea_999.html


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,777
Reaction score
1,913
Government officials on Wednesday said they had studied the case and decided to grant the Korean Defense Acquisition Program Administration a re-export license. It has until the end of August to ship the missiles from Finland.

"There was no reason to delay anymore," Finnish Defense Minister Stefan Wallin said. "Everything is in order."

http://abcnews.go.com/International/wireStory/finland-grants-transit-permit-patriot-missiles-15286200#.TwcMotRSTXd


RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
846
Reaction score
81
Website
www.alternatewars.com
China just did another ABM test, it appears to be an exo-atmospheric midcourse intercept. Here's a Xinhua article posted a little bit earlier:


Background information of mid-course interception missile


Xinhua/Globaltimes.cn | January 28, 2013 18:35

The mid-course interception missile is actually comprised of a large booster rocket and interception warhead. The booster is like a carrier rocket, which sends the warhead into the atmosphere while the warhead of the mid-course interceptor is the equivalent of a “small missile”.

This “small missile” is equipped with dynamic, tracking and target recognition systems. The dynamic system drives the warhead and locks its target; the guidance system compiles its targets data, especially infrared signature. These systems track and identify the target, ultimately guiding the warhead to intercept the oncoming projectile.

The most technologically-advanced component of the missile defense system is the interception warhead. In order to reduce its size the structure was designed to be as small as possible. Since accuracy is of the utmost importance, the guidance system is highly sensitive to movement and finely tuned to maintain a lock on its target.

Employing a fast-burning conflagrant booster rocket is necessary in order to deliver the warhead into the atmosphere as rapidly as possible. However, maintaining accuracy at such high speeds is very demanding. If the margin of error goes beyond the comfortable range of the guidance system, the missile may fail to reach its target.

Besides, the mid-course anti-missile system does not only have missiles but also a powerful early warning and monitoring network, which can be used in actual combat.

A ballistic missile reaches mid-course very quickly after being launched. If the system wants to intercept the missile mid-way, it has to identify its target, track and compute its trajectory as fast as possible. After launch, the anti-ballistic missile then is quickly launched and fired on course to release the interception warhead.

Building a perfect mid-course anti-missile interception system is a very complicated project and requires a powerful early warning and monitoring system. The key component of this early warning and monitoring system is a missile early-warning satellite.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,389
Reaction score
1,431
RyanCrierie said:
China just did another ABM test, it appears to be an exo-atmospheric midcourse intercept. Here's a Xinhua article posted a little bit earlier:


Background information of mid-course interception missile


Xinhua/Globaltimes.cn | January 28, 2013 18:35

The mid-course interception missile is actually comprised of a large booster rocket and interception warhead. The booster is like a carrier rocket, which sends the warhead into the atmosphere while the warhead of the mid-course interceptor is the equivalent of a “small missile”.

This “small missile” is equipped with dynamic, tracking and target recognition systems. The dynamic system drives the warhead and locks its target; the guidance system compiles its targets data, especially infrared signature. These systems track and identify the target, ultimately guiding the warhead to intercept the oncoming projectile.

The most technologically-advanced component of the missile defense system is the interception warhead. In order to reduce its size the structure was designed to be as small as possible. Since accuracy is of the utmost importance, the guidance system is highly sensitive to movement and finely tuned to maintain a lock on its target.

Employing a fast-burning conflagrant booster rocket is necessary in order to deliver the warhead into the atmosphere as rapidly as possible. However, maintaining accuracy at such high speeds is very demanding. If the margin of error goes beyond the comfortable range of the guidance system, the missile may fail to reach its target.

Besides, the mid-course anti-missile system does not only have missiles but also a powerful early warning and monitoring network, which can be used in actual combat.

A ballistic missile reaches mid-course very quickly after being launched. If the system wants to intercept the missile mid-way, it has to identify its target, track and compute its trajectory as fast as possible. After launch, the anti-ballistic missile then is quickly launched and fired on course to release the interception warhead.

Building a perfect mid-course anti-missile interception system is a very complicated project and requires a powerful early warning and monitoring system. The key component of this early warning and monitoring system is a missile early-warning satellite.

Sounds like they were able to get KEI to work.


RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
846
Reaction score
81
Website
www.alternatewars.com
I'm not quite sure. KEI was very bleeding edge.

They might be using a more energetic propellant solution or faster burning motor for their first stage than is US/Russian custom for GBI or Galosh; because of the unique conditions that China faces for ABM.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,389
Reaction score
1,431
RyanCrierie said:
I'm not quite sure. KEI was very bleeding edge.

They might be using a more energetic propellant solution or faster burning motor for their first stage than is US/Russian custom for GBI or Galosh; because of the unique conditions that China faces for ABM.

I wonder what kind of performance Spartan might have had if they'd swapped out that heavy 5 Mt warhead with a KKV.


chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
6
RyanCrierie said:
I'm not quite sure. KEI was very bleeding edge.

They might be using a more energetic propellant solution or faster burning motor for their first stage than is US/Russian custom for GBI or Galosh; because of the unique conditions that China faces for ABM.

I believe their first stage is a standard MRBM booster. Likely to have lots of total energy due to it's size, but seems unlikely to have phenomenal acceleration.


RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
846
Reaction score
81
Website
www.alternatewars.com
sferrin said:
I wonder what kind of performance Spartan might have had if they'd swapped out that heavy 5 Mt warhead with a KKV.


Did you go read the latest stuff I posted in the SPRINT/SPARTAN thread? They had a lot of proposals, such as mounting a lighter 1MT warhead in a new third stage, along with 50-60 second loiter capability; or MIRVing KKVs in an early implementation of MKV -- basically, the central warhead would have a large sensor which would identify all the targets, decoys, balloons, warheads, missile bus; then calculate trajectories to hit them, and then pass them off to the unguided HIT interceptors clustered in the warhead, which would then fire off and hit everything that was a threat.


RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
846
Reaction score
81
Website
www.alternatewars.com

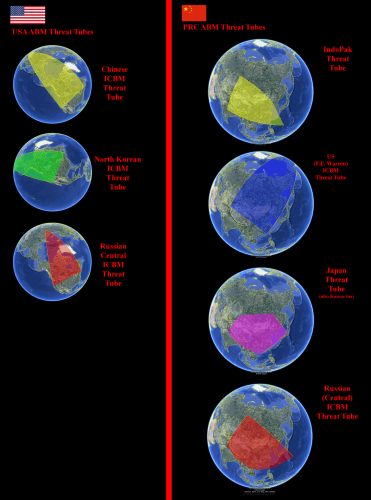

I can't help but wonder what the final configuration of the Chinese ABM system will be. It probably won't be a single site like the US due to the different threat tubes (see attached image), and probably will be different systems due to the different threat levels.

NOTE: Possible SLBM tubes omitted for clarity.


The US only has to worry about Ballistic missiles from basically one contiguous side (Northwest to North); while China has to worry about them from no less than three sides (West to East).

Not all that horrible, since the Chinese designers basically can concentrate their Heavy ABM assets in the F.E. Warren threat tube; and concentrate Light ABM assets on the other sides; since the threats from those angles will be IRBMs and MRBMs.

At some point though, the Chinese will need to worry about upgrading those Light ABM assets; since theoretically, the Russians/Indians/Pakistanis/Japanese/Koreans could develop a slightly plus-sized IRBM/MRBM that is larger than is needed for a minimum energy trajectory, with the extra mass devoted to more propellant for a higher burnout speed.


Attachments

  • ABM_Tubes_Compared_Small.png
    383.5 KB · Views: 140

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,727
Reaction score
496
Hmmm ... to admit, not my topic, but that's what I found:

http://v.youku.com/v_show/id_XNTA3NzU1MDA4.html
http://i676.photobucket.com/albums/vv122/dy19821022/132148270.jpg
http://i676.photobucket.com/albums/vv122/dy19821022/132148279.jpg
http://i676.photobucket.com/albums/vv122/dy19821022/132140398.jpg
http://i676.photobucket.com/albums/vv122/dy19821022/132141301.jpg
http://i676.photobucket.com/albums/vv122/dy19821022/195003o1bmceubnu4n4mcm.jpg
http://i676.photobucket.com/albums/vv122/dy19821022/195004wsxnyjsznzx2d49g.jpg
http://i676.photobucket.com/albums/vv122/dy19821022/095734bfefocfz83ihffkf.jpg


chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
6
I don't think the Chinese can conceivably provide worthwhile level of protection against ICBM and SLBM threat from the US or Russia in the foreseeable future. I think they will primarily be focused on protecting population center of Eastern china from Indian IRBM and light ICBM for now.
