Bloch unbuilt designs and prototypes

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


there are many little known Bloch projects,such as MB.62,it was developed from MB.61,
as ET4 aircraft with the same engine of MB.61,appeared in 1932,but not built.


http://www.dassault-aviation.com/fr/passion/avions/bloch-civils/mb-60-61.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


the Bloch MB.101 was developed from MB.100,but no more details are known.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
A little known Bloch projects;


MB.212;
The Bloch MB.212 was the designation given to the prototype Bloch 211 four-seat night bomber after its inline engines were replaced with Hispano-Suiza air-cooled radial engines during 1936. The Bloch 211 was been powered by two 860hp Hispano-Suiza 12Ybrs inline engines when it made its maiden flight on 16 April 1935, but the inline engines didn't provide any increase in performance over the Gnôme & Rhône radials used on the Bloch 210. During 1936 the Bloch 211 was re-engined with Hispano-Suiza 15Aa01/02 radial engines, and redesignated as the Bloch 212. As with the Bloch 211 this version of the aircraft was not entered into production.


http://www.historyofwar.org/articles/weapons_bloch_mb212.html

Also the mystery the MB.218,which developed from MB.210 series;

http://en.wikipedia.org/wiki/Bloch_MB.210


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


a mystery Bloch project,the MB.261,it was developed from MB.160 series,but
no more details are known.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


the Bloch MB.218 was a torpedo bomber seaplane version of MB.210,eight aircraft
ordered by French navy,but cancelled and remained a project only.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


the Bloch MB.261 was a 40 passenger airliner aircraft project,based on MB.161,intended for
Air France ways,but the aircraft was never completed.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


a small info about Bloch MB.550 project,TU magazine.


Attachments

  • MB.550.png
    92.1 KB · Views: 231

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Hi Hesham,
I tried to check in Gallica, but Les Ailes no.886 is from 9 June 1938, and I find nothing about the MB.550.
Adrien


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
c460 said:
Hi Hesham,
I tried to check in Gallica, but Les Ailes no.886 is from 9 June 1938, and I find nothing about the MB.550.
Adrien


OK my dear Adrien.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


Bloch MB.360 was six engined transatlantic aircraft project,accommodated 40 passenger,and
powered by six 2200 hp with speed of 600 km/h and weight 63 to 68 ton,the MB.361 was based
on it,and powered 3500 P & W engines,speed of 700 km/h and weight 70 ton.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

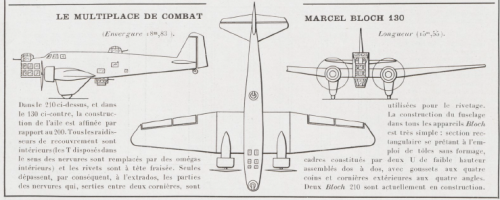

From l'Aeronautique 12/1934,


here is a drawing to Bloch-130.


Attachments

  • Bloch-130.png
    305.9 KB · Views: 802

JimK

ACCESS: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8

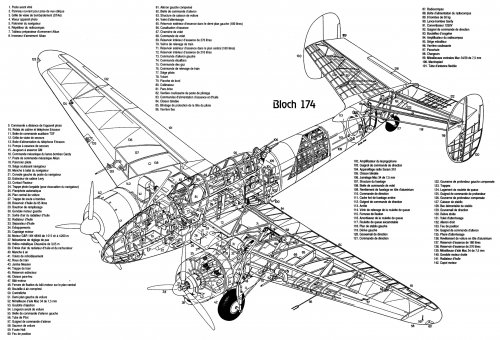

The Bloch MB 174 cutaway that appeared in Post #56, reassembled:


Attachments

  • Bloch MB 174 for SPF.JPG
    Bloch MB 174 for SPF.JPG
    1.5 MB · Views: 758

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
635
Reaction score
93
Cutaway Bloch MB 174-4, retouched image to unite both halves and correct some scanning product details



Success


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
528
Not to undermine your work, Motocar, but unless there's something I failed to see here, I think this average quality scan is adding nothing to the quality image JimK shared a few hours ago... PLUS he didn't mess up the page with one of those annoying scrolling pics, but instead attached them as is customary on our forum. Perhaps you could try to do the same next time?


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
635
Reaction score
93
Unfortunately I do not know as they do in their forum, the image that gather has retouched the central area where you lost some visual information and for purposes aesthetic also maintains the original format, the next time invite to see it in the section "Artwork" via a link.

Greetings Motocar

P.D Excuse my poor English


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


there is two Bloch MB.190 Projects,the first MB.190 was a tourist aircraft project version
of MB.80,but the second or re-allocated project is unknown to me ?,can anybody help ?.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
105
Hi Hesham
From an old "aviation magazine"
but ???????????????


Attachments

  • Scan.jpg
    313.9 KB · Views: 416

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
hesham said:
there is two Bloch MB.190 Projects,the first MB.190 was a tourist aircraft project version
of MB.80,but the second or re-allocated project is unknown to me ?,can anybody help ?.


Thank you my dear Toura,


and about the MB.190,I will search about it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


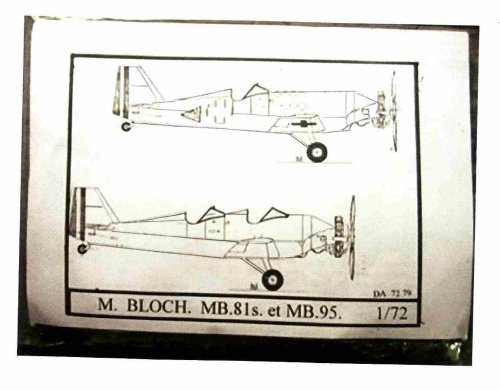

the Bloch-95 was a little known aircraft,derivative of Bloch-81,as a two seat tourist aircraft.


TU magazine 171


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

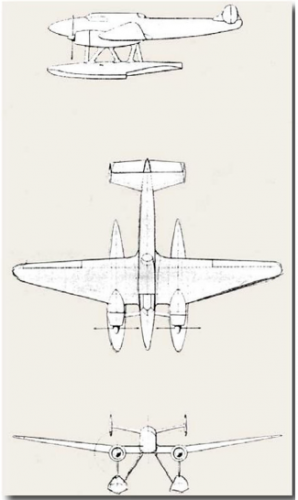

here is a primary Bloch MB.134 concept and MB.136 float version Project.

Avions 209


Attachments

  • 134.png
    120.4 KB · Views: 933
  • 136.png
    101.1 KB · Views: 919

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005

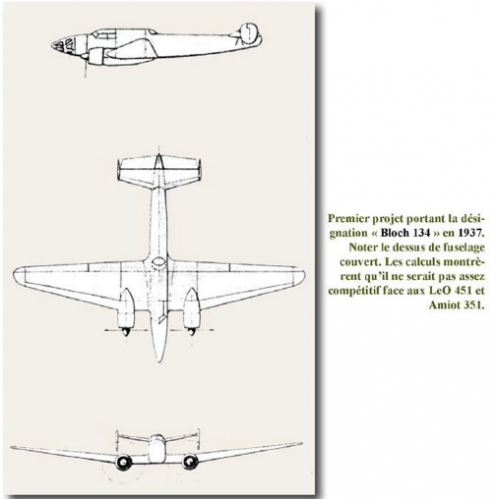

That's the early 1937 Bloch 134 B4 concept for Edition Nº 1 du Programme Technique A 21. The built version had Gnome-Rhône 14N 48/49s in place of the original concept's GR 14Ps. The built version also differed in having continuous glazing between cockpit and gunner's position.

The 4-engined MB 135 and float MB 136 retained the earlier MB 134's upper decking. The MB 136 was to be powered by GR 14P or 14N engines. The built MB 480 was essentially similar to the GR 14N-powered version of the MB 136 project (other than the addition of a spreader bar on the floats and bracing for the twin tails).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
That's right my dear Apophenia,

and the designing of MB.480 was prevented MB.136 to materialize,it was better than it.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
Not sure about "better" ... but certainly different. The MB 480 was a conceptual evolution of the MB 136 but based on a different airframe. The MB 136 was based on the airframe of the original MB 134. The MB 480 airframe was based on that of the slightly enlarged second iteration of the MB 134.

MB 136: span 20.82 m, length 15.10 m, gross weight 9,165 kg

MB 480: span 23.50 m, length 19.10 m, gross weight 10,000 kg


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Apophenia said:
Not sure about "better" ... but certainly different. The MB 480 was a conceptual evolution of the MB 136 but based on a different airframe. The MB 136 was based on the airframe of the original MB 134. The MB 480 airframe was based on that of the slightly enlarged second iteration of the MB 134.

MB 136: span 20.82 m, length 15.10 m, gross weight 9,165 kg

MB 480: span 23.50 m, length 19.10 m, gross weight 10,000 kg

My dear Apophenia,

as they wrote in the magazine,the developing of MB.480 killed the program of MB.136.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
hesham said:
as they wrote in the magazine,the developing of MB.480 killed the program of MB.136.

Yes, or put another way: Projects based on the first, smaller iteration of the MB 134 airframe - like the MB 136 - were eclipsed by projects based on the revised and slightly-enlarged later MB 134 airframe - like the MB 480.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
c460 said:

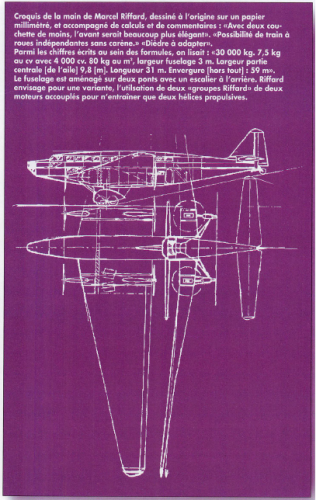

Here are unnamed four-engine Bloch studies, some of which were drawn by Marcel Riffard. These are from Le Fana no.342 again.
The same source mentions further four-engine projects: the Bloch IX and XI passenger aircraft and the Bloch XVI heavy bomber (BN5), of 1930-31.

In colors.


Attachments

  • b.png
    554.8 KB · Views: 575
  • a.png
    610.3 KB · Views: 636

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
c460 said:

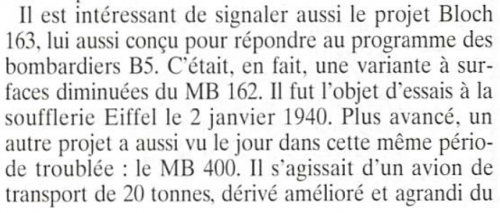

According to Le Fana no.343, the MB.163 was a scaled-down version of the MB.162, or a MB.162 with a smaller wing.

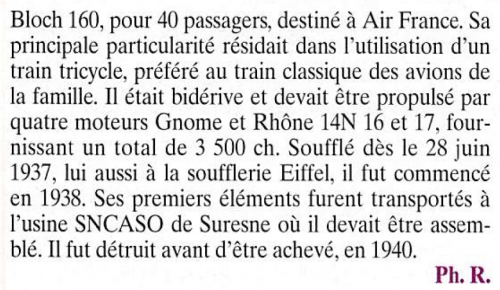

The same article mentions a Bloch MB.400 passenger derivative of the MB.160, with tricycle gear, whose prototype was started but never completed.

And the text about MB.400.


Attachments

  • 1.png
    306.3 KB · Views: 417
  • 2.png
    403.7 KB · Views: 28

blockhaj

Swedish "want to be" aviation specialist
Joined
Feb 9, 2017
Messages
171
Reaction score
72
Anyone have the real flight performance data of the mb-157? The rumors that it had a top speed of 700 km/h have been proven wrong and I wondered if anyone here have its real papers?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

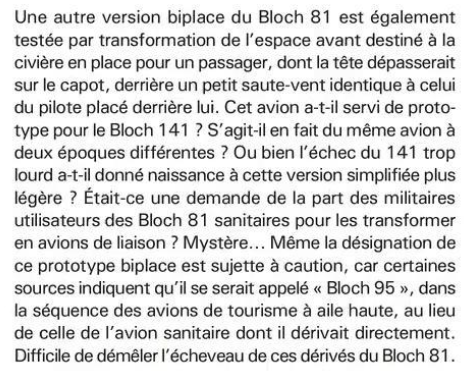

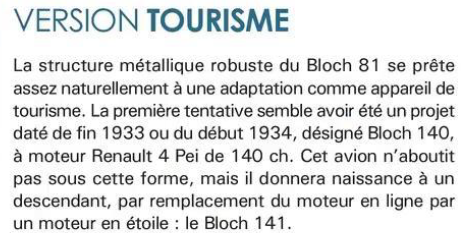

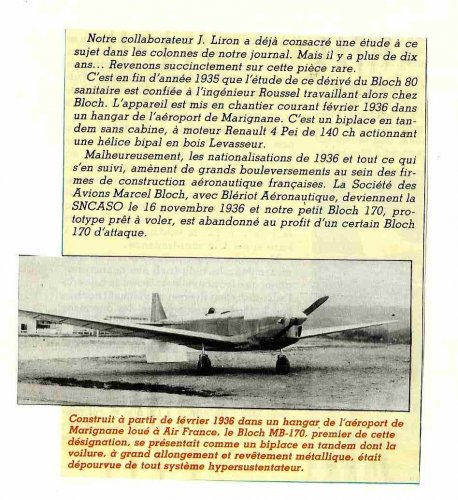

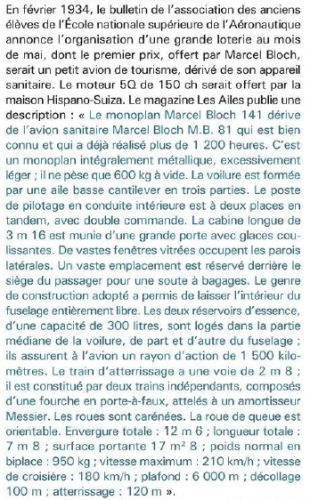

From Aero Journal 59,

a small Info about Bloch MB-140 & MB-141 which developed from MB-80,also
a hint about MB-95.


Attachments

  • 1.png
    104.5 KB · Views: 21
  • 2.png
    335.2 KB · Views: 23
  • 3.png
    162.7 KB · Views: 33

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
105
Sorry ! I don't remember where I've found this
a long time ago !


Attachments

  • bloch.pdf
    438.8 KB · Views: 66

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

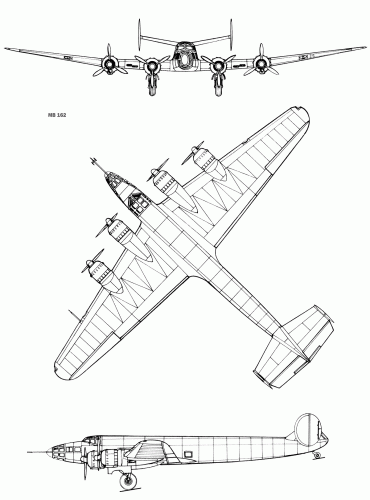

Hi! Bloch MB.162.

http://www.airwar.ru/enc/bww2/mb162.html

https://en.wikipedia.org/wiki/Bloch_MB.162
"The Bloch MB.162 was a French four-engine, long-range bomber developed by Société des Avions Marcel Bloch in the late 1930s. Only a single prototype was built; after capture by German forces, it was impressed into service with the Luftwaffe as a transport."

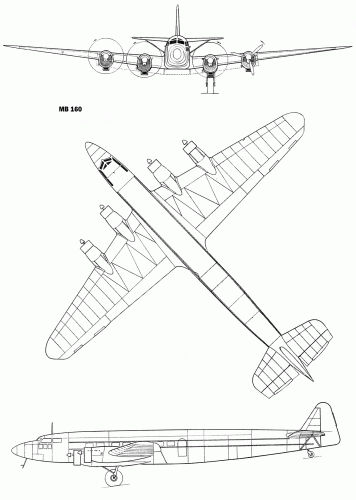

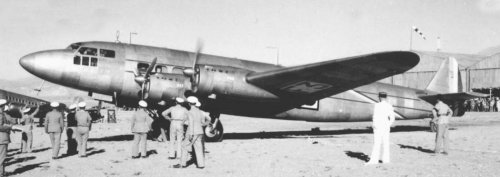

MB.160.
http://www.airwar.ru/enc/cww2/mb160.html
"civil transport prototype with smaller span, longer, single central fin. Three built."

https://www.youtube.com/watch?v=WS7MHKFofhA


Attachments

  • mb160-20.jpg
    50.4 KB · Views: 79
  • mb160-1.gif
    184.9 KB · Views: 91
  • mb162 at paris air show.jpg
    mb162 at paris air show.jpg
    88.9 KB · Views: 69
  • mb162-5.jpg
    51.3 KB · Views: 75
  • mb162-1.gif
    175.3 KB · Views: 74

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

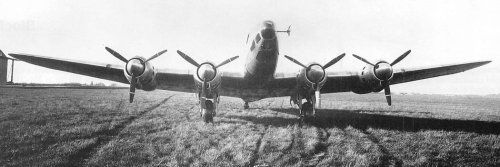

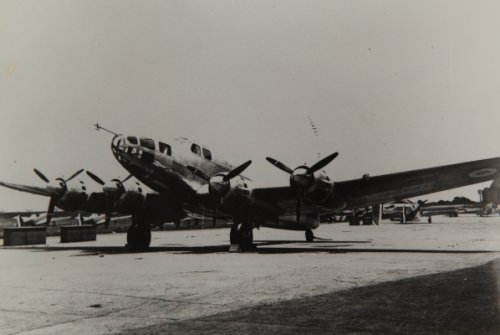

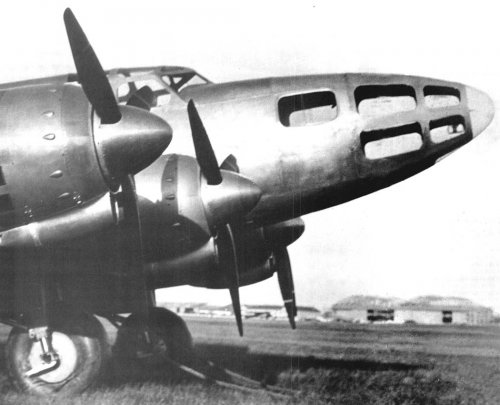

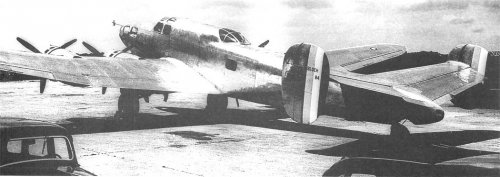

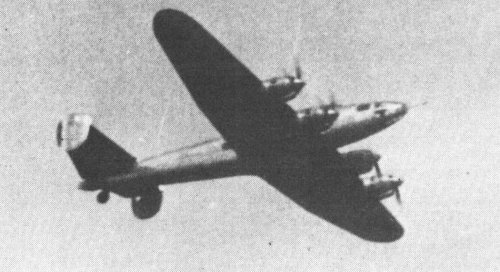

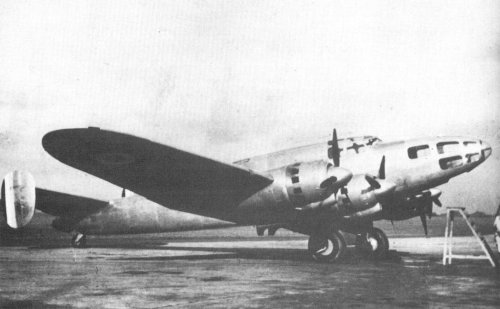

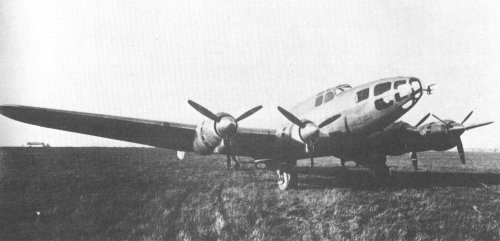

Hi! More MB.135 pictures.

This internet site has a jumble of MB.134(twin engines) and MB.135(four engines).
http://www.airwar.ru/enc/bww2/mb135.html


Attachments

  • mb135-5.jpg
    77.7 KB · Views: 48
  • mb135-4.jpg
    77.9 KB · Views: 38
  • mb135-2.jpg
    77 KB · Views: 42
  • mb135-3.jpg
    77.5 KB · Views: 42
  • Bloch MB135 PIC1.jpg
    Bloch MB135 PIC1.jpg
    198.7 KB · Views: 54
  • mb135-c1.jpg
    27.5 KB · Views: 54
  • mb135-8.jpg
    144.3 KB · Views: 42
  • mb135-1.jpg
    97 KB · Views: 37

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

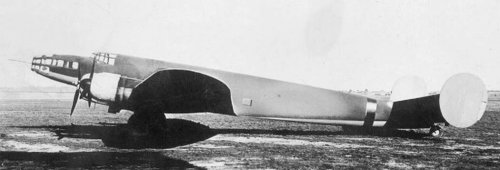

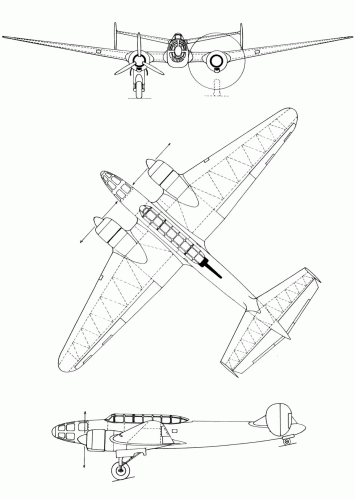

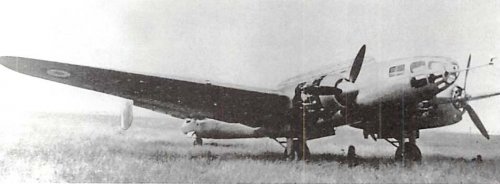

These two picture shows MB.134. ;D

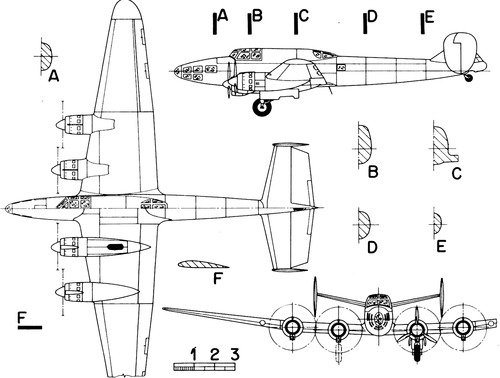

Bottom drawing shows MB.135.

https://www.the-blueprints.com/blueprints/ww2planes/ww2-german/78395/view/bloch_mb_135b_4/


Attachments

  • mb135-7.jpg
    43.1 KB · Views: 46
  • mb135-1.gif
    244.1 KB · Views: 66
  • Bloch MB.135B.4 [LIMITED to 500px].jpg
    Bloch MB.135B.4 [LIMITED to 500px].jpg
    43.3 KB · Views: 72
