Guerchais and Guerchais-Roche projects

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,116

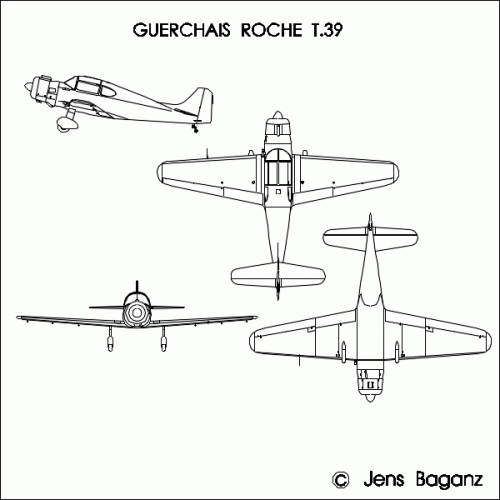

[quote author=hesham]Guerchais-Roche T-30 : two seat light aircraft with Ford V-8 engine.
,, ,, T-55 : was T-39 with a clear-view canopy,modified tail and a 160 hp
Walter Minor 6-111 engine.

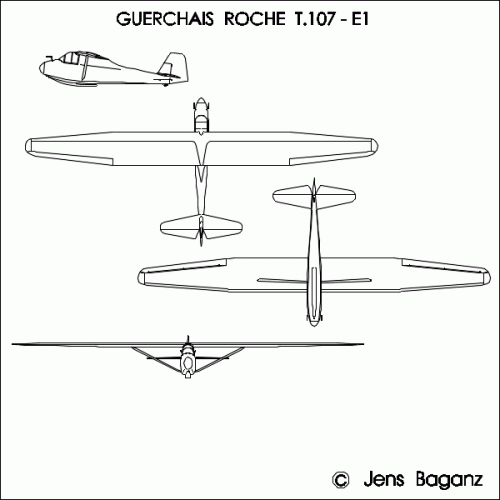

,, ,, GR-107 : single seat glider aircraft.[/quote]

The T.30 would be a welcome addition and the proposed VEMA 51
would have been indeed identical to the Macchi MB-320.


Attachments

  • T39.GIF
    23.2 KB · Views: 1,105
  • T55.GIF
    23.9 KB · Views: 1,025
  • T107.GIF
    17.4 KB · Views: 966

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

Guerchais T-9 :single engined light cabin monoplane,with 120 hp
Renault engine.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
The Guerchais-Roche SA.103 was simply 160 examples of the famous Emouchet glider built during 1946-1948 by Roche-Aviation.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,


the Guerchais began its career in aviation by designed the 1-01 sailplane
or a gilder monoplane of 1922.


Then he formed a company with Hanriot in 1928,and he started with T-1,
it was a project for light aircraft,may be a high-wing configuration,that's
because,it made the designers to inspire the T-2,powered by one 60 hp
Salmson 9 Adr engine.


Source; Trait d'Union issue 210


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106

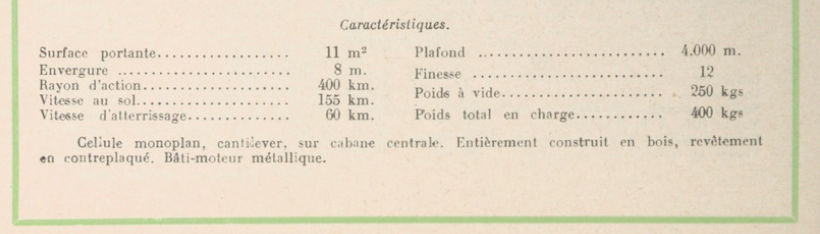

From an old "aviation magazine"


Attachments

  • guerchais.jpg
    260.6 KB · Views: 587

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106

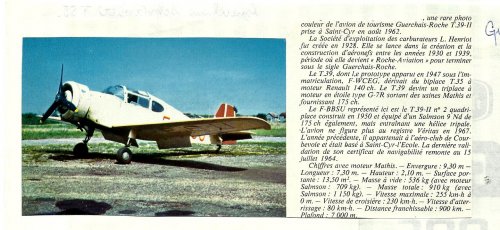

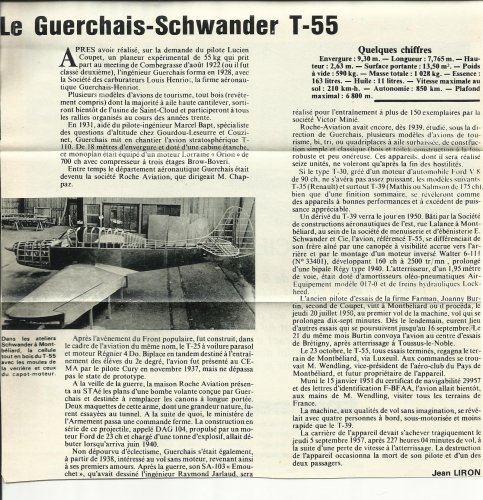

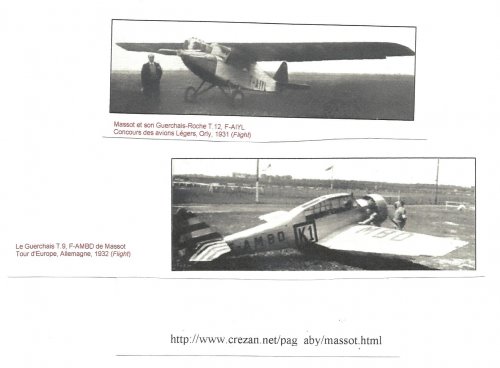

From JEAN LIRON "aviation magazine"


Attachments

  • guerchais.jpg
    680.9 KB · Views: 514
  • guer 2.jpg
    guer 2.jpg
    497.2 KB · Views: 79

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
The Guerchais-Henriot T.2 was entered in the economical aeroplane contest at Orly in August 1928.

The goal of the contest was to encourage the demonstration of practical aircraft, preferably two-seaters, comfortable and capable of carrying 15-kg mail bags over 400 km non-stop, and to climb up to 1,500 m in 30 minutes with full load. No limitation was placed on engine power, but empty weight was limited at 400 kg.

Evaluation was based on a series of technical tests, which included an altitude test, a take-off and landing test, a disassembly/reassembly test, and a speed test. The qualities of takeoff, climb, seating arrangement, fireproofing, wood or metal covering of wings, assembly/disassembly, automatic engine start, dual controls, protection against rollover, visibility, comfort, protection against noise, etc., all added up to increase the aircraft's mark.

A final and decisive efficiency test consisted in a 400-kilometer closed circuit.

Once this series of tests was over, the remaining contenders had to run a series of daily 250- to 400-km legs in a 2,200-km aerial Tour de France.


25 types were initially entered (though 25th aircraft is unaccounted for):
  • 15 French aircraft: Caudron (6), Albert (4), Guerchais (1), Mauboussin (1), Leduc (1), Nessler (1), Peyret (1).
  • 3 German aircraft: Klemm (2), Baumer Aero (1).
  • 6 English aircraft: C.L.A. 4 (1), Avro Avian (3), De Havilland Moth (2).
10 aircraft were eventually retained:
  • N°1: Caudron with 40 hp Salmson engine.
  • N°3: Caudron with 60 hp Salmson engine.
  • N°4: Caudron with 60 hp Salmson engine.
  • N°6: Caudron with 60 hp Anzani engine.
  • N°9: Klemm with 40 hp Salmson engine.
  • N°10: Guerchais with 50 hp Anzani engine.
  • N°14: Albert with 40 hp Salmson engine.
  • N°18: Avro Avian with 85 hp Cirrus engine.
  • N°20: De Havilland Moth with 85 hp Gipsy engine.
  • N°25: Avro Avian with 85 hp Cirrus engine.
The Guerchais T.2 was a small two-seat "limousine" cabin type with dual controls, piloted by Lemerre, who aimed to prove that flying was a sport like any other andmade a point of performing his Tour de France wearing a straw hat and light gloves. It finished the contest in sixth position, behind a Caudron but ahead of an Albert and the other two Caudrons that were running.

Also see: http://www.secretprojects.co.uk/forum/index.php/topic,12382.0


Attachments

  • T.2.jpg
    82 KB · Views: 74
  • Lemerre in T.2.gif
    Lemerre in T.2.gif
    40.8 KB · Views: 70

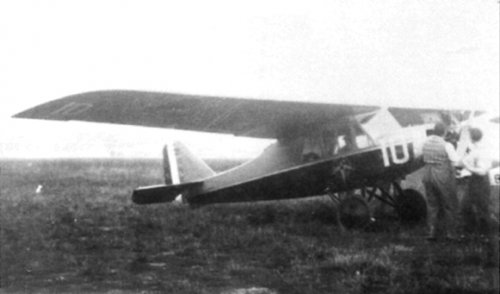

  • Guerchais T.2 'N°10'.gif
    Guerchais T.2 'N°10'.gif
    20.7 KB · Views: 78

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,656
Reaction score
1,012
hesham said:
... he formed a company with Hanriot in 1928 ...

Louis Guerchais was partnered with Louis Henriot not René Hanriot. This is a very common error/typo (Hanriot's 1920s-1030s trainers are invariably listed as 'Henriot' designs).

BTW, an ebay ad mentions "Avions Hydravions GUERCHAIS-L. HENRIOT" as a title in Locomotion Aerienne - Les Ailes - 9ème année, n° 450, 30 janvier 1930. Might these hydravions make up some of the 'missing' Guerchais-Henriot designations?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Thank you my dear Apophenia,


T-50 was two seat high-wing tourist aircraft of 1932,powered by one 95 hp
Salmson 7 Ac engine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,


T-3 was a single sea parasol wing monoplane project,as acrobatic aircarft of 1931,
powered by one 40 hp Salmson 9 Ad engine.


T-4 was a touring aircraft version of T-3,equipped with 50 hp Salmson 5 Ac engine,
project only.


Source; Trait d,Union issue 210


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,


T-8 was a three seat light aircraft of 1929,powered by one 95 hp Renault
4 Pb engine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,


T-14 as T-8,it was a three seat tourist aircraft of 1933,powered by one 95 hp
Renault 4 Pb engine,only one aircraft was built.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,


T-10 was single seat low-wing light aircraft,powered by one 40 hp Salmson
9 Ad engine.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Also the Guerchais had many unnumbered Projects;

- Single seat light aircraft,equipped with engines ranged between 35 up
to 60 hp,developed from T-3 & T-4.

- Two seat light aircraft,equipped with engines ranged between 45 up to
75 hp,based on T-2.

- Three seat light aircraft,equipped with engines ranged between 70 up
to 100 hp,developed from T-5 and T-8.

- Four seat (up to ten seat) light aircraft,equipped with ranged between
120 up to 180 hp,maybe it was T-7,as they suggested in TU magazine.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Hi,

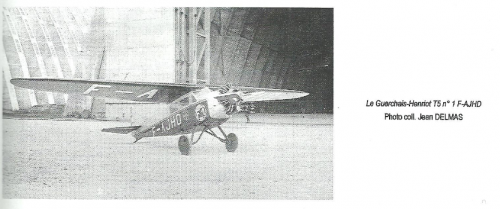

the Guerchais T.5 was Limousin high-wing light aircraft,powered by one 95 hp Renault
4 Pb engine.


TU magazine


Attachments

  • T.5.png
    360.9 KB · Views: 194

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29

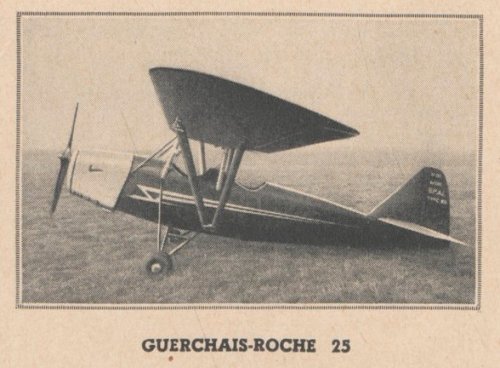

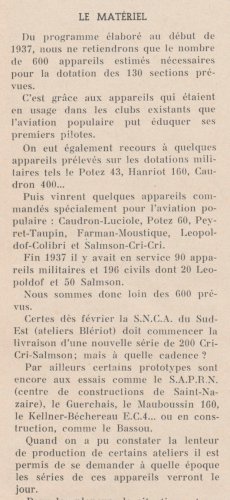

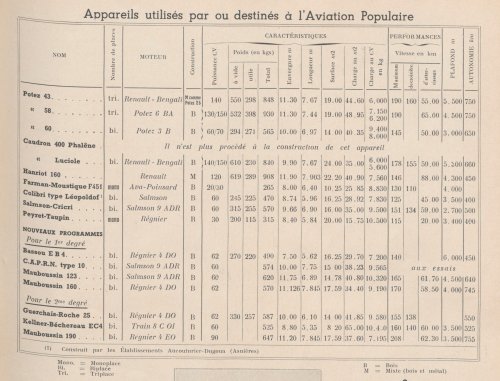

Guerchais-Roche 25 light aircraft, built ca.1937 for l'Aviation Populaire, from L'Aérophile 02/1938.


Attachments

  • aviation_populaire_L_Aérophile_1938_p79.jpg
    213.6 KB · Views: 88
  • aviation_populaire_L_Aérophile_1938_p80.jpg
    636.8 KB · Views: 104
  • guerchais-roche_T.25_L_Aérophile_1938-02_p82.jpg
    84.5 KB · Views: 113

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

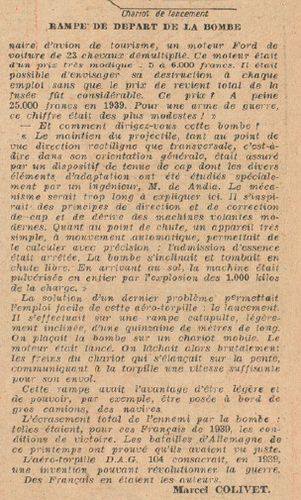

From Aviation Francaise 1945,

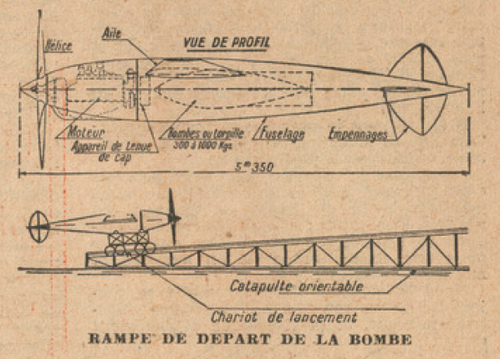

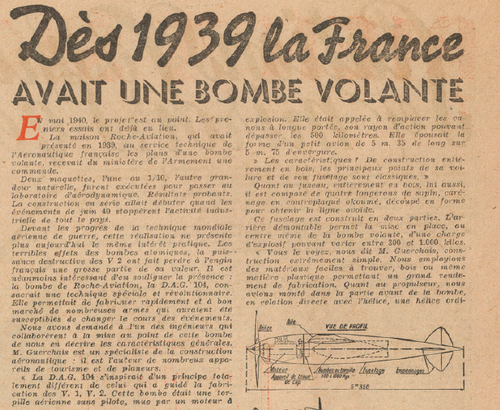

here is a Project for flying bomb,called DAG.104 of 1939.


Attachments

  • G-1.png
    508.6 KB · Views: 32
  • G-2.png
    657.6 KB · Views: 33
  • G-3.png
    328.2 KB · Views: 27

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

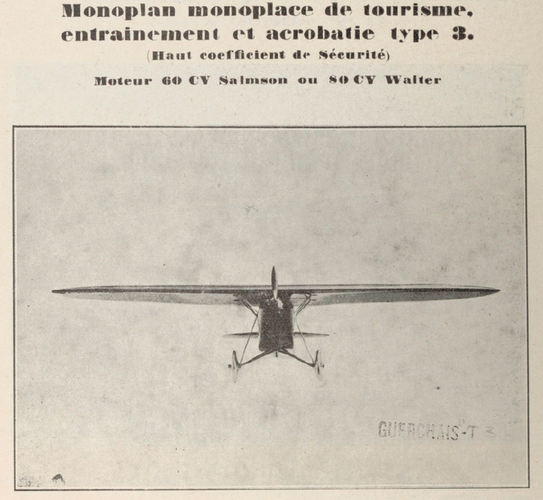

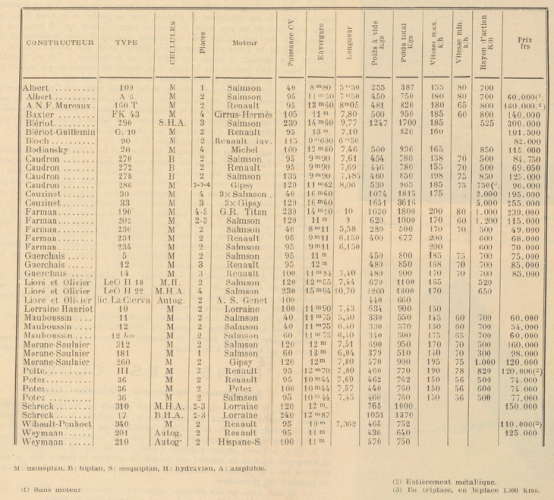

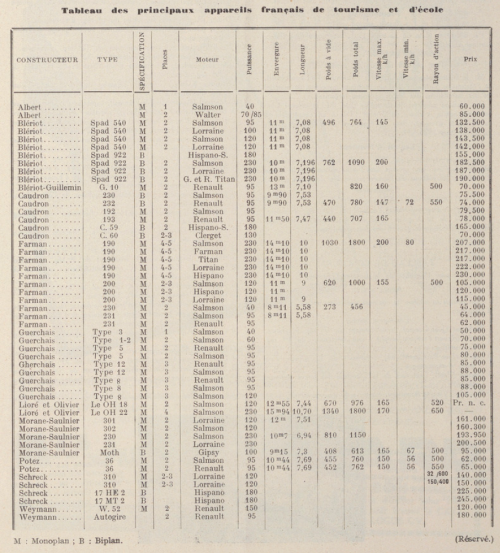

T-3 was a single sea parasol wing monoplane Project,as acrobatic aircraft of 1931,
powered by one 40 hp Salmson 9 Ad engine.
From, Annuaire_de_l'aéronautique__bpt6k9810211h.


Attachments

  • 7.png
    631.5 KB · Views: 10
  • 7-1.png
    290.6 KB · Views: 18

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

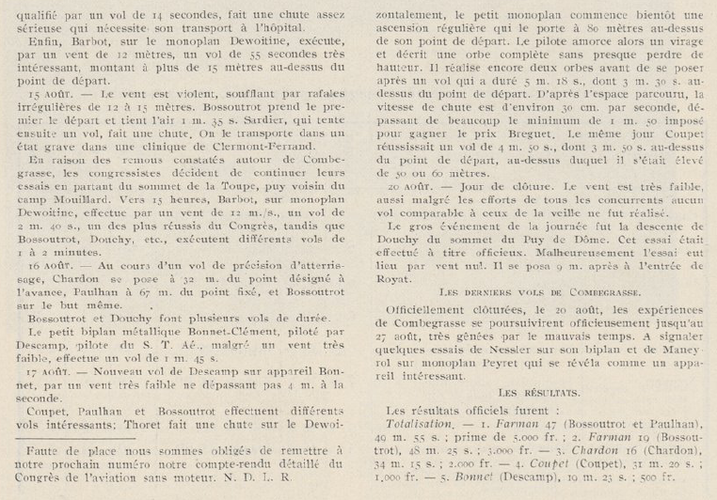

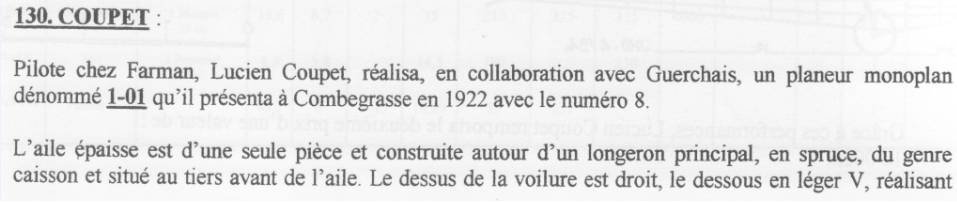

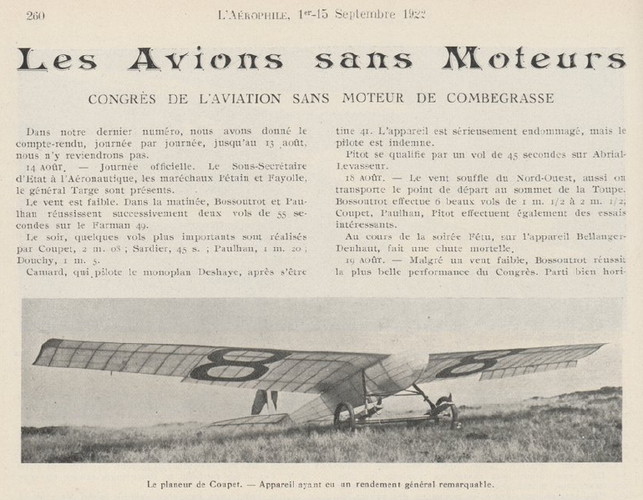

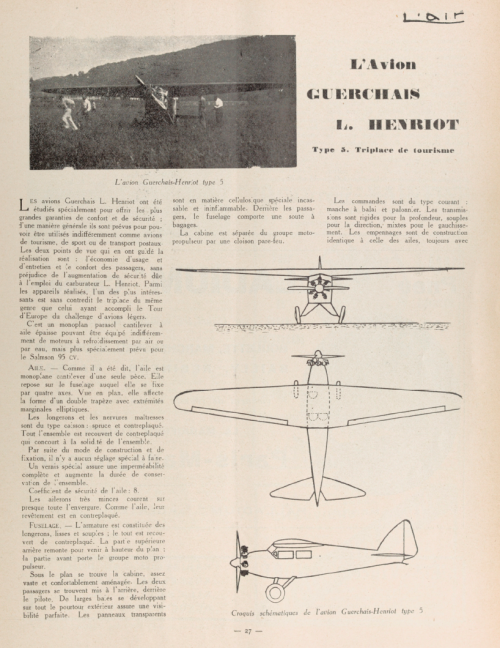

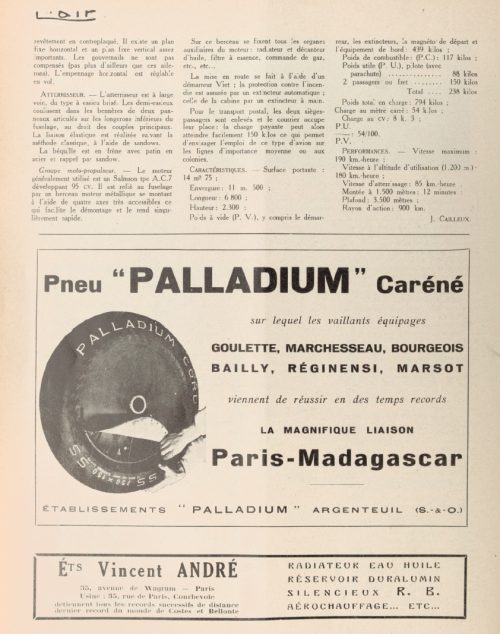

From Aerophile 1922 and TU 183.


Attachments

  • 1.png
    148.5 KB · Views: 6
  • 2-1922.png
    563.1 KB · Views: 6
  • 3-1922.png
    568.4 KB · Views: 6
