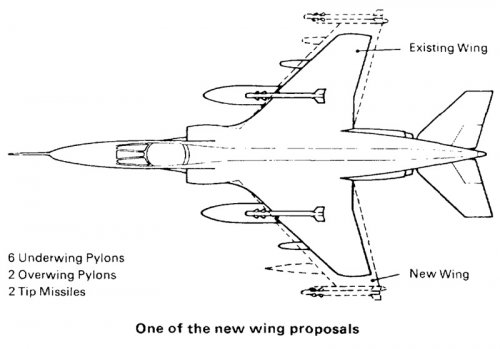

overscanLine drawing from above Flight pdf.
HoodI think the Super Jag was a different big wing from the proposed Jaguar M big wing.
Do you know any drawing about the French wing for the Jaguar M?
Well hardly. Remember Jaguar originated as the Breguet 121, before becoming an Anglo-French program. The basic configuration remained as the original Breguet design, with BAC eventually becoming 'prime' for a lot of the design, especially Jaguar International. Mirage, of course, originated with Dassault, so no common heritage.I always looked at Jaguar being an Anglo Mirage F1. They opted for twin engines where one could have sufficed. Funny enough the French even bought it.
