mmmh Atomic Helicopter...

i wonder how the engine works,
a Nuclear reactor heat water to steam how drive turbines, who connected to the rotors ?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
A gearbox, as used in a "conventional" gasturbine driven heli ? ???


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
The designation of that project was D-1007, by the way. I have the date 1960 associated to it, although it could be a little earlier.


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
28
Here the well known Bell D-1007
http://www.secretprojects.co.uk/forum/index.php/topic,2541.msg140316.html#msg140316

Here a Hughes study about nuclear powered helicopters
http://atomic-skies.blogspot.de/2012/09/apex-910-part-1.html

Here another study about a nuclear heavy-lift helicopter
Google Books Snippet View
-An Investigation of a Nuclear Powered Heavy-lift Helicopter Concept for Logistic Operations
-Andrew B. Witko, University of Michigan, 1958
-a unmanned ? remote controlled helicopter with seperate power-unit and cargo-unit ?

Igor Sikorsky study from 1955
-"The Transport Helicopter"
-Sikorsky proposed several methods for nuclear powered helicopters ?
-Separate passenger cabin or reactor hang on a cable under the helicopter. ?

Maybe someone knows these studies and could help ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,001
Reaction score
5,297

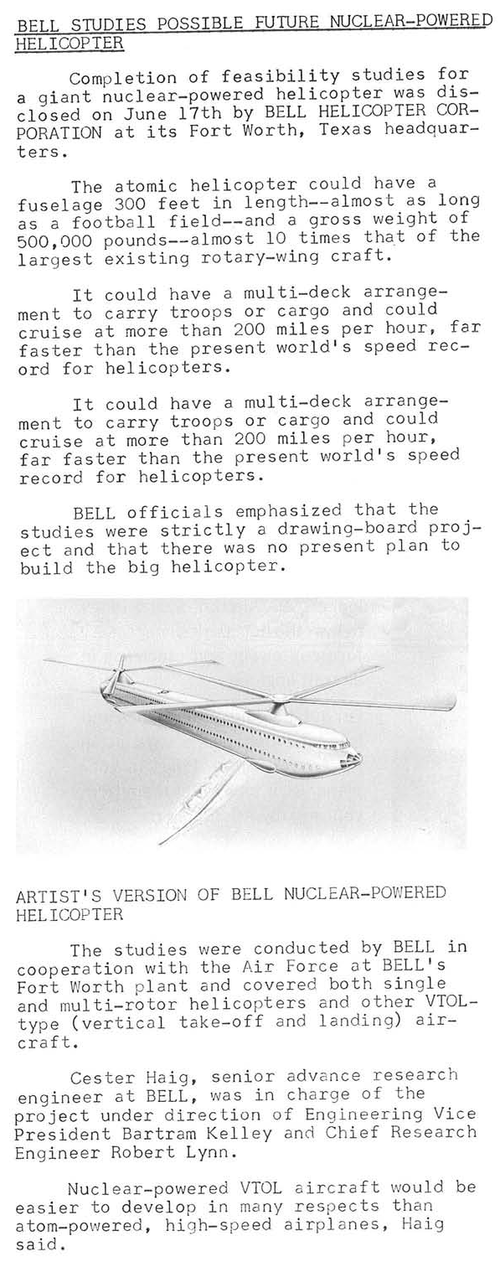

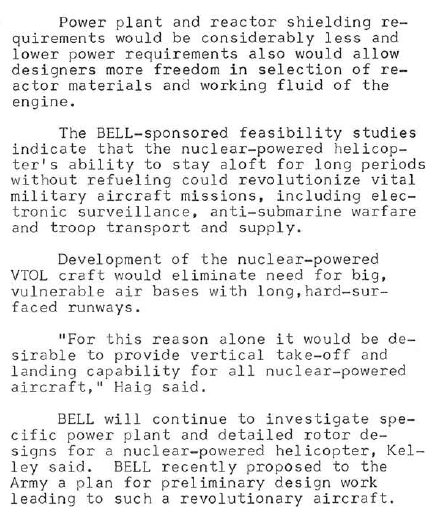

From Vertiflite 1959.


Attachments

  • 2-1959-7.png
    79.9 KB · Views: 55
  • 3-1959-7.png
    505.2 KB · Views: 53
  • 4-1959-7.png
    150.2 KB · Views: 51
